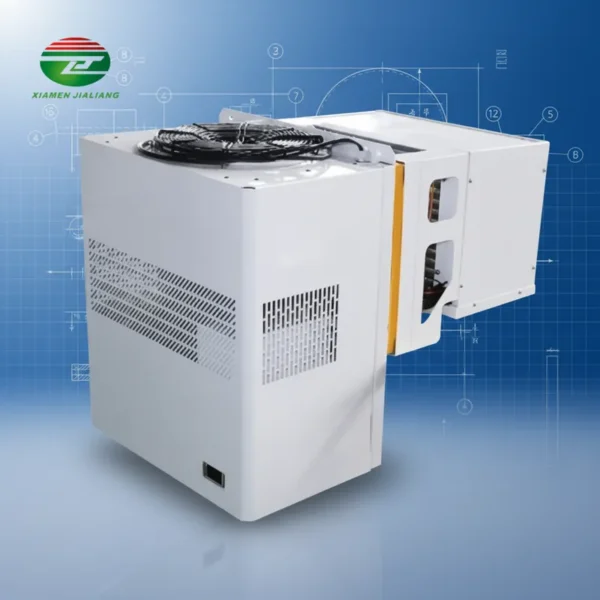

Condensing Unit, 2hp, 3hp, Monoblock

Condensing unit — 380 V, 220 V, refrigerant R-404A, R-22, R-290. The complete factory specification follows. Made by Xiamen Jialiang Refrigeration Engineering Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Condensing Unit

• Model Number: Customized
• Horse Power: 2HP
• Voltage: 380 V, 220 V
• Cooling Capacity: Customized
• Refrigerant: R-404A, R-22, R-290
• Warranty: 1 Year

Technical Specifications

Product Details

Since our products are custom-made, prices vary depending on the size and configuration. Some listed prices are for accessories (purchased by the customer to replace parts). If you are interested, please contact us to confirm before placing an order. Thank you.

Easy to Install Refrigeration 2hp 3hp Condensing Unit Negative Monoblock Cold Room Refrigeration Unit

Product Description

The use of inverter monoblock unit combined together with refrigeration systems is nowadays subject of several studies conducted both from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter monoblock unit starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature fluctuation to avoid compressor frequently start to effect compressor life.

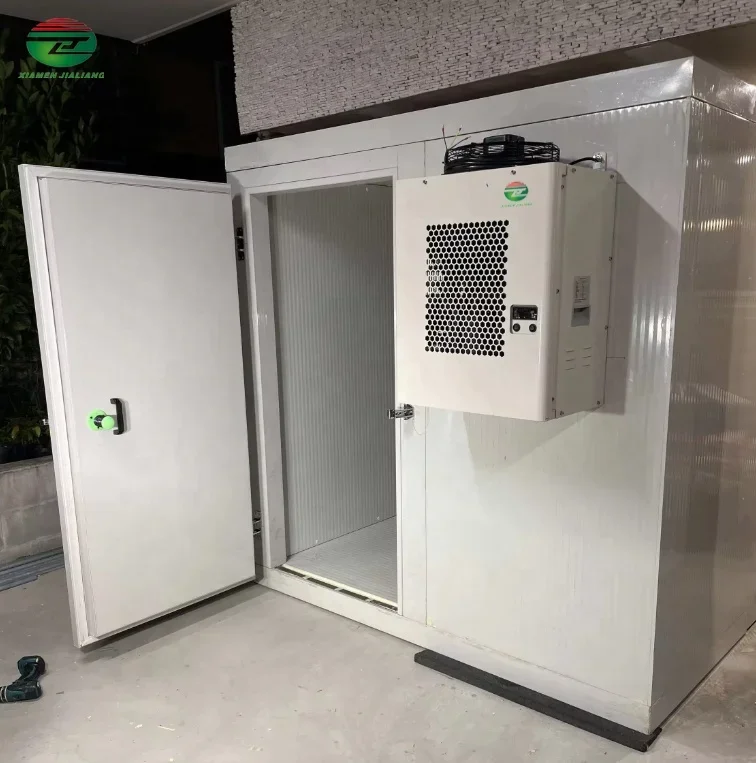

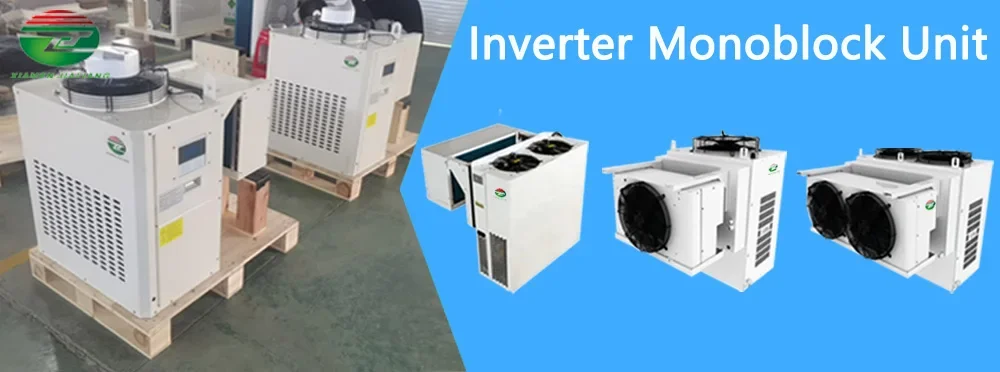

Side Embedded Inverter Monoblock Unit

Model

Voltage

Power

Packaging Size (mm)

Product Weight(kg)

Freezer Room Volume

Cold Room Volume

XMJL-YTCN10

220V

220V/50Hz

670*880*800

113

≤7m³

≤12m³

220V/60Hz

XMJL-YTCN20

220V

220V/50Hz

820*1000*1000

130

≤15m³

≤25m³

220V/60Hz

380V

380/50Hz

XMJL-YTCN30

220V

220V/50Hz

1050*1000*1000

165

≤25m³

≤40m³

220V/60Hz

380V

380/50Hz

XMJL-YTCN40

380V

380V/50Hz

1120*1070*1060

190

≤35m³

≤55m³

Side Embedded Inverter Monoblock Unit
Model	Supply Voltage	Packaging Size (mm)	Product Weight(kg)	Freezer Room Volume	Cold Room Volume
XMJL-BYTCN10	220V/50HZ/60Hz	670*880*800	113	≤7m³	≤12m³
XMJL-BYTCN20	220V/50HZ/60Hz	820*1000*1000	130	≤15m³	≤25m³
XMJL-BYTCN30	220V/50HZ/60Hz	1050*1000*1000	165	≤25m³	≤40m³
XMJL-BYTCN40	220V/50HZ/60Hz	1120*1070*1060	185	≤35m³	≤55m³

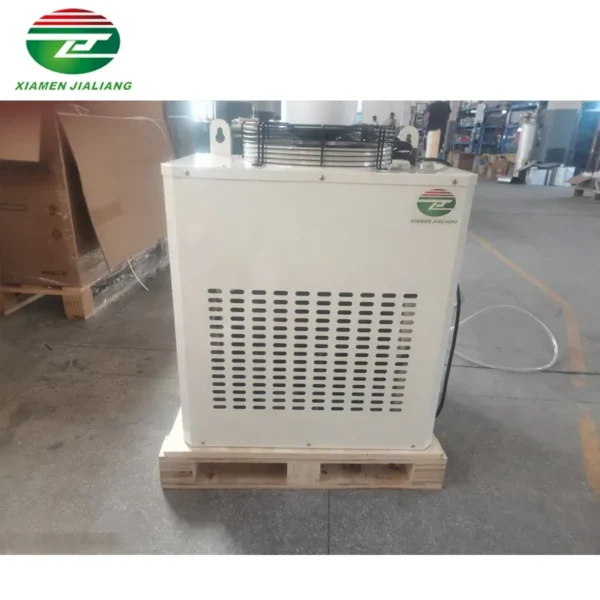

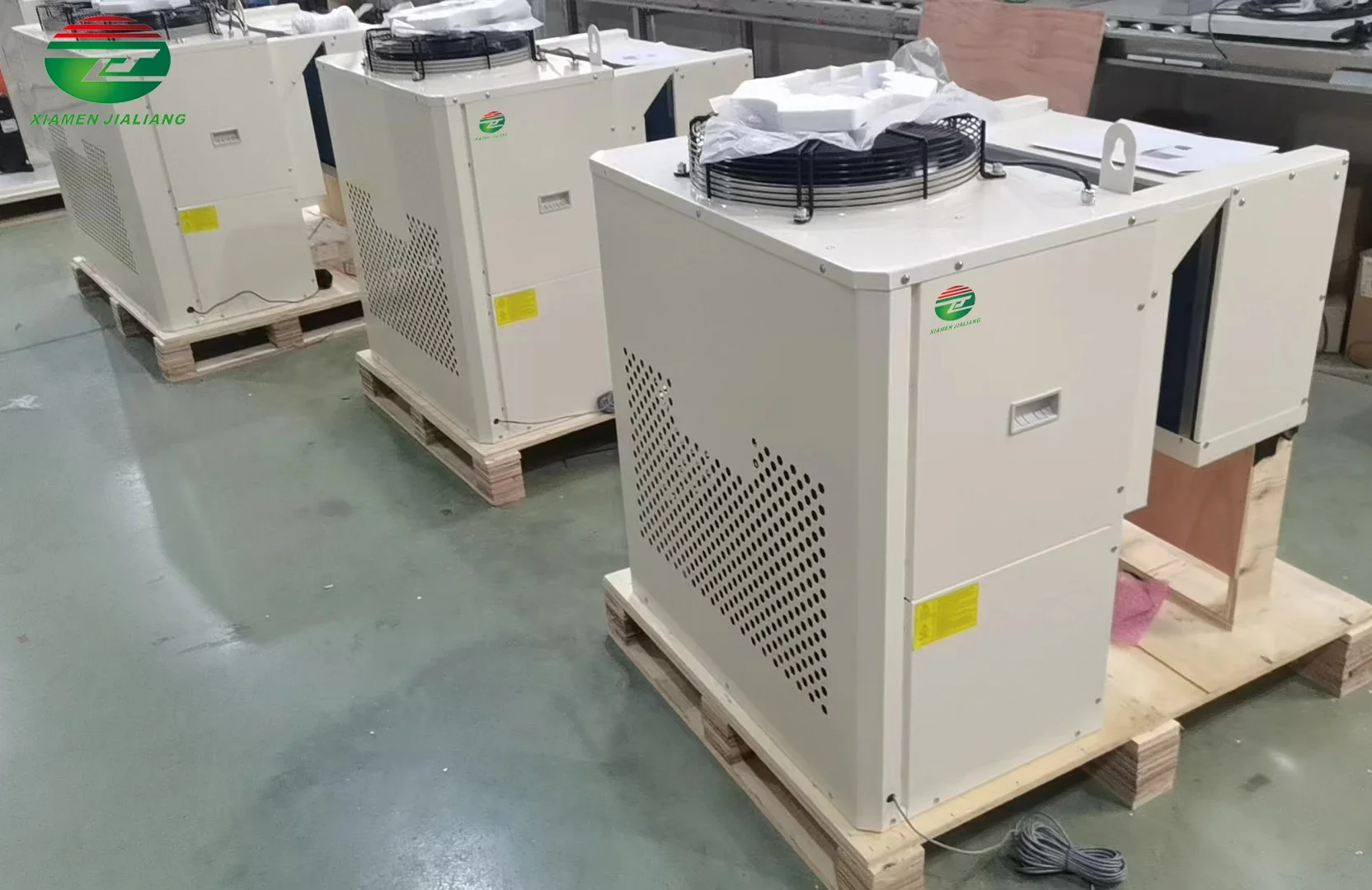

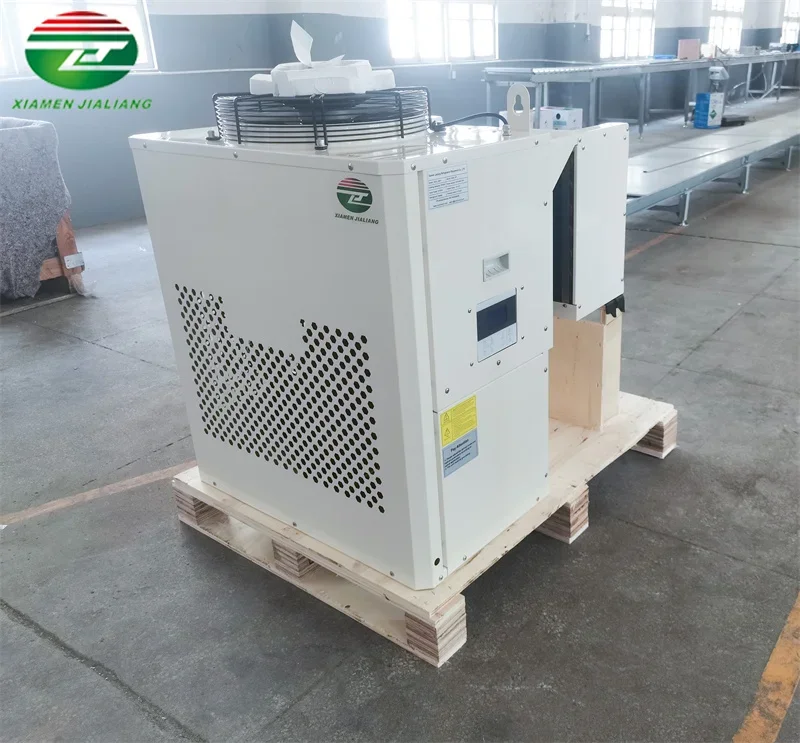

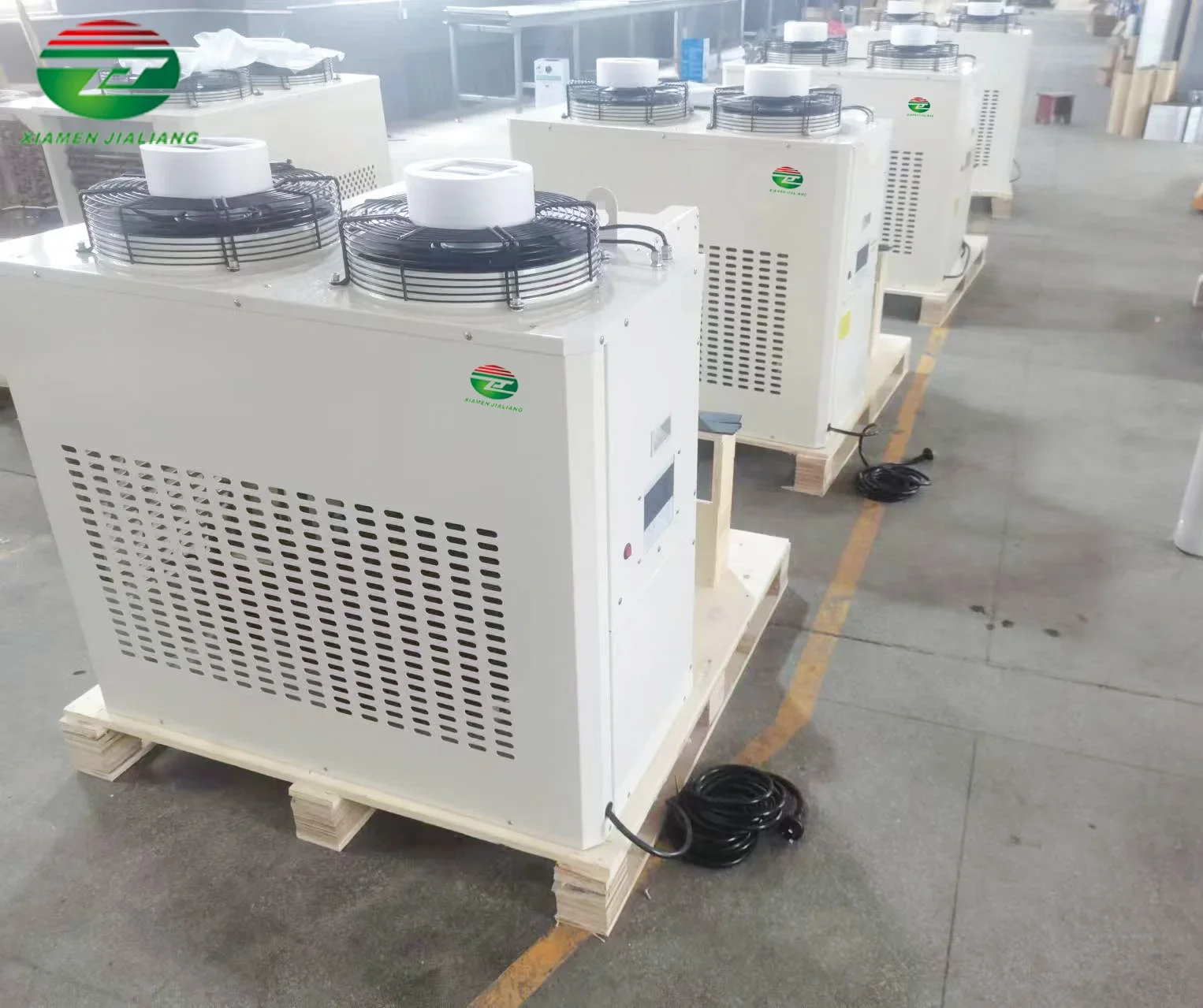

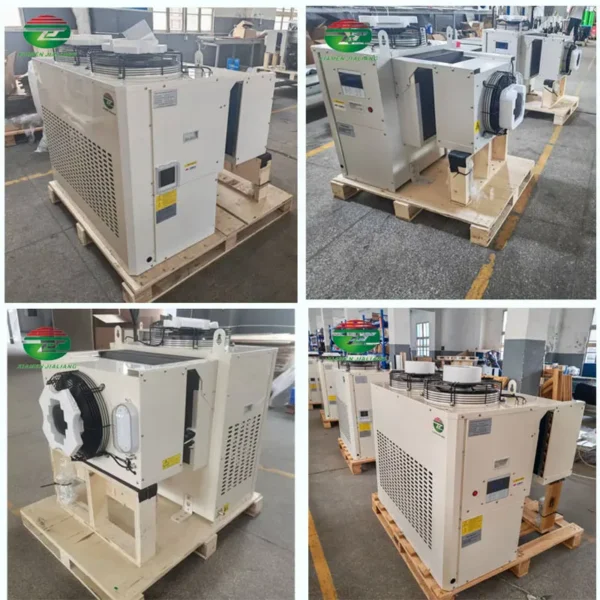

Product Display

Inverter Monoblock Unit Main Feature Reduce cooling speed faster,small temperature fluctuation range; Efficient energy saving, reduce the system energy; Increase in compressors reliability thanks to the significant decrease of compressors startups; Low noise thanks to the extremely high system flexibility; Extremely low vibration phenomena.

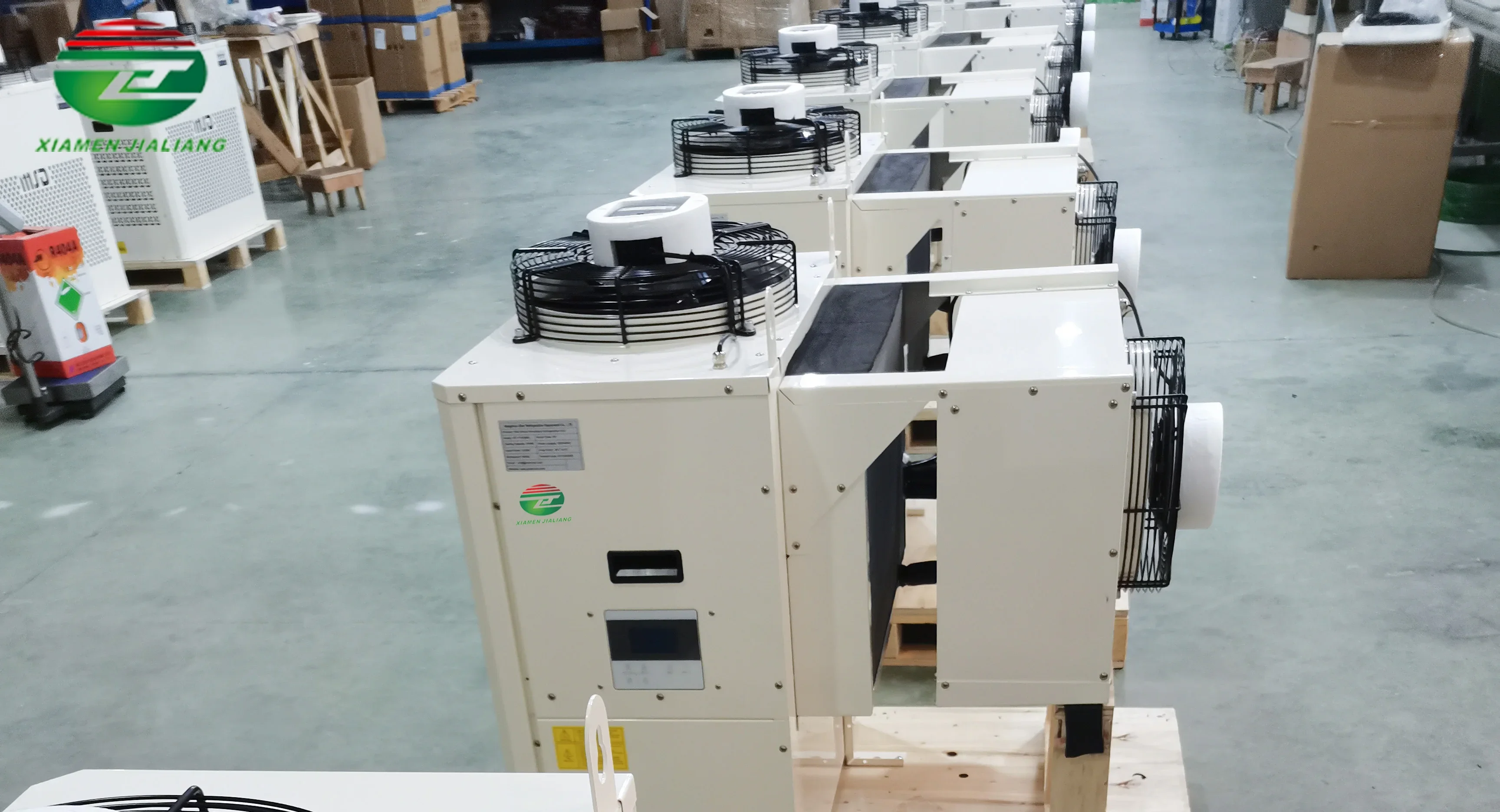

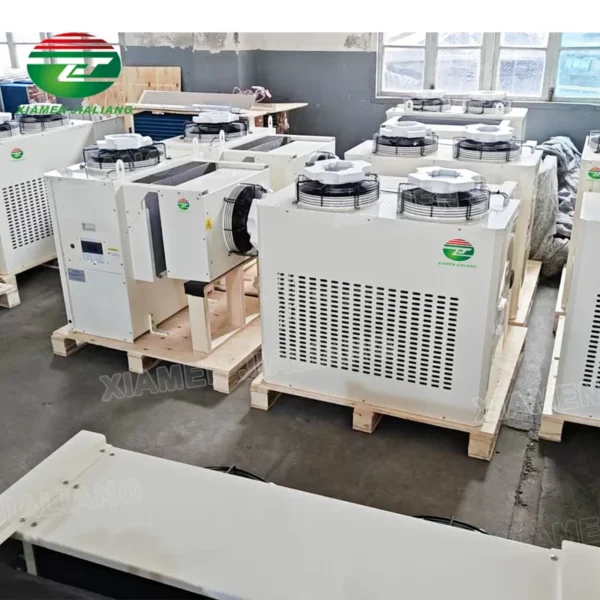

Our Factory

According to the needs of market development, our company has inverter monoblock unit, which changes the traditional form of monoblock unit and can meet the needs of – 5 ℃ – 10 ℃, – 10 ℃ – 18 ℃ respectively. It can be widely used in hotels, restaurants, food, health, agriculture, chemical industry and other industries. The products of totally enclosed inverter monoblock unit have the following characteristics: 1. Inverter monoblock unit has a variety of protections such as phase sequence, phase loss,over current, frequent compressor startup, discharge temperature, system high and low pressure and so on. 2. It has the function of unit operation fault alarm and query. When the unit fails, the alarm sound will be sent out through the buzzer to remind the user in time. 3. The operation panel for supporting the warehouse temperature control board has the functions of temperature display, setting, defrosting

FAQ

Q1: Is the inverter monoblock unit with overload, overheating, undervoltage/overvoltage, high and low voltage protection devices?
A1: Overheating, overload, high and low voltage protection devices are available.
Q2: How about the MOQ?
A2: We have no set MOQ.
Q3: What is the lowest temperature that the inverter monoblock unit can reach?
A3: -20 degrees Celsius

Contact us

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–1 unit: US $289 / unit
  • 2–2 unit: US $263 / unit
  • 3+ unit: US $247 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condensing unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the condensing unit be supplied for my local voltage?

The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Xiamen Jialiang Refrigeration Engineering Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xiamen Jialiang Refrigeration Engineering Co., Ltd. range on HVACR Nexus.
