The condensing unit listed here carries 380 V, model number 4DES-5, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Model Number: 4DES-5
- Voltage: 380 V
- Place Of Origin: Germany
- Scope Of Application: Cold storage and other cooling
- Application Areas: cold storage
- Product Type: Piston compressor
Technical Specifications
| Voltage | 380 V |
|---|---|
| Applicable Scenarios | cold storage |
| Place Of Origin | Germany |
| Part Number | 4CES-9 |
| Product Type | Piston compressor |
| Model Number | 4DES-5 |
| Scope Of Application | Cold storage and other cooling |
| Application Areas | cold storage |
| Brand | Bitzer |
| Order Number | 4DC-5.2 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Bizer 4DES-5/4CES-6 refrigeration compressor for vegetable, fruit, and flower cold storage, 7HP 9HP 6HP, suitable for medium to low temperature applications

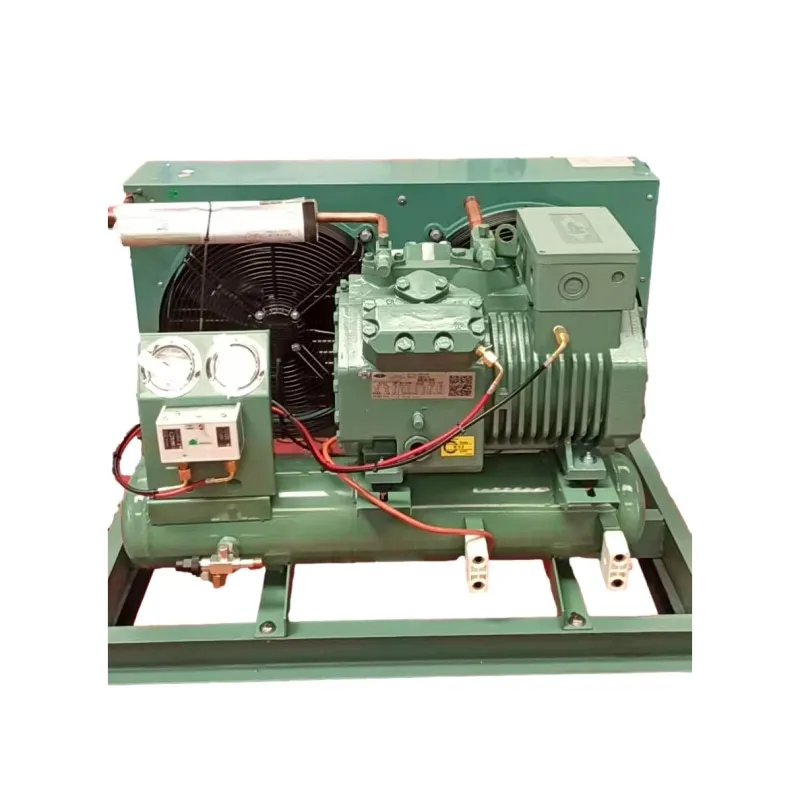

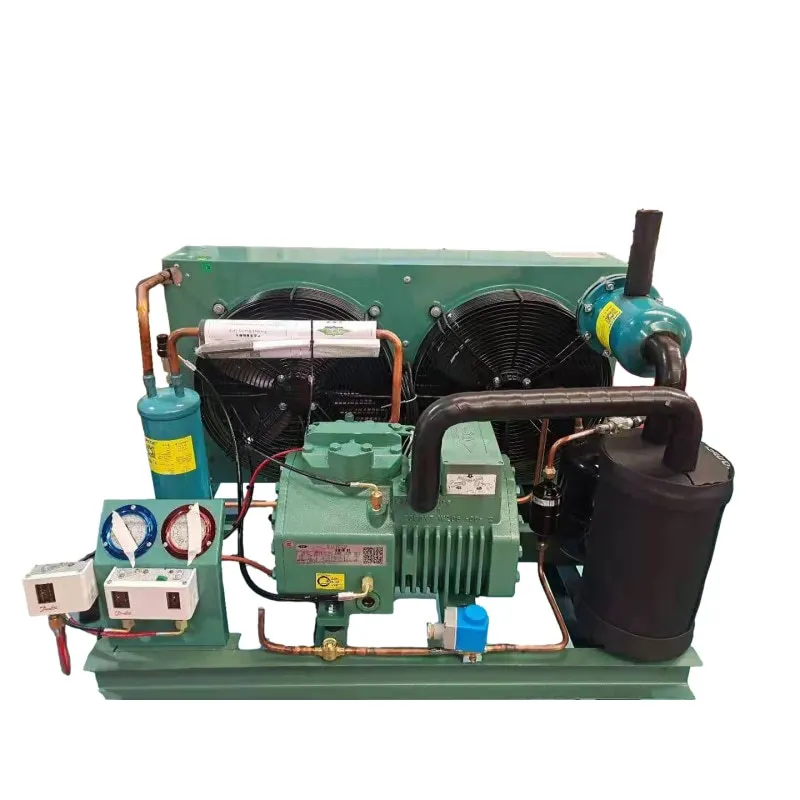

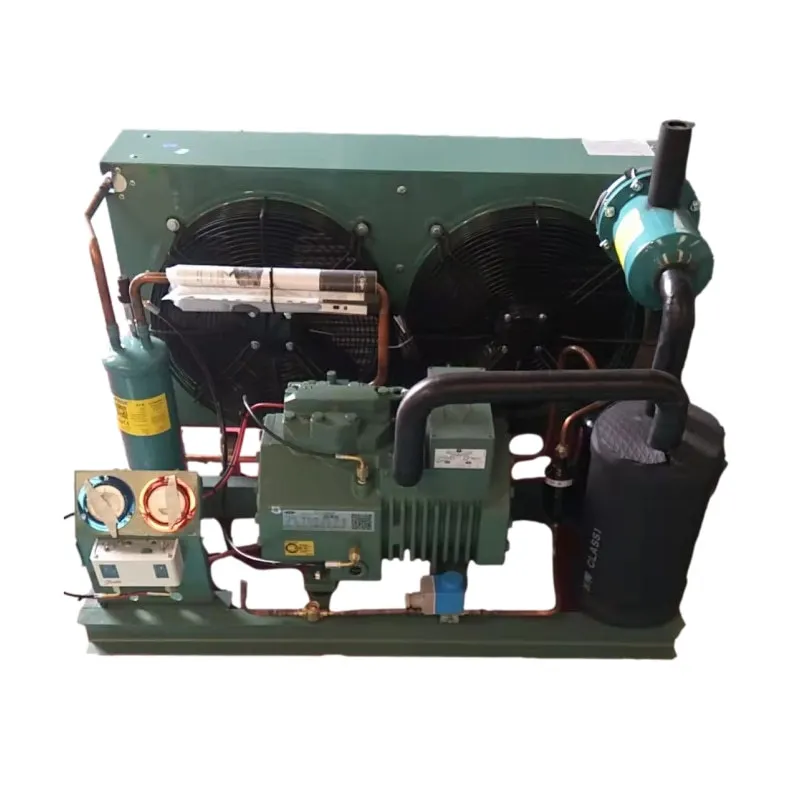

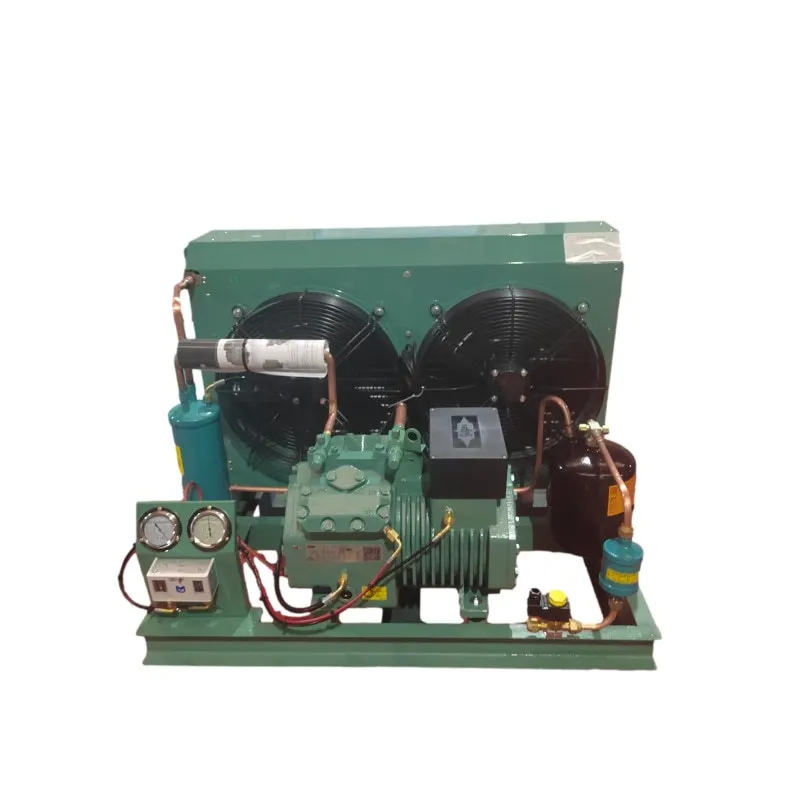

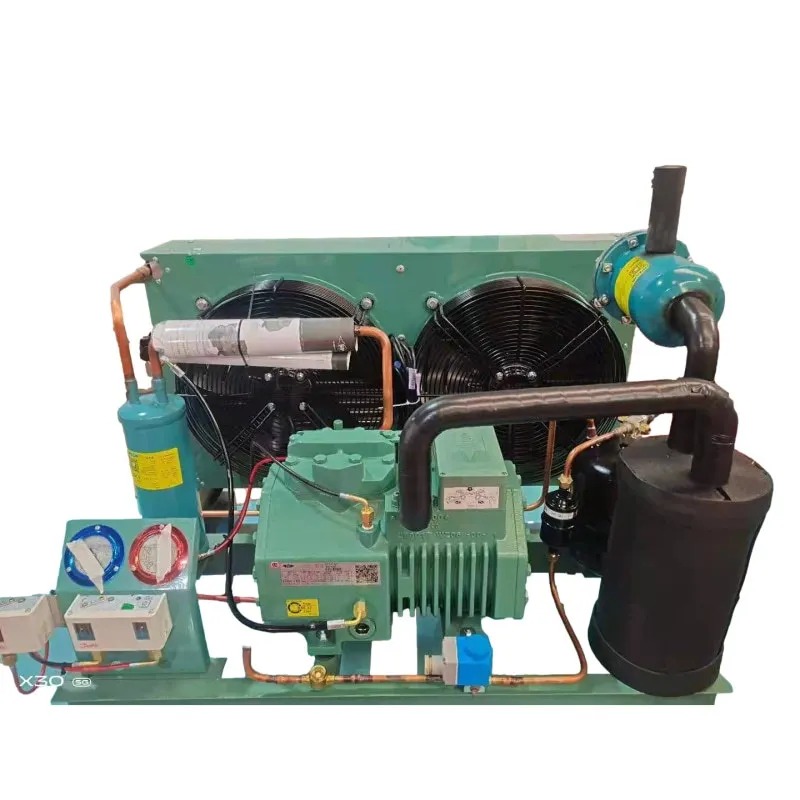

Bitzer Semi-Hermetic Piston Refrigeration Compressor Unit
Product Introduction:
This high-performance refrigeration compressor unit is engineered for medium and low-temperature applications, specifically designed to maintain optimal storage conditions for vegetables, fruits, and flowers. Featuring the renowned Bitzer brand technology, this semi-enclosed piston compressor ensures reliable operation and extended service life for cold storage facilities.
Core Features & Specifications:
- Robust Construction: Utilizes a semi-enclosed structure with fixed displacement technology, offering superior durability and efficient heat dissipation via integrated cooling fans.
- Versatile Models: Available in multiple specifications to meet diverse capacity needs, including 4DES-5 (4DC-5.2), 4CES-6 (4CC-6.2), 4DES-7 (4DC-7.2), and 4CES-9 (4CC-9.2).
- Power Efficiency: Offers a range of input powers including 3.75kW, 4.5kW, 5.25kW, and 6.75kW, corresponding to horsepower ratings of approximately 6HP, 7HP, and 9HP.
- Complete Assembly: The unit comes equipped with essential components such as pressure gauges, oil separators, and copper piping connections, facilitating easier installation and maintenance.
- Dimensions & Weight: Designed with compact overall dimensions (approx. 1000mm length reference) and a substantial build weight of 50kg, ensuring stability during operation.
Reasons to Choose:
Ideal for commercial cold storage projects, this compressor unit provides consistent cooling performance critical for preserving the freshness and quality of perishable goods. Its industrial-grade design supports continuous operation in demanding environments, making it a dependable choice for agricultural and floral preservation industries seeking efficiency and reliability.
| brand | Bitzer |
| Part Number | 4CES-9 |
| Applicable scenarios | cold storage |
| Product Type | Piston compressor |
| Application areas | cold storage |
| Scope of application | Cold storage and other cooling |
| Specification | 4DES-5 (4DC-5.2) compressor, 4CES-6 (4CC-6.2) compressor, 4DES-7 (4DC-7.2) compressor, 4CES-9 (4CC-9.2) compressor |
| Whether it is a dedicated source of goods for cross-border export | no |
| Order Number | 4DC-5.2 |
| weight | 50 |
| Specification | 4DES-5 (4DC-5.2) compressor,4CES-6 (4CC-6.2) compressor,4DES-7 (4DC-7.2) compressor,4CES-9 (4CC-9.2) compressor |
| Input power | 3.75,4.5 ,5.25,6.75 |
| Displacement type | Fixed displacement compressor |
| Structure type | semi-enclosed |
| Overall dimensions (L*W*H) | 1000 |
| Company Name | Linfon Technology Limited |
| Company Address | Room S051, 2/F, The Capital, 61-65 Chatham Road South, Tsim Sha Tsui |
| Company Country | HK |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
