Condensing Unit, Hermetic, AC 250V

The condensing unit listed here carries type Compressor Protection Module, documented exactly as the manufacturer publishes it. Made by Taixing Penguin Refrigeration Equipment Factory (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Condensing Unit

• Material: /
• Warranty: 1 Year
• After Warranty Service: Video technical support
• Place Of Origin: Jiangsu, China
• Application: Refrigeration Parts
• Type: Compressor Protection Module

Technical Specifications

Product Details

Product Overview

Best Price Cold Room Air Cooled Condensing Unit Refrigeration Parts Semi Hermetic Compressor Motor Protector Over Load Switch

We offer all kinds of accessories for compressors and cooling equipment, available in various sizes and prices, including piston
connecting rod, valve plate, motor, gasket, valve parts, crankshaft, terminal block, bearing bush and so on.

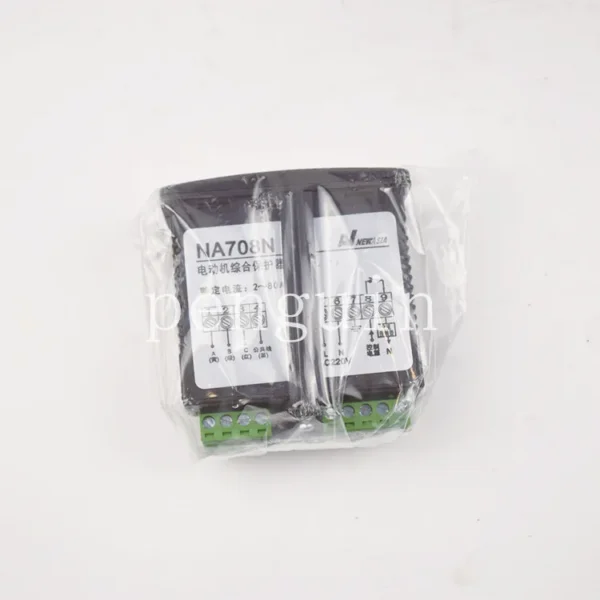

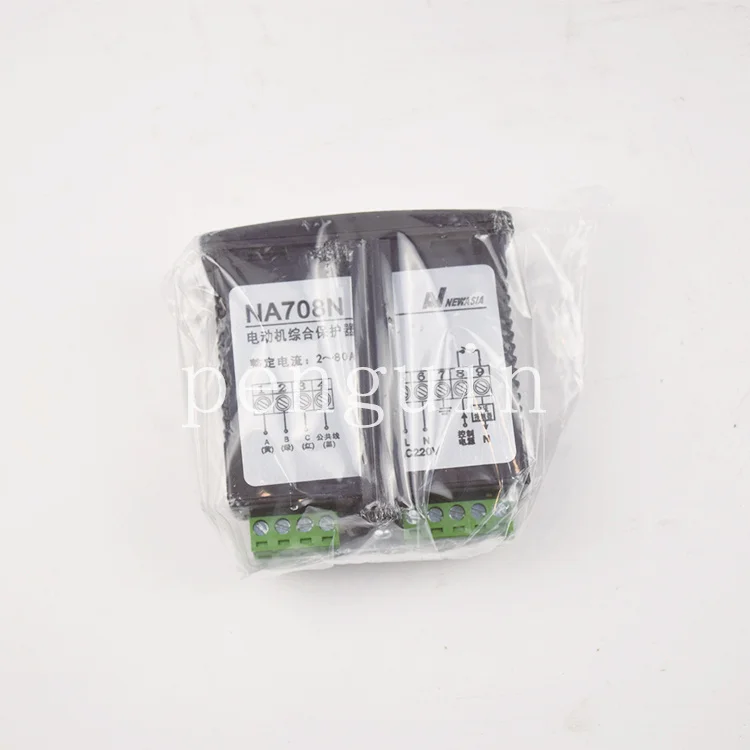

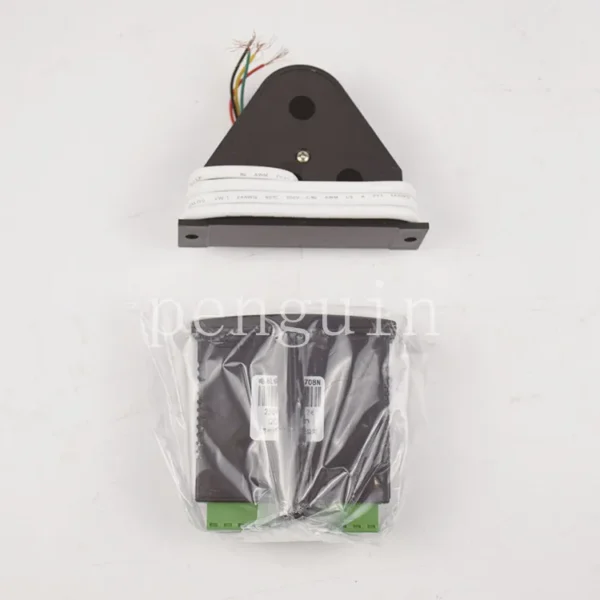

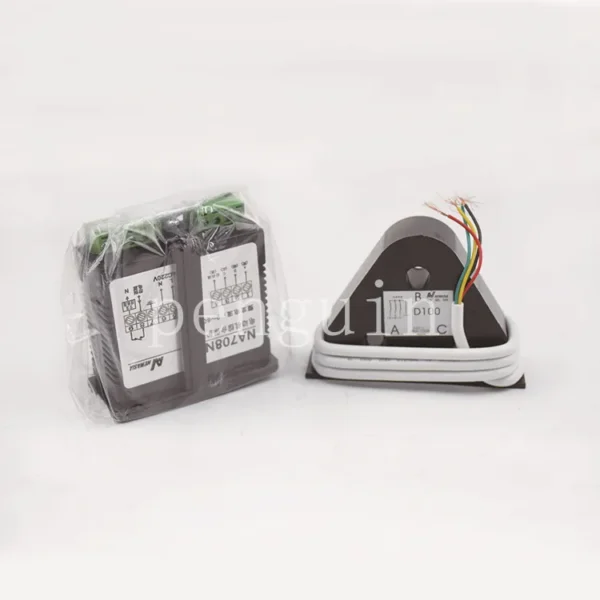

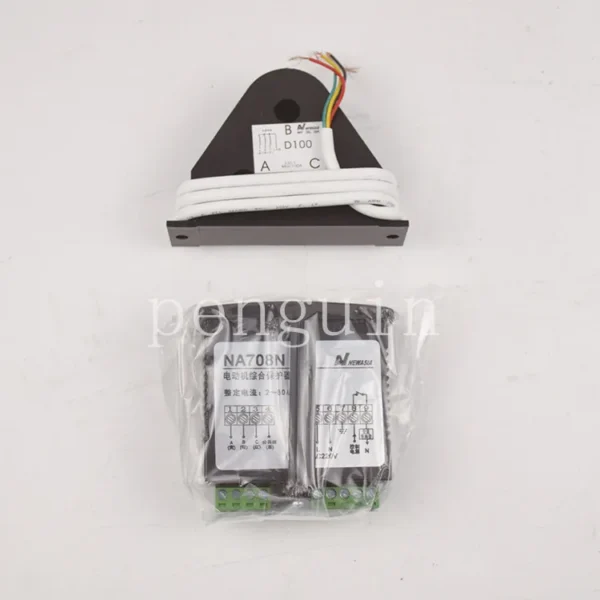

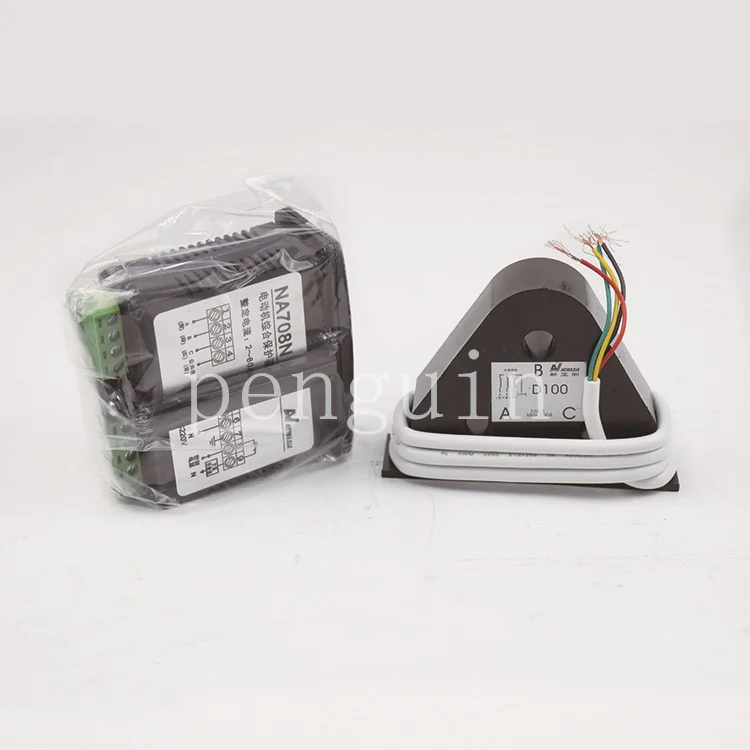

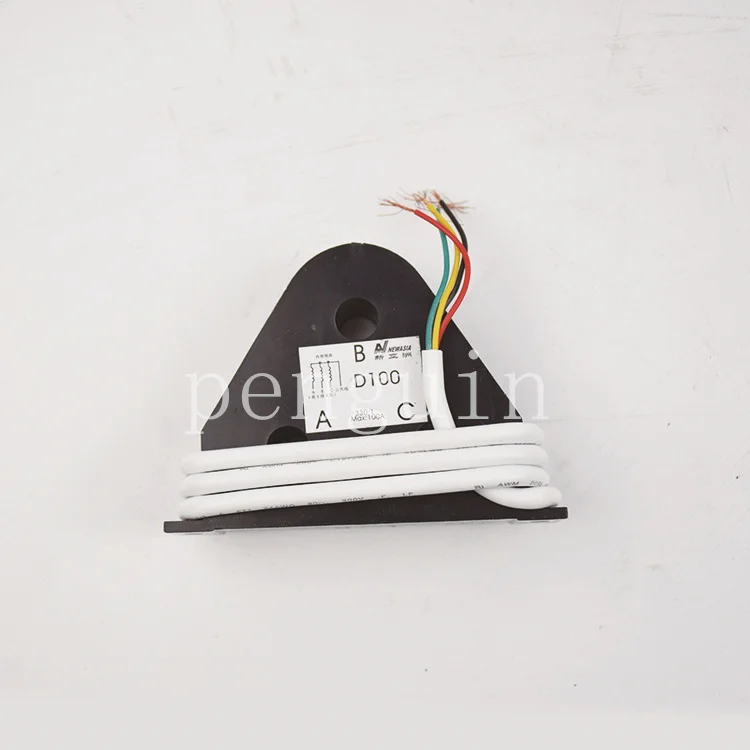

Compressor Motor Protector: It is used to monitor the compressor motor winding temperature, exhaust temperature, power phase sequence and phase loss fault in the refrigeration system.
It must be used together with the PTC thermistor to prevent the motor temperature and exhaust temperature from being too high.
It can monitor 1-9 series PTC thermistor values in the motor. If one or more PTC resistors are in high impedance state, the motor protector relay releases and self-locks.

If you don't understand something, you can click here to inquire

Compressor Model（old）	Compressor Model(new)	JC Penguin Compressor Model	Motor Nominal Power	Specification mm
						HP-kW	Core Height
4FC-3.2	4FES-3(Y)	4VB3.2Z	3HP-2.2KW	78
4EC-4.2	4EES-4(Y)	4VB4.2Z	4HP-3KW	89
4DC-5.2	4DES-5(Y)	4VB5.2Z	5HP-3.7KW	102
4CC-6.2	4CES-6(Y)	4VB6.2Z	6HP-4.4KW	118
4TCS-8.2	4TES-9(Y)	4VB8.2Z	8HP-5.5KW	115
4PCS-10.2	4PES-12(Y)	4VB10.2Z	10HP-7.5KW	127
4NCS-12.2	4NES-14(Y)	4VB12.2Z	12HP-8.8KW	133.3
6F-40.2	6FE-44(Y)	6WB40.2Z	40HP-30KW	235

Our advantages

1、Safety & reliability

Having motor protection consisting of PTC thermistor element embedded in the motor and motor protector that can effectively prevent motor burnout for poor cooling, locked-rotor, power phase unbalance and so forth.

2、Reasonable

Having advanced design, rational structure, spare parts of high generality, light and handsome shape, small size, smooth performance, low noises and slight vibration for compressor.

3、Generality Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.

4、Wear Resistance

Having ion nitriding treatment on the surface of primary moving parts to greatly enhance the service life of compressor. Having sliding bearing with low friction. Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.

5、Salient Performance-To-Price

Having valve plates which material are spring steel and stainless steel with high quality and impact-resistance being designed excellently. Having minimal dead point clearance. Having optimized air passage.

Application

Product packaging

If you don't understand something, you can click here to inquire

Why choose us

Jiangsu Taixing PENGUIN Refrigeration Equipment Manufactory is an enterprise specializing in the development and production of refrigerating compressors & units. The main products range from semi-hermetic refrigerating compressors & units to open-type refrigerating compressors & units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.The company has successively certified by ISO9001-2000 quality system certification, product compulsory certification and CQC quality certification. The product of refrigerating compressors & units has acquired the national industrial product manufacturing license and won the title of provincial “Quality Trustworthy Product”.The enterprise possesses advanced processing equipments for compressors such as modernized assembly line, Due to consummate technics, highly skilled production team, austere quality strategy and completely new management, the "PENGUIN"-branded products are in great demand nation-wide and have been exported to many overseas markets as Africa and South-East Asia.We are always transcending, and the "PENGUIN" is willing to be shoulder to shoulder, arm in arm with you to jointly develop splendid refrigeration cause.

If you don't understand something, you can click here to inquire

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.What can you buy from us?
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts

4. Why should you buy from us not from other suppliers?

(1).The professional manufcturer of compressor and condensing unit (Year1992 until now) ,owns Two factories area about 35000 square meter,more than one hundred workers.

(2).We have Modern assembly line and sophisticated equipment.

(3).We have innovativeness,more professional, with price advantage, and fast delivery, after-sales system perfect.

Want to know more about PENGUIN, Click inquiry to know more!

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $23 / set
  • 10–29 set: US $21 / set
  • 30+ set: US $19 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condensing unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
