Unit Cooler, Evaporator

Key specification for this unit cooler: type Evaporator. Everything below is reproduced from the factory data sheet. Made by Taixing Penguin Refrigeration Equipment Factory (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Unit Cooler

• Warranty: 1 Year
• After Warranty Service: Spare parts
• Place Of Origin: Jiangsu, China
• Application: Refrigeration Parts
• Type: Evaporator
• Single Package Size: 50X50X50 cm

Technical Specifications

Product Details

Product Overview

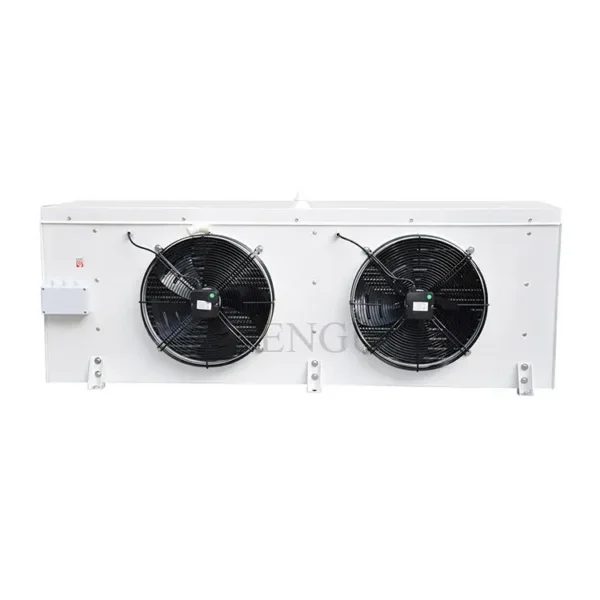

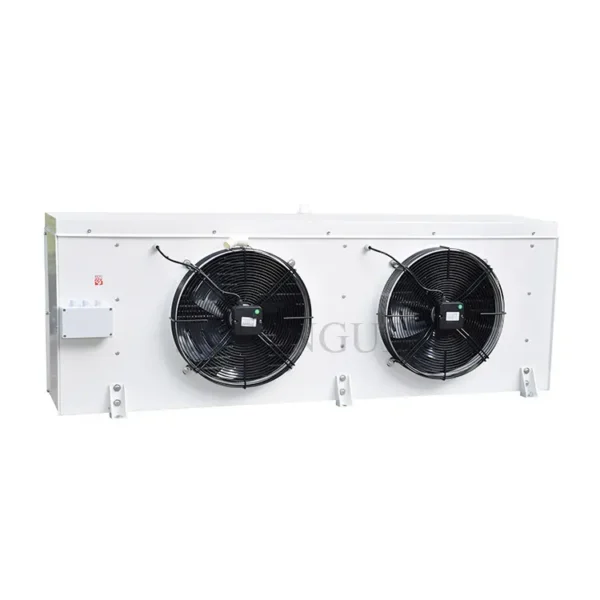

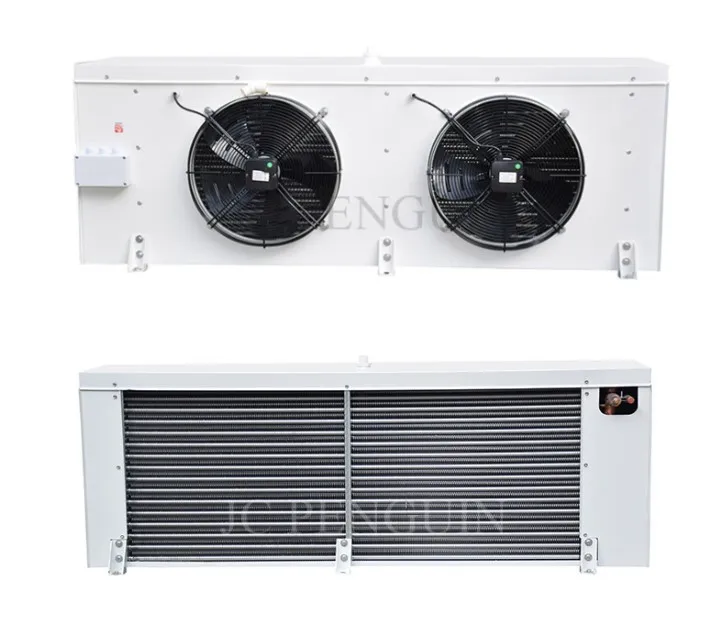

High repurchase rate DD 30 Air Cooler Evaporator Unit Cooler Refrigeration Evaporator For Cold Room

D-type air cooler is a special cooling equipment for cold storage. It has three series: DL, DD and DJ. It is suitable for high temperature (about 0 ℃), medium temperature (- 18 ℃) and low temperature (- 25 ℃) cold storage respectively. It is widely used in food processing, refrigeration, industrial air conditioning and other industries. 1. Compact shape, does not occupy the practical area of the cold storage, and is specially designed for the cold storage; 2. The coil structure design is reasonable, the pipeline flow is optimized, and the heat exchange efficiency is high; 3. Mechanical tube expansion is adopted. After tube expansion, the copper tube is closely fitted with the fin to ensure the heat exchange effect; 4. Non standard customization is available. Please contact our sales staff if necessary.

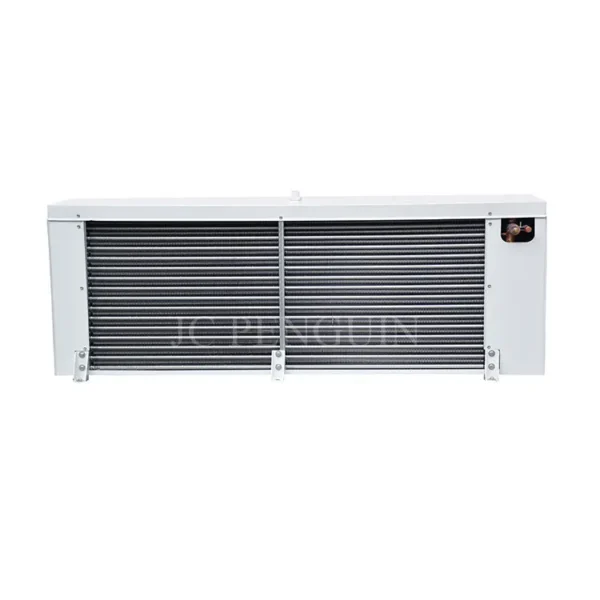

General features of refrigerating units: 1.Capacity is designed according to the most popular compressor sizes in this range. 2.The high efficiency unit cooler is made of high quality copper tube with diameter of 16mm and special aluminum fin. 3.The coil block is made of strong fins and can withstand the cleaning process. 4.The drain tray is designed so that the sewage faces towards the drain to reduce the water in the tray.

Unit cooler/walking cooler refrigerating unit anticorrosive room Durable material, case thin and hard gloss powder coated or white
powder coated aluminum, galvanized steel high strength, corrosion resistance, earthquake resistance, environmental protection

Model	Cooling Capacity	Cooling Area	Air Volume	Air Throw
		kw	m2	m3/h	m
DL-20	4.7	20	3510	9
DL-25	6	25	4600	9
DL-40	9	40	4600	10
DL-55	12.7	55	7020	13
DL-80	17.3	80	9600	15
DL-105	25.1	105	9600	15
DL-125	29.5	125	19650	18
DL-160	37	160	19650	18
DL-185	43.1	185	26200	18
DL-210	49.8	210	26200	18
DL-260	60.1	260	25000	25
DL-330	70.3	330	37500	25
DL-385	84.5	385	37500	25
DL-435	103	435	50000	25
DL-550	128.4	550	50000	25
DL-600	140	600	50000	25

If you don't understand something, you can click here to inquire

Welcome to contact us for a free quotation

Application

Product packaging

If you don't understand something, you can click here to inquire

Our advantages

1、Safety & reliability

Having motor protection consisting of PTC thermistor element embedded in the motor and motor protector that can effectively prevent motor burnout for poor cooling, locked-rotor, power phase unbalance and so forth.

2、Reasonable

Having advanced design, rational structure, spare parts of high generality, light and handsome shape, small size, smooth performance, low noises and slight vibration for compressor.

3、Generality Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.

4、Wear Resistance

Having ion nitriding treatment on the surface of primary moving parts to greatly enhance the service life of compressor. Having sliding bearing with low friction. Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.

5、Salient Performance-To-Price

Having valve plates which material are spring steel and stainless steel with high quality and impact-resistance being designed excellently. Having minimal dead point clearance. Having optimized air passage.

Successful Project

If you don't understand something, you can click here to inquire

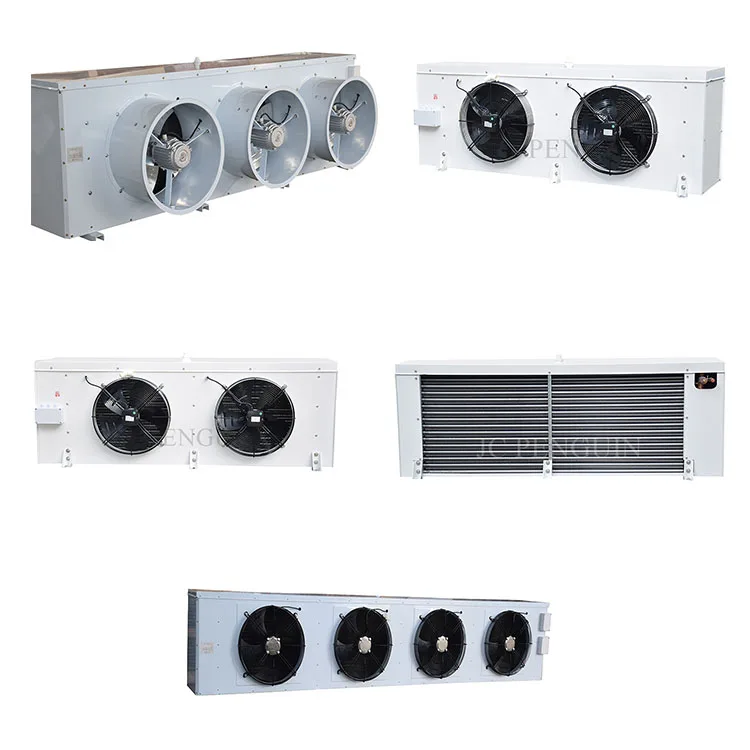

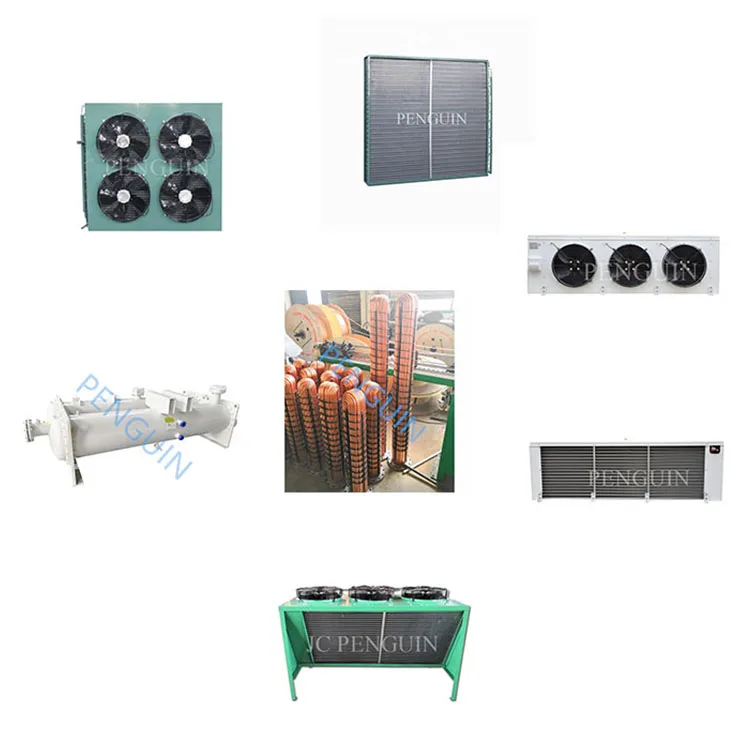

Other products

Why choose us

Jiangsu Taixing Jingchuang PENGUIN Refrigeration Equipment Manufactory is an enterprise specializing in the development and production of refrigerating compressors & units. The main products range from semi-hermetic refrigerating compressors & units to open-type refrigerating compressors & units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.The company has successively certified by ISO9001-2000 quality system certification, product compulsory certification and CQC quality certification. The product of refrigerating compressors & units has acquired the national industrial product manufacturing license and won the title of provincial “Quality Trustworthy Product”.The enterprise possesses advanced processing equipments for compressors such as modernized assembly line, Due to consummate technics, highly skilled production team, austere quality strategy and completely new management, the "PENGUIN"-branded products are in great demand nation-wide and have been exported to many overseas markets as Africa and South-East Asia.We are always transcending, and the "PENGUIN" is willing to be shoulder to shoulder, arm in arm with you to jointly develop splendid refrigeration cause.

If you don't understand something, you can click here to inquire

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.What can you buy from us?
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts

4. Why should you buy from us not from other suppliers?
(1).The professional manufcturer of compressor and condensing unit (Year1992 until now) ,owns Two factories area about 35000 square meter,more than one hundred workers.

(2).We have Modern assembly line and sophisticated equipment.

(3).We have innovativeness,more professional, with price advantage, and fast delivery, after-sales system perfect.

If you Want to know more about PENGUIN, Click inquiry to know more!

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $468 / set
  • 10–29 set: US $447 / set
  • 30+ set: US $430 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this unit cooler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Taixing Penguin Refrigeration Equipment Factory, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taixing Penguin Refrigeration Equipment Factory range on HVACR Nexus.
