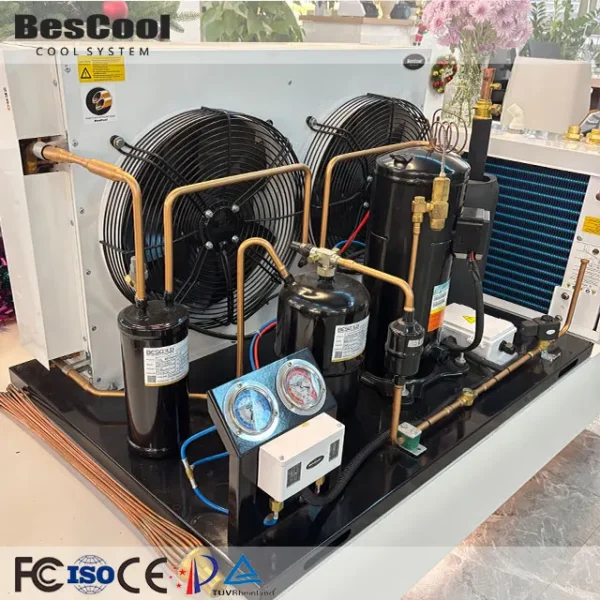

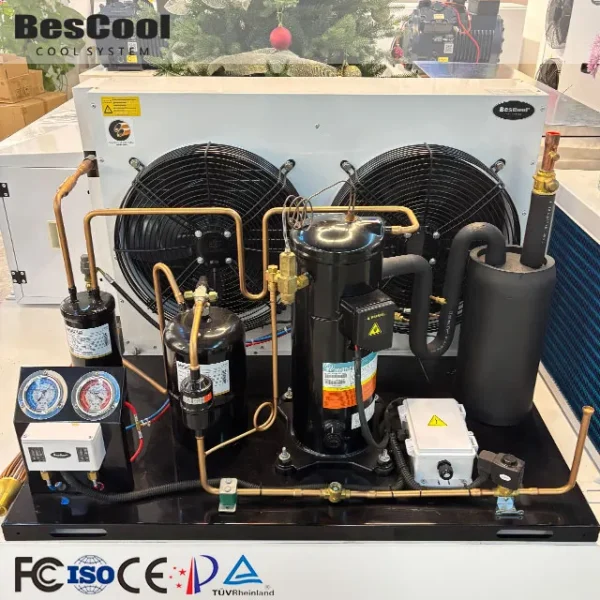

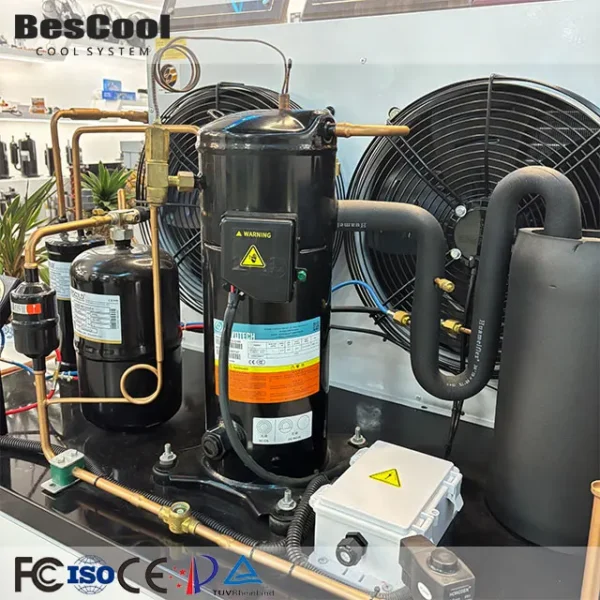

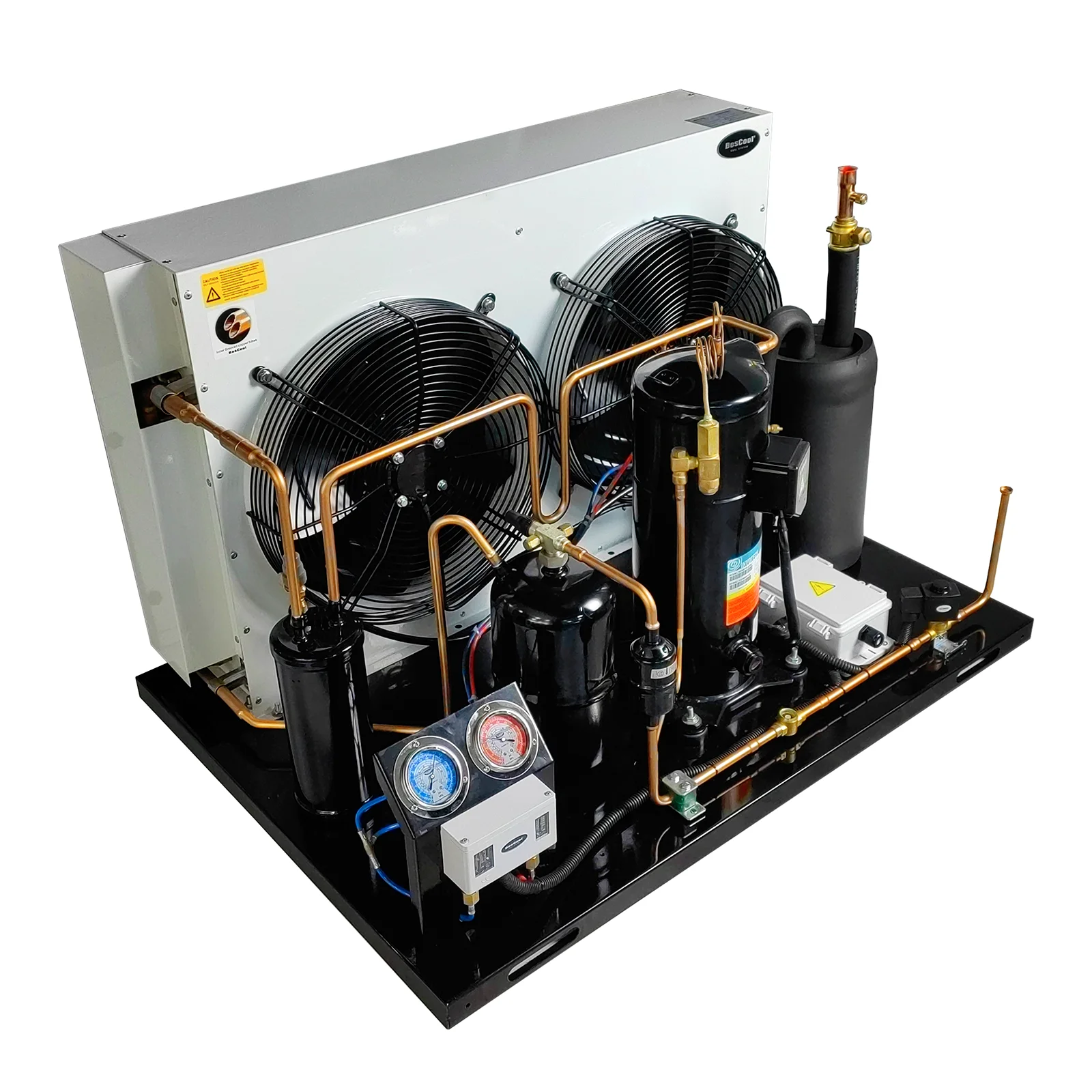

Condensing unit — 220 V, 380 V, refrigerant R-404A. The complete factory specification follows. Made by Foshan Leanson Refrigeration Technology Co., Ltd. (5 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Model Number: YF/YM series
- Horse Power: 2HP-25HP
- Voltage: 220 V, 380 V
- Cooling Capacity: Customized
- Refrigerant: R-404A
- Warranty: 1 Year
Technical Specifications
| Cooling Capacity | Customized |
|---|---|
| Temperature | -25℃-0℃ |
| Voltage | 220 V, 380 V |

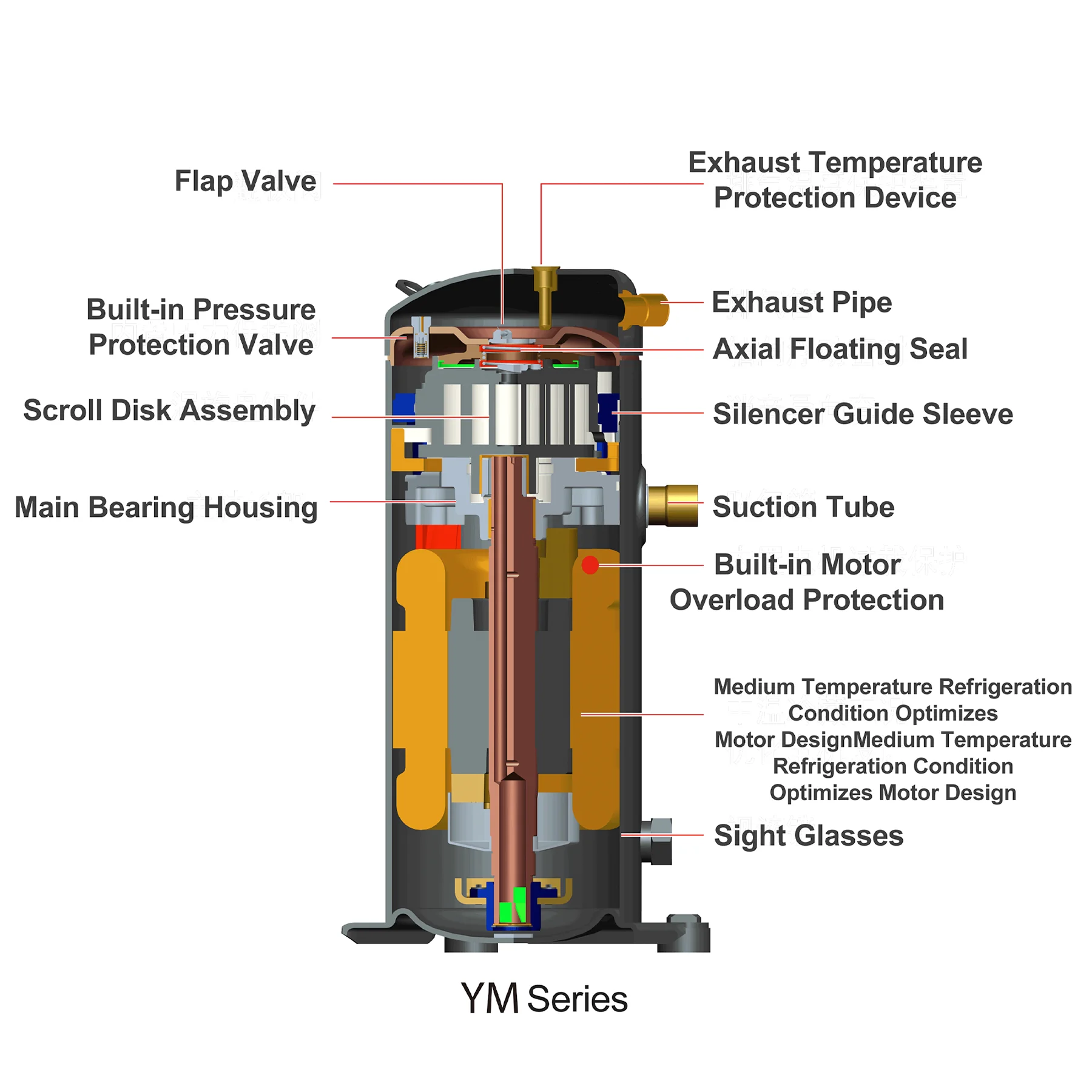

| Compressor Type | Scroll |
| Refrigerant | R-404A |

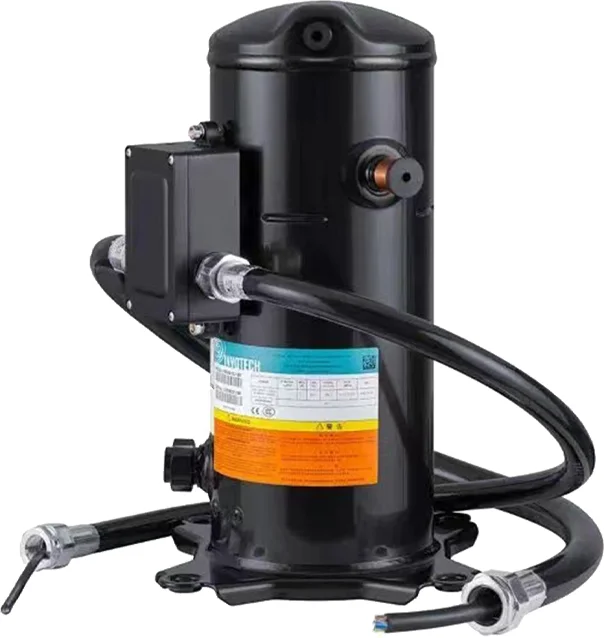

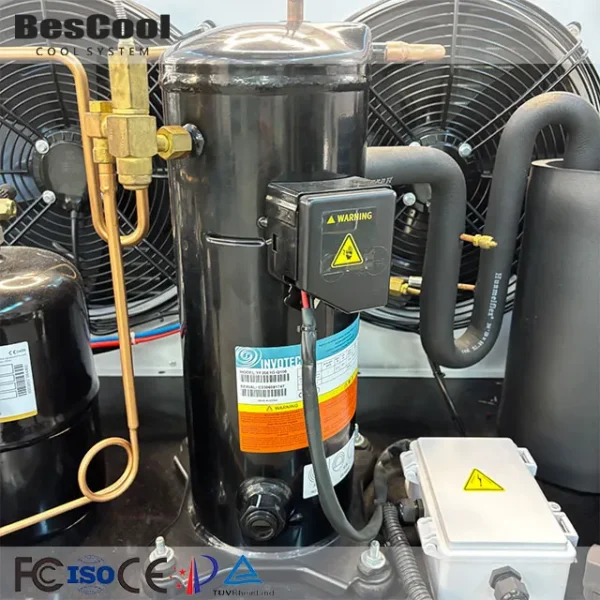

| Compressor Brand | Invotech |
| Core Components | Motor, Pressure Vessel, condenser |
| Warranty | 1 Year |
| Key Selling Points | High-Accuracy, Easy To Operate, Competitive Price, High Productivity, Long Service Life, Remote Control, Energy Saving, Accurate Temperature Control, Low Maintenance Cost, Remote Monitoring, Automatic, Bi-Color |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 200 |
| Model Number | YF/YM series |
| Dimension(L*W*H) | Customized |
| Product Name | condensing unit |
| Unit Type | Opening type |
| Horse Power | 2HP-25HP |
| Fan Motor | 1-6pices |
| Service | ODM,Full/Minor customization, Finished product inspection |
| Model | YF/YM series |
| Selling Units | Single item |
| Single Package Size | 1.25X1.15X1.05 cm |
| Single Gross Weight | 75.250 kg |
Product Details
Modle No. | YM34E2G-102 | YM49E2G-102 | YM70E2G-100 | YM34E1G-100 | YM49E1G-100 | YM49E1G-102 | YM86E1G-100 | YM102E1G-100 | YM115E1G-100 | ||||||||
Motors Supply | 220V/1~/50Hz | 380-420V/3-/50Hz Or 460V/3-/60Hz | |||||||||||||||
Uniphase | Three Phase | ||||||||||||||||
HP | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||||
cc/rev | 33.3 | 46.6 | 67.8 | 33.3 | 46.6 | 67.8 | 83.3 | 98.3 | 108.0 | ||||||||
Refrigerants | R404A | ||||||||||||||||
Cooling Capacity(W) | 3560 | 4840 | 6920 | 3560 | 4840 | 6920 | 8500 | 10100 | 11328 | ||||||||
Power(W) | 2070 | 2689 | 3601 | 2034 | 2547 | 3530 | 4250 | 5050 | 5600 | ||||||||
(LRA)(A) | 76 | 76 | 109 | 22 | 45 | 60 | 60 | 65 | 85 | ||||||||
(MOC)(A) | 16.2 | 19 | 28.1 | 5.2 | 6.9 | 10.3 | 12.2 | 14.3 | 17.1 | ||||||||
Crankcase Heater Power | 70 | ||||||||||||||||
Suction OD | 12.87-12.97 | ||||||||||||||||
Liquid Outlet OD | 22.35-22.45 | ||||||||||||||||
Size(L*W*H) | 239*239*418 | 239*239*463 | |||||||||||||||
Installation Size | 190.5*190.5(8.8) | ||||||||||||||||
Type Of Lubricant | POE | ||||||||||||||||
Initial Charge(L) | 1.4 | 1.6 | |||||||||||||||
Recharge Amount | 1.25 | 1.45 | |||||||||||||||
Weight | 31 | 31 | 33 | 29 | 30 | 31 | 31 | 33 | 38 | ||||||||
Modle No. | YM132E1G-100 | YM158E1G-100 | YM182E1G-100 | YM200E1G-100 | YM210E1G-100 | YM235E1G-100 | YM260E1G-100 | ||||||
Motors Supply | 380-420V/3-/50Hz Or 460V/3-/60Hz | ||||||||||||
Three Phase | |||||||||||||
HP | 8 | 9 | 10 | 12 | 13 | 13 | 15 | ||||||
cc/rev | 123.0 | 145.4 | 167.2 | 189.1 | 197.1 | 216.7 | 244.3 | ||||||
Refrigerants | R404A | ||||||||||||
Cooling Capacity(W) | 12893 | 15842 | 17856 | 19536 | 20544 | 23218 | 25688 | ||||||
Power(W) | 6447 | 7921 | 8928 | 9671 | 10170 | 11900 | 13150 | ||||||
(LRA)(A) | 117 | 117 | 121 | 121 | 121 | 148.5 | 148.5 | ||||||
(MOC)(A) | 18.4 | 21.0 | 23.6 | 26.5 | 27.6 | 28.9 | 32.8 | ||||||
Crankcase Heater Power | 90 | 75 | |||||||||||
Suction OD | 22.35-22.45 | 22.50-22.60 | |||||||||||
Liquid Outlet OD | 28.83-28.93 | 35.20-35.30 | |||||||||||
Size(L*W*H) | 260*244*508 | 318*309*575 | |||||||||||
Installation Size | 190.5*190.5(8.8) | 190.5*190.5(10.2) | |||||||||||
Type Of Lubricant | POE | ||||||||||||
Initial Charge(L) | 2.7 | 3.0 | 3.4 | ||||||||||
Recharge Amount | 2.55 | 2.85 | 3.25 | ||||||||||
Weight | 53 | 53 | 54 | 54 | 54 | 90 | 90 | ||||||

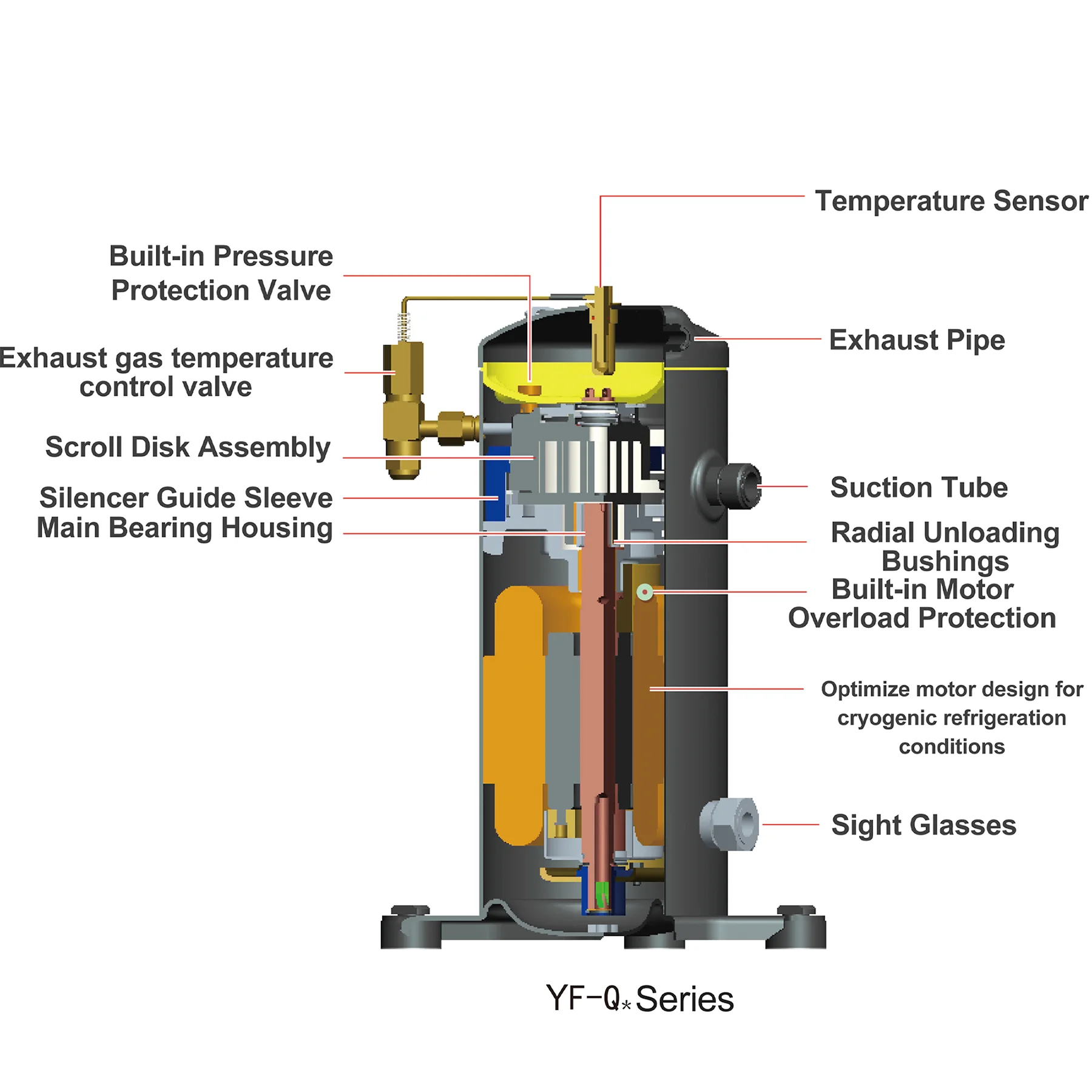

Modle No. | YF13E2G-Q102 | YF20E2G-Q102 | YF29E2G-Q100 | YF13E1G-Q100 | YF20E2G-Q100 | YF29E1G-Q100 | YF35E1G-Q100 | YF41E1G-Q100 | |||||||
Motors Supply | 220V/1~/50Hz | 380-420V/3-/50Hz Or 460V/3-/60Hz | |||||||||||||
HP | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 | |||||||
cc/rev | 33.3 | 46.6 | 67.8 | 33.3 | 46.6 | 67.8 | 83.3 | 98.3 | |||||||
Refrigerants | R404A | ||||||||||||||
Cooling Capacity(W) | 1386 | 2079 | 3145 | 1386 | 2079 | 3145 | 3731 | 4371 | |||||||
Power(W) | 1247 | 1866 | 2569 | 1237 | 1823 | 2516 | 2889 | 3358 | |||||||
(LRA)(A) | 76 | 76 | 109 | 22 | 45 | 60 | 60 | 65 | |||||||
(MOC)(A) | 13.4 | 16.2 | 23.3 | 3.8 | 5.8 | 8.8 | 10.3 | 12.1 | |||||||
Crankcase Heater Power | 70 | ||||||||||||||
Suction OD | 12.87-12.97 | ||||||||||||||
Liquid Outlet OD | 22.35-22.45 | ||||||||||||||
Size(L*W*H) | 239*239*418 | 239*239*463 | |||||||||||||
Installation Size | 190.5*190.5(8.8) | ||||||||||||||
Type Of Lubricant | POE | ||||||||||||||
Initial Charge(L) | 1.4 | 1.6 | |||||||||||||
Recharge Amount | 1.25 | 1.45 | |||||||||||||
Weight | 31 | 31 | 33 | 29 | 30 | 31 | 31 | 33 | |||||||
Modle No. | YF56E1G-Q100 | YF65E1G-Q100 | YF72E1G-Q100 | YF80E1G-Q100 | |||
Motors Supply | 380-420V/3-/50Hz OR 460V/3-/60Hz | ||||||
HP | 8 | 9 | 10 | 12 | |||
cc/rev | 123.0 | 145.4 | 167.2 | 33.3 | |||
Refrigerants | R404A | ||||||
Cooling Capacity(W) | 5560 | 6751 | 7621 | 8657 | |||
Power(W) | 4560 | 5193 | 5862 | 6614 | |||
(LRA)(A) | 85 | 117 | 117 | 121 | |||
(MOC)(A) | 18 | 20.1 | 22.7 | 25.6 | |||
Crankcase Heater Power | 90 | ||||||
Suction OD | 22.35-22.45 | ||||||
Liquid Outlet OD | 28.83-28.93 | ||||||
Size(L*W*H) | 272*248*507 | ||||||
Installation Size | 190.5*190.5(8.8) | ||||||
Type Of Lubricant | POE | ||||||
Initial Charge(L) | 2.7 | 3.0 | |||||
Recharge Amount | 2.55 | 2.85 | |||||
Weight | 53 | 53 | 54 | 54 | |||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $875 / piece
- 20+ piece: US $775 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Leanson Refrigeration Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, Trading Company. Browse the full Foshan Leanson Refrigeration Technology Co., Ltd. range on HVACR Nexus.
