Condensing units — 12V/24V/48V/60V, refrigerant type R134a. The complete factory specification follows. Made by Henan Kingclima Industry Co., Ltd. (6 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Condensing Units
- Unit Power: 480W
- Voltage: 12V/24V/48V/60V
- Gross Capacity: 750L(198Gal)
- Refrigerant Type: R134a
- Refrigerant Gas: 500-550g
- Warranty: 1 Year
Technical Specifications
| Application | Reefer the goods |
|---|---|
| Type | Refrigerated box |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 120 |
| Place Of Origin | Henan, China |
| Brand Name | Kingclima |
| External Dimention(Mm) | L1500mm*H1100mm*W1000mm |
| External Dimention(In) | L59"*L43"*W39" |
| Gross Capacity | 750L(198Gal) |
| Temperature Range | 0℃~10℃ (32℉~50℉) |
| Voltage | 12V/24V/48V/60V |
| Unit Power | 480W |
| Gross Weight(Kg) | 120KG |
| Compressor Model | YQ20 |
| Refrigerant Type | R134a |
| Refrigerant Gas | 500-550g |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

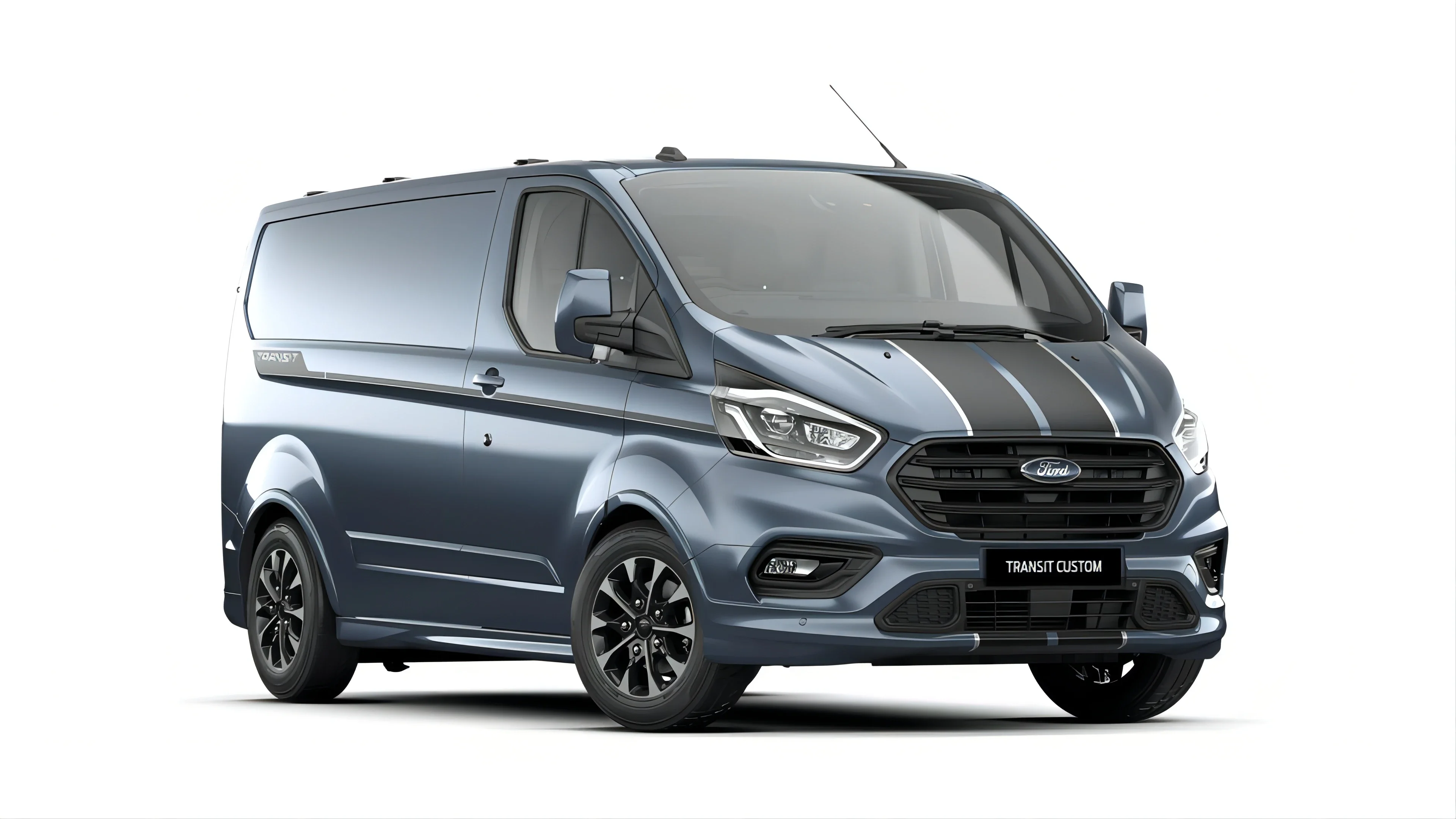

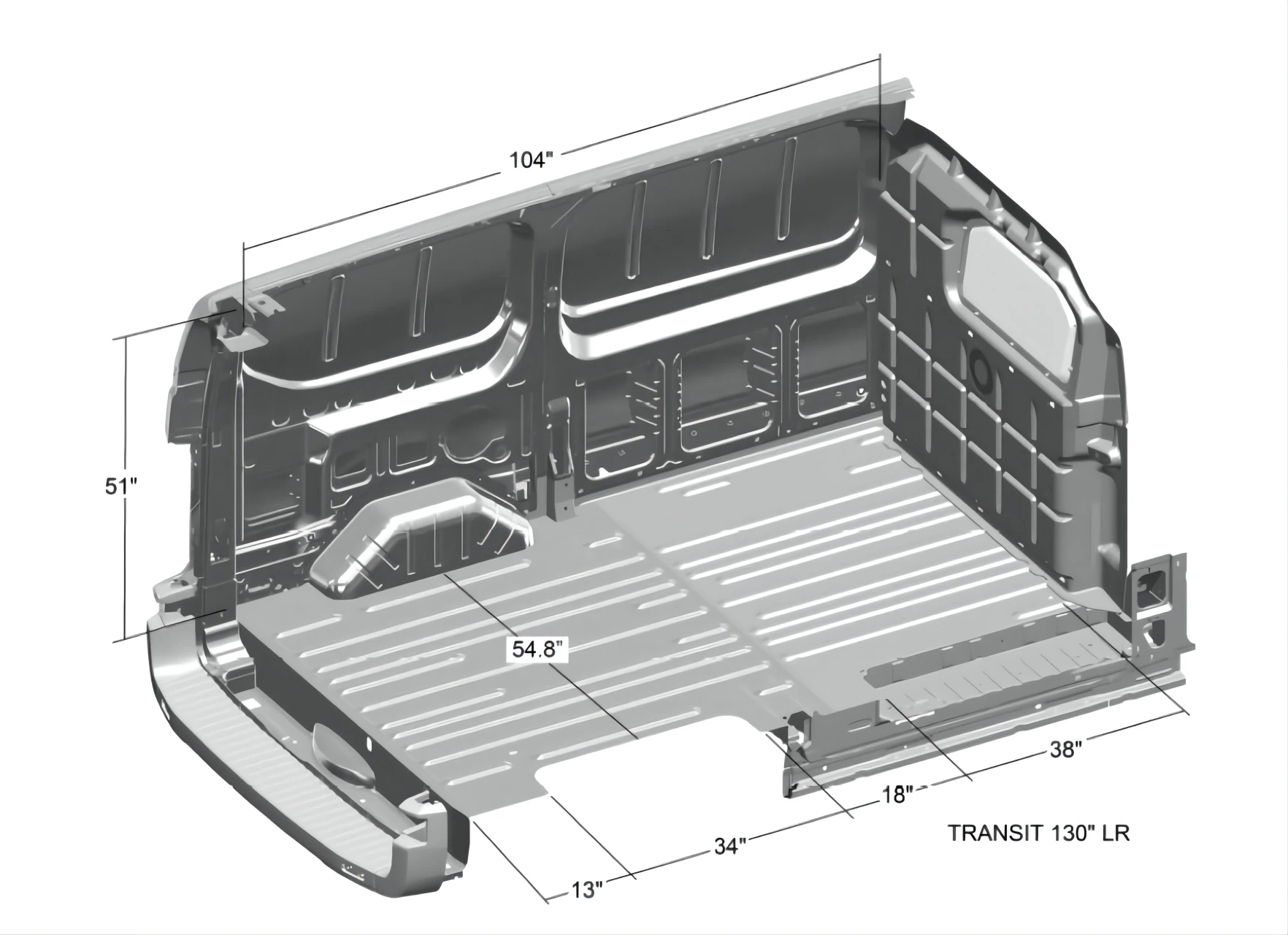

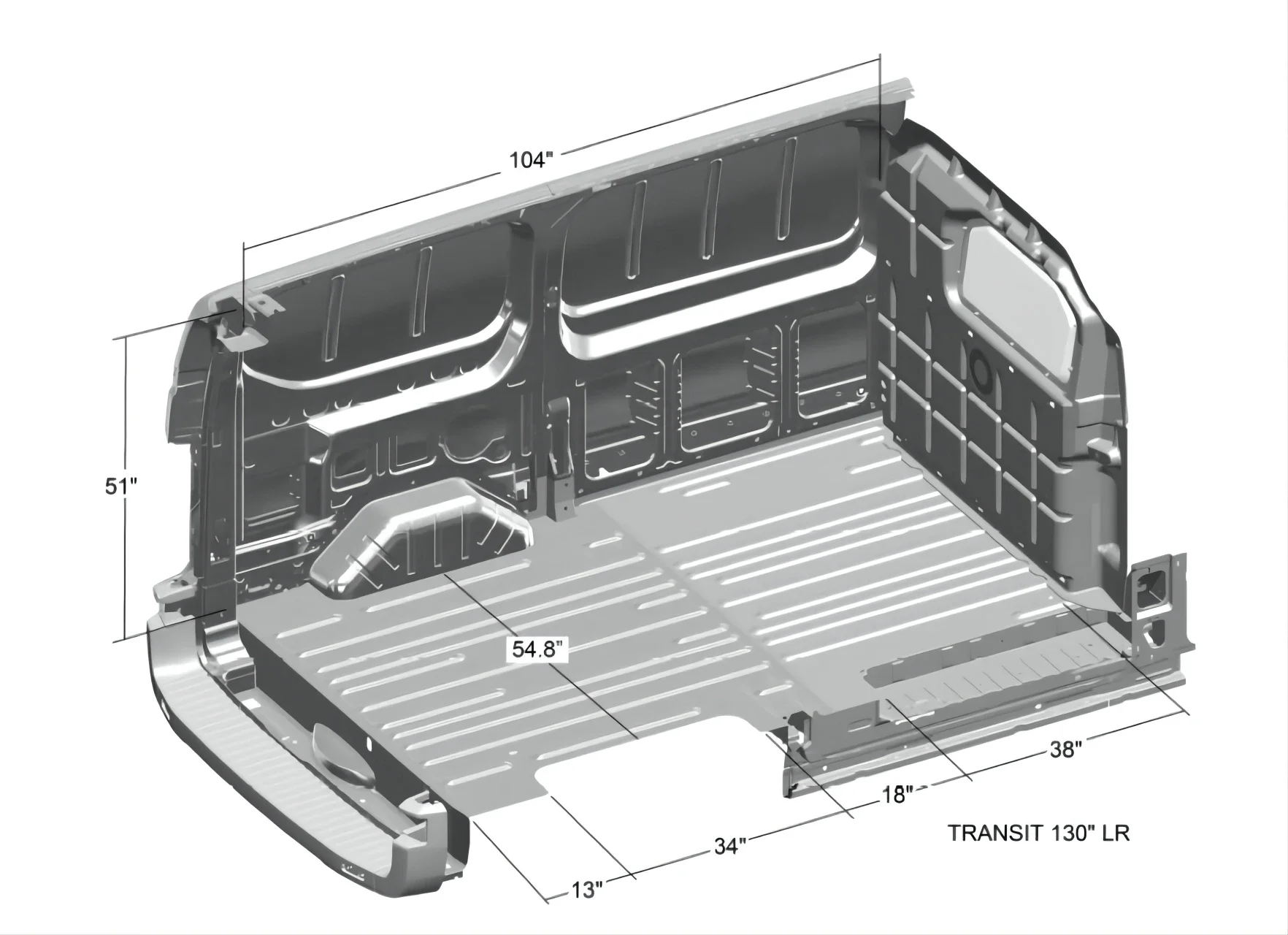

FB058 for FORD TRANSIT LOW PROOF 130"
Trivio from Mexico has an online shop, whose main business is to deliver steak and high-end ingredients to end consumers. Generally speaking, steak and other ingredients need to be kept at low temperature when they are stored for a long time, and the general temperature is about – 18 ℃. However, as a terminal delivery merchant, customers hope that the steak they receive can be directly processed and eaten. Therefore, when the steak is delivered from the warehouse, it needs to be kept at about 4℃. When the steak reaches the customers, it is the most perfect state to be eaten.

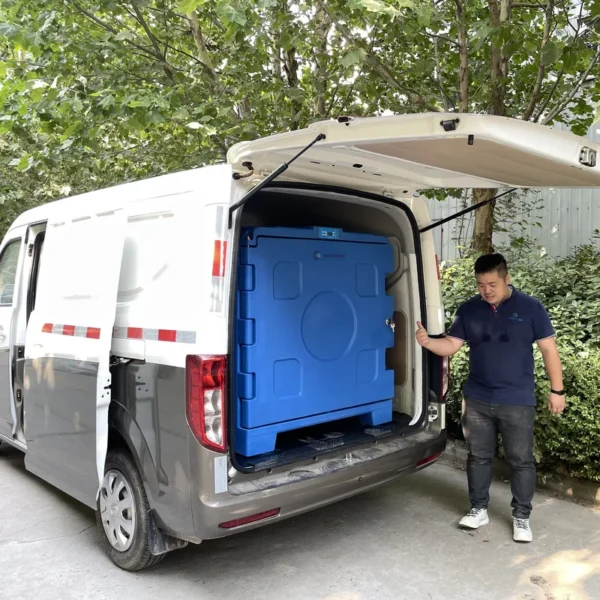

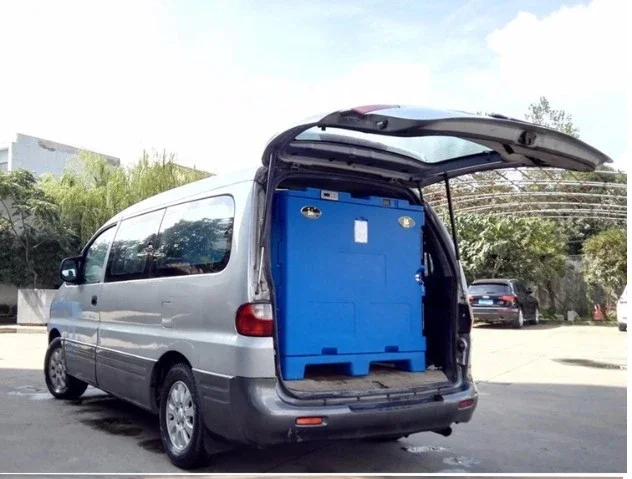

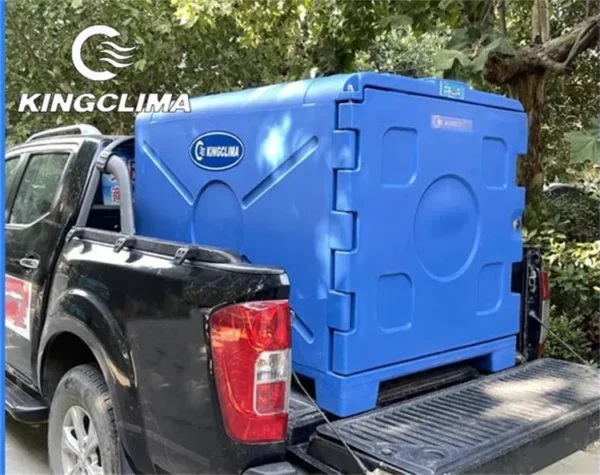

Trivio has 4 FORD TRANSIT LOW ROOF 130 "He hoped that we could provide him with a perfect solution to help him transport low-temperature steaks, but he was unwilling to spend more money to rebuild the four vehicles. After full communication, we recommended our refrigerated box FB058. The size of this refrigerated box is only L1500mm * W1000mm * H1100mm, which can be perfectly put into the TRANSIT cabinet. When the vehicle is moving, the box can be directly connected to the vehicle's battery through wires to make the refrigeration unit keeps working.
The internal use space of this product is 0.75m ³ （26.5ft ³）， The temperature control range is 0 ℃~15 ℃. Moreover, since the shell is formed by the rotational molding technology, and the insulation layer is 100mm thick PUF, the thermal insulation performance of the box is very superior. Compared with the traditional box, it has lower cost, better thermal insulation performance and lower energy consumption. KINGCLIM has been committed to providing better and more reliable products for the global cold chain transportation industry. We hope to become the leader and pioneer of this industry one day.And we believe that this day will come soon.
FB058 Portable Transfer Freeze Box

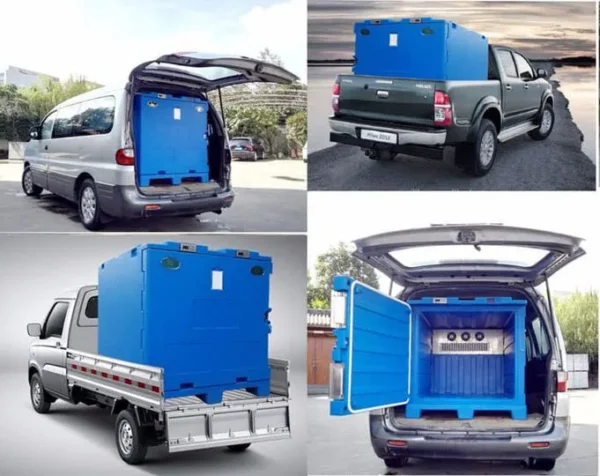

The FREEZEBOX product line includes a large range of state of the art 12V-60 active mobile refrigerated containers. The freezebox are produced using the rotational molding technology according to the highest standards. They come in a variety of types, internal volumes and internal temperature ranges designed to satisfy all possible demands of professional users in term of temperature controlled transport
–Internal gross capacity 750L (198 gallons)
–Single piece design is sturdy, durable and lightweight, with no junctions or cold bridges. Made of food grade polyethylene (PE), UV stabilized. Ultra-thick insulation made by PU foam. Designed for an easy cleaning and disinfection
–Direct current cooling units designed for years of use on board of vehicles, providing low energy consumption and resistance to vibrations. Ambient temperature range from -4°F up to +120°F (with reduced specifications)
–Refrigeration system includes compressors, ventilated high efficiency spiral tube condensers, electronic thermostat with digital display, battery protection system
–Versions with automatic cooling operation are available for the safe transport of sensitive products (i.e. pharmaceuticals, vaccines, blood). They maintain consistent temperature with a smooth air flow distribution, regardless of outside ambient temperature in alignment
–AC/DC power supplies (input voltage 100-240V AC 50-60 Hz) available as accessories

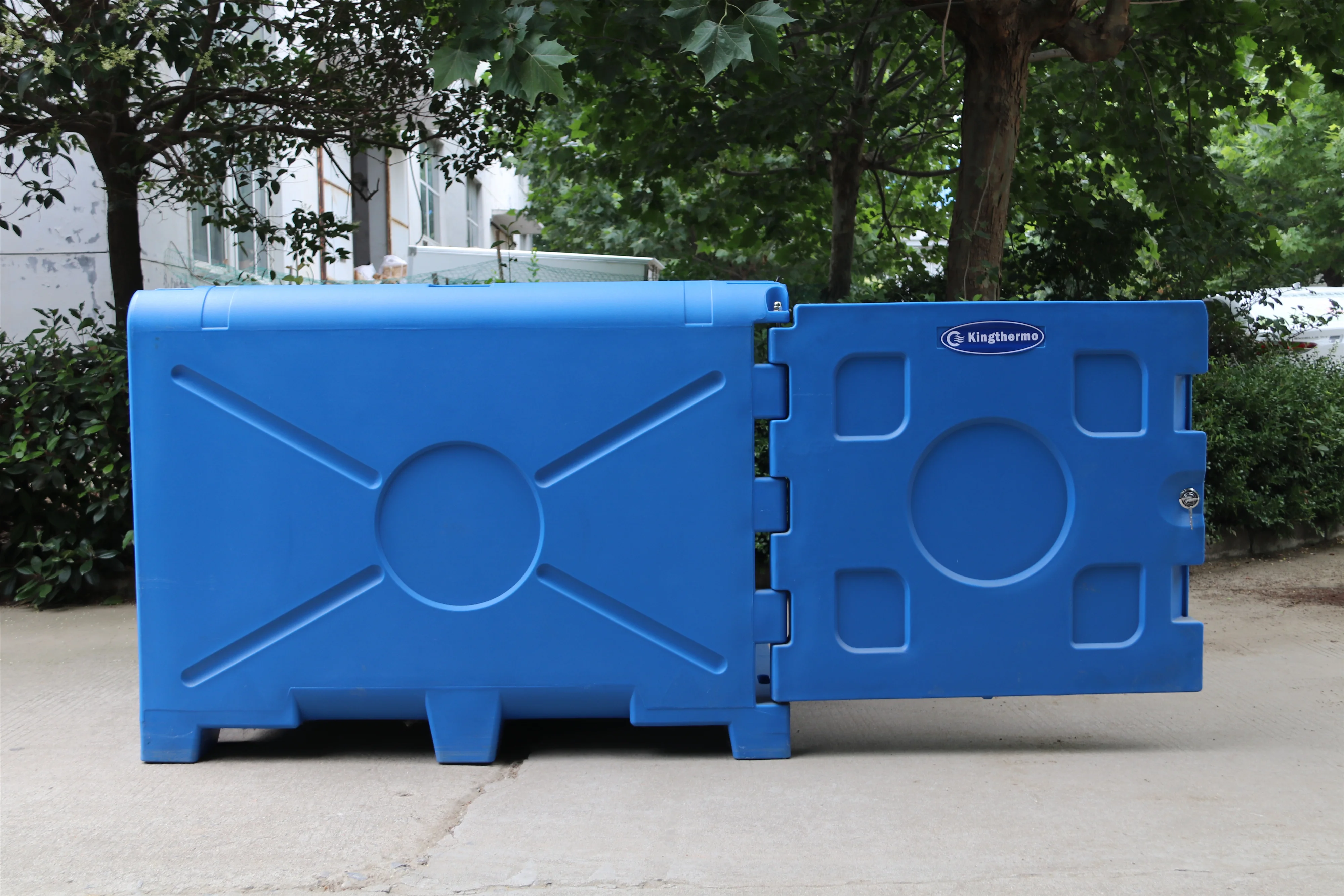

Strong but elegant outer shell
The shell is made of food grade PE, and in order to prolong the service life, it is treated with anti-corrosion and anti ultraviolet, making the box more durable and more suitable for more complex service environment
The whole box is filled and formed by the machine tool at one time, which is more solid and resistant than the spliced box.
The edges and corners adopt circular arc shape to reduce unnecessary accidents in the process of use.

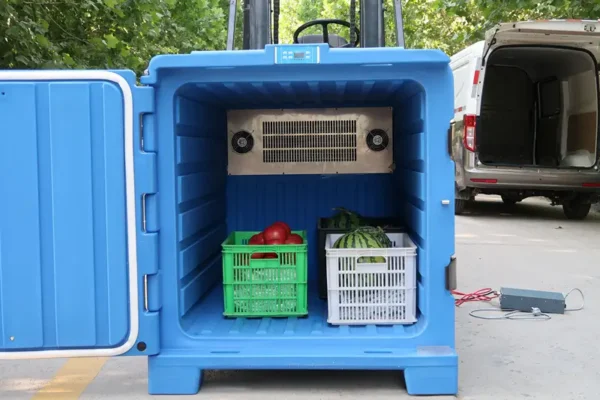

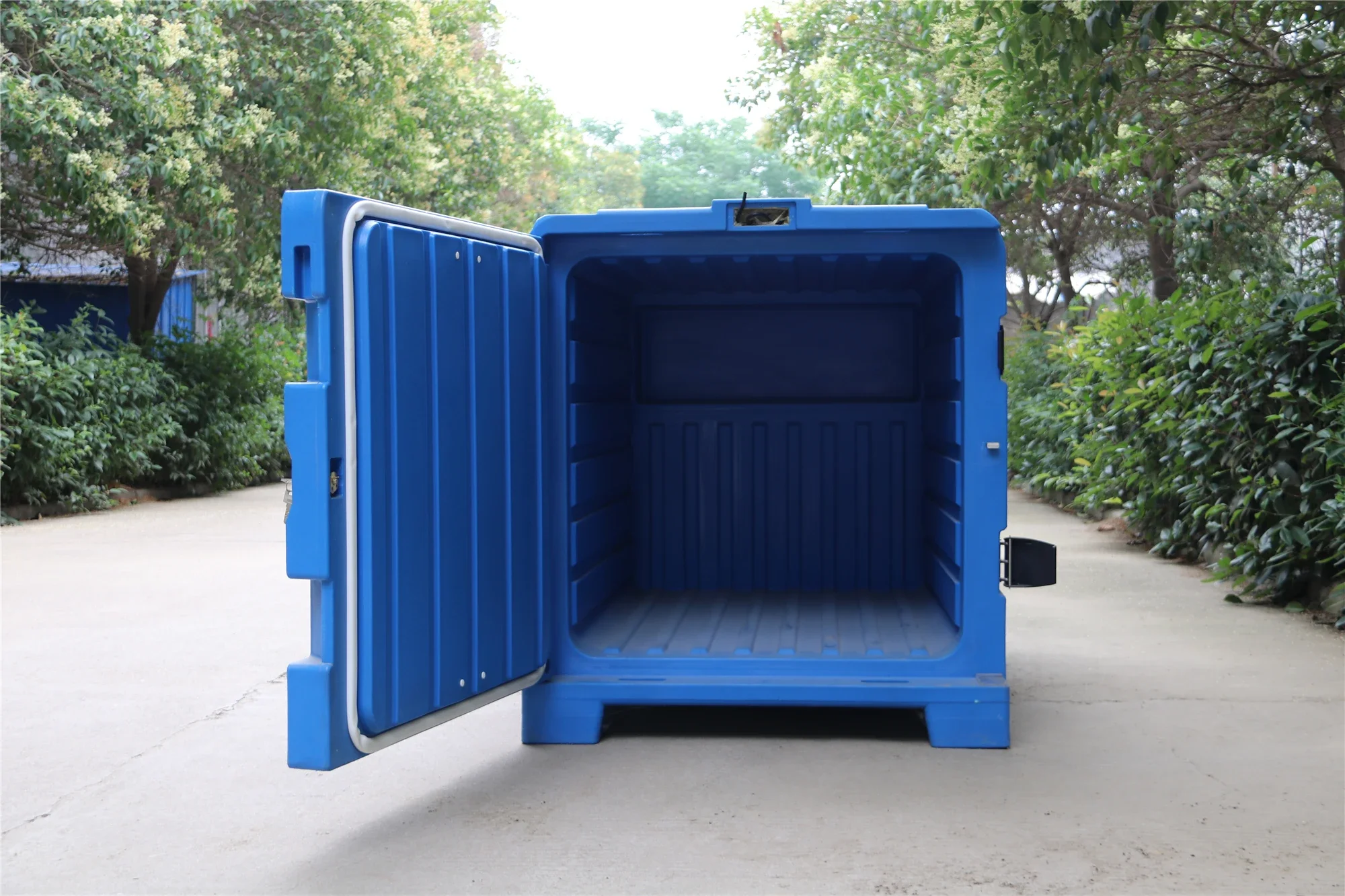

More internal details
Grooves are arranged on the inner compartment wall to increase the cold air circulation effect inside the box. At the same time,metal supports can also be installed to store goods in multiple layers. A sealing strip is installed on the box door to ensure the air tightness of the box and improve the refrigeration effect.
A tray is installed under the box to facilitate forklift loading and unloading

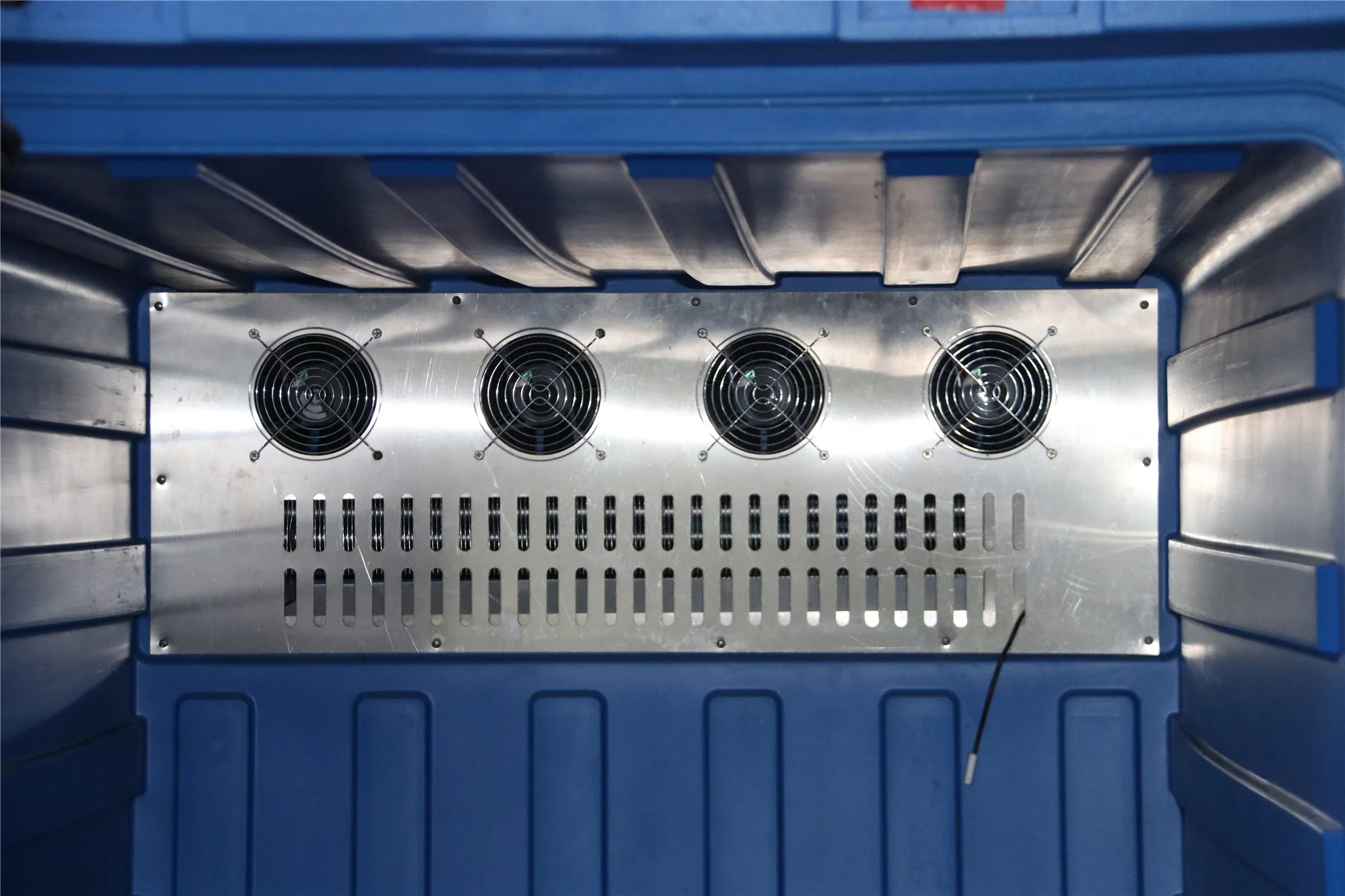

Evaporator
Strong air volume and continuous refrigeration. In the laboratory test, the refrigeration unit used the battery as the energy source, worked continuously for 97 hours, and the temperature dropped to – 29 ℃ (- 20.2 ℉)
Specification
Brand | KINGCLIMA |
Model Number | FB058 |
External Dimensions | L1500mm*H1100mm*W1000mm [L59"*H43"*W39"] |
Gross Capacity | 750L (198Gal) |
Temperature Range | 0℃~10℃ (32℉~50℉) |
Voltage | 12V / 24V / 48V / 60V |
720Unit Power (W) | 500W |
Gross Weight | 120KG |
Load Capacity | 1000KG |
Compressor Model | YQ20 |
Refrigerant type | R134a |
Refrigerant grams | 500-550g |
Color | Blue ( More than 10 sets in a single order can be customized in color) |

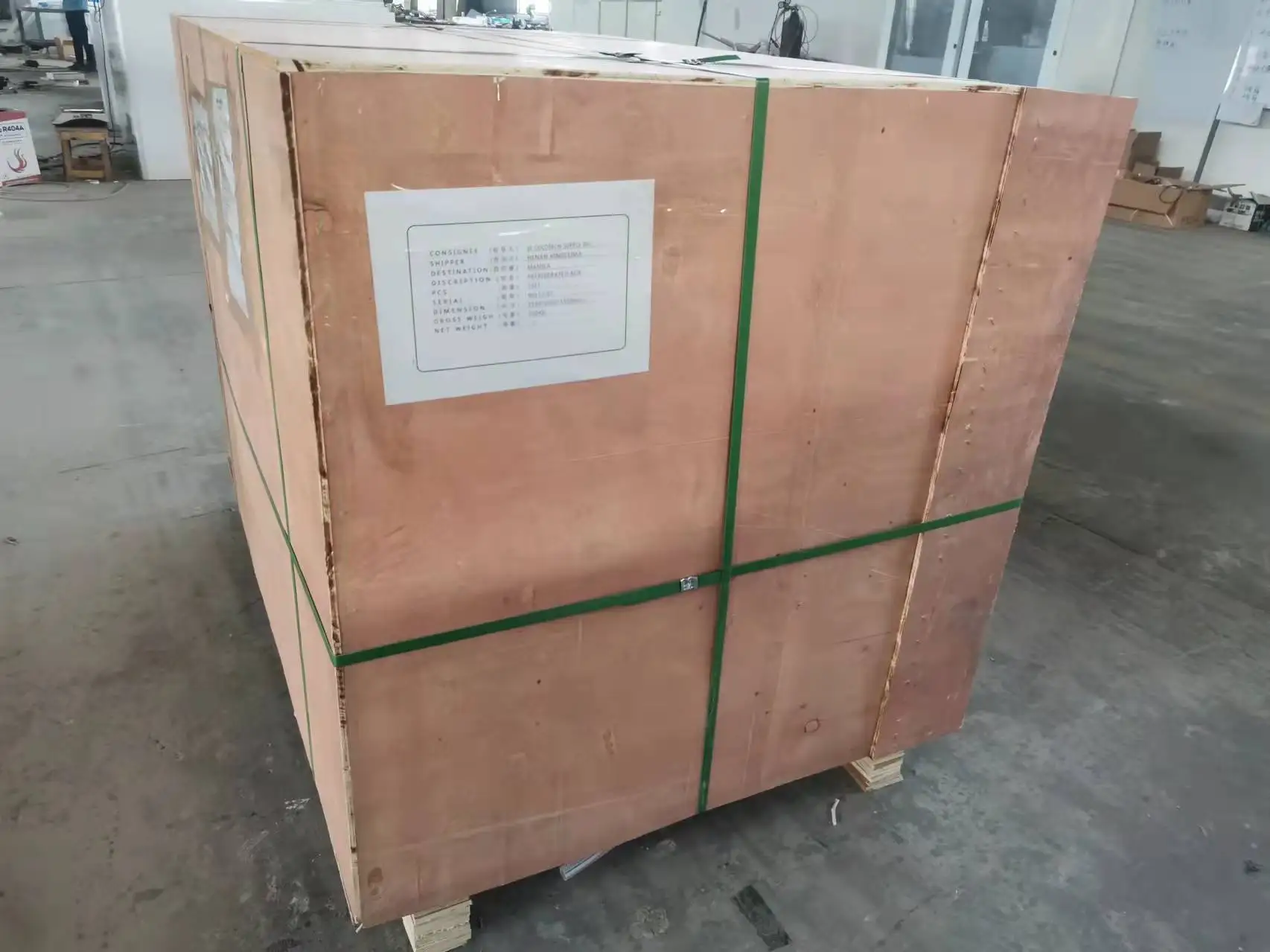

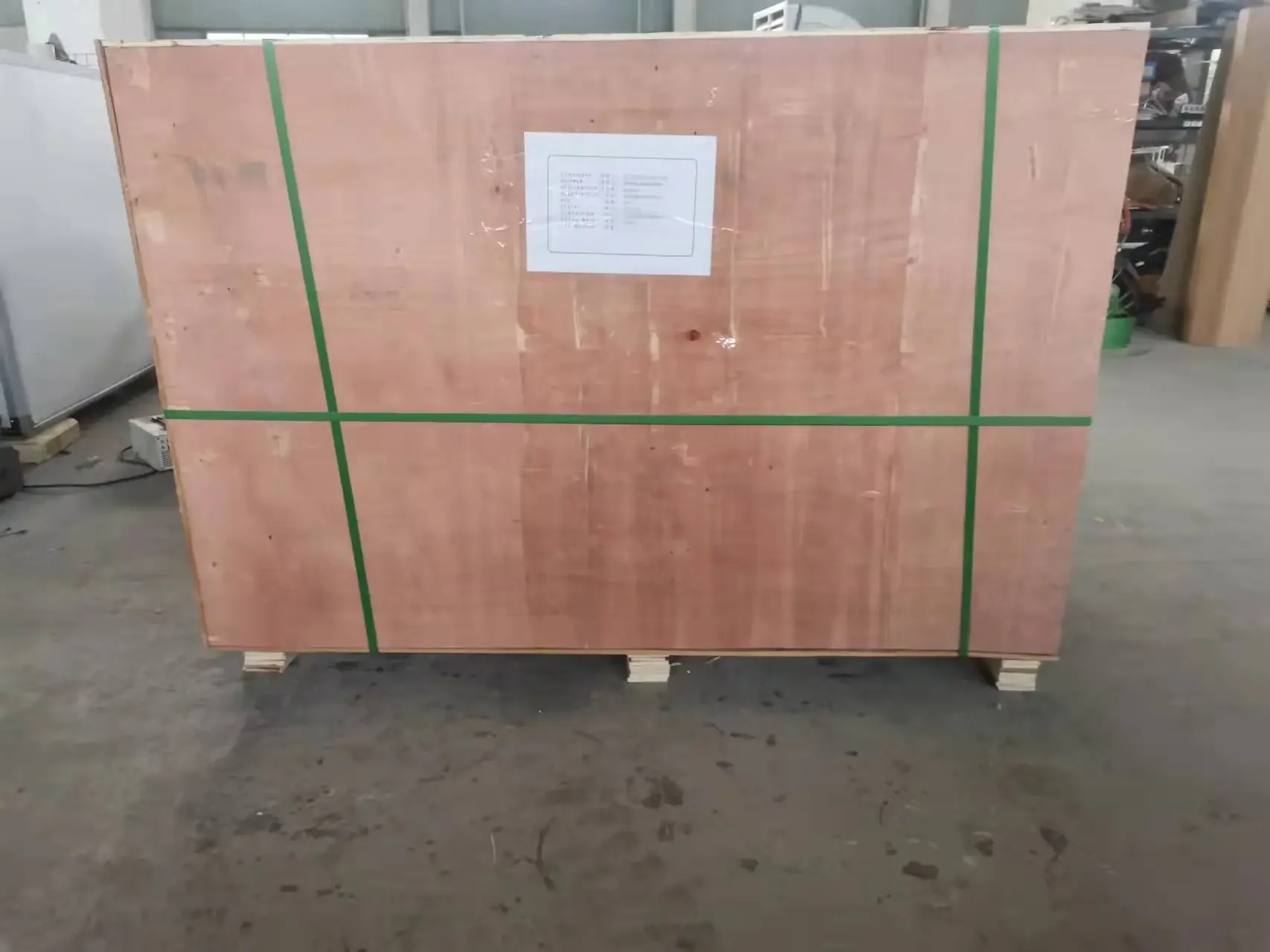

Packing & Delivery
Gross Weight : 130KG with wooden package
Package Dimension : L1600mm*H1200mm*W1100mm
Company Profile
Kingclima is a professional leading manufacturer and supplier of refrigeration units for cold chain commercial vehicle,vans,truck and trailers .The company's business has also been focusing on the promotion and production of refrigeration unit solutions and corresponding accessories. In 1998, Kingclima officially has established a complete products series of refrigeration units includes:Van refrigeration units ;Engine driven truck refrigeration units;Diesel truck refrigeration units;Battery driven refrigeration units;Full-electric truck refrigeration units;Refrigeration units parts;Refrigeration truck body and so on. Kingclima can meet all your various request for the transport refrigeration units. We hold TS16949,CE and ISO 9001:2000 certification. They specify the quality system requirements for design, development, production, environment, and when relevant, installation and servicing. Strictly controlling the quality of raw materials at the source and attaching great importance to the product quality, Kingclima has set up a whole-process quality control monitoring system. In 2004,Kingclima was granted the Quality Management System Certificate ISO/TS16949 -Kingclima is leading in China's refrigeration industry who got the certificate.
FAQ
1. who are we?
We are based in Henan, China, start from 2018,sell to Northern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),South America(10.00%),North America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Oceania(5.00%),Africa(5.00%),Southern Europe(5.00%),Central America(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
truck refrigeration units,truck refrigeration units parts,Refrigeration box
4. why should you buy from us not from other suppliers?
Kingcliam is a professional leading manufacturer and supplier of refrigeration units for cold chain commercial vehicle,vans,truck and trailers .The company's business has also been focusing on the promotion and production of refrigeration unit solutions.
5. what services can we provide?
Accepted Delivery Terms: EXW / FOB / CIF
Accepted Payment Currency: USD EUR CNY
Accepted Payment Type: TT / LC / Paypal /
Language Spoken: English Spanish
We are based in Henan, China, start from 2018,sell to Northern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),South America(10.00%),North America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Oceania(5.00%),Africa(5.00%),Southern Europe(5.00%),Central America(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
truck refrigeration units,truck refrigeration units parts,Refrigeration box
4. why should you buy from us not from other suppliers?
Kingcliam is a professional leading manufacturer and supplier of refrigeration units for cold chain commercial vehicle,vans,truck and trailers .The company's business has also been focusing on the promotion and production of refrigeration unit solutions.
5. what services can we provide?
Accepted Delivery Terms: EXW / FOB / CIF
Accepted Payment Currency: USD EUR CNY
Accepted Payment Type: TT / LC / Paypal /
Language Spoken: English Spanish
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $2700 / set
- 10–49 set: US $2600 / set
- 50+ set: US $2500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing units?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing units be supplied for my local voltage?
The standard configuration is 12V/24V/48V/60V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
