The condensing unit listed here carries voltage 110-380V, cooling capacity -45~25℃ or customization, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Condensing Unit
- Model Number: 2-20HP
- Voltage: 110-380V
- Cooling Capacity: -45~25℃ or customization
- Material: Copper, aluminum, iron
- Refrigerant: R22/404/507 or others
- Warranty: 1 Year
Technical Specifications
| Cooling Capacity | -45~25℃ or customization |
|---|---|
| Temperature | -45~25℃ or customization |
| Voltage | 110-380V |
| Compressor Type | Scroll/Reciprocating/Screw |
| Refrigerant | R22/404/507 or others |
| Compressor Brand | Bitzer/Copeland/Danfoss/Frascold/Blait/Gree |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Gearbox, PLC, Pump, Engine |
| Warranty | 1 Year |
| Key Selling Points | Automatic, High-Accuracy, High Productivity, Long Service Life, Low Maintenance Cost, Famous Brand PLC |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 150 |
| Model Number | 2-20HP |
| Dimension(L*W*H) | 102*43*127cm, customization |
| Product Name | Low Price 3hp Condensing Unit for Blast Freezer Cold Room Storage |
| Certificate | CE/ISO |
| Color | Silver gray |
| Material | Copper, aluminum, iron |
| Characteristic | Refrigeration equipment/cooling system |
| Gross Weight Of Each Product (Kg) | 26-66 kg |
| Marketing Type | Worldwide product |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 300X200X200 cm |
| Single Gross Weight | 500.0 kg |
Product Details
The price shown is for reference only. Products are available in various configurations and can be customized. Please contact us directly for a final price based on your exact needs.
Product Description
Product name | Refrigeration unit (compressor, air cooler, expansion valve, electric controller) |
Color | Silver gray |
Safety protection device | System high and low pressure protection, exhaust high temperature protection, etc. |
Condensing fan type | Brushless DC Motor |
Throttling device | Electronic expansion valve |
Heat Exchanger | Finned tube heat exchanger |
Voltage | 200v-380v 50Hz |
Applicable Industries | Hotels, Food & Beverage Factory, Farms, Restaurant, Home use |
High temperature compressor unit | ||||||||||||||
Evaporation temperature(°C) | -15 〜10 °C | |||||||||||||
Type of refrigeration oil | Ester oil | |||||||||||||
Refrigerant | R410A | |||||||||||||
Type | GNJ-QFT3C G/NaD | GNJ-QFT5C G/NaD | GNJ-QFT6C G/NaD | GNJ-QFT8C G/NaD | GNJ-QFT10C G/NaD | GNJ-QFT12C G/NaD | ||||||||
Cooling capacity(Kw) | 8.1 | 13.3 | 16.5 | 19.5 | 33.1 | 35 | ||||||||
Input power(kW) | 2.4 | 3.8 | 5 | 5.4 | 9.6 | 10.1 | ||||||||
Distribution power(Kw) | 4.2 | 7.0 | 8 | 9 | 14 | 15.4 | ||||||||
Refrigerant oil volume(L) | 1.05 | 1.7 | 1.7 | 1.77 | 2.5 | 2.75 | ||||||||
Noise dB (A) | 54 | 60 | 60 | 60 | 67 | 66 | ||||||||
Power supply | 220V 〜 50Hz | 380V 3N 〜50Hz | ||||||||||||
Refrigerant charge (Kg) | 3 | 5.3 | 6 | 9.5 | 8 | 9.4 | ||||||||

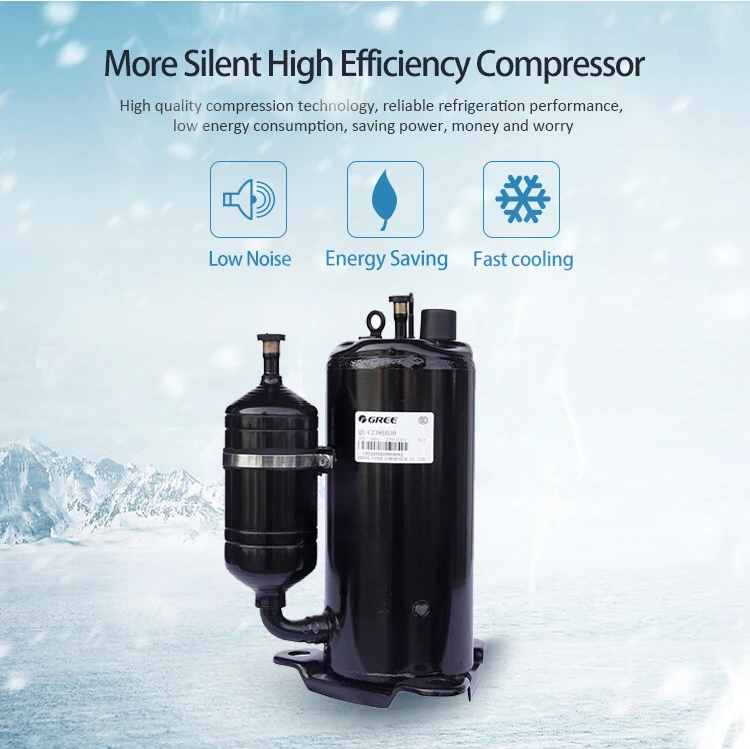

Compressor | TYPE | Hermetic Rotary Compressor | Hermetic scroll compressor | |||||||||||
HP | 3 | 5 | 6 | 8 | 10 | 12 | ||||||||
Connecting pipe (mm) | gas tube | 16 | 19 | 19 | 22 | 28 | 28 | |||||||
liquid tube | 9.52 | 12 | 12 | 12 | 16 | 16 | ||||||||
Condensing fan power (w) | 120 | 150 | 250 | 200X2 | 200X2 | 200X2 | ||||||||
Size(mm) | 412*1040*700 | 530*944*823 | 530*944*823 | 427*1098*1584 | 127*1098*1584 | 427*1098*1584 | ||||||||
Net weight (kg) | 72 | 105 | 118 | 159 | 195 | 176 | ||||||||
LOW temperature compressor unit | ||||||||||||
Evaporation temperature | -30℃〜0℃ | |||||||||||
Type | GNJ-QF3C D/NfD | GNJ-QF4C D/NfD | GNJ-QF5C D/NfD | GNJ-QF7C D/NfD | GNJ-QF12C D/NfD | |||||||
Type of refrigeration oil | FVC32D | RB68EP | POE | |||||||||
Refrigerant | R404A | R410A | ||||||||||
Cooling capacity(Kw) | 4.6 | 5.5 | 8.5 | 10.8 | 19.5 | |||||||
Input power(Kw) | 2.1 | 2.4 | 3.6 | 4.9 | 8.3 | |||||||
Distribution power(Kw) | 4 | 4 | 6.1 | 11.1 | 14.7 | |||||||
Refrigerant oil volume(L) | 1.25 | 1 | 1.7 | 1.7 | 2.51 | |||||||
Noise dB (A) | 56 | 56 | 56 | 56 | 65 | |||||||
Power supply | 220V 〜 50Hz | 380V 3N 〜50Hz | ||||||||||
Refrigerant charge (Kg) | 3.8 | 4 | 5 | 5.5 | 10.5 | |||||||
compressor | TYPE | Hermetic Rotary Compressor | Hermetic scroll compressor | |||||||||
HP | 3 | 4 | 5 | 7 | 12 | |||||||
Connecting pipe (mm) | gas tube | 16 | 19 | 19 | 19 | 22 | ||||||
liquid tube | 9.52 | 12 | 12 | 12 | 12 | |||||||
Condensing fan power (w) | 120 | 120 | 120X2 | 120X2 | 200X2 | |||||||

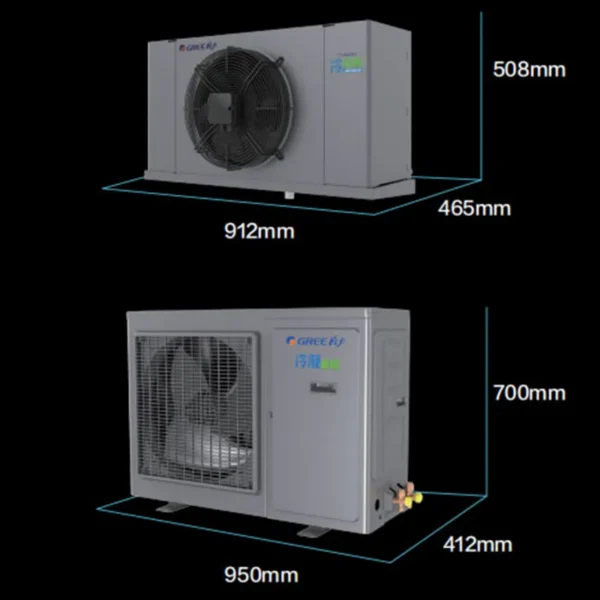

Size(mm) | 1040*412*700 | 950*412*800 | 995*412*1350 | 995*412*1350 | 1098*427*1584 | |||||||
Net weight (Kg) | 75 | 77 | 124 | 125 | 187 | |||||||

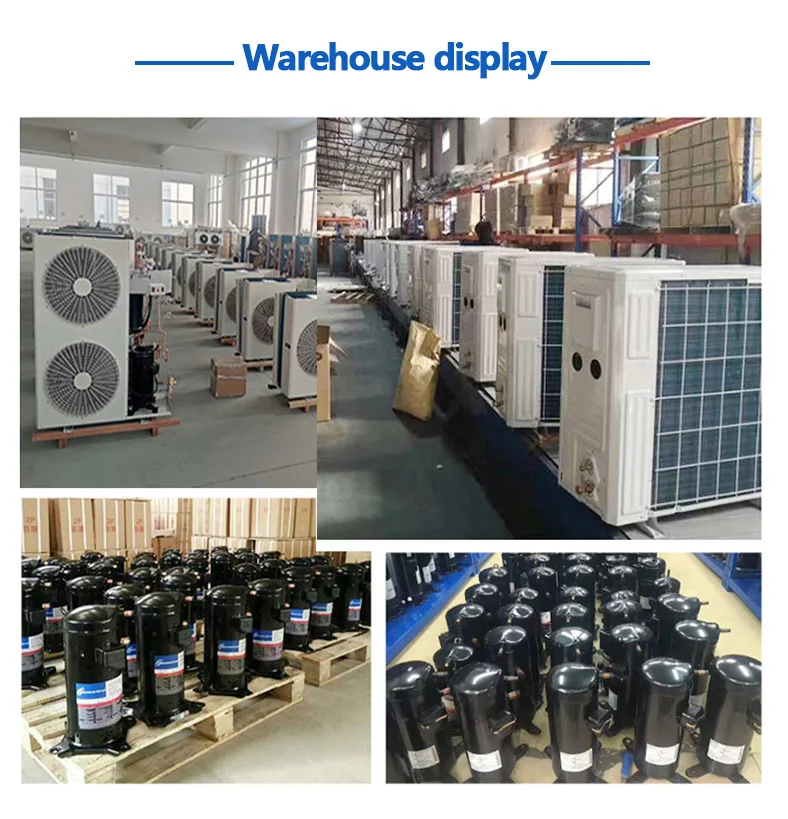

Factory Display
Packing & Delivery

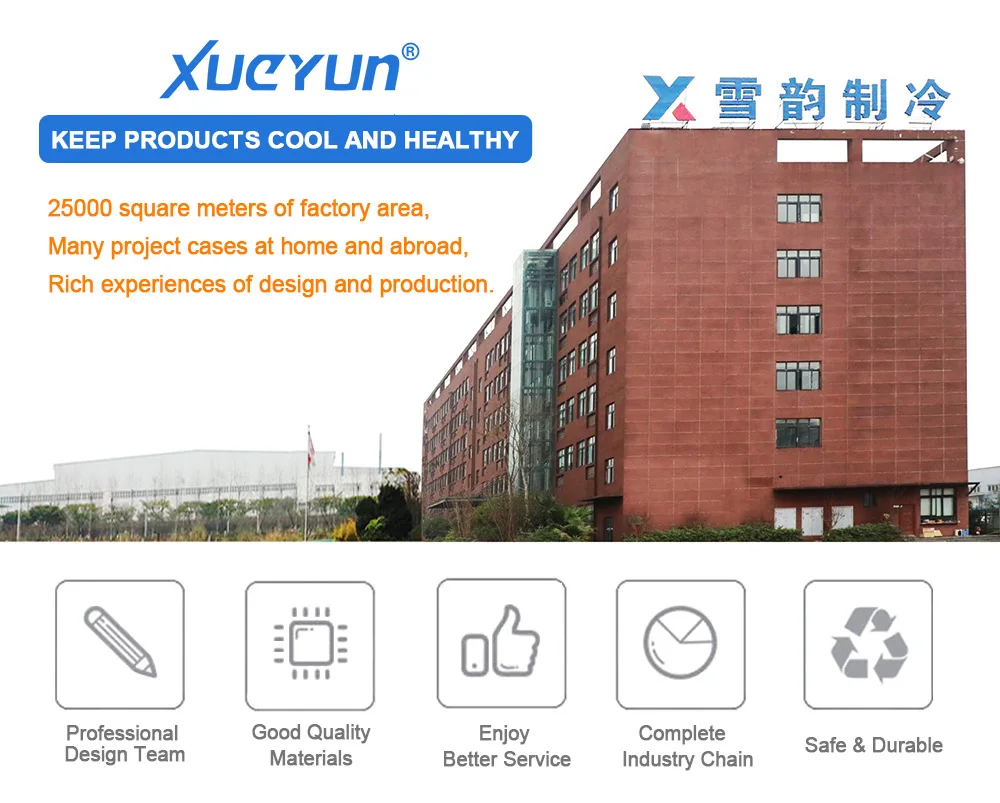

Company Profile
Xueyun Refrigeration Equipment Co., Ltd., a CCTV broadcast brand, the leader of China's digital innovation cold chain.
It is a modern group company integrating R&D, production, sales, warehouse design and installation of refrigeration equipment such as cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage.
The company has 25,000 square meters of production plant and dozens of professional and technical personnel.
It has passed the ISO9001 international quality certification and obtained the first-level qualification of the electromechanical equipment installation service. Absorbing advanced management experience and scientific research results at home and abroad,and striving to give customers the best user experience.
Please don't hesitate to contact us for
Free cold storage designs and drawings!
Click Here to Contact Now!
FAQ
1. Who are we?
We are based in Chongqing, China, start from 2017,Production cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage and etc,.There are total about 51-100 people in our office.Please do not hesitate to contact us for further information,we are waiting for you for 24 hours.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Gree Refrigeration Unit/Emerson Valley Wheel Compressor,Polyurethane Cold Storage Board,Air Cooler
4. Why should you buy from us not from other suppliers?
Xueyun Refrigeration Equipment Co., Ltd., a CCTV broadcast brand, is the leader of China's digital innovation cold chain. It is a modern group company integrating R&D, production, sales, warehouse design and installation of refrigeration equipment such as
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency :USD,CNY;
Accepted Payment Type: T/T;L/C/Western Union
Language Spoken:English,Chinese,Spanish
We are based in Chongqing, China, start from 2017,Production cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage and etc,.There are total about 51-100 people in our office.Please do not hesitate to contact us for further information,we are waiting for you for 24 hours.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Gree Refrigeration Unit/Emerson Valley Wheel Compressor,Polyurethane Cold Storage Board,Air Cooler
4. Why should you buy from us not from other suppliers?
Xueyun Refrigeration Equipment Co., Ltd., a CCTV broadcast brand, is the leader of China's digital innovation cold chain. It is a modern group company integrating R&D, production, sales, warehouse design and installation of refrigeration equipment such as
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency :USD,CNY;
Accepted Payment Type: T/T;L/C/Western Union
Language Spoken:English,Chinese,Spanish
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $338 / set
- 10–29 set: US $310 / set
- 30+ set: US $280 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this condensing unit carry?
It is supplied with CE/ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 110-380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
