The cooled scroll water chiller listed here carries airflow 27000m³/h, refrigerant R134a, documented exactly as the manufacturer publishes it. Made by Tongxing Air Conditioning Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooled Scroll Water Chiller
- Operating Voltage: 380/415 VAC
- Capacity Range: 65 – 120 KW
- Airflow: 27000m³/h
- Refrigerant: R134a
- Warranty: 2 Years
- Certification: CE, RoHs, ISO, ETL, AHRI
Technical Specifications
| Type | Chiller |
|---|---|
| Airflow | 27000m³/h |
| Operating Voltage | 380/415 VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1509 KG |
| Brand Name | Gree |
| Dimension(L*W*H) | 2306*1730*2230 |
| After-Sales Service Provided | Free spare parts |
| Certification | CE, RoHs, ISO, ETL, AHRI |
| Working Temperature Range | -15℃~48℃ |
| Capacity Range | 65 – 120 KW |
| Refrigerant | R134a |
| Operational Control | Microcomputer automatic control, running status display |
| Compressor Type | whole sealing scroll type flexible compressor |
| COP | 3.04 |
| Air Side Heat Exchanger | Efficient finned coil |
| Heat Exchanger | High-efficiency Shell and Tube Heat Exchanger |
| Packaging Details | Standard export worthy packing |
| Port Of Dispatch | Shenzhen, Shanghai, Qingdao |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 sets per Year |
Product Details

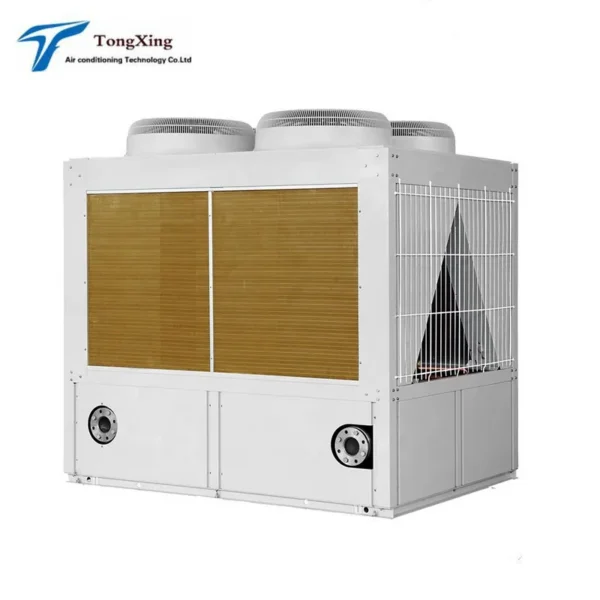

Modular Air-cooled Scroll Chiller
No master and slave module; uninterrupted heating; module balanced operation; multistage anti-freezing; wide operating range
No master and slave module
Any module can be a master module. Different modules can be combined freely regardless of their different capacity. Therefore, units can have various kinds of capacity to meet wide application range. If one unit fails to function normally, the rest of units within the module can operate normally in order to ensure cooling supply of the entire system.
Uninterrupted heating in winter
For modular combination, the number of defrosting modules is set automatically so that not all of the modules will be in frosting at the same time. System performs heating and defrosting in good order for comfortable air conditioning and higher defrosting efficiency.

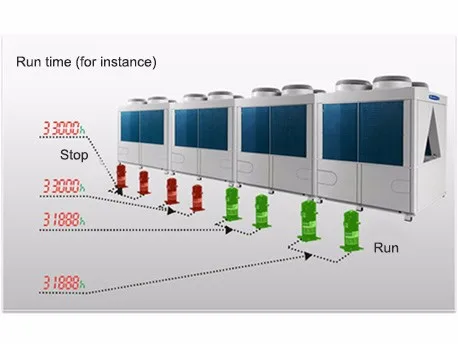

Module balanced operation
Operation time of module is automatically balanced. This is to avoid overuse of a single module and to extend unit’s service life.
Multistage anti-freezing
Unit adopts multipoint anti-freezing control. Each module has its own water flow switch to protect itself from frost crack caused by uneven water flow or bad working condition.
Shell-and-tube heat exchanger
Heat exchanger has large heat exchanging space, which can effectively prevent clogging caused by foreign matters. With the high-efficiency U-shaped heat exchange tube and new pipeline and flow equalizing plate, flow dividing uniformity and heat exchange capacity are both improved.
Electronic expansion valve
High-precision electronic expansion valve is adopted to realize accurate dynamic flow control and quick response to unit’s working condition. Control accuracy and reliability are both considered. It can perform self-check upon startup to ensure safety and reliability during operation.

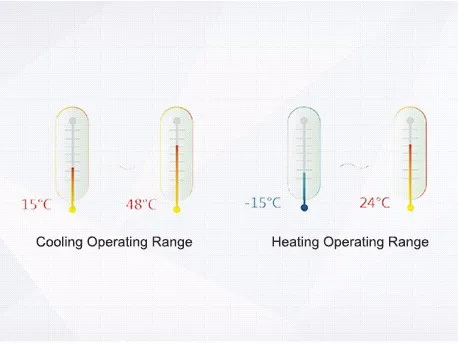

Wide operating range
Ambient temperature for cooling: 15℃~48℃; ambient temperature for heating: -15℃~24℃; water side output water temperature: 40℃~50℃
Bank

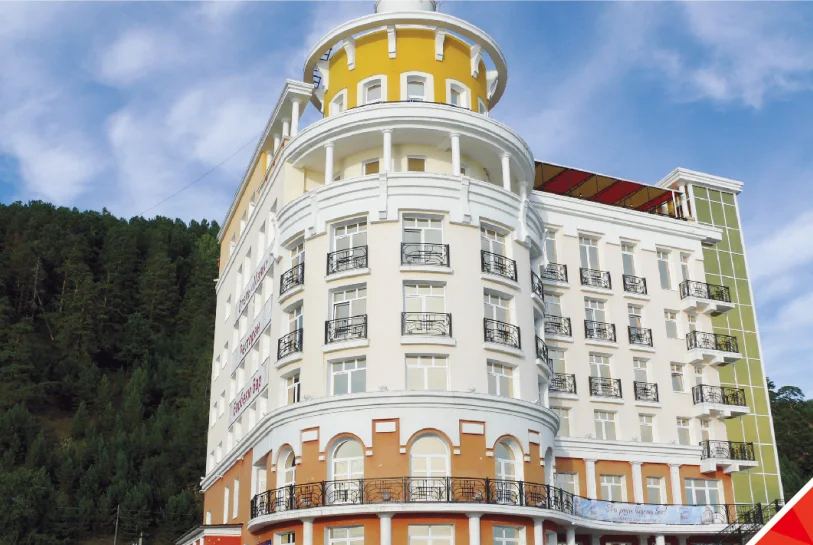

Hotel
Hospital
Community center
Gallery Mall
Trading center
School

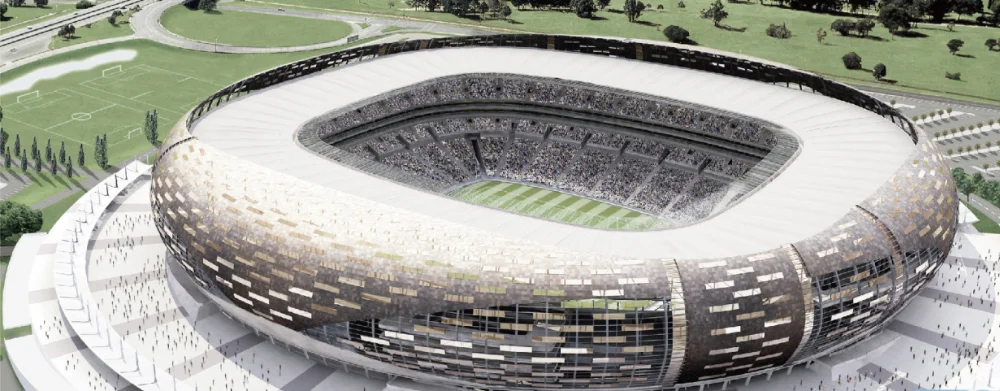

Stadium
Aircraft plant
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1999 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled scroll water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooled scroll water chiller carry?
It is supplied with CE, RoHs, ISO, ETL, AHRI documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooled scroll water chiller be supplied for my local voltage?
The standard configuration is 380/415 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tongxing Air Conditioning Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Tongxing Air Conditioning Technology Co., Ltd. range on HVACR Nexus.
