The cooling fan listed here carries 230V, power source Electric, documented exactly as the manufacturer publishes it. Made by Beijing Henry Mechanical & Electrical Equipment Co,Ltd (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Fan
- Model Number: SK3243.100, SK3243.700
- Power Source: Electric
- Electric Power Consumption: 70 W
- Power Consumption: 0.37A
- Voltage: 230V
- Blade Material: Cast Iron
Technical Specifications
| Voltage | 230V |
|---|---|
| Type | Axial Fan |
| Blade Material | Cast Iron |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Germany |
| Brand Name | Rittal |
| Model Number | SK3243.100, SK3243.700 |
| Custom Processing | Yes |
| Speed | 2700 r/min |
| Electric Power Consumption | 70 W |
| Power Consumption | 0.37A |
| Ambient Temperature | -20-70C |
| Blade Diameter | 200 mm |
| Selling Units | Single item |
| Single Package Size | 37X37X25 cm |
| Single Gross Weight | 6.000 kg |
Product Details

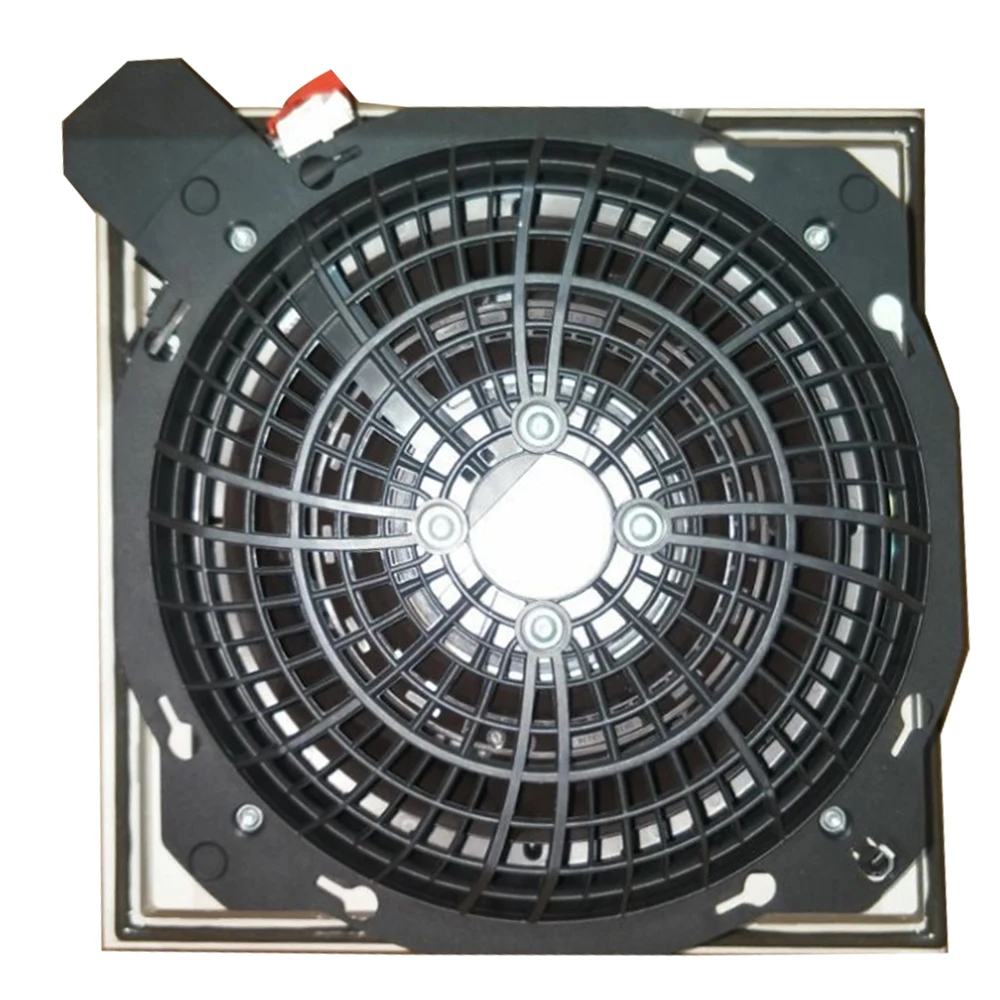

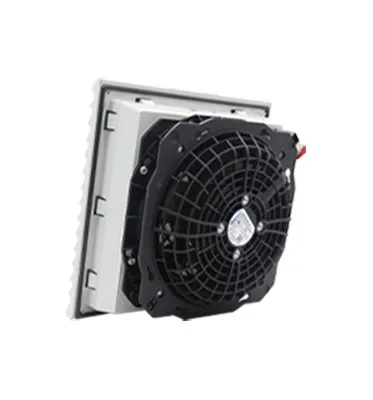

Ebmpapst K2E200-AH20-05 SK3243.100 230V AC 0.37A 70W 2700rpm 600m3/h 200mm IP20 Rittal Cabinet Axial Cooling Fans
item | value |
Type | Other |
Applicable Industries | Other |
Customized support | OEM |
Blade Material | Cast Iron |
Mounting | FREE STANDING |
Place of Origin | Germany |
Brand Name | ebmpapst |
Power | 70 W |
Voltage | 230V |
Certification | complete certification |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Custom processing | Yes |
Speed | 2700 r/min |
Electric power consumption | 70 W |
Power consumption | 0.37A |
Ambient temperature | -20-70C |
blade diameter | 200 mm |
Type | ebmpapst |
voltage | 230V |

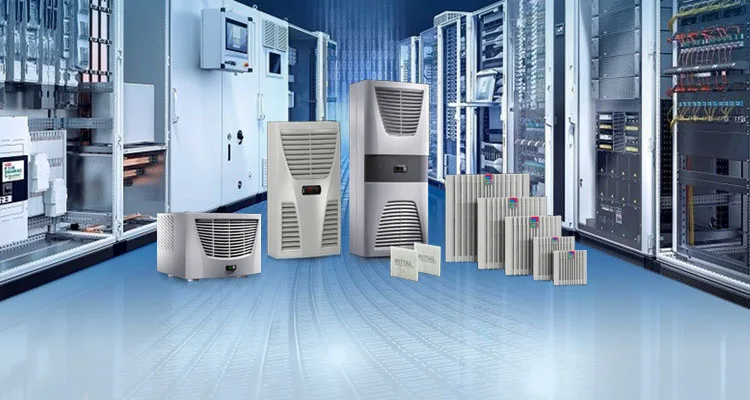

Comprehensive Cooling Solution for Rittal Cabinets
– Fans, Cabinet Air Conditioners, Filter — One-Stop Matching Solution –
Product Display

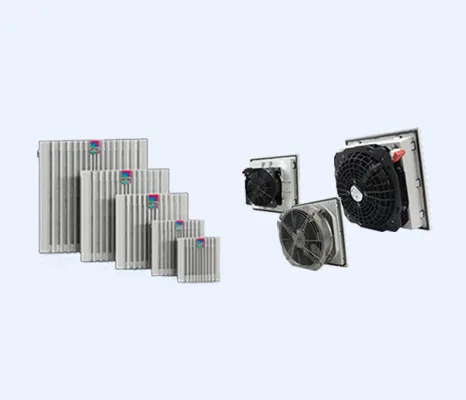

Rittal Filter Fans
>Filter Fan: Air Volume Range 20-900 m³/h
>Top-Mount Fan: Air Volume Range 500-1069 m³/h
>Protection Class: IP54 / IP55
>European / GB Standards Available

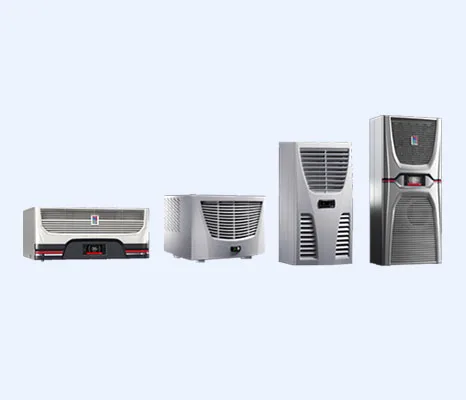

Industrial Cabinet Air Conditioners
>Wide Power Range: 225 – 4000W
>Intelligent Adjustment
>Electronic Condenser Evaporator
>RINano Nano Coating Technology

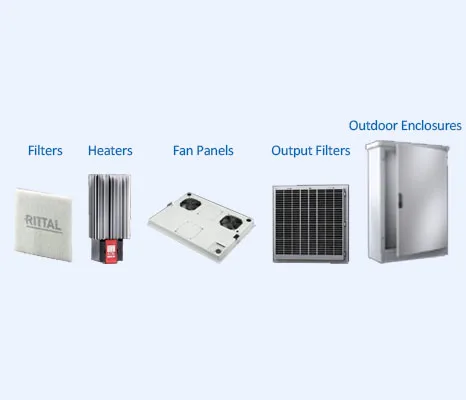

System Spare Parts
>High-Efficiency Filtration Technology
>Intelligent Control & Energy Saving
>Convenient Maintenance Design
>Excellent Protection Performance
Product Recommendations

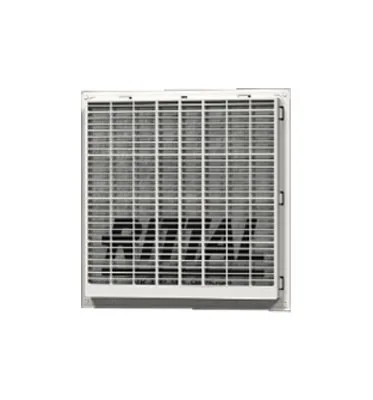

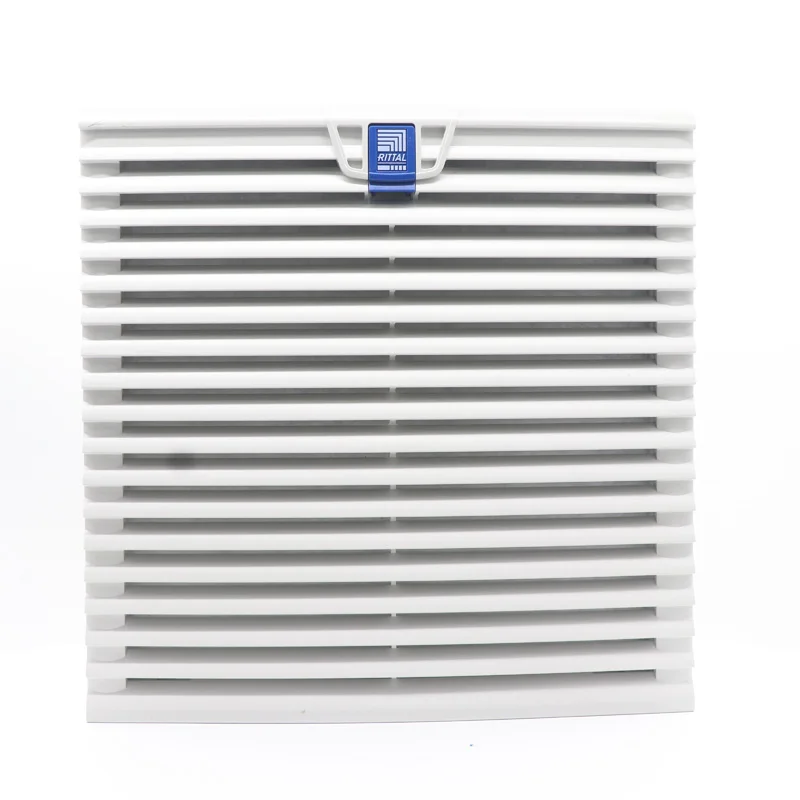

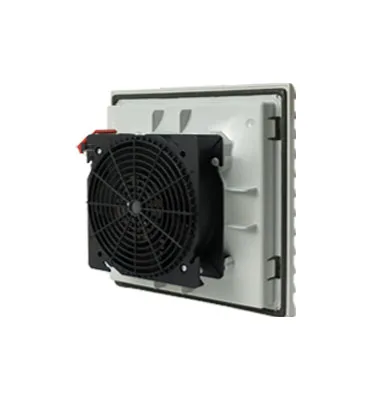

Filter Fan
SK 3241.100
Filter Fan
SK 3239.100

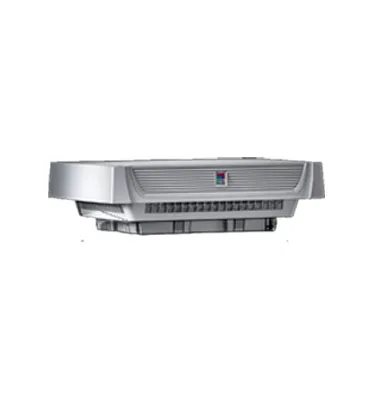

Top-Mount Fan, Top Ventilation
SK 3139.110

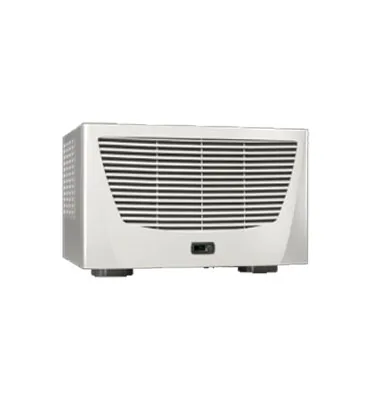

Top-Mount Air Conditioner
500 ~ 4000W

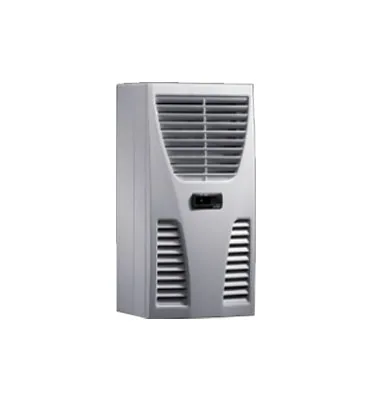

Wall-Mount Cooling Unit TopTherm Blue e
300 ~ 4000W

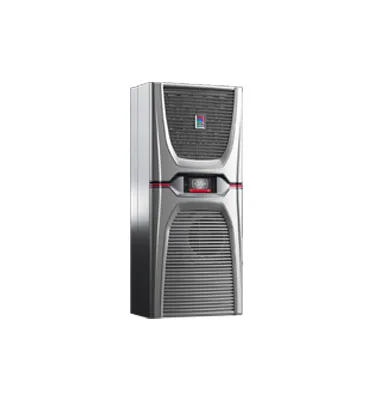

Wall-Mount Cooling Unit Blue e+
1600 ~ 5500W

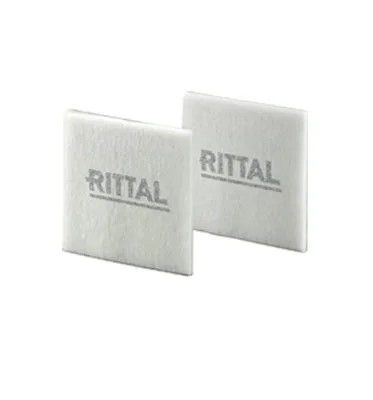

Non-Woven Fiber Filter Pad
SK 3171.100
Blue e+ Output Filter
SK 3237.XXX

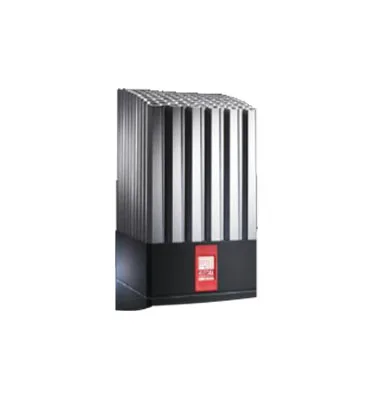

Control Cabinet Heating Unit
235 ~ 800W
Fan Technical Advantages
>Innovative diagonal fan technology enables higher and more stable air flow in the installed state
>Air flow ranges from 20 m³/h to 900 m³/h
>Quick, tool-free assembly for output classes from 20 m³/h to 900 m³/h
>Protection class: IP54 as standard (up to 700 m³/h)
>Air flow direction can be reversed from supply (default setting) to exhaust
>All fans feature EMC shielding
>Quick installation; EMC-compliant shielding version available

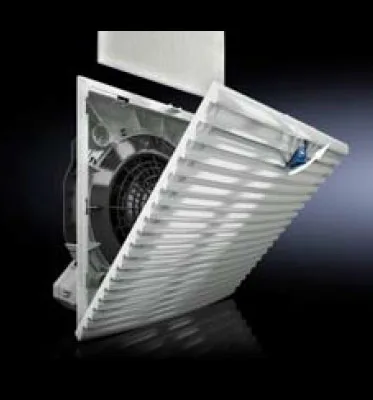

01.Tool-Free Installation
02.High-Efficiency Technology

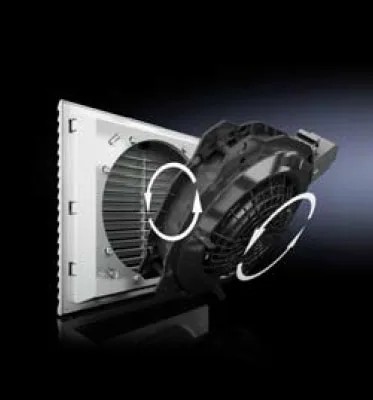

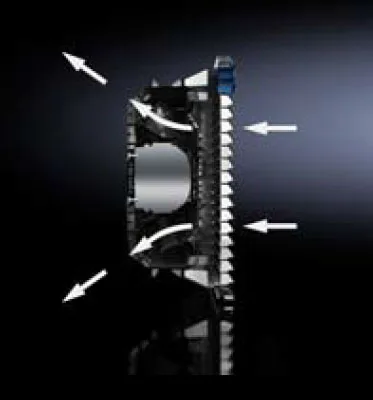

03.Air Flow Direction
Industry Solutions

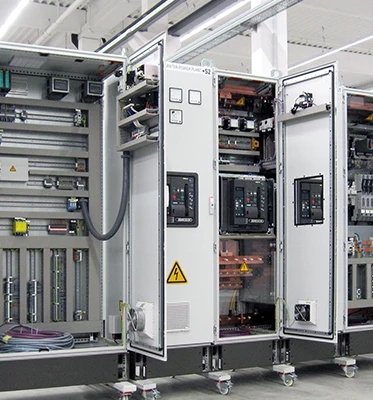

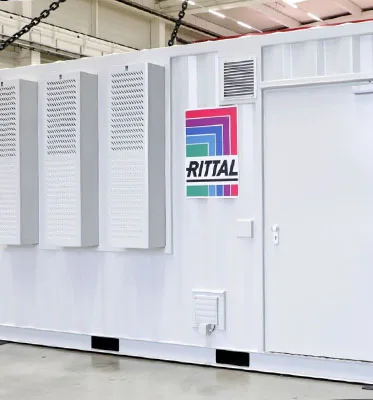

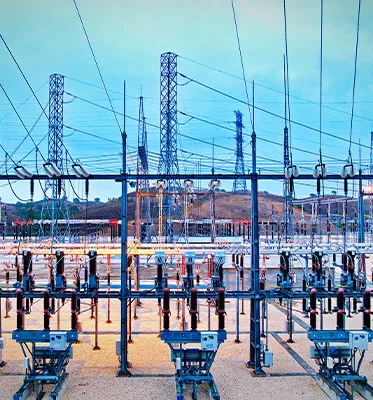

Power Cabinet Heat Dissipation
Communication Cabinet Heat Dissipation

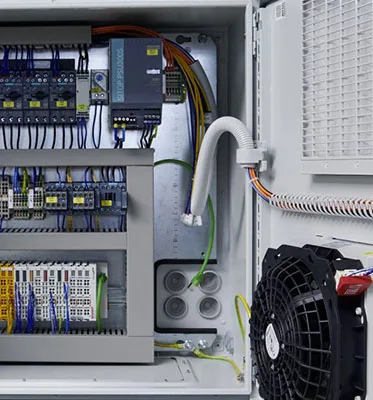

Automation Equipment Control Cabinet
Rail Transit Equipment Cabinet
New Energy Equipment Cabinet

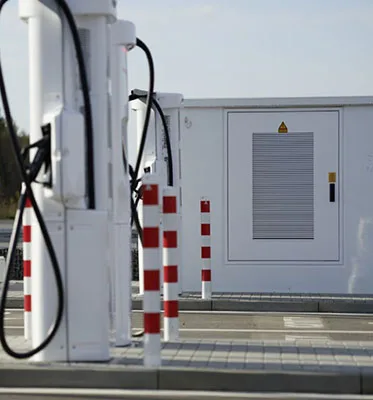

Outdoor Cabinet (Including Charging Pile)
Application Case Display
Case 1: Power Equipment Factory · Frequent High-Temperature Alarms
>Application Equipment: IP54 Outdoor Power Cabinet >Used Products: IP54 Outdoor Filter Fan (250×250mm) >Customer Pain Points: Frequent high-temperature alarms;
Insufficient air flow of original fan; On-site dust
accumulation >Implementation Plan: Replace with high-air-flow filter fan
(900 m³/h); Add dust-proof filter screen to improve
protection class; Optimize air duct path inside the cabinet
>Final Results: Cabinet internal temperature reduced by
12℃; Failure rate decreased by 38%; Equipment operation
stability improved by 40%

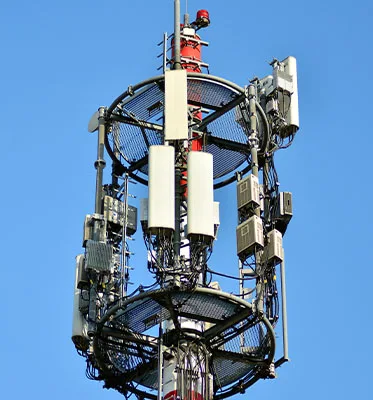

Case 2: 5G Base Station Cabinet · Summer Base Station Issues
>Application Equipment: 5G Outdoor Communication Base
Station Cabinet >Used Products: EC Energy-Saving Temperature-Controlled
Fan + Dust-Proof Filter Screen >Customer Pain Points: Severe damage to internal
components due to high temperature; High noise & short
service life of original fan >Implementation Plan: Replace with EC energy-saving
172×150 fan; Adopt IP55 dust-proof structure; Optimize air
intake (reduced by 70%); Convert turbulent flow to laminar
flow >Final Results: Optimized air intake reduced by 70%; Fan
power consumption decreased by 42%; Maintenance
frequency reduced by 50%

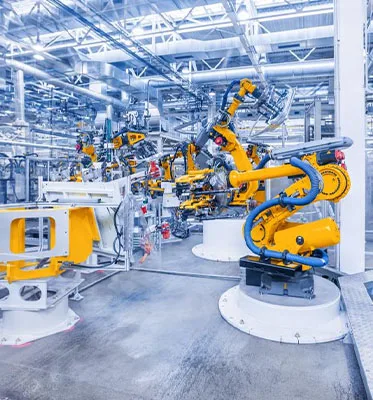

Case 3: Automation Production Line · High Control Cabinet Temperature
>Application Equipment: PLC Control Cabinet / Frequency
Converter Cabinet >Used Products: 150×150 Filter Screen >Customer Pain Points: High heat generation of internal
equipment; Occasional PLC crash in summer; Frequency
converter over-temperature alarm >Implementation Plan: Replace with high-flow filter fan &
add exhaust fan; Form a "forced exhaust + forced suction"
structure; Rearrange & modify internal wiring >Final Results: Over-Temp kept below 3℃; Frequency
converter alarm eliminated; Shutdown rate of the entire
production line reduced by 27%
Case 4: New Energy Charging Pile · Summer Current Limiting Issue
>Application Equipment: DC Charging Pile >Used Products: EC Exhaust Cooling Fan + Ultra-High
Efficiency Filter >Customer Pain Points: Rapid internal temperature rise due
to summer charging; Insufficient original ventilation & poor
cooling effect >Implementation Plan: Deploy high-air-flow EC fans to boost
heat exchange; Optimize internal air ducts for linear
airflow; Add fresh air filtration to enhance protection.
>Final Results: Charging current limiting reduced by 80%;
Fan noise reduced by 7-10dB; Service life of a single fan
increased by 6000h
Service Advantage
Company Introduction
Beijing Henry Mechanical and Electrical Equipment Co., Ltd. is a professional supplier of fans and industrial control products,
mainly focused on: · Ventilation and heat dissipation solutions
· Industrial control system accessories.Our products are widely applied in:
Ventilation, air conditioning, refrigeration, heating, electrical automation, frequency converters, rail transit, HVAC (FFU/AHU),
air purification, new energy vehicles, and more.
For decades, we've been committed to customer satisfaction through:
Enthusiastic service, fast response, scientific management, and a practical, innovative spirit —earning a solid reputation across
industries.
mainly focused on: · Ventilation and heat dissipation solutions
· Industrial control system accessories.Our products are widely applied in:
Ventilation, air conditioning, refrigeration, heating, electrical automation, frequency converters, rail transit, HVAC (FFU/AHU),
air purification, new energy vehicles, and more.
For decades, we've been committed to customer satisfaction through:
Enthusiastic service, fast response, scientific management, and a practical, innovative spirit —earning a solid reputation across
industries.
FAQ
1. Who are we?Beijing Henry has been engaged in fan industry since 2006 and have become the most professional fan distributor in
China. We have a warehouse of over 8000 ㎡，and more than 100,000 units products in stock.
2. Why choose us？
Excellent Experience
>15000 Customers
Decades of accumulation
Hundreds of successful cases
Excellent Experience
>15000 Customers
Decades of accumulation
Hundreds of successful cases
Professional Team
The core staff of Sales & Technical Department have more than 5 years of experience
Diversified Product Solutions
We can offer several product solutions for customers to choose
Quick Response
Reply within 10 minutes, 24 hours online
Adequate Stock
More than 20 brands，5000 models，100000 units in our warehouse
Perfect Service
Professional technician for pre-sale & after-sale support
The core staff of Sales & Technical Department have more than 5 years of experience
Diversified Product Solutions
We can offer several product solutions for customers to choose
Quick Response
Reply within 10 minutes, 24 hours online
Adequate Stock
More than 20 brands，5000 models，100000 units in our warehouse
Perfect Service
Professional technician for pre-sale & after-sale support
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $231.82 / piece
- 50+ piece: US $220.23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling fan be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
