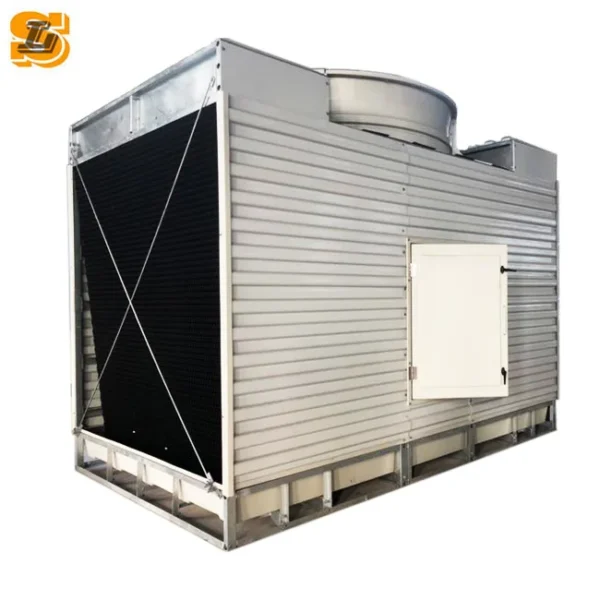

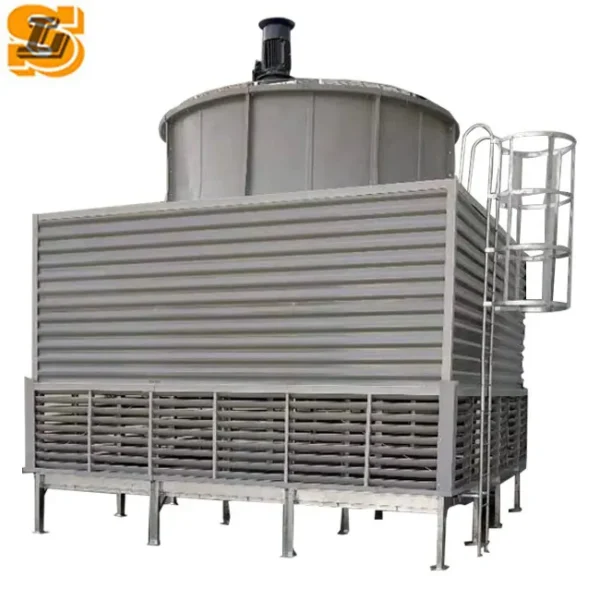

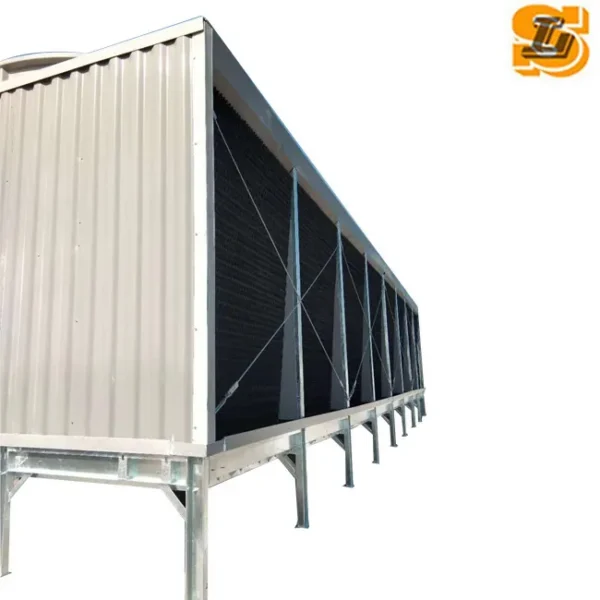

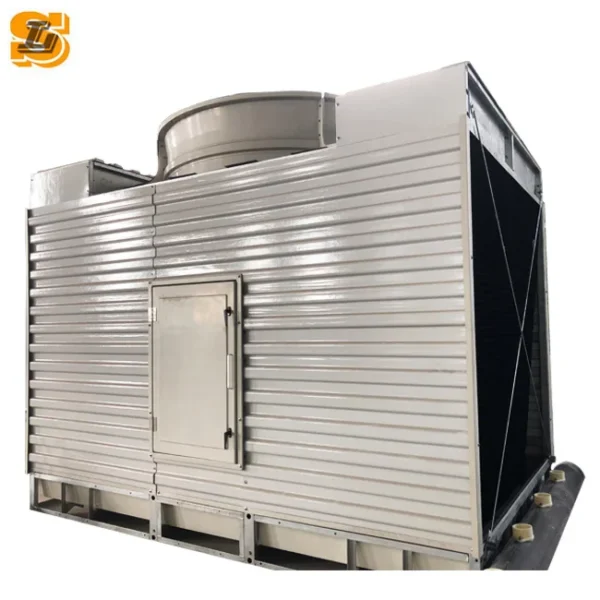

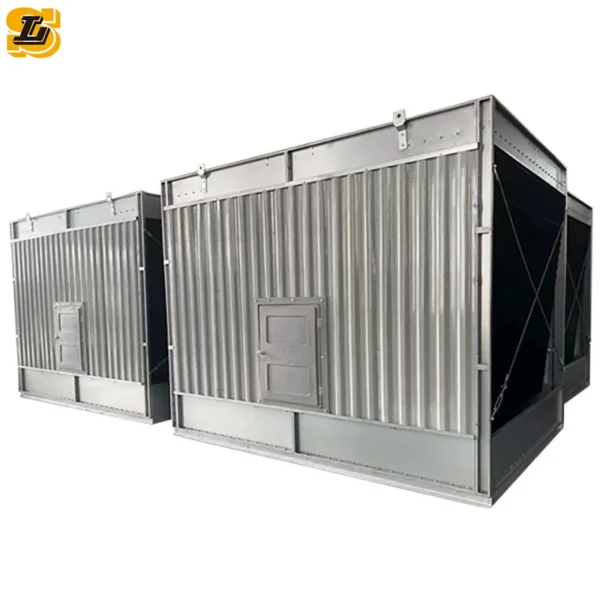

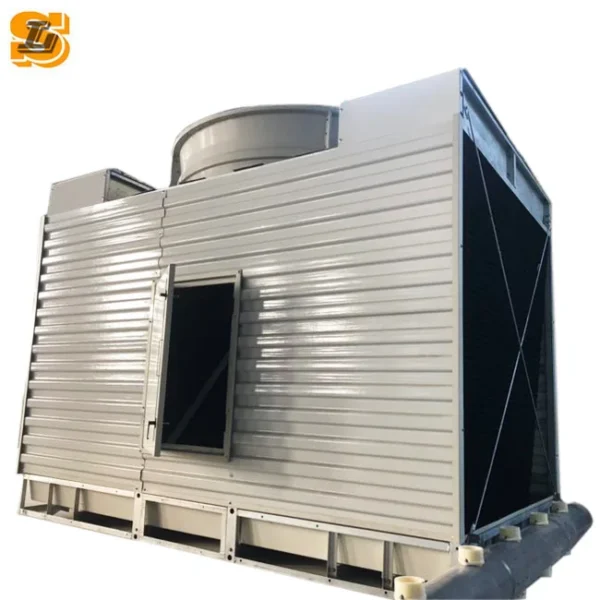

Key specification for this cooling tower: voltage 380-415V, cooling capacity 50~300RT. Everything below is reproduced from the factory data sheet. Made by Shanghai Shenglin M&E Technology Co., Ltd. (17 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Power(W): 300W
- Voltage: 380-415V
- Cooling Capacity: 50~300RT
- Material: FRP
- Coil Material: Ss304/ss316/copper/hot Dipped Galvanised Steel
- Casing Material: Hot Dipped Galvanised, stainless steel
Technical Specifications
| Voltage | 380-415V |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 300W |
| Material | FRP |
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Control Method | Touch |
| Noise Level | 35–39 dB |
| Key Selling Points | Easy to Operate |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 1500 |
| Brand Name | Shenglin |
| Dimension(L*W*H) | customized |
| Coil Material | Ss304/ss316/copper/hot Dipped Galvanised Steel |
| Application | Water Cooling Chiller |
| Colour | Blue Green Black Grey |
| Shape | round, square |
| Casing Material | Hot Dipped Galvanised, stainless steel |
| Cooling Capacity | 50~300RT |
| Fans Diameter | 700-6000mmm |
| Noise Control | Low Speed Fan |
| Fan Type | Axial Flow |
| Selling Units | Single item |
Product Details

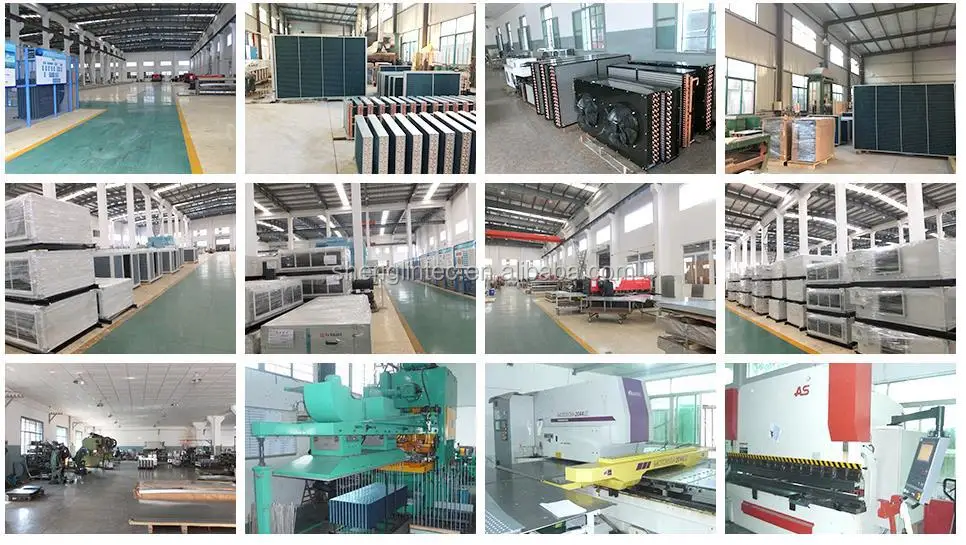

We are a professional heat exchanger, condenser, evaporator, heat pump,air cooler and air conditioner manufacturer in China,which has more than 15 years experience in HVAC area. Our products have been exported to Europe,USA, Japan and Middle east etc.
WORKING PRINCIPLE
The hot water is pumped through the water pump to pressurize the standby ring water into the cooling water seeding system.Dry the wine evenly on the filler through holes in the seeding pipe
Under the action of the fan, the air enters into the tower from the bottom into the air network to exchange hot water with air. Drop into the chassis and run through the water pump to the heat source for recycling
FEATURES
1. optimization of structure modelling shape size is small high and low igh weight, and four weeks of th
wind, less restricted by decorate venues.
2 the tower body USES the high strength of FR composite material product an, antiaging, corrosion
resistance, ne deformation not faded,
3. all mctal parts manufacturcd thickened just materia and galvanized or painted anticorrosive
4. the water tower adopts the automatic rotating sprinkler, can evenly spray the water to the every corner of
the packing, corrosion resistant, non clogging, high efficiency
| MODEI | FIOW RATE(M3/h) | OVERALL DIMENSION |
FAN ASSEMBLY | PIPING SIZE | (DB) NOISE | |||||||
|
| WB28℃ TWB28℃ | WB27℃ TWB27℃ | H | D | (HP) MOTOR | FAN | INLET | OUTLET | DR | OF | FV |
|
| LYC-W-10 | 4.1 | 4.3 | 1740 | 1060 | 1/4 | 670 | 40 | 40 | 25 | 25 | 15 | 50.0 |
| LYC-W-15 | 6.1 | 6.5 | 1960 | 1060 | 1/4 | 670 | 40 | 40 | 25 | 25 | 15 | 52.0 |
| LYC-W-20 | 8.2 | 8.6 | 2000 | 1200 | 1/4 | 670 | 50 | 50 | 25 | 25 | 15 | 53.0 |
| LYC-W-25 | 10.2 | 10.8 | 2290 | 1430 | 1/2 | 770 | 80 | 80 | 25 | 25 | 15 | 530. |
| LYC-W-30 | 12.2 | 13.0 | 2290 | 1430 | 3/4 | 770 | 80 | 80 | 25 | 25 | 15 | 55.0 |
| LYC-W-40 | 16.3 | 17.3 | 2360 | 1620 | 1 | 770 | 80 | 80 | 25 | 25 | 15 | 56.0 |
| LYC-W-50 | 20.4 | 21.6 | 2595 | 1810 | 2 | 970 | 80 | 80 | 25 | 25 | 15 | 57.0 |
| LYC-W-60 | 24.5 | 25.9 | 2595 | 2000 | 2 | 970 | 80 | 80 | 25 | 25 | 15 | 58.0 |
| LYC-W-80 | 38.1 | 40.8 | 2690 | 2180 | 2 | 1170 | 100 | 100 | 25 | 25 | 25 | 59.0 |
| LYC-W-100 | 44.1 | 46.8 | 2790 | 2180 | 2 | 1170 | 100 | 100 | 40 | 25 | 25 | 60.0 |
| LYC-W-125 | 60.0 | 64.2 | 2875 | 2750 | 3 | 1470 | 100 | 100 | 40 | 25 | 25 | 61.0 |
| LYC-W-150 | 74.1 | 78.6 | 2950 | 3070 | 3 | 1470 | 125 | 125 | 50 | 25 | 25 | 61.0 |
| LYC-W-175 | 84.9 | 90.3 | 3200 | 3300 | 5 | 1750 | 125 | 125 | 50 | 50 | 25 | 62.0 |
| LYC-W-200 | 99.6 | 105.3 | 3300 | 3300 | 5 | 1750 | 125 | 125 | 50 | 50 | 25 | 62.0 |
| LYC-W-250 | 116.7 | 125.4 | 3600 | 3770 | 5 | 1750 | 150 | 150 | 50 | 50 | 40 | 63.0 |
| LYC-W-300 | 138.6 | 147.6 | 3960 | 3770 | 7.5 | 2400 | 200 | 200 | 50 | 50 | 40 | 63.0 |
| LYC-W-350 | 173.4 | 184.2 | 4150 | 4790 | 10 | 2400 | 200 | 200 | 50 | 50 | 40 | 63.5 |
| LYC-W-400 | 194.7 | 206.7 | 4150 | 4790 | 10 | 2400 | 200 | 200 | 50 | 50 | 40 | 63.5 |
| LYC-W-500 | 269.4 | 283.2 | 5200 | 5480 | 15 | 3000 | 250 | 250 | 80 | 80 | 40 | 65.0 |
| LYC-W-600 | 298.8 | 315.9 | 5260 | 5580 | 15 | 3000 | 250 | 250 | 80 | 80 | 40 | 66.0 |

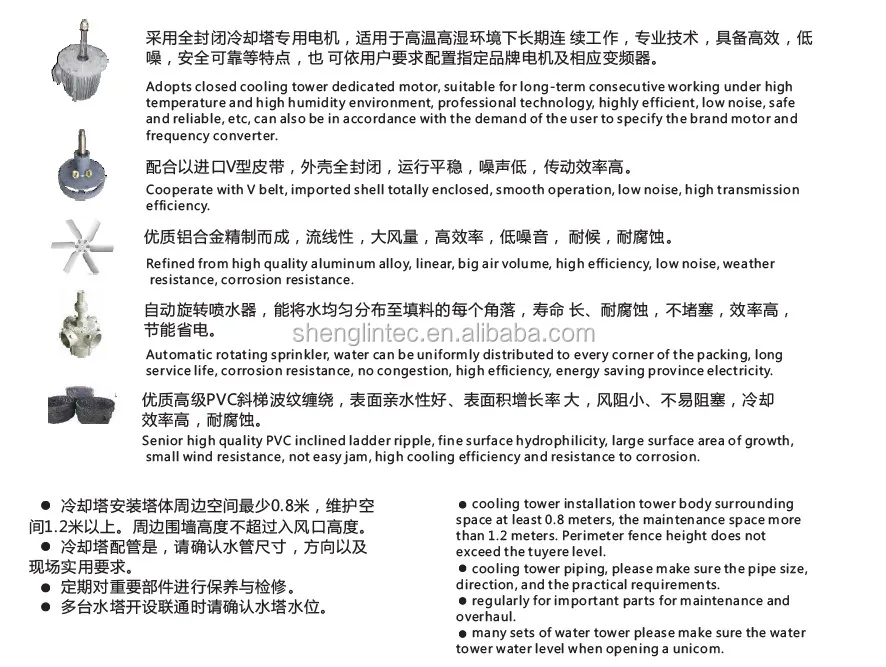

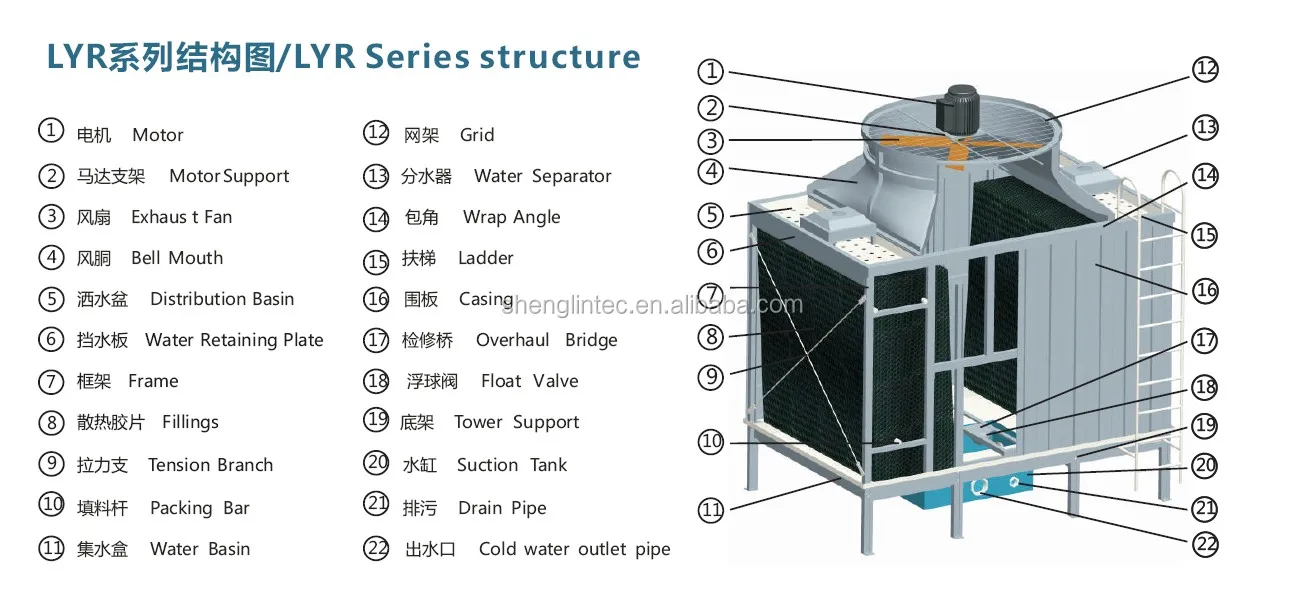

Description of parts and components
1. Fan
The ventilation system adopts special aluminum alloy axial flow fan for cooling tower, the structure design of forward tilting fan, streamline inlet air, small wind resistance, large air volume, low noise, good performance and high efficiency.No belt drive structure, reduce the transmission components, and the use of fully closed self-cooling low noise cooling tower motor, with small size, light weight, good performance, reliable operation, durability and other advantages.
2. Spray system
The special pump for the closed cooling tower is adopted, with large flow, low head, high efficiency, low noise and small power. The special pump for evaporative condenser is implemented according to SC4210.Pump motor voltage 380V, protection grade IP55, insulation grade F.
3. Packing
The specially designed PNC honeycomb cross-flow and the cross-wind structure of the shortcut enable the air to quickly take away the heat of water. The unique packing flow passage enables the water flow to form a large area of flowing water film on the packing surface, which extends the cooling time of water in the packing and improves the cooling effect of water.It has the advantages of small wind resistance coefficient, anti – aging and non – deformation
4. The circulatory system
The circulating water pump adopts the closed cooling tower special pipe pump, the performance is stable and the sudden sound is low, the motor protection grade is P5 and the insulation grade is lower, the circulating water tank adopts SUS304 stainless steel plate, the appearance is beautiful and the pressure resistance is strong

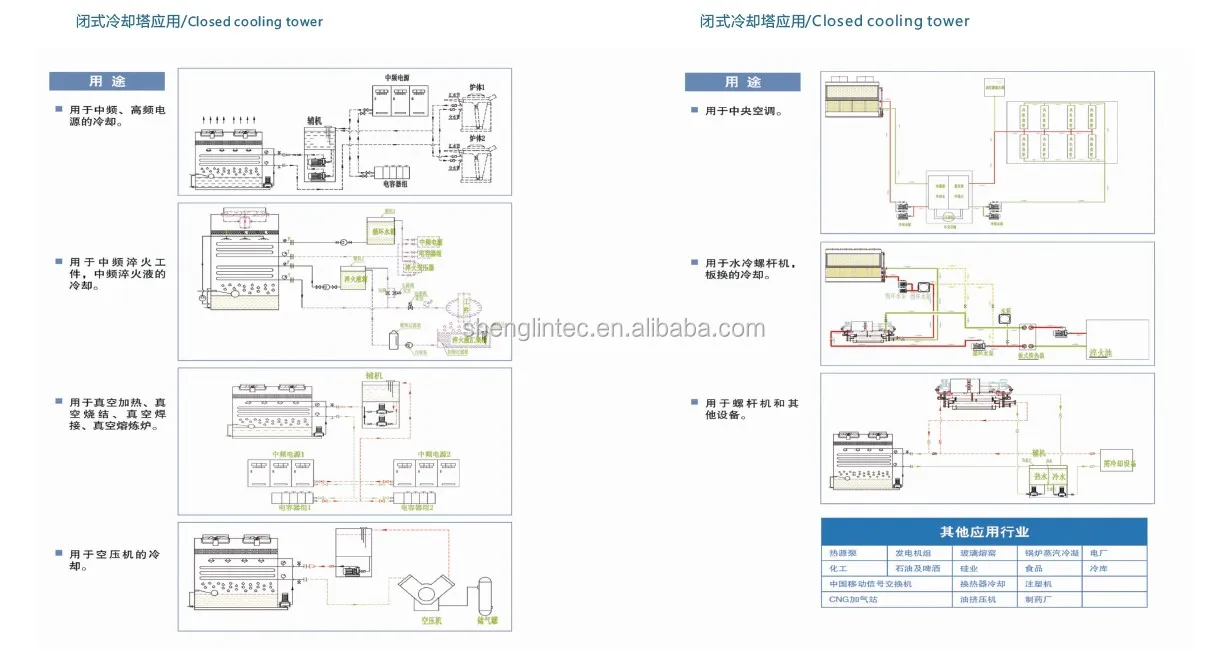

Air compressor cooling
Central air-conditioning
Heat source pump
Boiler steam condensation
Power plant
Chemical industry
Petroleum and beer
Cold storage
Injection molding machine
Oil extrusion machine
Pharmaceutical factory
For further information please contact me
Ms. Alina Shi
Email: sales4 @ shenglintec.com
Mob/Whatsapp: +86 18321717548
Skype: sales4shenglintec.com
Tel: +86 21 35324169-207
Fax: +86 21 35324166
Website: www.shenglin-tech.com
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $500 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380-415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Shenglin M&E Technology Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Shenglin M&E Technology Co., Ltd. range on HVACR Nexus.
