This cooling tower is listed with the manufacturer’s full published specification — voltage 220 V, 380 V, 110 V, material Aluminium-coated magnesium-zinc sheet, warranty 1 Year. It is produced by Dalian Changyong Technology Co., Ltd., a verified supplier of 7 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Voltage: 220 V, 380 V, 110 V
- Material: Aluminium-coated magnesium-zinc sheet
- Refrigerant: R404A,R134A, R410A,R32,R12,R22,R717,R744,R290
- Noise Level: 40 dB and above
- Warranty: 1 Year
- Place Of Origin: Liaoning, China
Technical Specifications
| Voltage | 220 V, 380 V, 110 V |
|---|---|
| Cooling Type | Cross Flow |
| Power(W) | 1000 W(1.34hp), 900 W(1.21hp), 600 W(0.80hp), 800 W(1.07hp), 100 W(0.13hp), 400 W(0.54hp), 300 W(0.40hp), 700 W(0.94hp), 500 W(0.67hp), 200 W(0.27hp) |
| Material | Aluminium-coated magnesium-zinc sheet |
| Core Components | Pump, PLC, Bearing, Engine, Gearbox, Motor, Pressure Vessel, Gear, fan, coil, tube, pvc, filler, Dehydrator |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Control Method | Touch |
| Noise Level | 40 dB and above |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Competitive Price, Easy To Operate, High Productivity, High Safety Level, Remote Monitoring, Long Service Life, Low Noise Level, Remote Control, Energy Saving, Patented Product, Famous Brand Motor, Multifunctional, Famous Brand PLC, Low Maintenance Cost, Voice Navigation, Accurate Temperature Control, R410A, IOT, Digital |
| Place Of Origin | Liaoning, China |
| Weight (Kg) | 2360 |
| Brand Name | preferref |
| Dimension(L*W*H) | 4570*2870*2580 |

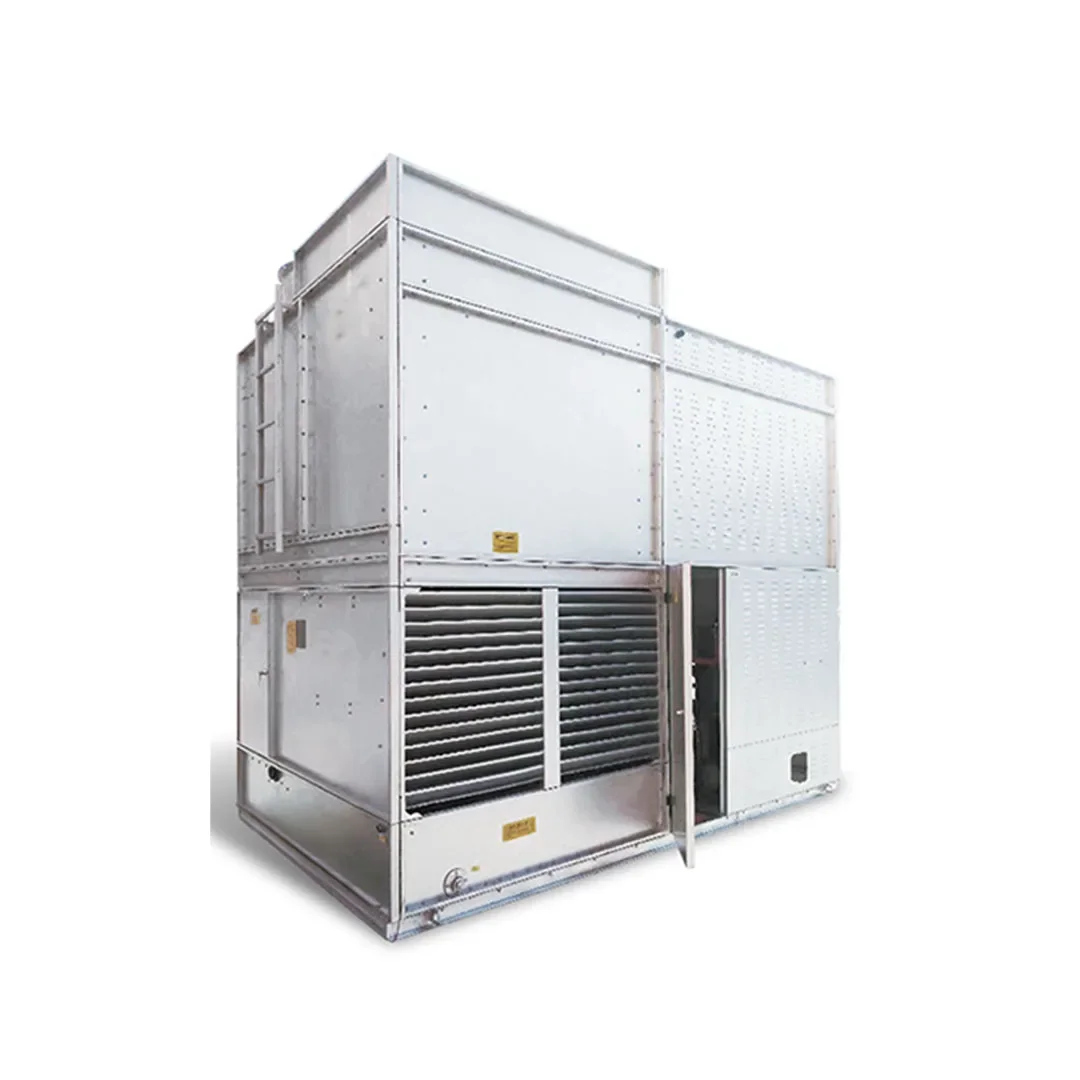

| Product Name | Cross Flow Closed Cooling Tower |
| Application | Industrial Fluids Cooling |
| Cooling Tower Item | Combine Flow Closed Circuit Cooling Tower |
| Refrigerant | R404A,R134A, R410A,R32,R12,R22,R717,R744,R290 |
| Optional | Descaler,Electric heating |
| Keyword | Evaporative Condensing Unit Integrated System |
| Heat Exchange Rate | 3650KW |
| Applicable | Cold storage, blast freezer, refrigerated storage |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
The high-temperature superheated gaseous refrigerant discharged from the compressor enters the condenser coil, The spray water is pumped by a circulating water pump to the spray system at the top of the condenser coil, where it is evenly sprayed onto the coil surface to form a water film. The refrigerant gas inside the coil exchanges heat with the spray water and air outside the coil. An axial fan forces air through the condenser coil and spray water, causing the refrigerant inside the coil to gradually condense from a gaseous state into a liquid state, releasing heat. The spray water outside the coils absorbs heat and evaporates, with part of the spray water turning into water vapor to carry away heat. Water droplets in the rising hot air are intercepted and fall by the deflector plates. Water in the PVC heat exchange layer is cooled by the passing air, its temperature decreases, and it falls into the water pan. It is then pumped back to the spray water system and sprayed onto the coil surface, completing the cooling cycle.
Counter Flow
Cross Flow
Instruction for choosing a type
1)Make sure of the operating condition , condensing temperature and wet bulb temperature . 2) Figure out the total amount of heat rejection discharged by the system to the condenser . 3) Look up Graph 1 or Graph 2 to choose the heat rejection correction index . 4) The total amount of heat rejection multiplies the correction index equals the condensation load when operating . 5) Look up Graph 3 to choose a type . The heat rejection of the chosen type should no less than the corrected heat rejection .
Example: 1.Screw-type compressor cooling capacity: 1320 kW, 2.refrigerant R717, 3.condensing temperature35°C, 4.wet bulb temperature 26°C, 5.compressor shaft power 382 kW
Total heat dissipation = cooling capacity + shaft power (under compressor operating conditions) = 1320 kW + 382 kW = 1702 kW Determine the correction factor: According to the heat dissipation correction factor table R717, when the condensation temperature is 35°C and the wet bulb temperature is 26°C, the correction factor is 1.09 (the value at the intersection of the condensation temperature and wet bulb temperature is the heat dissipation correction factor). Calculate the corrected heat dissipation = Total heat dissipation × Correction factor
= 1702 × 1.09 = 1855.2 kW Select a standard device with a heat dissipation capacity of approximately or equal to 1855.2 kW, and choose the BSE-1860R with a heat dissipation capacity of 1860 kW.
Total heat dissipation = cooling capacity + shaft power (under compressor operating conditions) = 1320 kW + 382 kW = 1702 kW Determine the correction factor: According to the heat dissipation correction factor table R717, when the condensation temperature is 35°C and the wet bulb temperature is 26°C, the correction factor is 1.09 (the value at the intersection of the condensation temperature and wet bulb temperature is the heat dissipation correction factor). Calculate the corrected heat dissipation = Total heat dissipation × Correction factor
= 1702 × 1.09 = 1855.2 kW Select a standard device with a heat dissipation capacity of approximately or equal to 1855.2 kW, and choose the BSE-1860R with a heat dissipation capacity of 1860 kW.
Quick Selection of Evaporative Condensers
Please provide the following parameters for the evaporative condenser you wish to select, and we will select the appropriate condenser model for you. refrigerant：________°C Wet bulb temperature:_________°C Condensing temperaure：_________°C Heat rejection:_________°C (or)compressor evaporator capacity：_________°C Compressor shaft power：_________°C
Main Application
＃Industrial refrigeration systems (ammonia or Freon systems) ＃Cold storage facilities and cold chain logistics centres ＃Food processing industries (meat, dairy, brewing, etc.) ＃Chemical and petrochemical production processes (reactor cooling, gas liquefaction, LNG pre-cooling, etc.)
Key Advantages
1.High Cooling Efficiency & Energy Saving 2. Compact & Space-Saving Design 3. Closed Loop & Clean Operation 4. Low Noise & Reliable Performance 5. Excellent Cooling in Any Climate 6. Durable Materials & Long Service Life 7. Easy Maintenance & Low Operating Cost 8. Eco-Friendly & Sustainable

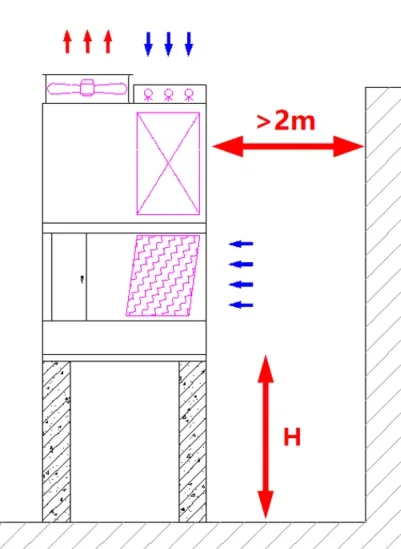

Professional Installation Guidance — Making Installation Easier
We provide online technical support services to make your installation process simpler and more reliable.
No matter where you are, our technical team will remotely assist your on-site staff throughout the installation and commissioning process. Installation Note: Air Intake, etc.
No matter where you are, our technical team will remotely assist your on-site staff throughout the installation and commissioning process. Installation Note: Air Intake, etc.
Water pump
Specialized circulating water pump with high flow rate, low head, and high efficiency. The high-flow pump ensures a continuous
water flow over the surface of the heat exchanger coils, thereby reducing the likelihood of scale buildup without the need to
increase power. The pump body and motor are designed with a rear-pull mechanism, facilitating installation and maintenance. The
pump shaft is made of stainless steel to reduce wear on the shaft seal and prevent leakage.
water flow over the surface of the heat exchanger coils, thereby reducing the likelihood of scale buildup without the need to
increase power. The pump body and motor are designed with a rear-pull mechanism, facilitating installation and maintenance. The
pump shaft is made of stainless steel to reduce wear on the shaft seal and prevent leakage.
Heat exchanger coils
The heat exchanger coils are formed by automatic bending of high-frequency welded tubes, with elliptical tubes arranged in an
alternating pattern to enhance air turbulence and improve heat transfer efficiency. The coils are inclined along the refrigerant
flow direction to facilitate oil drainage from the tubes and refrigerant liquid discharge, thereby reducing coil pressure drop.
The heat exchanger coils undergo three 2.5 MPa pressure tests to ensure no leaks. The coil assemblies are acid-washed and then
undergo overall hot-dip galvanization to enhance corrosion resistance.
alternating pattern to enhance air turbulence and improve heat transfer efficiency. The coils are inclined along the refrigerant
flow direction to facilitate oil drainage from the tubes and refrigerant liquid discharge, thereby reducing coil pressure drop.
The heat exchanger coils undergo three 2.5 MPa pressure tests to ensure no leaks. The coil assemblies are acid-washed and then
undergo overall hot-dip galvanization to enhance corrosion resistance.
Axial fan
Specialized axial flow fan with high-strength nylon impeller (or aluminum alloy impeller) for high flow rate and low noise.
Streamlined inlet duct with removable protective grille on the outlet side. Entire unit undergoes hot-dip galvanization for
excellent corrosion resistance. Direct-coupled motor drive with outdoor-specific motor for low noise and excellent waterproof
performance.
Streamlined inlet duct with removable protective grille on the outlet side. Entire unit undergoes hot-dip galvanization for
excellent corrosion resistance. Direct-coupled motor drive with outdoor-specific motor for low noise and excellent waterproof
performance.

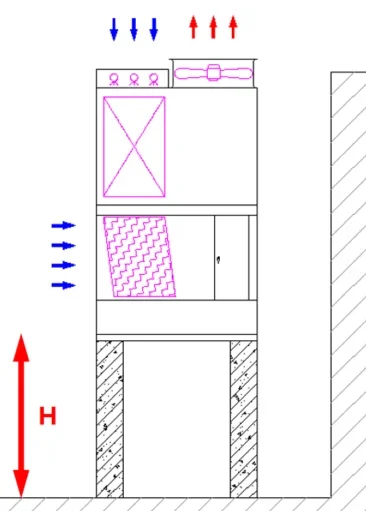

Reduce air recirculation
Significantly increase the height ratio of the equipment to effectively reduce the backflow of hot, humid air into its fresh air inlet. Improve the heat exchange efficiency of the equipment. At the same time, increase the height of the air inlet to allow the spray water to come into contact with the air for a longer period of time during its descent, resulting in more thorough heat exchange. This effectively lowers the water temperature in the tank, and the lower water temperature makes it easier for scale-forming substances to remain in the water rather than precipitating onto the coils.
Corrosion-resistant box body
The enclosure housing is made of hot-dip galvanized 55% aluminum-zinc sheet (AZ150) or hot-dip galvanized aluminum-magnesium sheet
(ZM275). The enclosure joints feature a double-flange folded edge structure design, sealed with butyl synthetic sealant strips.
This enhances strength and overall sealing performance. All cut edges of the panels are coated with epoxy zinc-rich paint
containing 95% zinc to enhance the corrosion resistance of the panels. we also offer optional materials: High-Galvanized Steel
(700g/m² zinc coating) Stainless Steel (SUS304L)
(ZM275). The enclosure joints feature a double-flange folded edge structure design, sealed with butyl synthetic sealant strips.
This enhances strength and overall sealing performance. All cut edges of the panels are coated with epoxy zinc-rich paint
containing 95% zinc to enhance the corrosion resistance of the panels. we also offer optional materials: High-Galvanized Steel
(700g/m² zinc coating) Stainless Steel (SUS304L)
*We provide online technical support and online on-site after-sales service, and unless otherwise agreed before quotation, free parts ONLY include metal frame fixed to the bottom of the cooler which is easy for the buyer to unload the cooler from the container.
#Evaporative condensing unit integrated machine #Electric heater #Electronic descaling device #Multi-circuit coil #Sound-absorbing blanket #Stainless steel box body and stainless steel coil #Fan or pump variable frequency control #Inclined water tray design

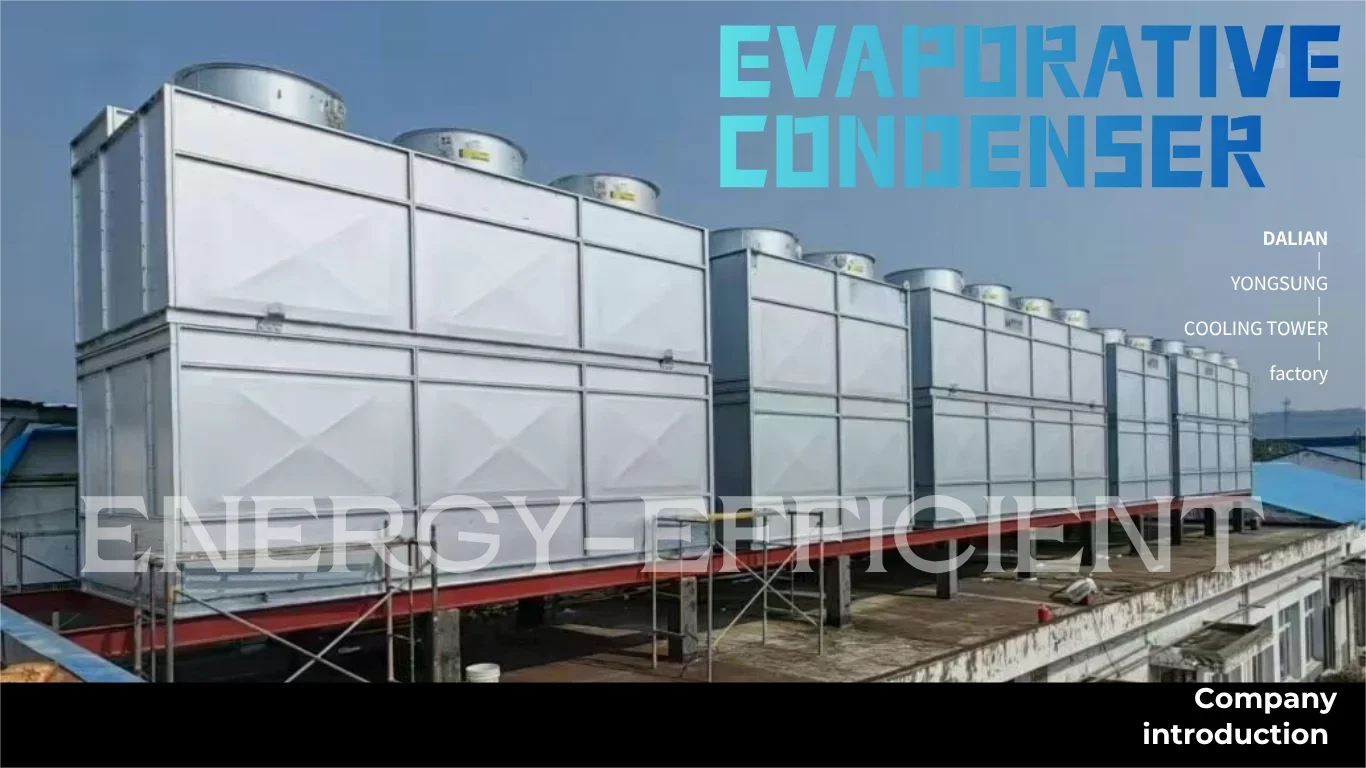

Dalian Changyong Technology Co., Ltd. is located on the beatiful seaside city – Dalian, China, engaging in designing and manufacturing various heat exchangers, spiral quick freezers, tunnel quick freezers, steamers, etc..
In 2016, Dalian Changyong Technology Co., Ltd. was separately pointed as the exclusive agent in China by Korean company Yong Sung Refrigeration Co., Ltd. and Modine Manufacturing Company.
In 2019, Dalian Changyong Technology Co., Ltd. and Yong Sung Refrigeration Co., Ltd. jointly build up a joint venture, Dalian Yongsung Refrigeration Co., Ltd., to explore and dedicate refrigeration and food processing market in China.
Dalian Yongsung Refrigeration Co., Ltd. combines all Yong Sung latest technologies and the whole product line
incl. quick freezing equipment and boiling equipment, achieved ISO9001 certification, CE certification, and holds 10 invention patents and 3 utility model and appearance patents. The marketing share of the quick freezer in Korea is 70%, the products are exported to over 16 foreign countries.
incl. quick freezing equipment and boiling equipment, achieved ISO9001 certification, CE certification, and holds 10 invention patents and 3 utility model and appearance patents. The marketing share of the quick freezer in Korea is 70%, the products are exported to over 16 foreign countries.
With state of art technologies from Korea and experience of thousands of cases all over the world, Dalian Changyong Technology Co., Ltd. commit to providing OEM services of heat exchangers for special applications in special industries and efficient and energy saving quick freezing equipment with good sanitary conditions to meet the needs of worldwide frozen food field.
Q1. What services can we provide?
A: Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash
Language Spoken:English,Chinese,Korea
A: Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash
Language Spoken:English,Chinese,Korea
Q2: Any other products except evaporative condenser ?
A: Yes.
Our main products include: Dry Cooler, Air-Cooled Condenser and Evapotator, Industrial Air Cooler, Unit Cooler, Coil Block and Quick Freezers (spiral freezer, tunnel freezer, IQF freezer)
A: Yes.
Our main products include: Dry Cooler, Air-Cooled Condenser and Evapotator, Industrial Air Cooler, Unit Cooler, Coil Block and Quick Freezers (spiral freezer, tunnel freezer, IQF freezer)
Q3. How can we guarantee quality?
A: Always a pre-production sample before mass production
Always final Inspection before shipment
A: Always a pre-production sample before mass production
Always final Inspection before shipment
Q4: How long is your delivery time?
A: Different products' production time is different. Generally, it needs 10 to 40 working days
A: Different products' production time is different. Generally, it needs 10 to 40 working days
Q5. How to contact with you?
A: 24hours online from TradeManager, quick answer, or email with us, wechat, skype, whatsapp is available.
Select one product and leave message to us.
A: 24hours online from TradeManager, quick answer, or email with us, wechat, skype, whatsapp is available.
Select one product and leave message to us.

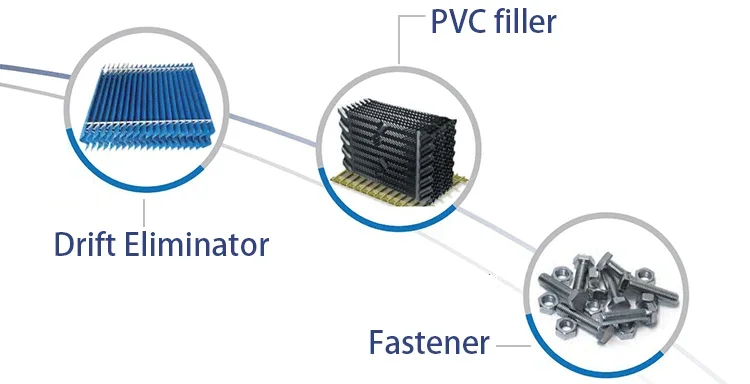

PVC filler | drift eliminator | abc |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $1999 / unit
- 10+ unit: US $1299 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dalian Changyong Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dalian Changyong Technology Co., Ltd. range on HVACR Nexus.
