Cooling Tower, 220V, liquid to liquid

This cooling tower is listed with the manufacturer’s full published specification — voltage 220V/380V, refrigerant liquid to liquid, warranty 1 Year. It is produced by Changzhou Vrcoolertech Refrigeration Co., Ltd., a verified supplier of 8 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Cooling Tower

• Voltage: 220V/380V
• Tube Material: copper,stainless steel
• Fin Material: copper,aluminum,stainless steel
• Refrigerant: liquid to liquid
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Product Description

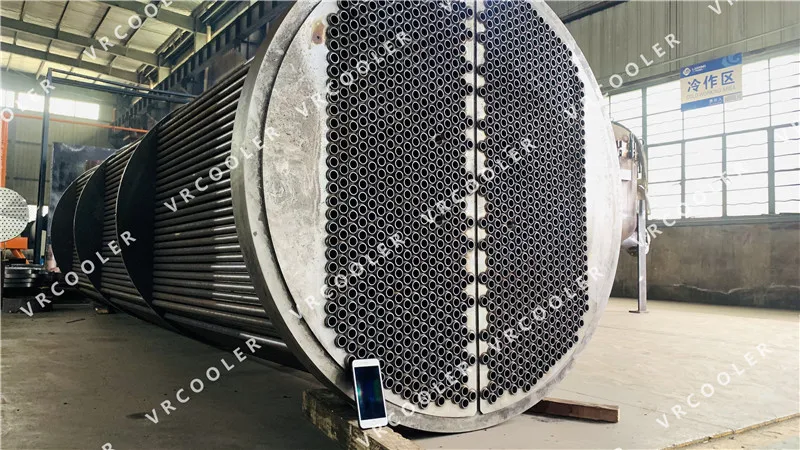

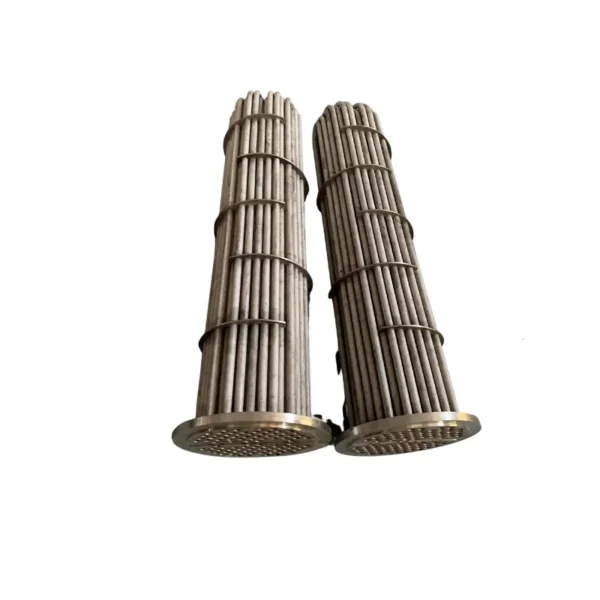

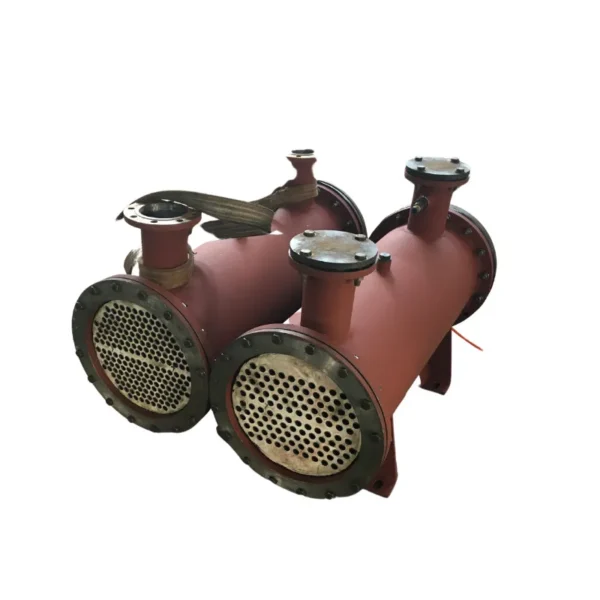

Tube bundle heat exchanger

Tube bundle heat exchanger is a typical heat exchanging device that make two liquid with different temperatures to exchange heat.
Through the heat exchanger tank, one fluid can be cooled down and the other fluid can be heated to meet the required temperature.
Tube bundle collected many groups of pipe densly packed as a radiation core, outside installed with a tubular tank shell making from the pressure vessle steel plate, when hot liquid or gases are circulated in the tube bundle, the large combined surface area of the tubes will bring efficient heat exchanging performances to transfer heat into the tank shell water and cooling the fluids
in the tubes.

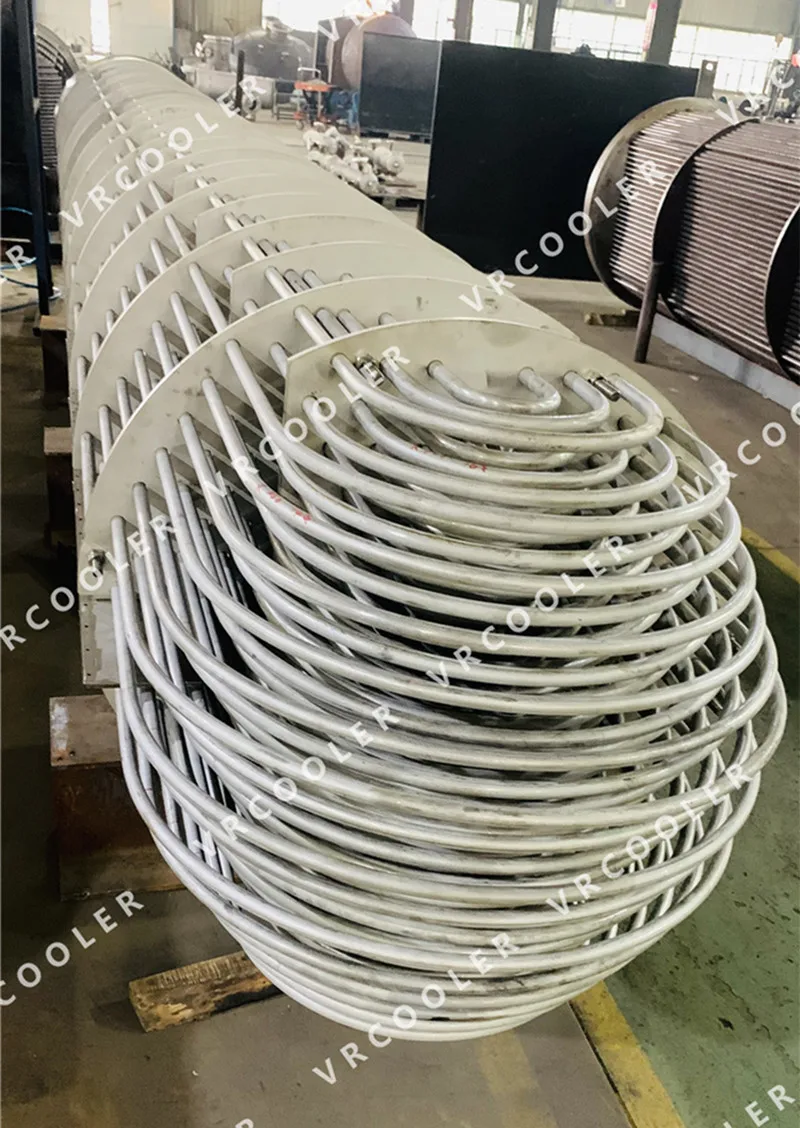

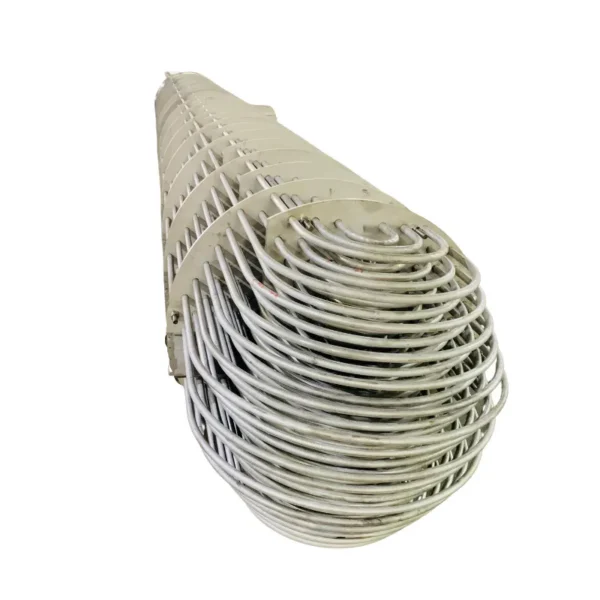

Common use Material for Tube Bundle Heat Exchanger There are two different of tube bundles: Straight tubes and U tubes.

Depending on specific requirement and application, there are following tube material options: Carbon Steel Tube : ASTM A179/ASME SA179/179M, ASTM A192, ASTM A333, ASTM A334 Alloy Steel Tubes: ASTM A213 T5, T9, T11, T22, T91 Copper Tubes Tank Shell Materia Options: ASTM A516 GR70 ASTM A572 GR50 ASTM A537 CL1 Applications: Chemical Production Petroleum Industry Energy Power

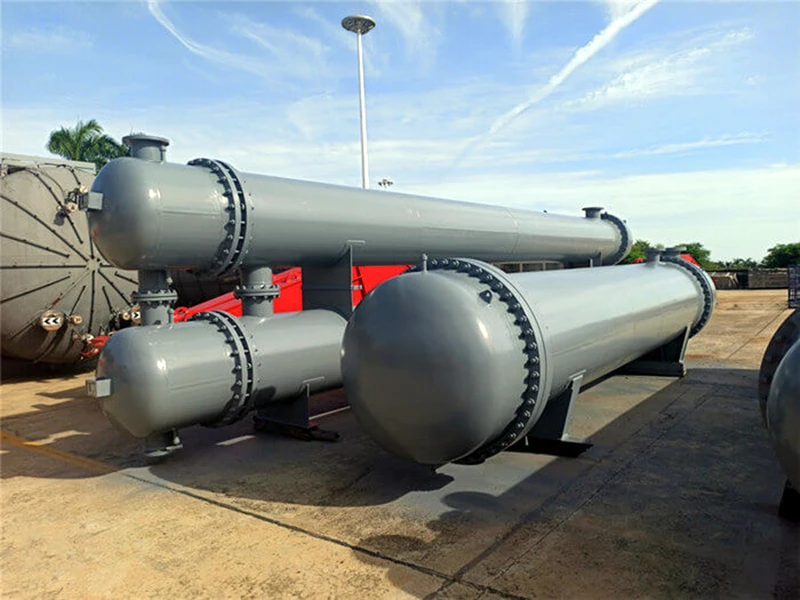

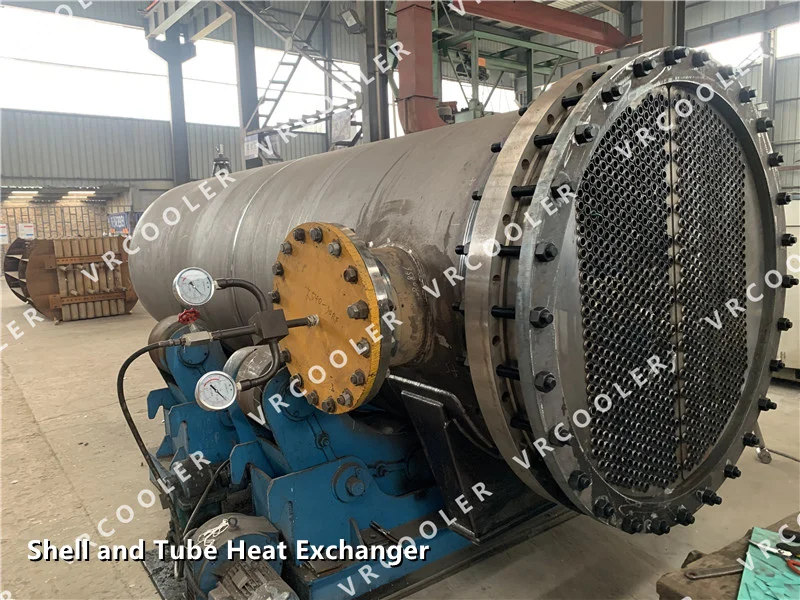

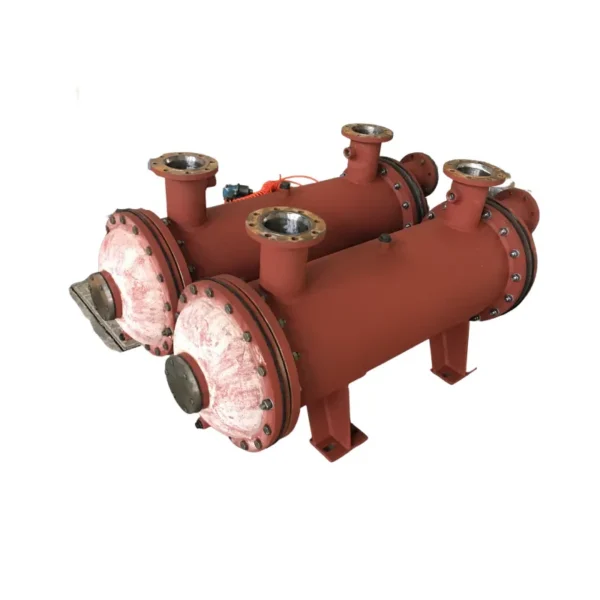

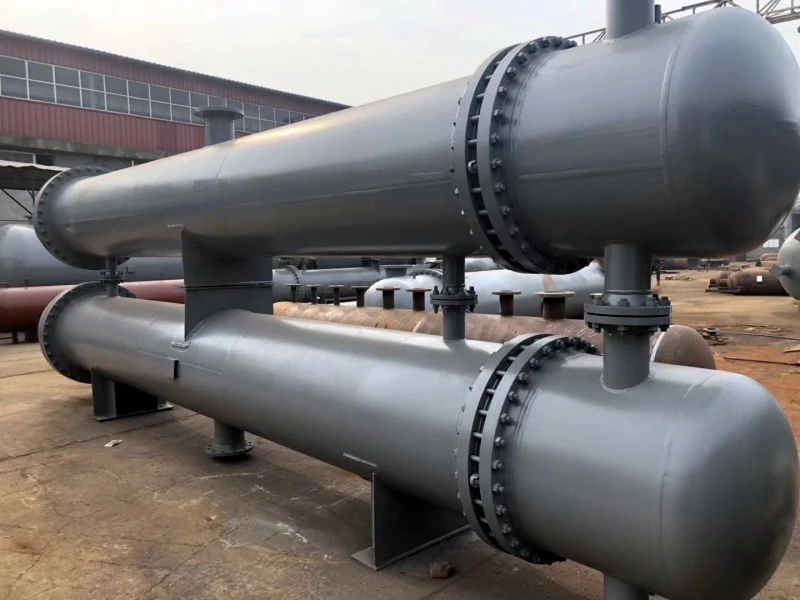

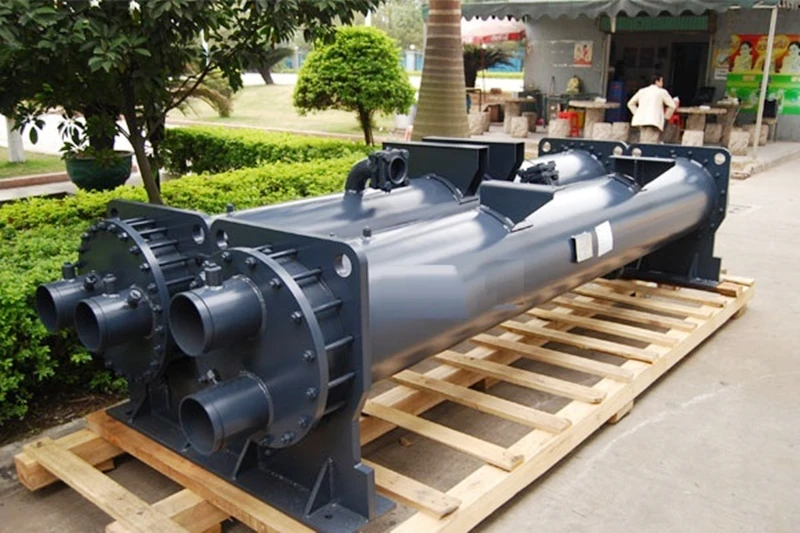

Shell and tube heat exchanger

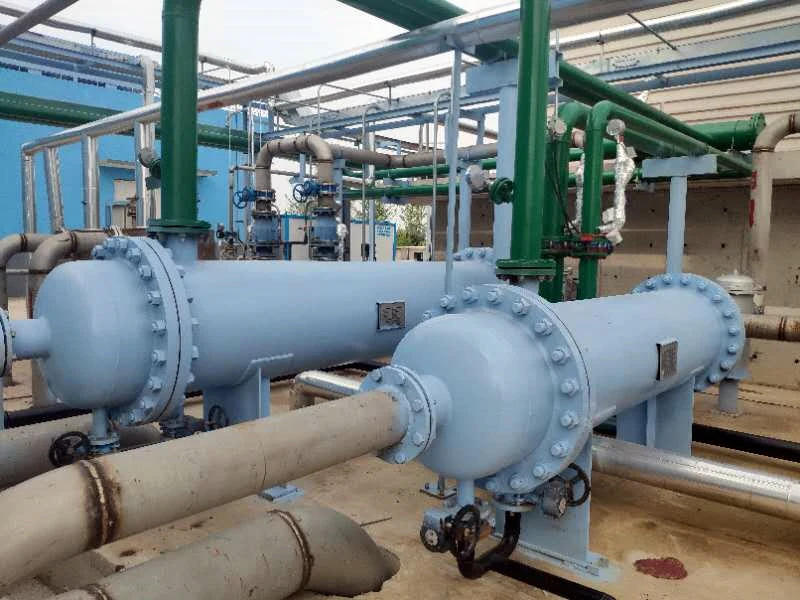

A shell and tube heat exchanger (STHE) is a type of heat exchanging device constructed using a large cylindrical enclosure, or shell, that has bundles of perfectly spaced tubing compacted in its interior. Heat exchanging is the transfer of heat from one substance or medium to a similar substance or medium. Shell and tube heat exchangers are the most common form of heat exchange design. They are classified according to their properties, tubing type, and other characteristics.

We are offering Shell and Tube Heat Exchanger to our clients who trust us for our quality standards. Used in special purpose machinery.
These are highly efficient as the manufacturing process is strictly supervised by our skilled and experienced supervisors. These are popular for their smooth functioning, easy operation and long service life. Our clients can avail the product in different sizes and cost effective range.

Our shell and tube heat exchangers are used in many comfort and industry applications for heating and cooling fluids. They consist of a shell with traditional plain tubes or enhanced surface tubes for high thermal performance. The fluids can be liquids or gases, one of which flows inside the tubes while the other flows outside the tubes within the shell. There are single-phase or two-phase heat exchangers, and the latter is used to either boil or condense fluids.

Features:

* Best for special purpose machinery
* Smooth functioning
* Durable finish

Technical service

We can provide detailed drawing after your order.

We can also provide Custom services.

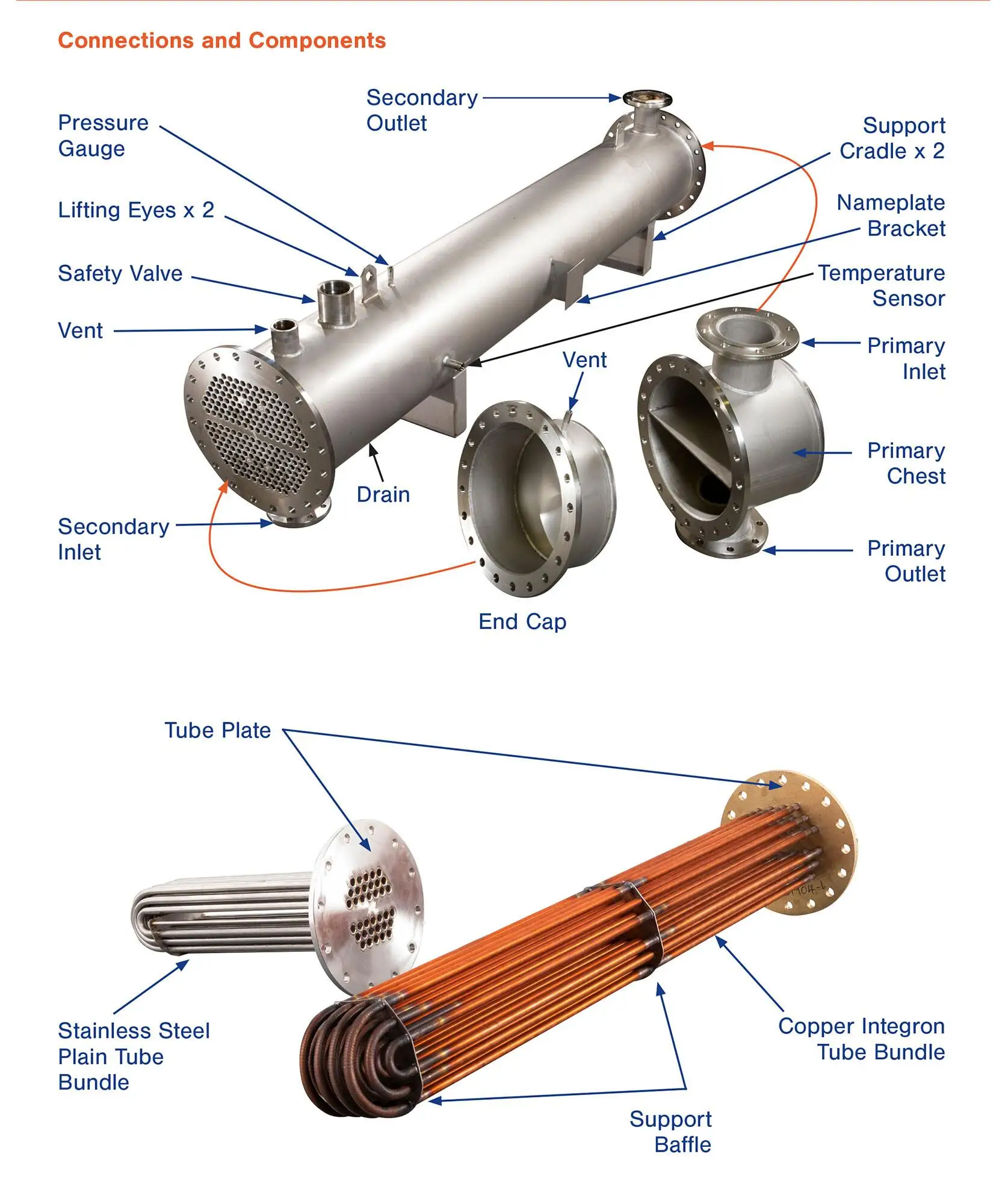

Shell

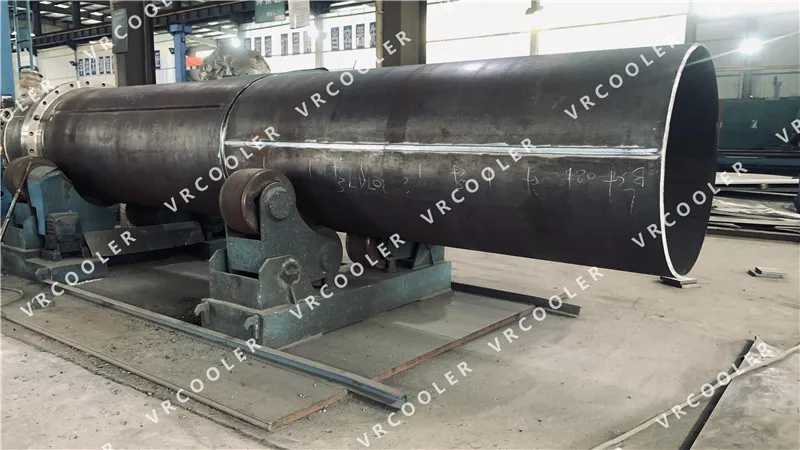

The shell of a shell and tube heat exchanger is made of pipe or welded metal plates using materials that can withstand extreme temperatures and that are corrosion resistant.

The inner shell must be round with a consistent diameter to minimize space between the baffled outer edge and the shell.

Tubes

Tubes of a shell and tube heat exchanger are welded or extruded and made from carbon steel, stainless steel, titanium, Inconel, or copper.

Tube diameters of 0.625 inch (16mm), 0.75 inch (19mm), or one inch (25mm) are used in compact heat exchangers.

The thickness of the tubes is chosen for pressure, temperature, thermal stress, and resistance to corrosion at lengths of 6 to 24 feet or 2 meters to 7 meters. Tubes that are longer reduce shell diameter and result in high shell pressure drop.

Tube sheet

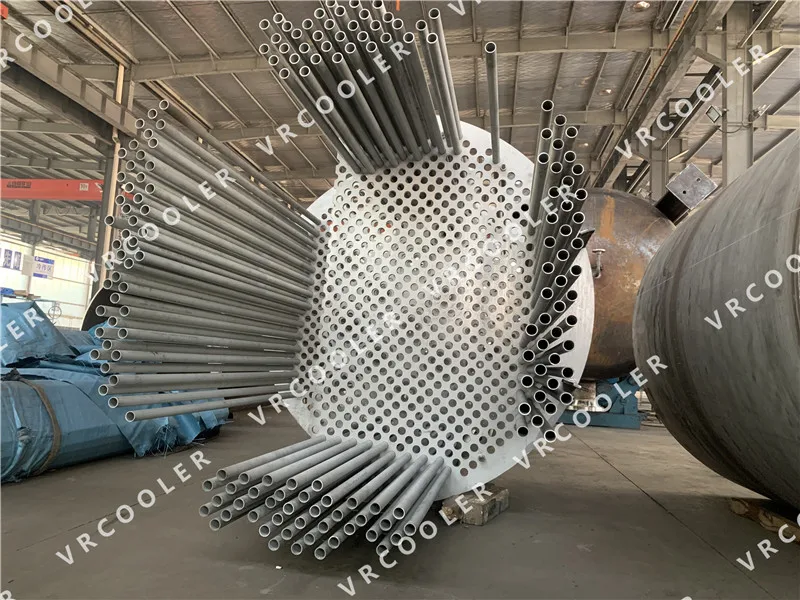

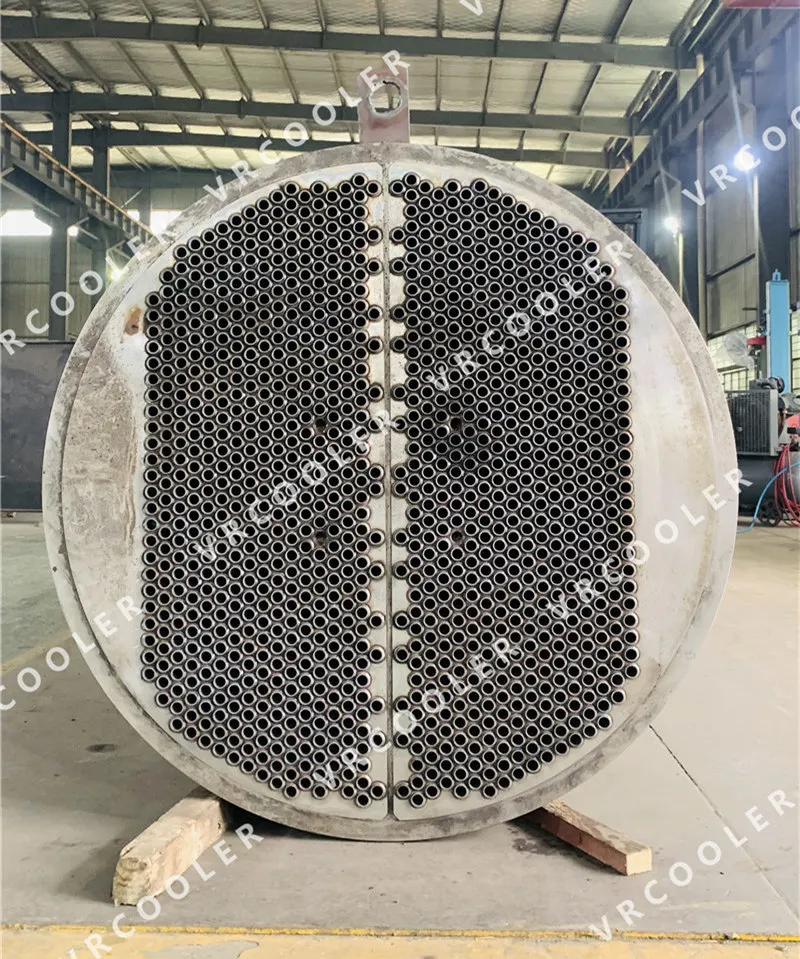

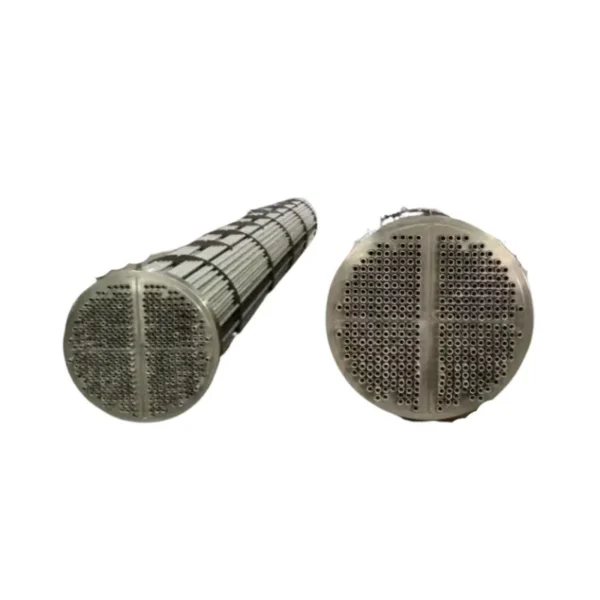

The tube sheet is a plate or sheet that is perforated with holes for the insertion of pipes or tubes and designed to support the tubes on either end of the cylindrical shell.

The shell extends beyond the tube sheets and is sealed on both ends to form the enclosed chamber that is covered by the heads.

Customer feedback

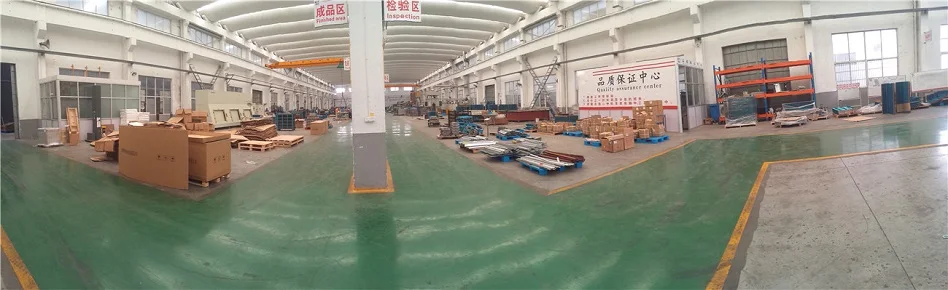

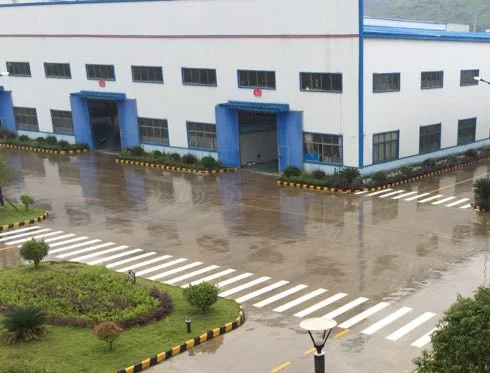

Our Factory

VRCOOLERTECH CST Company

We specialize in designing, manufacturing and exporting refrigeration equipments for the varied industries since 2004.

When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.

Our main products:

Commercial heat exchanger

Industrial heat exchanger

Dry cooler

Unit cooler
Charge air cooler

Compressor cooler(intercooler, aftercooler, oil cooler)

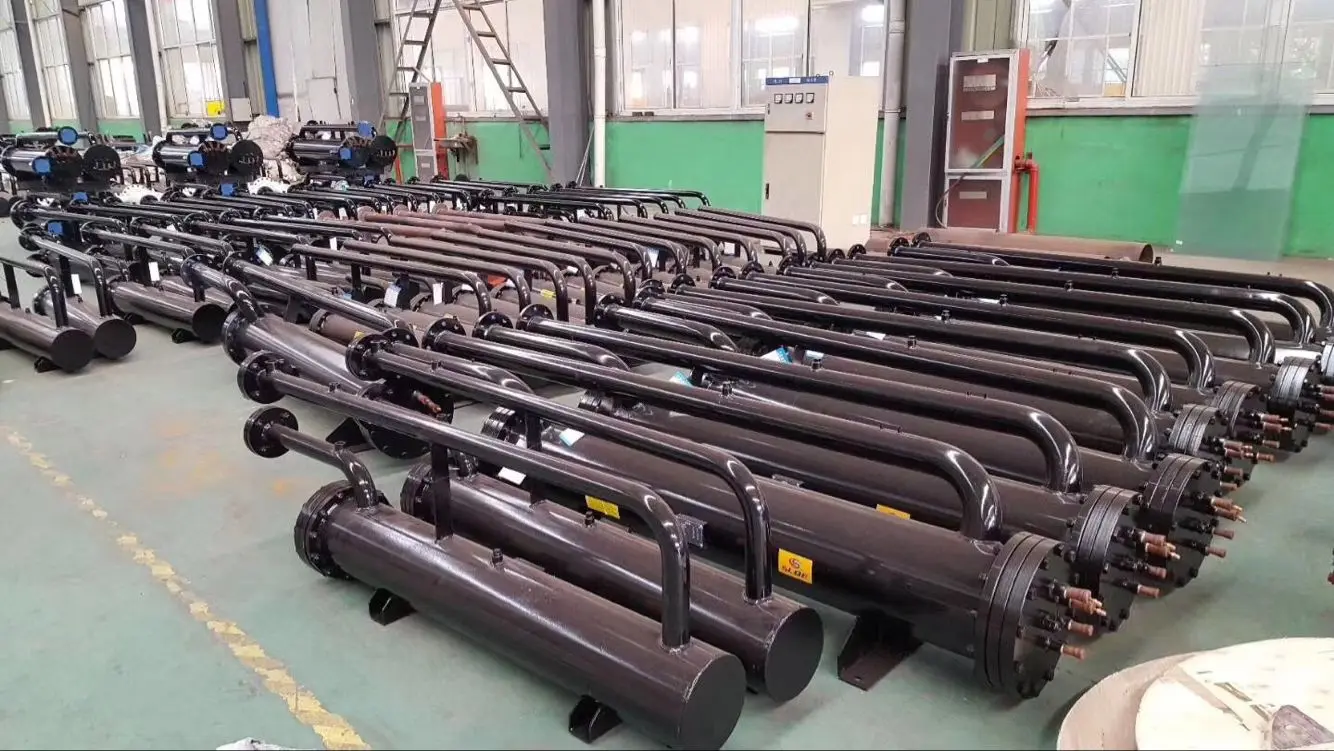

Our equipments

How to contact and visit us?

Changzhou Vrcoolertech Refrigeration Co.,Ltd
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: info@cstheatexchanger.com

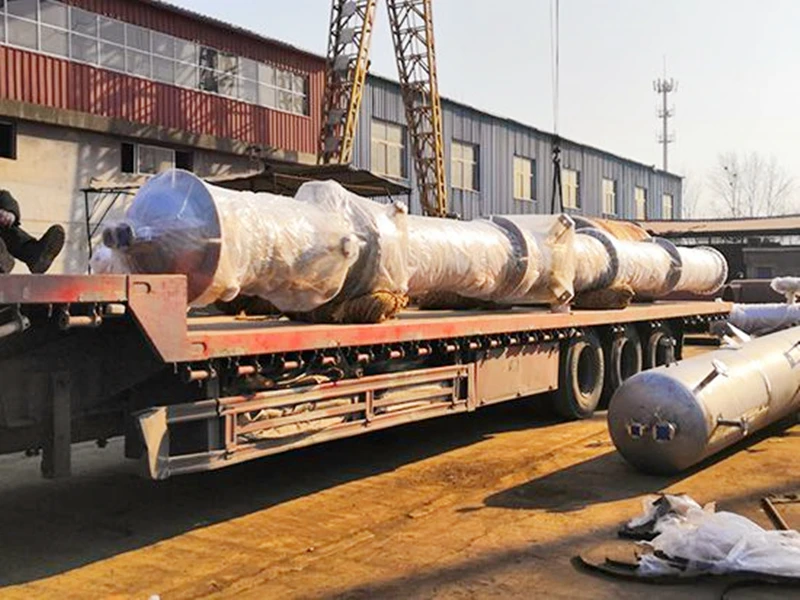

Packing & Delivery

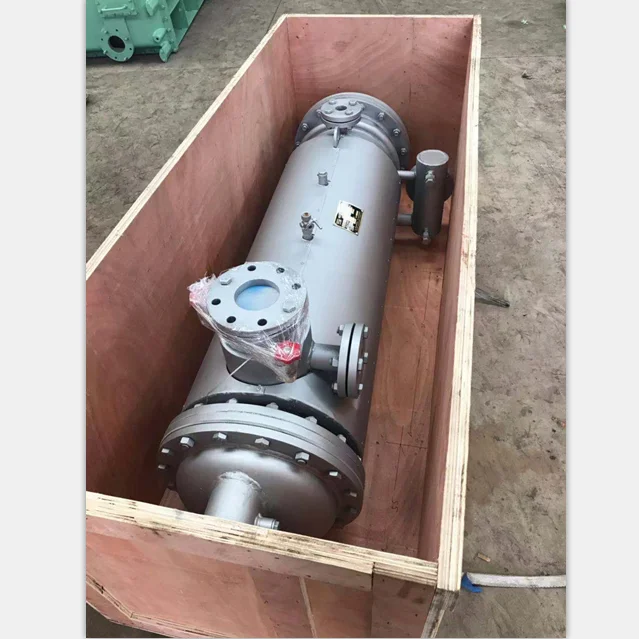

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.

If container is too tigher,we will use PE film for packing or pack it according to customers special request.

We will delivery on time by sea or bt air according to your requiremnts.

Certifications

Where our customers come from？

We serve for buyers from all over the world.

We have export our product to moran than 60 countries.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–49 unit: US $3800 / unit
  • 50+ unit: US $1200 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling tower?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooling tower be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Changzhou Vrcoolertech Refrigeration Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Vrcoolertech Refrigeration Co., Ltd. range on HVACR Nexus.
