The copper pipe heat exchanger listed here carries 220V/380V, material Copper, documented exactly as the manufacturer publishes it. Made by Changzhou Vrcoolertech Refrigeration Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Copper Pipe Heat Exchanger
- Voltage: 220V/380V
- Material: Copper
- Tube Material: Copper, stainless steel, aluminum
- Fin Material: Copper, aluminum
- Frame Material: Stainless Steel, aluminum, galvanized steel
- Warranty: 12 Months
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Material | Copper |
| Voltage | 220V/380V |
| Core Components | Tube and Fin, Motor |
| Warranty | 12 Months |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Key Selling Points | Competitive Price, High-Accuracy |
| Working Temperature Range | Customized |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 50 |
| Brand Name | Vrcooler |
| Liquid Flow Rate | Customized |
| Maximum Pressure Rating | Customized |
| Dimension(L*W*H) | DESIGNED |
| Tube Material | Copper, stainless steel, aluminum |
| Fin Material | Copper, aluminum |
| Application | Dehumidifier |
| Fin Type | Sine Wave Fin |
| Fin Space | 1.3-8 mm |
| Frame Material | Stainless Steel, aluminum, galvanized steel |
| Original | Jiangsu, china |
| Pressure | 0.1-10Mpa |
| Selling Units | Single item |
| Single Package Size | 75X35X50 cm |
| Single Gross Weight | 50.0 kg |

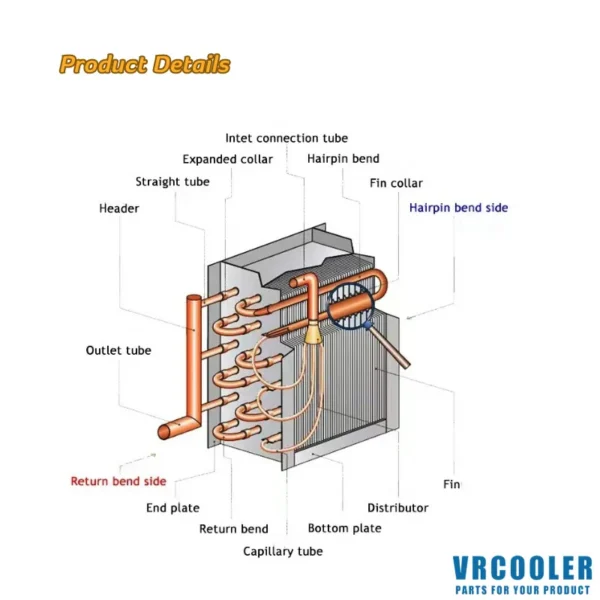

Product Details
Product Description

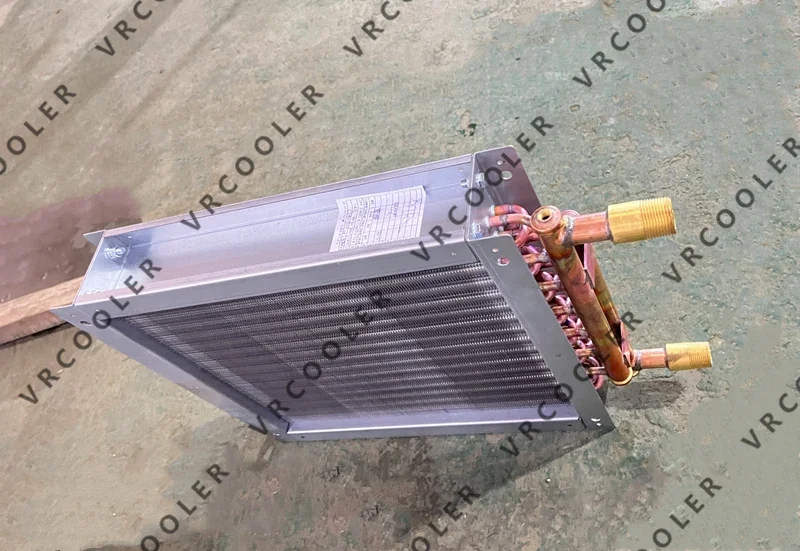

Air to Water Heat Exchangers
VRcooler produces the typical types of water to air heat exchanger are composed of a water supply pipe and a water supply return pipe.
On the heat exchanger pipe ring with aluminum fin, Its purpose is to maximize the heat transfer between water and air. The structure comes in a metal frame, to strengthen the construction When water or other suitable solution to enter manifold of air to water heat exchanger, it has been separated to carry it through the heat exchanger to return to the heat exchanger.
Copper heat from escaping through the water to the surrounding environment. Wall of aluminum fin, with the help of permanently connected to copper coil. Once the air through the heat exchanger, it is the temperature increased. This process is similar to cold water or other liquid coolant. Heat exchanger used for cooling applications.If using a heat exchanger used by the purpose of the temperature of the air heating or cooling liquid through the finned heat exchanger, reverse heat exchange process.

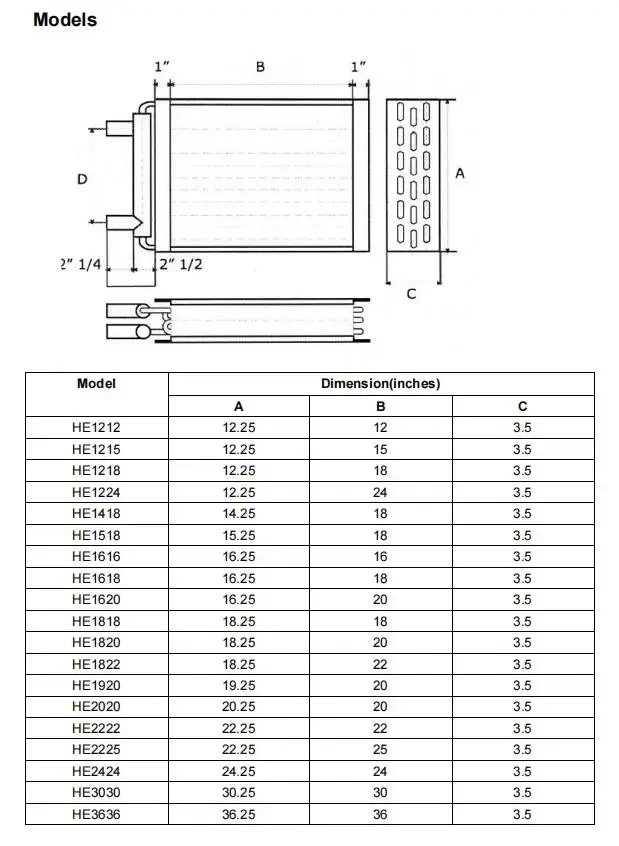

VRcooler supply varied models of water to air heat exchanger, from 12*12 sizes and above.
Applications:
Widely used for
Widely used for
Residential and light commercial buildings,
forced air heating and cooling,
outdoor wood furnace, boiler,
forced air heating and cooling,
outdoor wood furnace, boiler,
stove the garage heater auxiliary heating,
and many other liquid to air or air heat transfer applications
and many other liquid to air or air heat transfer applications
VRcooler provides customers with high-quality and high-effect products based on advanced production technologies, mature manufacturing processes and strict quality controls and keep communicating with and understanding customers demands, which repays us with self improvements and the trust and recognition of customers.

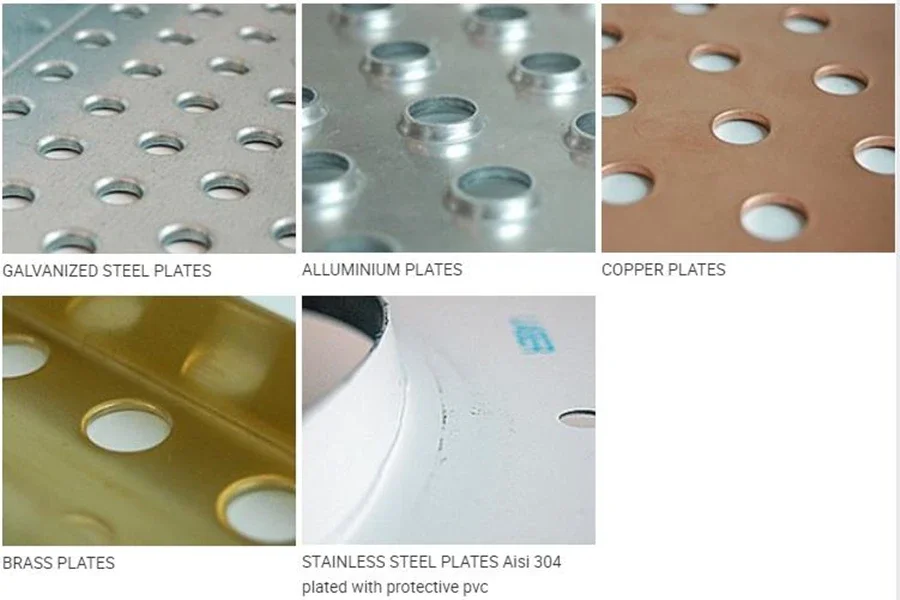

Main parts
TUBE | Copper | Titanium | Aluminum | Carbon steel |
Stainless steel 304 | Stainless steel 316 | Cu-Ni(90/10) | Cu-Ni(70/30) | |
FIN | Copper | Aluminum | Stainless steel | |
Carbon steel | Titanium | |||
FRAME | Galvanized | Aluminum | Stainless steel |

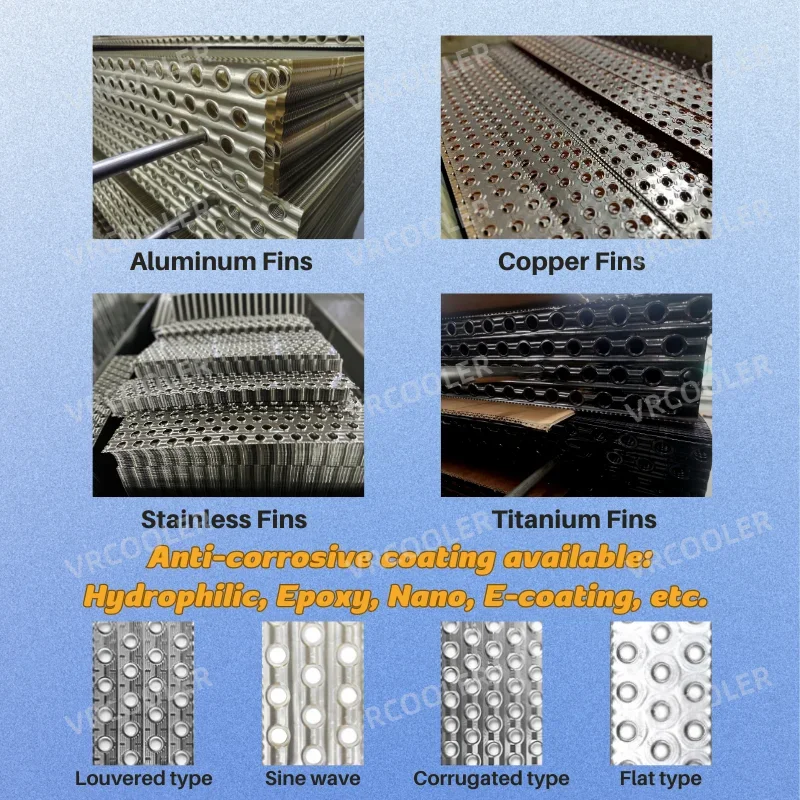

Fin Material Options:
— Aluminum / Most common and cheapest options
— Copper / Often used in corrosive environments
— Stainless / Also used in corrosive or food grade environments
— Connections Materials and Types
— Copper, Brass, Steel, Stainless
— Female Thread, Male Thread, Sweat ODS
— Size range ½" to 4"
— Copper / Often used in corrosive environments
— Stainless / Also used in corrosive or food grade environments
— Connections Materials and Types
— Copper, Brass, Steel, Stainless
— Female Thread, Male Thread, Sweat ODS
— Size range ½" to 4"

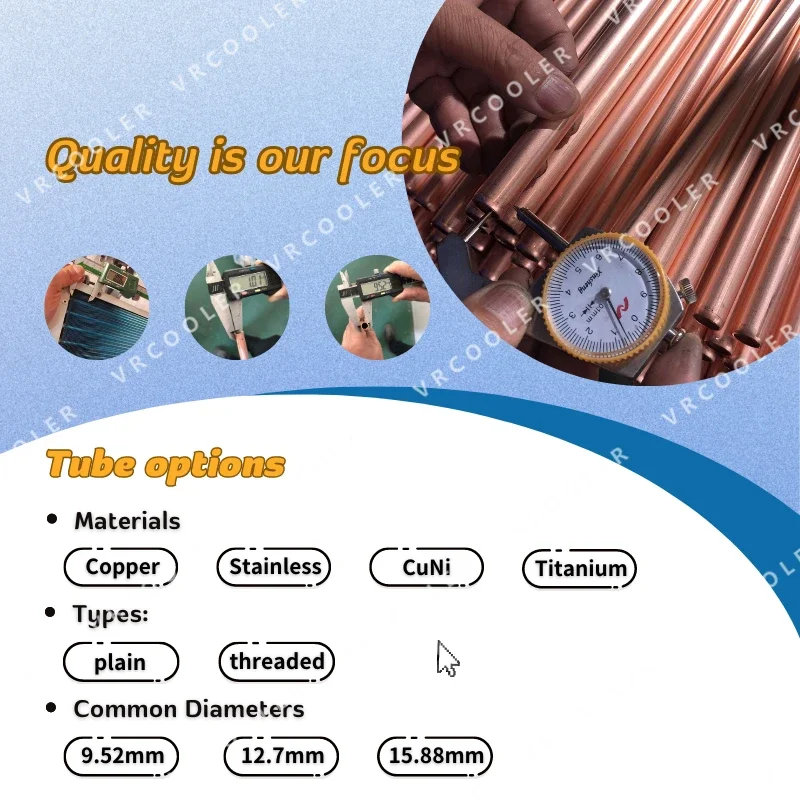

Tubes Material Options:
— Copper / Most common and offers best heat transfer
— Stainless / Often used for high pressure and high heat applications. Comes 304 or 316 SS
— Steel / Common for high steam application
— 3/8, 1/2, and 5/8 are available. Although 5/8 inch tube diameter is the most common selection for chilled water coil because it
offers many wall thickness options which can increase the lifespan before tube erosion becomes a problem
— Stainless / Often used for high pressure and high heat applications. Comes 304 or 316 SS
— Steel / Common for high steam application
— 3/8, 1/2, and 5/8 are available. Although 5/8 inch tube diameter is the most common selection for chilled water coil because it
offers many wall thickness options which can increase the lifespan before tube erosion becomes a problem
Casing Material:
— Aluminum / Cheapest and most common
— Copper / Common in corrosive environments
— Stainless / Common in corrosive or food grade environments
— Copper / Common in corrosive environments
— Stainless / Common in corrosive or food grade environments

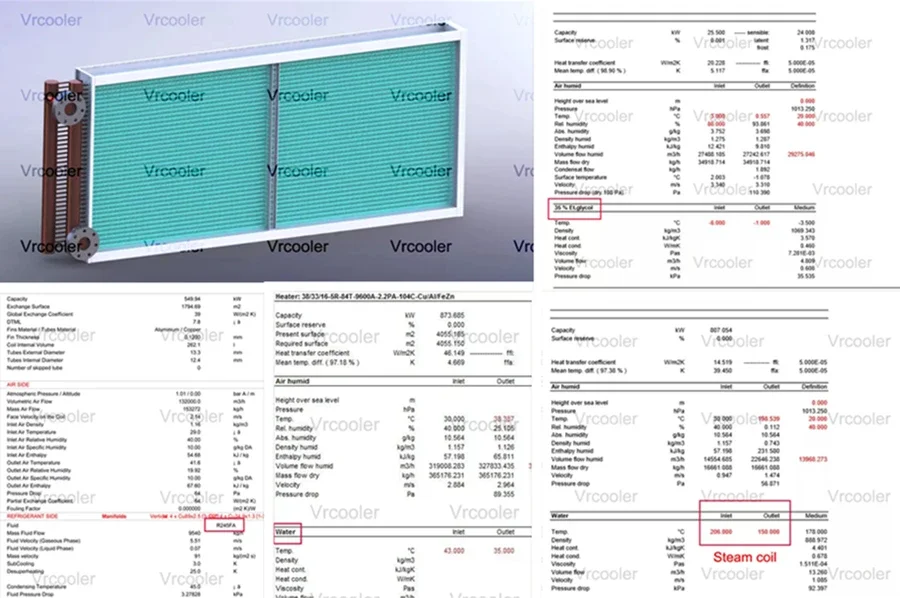

Technical data

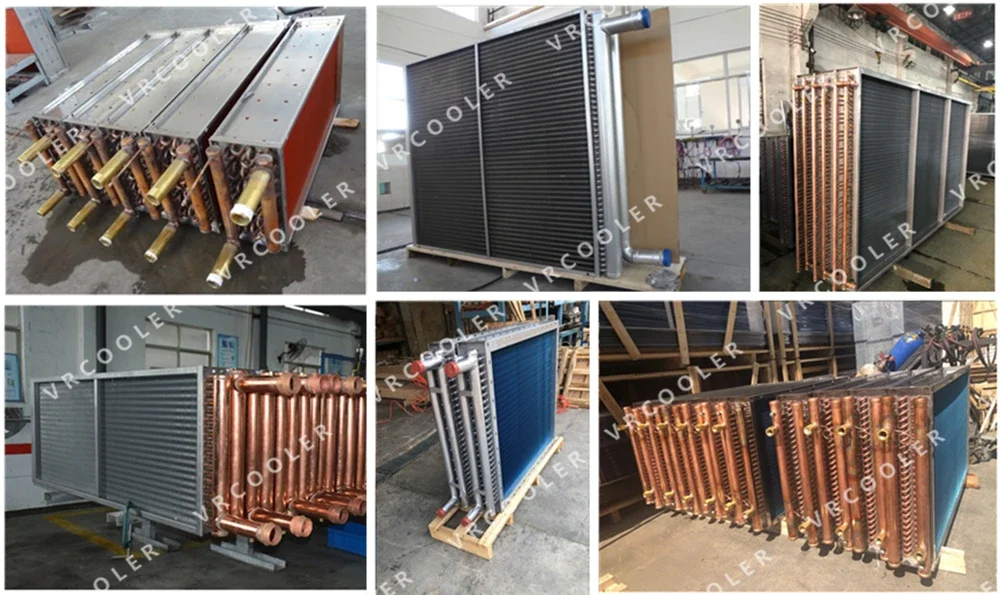

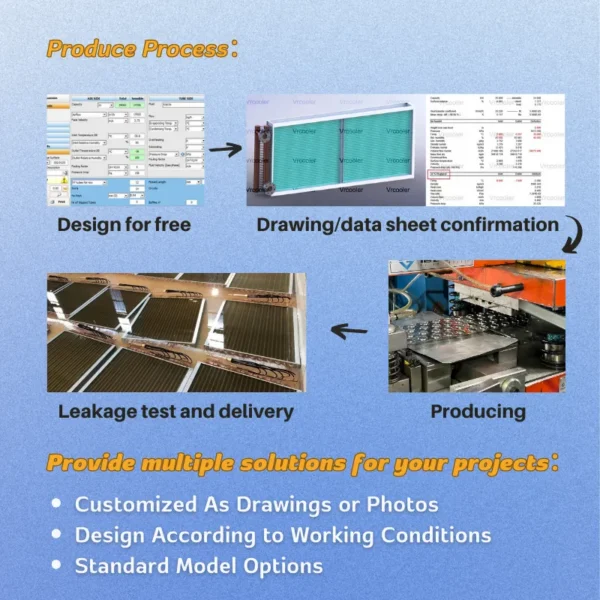

We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.

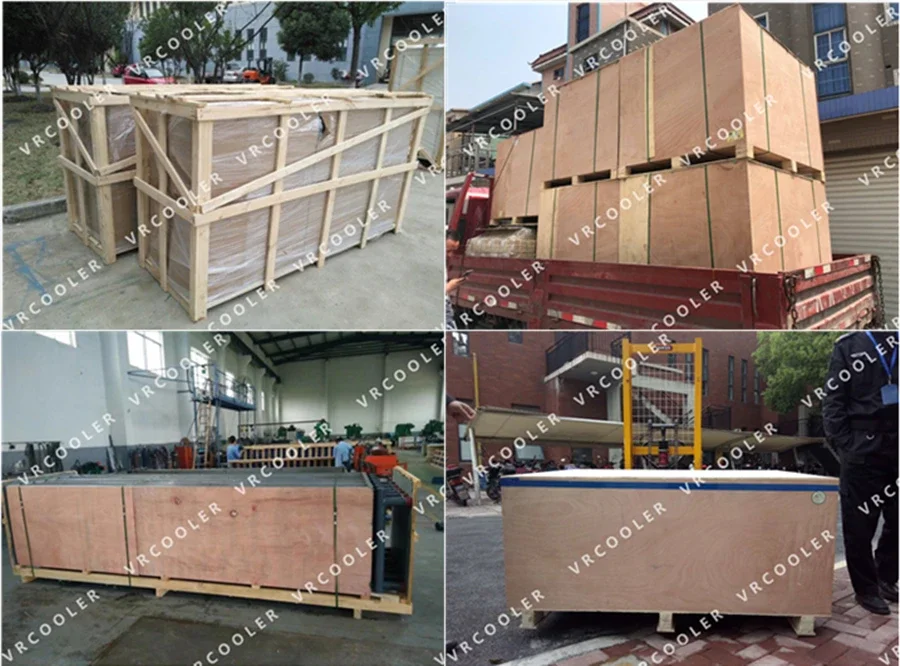

Packing & Delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Lead Time: 20 – 40 days
Payment Terms: 50% T/T payment in advance, 50% T/T payment before delivery
Packing Condition: Standard export packing or customized packaging
Lead Time: 20 – 40 days
Payment Terms: 50% T/T payment in advance, 50% T/T payment before delivery
Packing Condition: Standard export packing or customized packaging

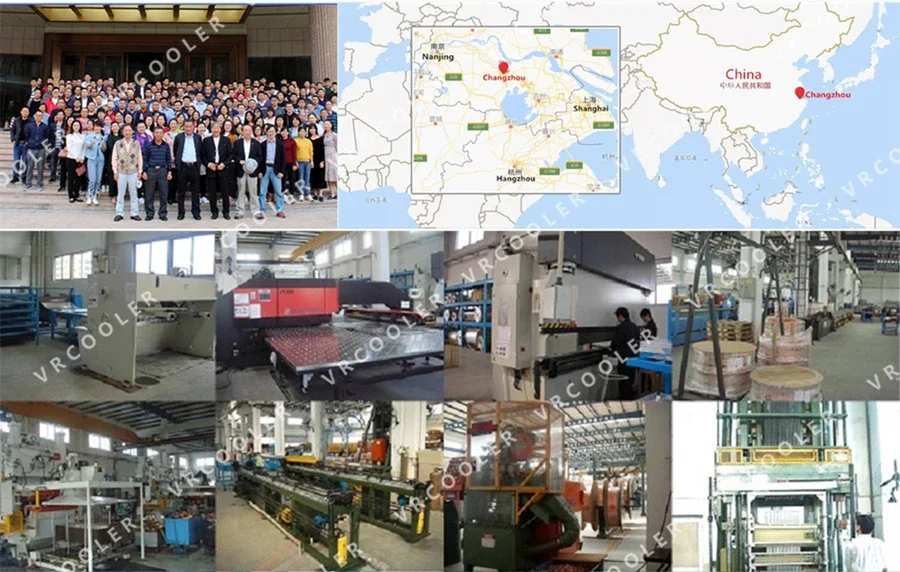

Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd
provides customers with high-quality and high-effect products based on advanced production technologies ,mature manufacturing processes and strict quality controls and keep communicating with understanding
customers demands, which repays us with self improvements and the trust and recognition of customers.
We are committed to quality products and services to meet our customer's expectations and the needs of industrial
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
Tel: +86-0519-81695177
E-mail: info@vrcooler.com ; sales@vrcooler.com
Website: www.vrcoolertech.com
FAQ
Q1: How to contact with us ?
A1: * 24 hours online from Trade Manager, quick answer, or email with us, we chat,what sapp is available.
* Select one product and leave message to us.
Q2: How to purchase the products which you want?
A2: * Choose one product which you are interested and leave message
* Or Inform us your request for brand and model number
* Or inform us your detailed request including dimension, weight, material, we can recommend to you.
* MOQ can be offered for you reference.
Q3: How to confirm the quality before place the order?
A3: * sample can be provided for your testing before order.
* If you are in China, warmly welcome you visit our factory, check the Quality, meanwhile
welcome to visit our office for reference.
Q4: How about the after-sale services ?
A4: * If any problems after receiving the bulk goods, please do not
hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
A1: * 24 hours online from Trade Manager, quick answer, or email with us, we chat,what sapp is available.
* Select one product and leave message to us.
Q2: How to purchase the products which you want?
A2: * Choose one product which you are interested and leave message
* Or Inform us your request for brand and model number
* Or inform us your detailed request including dimension, weight, material, we can recommend to you.
* MOQ can be offered for you reference.
Q3: How to confirm the quality before place the order?
A3: * sample can be provided for your testing before order.
* If you are in China, warmly welcome you visit our factory, check the Quality, meanwhile
welcome to visit our office for reference.
Q4: How about the after-sale services ?
A4: * If any problems after receiving the bulk goods, please do not
hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
Hi dear Friend, thanks for your visiting. If you have any questions about the product, you can send me an inquiry directly. If you don’t use Alibaba often, you can also leave your email address. Thank a lot!
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $328 / unit
- 10–299 unit: US $300 / unit
- 300+ unit: US $220 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this copper pipe heat exchanger?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the copper pipe heat exchanger be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
