Cooling Tower, 380 V, 11kw

This cooling tower is published with the manufacturer’s full specification — 380 V, 11kw. Made by Shanghai Snowdream Refrigeration Equipment Co., Ltd. (7 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Cooling Tower

• Power(W): 11kw
• Power: 2*5.5KW
• Voltage: 380 V
• Material: Galvanizing
• Noise Level: 30–34 dB
• Warranty: 1 Year

Technical Specifications

Product Details

Description

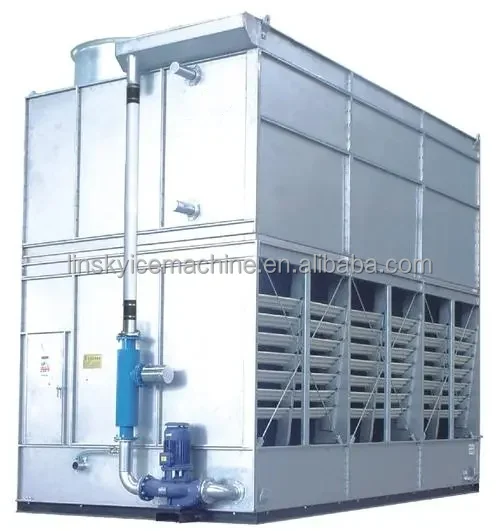

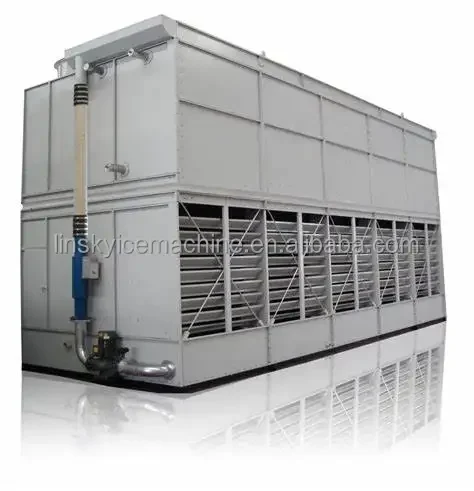

Closed Circuit Cooling Tower China Evaporative Condenser
Model	DSS-1000
Heat rejection	1000KW
Air flow	2*71000m3/h
Air fan power	2*5.5KW
Water flow	1*150m3/h
Dimension	3575*2410*4345mm

Product features

Evaporative Condenser: Closed Circuit Cooling Tower China Evaporative Condenser

LINSKY evaporative condenser is absorbing advanced heat exchange technology. A kind of high-efficiency heat exchange equipment developed, according to the heat exchange mechanism, uses the water film on the outer surface of the tube to evaporate, and cools and condenses the medium in the tube through heat and mass transfer.

Low operating cost and energy saving
– Closed Circuit Cooling Tower China Evaporative Condenser

Because of the unique structure,the products have the advantages of high thermal technology performance, low condensing temperature, low water and power consumption, low noise and low maintenance cost. It is the real energy-saved and environment protected product.

Easy maintenance realize non-stop maintenance

– Closed Circuit Cooling Tower China Evaporative Condenser

With large access door and sufficient inner room, maintainers can conveniently examine and repair the equipment inside it. The float and valve can be examined and repaired without stopping the operation of the machine. Because of the same direction of airflow and water flow, it is very convenient to examine and repair nozzles and coils when the machine is running.

Excellent heat exchange performance

– Closed Circuit Cooling Tower China Evaporative Condenser

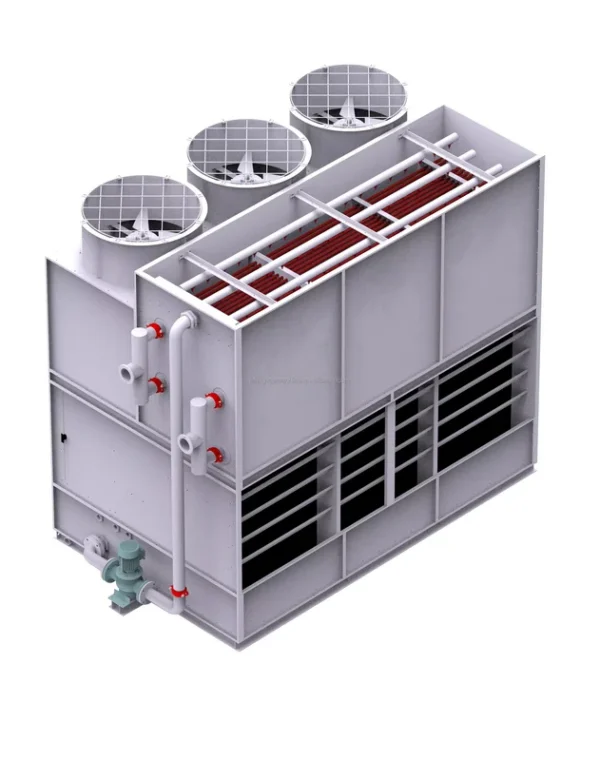

DSS series products use the technology of combining air water co-directional mixed-flow secondary heat exchange coils and PVC fillers to achieve high-efficiency heat exchange. Air and spray water flow through the coil in the same direction, so that the spray water can cover the surface of the coil to the greatest extent, ensuring that the surface of the coil is covered with a complete and even water film, and will not form dry spots on the surface of the coil, reducing scale formation.

Small occupied space and low investment

– Closed Circuit Cooling Tower China Evaporative Condenser

DSS series products combine traditional condenser, cooling tower, circulating water pump, basin and connected pipes together. They have the advantages of small occupied space and low investment.

Low fault rate

– Closed Circuit Cooling Tower China Evaporative Condenser

Both propeller fan and water pump adopt high quality bearing, which is the only running part that has friction. The direct connecting structure of the propeller fan has the advantages of low transmission loss, low noise and low fault rate.

Convenient transportation and installation

– Closed Circuit Cooling Tower China Evaporative Condenser

DSS series products adopt on-site installation, which makes transportation and installation easy.

Working principle

Principle: Closed Type Cooling Tower 1000KW Evaporative Condenser

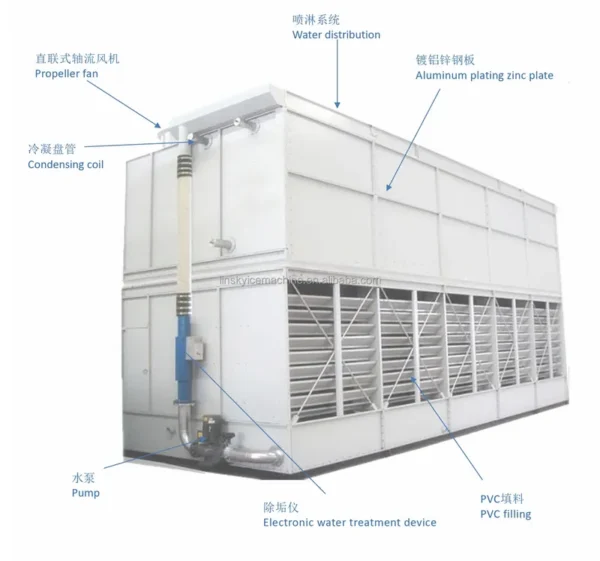

Evaporative condenser is an efficient heat exchange equipment. This product integrates traditional heat exchangers, cooling towers, circulating water pumps, pools and connecting water pipes. The product has many advantages compared with traditional heat exchangers. For example: it has less floor space, convenient installation, low noise, water saving, power saving, low operating cost, energy saving and environmental protection, long service life and low maintenance workload, etc. Evaporative condenser makes use of water and air as cooling medium. The medium exchanges heat with the refrigerant gas in the coil, then the gas is condensed into liquid. There is a spray water device above the heat exchange tube bundle. The cooling water is pumped to the spray water pipe above the heat exchange coil, and sprayed evenly on the outer surface of the heat exchange coil, forming a thin water film. During this process, the heat exchange among the refrigerant, water and air, plus the fan blowing, makes the efficiency significantly improved. By absorbing the heat, the temperature of cooling water and air increases rapidly, some of water vapors into steam, deflated and exhausted by the fan, the evaporation takes away large amount of heat. Meanwhile, the steam in the hot air is collected into reservoir, the water not gasified flows down to reservoir and pumped into the circulating system. The reservoir water level is automatically controlled by the float ball valve to make up the water escaped into the atmosphere.

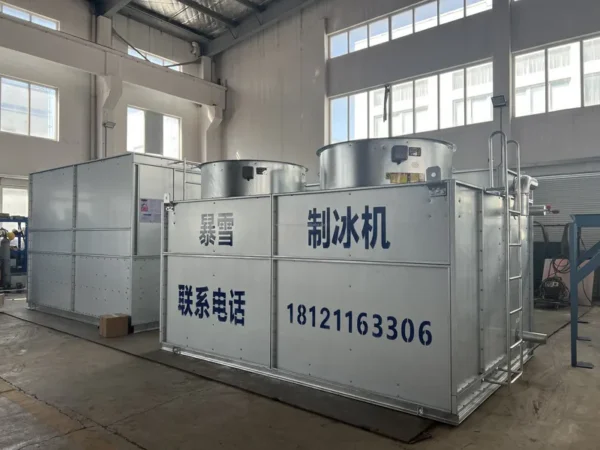

Production Details

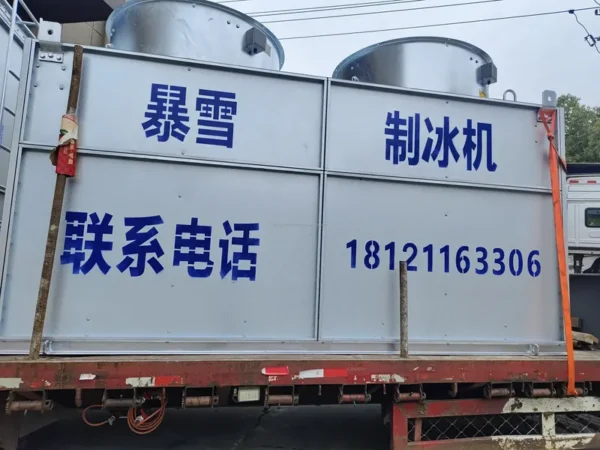

Packing and shipping

Linsky Ice Machine Factory Introduction

Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.

FAQ

Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before shipment.

Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during 15-30 days

Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed

Q:4. What is the warranty?
A:One year for the whole unit, three years for the compressor.

Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.

Recommend Products

1.Linsky Industrial ice machine:

(1)Block ice machine: From 1Ton/24h to 30Ton/24h
(2)Tube ice machine: From 1Ton/24h to 30Ton/24h
(3)Cube ice machine: From 1Ton/24h to 20Ton/24h
(4)Flake ice machine: From 0.3Ton/24h to 30Ton/24h
(5)Plate ice machine: From 1Ton/24h to 40Ton/24h
(6)Bag ice machine: From 1Ton/24h to 30Ton/24h

2.Linsky Commerial ice machine:
(1)Cube ice machine: From 50kg/24h to 1000kg/24h
(2)Snow ice machine: From 100kg/24h to 500kg/24h
(3)Crescent ice machine: From 210kg/24h to 270kg/24h

3.Linsky Refrigeration compressor unit:
(1)Bitzer compressor unit
(2)Hanbell compressor unit

4.Linsky Others:
(1)Ice crusher
(2)Ice packing machine
(3)Water chiller
(4)Ice storage
(5)Ice screw conveyor

Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.

Yuna

whatsapp: +86 13156526006
email: yuna.zhang@linskyice.com
wechat: +86 13156526006

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–1 piece: US $2200 / piece
  • 2+ piece: US $2000 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling tower?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooling tower be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
