The ice machine listed here carries 380V/50HZ/3P, 33KW, documented exactly as the manufacturer publishes it. Made by Shanghai Snowdream Refrigeration Equipment Co., Ltd. (7 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Model Number: LIB-100D
- Power: 33KW
- Power Supply: 380V/3P/50Hz
- Voltage: 380V/50HZ/3P
- Ice Storage Capacity: Other
- Ice Making Capacity: 10Tons/24Hours
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380V/50HZ/3P |
| Power | 33KW |
| Refrigerant | R404A |
| Compressor Brand | Bitzer |
| Key Selling Points | High Productivity |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Motor, Pump, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 6000 |
| Brand Name | Linsky |
| Model Number | LIB-100D |
| Dimension(L*W*H) | L5566mm*W1355mm*H2300mm |
| Product Name | Direct cooling block ice machine 10 ton ice block machine |
| Cooling Way | Water Cooling |
| Compressor | Bitzer/Hanbell/Refcomp |
| Material | Aluminum Alloy |

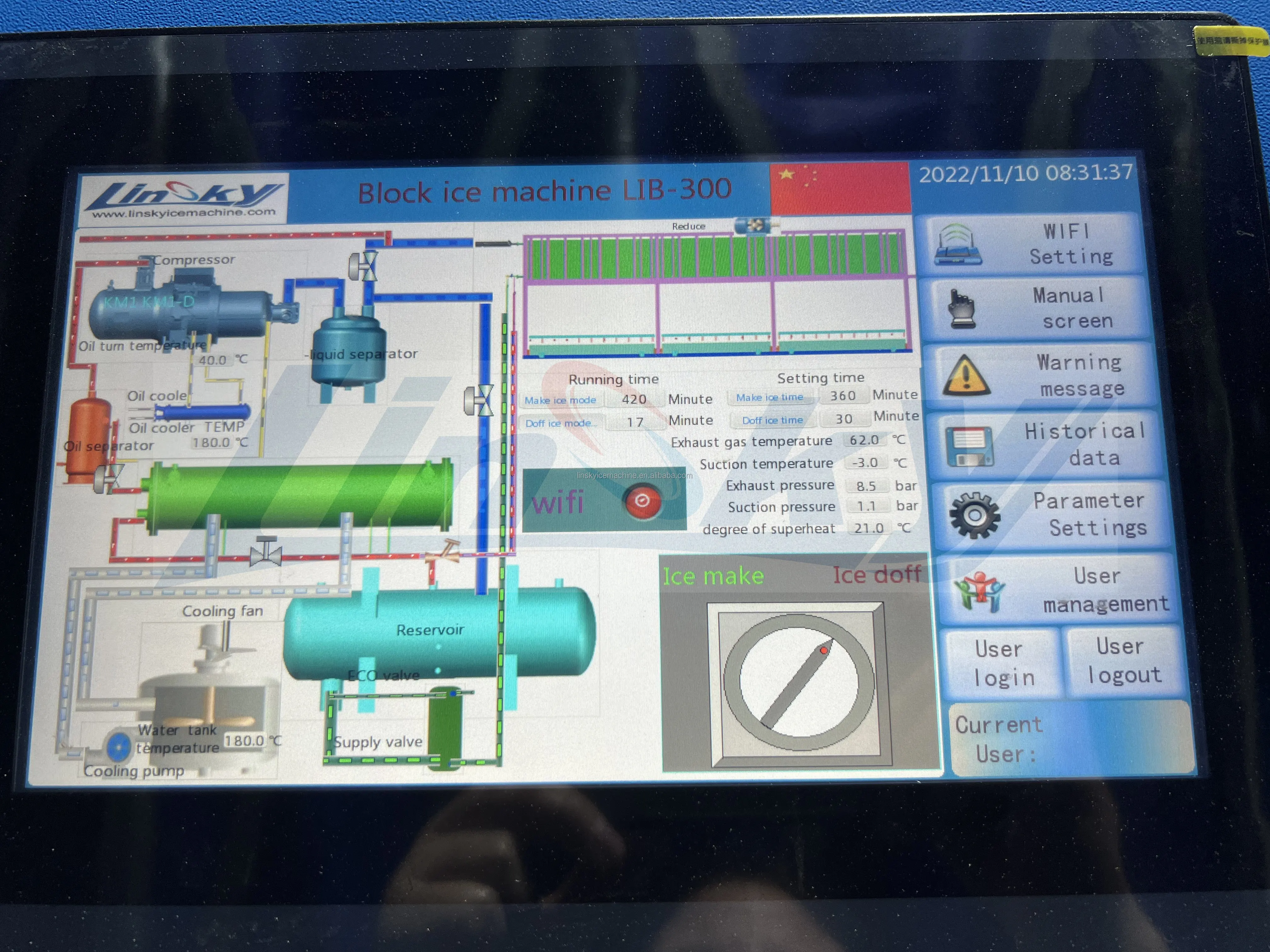

| Control System | Siemens PCL Program Control System |
| Power Supply | 380V/3P/50Hz |
| Ice Making Capacity | 10Tons/24Hours |

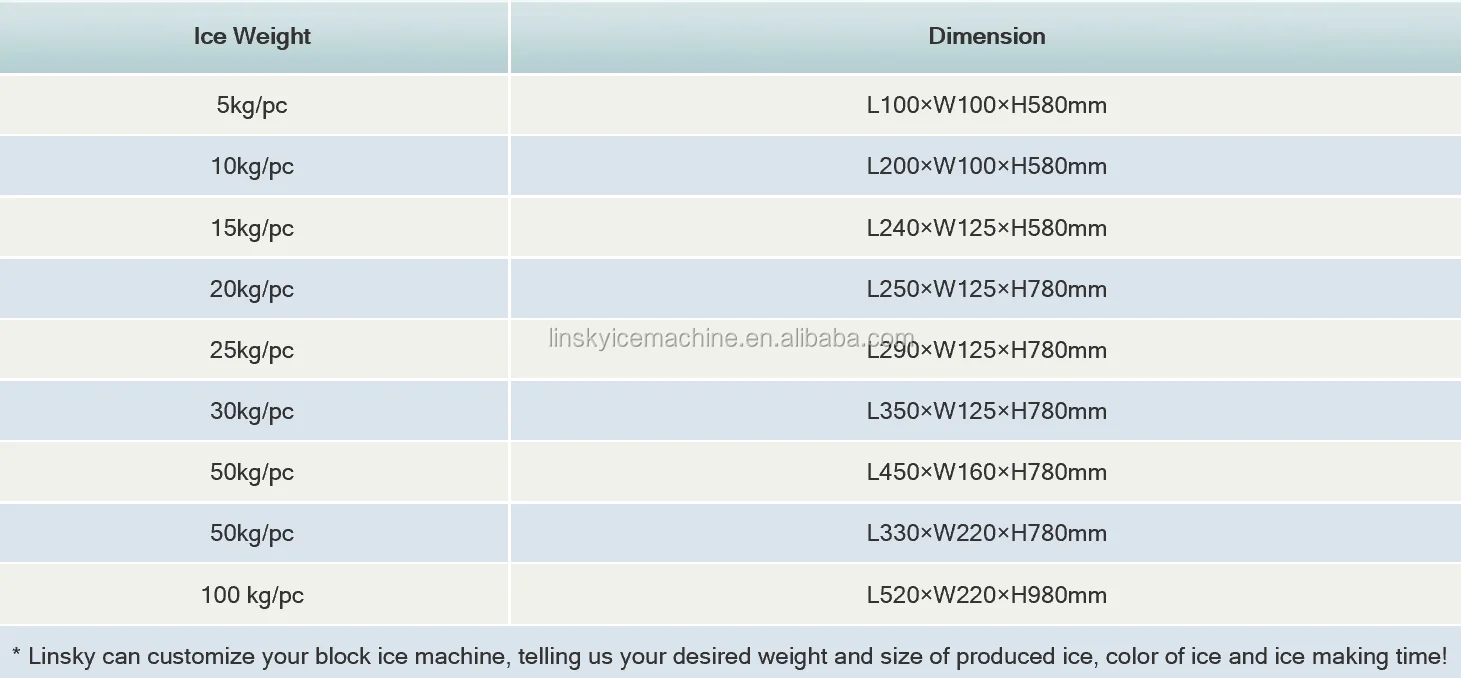

| Block Ice Weight | 5kg/10kg/15kg/20kg/25kg/50kg/100kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Ice Machine Description

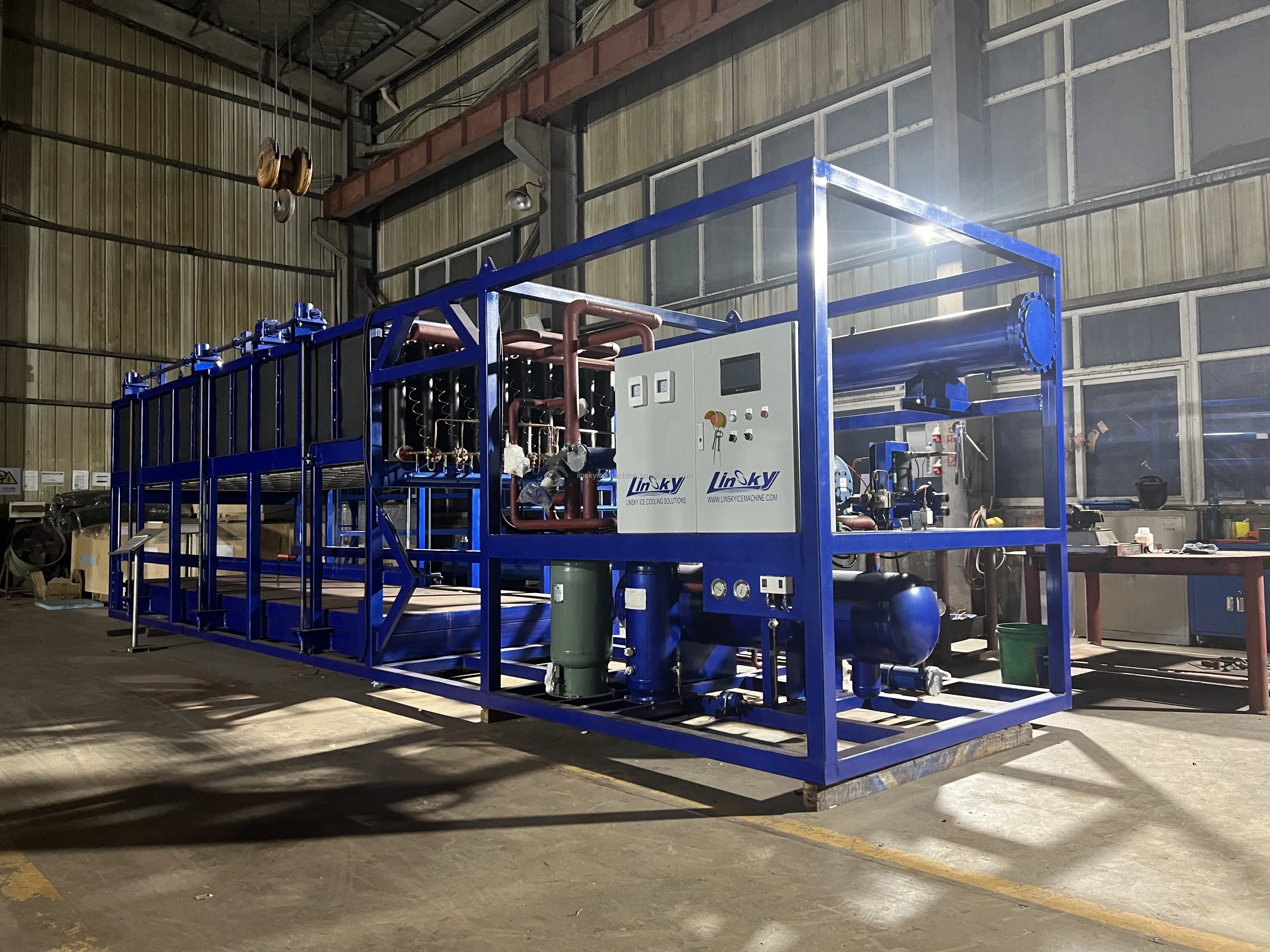

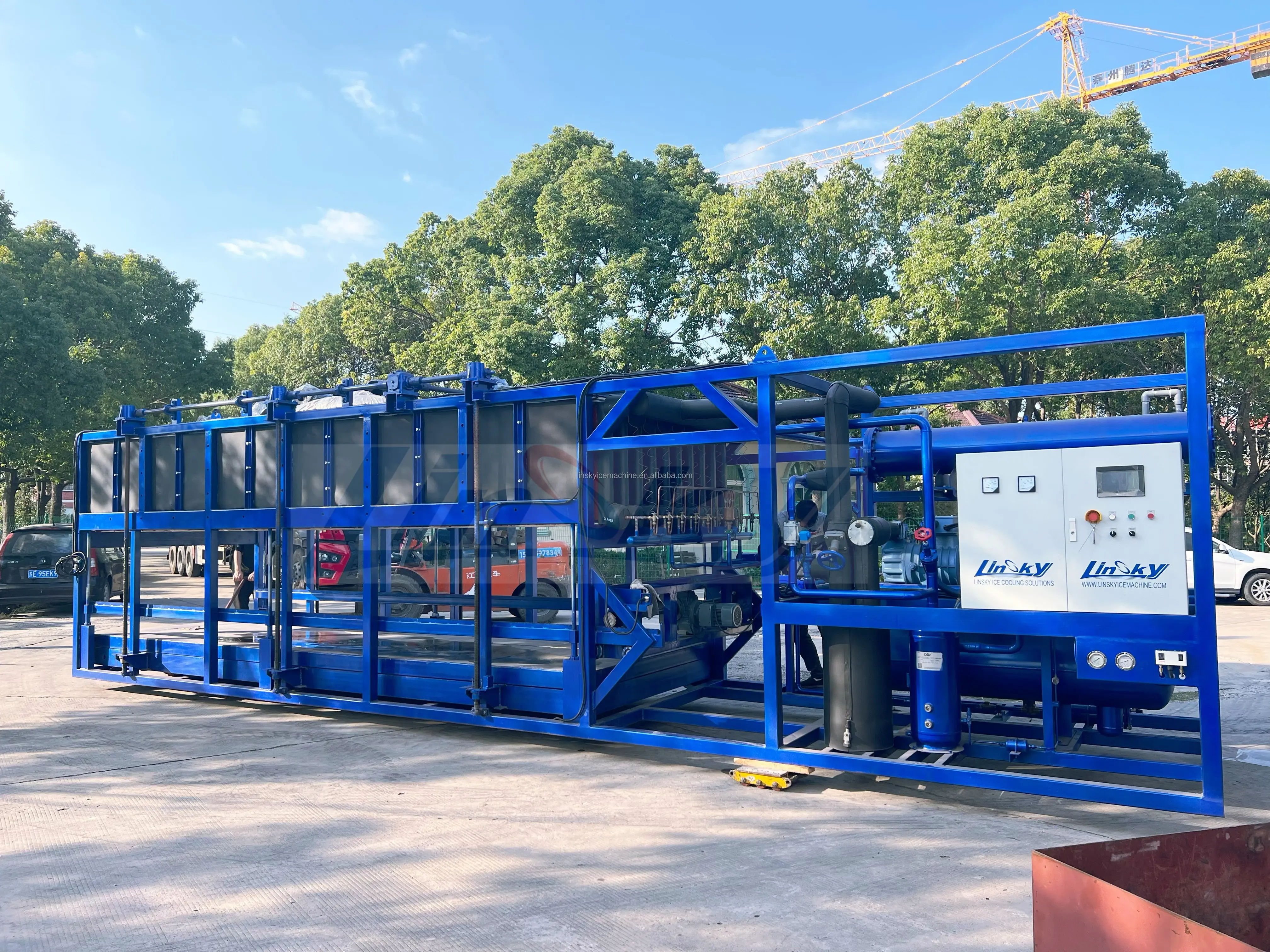

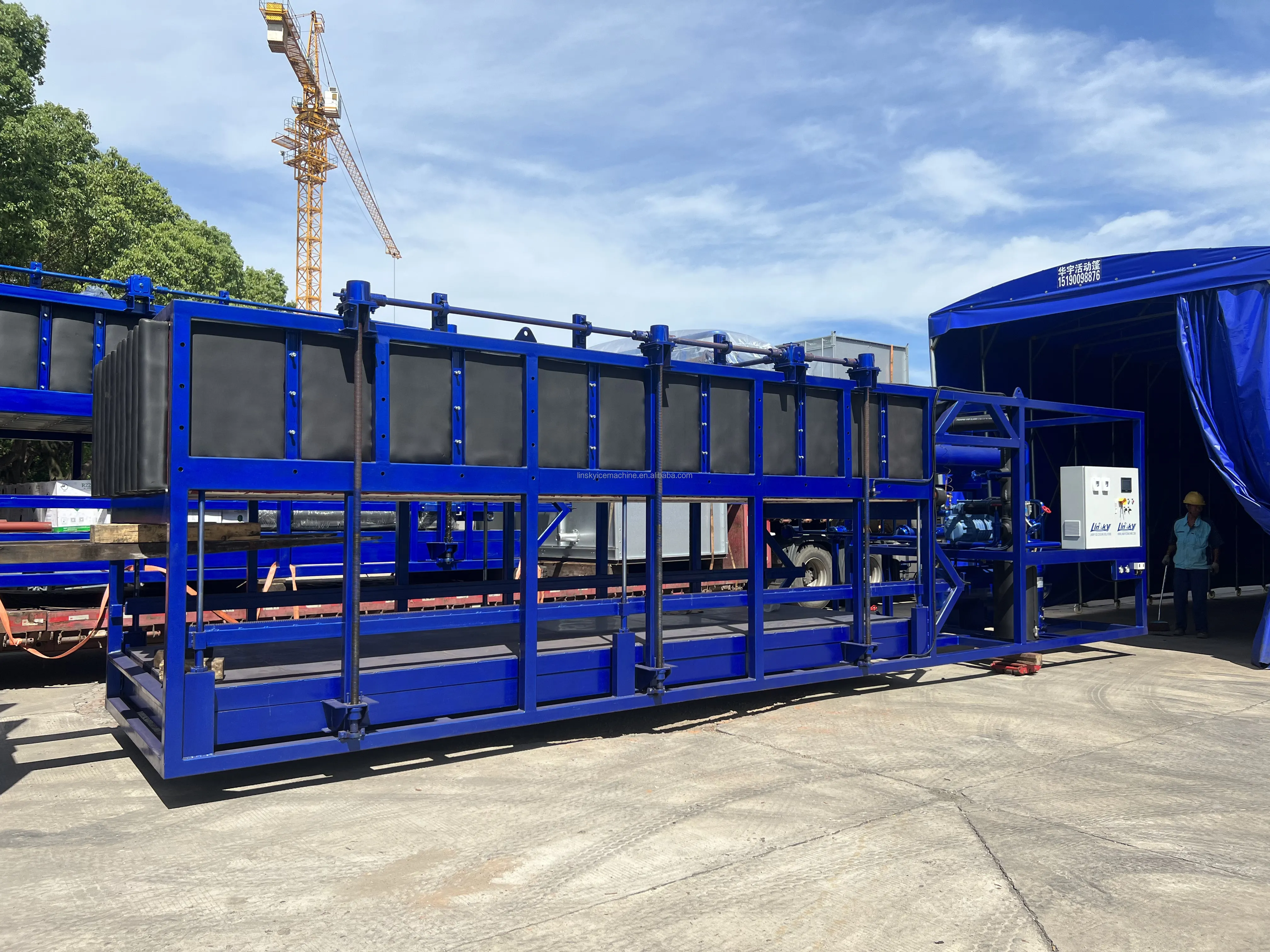

Direct cooling block ice machine 10 ton ice block machine
Linsky can offer 3 types of block ice machine for different applications: direct refrigeration aluminum alloy type, indirect refrigeration brine type and containerized mobile type. Block Ice large cube shape, weight of 1~200kg, solid ice; Block ice is the largest ice in all the ice products. It is not easy to thaw due to its small contact area. And it can be crushed into different shapes of ice according to different requirements. Linsky offers transparent, semi-transparent or milky white three ice appearances available.
Direct cooling block ice machine 10 ton ice block machine | ||
Model: | LIB-100D | |
Daily capacity: | 10Ton/24hr | |
Dimension: | Ice machine unit: L1800mm*W1600mm*H1800mm | |
Ice machine evaporator: L5566mm*W1355mm*H2300mm | ||
Ice machine cooling tower: ∅2000mm*H2410mm | ||
Weight: | Ice machine unit: 1680kg | |
Ice machine evaporator: 3750kg | ||
Ice machine cooling tower: 670kg | ||
Operating Power: | 34.8KW | |
Install Power: | 46.4KW | |
Ice Machine details

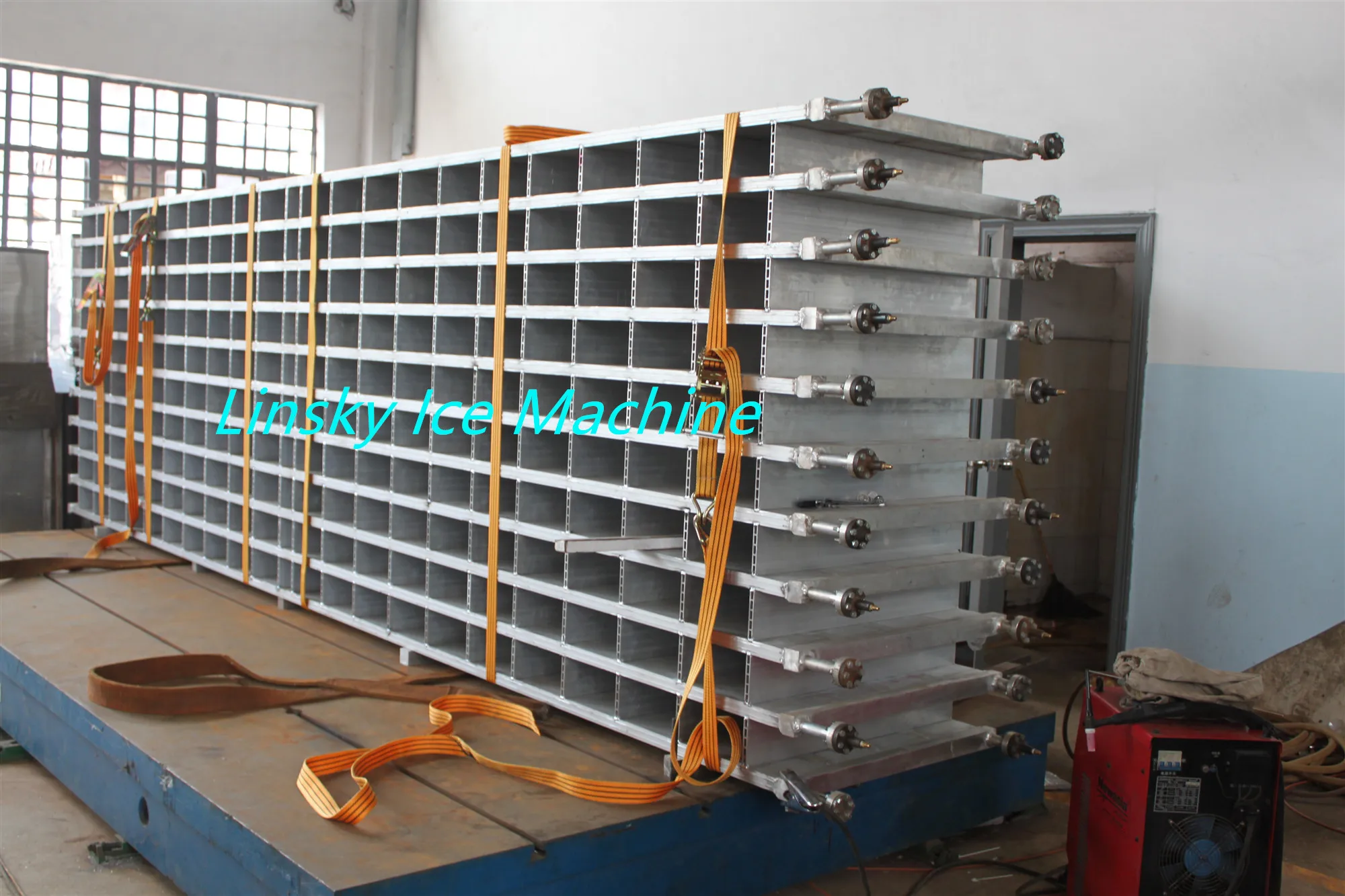

Aluminum Direct Type Block Ice Machine Features: Direct cooling block ice machine 10 ton ice block machine
* Adopts latest technology, no need of brine tank;
* Aerospace aluminum alloy 6063-T5, high heat transfer coefficient, high strength and robust evaporator by enhanced welding technology;
* Direct heat exchange between the water and refrigerant in aluminum evaporator brings higher ice making efficiency, thus ice forms 1.5 times faster than ordinary ice machine which uses brine water;
* Easy-to-operate screw rod lifting mechanism gets feedback from the distance sensor which can realize more precise and safe control;
* Passive reservoir control method applied to specify precise liquid supply, which increases ice making efficiency and system reliability;
* Automatic water adding function by back type liquid level control technology;
* Silicone foam seal avoids evaporator dripping problem;
* Unique refrigeration system, using hot gas defrost technology makes easier and automatic ice harvest;
* Integrated modular design facilitates installation and maintenance on the spot;
* Food grade manufacturing process, totally complies with food standard.
* Aerospace aluminum alloy 6063-T5, high heat transfer coefficient, high strength and robust evaporator by enhanced welding technology;
* Direct heat exchange between the water and refrigerant in aluminum evaporator brings higher ice making efficiency, thus ice forms 1.5 times faster than ordinary ice machine which uses brine water;
* Easy-to-operate screw rod lifting mechanism gets feedback from the distance sensor which can realize more precise and safe control;
* Passive reservoir control method applied to specify precise liquid supply, which increases ice making efficiency and system reliability;
* Automatic water adding function by back type liquid level control technology;
* Silicone foam seal avoids evaporator dripping problem;
* Unique refrigeration system, using hot gas defrost technology makes easier and automatic ice harvest;
* Integrated modular design facilitates installation and maintenance on the spot;
* Food grade manufacturing process, totally complies with food standard.

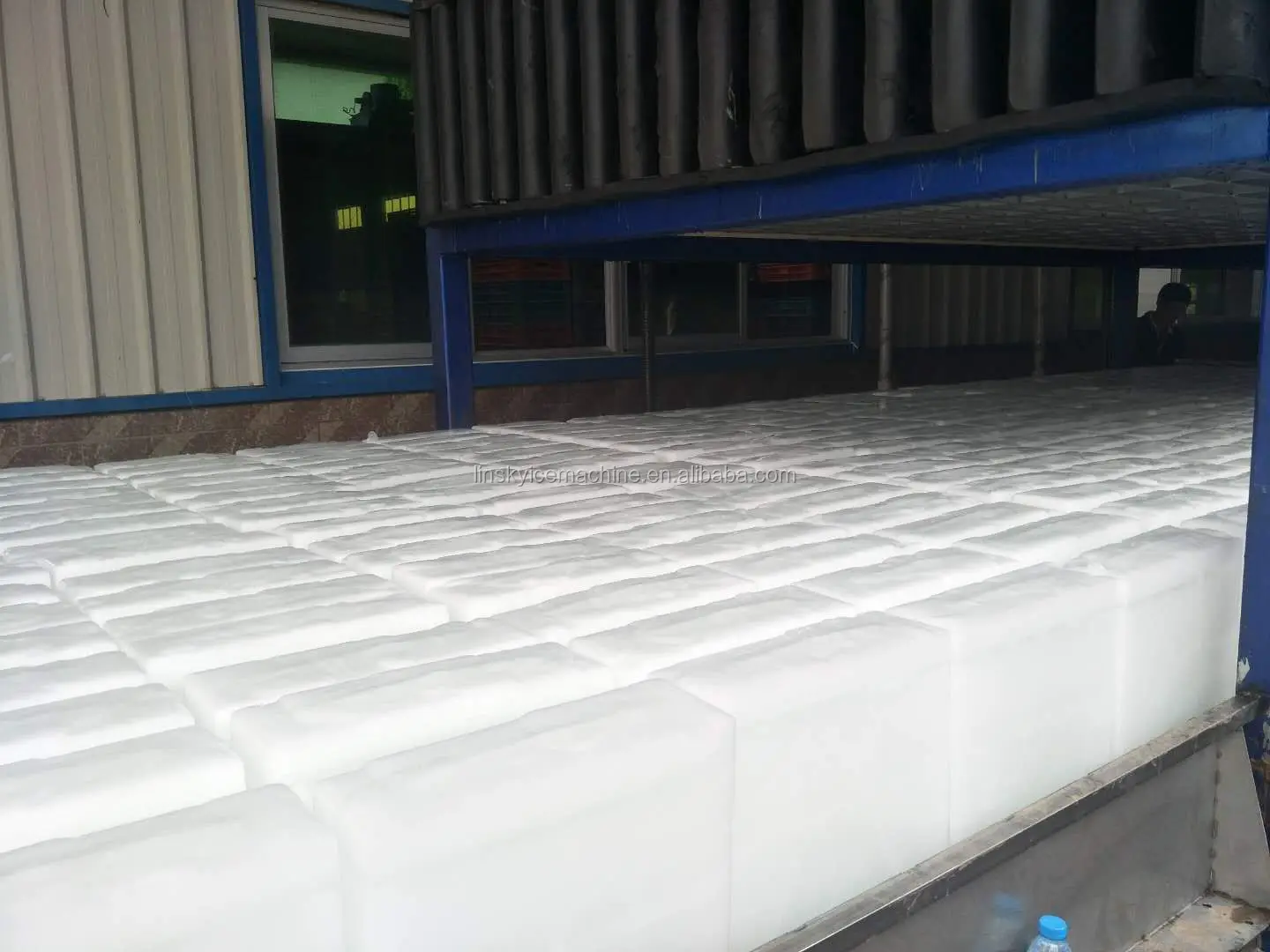

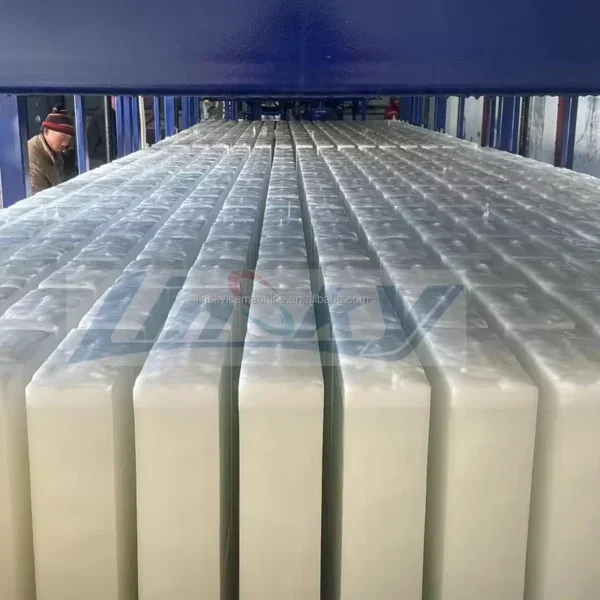

Block ice: Direct cooling block ice machine 10 ton ice block machine
From block ice appearance, Linsky block ice machine could produce transparent, semi-transparent and milky white block ice; In the aspect of weight and dimension, Linsky standard block ice weight and dimension are listed below for your reference:

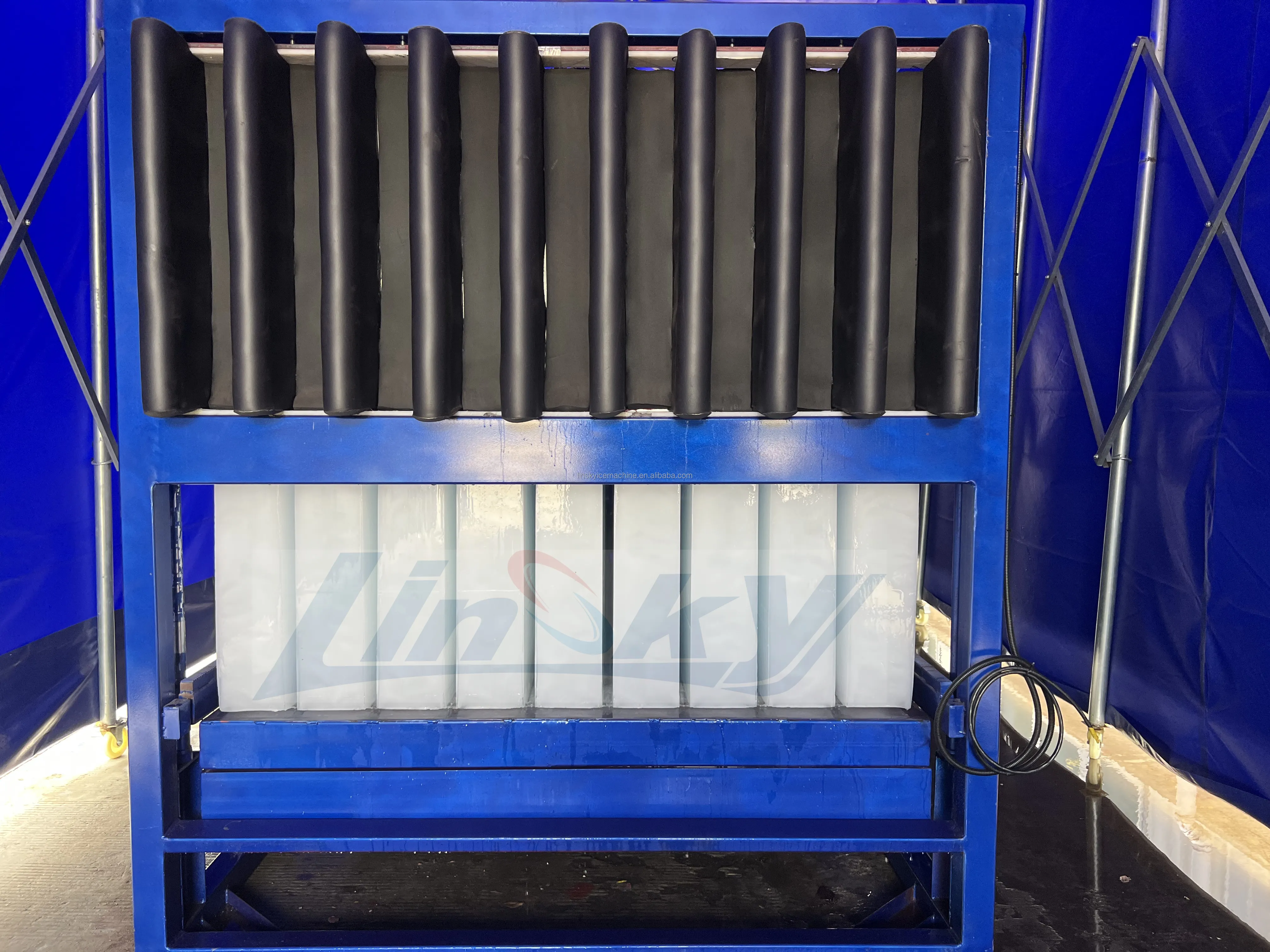

How Does Aluminum Direct Type Block Ice Machine Work?
Direct cooling block ice machine 10 ton ice block machine
As shown, Ice filling plate (02) will be elevated by wire rope (14) which is driven by speed reducer (13). Lift up the filling
plate to be fastened in the lock handle (03) and get the whole aluminum alloy plate evaporator (04) sealed. Add water into the icegrid (06) automatically through water feeding pipes (05). At the bottom of all ice grid there is a 5mm space ensures water can flow through each ice can. When water reaches to the standard level, it will stop to continue to add water automatically.
Refrigeration system starts to run after water adding process. Refrigerant flows into the refrigerant runner (08) of aluminum evaporator (04) from refrigerant inlet (09) and exchanges heat with water in ice grid to lower the water temperature.
In a certain time, all the water in ice can will turn into block ice. At this time, refrigeration system switches to ice defrost
mode. Hot gas enters into gas return tube (12) and becomes fluid in refrigerant runner (08), then back through liquid discharge tube (10) to the dry evaporator.
Hot gas defrosts ice surface and separates them from ice grid. At this time, refrigeration system stops to work. Speed reducer for lifting mechanism (13) drives wire rope to lower ice lifting plate to the bottom place of steel frame (01). The ice on filling plate can be manually moved away or the whole plate be taken away by forklift for swift and labor-free ice shift.
plate to be fastened in the lock handle (03) and get the whole aluminum alloy plate evaporator (04) sealed. Add water into the icegrid (06) automatically through water feeding pipes (05). At the bottom of all ice grid there is a 5mm space ensures water can flow through each ice can. When water reaches to the standard level, it will stop to continue to add water automatically.
Refrigeration system starts to run after water adding process. Refrigerant flows into the refrigerant runner (08) of aluminum evaporator (04) from refrigerant inlet (09) and exchanges heat with water in ice grid to lower the water temperature.
In a certain time, all the water in ice can will turn into block ice. At this time, refrigeration system switches to ice defrost
mode. Hot gas enters into gas return tube (12) and becomes fluid in refrigerant runner (08), then back through liquid discharge tube (10) to the dry evaporator.
Hot gas defrosts ice surface and separates them from ice grid. At this time, refrigeration system stops to work. Speed reducer for lifting mechanism (13) drives wire rope to lower ice lifting plate to the bottom place of steel frame (01). The ice on filling plate can be manually moved away or the whole plate be taken away by forklift for swift and labor-free ice shift.
Ice Machine Application
Block Ice Applications fishing industry, fresh keeping or human consumption after crushing; transparent one used for ice
sculpture, ice show etc.; it also can be used in the area of chemical industry, food processing cooling.
sculpture, ice show etc.; it also can be used in the area of chemical industry, food processing cooling.
Block ice Features: Direct cooling block ice machine 10 ton ice block machine
* Transparent ice features: crystal, solid and not easy to melt;
* Semi-transparent ice features: misty white appearance as a few amount of gas mixed in ice making process, ice is solid and not easy to melt;
* Milky white ice features: milky white as lot of gas mixed in fast ice making process, low temperature, not easy to melt but suitable for crushing.
* Transparent ice features: crystal, solid and not easy to melt;
* Semi-transparent ice features: misty white appearance as a few amount of gas mixed in ice making process, ice is solid and not easy to melt;
* Milky white ice features: milky white as lot of gas mixed in fast ice making process, low temperature, not easy to melt but suitable for crushing.

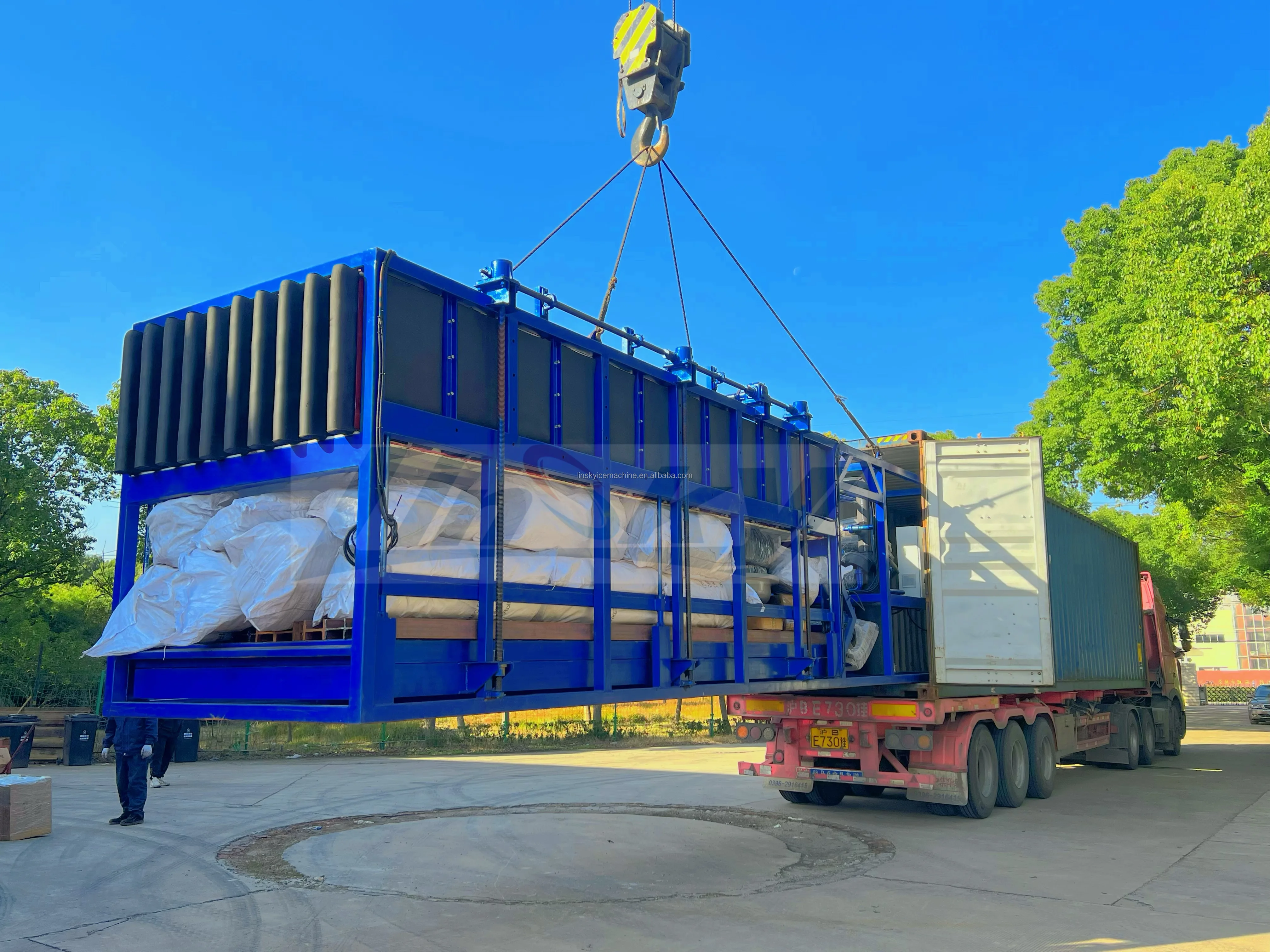

Ice Machine packaging&Shipping
For Direct cooling block ice machine 10 ton ice block machine:
(1)Packed in plywood case. (2)Use one 40ft container; (4)Spared parts and accessories are offered free of charge for installation and operation.

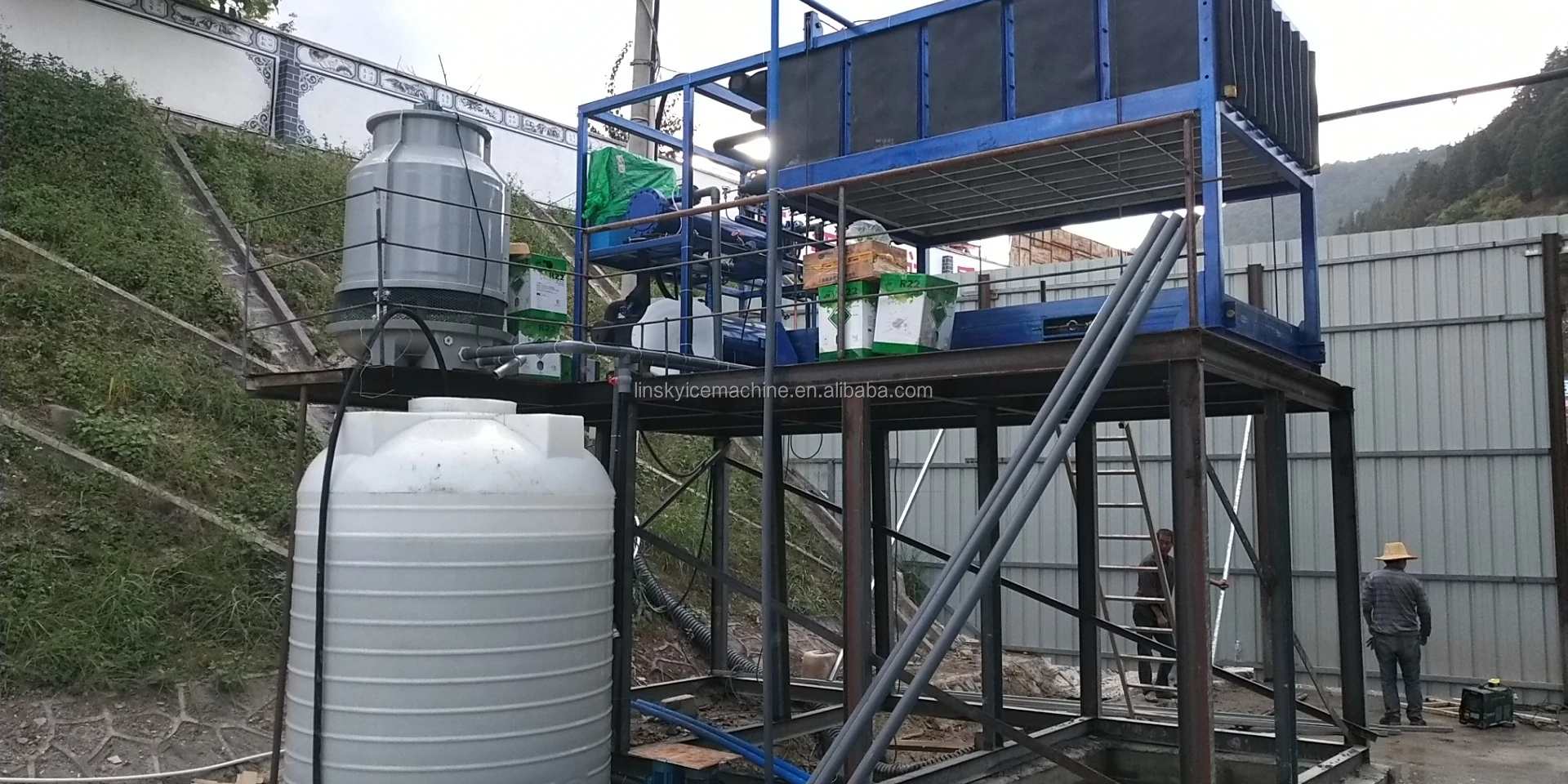

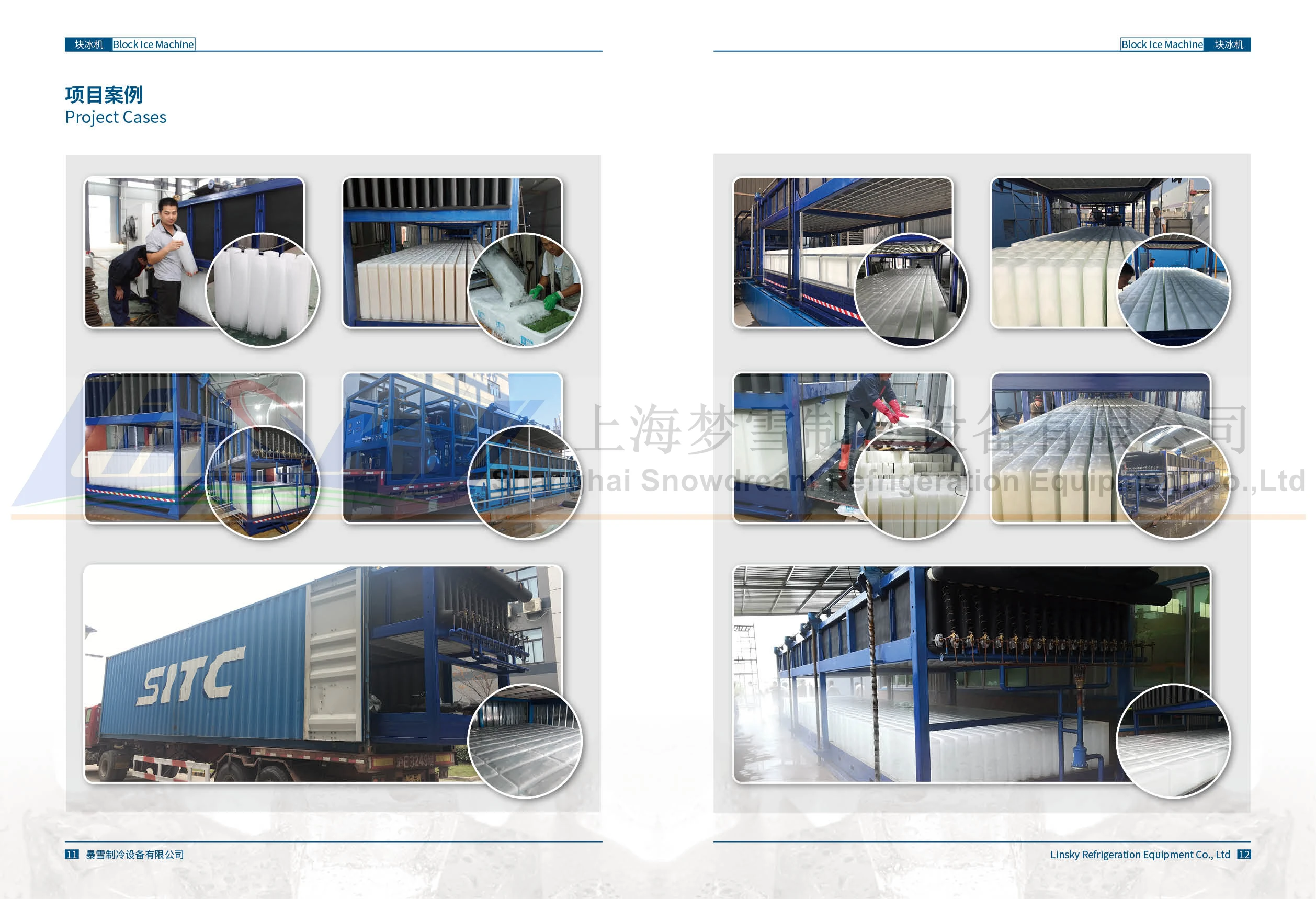

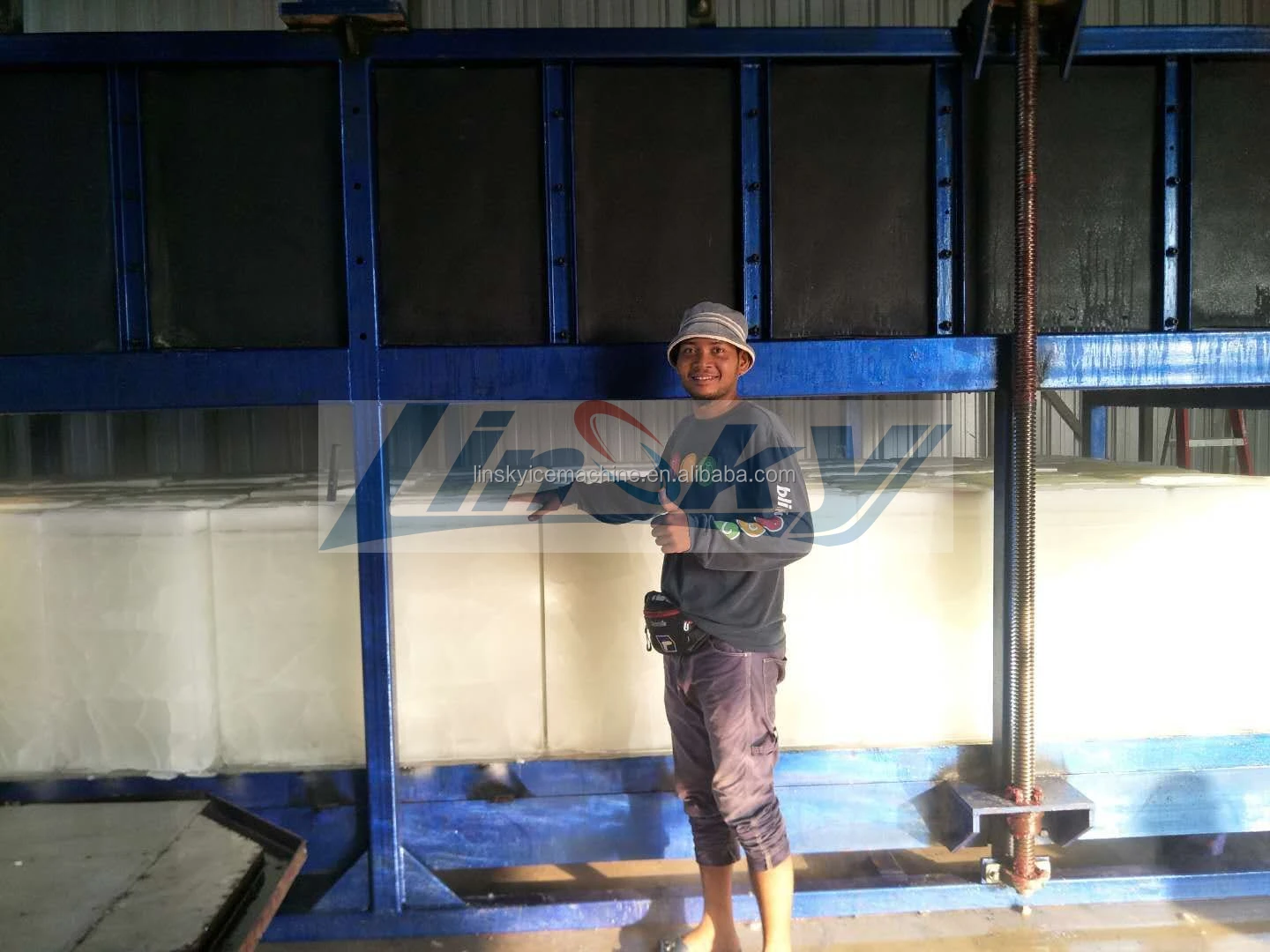

Ice Machine Projects

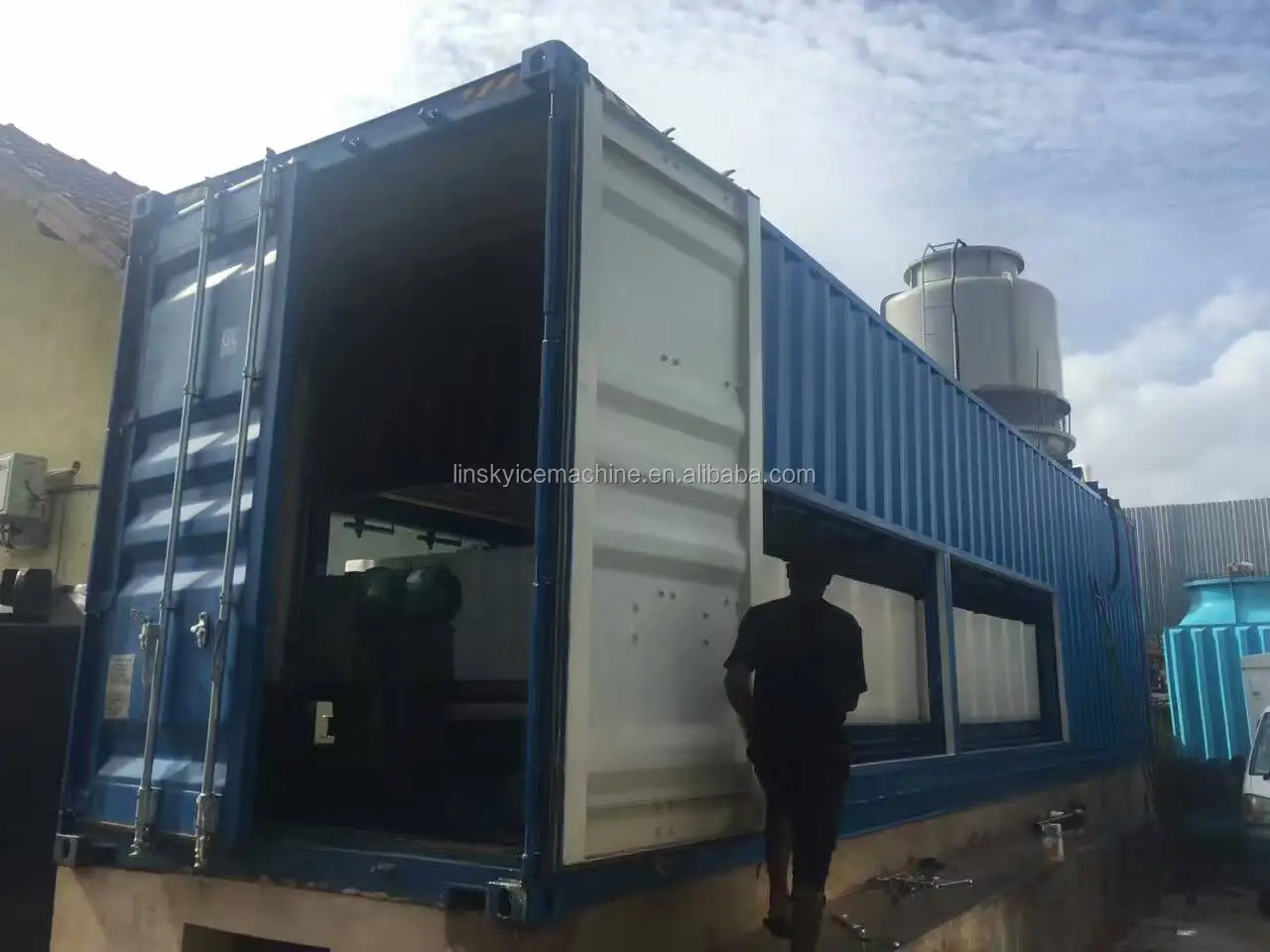

Linsky 5Ton/24h block ice machine to China Railway Construction Department
Faster ice Making /Lower power consumption
Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [SUS304, galvanized steel], so ice block can be completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.
Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [SUS304, galvanized steel], so ice block can be completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.
Linsky 10Ton/24h block ice machine to Malaysia
Longer service life Lower future investment
Without salt and other material's corrosion, Linsky all LIB series ice block machine with longer service life and you need just
clean the ice moulds/ice machine regularly. The fucture maintenance investment is lower.
Without salt and other material's corrosion, Linsky all LIB series ice block machine with longer service life and you need just
clean the ice moulds/ice machine regularly. The fucture maintenance investment is lower.
Linsky 20Ton/24h block ice machine to Tanzania
Labor saving
Add water–ice making–wait–ice dropping and ice block moving away. Linsky LIB series ice block machine need only your labor cost to move the ice blocks, all other process is automatically finished.
Add water–ice making–wait–ice dropping and ice block moving away. Linsky LIB series ice block machine need only your labor cost to move the ice blocks, all other process is automatically finished.
FAQ
1. What should I prepare to buy the ice machine from you?
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.

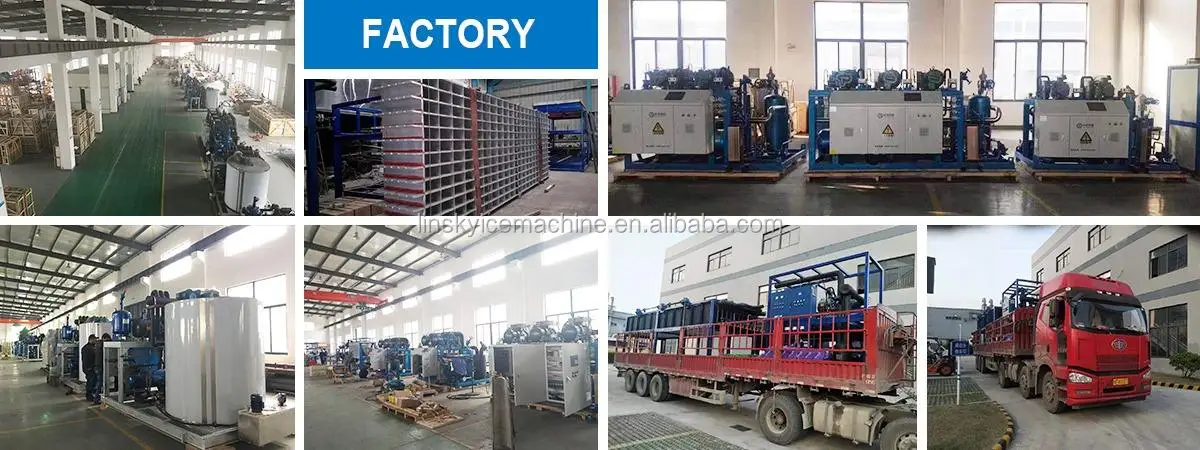

Linsky Ice Machine Factory Introduction
Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO 9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Related Products
1.Linsky Industrial ice machine:
2.Linsky Commerial ice machine:
(1)Cube ice machine: From 50kg/24h to 1000kg/24h
(2)Snow ice machine: From 100kg/24h to 500kg/24h
(3)Crescent ice machine: From 210kg/24h to 270kg/24h
3.Linsky Refrigeration compressor unit:
(1)Bitzer compressor unit
(2)Hanbell compressor unit
4.Linsky Others:
(1)Ice crusher
(2)Ice packing machine
(3)Water chiller
(4)Ice storage
(5)Ice screw conveyor
(1)Block ice machine: From 1Ton/24h to 30Ton/24h
(2)Tube ice machine: From 1Ton/24h to 30Ton/24h
(3)Cube ice machine: From 1Ton/24h to 20Ton/24h
(4)Flake ice machine: From 0.3Ton/24h to 30Ton/24h
(5)Plate ice machine: From 1Ton/24h to 40Ton/24h
(6)Bag ice machine: From 1Ton/24h to 30Ton/24h
(2)Tube ice machine: From 1Ton/24h to 30Ton/24h
(3)Cube ice machine: From 1Ton/24h to 20Ton/24h
(4)Flake ice machine: From 0.3Ton/24h to 30Ton/24h
(5)Plate ice machine: From 1Ton/24h to 40Ton/24h
(6)Bag ice machine: From 1Ton/24h to 30Ton/24h
2.Linsky Commerial ice machine:
(1)Cube ice machine: From 50kg/24h to 1000kg/24h
(2)Snow ice machine: From 100kg/24h to 500kg/24h
(3)Crescent ice machine: From 210kg/24h to 270kg/24h
3.Linsky Refrigeration compressor unit:
(1)Bitzer compressor unit
(2)Hanbell compressor unit
4.Linsky Others:
(1)Ice crusher
(2)Ice packing machine
(3)Water chiller
(4)Ice storage
(5)Ice screw conveyor
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
Yuna
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
Yuna
whatsapp: +86 13156526006
email: yuna.zhang@linskyice.com
wechat: +86 13156526006
email: yuna.zhang@linskyice.com
wechat: +86 13156526006
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–1 unit: US $25000 / unit
- 2+ unit: US $22000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380V/50HZ/3P. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Snowdream Refrigeration Equipment Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Snowdream Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
