This cooling tower is published with the manufacturer’s full specification — 380V,440V, cooling capacity 390,600kcal/h. Made by Shanghai Hongxun Machinery Co., Ltd. (10 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Power Supply: 380V 50HZ/60HZ/440V
- Voltage: 380V,440V
- Cooling Capacity: 390,600kcal/h
- Material: FRP
- Warranty: 1 Year
- Place Of Origin: SHANGHAI
Technical Specifications
| Voltage | 380V,440V |
|---|---|
| Cooling Type | Counter Flow |
| Material | FRP |
| Core Components | Engine, Bearing, Gearbox, Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Place Of Origin | SHANGHAI |
| Brand Name | HX |

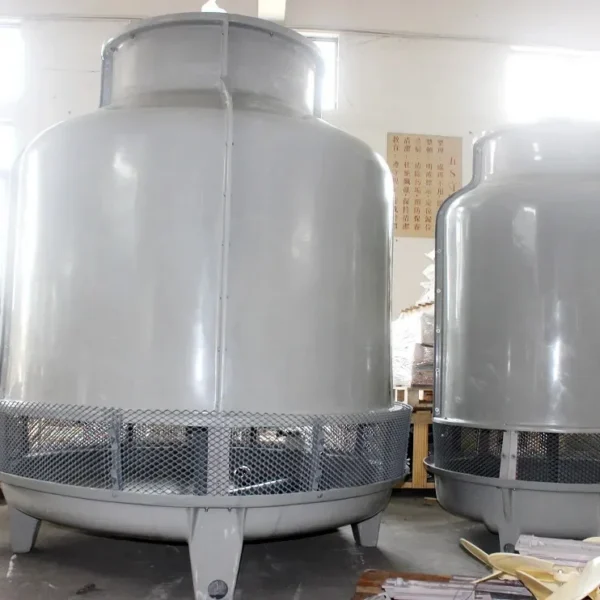

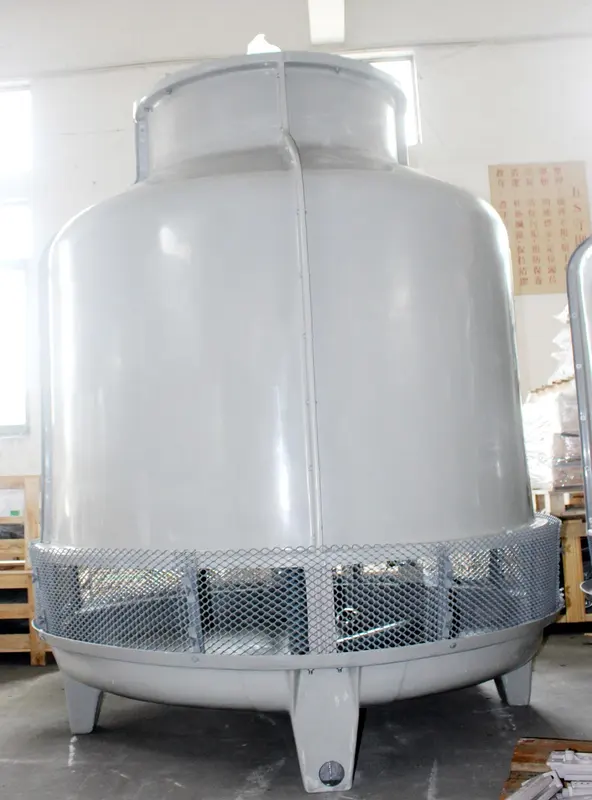

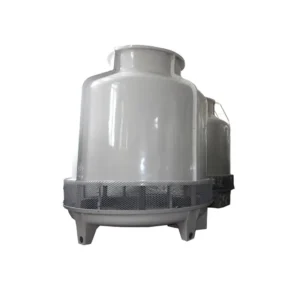

| Product Name | Counterflow Circular Water Cooling Tower |
| Application | for cooling |
| Cooling Circulating Water | 78.12m3 /h |
| Inlet Water Temperature | 37℃/32℃ |
| Cooling Capacity | 390,600kcal/h |
| Power Supply | 380V 50HZ/60HZ/440V |
| Running Weight | 1650KG |
| Diameter Of Water Tower (F) | 2700mm |
| Motor | Fully enclosed waterproof |
| Packaging Details | 1.Nude 2.Water-proof cloth 3.Wooden case 4.Reinforce packaging complete profile aluminium production line 2021 |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 80 sets per Year complete profile aluminium production line 2021 |
Product Details

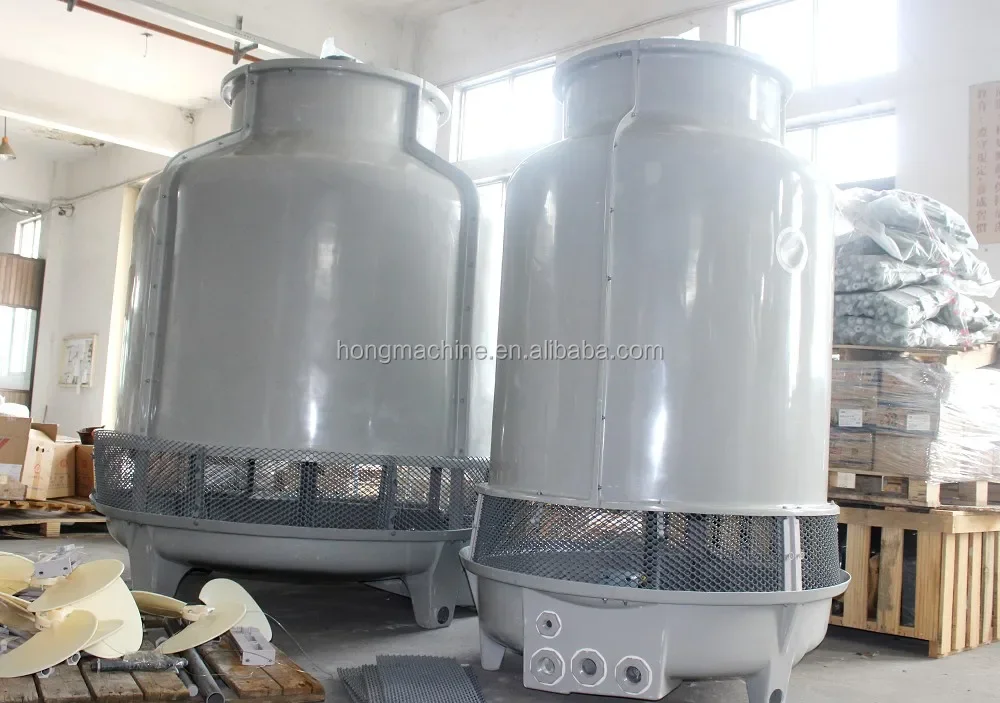

1.Cooling towers are generally available in thermal power plants.After the water is heated, the steam turbine is driven by high-pressure gas, and the remaining gas needs to be cooled.
2. The central air conditioner also has the function of cooling tower to cool the circulating liquid.
3. There are also professional production of FRP cooling towers, commonly known as cooling water tower, cold water tower, cold water tower, glass tower, water tower, etc., mainly square, round, cross-flow, counter-flow, no filler spray cooling tower series.
| Model | Flow m/h ±5% | Diameter mm | Height mm | Fan diameter(mm) | Motor power (KW) | N.W. KG ±5% | Running weight KG ±5% | db(A) ±5% |
| ZLT-CT-100T | 78.1 | 2700 | 2400 | 1450 | 2.2 | 450 | 1650 | 65.5 |
| ZLT-CT-125T | 97.5 | 2700 | 2400 | 1450 | 2.2 | 540 | 1740 | 66 |
| ZLT-CT-150T | 117 | 3000 | 2550 | 1450 | 4 | 580 | 1780 | 66 |
| ZLT-CT-175T | 136.8 | 3300 | 2750 | 1750 | 4 | 760 | 1860 | 66 |
| ZLT-CT-200T | 156.2 | 3300 | 2750 | 1750 | 4 | 780 | 1880 | 66.5 |
|
MODEL | Basic dimension(mm) | Pipe size(mm) | |||||||||
| A | B | C | D(g) | E(g) | Inlet | outlet | Full water | Sewage discharge | Float ball | Quick refill | |
| ZLT-CT-100T | 2220 | 1110 | 300 | 700 |
| 125 | 125 | 25 | 25 | 20 |
|
| ZLT-CT-125T | 2220 | 1110 | 300 | 700 |
| 125 | 125 | 25 | 25 | 20 |
|
| ZLT-CT-150T | 2550 | 1280 | 300 | 700 |
| 150 | 150 | 25 | 25 | 20 |
|
| ZLT-CT-175T | 2800 | 1410 | 300 | 700 |
| 150 | 150 | 25 | 25 | 20 |
|
| ZLT-CT-200T | 2800 | 1410 | 300 | 700 |
| 150 | 150 | 25 | 25 | 20 | 25 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $700 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V,440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
