The cooling tower listed here carries 380V/50HZ or Customization, refrigerant Freon R22, documented exactly as the manufacturer publishes it. Made by Yantai Grand Machinery Engineering Co., Ltd. (8 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Model Number: GDN-320
- Voltage: 380V/50HZ or Customization
- Shell Material: SGLC/Stainless Steel
- Refrigerant: Freon R22
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Voltage | 380V/50HZ or Customization |
|---|---|
| Refrigerant | Freon R22 |
| Compressor Brand | Bitzer |
| Core Components | Motor, Pump, Axial flow fan |
| Warranty | 1 Year |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Competitive Price, High Productivity, Long Service Life, Energy Saving |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shandong, China |
| Model Number | GDN-320 |
| Dimension(L*W*H) | 2120*1275*2980MM |
| Item | 2023 New Design Oem Evaporative Condenser |
| Cooling Type | Counter flow |
| Fan Type | Axial Fan |
| Fan Motor | 2.2KW *2 – 6P |
| Water Pump Motor | 0.75KW – 1P |
| Water Flow | 36m3/h |
| Shell Material | SGLC/Stainless Steel |
| Coil Matrerial | Hot Dip Galvanized Steel |
| Applicable Industries | Industiral Cooling/Refrigeration System |
| Heat Rejection | 402KW |
| Selling Units | Single item |
| Single Package Size | 212X128X298 cm |
| Single Gross Weight | 1680.000 kg |
Product Details
Application:
2023 New Design Oem Evaporative Condenser freon counter flow evaporative condenser
Poultry slaughter house,Multi-purpose cold storage,Cooling and refrigeration system,Beer and beverage industry,
Industrial ice/ staking rink ,Ice cream factory ,Fish processing industry, Chemical Medicine industry
Inter-cooling of methanol / methanol synthetic ammonia compressor
Methanol distillation process cooling condensation
Purification process as well as cooling condensation,Steam condensation of turbine
Ethyl acetate condensation

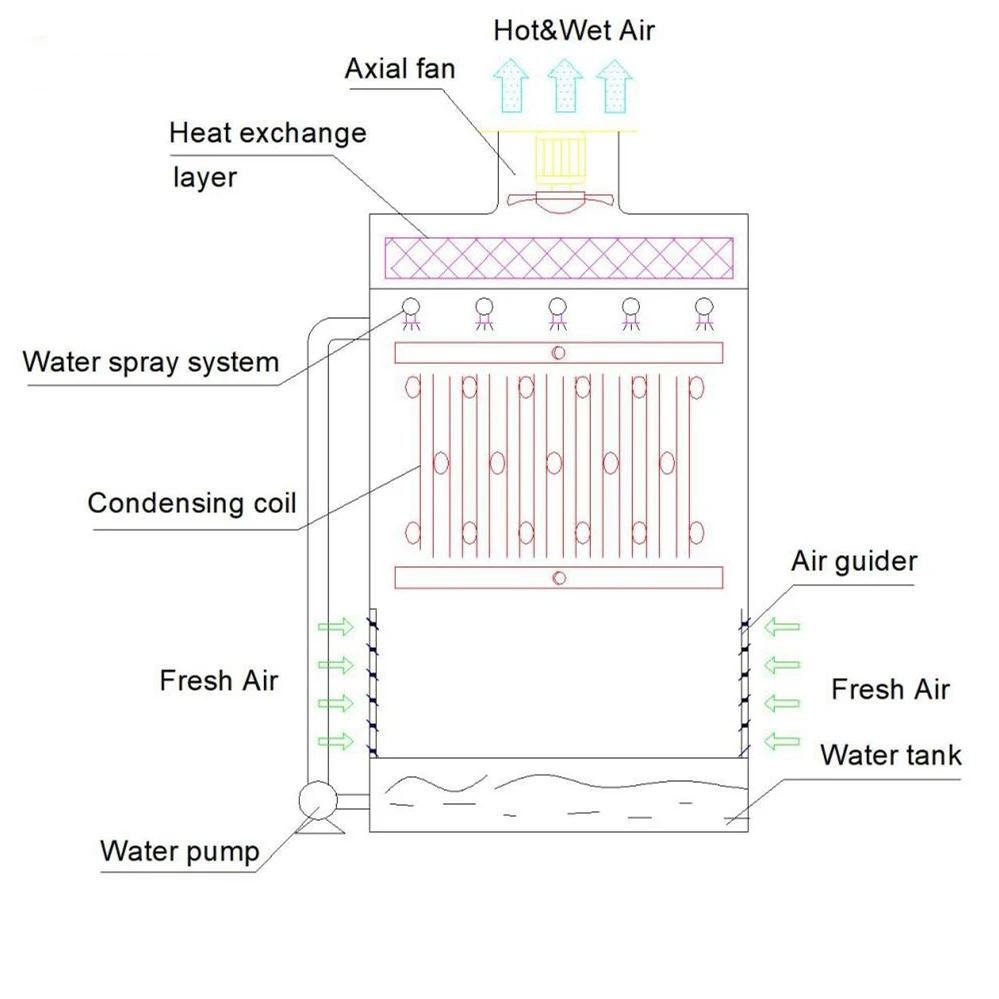

Evaporative Condenser Working Principle
Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it. The high-temp Gaseous refrigerant turns into liquid during the process.
The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator
Outline Drawing of Evaporative Condenser
Single room
Double rooms
Three rooms
Three rooms
Four rooms

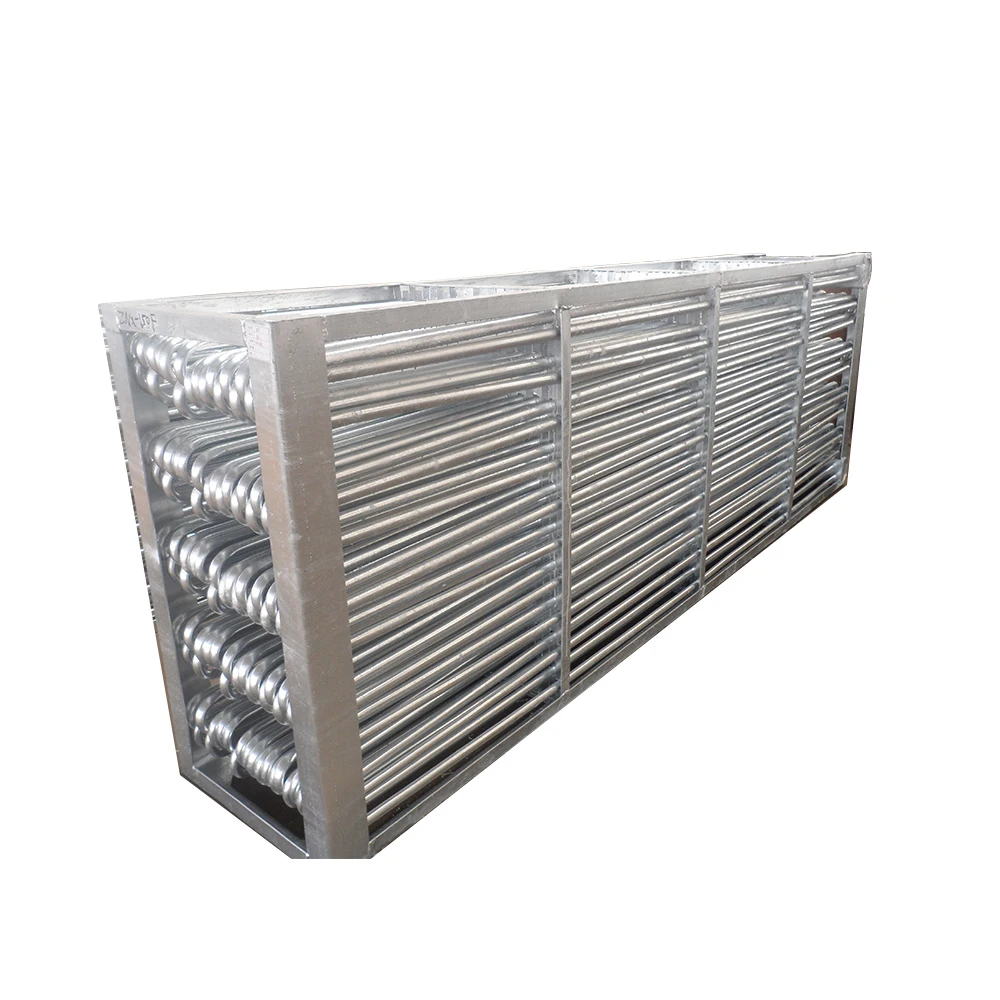

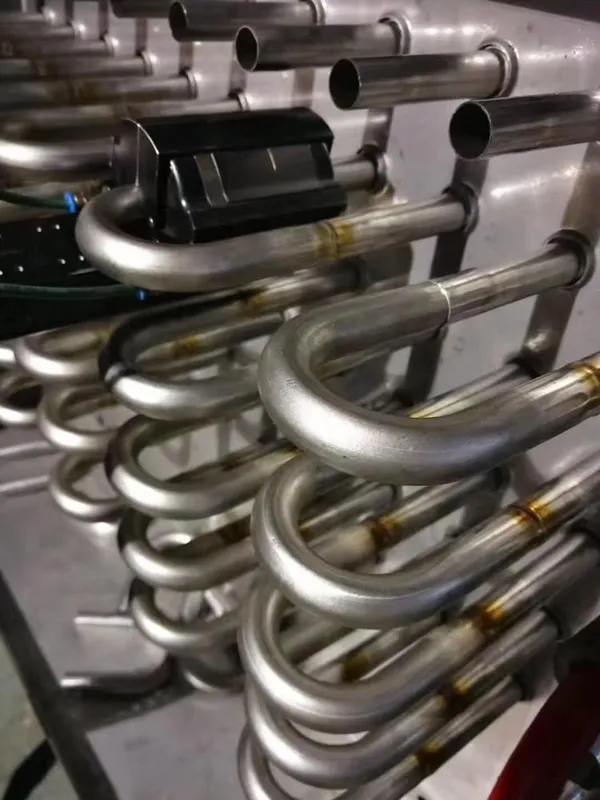

Pipe coil:
Continuous bend coil pipe, with long flow path, few weld joint and leakage points;
Hot dipped galvanized technology adopted to improve the corrosion prevention performance.
Axial flow fan
Our product adopt special axial fan with aluminum alloy blade. The structure design of tilting type wind page, streamline inlet air duct, no pulley drive, and adopts the fully enclosed self-cooled low noise special motor. It has the advantage of small size, light weight, good start-up performance, reliable operation and durability.
Water Pump
The water pump adopts high-quality mechanical seals that are not restricted by steering, it has characteristics such as no leakage, long lifetime, less power consumption,large flow, low noise, high efficiency etc. The water pump motor we use famous brand such as Siemens.

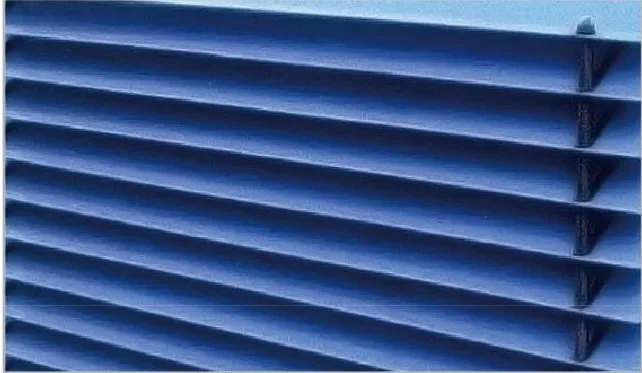

Removable dehydrator
Evaporation condenser original removable dehydrator is made of corrosion-resistant PVC material. Its structure makes the air flow direction change can effectively remove the moisture from the coil, so that the water drift rate reaches 0.001%. When the water eliminator or packing is cleaned, the eliminator can be removed easily .
PVC filler heat exchange layer
The specially designed PVC honeycomb cross-flow packing and the shortcut cross-wind structure can maximize the heat exchange between water and air and improve the water cooling effect. It has the advantage of good fire resistance, small drag coefficient, anti-aging, and hard to deform.
1 Q:Can you do OEM or produce the product in our design?
A:Yes
2 Q:Do you accept sample order?
A:Yes,but the sample is on your charge
3 Q: What is your warranty?
A: We can assure you one year against manufacturing defect.
4 Q: :What' s your normal delivery time?
A: 10-25 days against down payment (exclude the official holiday)
5 Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $8200 / set
- 5+ set: US $7800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V/50HZ or Customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
