Key specification for this evaporative condenser: 440v, 4KW. Everything below is reproduced from the factory data sheet. Made by Yantai Grand Machinery Engineering Co., Ltd. (8 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Condenser
- Power(W): 4KW
- Voltage: 440v
- Material: Metal
- Shell Material: SGLC
- Coil Material: Hot Dip Galvanized Steel
- Warranty: 1 Year
Technical Specifications
| Voltage | 440v |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 4KW |
| Material | Metal |
| Core Components | Pressure Vessel |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Place Of Origin | Shandong, China |
| Brand Name | Grand/OEM |
| Dimension(L*W*H) | 3680*2250*4500 |
| Fan Motor | Fan motor: |
| Water Flow | 100m3/h |
| Water Pump Motor | 2.2 KW |
| Application | Industrial Cooling System |
| Shell Material | SGLC |
| Fan Type | Axial Fan |
| Coil Material | Hot Dip Galvanized Steel |
| Packaging Details | Nude in Container |
| Port Of Dispatch | Qingdao/Shanghai/Guangdong/Tianjin |
| Selling Units | Single item |
| Supply Ability | 500 sets per Year |
Product Details
What is Evaporative condenser?
Evaporative Condenser Working Principle
Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it. The high-temp Gaseous refrigerant turns into liquid during the process.
The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator

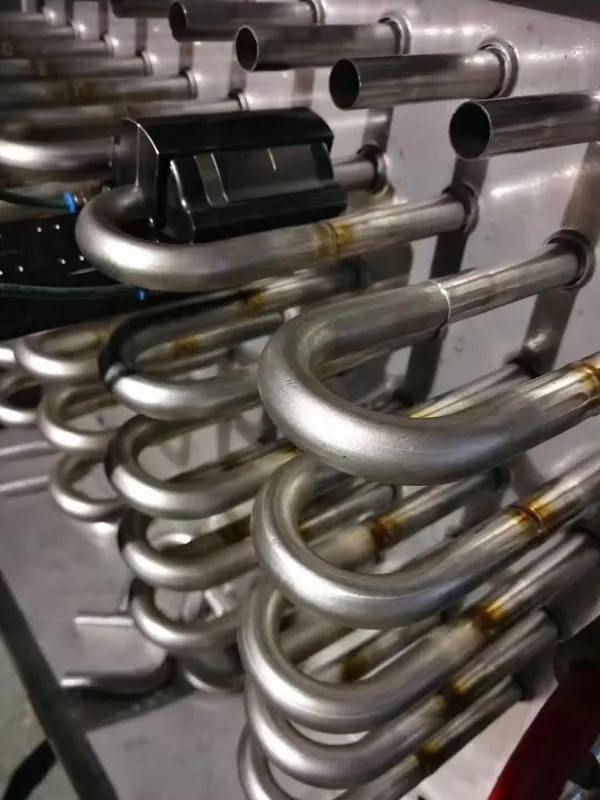

Pipe coil:
Continuous bend coil pipe, with long flow path, few weld joint and leakage points;
Hot dipped galvanized technology adopted to improve the corrosion prevention performance;
Tube Diameter 26.7 mm

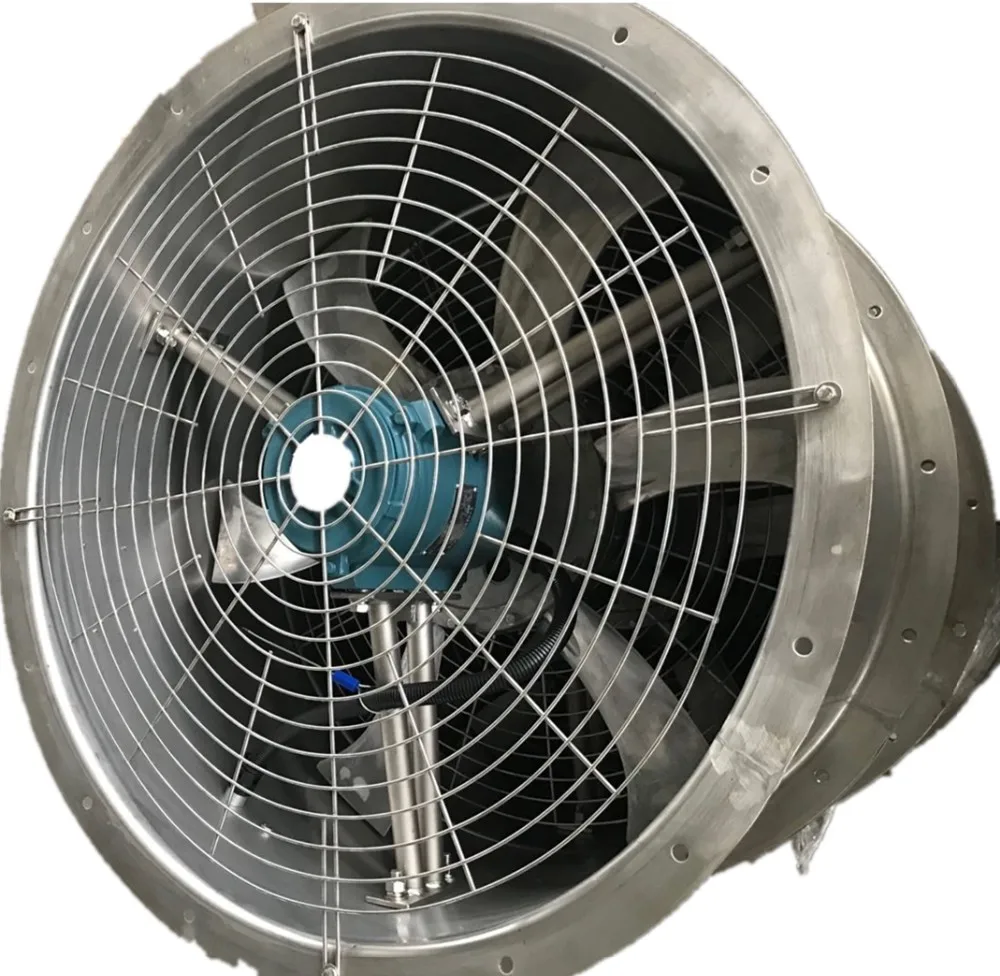

Axial flow fan
Our product adopt special axial fan with aluminum alloy blade.
The structure design of tilting type wind page, streamline inlet air duct, no pulley drive, and adopts the fully enclosed self-cooled low noise special motor.
It has the advantage of small size, light weight, good start-up performance, reliable operation and durability.

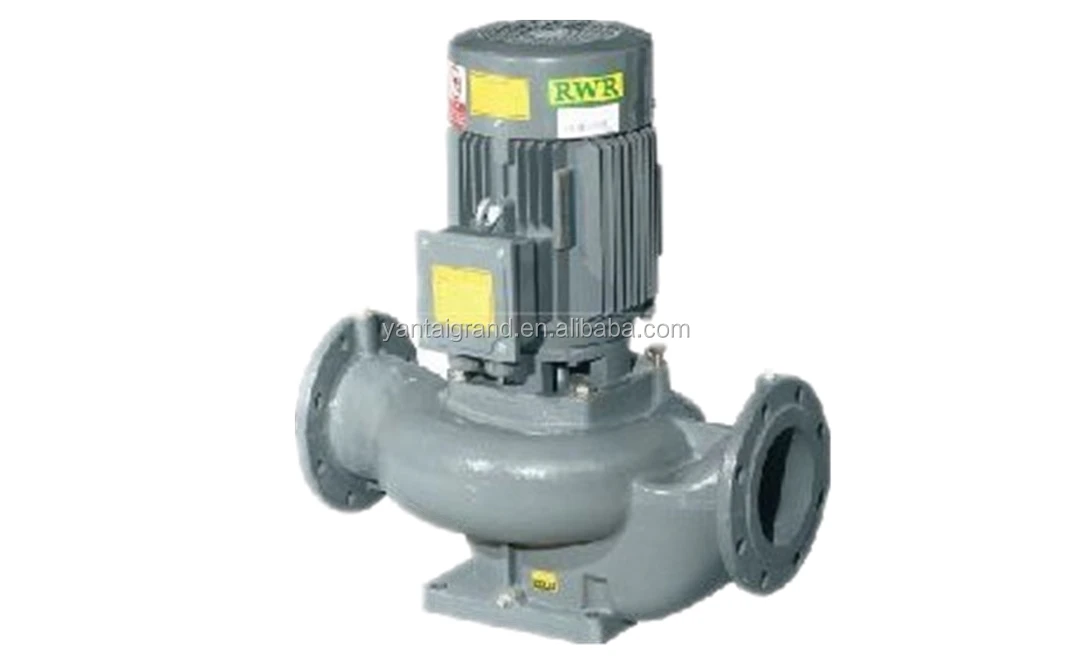

Water Pump
The water pump adopts high-quality mechanical seals that are not restricted by steering,
It has characteristics such as no leakage, long lifetime, less power consumption,large flow, low noise, high efficiency etc.
The water pump motor we use famous brand such as Siemens.
Removable dehydrator
Evaporation condenser original removable dehydrator is made of corrosion-resistant PVC material.
Its structure makes the air flow direction change can effectively remove the moisture from the coil, so that the water drift rate reaches 0.001%.
When the water eliminator or packing is cleaned, the eliminator can be removed easily .

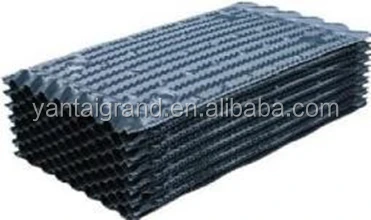

PVC filler heat exchange layer
The specially designed PVC honeycomb cross-flow packing and the shortcut cross-wind structure can maximize the heat exchange between water and air and improve the water cooling effect.
It has the advantage of good fire resistance, small drag coefficient, anti-aging, and hard to deform.
Single room
Double rooms
Three rooms
Three rooms
Four rooms
Efficient Evaporative Condenser
BAC Type Evaporative Condenser
R717 Evaporative Condenser
Evapoco Type Evaporative Condenser
Crossflow Evaporative Condenser
Evaporative Condenser Refrigeration
Certificates | ||||||
Packaging and Delivery | ||||||
If you want to sent us one inquiry about the evaporative condenser ,below information are needed:
2 ) Where will the evaporation condenser will be installed in , close to the ocean or far away to the ocean ?
3 ) What material of panel and condenser coil will you choose , stainless steel or hot dip galvanized or other ?
4 ) If you do not know how to choose one right model , please tell us the compressor 's cooling capacity(kw) ,motor power. (kw) ,
quantity (set) , condensing temperature and your local wet bulb temperature . According those data , one right evaporative
condenser capacity will be calculated .
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $11000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative condenser?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the evaporative condenser be supplied for my local voltage?
The standard configuration is 440v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
