Key specification for this cooling tower: voltage DC 12V, 24V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Poweryear Technology Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Model Number: PY-7015
- Power Source: Electric
- Voltage: DC 12V, 24V
- Material: PBT
- Blade Material: Plastic
- Speed: 4500 RPM, 4000RPM
Technical Specifications
| Voltage | DC 12V, 24V |
|---|---|
| Speed | 4500 RPM, 4000RPM |
| Type | dc cooling fan |
| Material | PBT |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing or hydraulic bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | No after-sales service |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Poweryear |
| Model Number | PY-7015 |
| Product Name | DC Cooling Fan |
| Size | 70*70*25mm |
| Selling Units | Single item |
| Single Package Size | 7X7X2.5 cm |
| Single Gross Weight | 0.080 kg |
Product Details

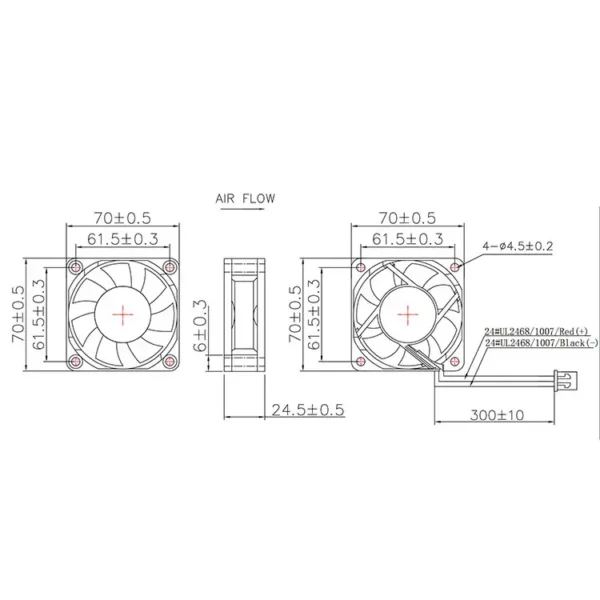

Size | 70*70*25mm DC Cooling Fan 7 leaves(Length* Width *Thickness) | ||||||
Rated Voltage | 12V 24V | ||||||
Model | PY-7025 | ||||||
Main Parameter | – Speed: 4000~4500RPM (Measured at 5 minutes after starting,under 25℃ 65%RH ambient) – Air Flow: 32.6~48.9CFM (AT zero static pressure; rated voltage) – Air Pressure: 5.83~9.1mmH2O (At zero airflow; rated voltage) – Noise Level:36.5~46.5dBA (Measured with an acoustic microphone standing 1M away from the running fan in a test chamber with backgroud noise level below 10dB(A)) | ||||||
Specifications options | AS,RD,FG,PWM,Temperature Control ,IP56,IP68 | ||||||
Certification | IS09001,UL, TUV, CE, UKCA,CCC, RoHS, and IATF16949. | ||||||
Applications | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory,Farms,Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Advertising Company, Other | ||||||
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–2999 piece: US $1.52 / piece
- 3000–4999 piece: US $1.5 / piece
- 5000+ piece: US $1.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is DC 12V, 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Poweryear Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Poweryear Technology Co., Ltd. range on HVACR Nexus.
