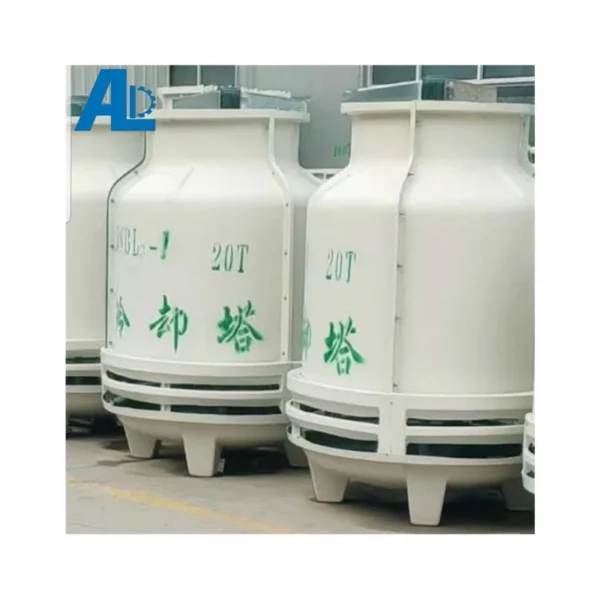

Cooling tower — 380V/3P/50HZ or as required, power 0.75-30kw(1.01-40.23hp). The complete factory specification follows. Made by Hebei Aoliande Chemical Equipment Co., Ltd (10 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Power(W): 0.75-30kw(1.01-40.23hp)
- Voltage: 380V/3P/50HZ or as required
- Material: FRP
- Warranty: 1 Year
- Place Of Origin: Hebei, China
- Application: Air conditioning, power generation system
Technical Specifications
| Voltage | 380V/3P/50HZ or as required |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 0.75-30kw(1.01-40.23hp) |
| Material | FRP |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Place Of Origin | Hebei, China |
| Brand Name | ALD |
| Dimension(L*W*H) | 3250*5550*4300 mm(127.95*218.50*169.29in) |
| Advantage | Anti-aging, Anti-corrosion, High cooling efficiency |
| Quality | High Standard |
| Product Name | FRP GRP Cooling Tower |
| Certificate | ISO14001 |
| Usage | Cooling Circulating Water |
| Application | Air conditioning, power generation system |
| Size | 1-6000mm³,or customizable |
| Selling Units | Single item |
| Single Package Size | 50X60X70 cm |
| Single Gross Weight | 40.0 kg |
Product Details
Product Description
1.Cooling towers are generally available in thermal power plants.After the water is heated, the steam turbine is driven by high-pressure gas, and the remaining gas needs to be cooled.
2. The central air conditioner also has the function of cooling tower to cool the circulating liquid.
3. There are also professional production of FRP cooling towers, commonly known as cooling water tower, cold water tower, cold water tower, glass tower, water tower, etc., mainly square, round, cross-flow, counter-flow, no filler spray cooling tower series.
2. The central air conditioner also has the function of cooling tower to cool the circulating liquid.
3. There are also professional production of FRP cooling towers, commonly known as cooling water tower, cold water tower, cold water tower, glass tower, water tower, etc., mainly square, round, cross-flow, counter-flow, no filler spray cooling tower series.
Circular Counter-Current FRP Cooling Tower Main USES:
(1) DBNL3 series low noise FRP cooling tower — suitable for general cooling occasions such as air conditioning refrigeration units with water temperature down to 3-8 degrees.
(2) CDBNL3 series ultra-low noise FRP cooling tower — suitable for hotels, hospitals, public buildings and places close to residential areas where noise is more serious.
(3) GBNL3 series medium temperature industrial FRP cooling tower — suitable for industrial water circulation cooling system with water temperature down to 10-25 degrees.

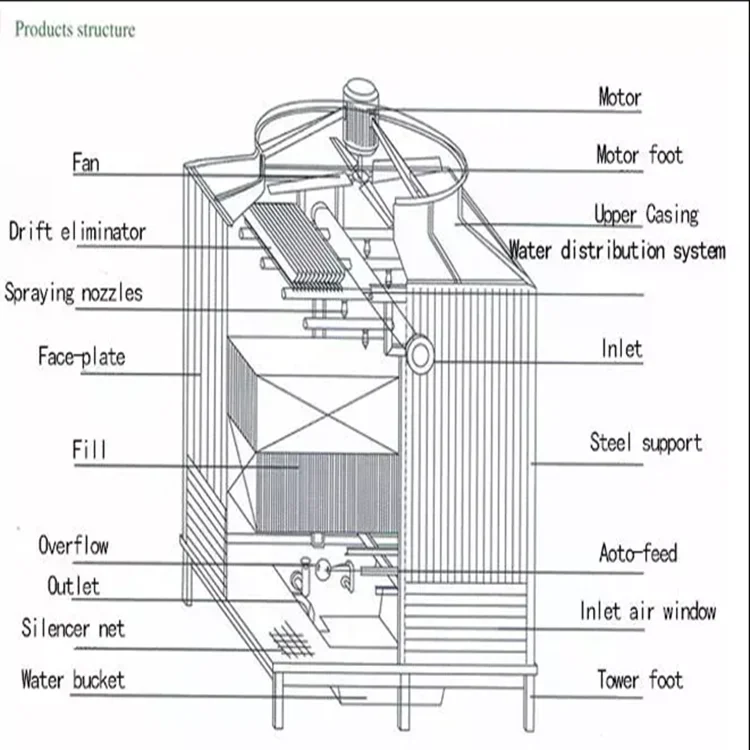

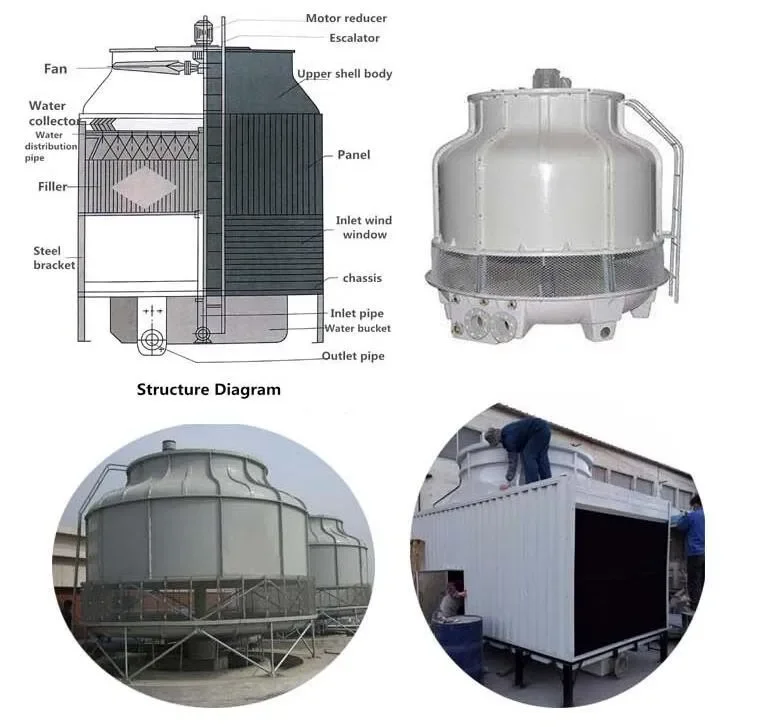

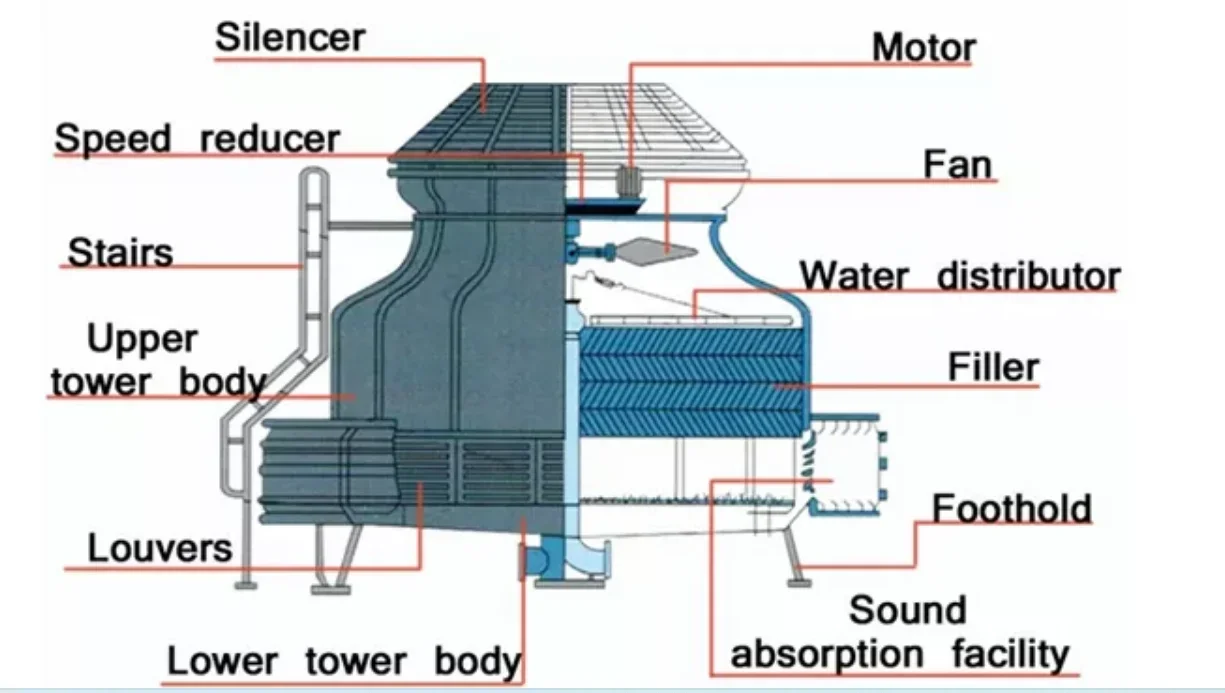

Structure Of FRP Cooling Tower
Features
1.Good shape with small outside size, light weight;
2.Optimum structure;
3.The cooling tower body is made of FRP, which is anti-aging, anti-corrosion, without fading and distortion;
4.Min. Noise: The lowest noise blower and unique noise elimination technology is adopted to reduce the noise to a minimum level;
5.With reliable operation: All steel structure brackets are galvanized and corrosion resistant;
6.The usage life is twice longer compared with similar products;
7.The casing and water plate of the cooling tower are made of fiberglass, which will not be corroded, and no painting is needed. They can be used for a long time with very low maintenance cost;
8.The angles of all fans are regulative and axial-flow, which made of advanced engineering plastics;
9.All the motors are sealed, which can be used in the severe weather and circumstances.
1.Good shape with small outside size, light weight;
2.Optimum structure;
3.The cooling tower body is made of FRP, which is anti-aging, anti-corrosion, without fading and distortion;
4.Min. Noise: The lowest noise blower and unique noise elimination technology is adopted to reduce the noise to a minimum level;
5.With reliable operation: All steel structure brackets are galvanized and corrosion resistant;
6.The usage life is twice longer compared with similar products;
7.The casing and water plate of the cooling tower are made of fiberglass, which will not be corroded, and no painting is needed. They can be used for a long time with very low maintenance cost;
8.The angles of all fans are regulative and axial-flow, which made of advanced engineering plastics;
9.All the motors are sealed, which can be used in the severe weather and circumstances.

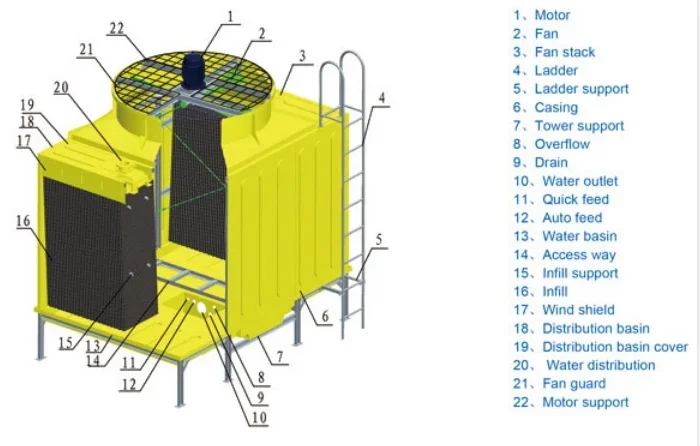

Detail introduction
1.Tower Body: Reasonable shape, steady air flow, high-quality material, bright color, anti-aging, high strength, light weight, corrosion resistant. The down tower body can be equipped with the spilled water, sewage and automatic feed pipe according to the order request. It can absorbent water directly from here so the cooling pool is not needed. In addition, it is equipped with the silencing mat to reduce the noise effectively.
2.Filler: Adopts to the PVC wave plate, Increased lateral convex rib so it can enhance the redistribution capacity of the water, low resistance, the thermal performance is good, the adaptive temperature range is -50–70.
3.Water Distributor and water pipe. Equipped with the stainless steel ball bearing, operation flexible and reliable. uniform water distribution. The material of water pipe is FRP and the closed water board is installed in the pipe to overcome the phenomenon of floating water. By the way, you can also choose the spray type water distribution system.
4.Fan: Low noise and high efficiency fan. The blade of fan is plate airfoil type (aluminum alloy,steel,FRP )
5.Motor: Specially designed for the cooling tower. Low noise, saving energy,waterproof properties is good, waterproof properties is good and high efficiency.
6.Reduction Gear: Adopts to the polyester fiber reinforced neoprene belt transmission, high temperature resistant, high efficiency, low noise, don't stretch in the water so it can overcome the skid phenomenon, or the gear box connect with the motor together.(depend on the model)
7.Noise Elimination Device: Ultra low noise type cooling tower increase the sound absorption material outside the air intake, also equipped with the sound absorption grating in the tower body in order to achieve maximum noise reduction effect. There is shielding and absorption material trumpet sound absorption grating in the upper tower body air outlet to reduce the noise of the fan and motor.
8.Wind Inlet Window: Equipped with the FRP louver blade, Air resistance is small, so it is suitable for the northern region and the place that need to the cooling tower all year around.
9.Support Frame:all the steel frame are assembly type. The surface of support frame is galvanized and paint anti-corrosion. The fastener are all adopt hot dip galvanized steel.
2.Filler: Adopts to the PVC wave plate, Increased lateral convex rib so it can enhance the redistribution capacity of the water, low resistance, the thermal performance is good, the adaptive temperature range is -50–70.
3.Water Distributor and water pipe. Equipped with the stainless steel ball bearing, operation flexible and reliable. uniform water distribution. The material of water pipe is FRP and the closed water board is installed in the pipe to overcome the phenomenon of floating water. By the way, you can also choose the spray type water distribution system.
4.Fan: Low noise and high efficiency fan. The blade of fan is plate airfoil type (aluminum alloy,steel,FRP )
5.Motor: Specially designed for the cooling tower. Low noise, saving energy,waterproof properties is good, waterproof properties is good and high efficiency.
6.Reduction Gear: Adopts to the polyester fiber reinforced neoprene belt transmission, high temperature resistant, high efficiency, low noise, don't stretch in the water so it can overcome the skid phenomenon, or the gear box connect with the motor together.(depend on the model)
7.Noise Elimination Device: Ultra low noise type cooling tower increase the sound absorption material outside the air intake, also equipped with the sound absorption grating in the tower body in order to achieve maximum noise reduction effect. There is shielding and absorption material trumpet sound absorption grating in the upper tower body air outlet to reduce the noise of the fan and motor.
8.Wind Inlet Window: Equipped with the FRP louver blade, Air resistance is small, so it is suitable for the northern region and the place that need to the cooling tower all year around.
9.Support Frame:all the steel frame are assembly type. The surface of support frame is galvanized and paint anti-corrosion. The fastener are all adopt hot dip galvanized steel.

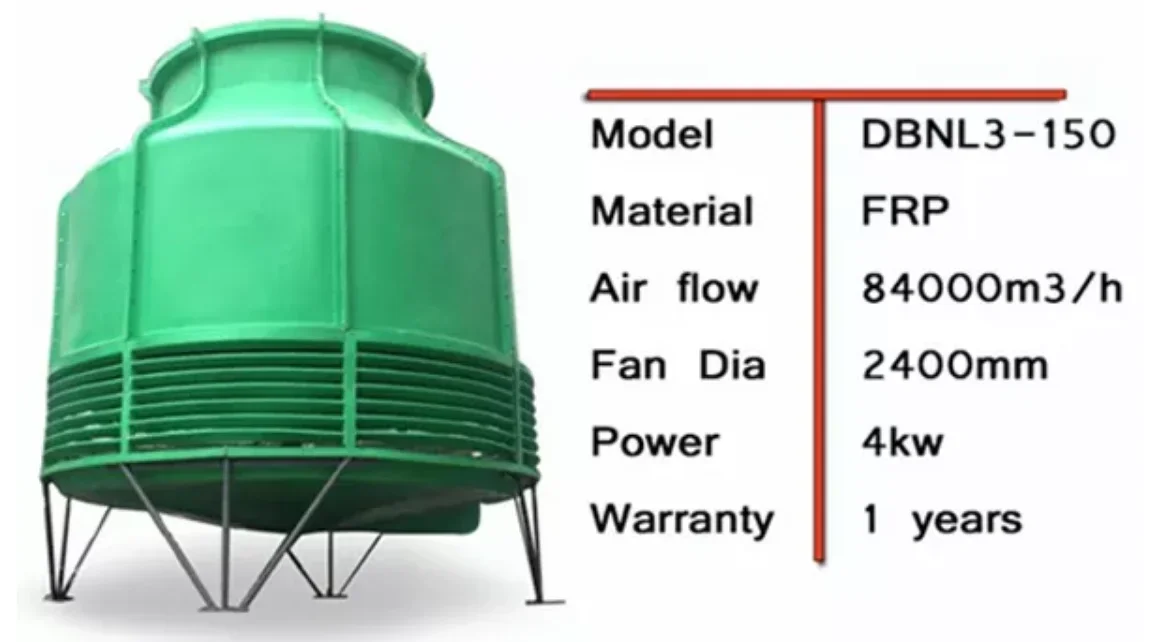

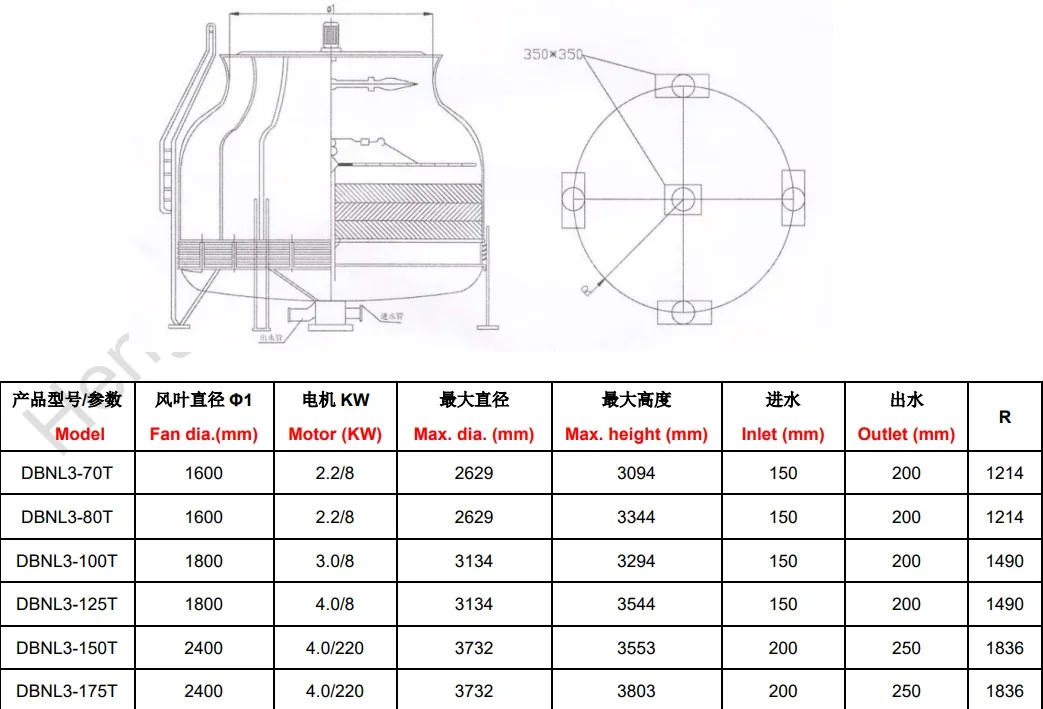

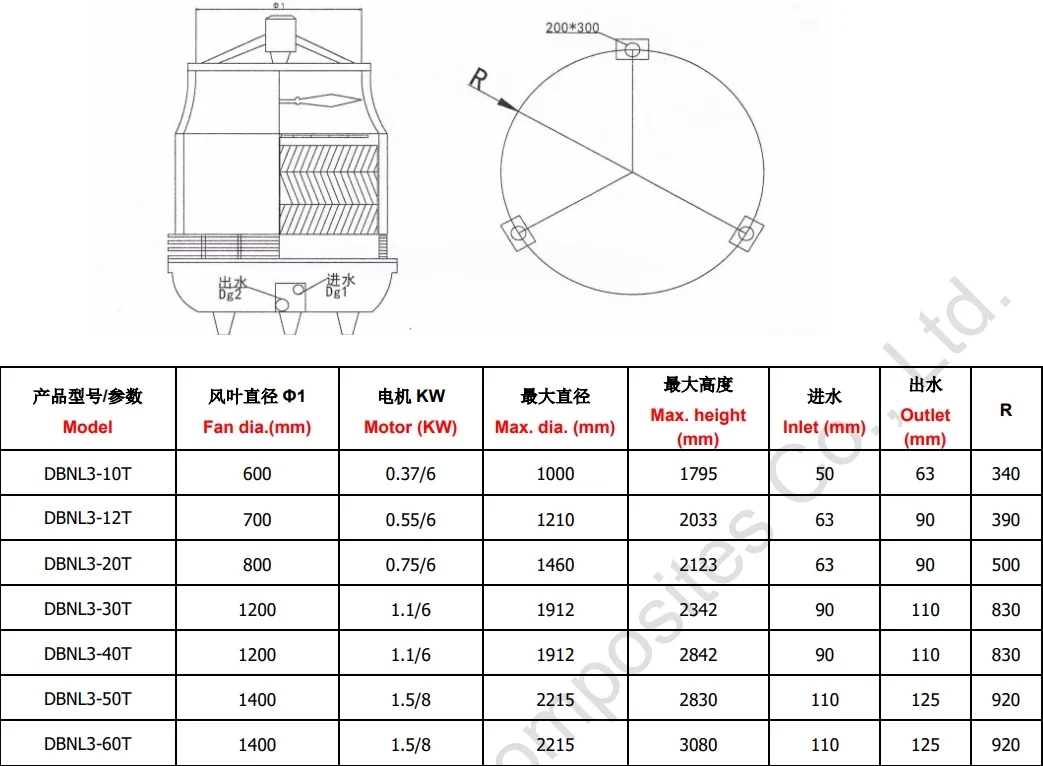

Introduction of small-volume FRP cooling tower
Model | ||||||||
DBNL3-10T | DBNL3-12T | DBNL3-20T | DBNL3-30T | DBNL3-40T | ||||
DBNL3-50T | DBNL3-60T | DBNL3-70T | DBNL3-80T | DBNL3-100T | ||||
DBNL3-125T | DBNL3-150T | DBNL3-175T | ||||||

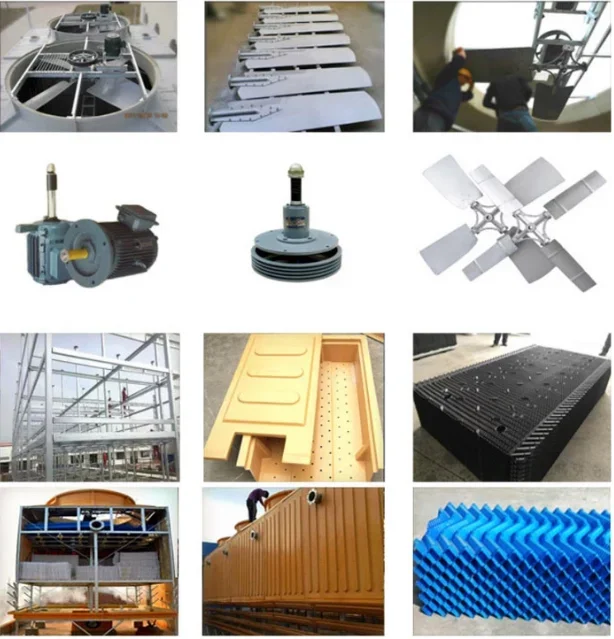

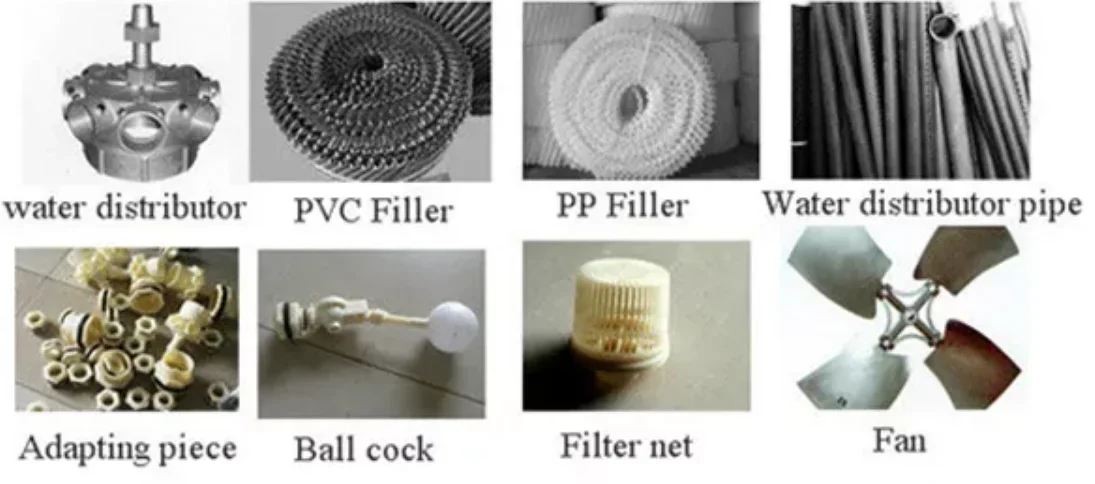

Accessories
Packing & Delivery
Why Choose Us
We specialize in this field for several years with top quality competitive price and best service. More advantage we can supply: Manufacturer Superior quality&Good service Timely delivery&Competitive price ISO9001:2008 Special size is available OEM support Low MOQ 1.More than 10 Years manufacturing experience. 2.Professional research and development team 3.Zero Customer Complaints for several Years 4.Human-based management 5.Environmental Protection 6.Excellent after-sales service. Our service We offer professional products and fast delivery. We will help you solve problems when you use our products. Any question can turn to the technology department of our company. 1. Fast delivery (Our factory has high production capacity and there is enough inventory to insure fast delivery for you) 2. Competitive price (We are manuafacturer of our products, so we can provide you both high quality products and competitive price) 3. Quick response each inquiry within 24hours 4. Quality control strickly 5. Quick delivery imporve your effciency
Our Advantages
Company Profile
Main products:
FRP tank and chemical equipment High, middle, low pressure FRP pipe FRP small-scaled wastewater treatment tank FRP septic tank FRP cooling tower FRP pultrusion, molded series products FRP polymer electrolytic cells S/F, F/F double-wall oil fuel storage tank Whole set of FRP prodcution machines Whole set of computer control filament winding machine Whole set of FRP pultrusion machine Whole set of FRP molded hydraulic press Whole set of FRP grating molded machine ETC
Hengshui Aoliande Trade Co.,Ltd. not only have ability to sell & supply products, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation,installation supervision etc service.
Main application: Urban water supply and drainage Desalination of sea water Chemical industry Metallurygy Brewing Electric power Oil storing Sewage treatment Building Municipal works Highway facilities
FAQ
Are you a factory or a trading company?
We are a factory, is a professional manufacturer, we have more than 200 skilled technicians, in addition, we have professional equipment mold engineers for design and production. Where is your factory located? How can I visit you? Our sales office is located in Shijiazhuang, Hebei Province. And our factory in Hengshui, Hebei Province. Can you do OEM? Yes, we can do OEM and ODM products, no problem. We can make all kinds of customized products according to drawings or samples. Can you provide technical advice? We provide you with professional technical advice free of charge. What volume do you have? With an annual output of 60,000 tons, we have multiple production lines to meet customer requirements for fast delivery. What are your payment methods? We accept TT /LC/Credit insurance orders. What are your delivery items? We accept EXW,FOB,CNF,CIF, etc. You can choose the one that is most convenient and cheapest.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $1000 / set
- 5–9 set: US $800 / set
- 10+ set: US $600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooling tower carry?
It is supplied with ISO14001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V/3P/50HZ or as required. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
