Cooling Tower, FRP, HVAC, 304, Stainless

The cooling tower listed here carries 380 V, -480V, power 3.7~45, documented exactly as the manufacturer publishes it. Made by Topyro International Technology (Luoyang) Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Cooling Tower

• Power(W): 3.7~45
• Voltage: 380 V, -480V
• Noise Level: 30–34 dB
• Warranty: 1 Year
• Place Of Origin: Henan, China
• Cooling Type: Counter Flow

Technical Specifications

Product Details

Products Description

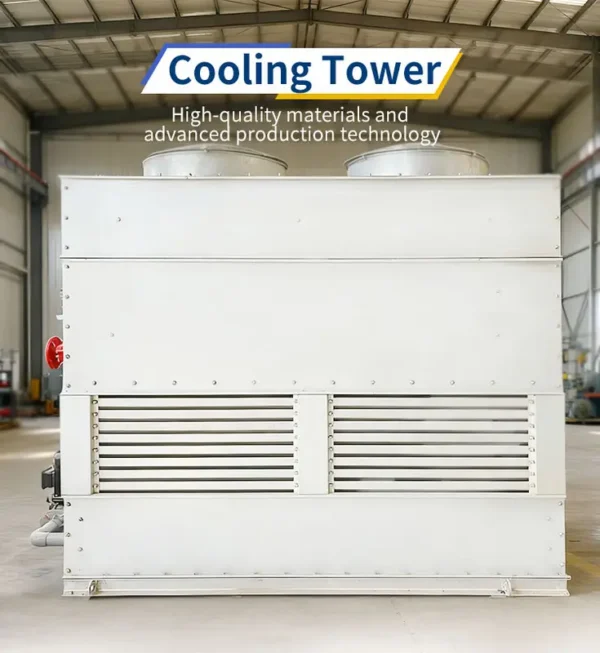

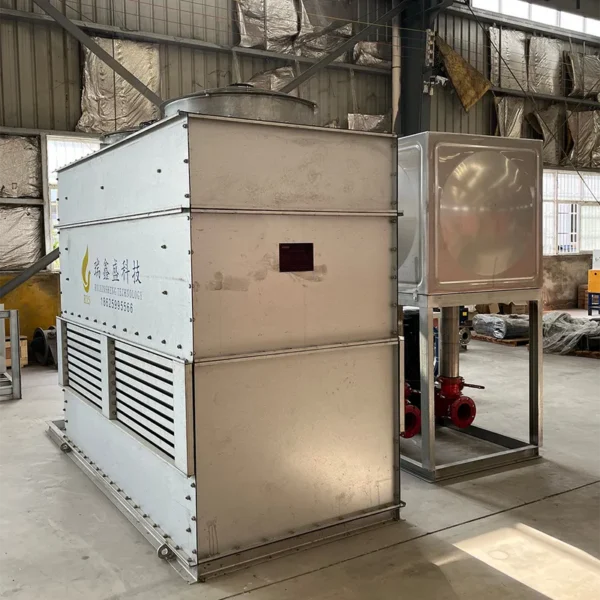

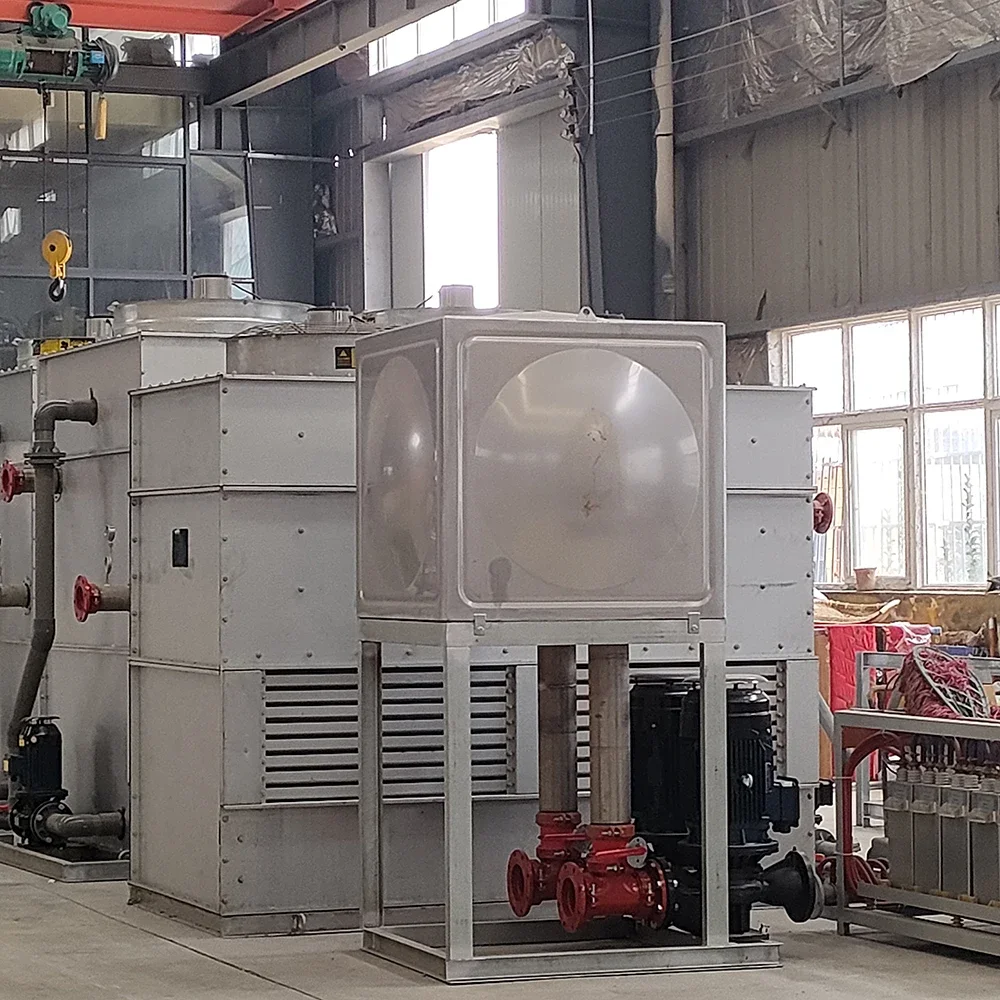

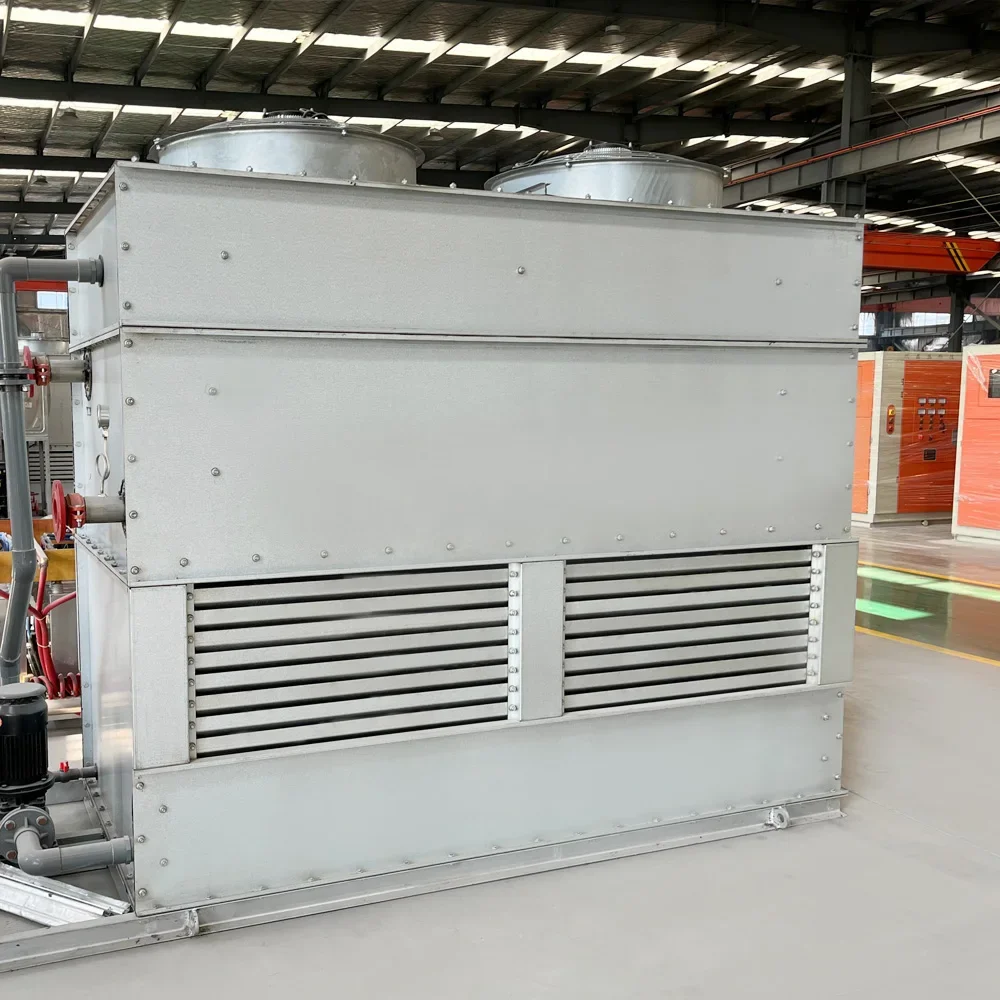

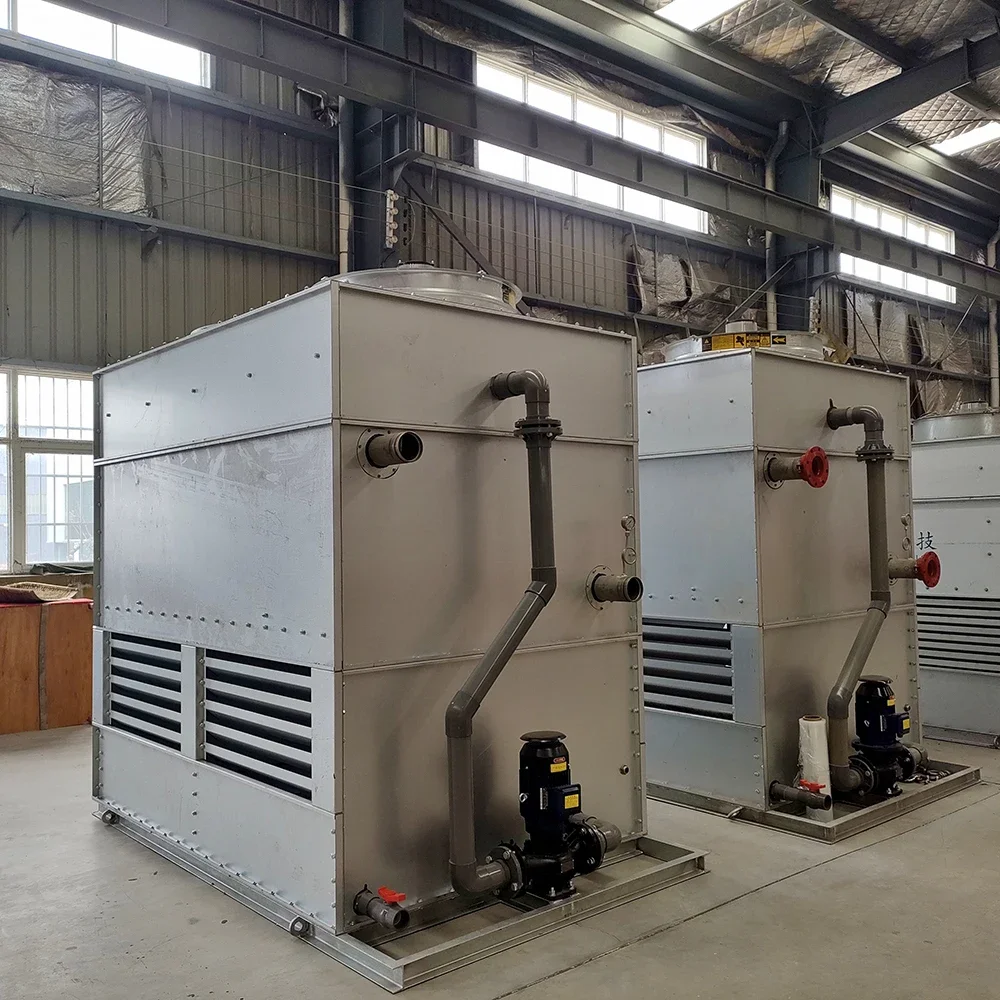

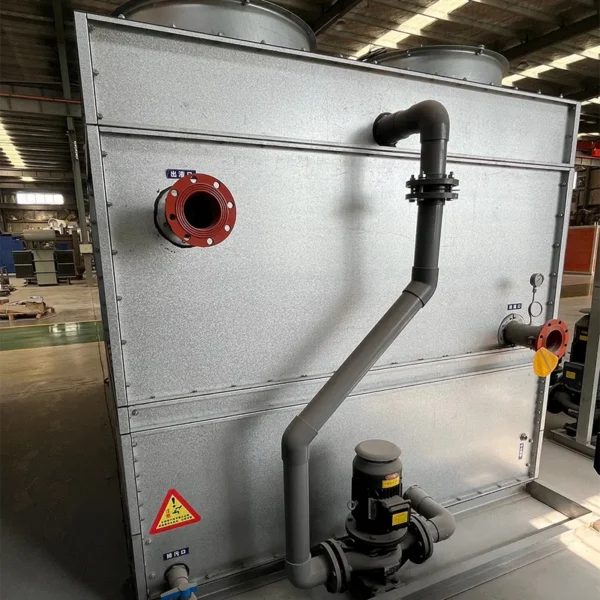

Closed Cooling Tower

dual circulation system

1.Zero Media Contamination

Internal media flow in closed coils, isolating airborne impurities to prevent scaling/corrosion, cutting maintenance costs and extending equipment life.

2.High Water Efficiency

External water is recyclable (only evaporated water needs replenishment), saving over 60% water vs. open cooling towers.

3.Strong Environmental Adaptability

Unaffected by dust, salt or humidity, maintaining stable operation in harsh conditions (metallurgy, chemical, coastal areas).

4.Stable Heat Dissipation

"Sensible + latent heat" dual exchange ensures it meets cooling needs even in high-temperature/humidity environments, guaranteeing production continuity.

5.Long service life

Typically exceeding 10 years, with lower maintenance costs over time.

Internal Circulation

(Medium Cooling Loop)

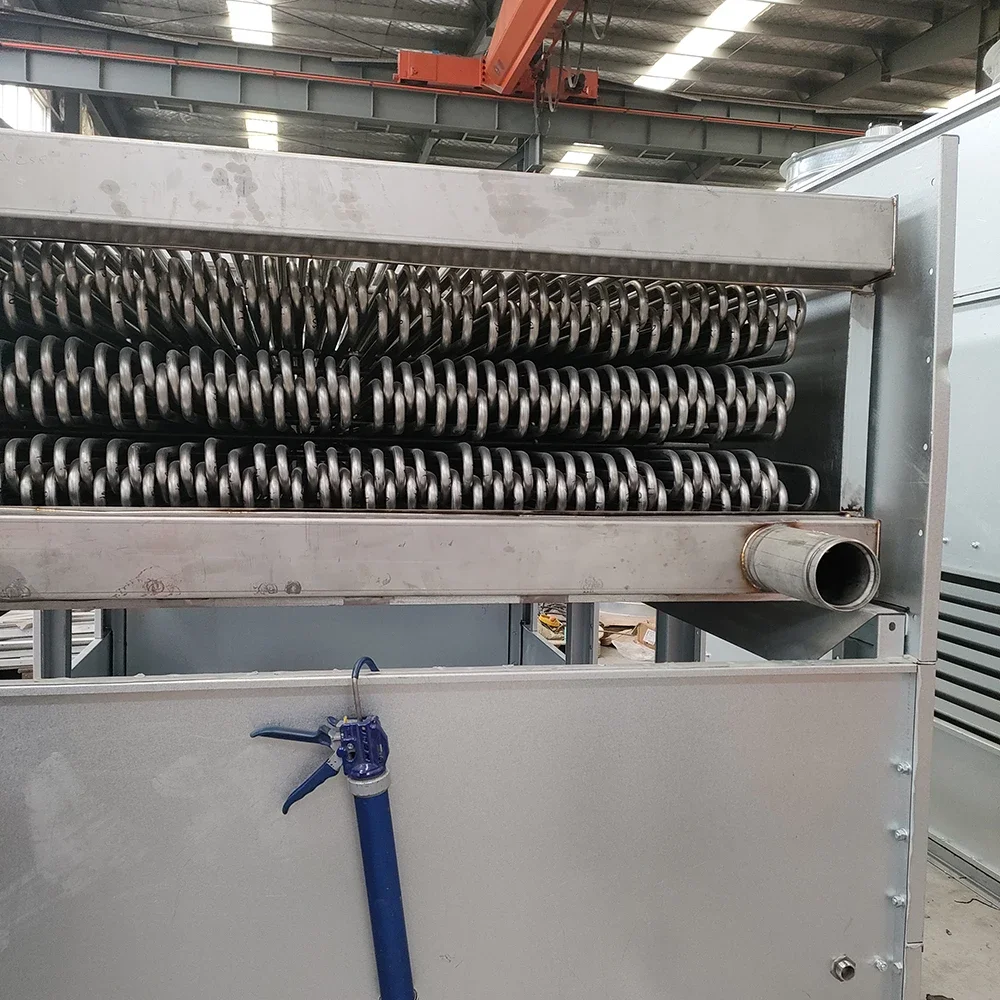

Process media (e.g., cooling water, hydraulic oil) circulate in sealed metal coils (no contact with external impurities). High-temperature media transfer heat to the external spray water film via coil walls, then cool down and flow back to the production system.

External Circulation

(Heat Dissipation Loop)

Circulating water is sprayed onto coil surfaces to form a water film. Fans draw in ambient air: heat is removed via sensible heat exchange (temperature difference) and latent heat exchange (water film evaporation, main method). Unevaporated water is recycled (only evaporated water needs replenishment).

Product Paramenters

Cooling Capacity (Kcal/h)	Water Flow(m³)	Configuration							Pipe Diameter	Weight(KG)	SIZE(MM) L*W*H
				Fan			Pump
		Cooling Capacity (Kcal/h)	Cooling Capacity (Kcal/h)	Pcs	Power	Pcs	Power
21000	4	1	0.55	1	0.75	32	350	1900*1000*1900
31000	6	1	0.75	1	0.75	40	420	1900*1000*1950
48000	10	1	0.75	1	0.75	50	450	1900*1000*2000
75000	15	1	1.10	1	0.75	65	500	2200*1250*2000
110000	20	2	1.10	1	1.00	80	600	2950*1250*2050
152000	30	2	1.10	1	2.20	80	650	2950*1250*2050
180600	35	2	1.10	1	2.20	100	750	2950*1250*2050
200000	40	2	1.10	1	2.20	100	800	3500*1500*2200
230000	45	2	1.10	1	2.20	100	850	3500*1500*2200
300000	60	2	1.60	1	2.20	100	1100	3500*1500*2200
350000	70	2	1.60	1	2.20	100	1350	3500*1500*2200
450000	90	4	1.10	1	2.20	125	1600	3500*1800*2000
500000	100	4	1.10	1	2.20	125	1750	3500*1800*2000
1200000	240	3	5.50	1	4.00	200	3950	5000*2400*2600
1400000	260	3	5.50	1	5.50	200	3950	5000*2400*2600
1505000	300	3	5.50	1	5.50	200	4500	5000*2400*2600
1800000	360	3	7.50	1	7.50	250	4900	5000*2400*2800
2010000	400	3	4.00	2	4.00	250	5500	5000*2400*2800
3000000	550	4	4.00	2	4.00	300	6800	5000*2400*2800

CDM International Technology Co.,Ltd.

Established in 2015 and headquartered in the ancient city of Luoyang，is a comprehensive equipment manufacturer and full-line production line integrator in the metal heat treatment industry. We specialize in providing customized solutions and end-to-end services for industrial applications.

Since its inception, the company has been drawing on and drawing lessons from the world's advanced management methods and methods, and striving to achieve business management in line with international standards. It has passed lSO9001&14001: 2015 Quality & Environmental Management System Certification successfully, which guarantees our company's continuous and stable supply capacity.

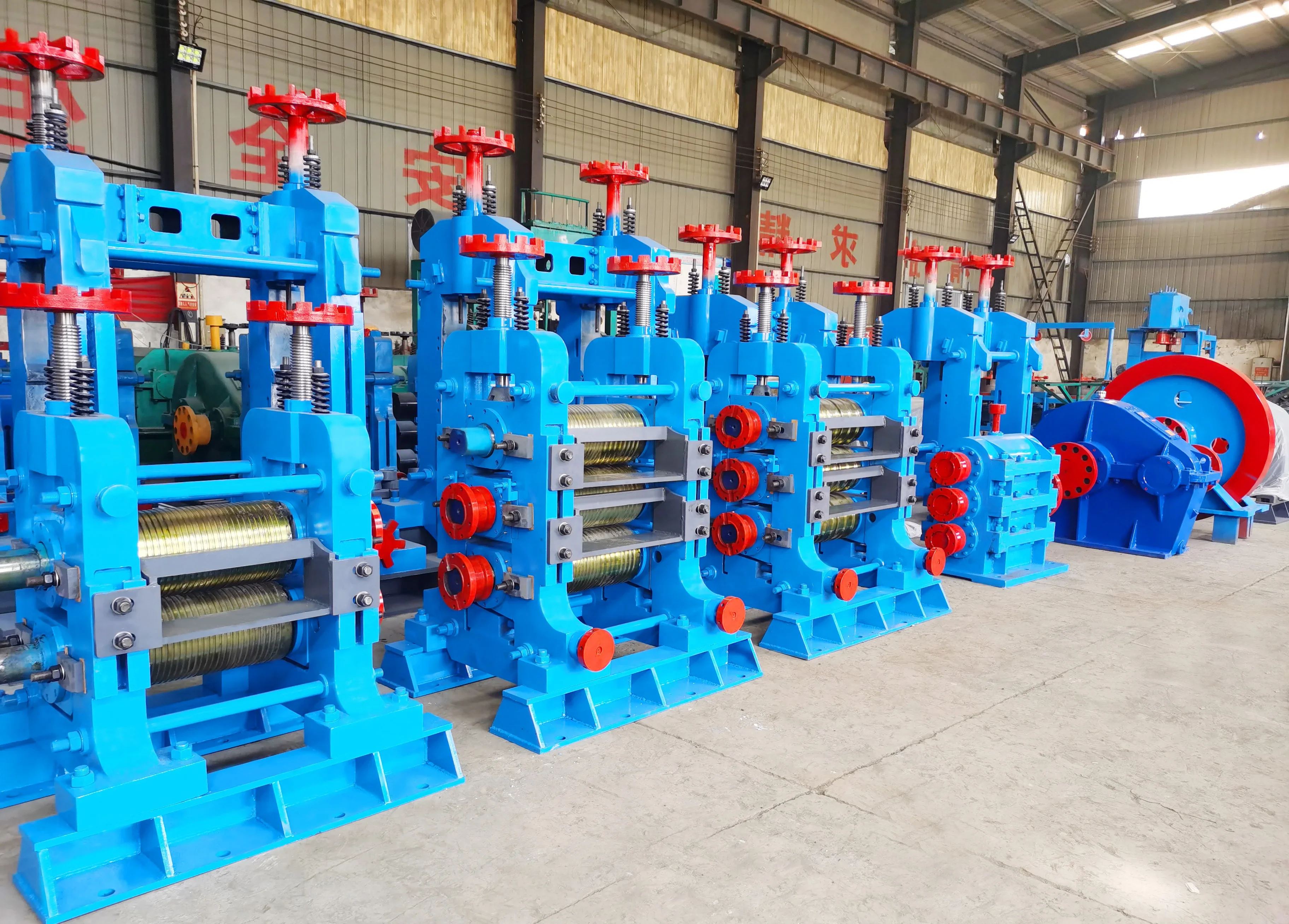

Mainly produces rolling equipment and auxiliary rolling equipment, including heating furnace, medium-frequency furnace, continuous casting machine,250-650 type rolling mill, straightener, cold bed, roll and other rolling production line equipment.

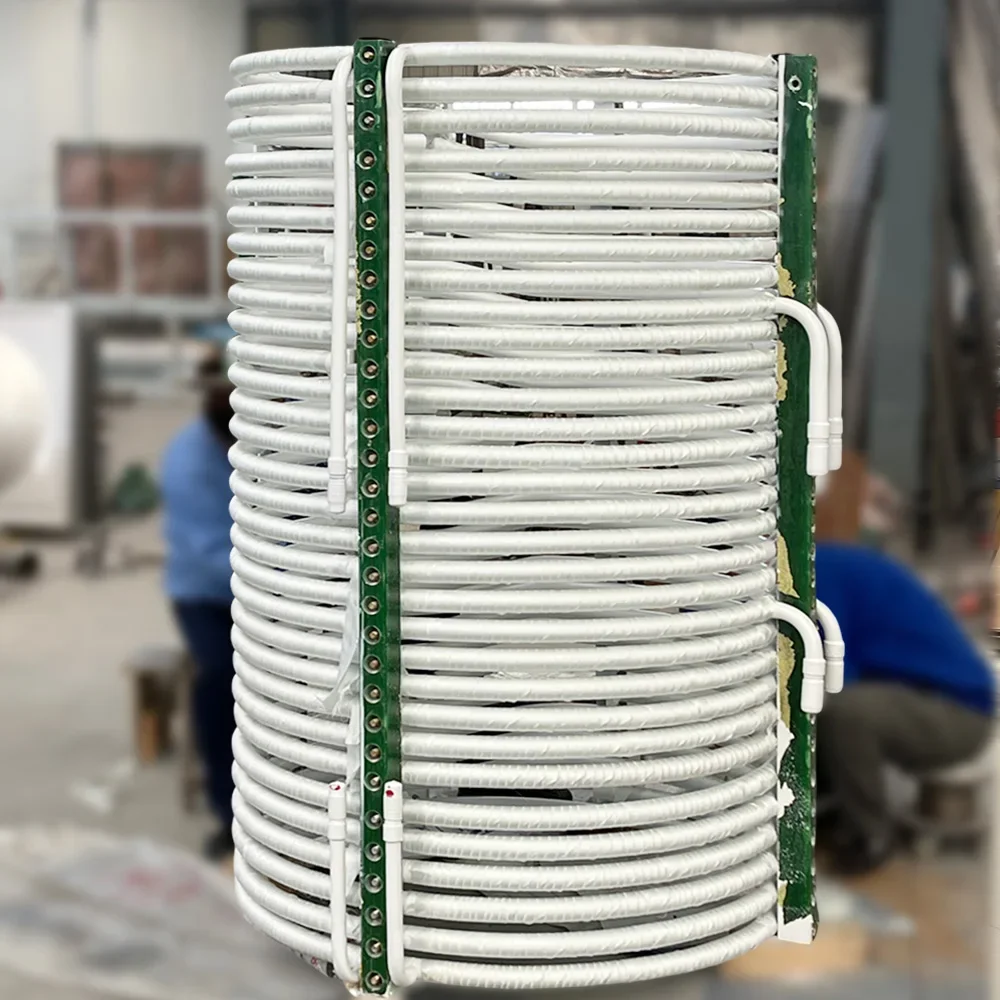

CDM is relying on induction heating equipment, after more than 20 years of experience, and it also has integrated upstream and downstream equipment quality manufacturers, and has established the casting business department, forging department, steel rolling business department and non-ferrous metal casting and rolling business engineering department.

Core Business and Products

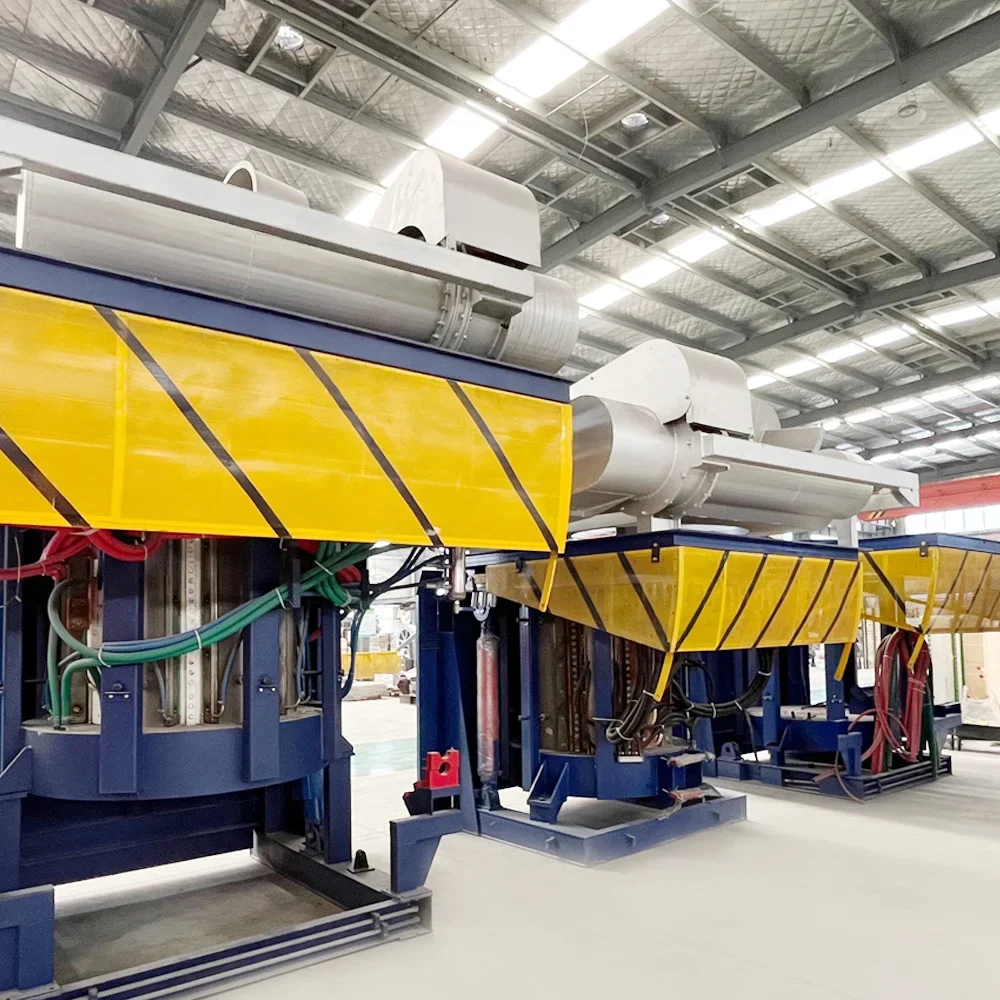

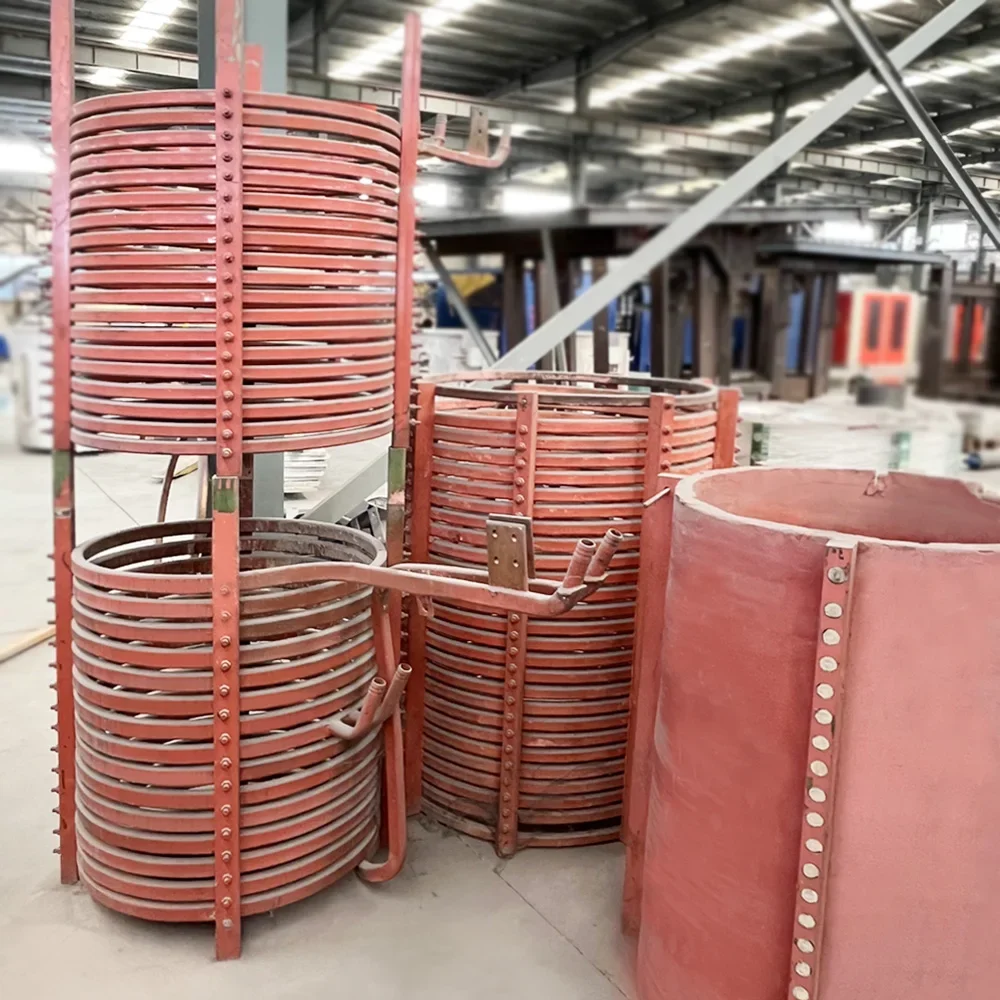

Centering on the full-process needs of metallurgy and metal processing, the company's core services cover: Providing overall workshop design for fields such as steel making, rolling, casting, forging, and heat treatment; Offering efficient processing solutions for the recycling of waste metals like steel, copper, and aluminum; Developing and manufacturing core equipment, including medium-frequency melting furnaces, medium-frequency heating furnaces, secondary melting furnaces for waste steel/copper/aluminum, molten steel refining and rolling equipment, open/closed cooling towers, medium-high frequency surface hardening equipment, and supporting mechanical p arts for steel production lines.

Enterprise Certificate Display:CE/ISO/Patent

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $3750.36 / set
  • 2+ set: US $3700.36 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling tower?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooling tower be supplied for my local voltage?

The standard configuration is 380 V, -480V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
