This cooling tower is listed with the manufacturer’s full published specification — voltage 380 V, warranty 1 Year. It is produced by Shandong Baichuan Industrial Technology Group Co., Ltd., a verified supplier of 2 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Power(W): Customized
- Voltage: 380 V
- Material: Other
- Casing Material: Ss/Aluminium Zinc Plate/Superdyma
- Coil Material: Ss/Copper
- Warranty: 1 Year
Technical Specifications
| Voltage | 380 V |
|---|---|
| Cooling Type | Counter Flow |
| Material | Other |
| Core Components | Motor, Engine |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Easy To Operate, Energy Saving, Water and energy saving |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 2000 |
| Brand Name | Baichuan |

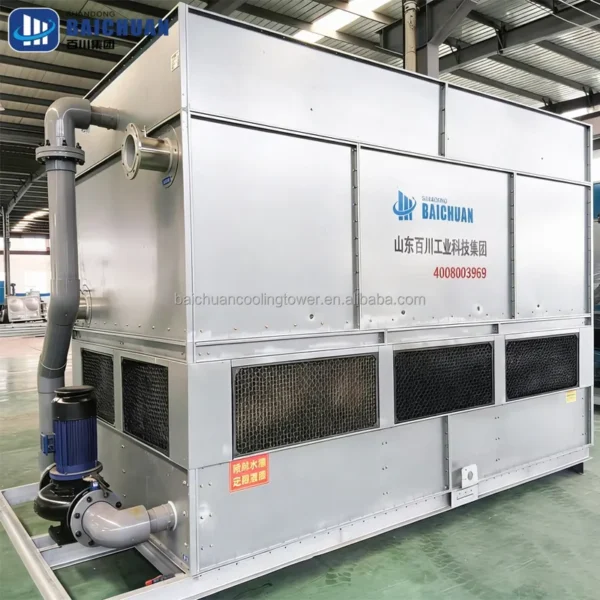

| Product Name | Counter Flow Closed Cooling Tower |
| Air Contact Way | Closed |
| Power(W) | Customized |
| Water Flow | 5~300t/H |
| Casing Material | Ss/Aluminium Zinc Plate/Superdyma |
| Coil Material | Ss/Copper |
| Water Pump Motor | Protection Class IP55,Insulation Class F |
| Character | Energy Saving and Easy Maintainance |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Equipment Model | Cooling Capacity kcal/h | Circulating Water Flow m³/h | Fan | ||
Air Flow m³/h | Power （KW） | ||||
BC-BHL200（Support customization） | 50000 | 10 | 8000 | 0.37*1 | |
BC-BHL300（Support customization） | 75000 | 15 | 8000 | 0.37*1 | |
BC-BHL400（Support customization） | 100000 | 20 | 8000 | 0.37*2 | |
BC-BHL600（Support customization） | 150000 | 30 | 8000 | 0.37*2 | |
BC-BHL800（Support customization） | 200000 | 40 | 12800 | 0.75*2 | |
BC-BHL1000（Support customization） | 250000 | 50 | 22000 | 1.5*2 | |
BC-BHL1200（Support customization） | 300000 | 60 | 22000 | 1.5*2 | |
BC-BHL1600（Support customization） | 400000 | 80 | 28000 | 2.2*2 | |
BC-BHL2000（Support customization） | 500000 | 100 | 22000 | 1.5*4 | |
BC-BHL2000（Support customization） | 500000 | 100 | 22000 | 2.2*2 | |
BC-BHL2000（Support customization） | 500000 | 100 | 22000 | 1.5*3 | |
BC-BHL2200（Support customization） | 550000 | 110 | 22000 | 1.5*4 | |
BC-BHL2400（Support customization） | 600000 | 120 | 22000 | 1.5*4 | |
BC-BHL2600（Support customization） | 650000 | 130 | 22000 | 1.5*4 | |
BC-BHL2800（Support customization） | 700000 | 140 | 22000 | 1.5*4 | |
BC-BHL3000（Support customization） | 750000 | 150 | 28000 | 2.2*4 | |
BC-BHL3200（Support customization） | 800000 | 160 | 40000 | 3*2 | |
BC-BHL3400（Support customization） | 850000 | 170 | 40000 | 3*2 | |
BC-BHL3600（Support customization） | 900000 | 180 | 40000 | 4*2 | |
BC-BHL3800（Support customization） | 950000 | 190 | 65000 | 4*2 | |
BC-BHL4000（Support customization） | 1000000 | 200 | 65000 | 4*2 | |
BC-BHL4400（Support customization） | 1100000 | 220 | 75000/85000 | 5.5*2 | |
BC-BHL4800（Support customization） | 1200000 | 240 | 75000/85000 | 5.5*2 | |
BC-BHL5200（Support customization） | 1300000 | 260 | 75000/85000 | 5.5*2 | |
BC-BHL5600（Support customization） | 1400000 | 280 | 100000 | 7.5*2 | |
BC-BHL6000（Support customization） | 1500000 | 300 | 100000 | 7.5*2 | |
BC-BHL8000（Support customization） | 2000000 | 400 | 160000 | 11*2 | |
BC-BHL10000（Support customization） | 2500000 | 500 | 135000 | 11*3 | |
BC-BHL12000（Support customization） | 3000000 | 600 | 100000 | 7.5*4 | |
BC-BHL14000（Support customization） | 3500000 | 700 | 140000 | 7.5*4 | |
BC-BHL16000（Support customization） | 4000000 | 800 | 160000 | 11*4 | |
BC-BHL20000（Support customization） | 5000000 | 1000 | 135000 | 11*6 | |
The Advantages of Counter Flow Closed Type Cooling Tower

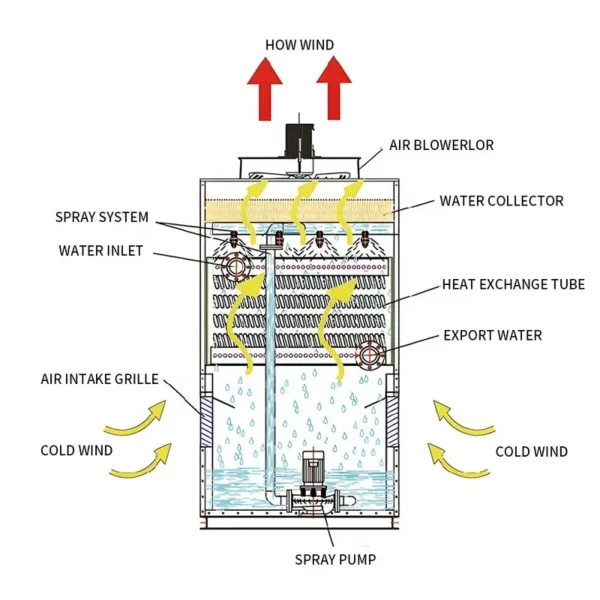

1.Superior heat transfer efficiency with counter-flow structure
Air flows opposite to the coolant direction, creating the maximum temperature difference for heat exchange. It achieves better cooling effect under the same size, and performs reliably even in high ambient temperature conditions.
2.Compact footprint saves valuable plant space
Vertical counter-flow layout occupies smaller installation area compared with cross-flow models. Perfect for factories with limited layout space and helps lower infrastructure arrangement costs.
3.Remarkable water saving & low drift loss
Evaporation and water drift are greatly reduced. It minimizes water consumption, bringing obvious cost savings especially for regions with water shortages.
4.Stable & consistent cooling temperature
Less susceptible to changes of outdoor temperature. It maintains steady outlet temperature for your production equipment,guaranteeing consistent product quality.
5.Customizable anti-corrosion coil options for long service life
Heat exchange coils can be supplied in hot-dip galvanized steel or stainless steel. Effectively resist rust and scale buildup,extending the equipment service cycle.
6.Low noise operation meets environmental regulations
Optimized fan and water distribution structure reduces operating noise, compliant with industrial environmental standards for factories.
Air flows opposite to the coolant direction, creating the maximum temperature difference for heat exchange. It achieves better cooling effect under the same size, and performs reliably even in high ambient temperature conditions.
2.Compact footprint saves valuable plant space
Vertical counter-flow layout occupies smaller installation area compared with cross-flow models. Perfect for factories with limited layout space and helps lower infrastructure arrangement costs.
3.Remarkable water saving & low drift loss
Evaporation and water drift are greatly reduced. It minimizes water consumption, bringing obvious cost savings especially for regions with water shortages.
4.Stable & consistent cooling temperature
Less susceptible to changes of outdoor temperature. It maintains steady outlet temperature for your production equipment,guaranteeing consistent product quality.
5.Customizable anti-corrosion coil options for long service life
Heat exchange coils can be supplied in hot-dip galvanized steel or stainless steel. Effectively resist rust and scale buildup,extending the equipment service cycle.
6.Low noise operation meets environmental regulations
Optimized fan and water distribution structure reduces operating noise, compliant with industrial environmental standards for factories.
How may we assist you?
How to choose the right product?
1.We provide customized services and have a team of hundreds of engineers to deliver solutions tailored to your specific
requirements.
2.Easy-wear spare parts can be provided free of charge depending on the situation.
3.Complete sets of English manuals and technical documents are available.
4.We can offer you the most favorable payment terms.
Why choose Baichuan closed circuit cooling towers?
1.Baichuan offers two types of closed circuit cooling towers: cross flow and counter flow, both certified by national authorities.
2.We have a complete quality control process covering everything from raw material inspection to final product testing.
3.With hundreds of engineers dedicated to product R&D, we can design and manufacture customized cooling towers based on customer needs.
4.With years of industry experience, our professional sales and after-sales service teams can help solve problems that may bedifficult to handle on your own.
5.Our products have been exported to countries such as the United States, Peru, Colombia, India, the Philippines,Chile, and
manyothers, receiving positive feedback from both customers and the market.
1.We provide customized services and have a team of hundreds of engineers to deliver solutions tailored to your specific
requirements.
2.Easy-wear spare parts can be provided free of charge depending on the situation.
3.Complete sets of English manuals and technical documents are available.
4.We can offer you the most favorable payment terms.
Why choose Baichuan closed circuit cooling towers?
1.Baichuan offers two types of closed circuit cooling towers: cross flow and counter flow, both certified by national authorities.
2.We have a complete quality control process covering everything from raw material inspection to final product testing.
3.With hundreds of engineers dedicated to product R&D, we can design and manufacture customized cooling towers based on customer needs.
4.With years of industry experience, our professional sales and after-sales service teams can help solve problems that may bedifficult to handle on your own.
5.Our products have been exported to countries such as the United States, Peru, Colombia, India, the Philippines,Chile, and
manyothers, receiving positive feedback from both customers and the market.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
