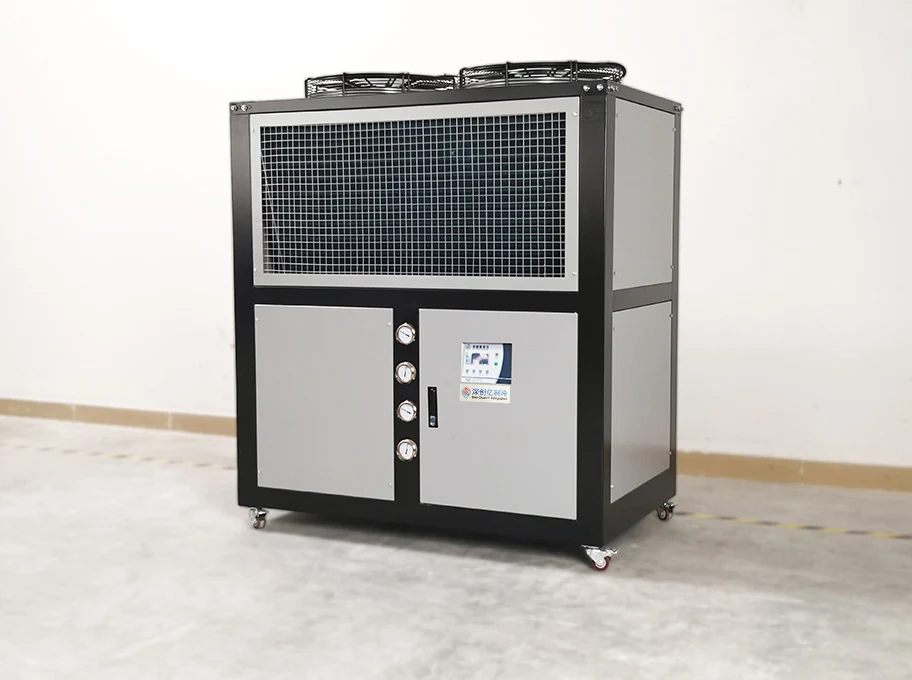

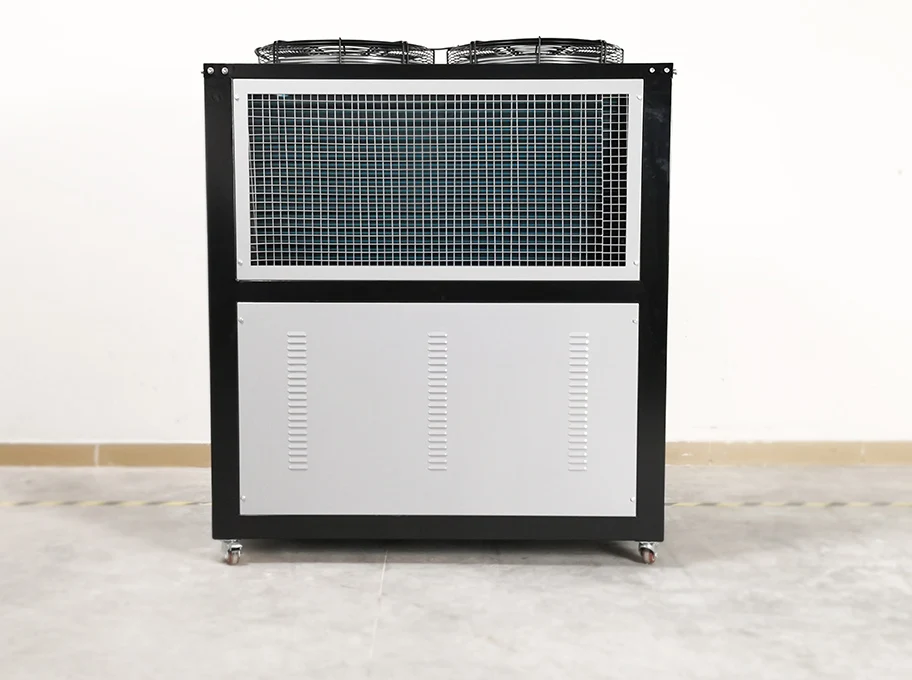

Cooling tower — voltage 3PH-50HZ-380V, 28.5KW. The complete factory specification follows. Made by ShenChuangYi Refrigeration Co., Ltd. (6 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Model Number: 28.5kw
- Power: 28.5KW
- Pump Power: 2.2kw
- Voltage: 3PH-50HZ-380V
- Refrigerant: R134a/R407c/R410a
- Warranty: 1 Year
Technical Specifications
| Voltage | 3PH-50HZ-380V |
|---|---|
| Power | 28.5KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Core Components | Compressor |
| Model Number | 28.5kw |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 140 |
| Brand Name | SCY |
| Dimension(L*W*H) | 1300*780*1530MM |
| Working Temperature Range | -50-40 sheshidu |
| Refrigerant | R134a/R407c/R410a |
| Product Name | SCY-10A |
| After-Sales Service Provided | 1Year |
| Evaporator | Shell-and-Tube |
| Compressor Type | Scroll Closed |
| Condenser | Aluminum Finned Coil + Axial Fan |
| Pump Power | 2.2kw |
| Cooling Type | Air Cooled Condenser Chiller |
| Selling Units | Single item |
Product Details
3.Refrigerant: R22, R134a, R407c, R410a
4.Power Supply: 3Φ-50Hz-380V
5.Compressor: Panasonic Scroll
| Model | SCY-02A | SCY-03A | SCY-05A | SCY-08A | SCY-10A | SCY-15A | |||||||
| Power supply | 3Φ-50Hz-380V(208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase) | ||||||||||||
| Cooling capacity | kw | 5.6 | 8.3 | 13.6 | 20.5 | 28.5 | 40.5 | ||||||
| TONS | 1.59 | 2.36 | 3.87 | 5.83 | 8.10 | 11.52 | |||||||
| Kcal/h | 4820 | 7140 | 11690 | 17630 | 24510 | 34830 | |||||||
| Power consumption | kw | 2.3 | 2.95 | 4.8 | 7.75 | 9.35 | 14.1 | ||||||
| Running current | A | 4.6 | 5.7 | 9.5 | 14.9 | 18.1 | 27.2 | ||||||
| Freeze water flow | m³/h | 1 | 1.5 | 2.4 | 4 | 4.8 | 7.8 | ||||||
| Compressor | Type | Scroll | |||||||||||
| Input power(kw) | 1.4 | 2.2 | 3.75 | 6 | 7.5 | 11.25 | |||||||
| Pump | Power(kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 1.5 | ||||||
| Refrigerant | Type | R22, R134a, R407c, R410a | |||||||||||
| Control method | External balanced thermostatic expansion valve | ||||||||||||
| Filling volume(kg) | 2 | 2 | 3 | 5 | 6 | 8 | |||||||
| Evaporator | Type | Shell and tube, Plate, Coil in Tank | |||||||||||
| Pipe diameter(in) | 1" | 1" | 1-1/2" | 2" | |||||||||
| Condenser | Type | High efficient Finned Copper Tube | |||||||||||
| Fan | Type | Axial-flow Fan | |||||||||||
| Air volume(m³/h) | 2000 | 3000 | 5000 | 8000 | 10000 | 15000 | |||||||
| Power(kw) | 0.37 | 0.28 | 0.36 | 0.55 | 1.1 | 1.35 | |||||||
| Safty protector | Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch. | ||||||||||||
| Dimension | Length(mm) | 750 | 1020 | 1125 | 1200 | 1300 | 1600 | ||||||
| Width(mm) | 500 | 540 | 640 | 740 | 780 | 900 | |||||||
| Heiht(mm) | 1200 | 1030 | 1250 | 1320 | 1530 | 1640 | |||||||
| Weight(kg) | 130 | 130 | 170 | 370 | 400 | 540 | |||||||
| Remarks: | 1.Testing results under above conditions: Inlet/outlet chilled water temperatuer 12℃/7℃, ambient temperature 35℃ | ||||||||||||
| 2.The above parameters will be updated continuously. If you need a custom service, please send your technical requirements before placing an order. | |||||||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3050 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 3PH-50HZ-380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
