This cooling tower is published with the manufacturer’s full specification — material pvc,pp,CPVC. Made by Hebei Sinta Trading Co., Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Power(W): /
- Voltage: /
- Material: pvc,pp,CPVC
- Warranty: 1 Year
- Place Of Origin: Hebei, China
- Application: cross flow cooling tower
Technical Specifications
| Voltage | / |
|---|---|
| Cooling Type | Cross Flow |
| Power(W) | / |
| Material | pvc,pp,CPVC |
| Core Components | cooling tower pvc filler |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 0.456 |
| Brand Name | Sinta |
| Dimension(L*W*H) | 1330mm*H |
| Item Name | crossflow PVC fill 1330mm refrigeration equipment cooling tower fill |
| Sample | Available |
| Size | 1330mm |
| Thickness | 0.25-0.4mm |
| Flute | 19mm |
| Length | any length |
| Working Temperature | 55 degrees MAX for PVC material |
| Application | cross flow cooling tower |
| Color | BLACK,GREY |
| Selling Units | Single item |
| Single Package Size | 140X30X5 cm |
| Single Gross Weight | 0.85 kg |
Product Details
Product Description
UV resistant cooling efficiency baltimore aircoil crossflow PVC fill 1330mm cooling tower fill kit
Product name | 1330mm cooling tower pvc filler |
Sheet size | 1330mm*L |
Installation | Hanging type |
Sheet material | PP,PVC,CPVC |
Sheet spacing | 19mm |
Color | Black |
Working tempature | 55 degrees max for pvc filler 80 degrees for PP filler material |
Sample | Available |
Customization | Acceptable |
Hole position | Customized |
We Hebei SINTA is the professional manufacturer of cooling tower parts, mainly including cooling tower fills, drift eliminators, air inlet louvers, spray nozzles. We have many different series and we can produce according to your sample.
Customization is acceptable. Many cooling tower contractors purchase from us regularly, hope we can support you!

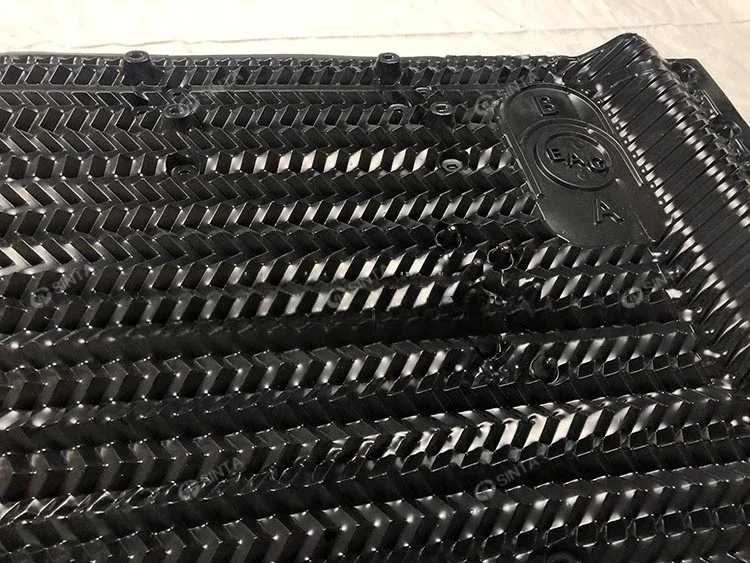

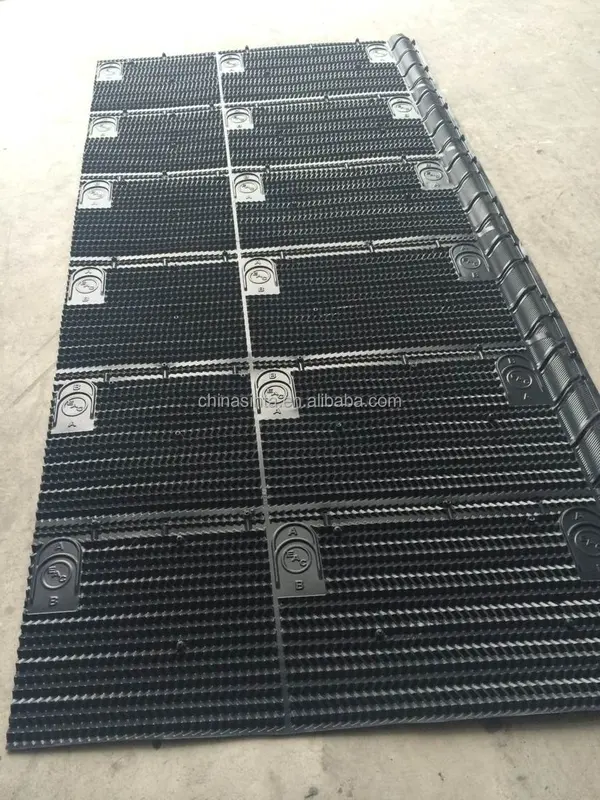

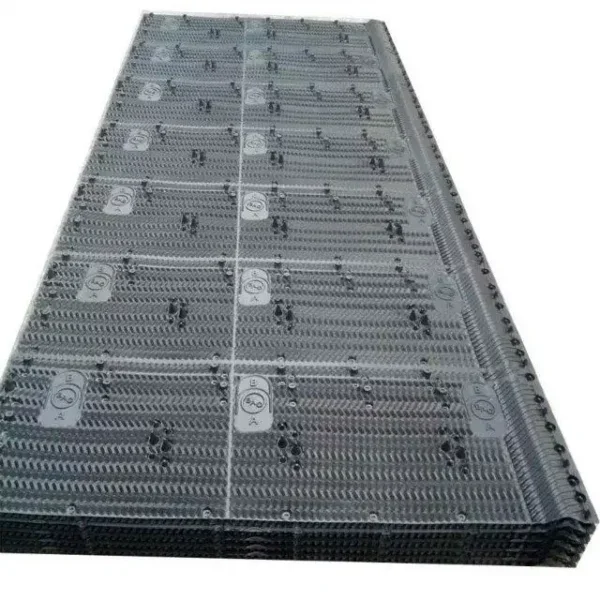

This hanging type of cooling tower fill is designed for cross flow cooling towers,it includes integral louvers and drift
eliminators to eliminate splashout and drift, formed from 15 mil super quality of PVC sheets, Suitable for maximum entering water temperature of 55 degrees. If for high temperature, we recommend PP material. The loose sheet width is standard as 1330mm, the height can be customized according to clients' request, such as 2450mm,2900mm,etc.
Welcome to contact us for more.
eliminators to eliminate splashout and drift, formed from 15 mil super quality of PVC sheets, Suitable for maximum entering water temperature of 55 degrees. If for high temperature, we recommend PP material. The loose sheet width is standard as 1330mm, the height can be customized according to clients' request, such as 2450mm,2900mm,etc.
Welcome to contact us for more.
Direction for pvc fill sheets installation
The loose sheet width is as standard as 1330mm, and 1300mm is also accpetable. The hanging holes could be circle shape or
houseshoe shape.
The height of fill can be customized by customers, cush as 2840mm,3050mm,3098mm,3100mm,etc.
The thickness of EAC fill is 0.38mm as standard, normally fill sheets we could do is 0.3-0.5mm.
houseshoe shape.
The height of fill can be customized by customers, cush as 2840mm,3050mm,3098mm,3100mm,etc.
The thickness of EAC fill is 0.38mm as standard, normally fill sheets we could do is 0.3-0.5mm.
For more, welcome to contact us, we produce different types of cooling tower fills according to clients' requirement. Thickness and color and sizes can be customized.
Detailed Images
Details for Hanging Type PVC Fill Packing Cooling Tower Fills

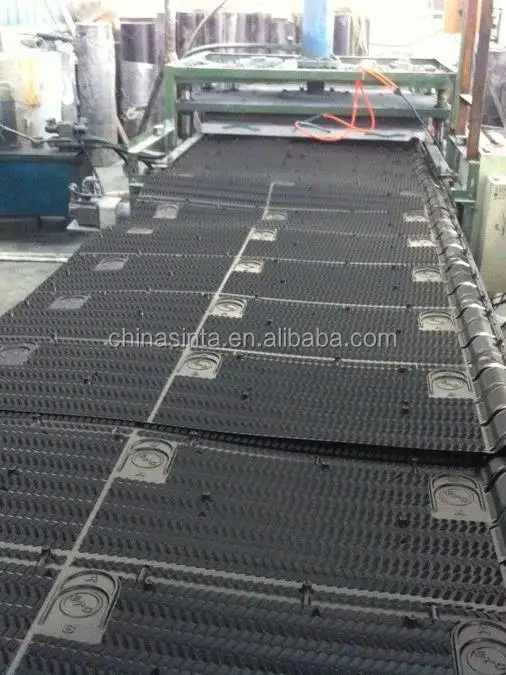

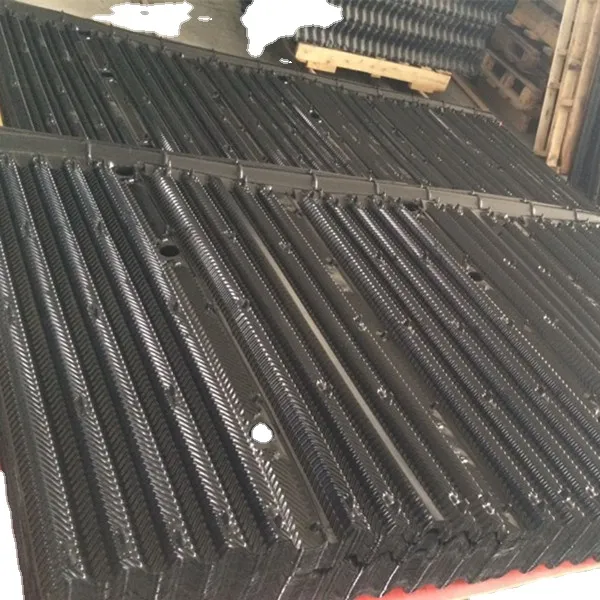

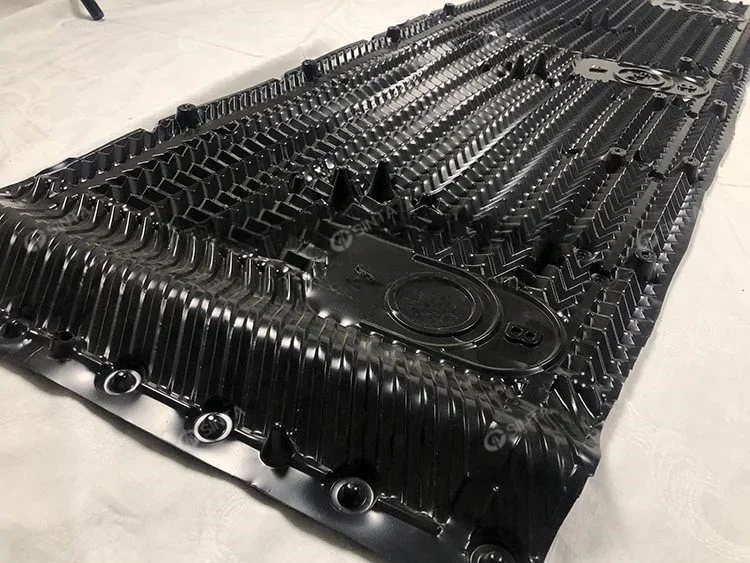

Sinta PVC Fills are made by continuous forming and offer minimum resistance to airflow, providing more cooling by lower power consumption. They have uniform thickness throughout.Durable folded edges provide strength at critical locations on the fill. The fills are easy to glue at site thus saving on transportation costs.

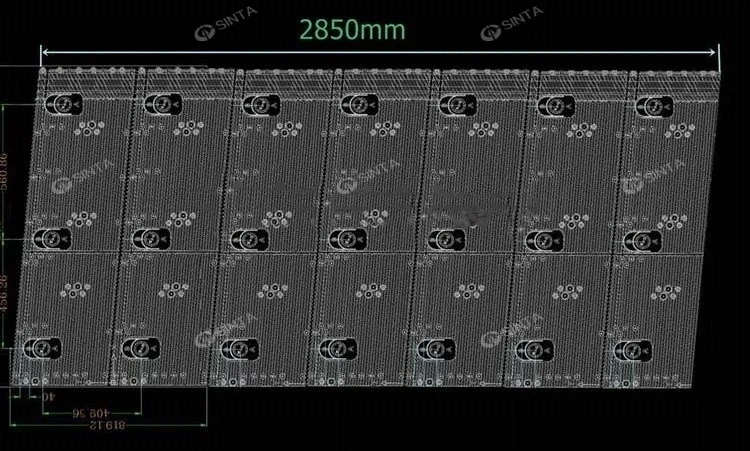

The following is the drawing for the cooling tower film fill, length is customized according to clients' request.

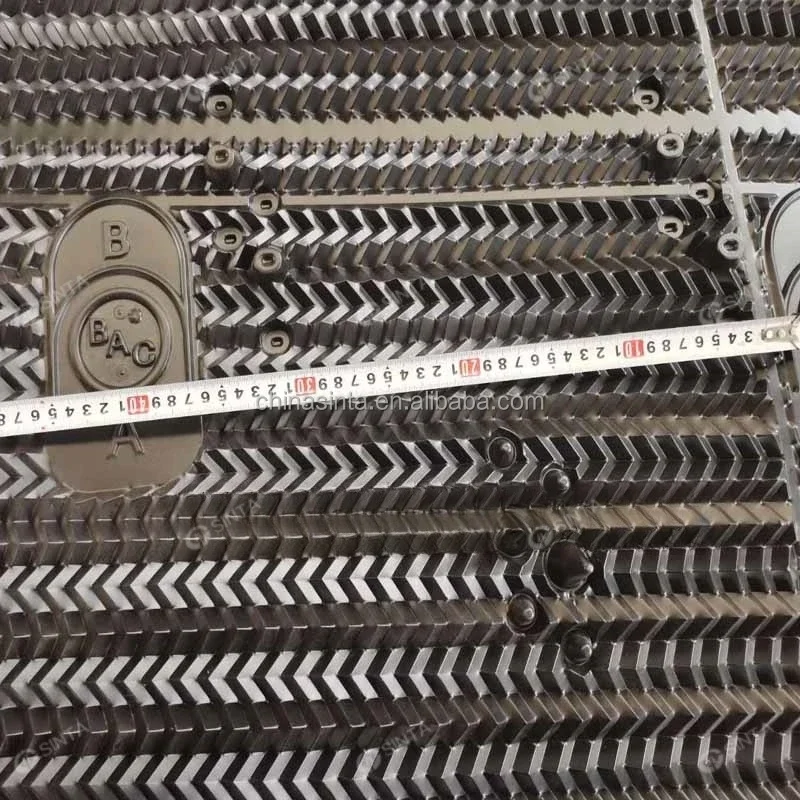

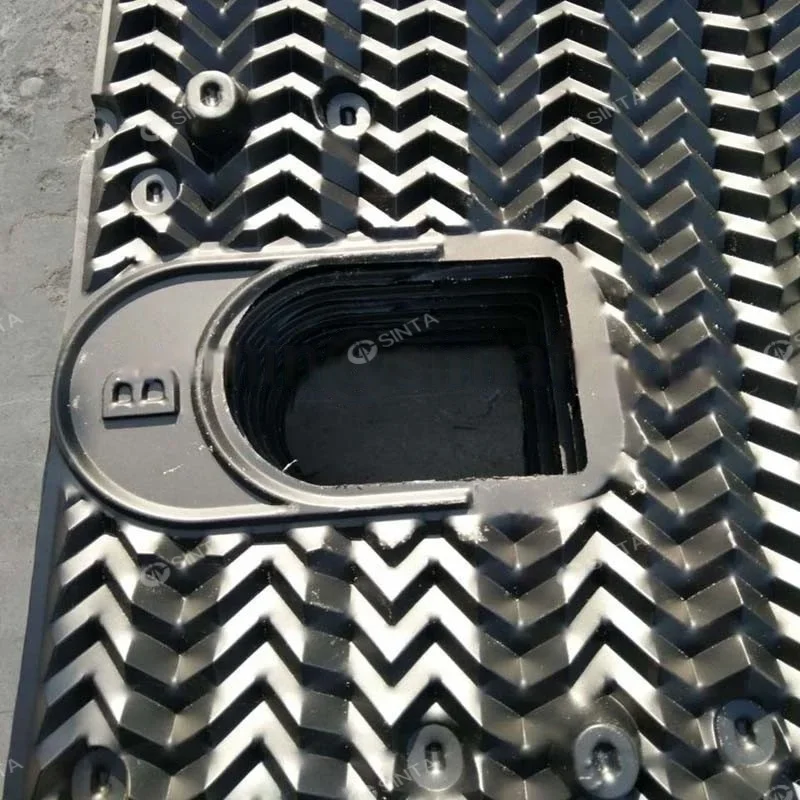

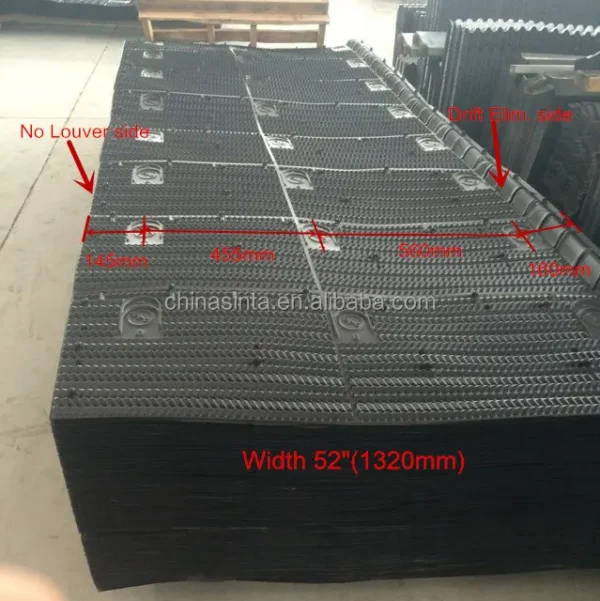

The following is the hole distance details. we will drill holes for clients on requested position. The may can be round shape or houseshoe shape. Color normally as black. Thickness from 0.35-0.45mm.
EAC Evaporative condensers provide heat rejection for many types of systems, and the specific application will largely determine which EAC Evaporative Condenser is best suited for a project. The information contained within this section is geared towards the use of evaporative condensers in the HVAC and light industrial markets only. Evaporative condensers are used in these markets to provide lower condensing temperatures and compressor horsepower savings of up to 15 percent when compared with traditional systems. There are two types of evaporative condensers: combined flow and counterflow.
It has the advantages of direct replacement, performance enhancement, and water condition compatibility. Allow various heat loads, flow rates, water quality, and horse power combinations selections.
Sinta could customize the EAC cooling tower fill length and sheet thickness according to clients’ request.
It has the advantages of direct replacement, performance enhancement, and water condition compatibility. Allow various heat loads, flow rates, water quality, and horse power combinations selections.
Sinta could customize the EAC cooling tower fill length and sheet thickness according to clients’ request.

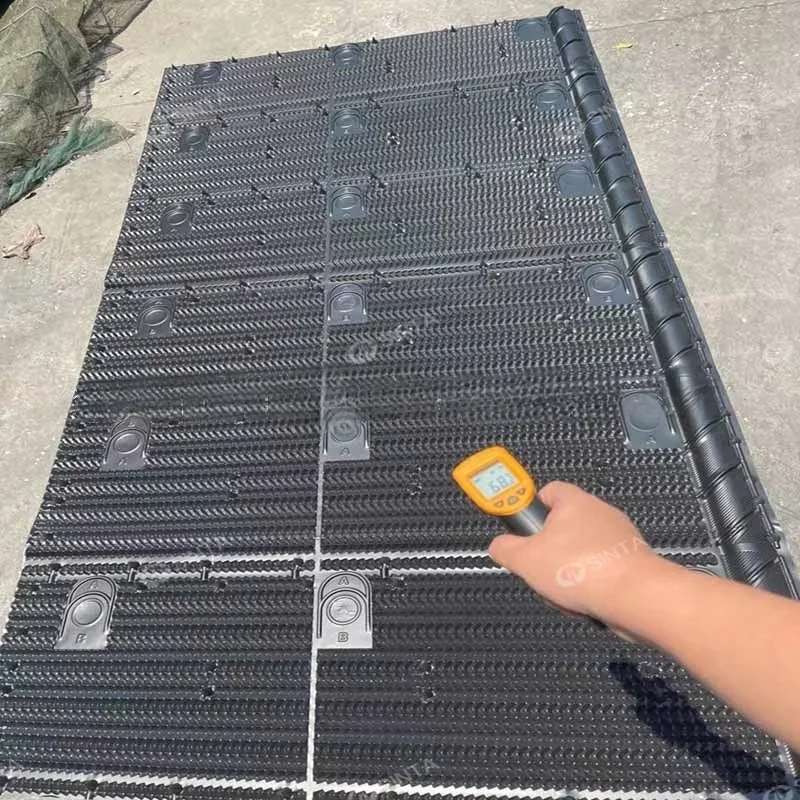

For working temperature, it is 55 degrees for pvc fill sheets, and the cost is lower. we use 100% new pvc sheets to produce the fill sheets. And if clients need it to be high temperature resistant, we recommend to use PP material to produce the fill sheets, the working temperature is 80 degrees. PP fill sheet cost is a little higher and thickness is thicker than pvc loose sheets.

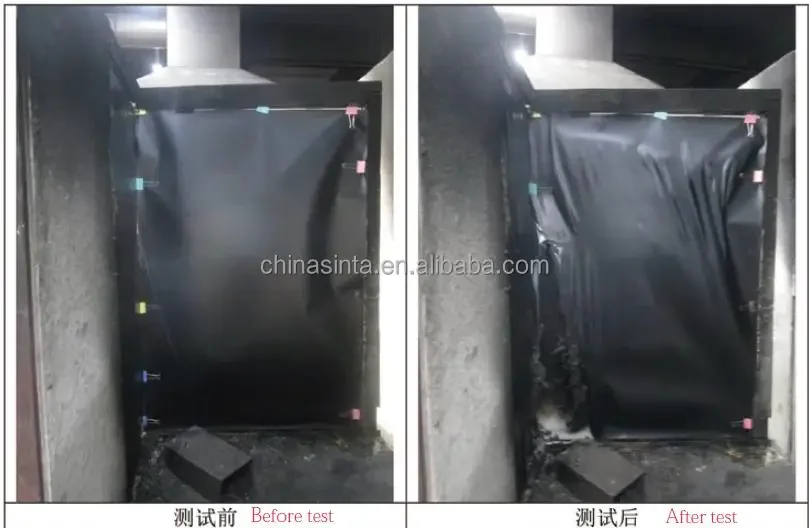

Our raw material is fire retardant.So when you send us inquiry, please inform us your requirement, then we can offer the best quotation to you soonest.
Improved design is more reasonable, and with more connection tips, the fill pack will be much stronger. welcome to contact us.

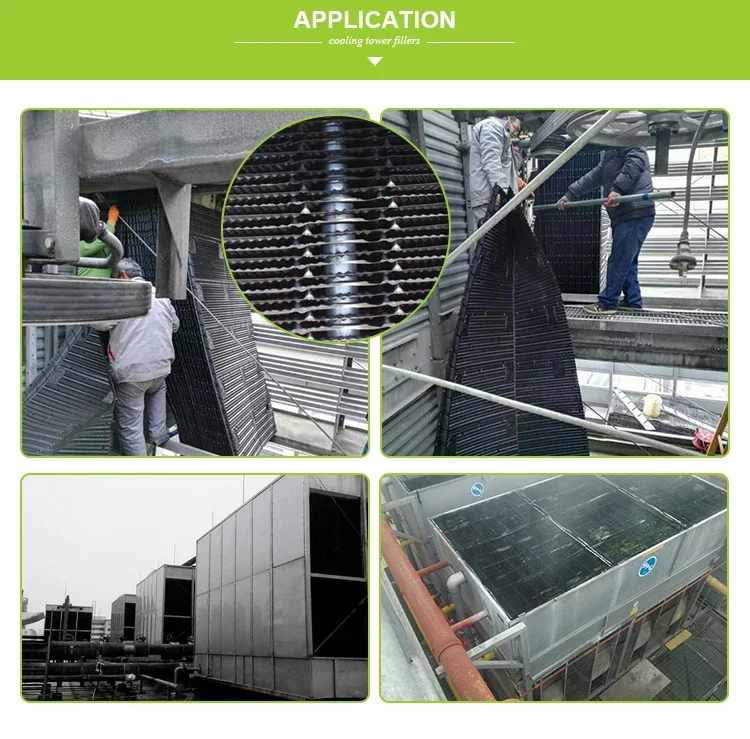

Application

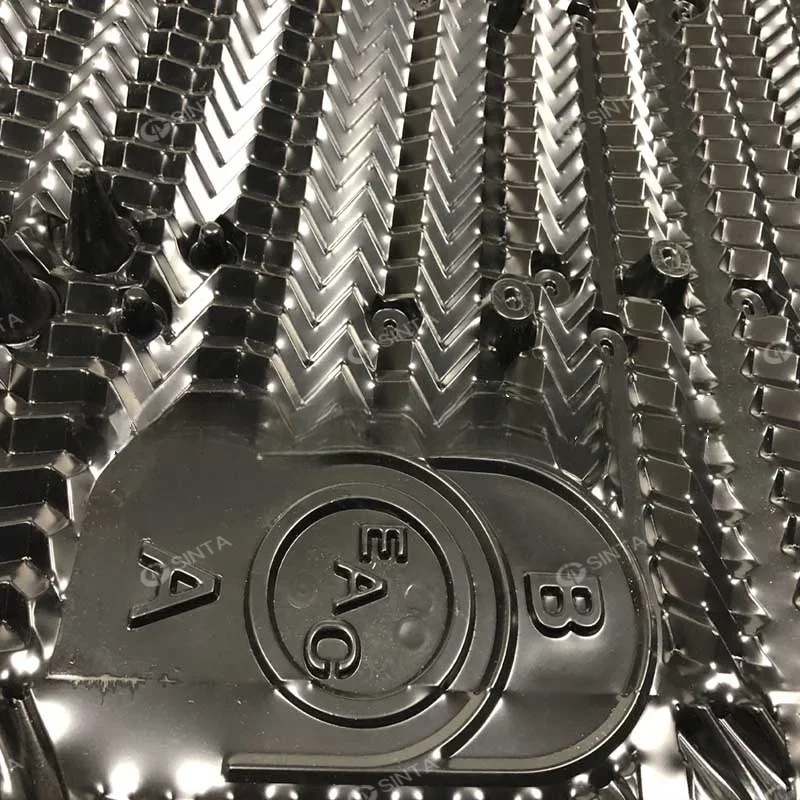

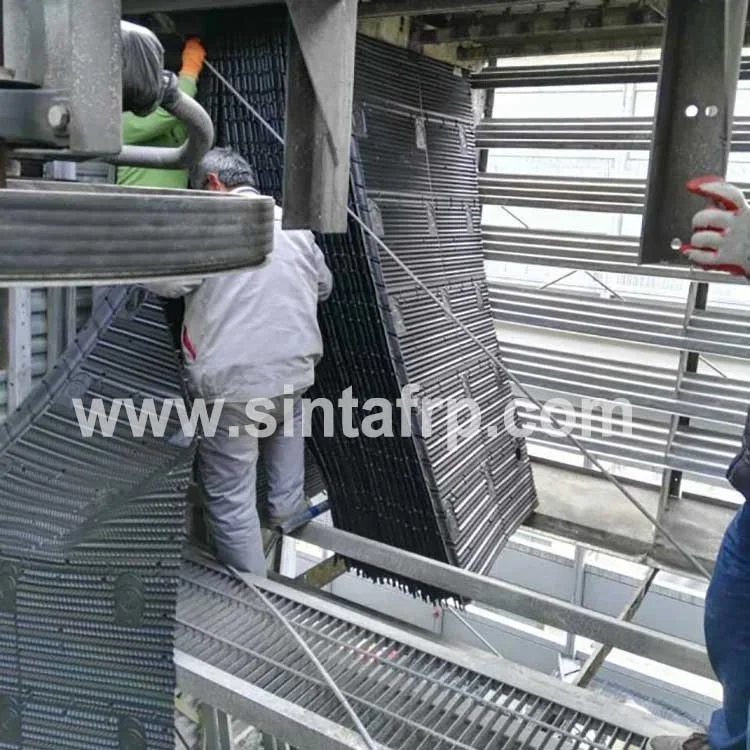

EAC fills and most all fills are divided into sheet A and sheet B, or male and female sheets. When installing it, we need to make sure the steel rod or tube is smooth, no stuff to break the fills. And then put sheet A and sheet B through the steel tube one by one, amd make sure connection joints are matched each other very well, to make the fill pack strong .
Related Products

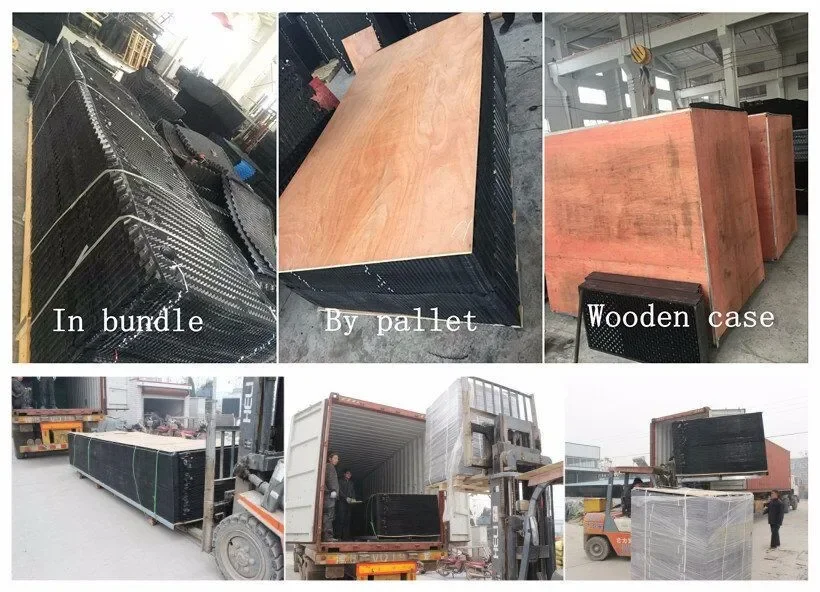

Packing&Shipping
EAC Cooling Tower PVC Fill packed in plywood case or pallets.
Company Introduction
Hebei Sinta FRP Products Co., Ltd. is specialized in various cooling tower spare parts, is a enterprise engaged in design,
manufacture and Sales. The cooling tower spare parts include cooling tower pvc fills, cooling tower drift eliminators, cooling tower nozzles. The products meet specific application and are widely used for various brands of cross flow/counter flow cooling tower and evaporative condenser.The products also can be made as your special requests. If you provide us detailed drawing,our engineer will evaluate the mould and cost issues.
Sinta always supply best quality and excellent service to meet your all requirements, hope to establish good and long time
cooperation with much joy with you!
Any inquiry will be answered in the first time.
manufacture and Sales. The cooling tower spare parts include cooling tower pvc fills, cooling tower drift eliminators, cooling tower nozzles. The products meet specific application and are widely used for various brands of cross flow/counter flow cooling tower and evaporative condenser.The products also can be made as your special requests. If you provide us detailed drawing,our engineer will evaluate the mould and cost issues.
Sinta always supply best quality and excellent service to meet your all requirements, hope to establish good and long time
cooperation with much joy with you!
Any inquiry will be answered in the first time.
Contact us
Welcome to contact us for cooling tower fills, we can offer many series of designs for your options!
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–999 piece: US $5 / piece
- 1000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
