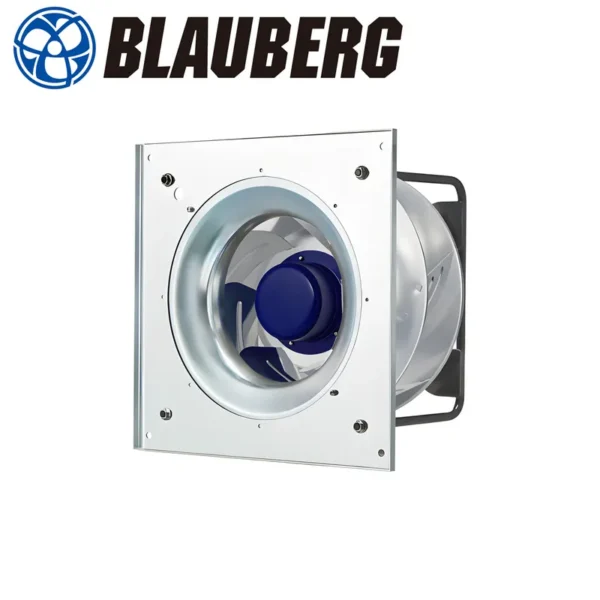

The cooling ventilation plug fan listed here carries 24V, blade material Aluminum Alloy, documented exactly as the manufacturer publishes it. Made by Suzhou Blauberg Motoren Technology Co., Ltd. (7 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Ventilation Plug Fan
- Model Number: GD-B280D-EC-01
- Voltage: 24V
- Blade Material: Aluminum Alloy
- Speed: 1900RPM
- Warranty: 2 Years
- Place Of Origin: jiangsu

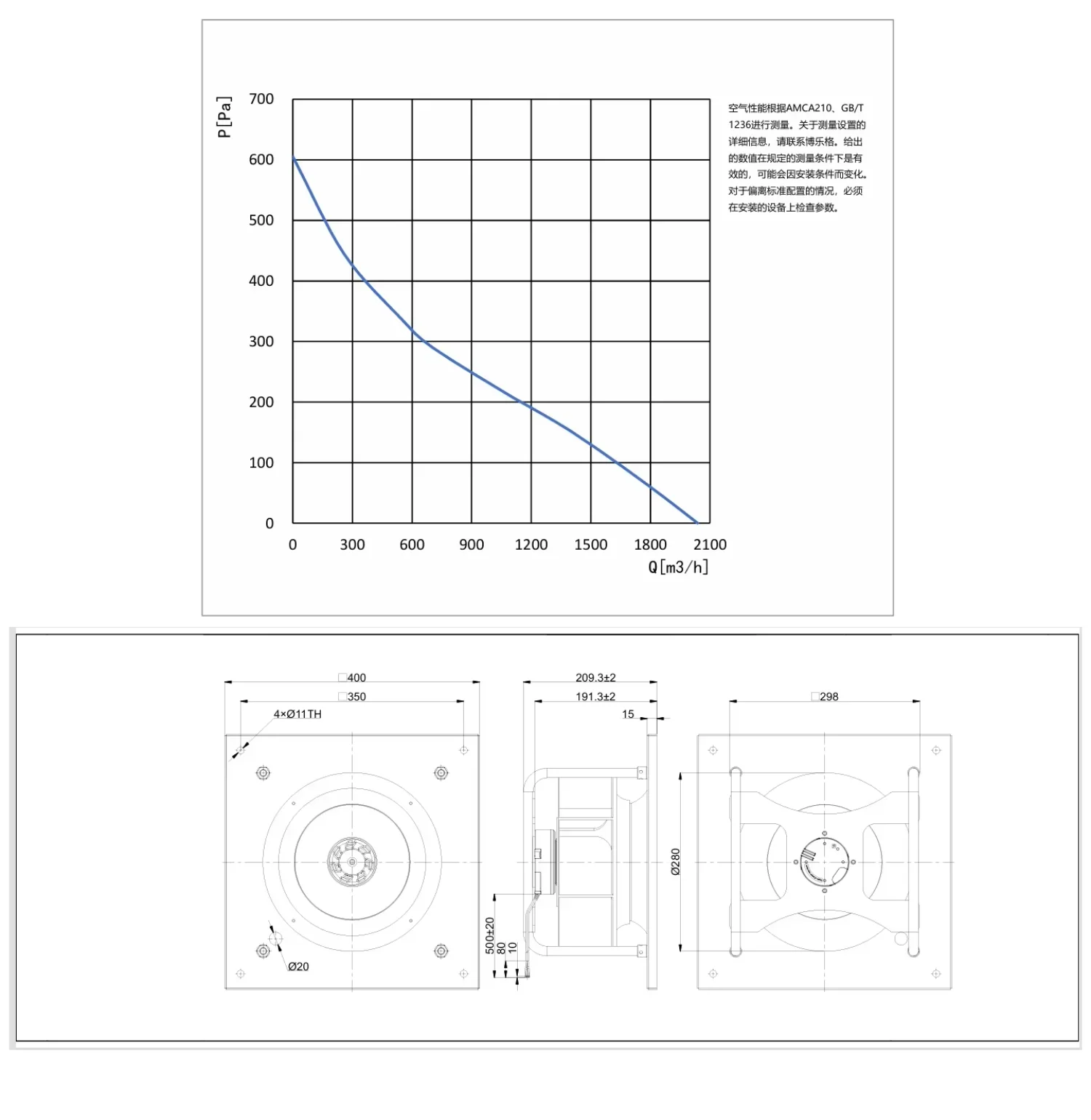

Technical Specifications
| Voltage | 24V |
|---|---|
| Motor Type | DC Motor |
| Speed | 1900RPM |
| Blade Material | Aluminum Alloy |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | jiangsu |
| Brand Name | Blauberg |
| Model Number | GD-B280D-EC-01 |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 3.5 kg |
Product Details
PRODUCT HIGHLIGHTS
- 1.EC PM Motor 40000H Long Service Life 30-50%
- 2.Energy Saving Full-Range High Efficiency
- 3.Pre-balanced Unit Half-day Quick Retrofit
标题
ERP 2026 (Ready） high efficiency EC motor centrifugal blower solutions.
Engineer A Better Life Through GreenTech Philosophy & Innoviration optimize infrastructure with IE5 motor technology.
Redefine your ventilation with Blauberg Motoren’s high-performance
BACKWARD CURVED CENTRIFUGAL FANS
Our innovative free-running design ensures exceptional airflow and quiet operation with unmatched reliability.
Designed for efficiency and versatility, these fans provide a powerful solution for diverse application needs.
Rely on Blauberg Motoren’s engineering excellence to deliver the quality and airflow performance your business demands. Deliver high-quality ventilation solutions with optimized cost structure, ensuring strong value for global OEM and project-based customers, since 1900.
Retrofit and Intelligent Ventilation Fan Grid
Smart Grid ：High reliability with redundancy, lower maintenance thanks to direct drive without belts or grease, and high energy efficiency with EC motors.
BLAUBERG MOTOREN FANS:

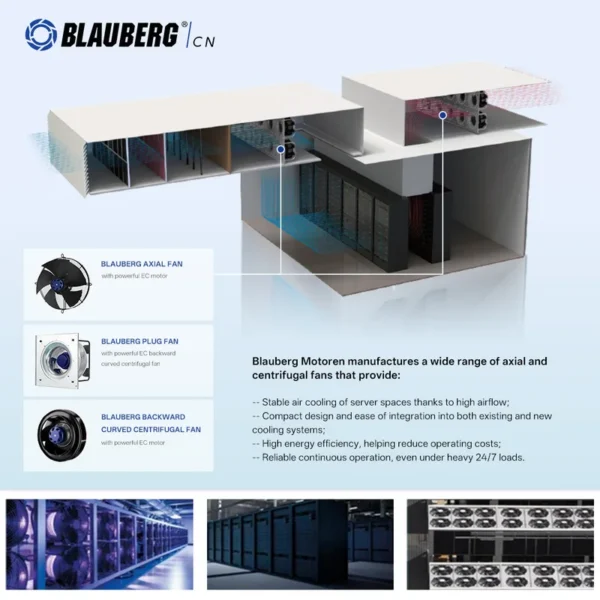

A Reliable Solution for Data Center Cooling
Cooling systems are critical to data center infrastructure. Continuous heat generation from server equipment requires reliable and uninterrupted heat dissipation to ensure stable system operation. Blauberg Motoren fans are perfectly suited for integration into various cooling solutions, such as computer rooms, CRAC units, and hot/cold aisle containment systems.
PRECISION AIRFLOW SOLUTIONS BUILT FOR CRAC
(COMPUTER ROOM AIR CONDITIONING)
In data centers and server rooms, Computer Room Air Conditioning (CRAC) units operate 24/7 to manage the intense heat generated by IT infrastructure. Blauberg Motoren EC centrifugal fans are the trusted choice for CRAC internal airflow — delivering high static pressure, intelligent variable-speed control, and whisper-quiet operation. Whether deployed in underfloor-supply, in-row, or overhead-return configurations, our fans provide consistent and reliable airflow performance. Designed to support PUE optimization goals, our EC fan solutions help facility operators reduce cooling energy consumption without compromising thermal protection for critical equipment.
INDUSTRY CORE APPLICATIONS
EC external rotor motor technology powers six high-growth industries – delivering precise,
continuous, and maintenance-free airflow solutions to customers across 90+ countries in ventilation, refrigeration, purification, and new energy sectors.
Data Centers
High-efficiency server cooling with intelligent speed control.
Healthcare & Cleanrooms
3D blades provide ultra-quiet operation and zero belt-dust contamination.
Agriculture
Reliable ventilation for livestock and greenhouses with IP54/IP55 protection.

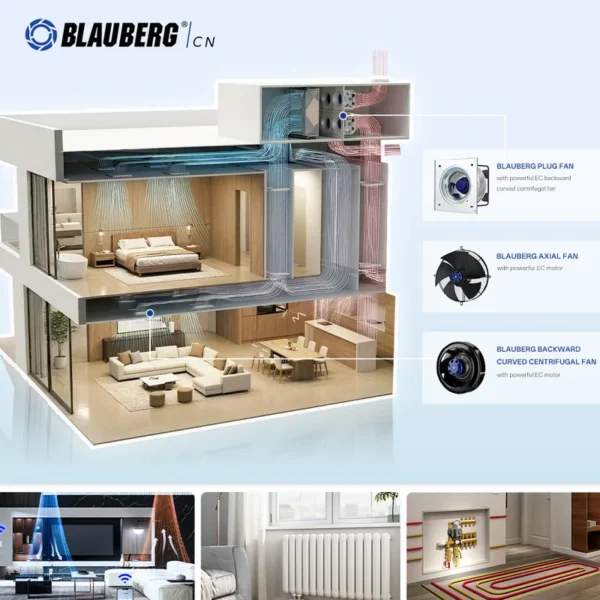

Commercial Buildings
Perfect for Fan Coil Units (FCU) and Air Handling Units (AHU).
MAXIMIZING DATA CENTER UPTIME:
THE CRITICAL ROLE OF EC CENTRIFUGAL FANS
IN AIR HANDLING UNITS
THE CRITICAL ROLE OF EC CENTRIFUGAL FANS
IN AIR HANDLING UNITS
A deep-dive into the aerodynamic engineering, IE efficiency standards, and operational economics driving the shift from AC to EC fan technology in mission-critical cooling infrastructure. High-density server equipment generates continuous heat loads that demand uninterrupted dissipation. Blauberg EC fans deliver high airflow, low noise, and 24/7 reliable operation — purpose-built for CRAC precision air conditioning, in-row cooling units, and free cooling systems. Modbus connectivity enables real-time integration with DCIM platforms.
HVAC & AHU
Replace traditional belt-driven fans with intelligent Fan Grid arrays to modernise Air Handling Units (AHUs). The BL-PF modular centrifugal fan array works in concert with the STG-VFD central controller — automatically adjusting speed via differential pressure sensing to maintain constant airflow, eliminating belt and grease maintenance entirely.
EXAMPLES FOR
INSTALLATION SYSTEMS
CHANGES IN AXIAL
OVERLAP
The axial overlap between the inlet ring and the impeller cover affects centrifugal fan air flow and operation efficiency.
Overlap changes affect the following curve:
MOUNTING SPACE
EFFECTS
Mounting-specific losses may be caused by installing the centrifugal fan in a ventilation block with insufficient space. The effects on fan performance are evident from the following curve. For boxes with a square cross section the hydraulic diameter is calculated based on the box width and height divided by the impeller diameter.
BLAUBERG MOTOREN CHINA
PART OF THE BLAUBERG GROUP SINCE 1900
specializes in EC brushless motors and intelligent fan solutions, delivering precise, maintenance-free, and energy-efficient air-moving performance throughout the product lifecycle.
标题
With localized manufacturing in China and integrated expertise in motor technology, electronic control, and aerodynamics, our EC fans are trusted by customers in over 90+ countries across ventilation, refrigeration, and air purification industries.
We combine German engineering standards with scalable, cost-competitive production to enable sustainable, high-performance solutions for a greener and healthier world.
GERMAN ENGINEERING QUALITY
SMART MANUFACTURING VALUE – SINCE 1900
Offering an extensive range of EC motors, fans and intelligent ventilation solutions
Certifications & Compliance
Every Blauberg EC fan carries the certifications your market demands. From UL/ETL for North America to CE for Europe, from ISO 9001 quality systems to CNAS-accredited laboratory testing — our 30+ certifications represent a complete, verifiable compliance infrastructure trusted by engineers in 90+ countries.
Trust badges for ErP 2026, CE, UL, RoHS, and IE5,ISO, EMC ,etc
PACKING & SHIPPING
Every unit undergoes our rigorous, standardized packaging process and multi-tier quality inspection before being securely sealed for transit. We honor your trust, ensuring flawless and safe delivery every time.
Q1:Why choose an EC Backward Curved Fan over a forward curved AC fan? | ||||||||
Backward curved blades deliver a naturally self-limiting power curve. The motor cannot overload even if system resistance drops unexpectedly. Paired with an EC permanent magnet motor the system sustains 70-85% total efficiency across the full operating range. An AC motor may drop to 40-50% efficiency at partial load. It delivers 30-50% energy savings in real-world HVAC duty cycles. | ||||||||
Q2:Does retrofitting an AC fan require replacing the entire cabinet or housing? | ||||||||

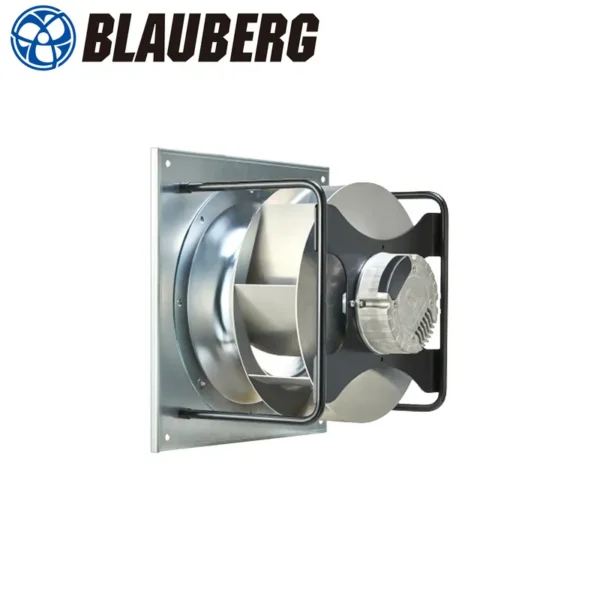

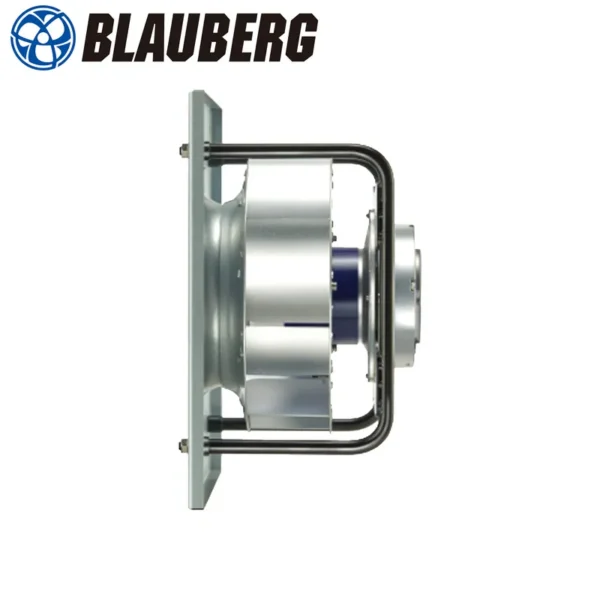

Not with a Plug Fan also called a Free-Inlet or Plenum Fan design. The impeller EC motor and electronics ship as a single pre-balanced assembly that mounts directly inside the existing AHU casing. No scroll housing needed. Mechanical interface adapters and custom mounting plates can be supplied to match legacy footprints making most retrofits a half-day installation. | ||||||||
Q3:How does Modbus RS485 or 0-10 V or PWM control improve system uptime? | ||||||||
Digital protocols like Modbus RTU allow the fan to report speed current draw input power and vibration status directly to your BMS or PLC in real time. This shifts maintenance from scheduled replacement to condition-based intervention. You act on an anomaly signal weeks before a bearing failure rather than discovering the shutdown after the fact. Analog 0-10 V and PWM inputs remain available for simpler BMS integrations. | ||||||||
Q4:What is an "external rotor" motor and why does it matter for fan design? | ||||||||
In an external rotor EC motor the permanent magnet rotor is the outermost rotating shell and the stator windings are fixed at the center. The impeller mounts directly onto this rotating outer shell and eliminates a separate shaft coupling and bearing housing. The result is a dramatically more compact and lighter assembly shorter axial length and inherently lower vibration because the rotor itself acts as a flywheel to damp imbalance. | ||||||||
Q5:What protection rating and service life can I expect? | ||||||||
Blauberg external rotor EC fans are built with IP55-rated sealed motors and precision imported bearings rated for 40000-50000 hours of continuous operation. That is roughly 5-6 years at 24/7 duty or well over a decade in intermittent HVAC service. The brushless EC commutation eliminates carbon brush wear which is the primary wear-out mechanism in traditional AC motors. | ||||||||
Q6:Which certifications are required for different markets, and do your products carry them? | ||||||||
For North America UL and ETL listing is the gateway requirement. CE EMC and RoHS covers the EU and most export markets. CB certification enables acceptance across 50+ countries. Over 80% of Blauberg EC fan range carries UL ETL CE CB and FCC certifications as standard with ISO 9001 14001 and 45001 factory system certification. Specific compliance documents can be provided per SKU for project submissions. | ||||||||
Ordering and Pricing
- Minimum order quantity: 1 bag
- Volume pricing:
- 1–29 bag: US $122.87 / bag
- 30–499 bag: US $105.92 / bag
- 500+ bag: US $102.14 / bag
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling ventilation plug fan?
The standard minimum order quantity is 1 bag. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling ventilation plug fan be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Blauberg Motoren Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Blauberg Motoren Technology Co., Ltd. range on HVACR Nexus.
