Key specification for this cross flow fan: model P3H, certificate UR, ISO. Everything below is reproduced from the factory data sheet. Made by Nanjing Colorfan Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Impeller Material: ALU (PAG, PACAS)
- Warranty: 1 years
- Place Of Origin: Changzhou
- Single Package Size: 60X60X10 cm
- Single Gross Weight: 10.0 kg
- Customized Support: OEM, ODM
Technical Specifications
| Warranty | 1 years |
|---|---|
| Customized Support | OEM, ODM |
| Place Of Origin | Changzhou |
| Brand Name | COLORFAN |
| Product Name | Axial fan impeller |
| Model | P3H |
| Diameter | 500-600mm |
| Impeller Material | ALU (PAG, PACAS) |
| Blade | 3-16 blades |
| Angle | 20-50 degree |
| Certificate | UR, ISO |
| Air Volume | 6000-26000 m3/h |
| Customize | Color, 20 pieces MOQ |
| Usage | Air Condition, Air compressor, draught fan, Hydraulic cooler, Diesel |
| Selling Units | Single item |
| Single Package Size | 60X60X10 cm |
| Single Gross Weight | 10.0 kg |
Product Details
Overview

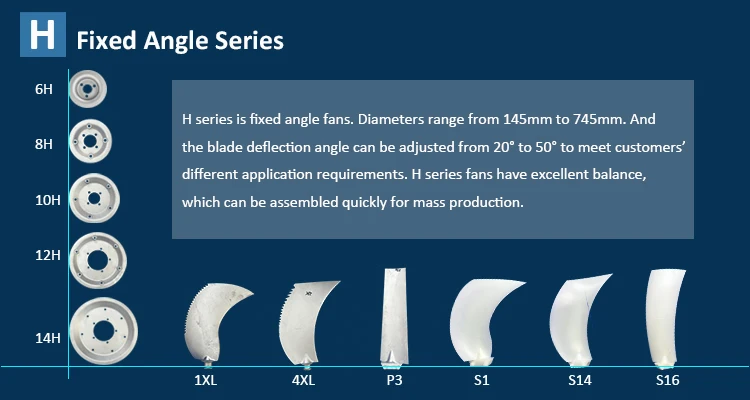

H series
Diameter of H series Fan range from 145mm to 745mm, impeller angle can be adjusted from 20° to 50°, it has good balance and can be produced quickly for massive production.
Z series
The application of Z series is very wide. It can load heavily and can equip with various impellers. The mount mode of blade root is universal, which is fixed within a specified angle range through the position pin, the stability is good.
W series
The load of W series fan is large. It is commonly used in generator sets, fans, air conditions and other equipment. The maximum diameter of the fan is 2010mm.
Product Paramenters

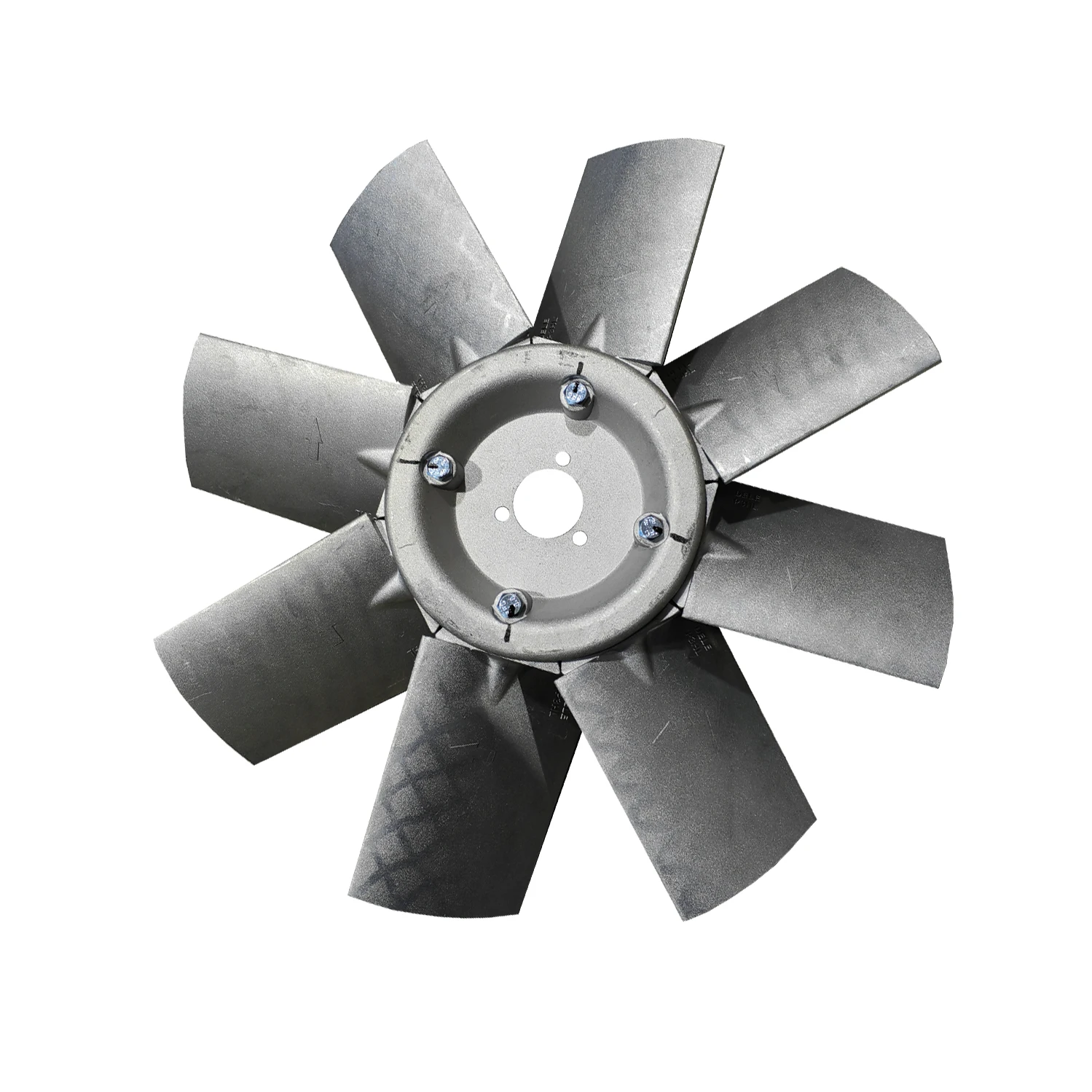

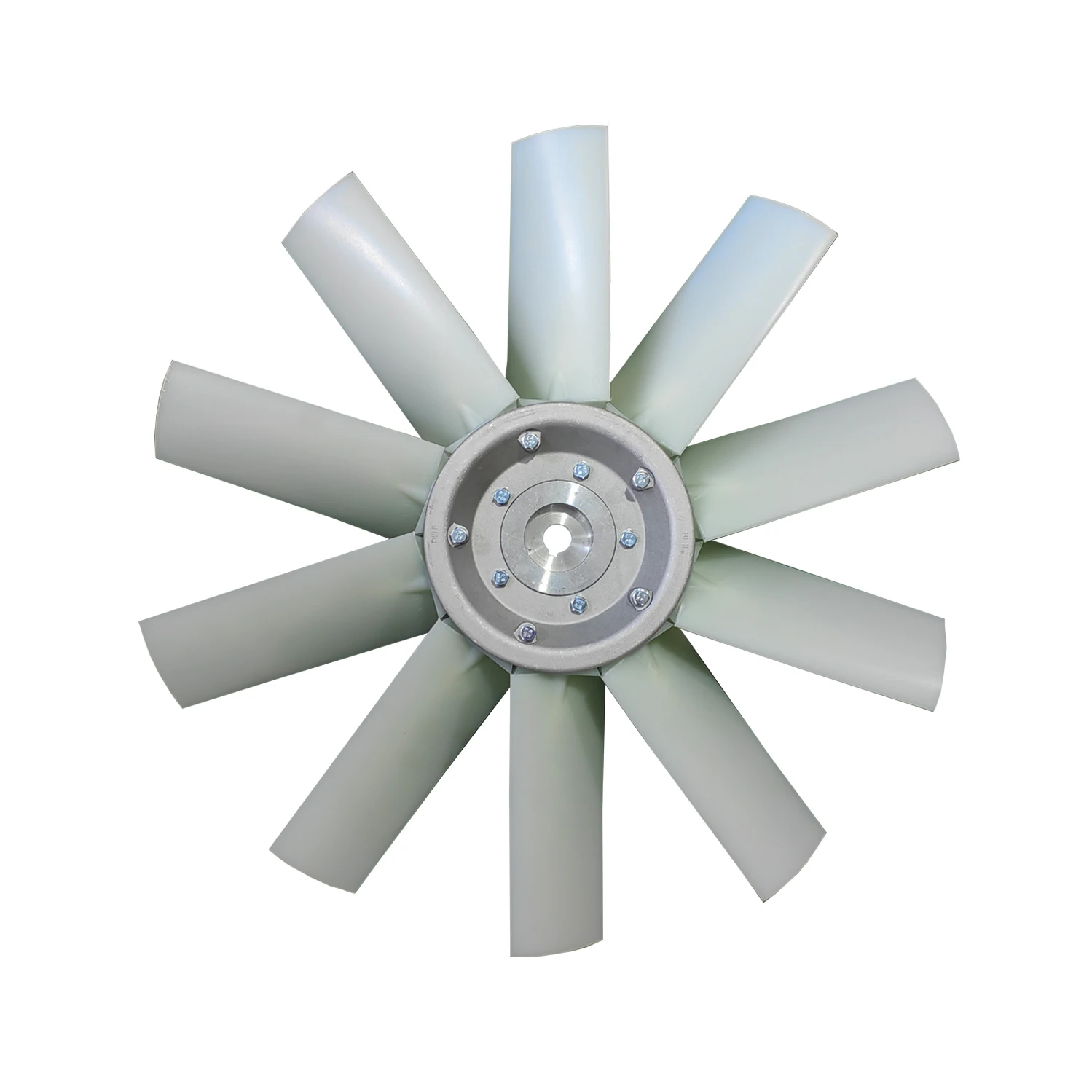

P3H

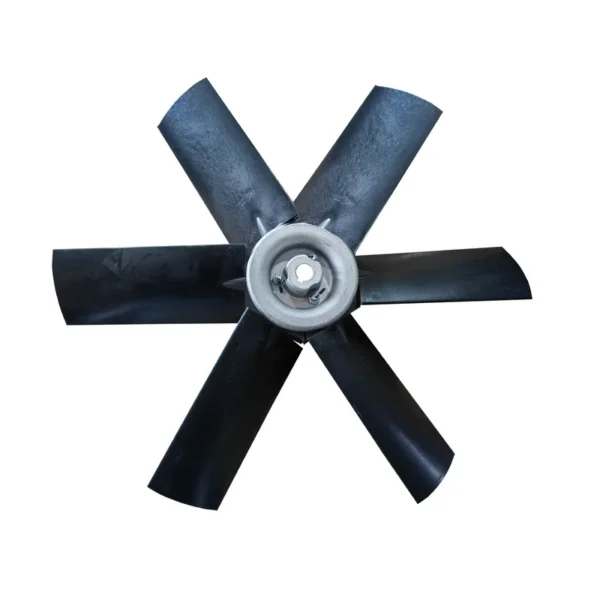

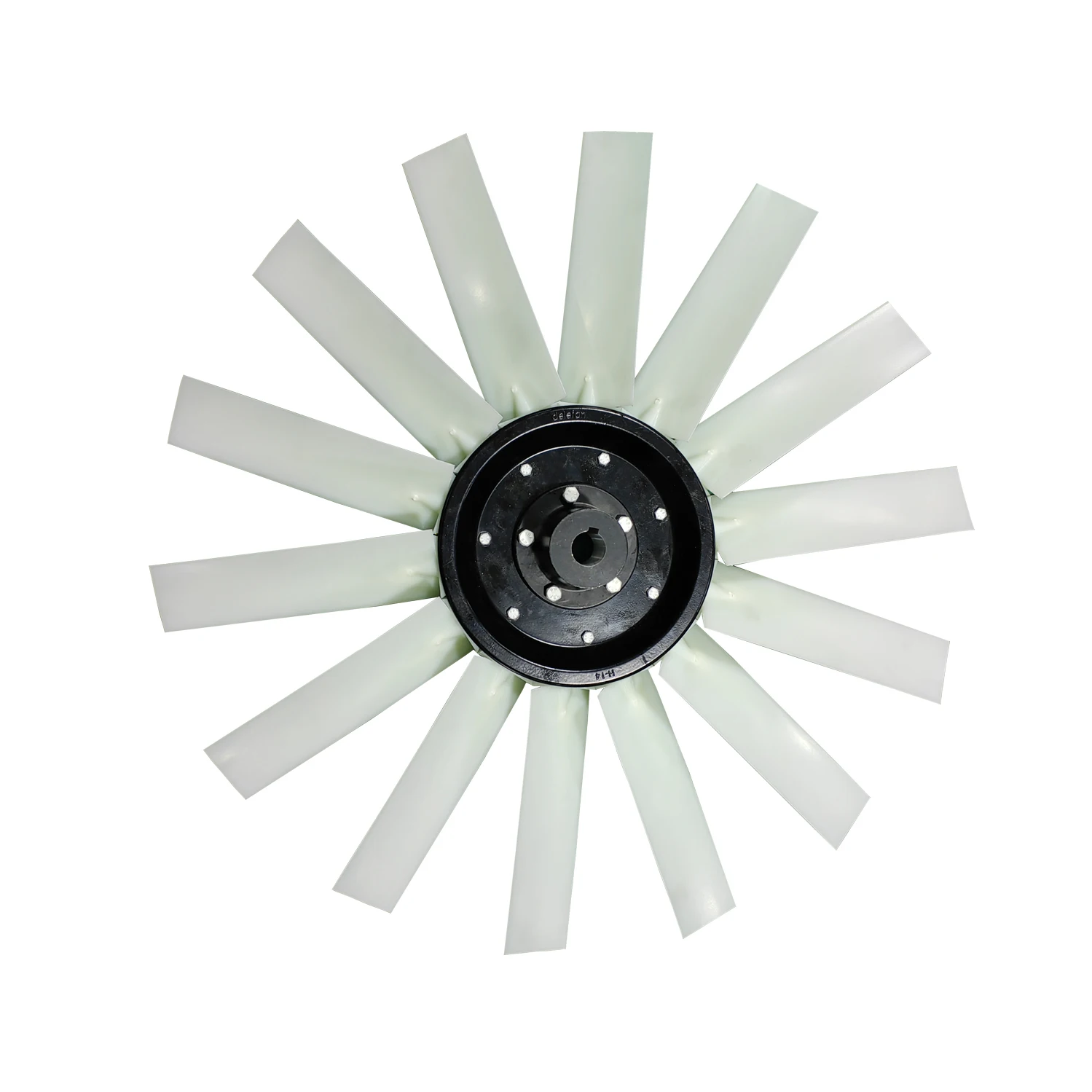

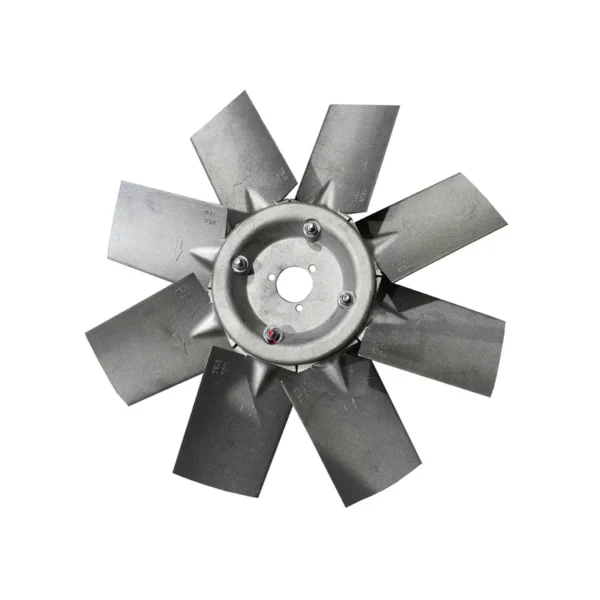

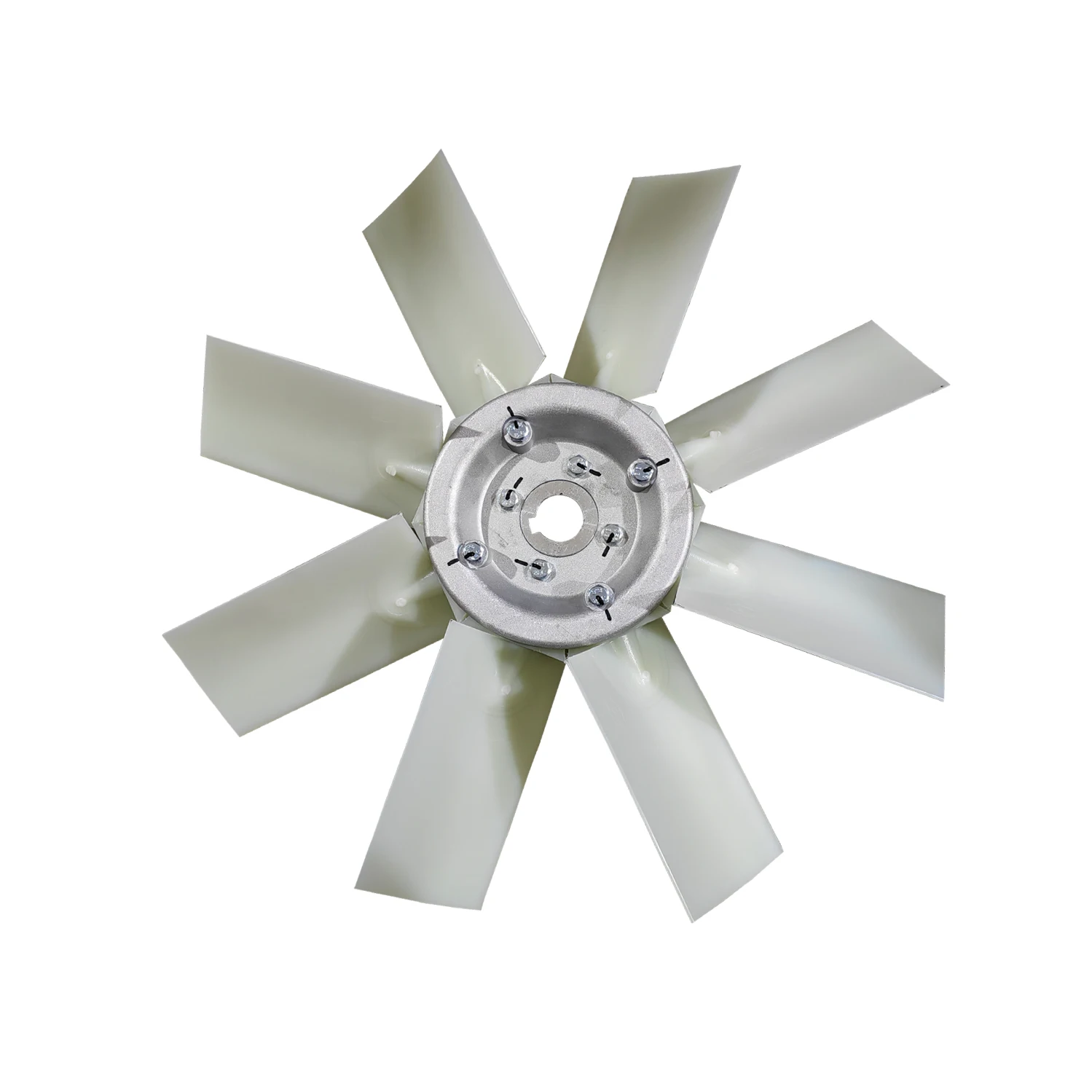

The P2H and P3H series axial fans are available with optional airfoil blades for a wide variety of applications including HVAC, compressors, and engine-driven equipment. The design of the blade size can ensure that when the airflow flows through the blade surface, the distribution of the flow rate on the whole blade surface is very uniform, so as to achieve the best performance of the impeller. Compared with the fans processed by one-time injection molding or stamping process, the series of fans of ColorFan have the following advantages:
* High efficiency
* Less power consumption
* Low noise

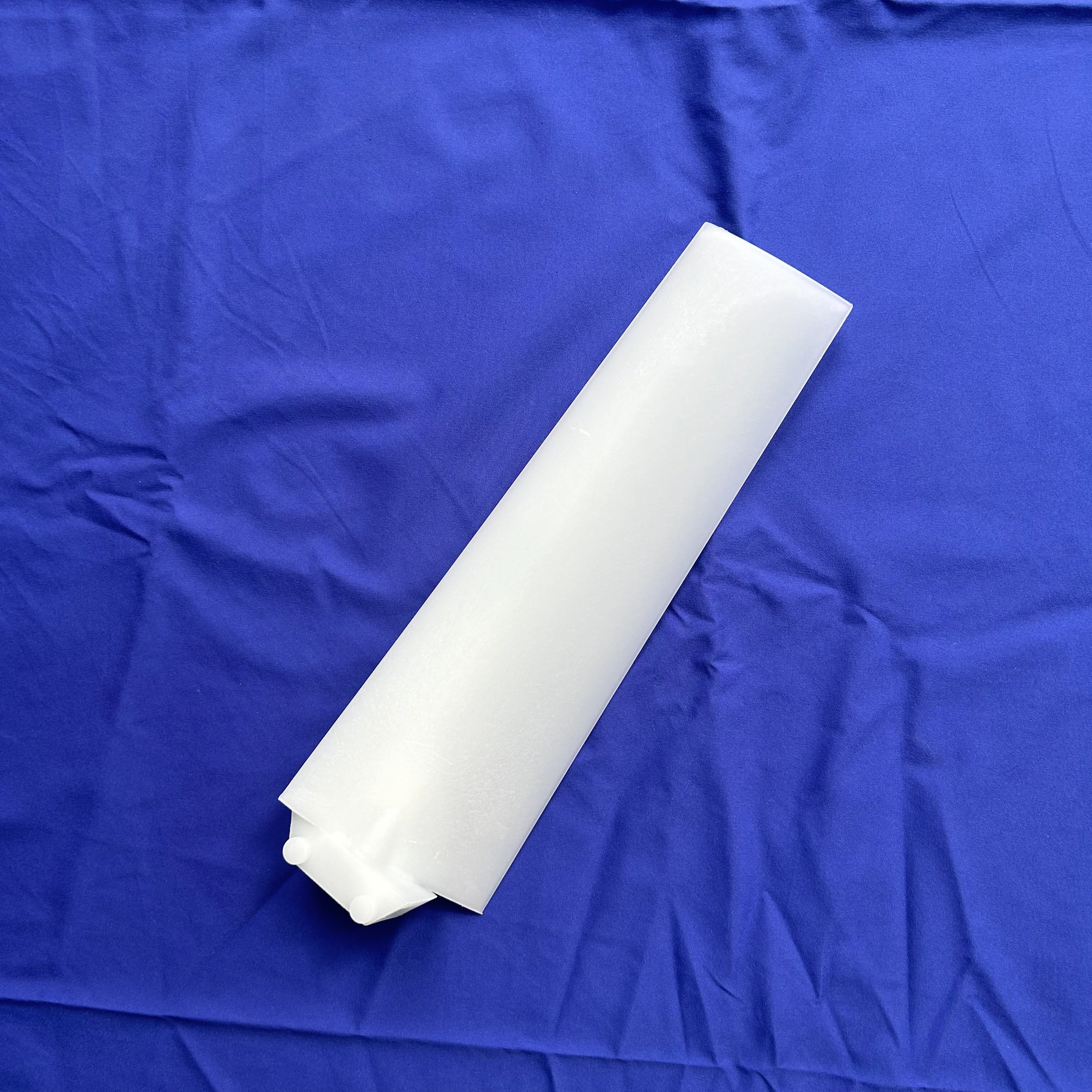

P3H Blades

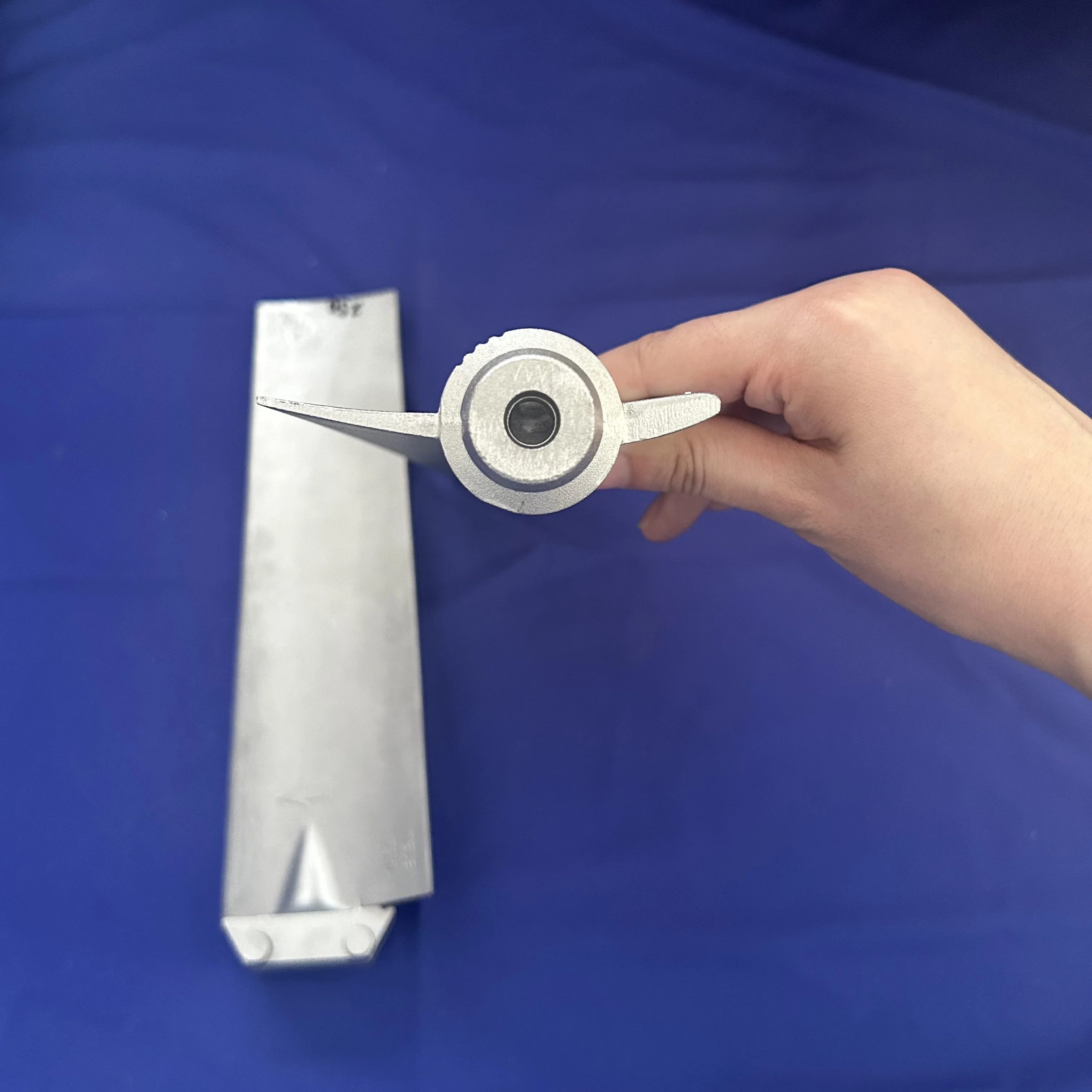

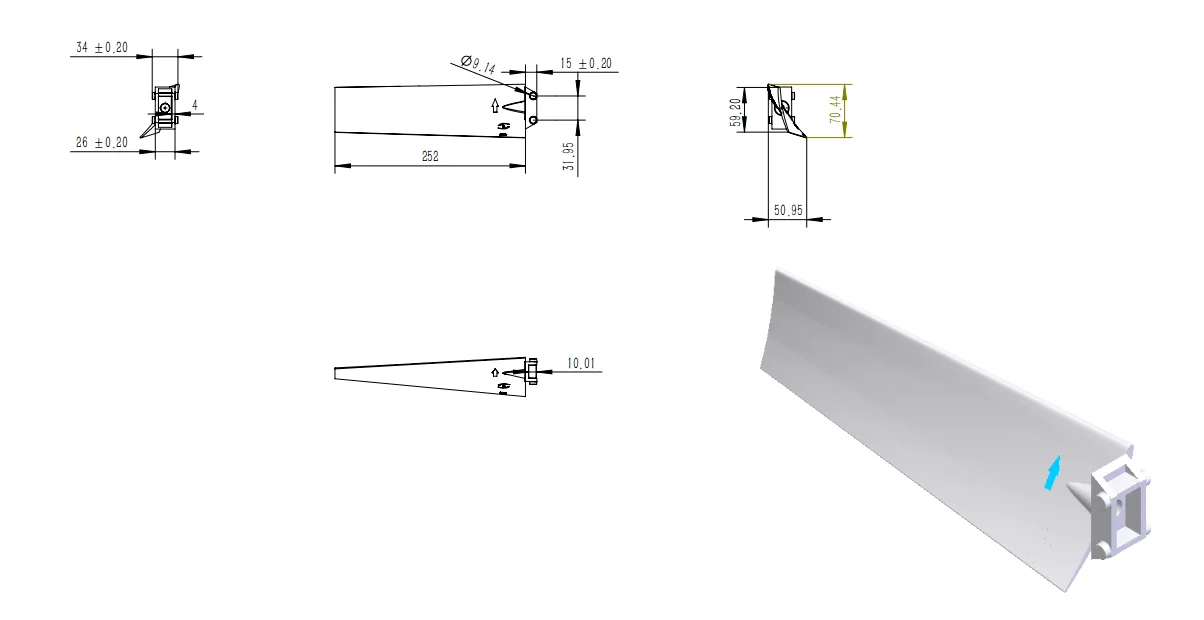

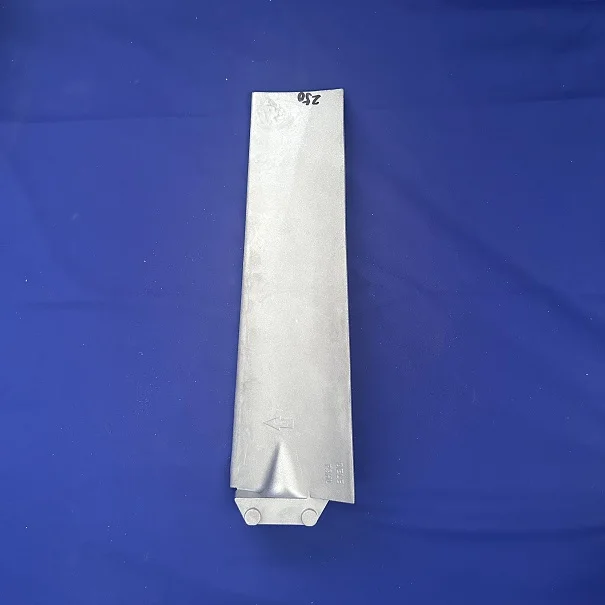

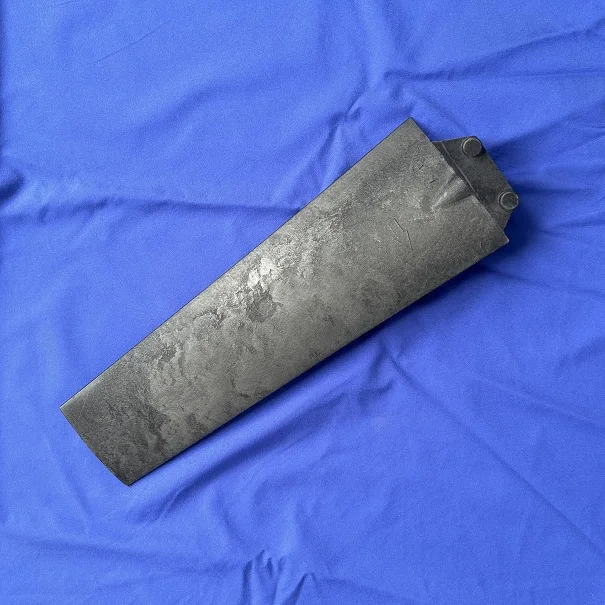

The fans range in diameter from 141 to 745 mm, and the blade deflection angle can be adjusted from 25 ° to 50 ° to meet customers' different application requirements *. The shape of the P3H blade is only a geometric enlargement of the P2H blade, and the H-shaped root design of the two is exactly the same. The root of the H-blade is locked in the corresponding fan hub to ensure that the blade will not be displaced after installation and the twist angle will remain unchanged. Blades injection molded from high strength thermoplastics or die cast from aluminum alloys have the following notable features:
*Light weight but with high strength
*Corrosion resistance
*Two different root option and different blade materials option
Information that customers need to offer.
a) Drive mode: motor/engine (offer drawing: power/pole number/rotate speed/axle pole);

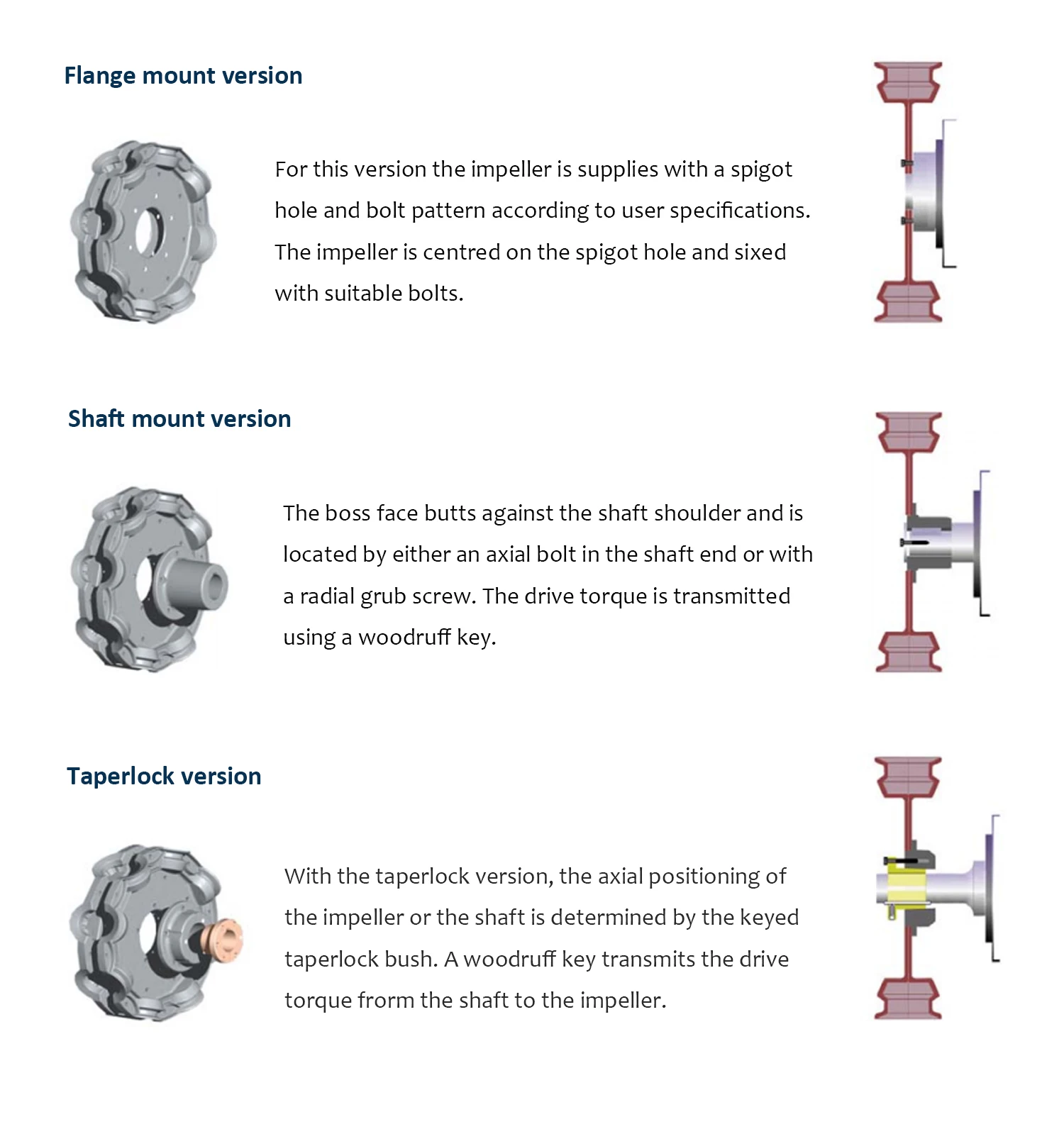

b) Connection mode: Flange/ Axle (taper bushing);
c) Application: For example ventilation, heat ejection, fog gun, graziery;
d) Do you want us to install the complete machine (including motor, wind canister etc);
e) Your operation point (temperature, height, air volume, air pressure);

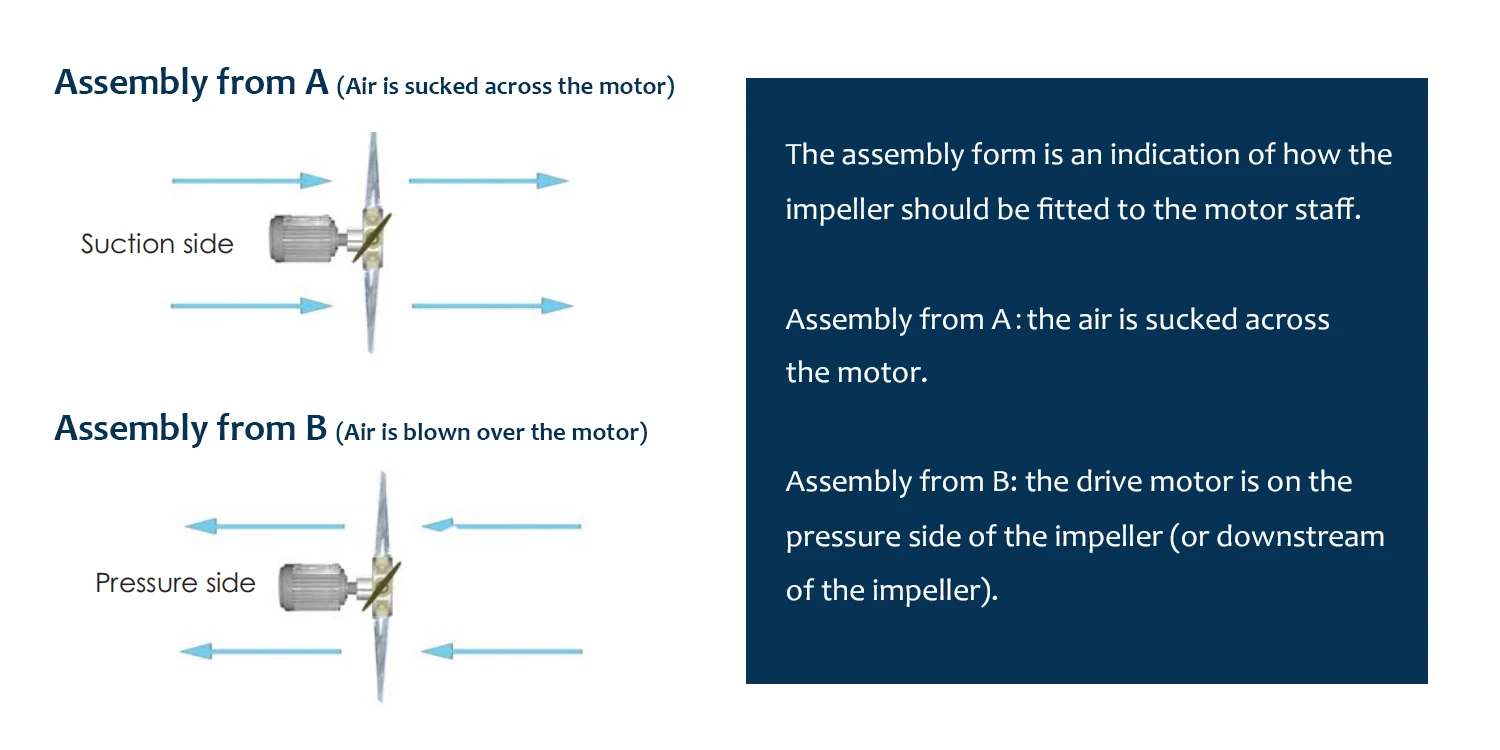

f) Installation mode: clockwise or anticlockwide
g) Blade diameter etc.
b) Connection mode: Flange/ Axle (taper bushing);
c) Application: For example ventilation, heat ejection, fog gun, graziery;
d) Do you want us to install the complete machine (including motor, wind canister etc);
e) Your operation point (temperature, height, air volume, air pressure);
f) Installation mode: clockwise or anticlockwide
g) Blade diameter etc.
Different Options
PAG
Material: Nylon 6, Black, white
Temperature: -40℃ to 110℃
Characteristic: Anti-aging
Application: Heavy load
PACAS
Material: Nylon 6, blue-grey
Temperature: -30℃ to 110℃
Characteristic: Fire resistance
Application: Explosive danger
Characteristic: Fire resistance
Application: Explosive danger

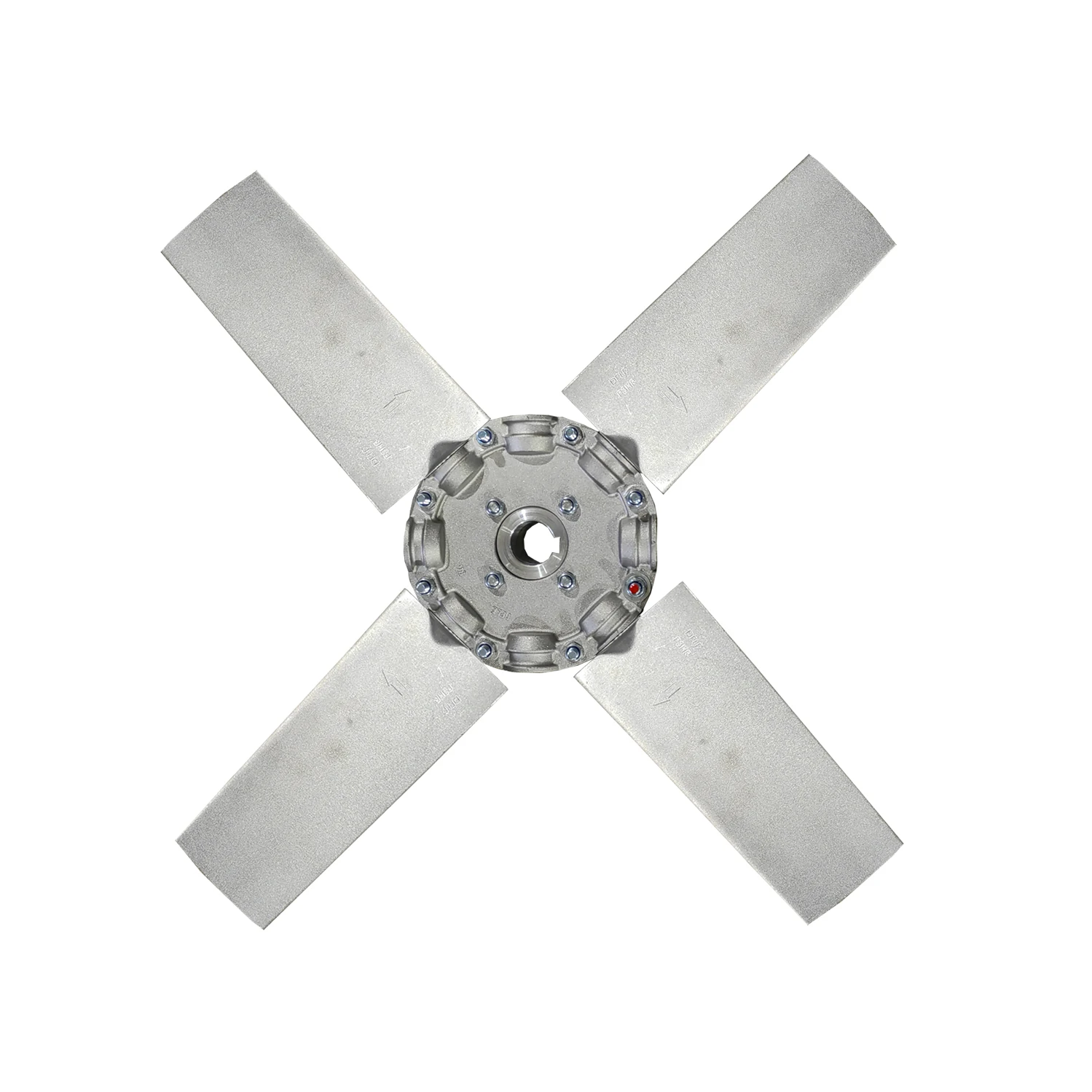

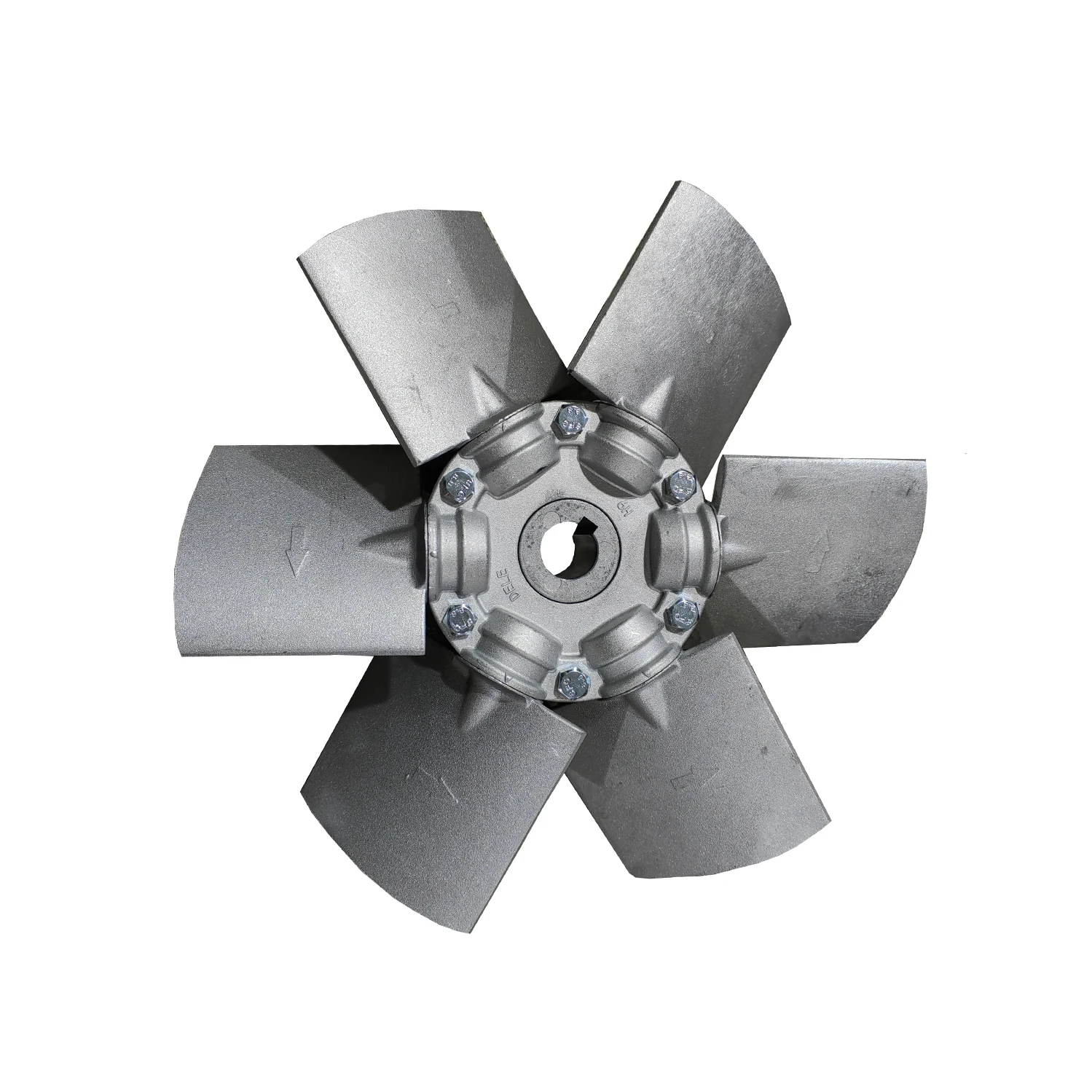

ALU
Material: Die-cast aluminum alloy
Temperature: -40℃ to 150℃
Characteristic: Large temperature range
Application: High temperature
Characteristic: Large temperature range
Application: High temperature

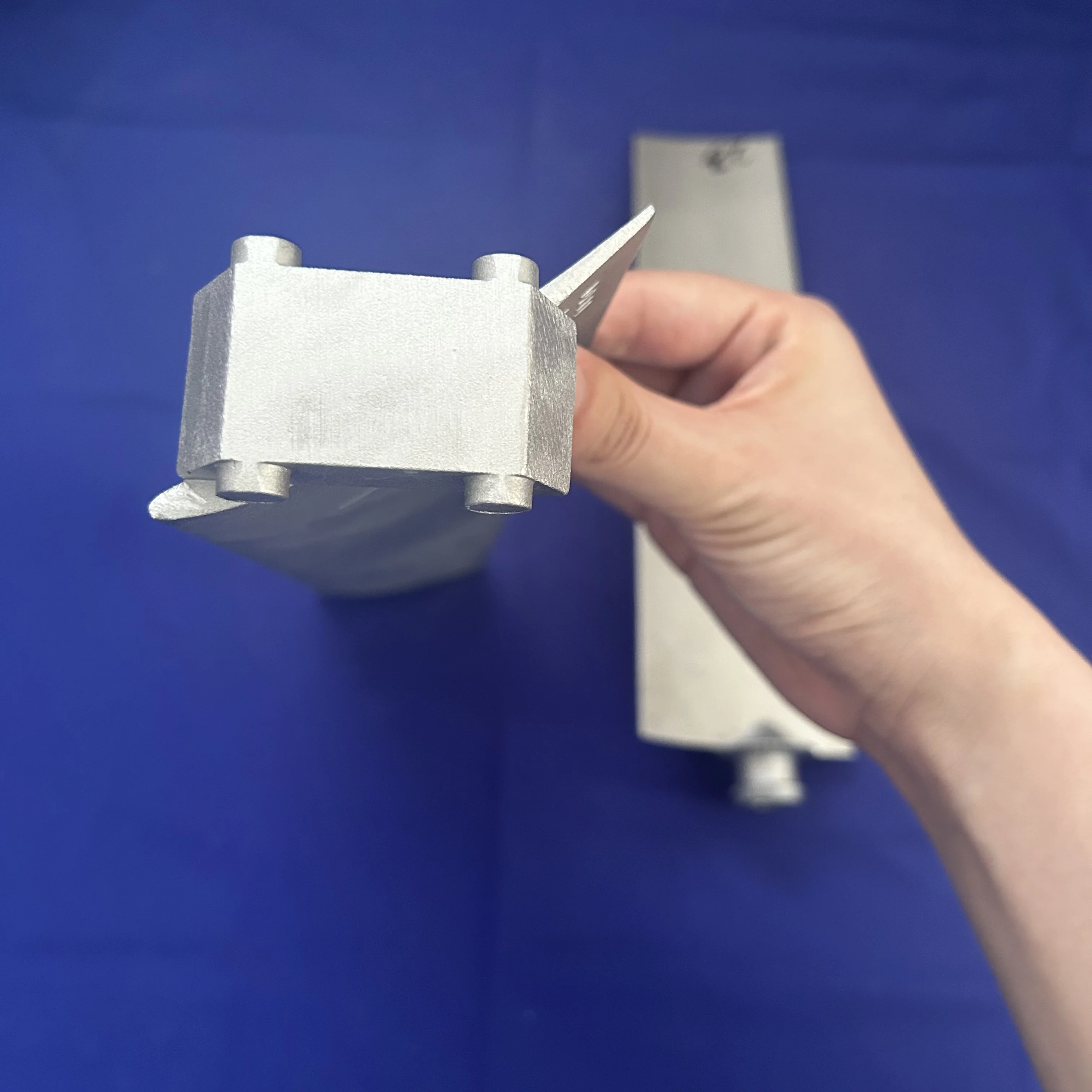

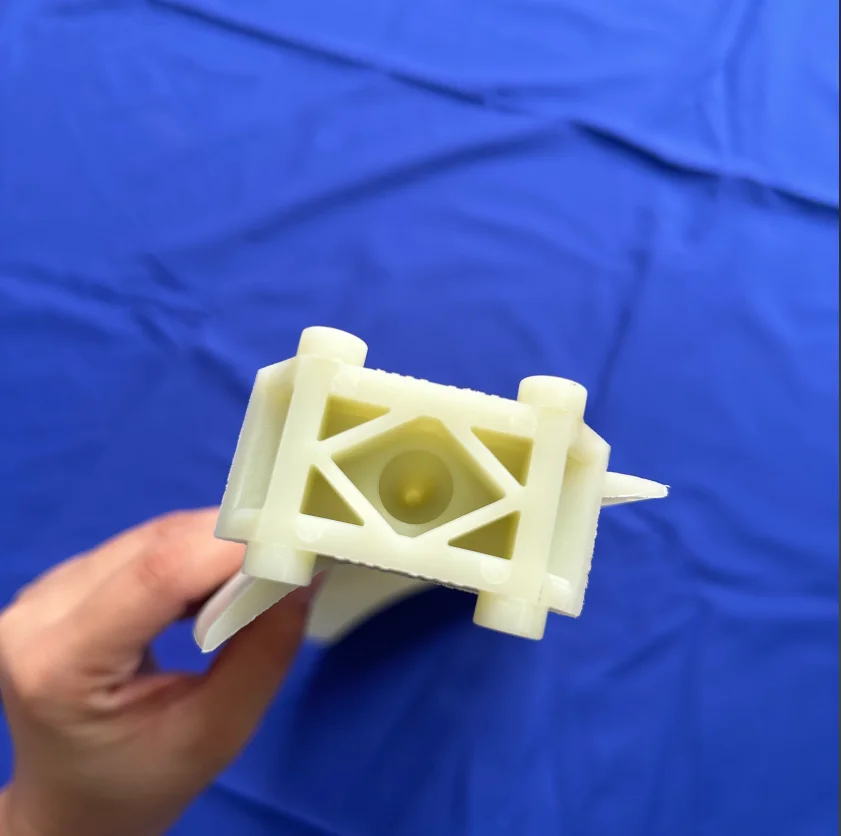

H root
Circle root

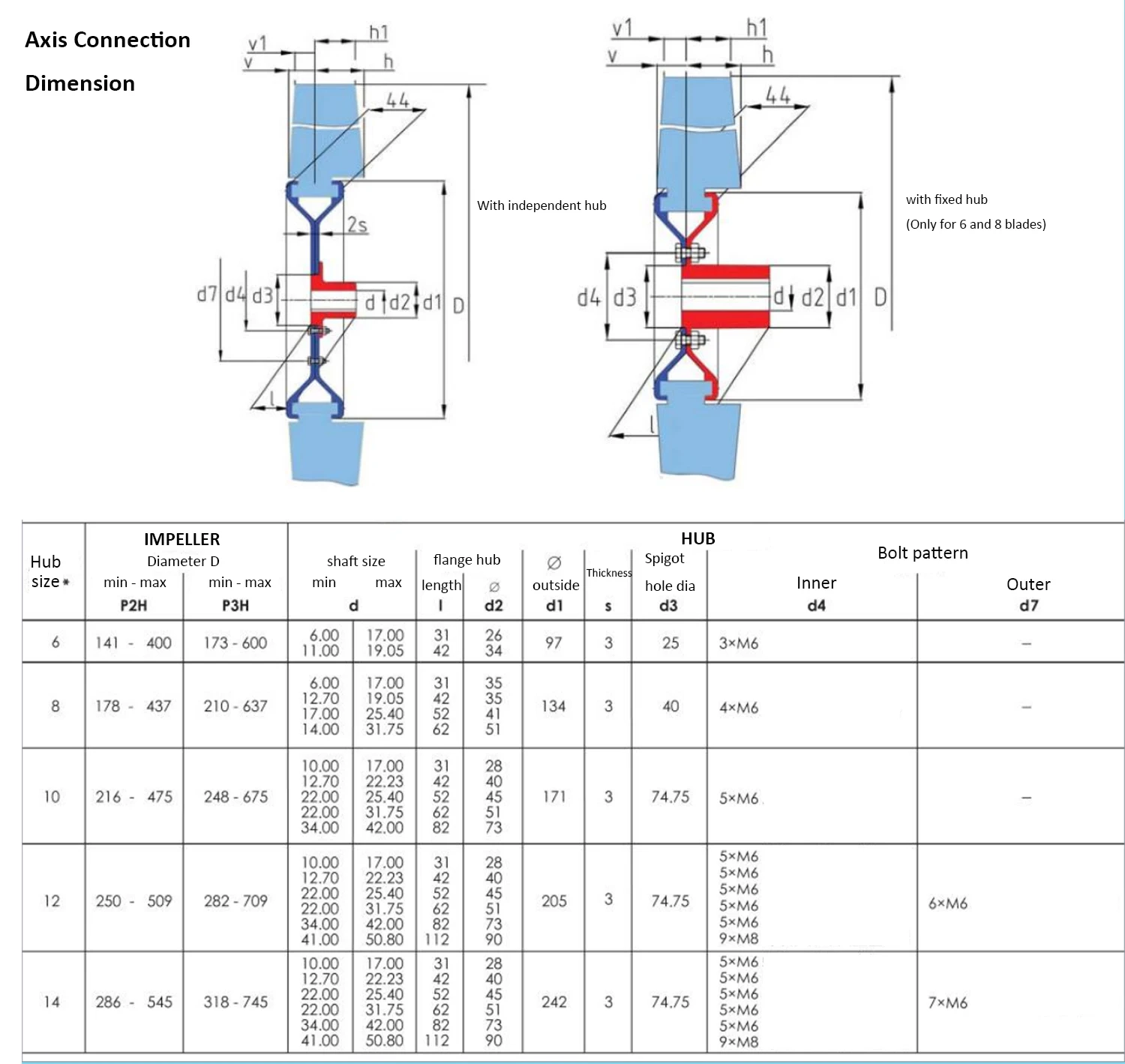

Blade number | Fan diameter mm (min-max) | Fan Hub | ||||||||
P2H | P3H | D6 | D5 | s | ||||||
6 | 141-400 | 173-600 | 9 | 30 | 53 | 3 | ||||
8 | 178-437 | 210-637 | 15 | 42 | 68 | 3 | ||||
10 | 216-475 | 248-675 | 25 | 76 | 107 | 3 | ||||
12 | 250-509 | 282-709 | 25 | 125 | 148 | 3 | ||||
14 | 286-545 | 318-745 | 25 | 142 | 170 | 3 | ||||
Application
H series interview
Company Profile
Package
FAQ

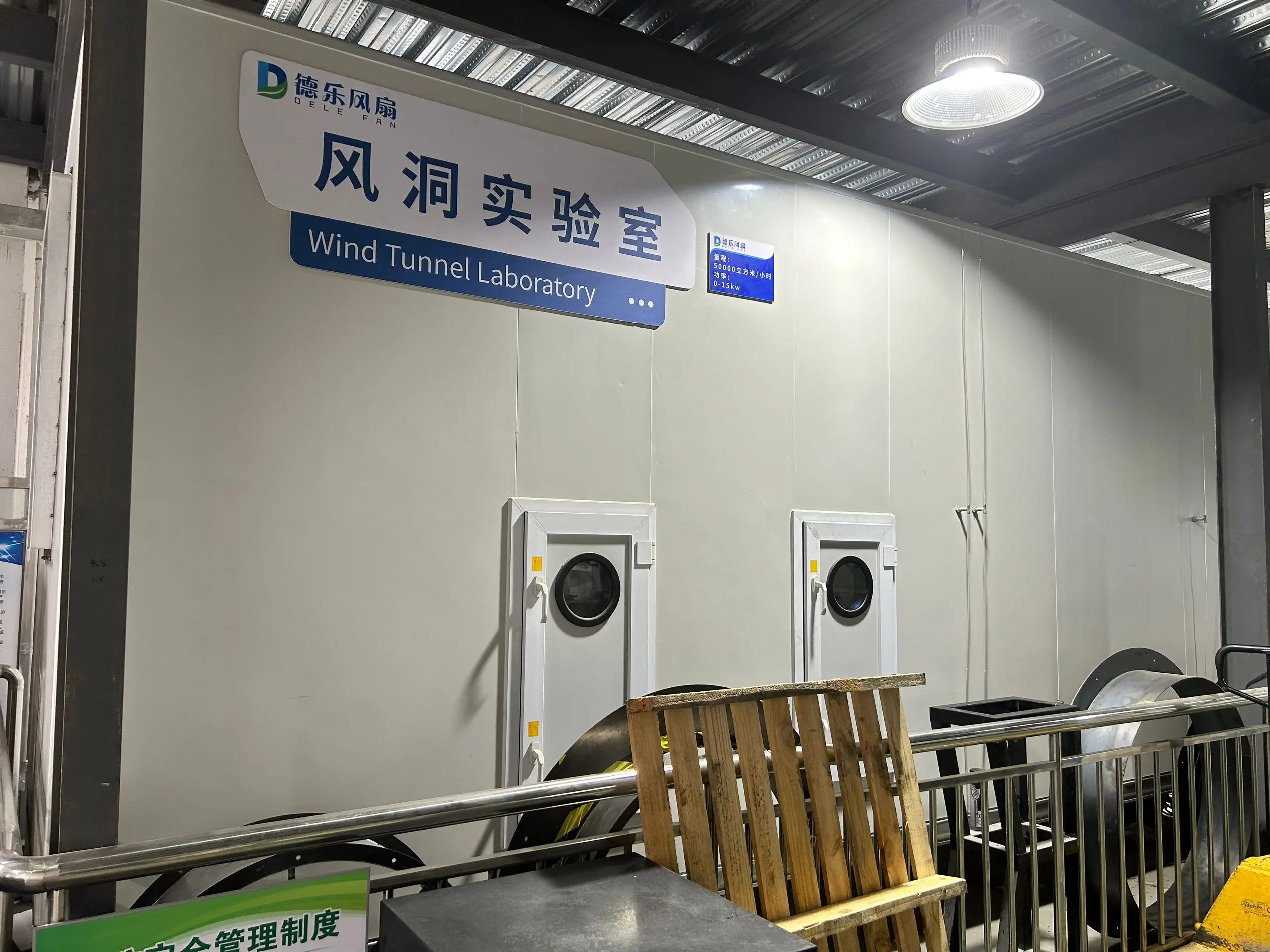

Q1. Can I get a sample piece to test before ordering in a bulk? Of course, we support sample service after confirming the detailed blade model, flange and axle sizes and shape. The quality for bulk order would be exactly same as the sample ones. Q2. Can you confirm your fan can be replaced on our machines? Yes, all fans can be replaced. We can machine the connection holes and bushings, to confirm the fan can be fitted. Besides, we will balance and match the angle to the power speed to ensure its safety. Q3. Do you have a factory? Yes, our factory is located in Changzhou, JiangSu. We produce and export series of cooling fan, axiel fan, draught fan etc with high-end quality. Our factory has 60 people' team and four departments including fan manufacturing, mould processing, injection molding and wind tunnel test. Products range from fields of engineering machinery, engine, cooling machines, central air-conditioning, refrigeration equipment, screw air compressor, wind power equipment etc. Q4. How's your production capacity per year？ Annually 300K pieces. Q5. How about the delivery time? No matter sample or bulk order, the delivery time would be around 15 days. If you need the customization of the shapeness or color on fan blades, delivery time would be longer accordingly. Q6. How to order? First, contact our sales, show them the specification or image of what kind of fans you want. Second, our technics will check which model would be most suitable for you. Sales will quote you the detailed price. Third, if all good to you, we will make sample according to your request. Then deal with official order. Our sales will serve you quickly and must reply within 6 hours because of the time difference.
Q7. Information that customers need to offer.
a) Drive mode: motor/engine (offer drawing: power/pole number/rotate speed/axle pole);
b) Connection mode: Flange/ Axle (taper bushing);
c) Application: For example ventilation, heat ejection, fog gun, graziery;
d) Do you want us to install the complete machine (including motor, wind canister etc);
e) Your operation point (temperature, height, air volume, air pressure);
f) Installation mode: clockwise or anticlockwide
g) Blade diameter etc.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cross flow fan carry?
It is supplied with UR, ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
