The exhaust air cooling fan listed here carries 120 V, 110V, 220V, 380V, 415V, 480V, power source Electric, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
This exhaust air cooling fan is listed with the manufacturer’s full published specification — voltage 120 V, 110V, 220V, 380V, 415V, 480V, power source Electric, blade material Cast Iron. It is produced by Dongguan Minxin Industry Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Exhaust Air Cooling Fan
- Model Number: 1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm
- Power Source: Electric
- Voltage: 120 V, 110V, 220V, 380V, 415V, 480V
- Blade Material: Cast Iron
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 120 V, 110V, 220V, 380V, 415V, 480V |
|---|---|
| Mounting Type | Wall Fan |
| Type | Duct Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Cast Iron |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM, OBM, Private labeling |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Guangdong, China |
| Brand Name | MINXIN |
| Model Number | 1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm |
| Selling Units | Single item |
| Single Package Size | 122X122X35 cm |
| Single Gross Weight | 60.000 kg |
Related Products
Product Description

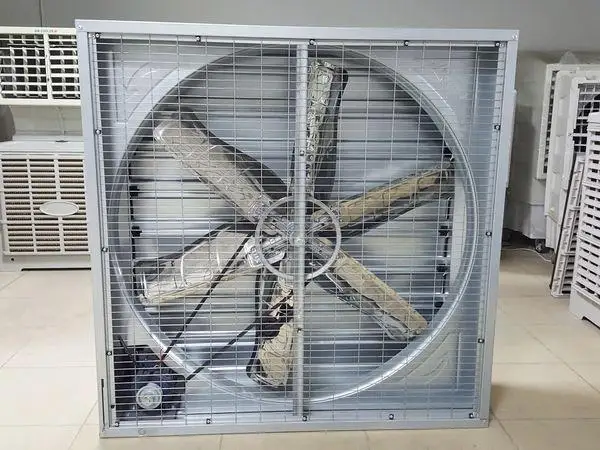

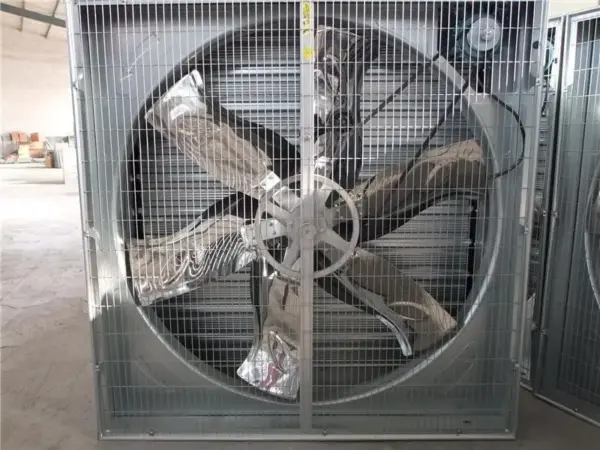

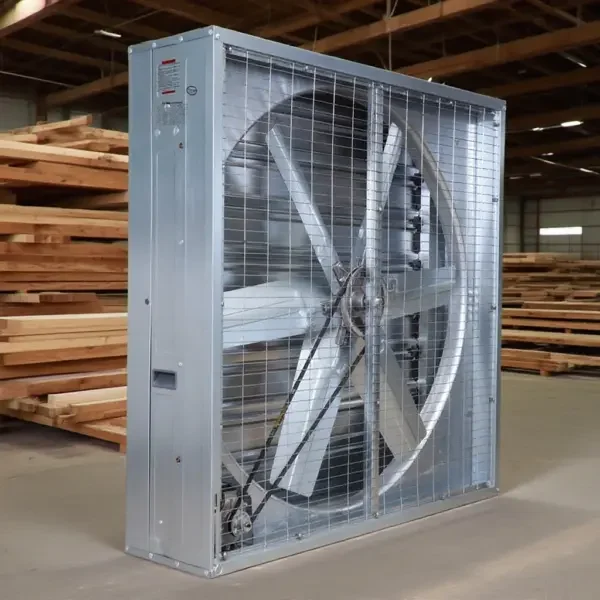

The 1220mm heavy duty/high speed ventilation exhaust fan keeps odors, moisture and heat out the area in hot summer days or for just air circulation in the winter, with automated shutters to keep out the rain, bugs and dust
High Air Flow Duct Ventilation Industrial Exhaust Fan with Centrifugal System for Chicken Farm Livestock Technical Details
|
Type:
|
Standard
|
OEM
|
|
Fan Size
|
1220mmx1220mmx350mm (48″ x 48″x 14″)
|
Any size
|
|
Fan Diameter(inch)
|
44
|
44
|
|
Fan Color
|
Silver
|
Painted or coating in any color
|
|
Fan Blade Material:
|
1.1mm/19 gauge galvanized steel
|
as per customers’ requirements
|
|
Fan Frame Material:
|
0.7mm/24 gauge galvanized steel
|
0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel
|
Details Images

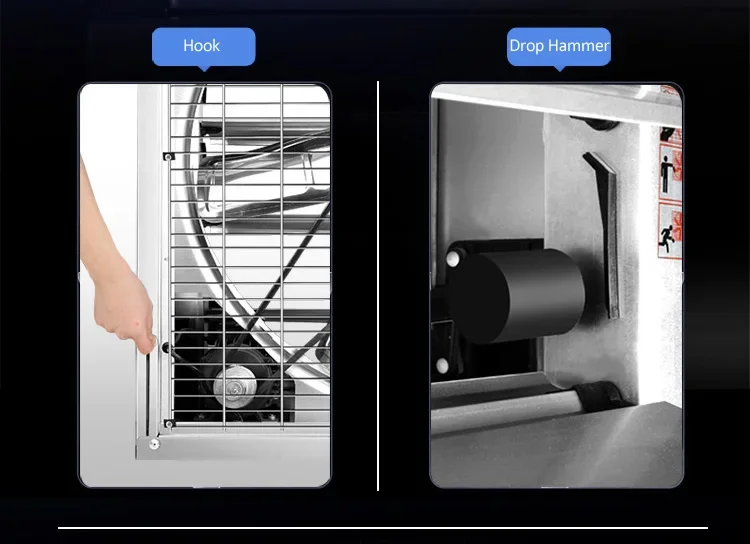

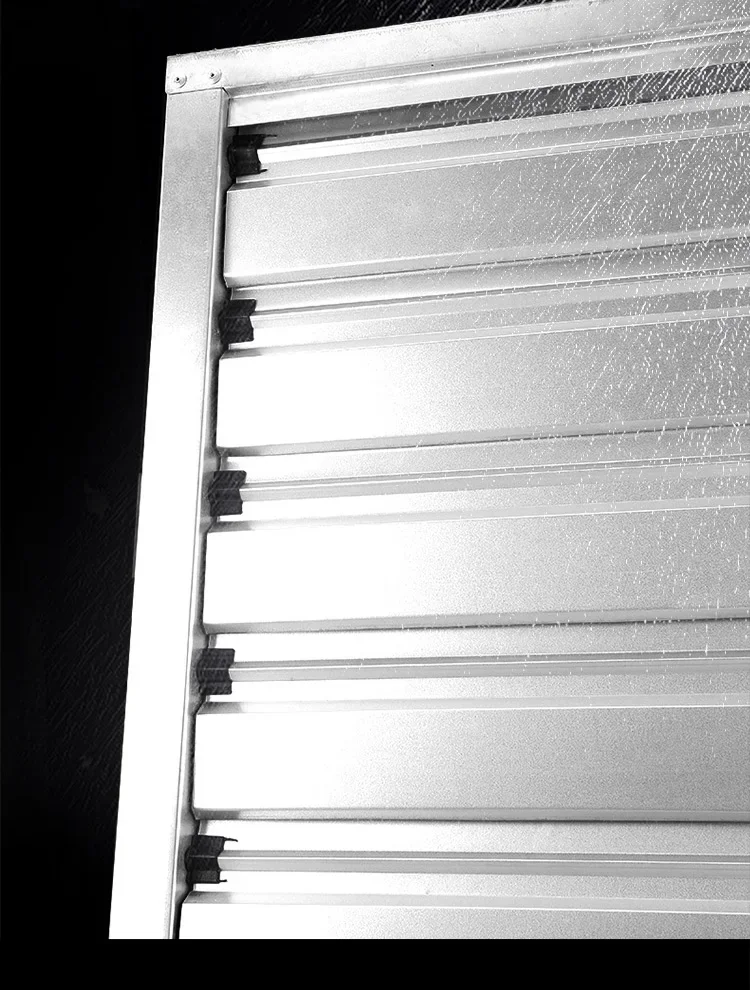

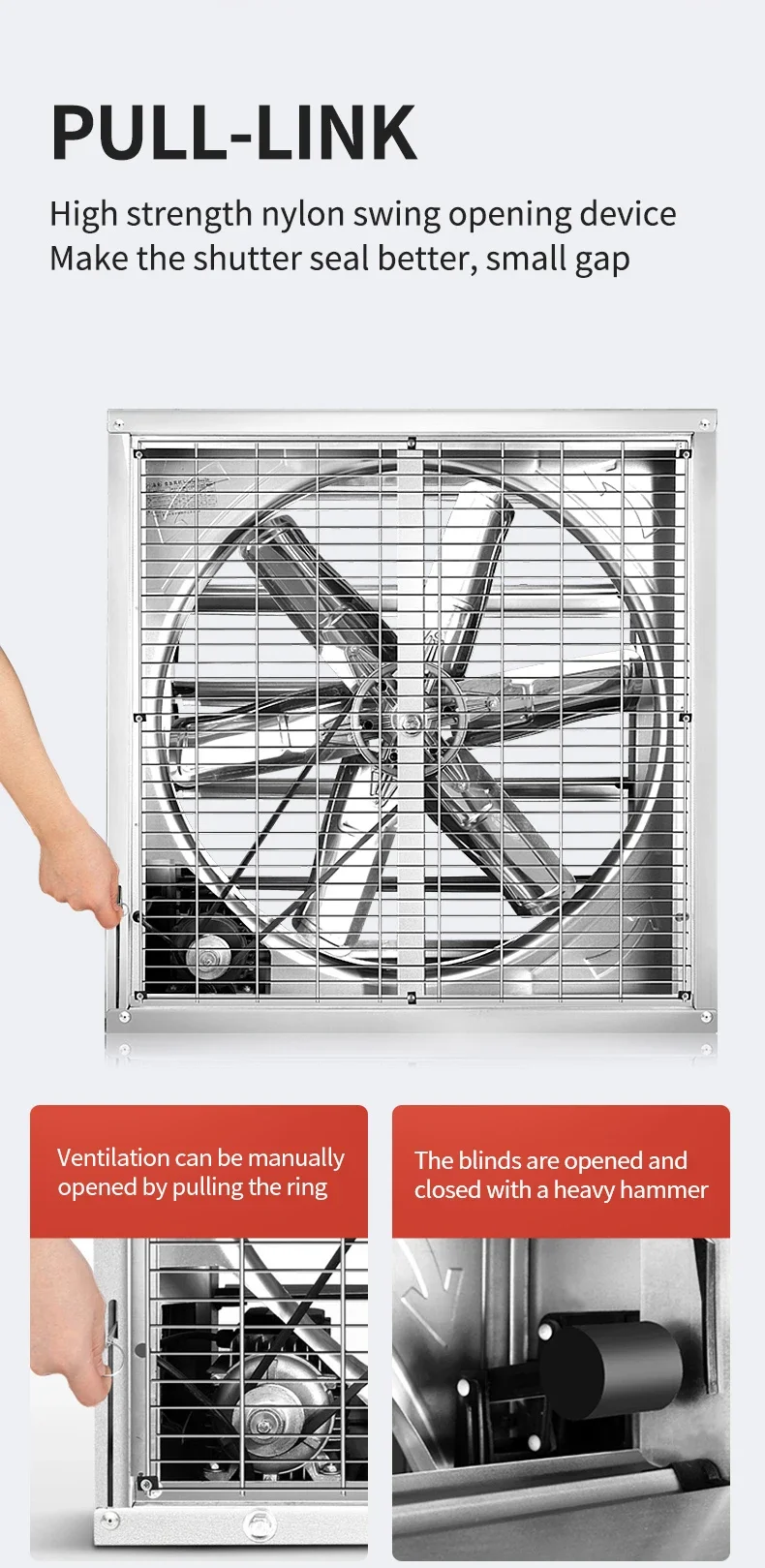

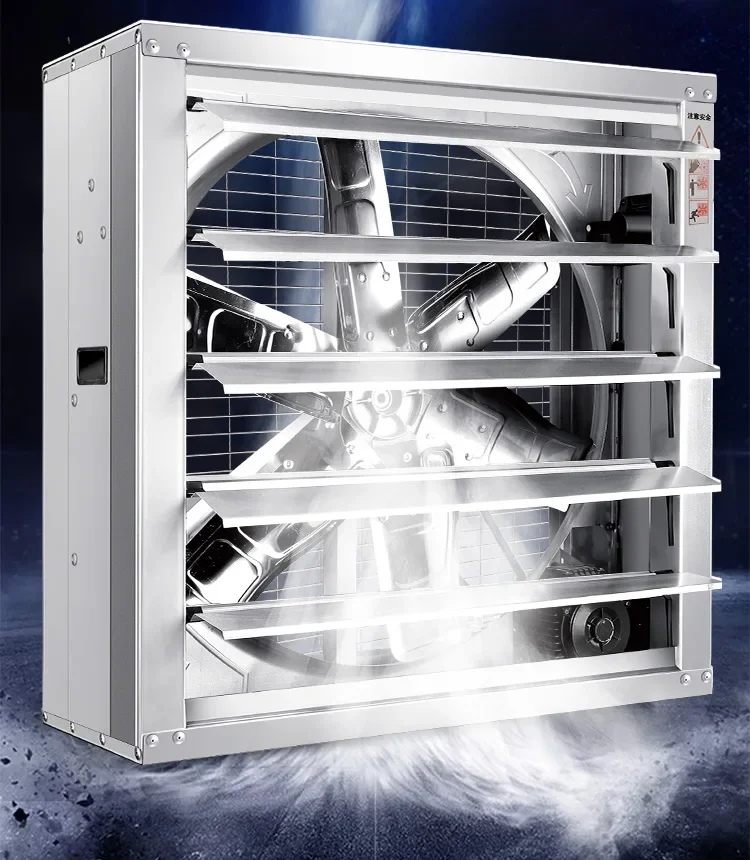

Exhaust Fan Shutter
Fan shutters can be fully closed to keep out the rain, dust, pest and light.

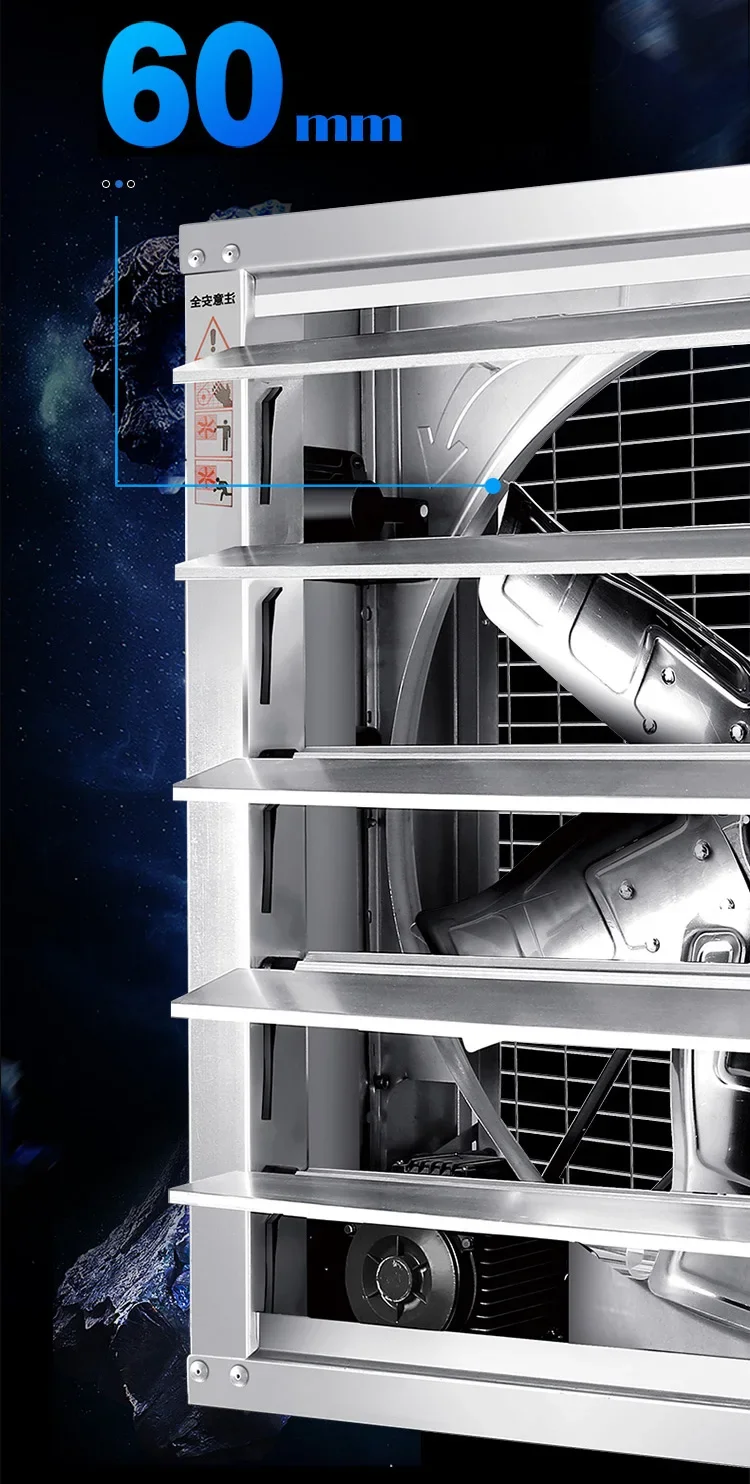

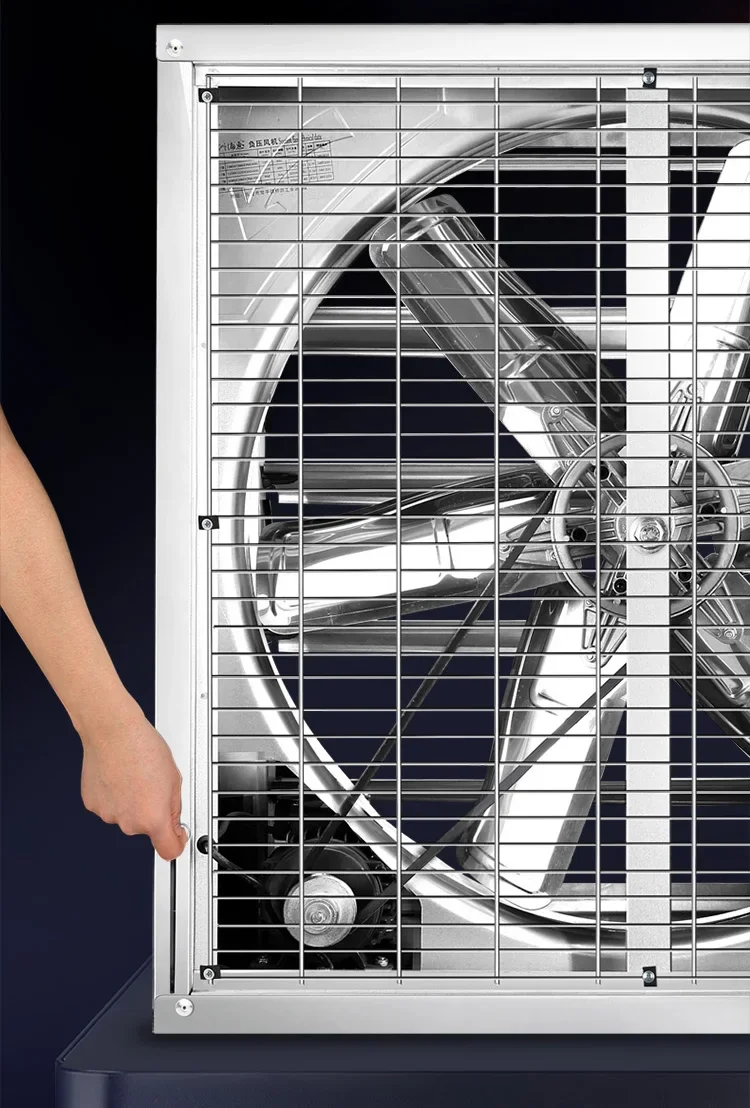

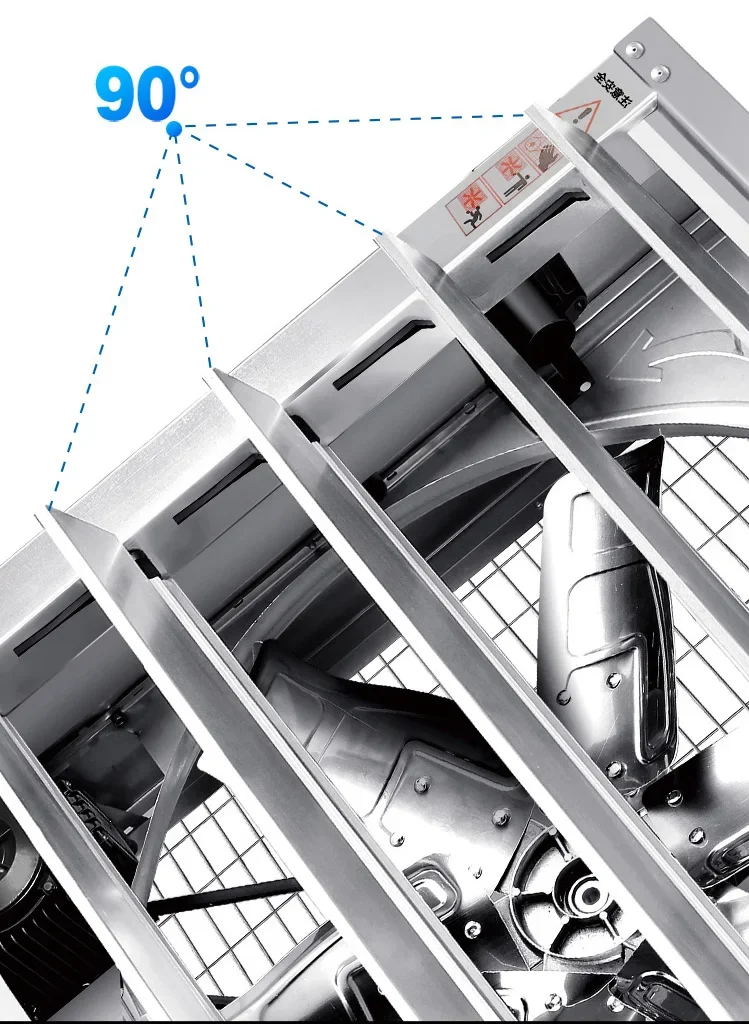

90° Fully Open Fan Louver
The fan louvers can be fully opened to intake the largest amount of fresh air.

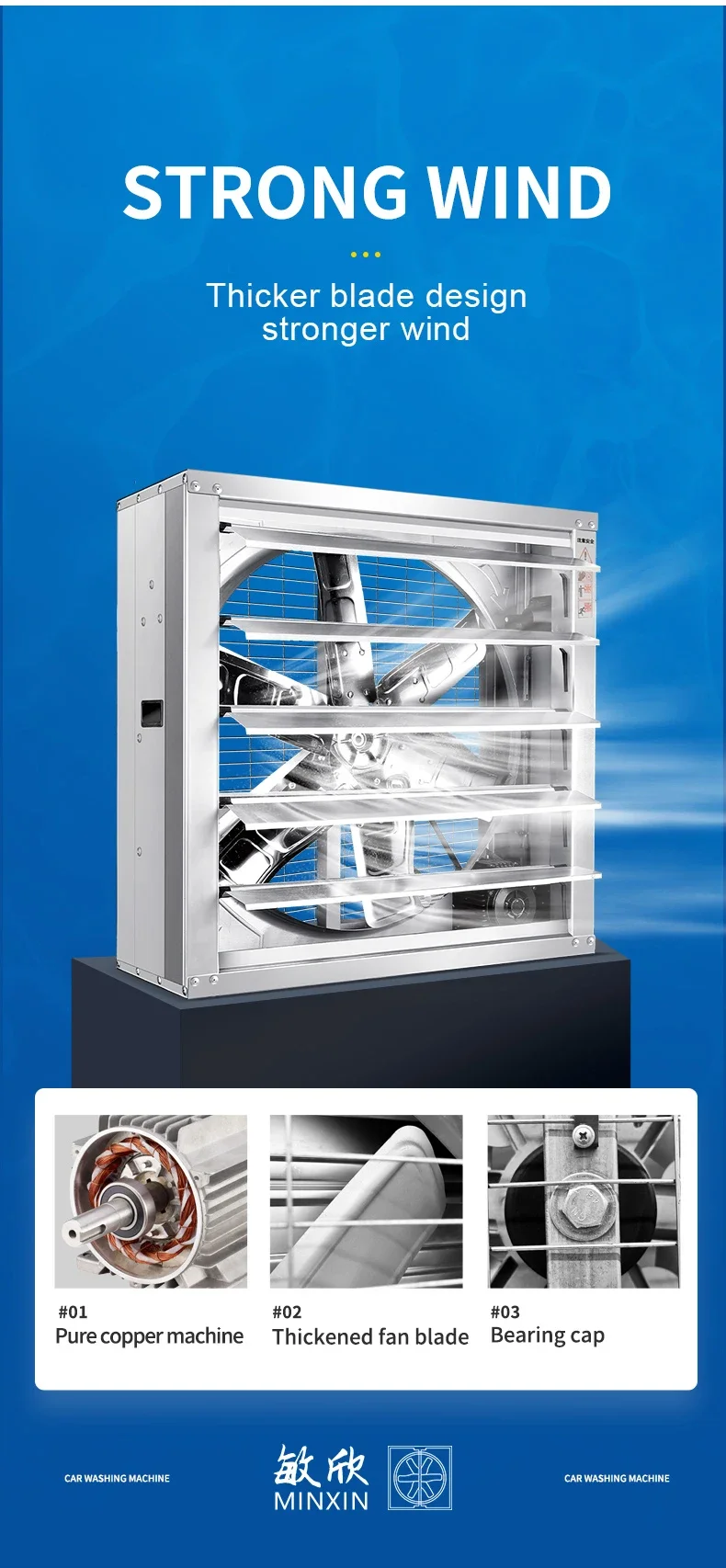

Higher Blade Curved Braket, higher airflow volumn

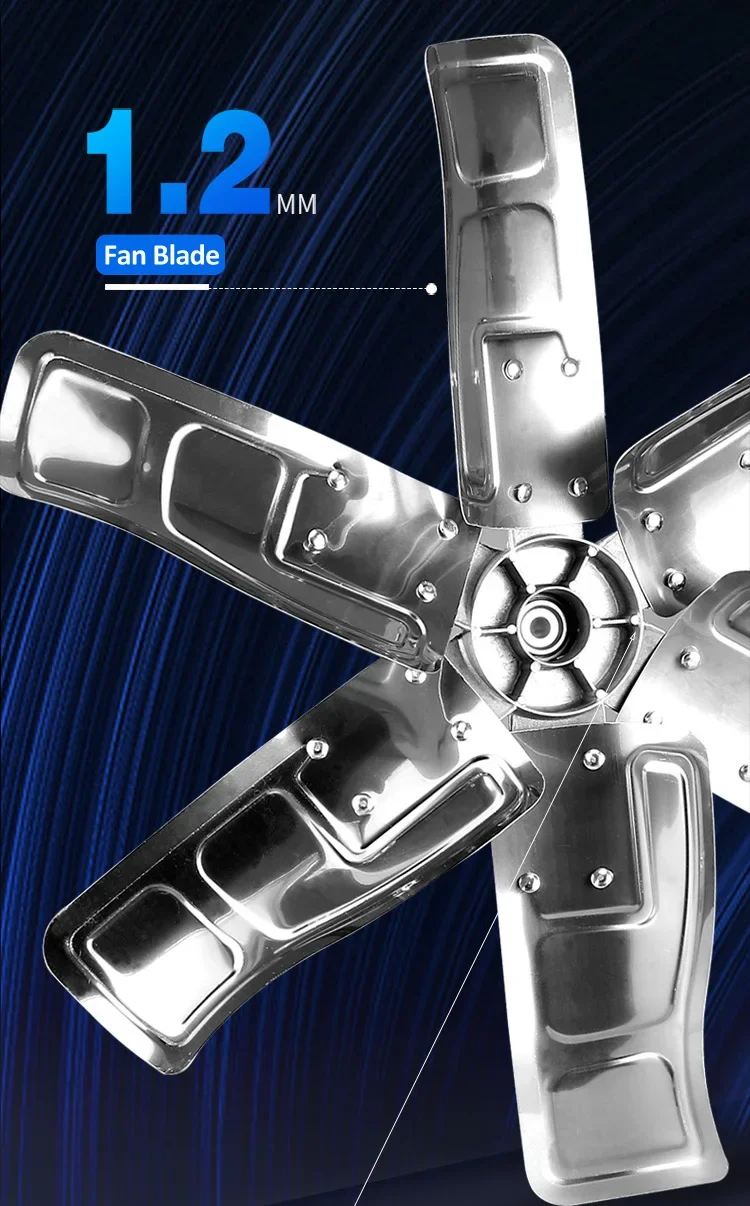

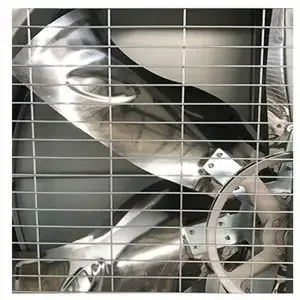

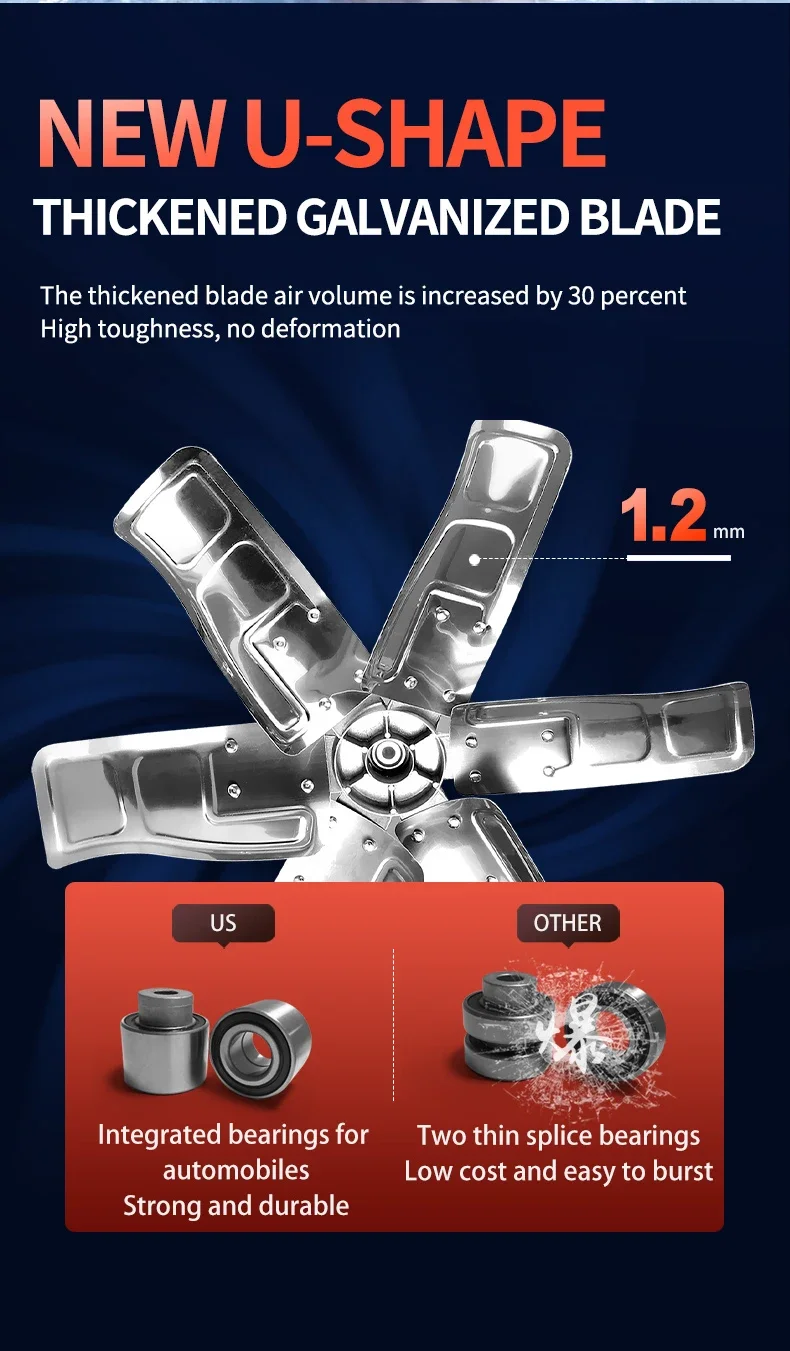

Ultra-thick galvanized steel or stainless steel fan blade

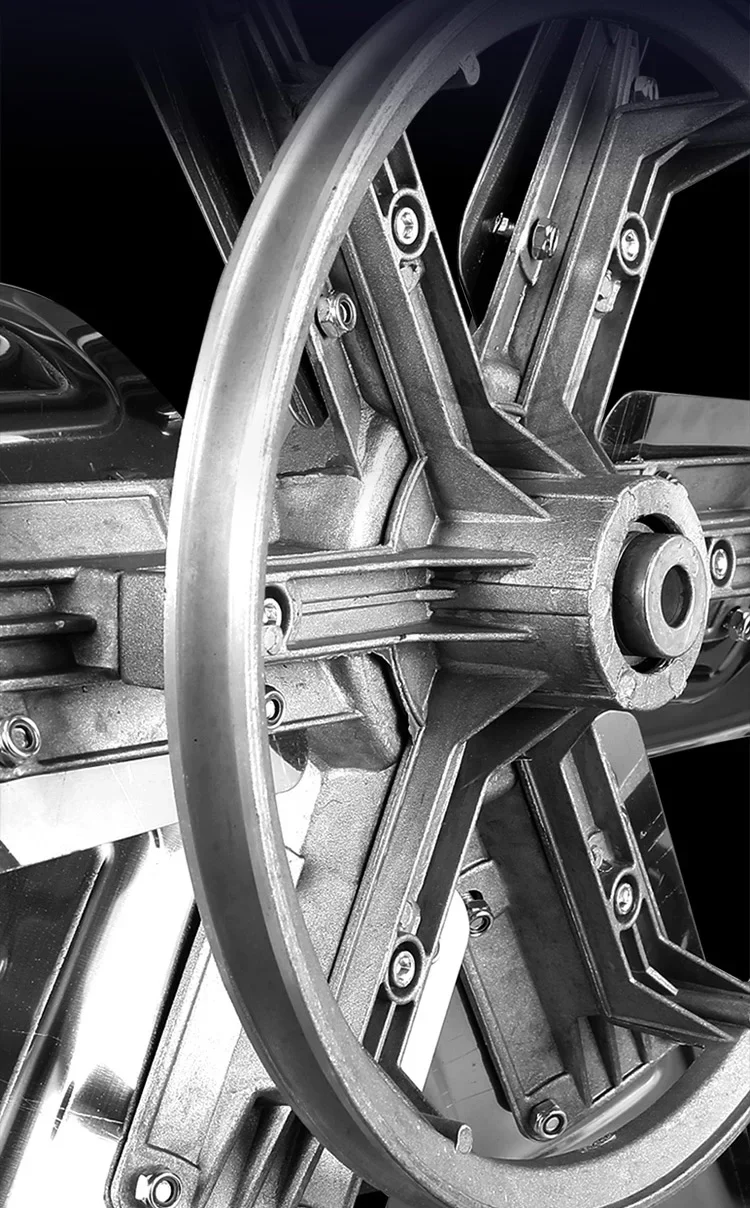

Rugged aluminum alloy pulley system for higher durability

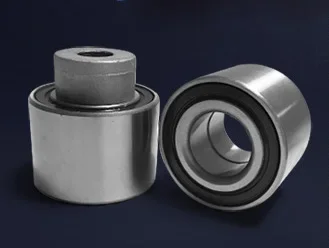

One Piece Durable Automotive Bearing

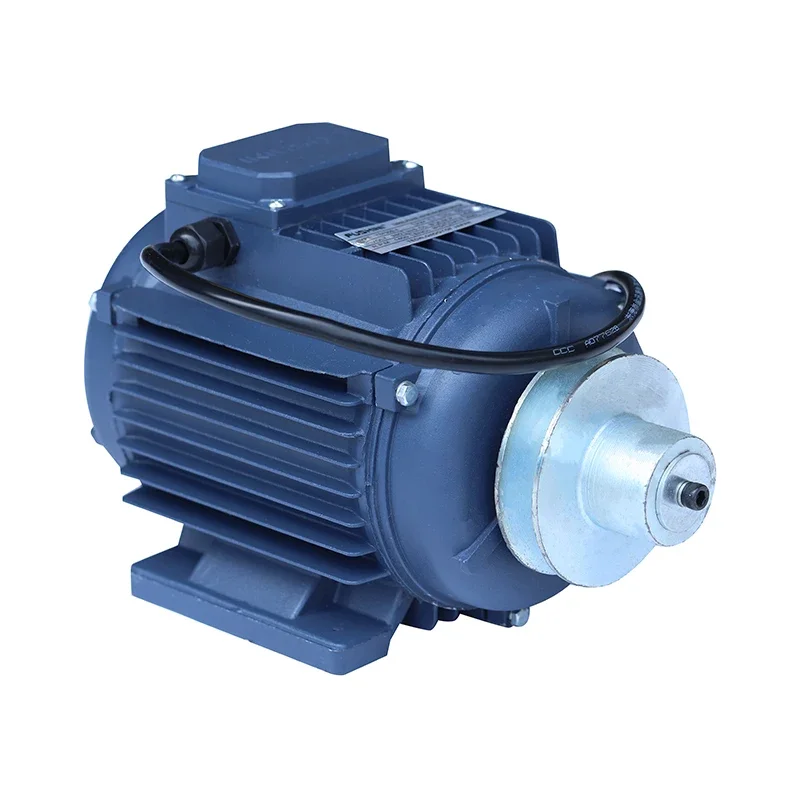

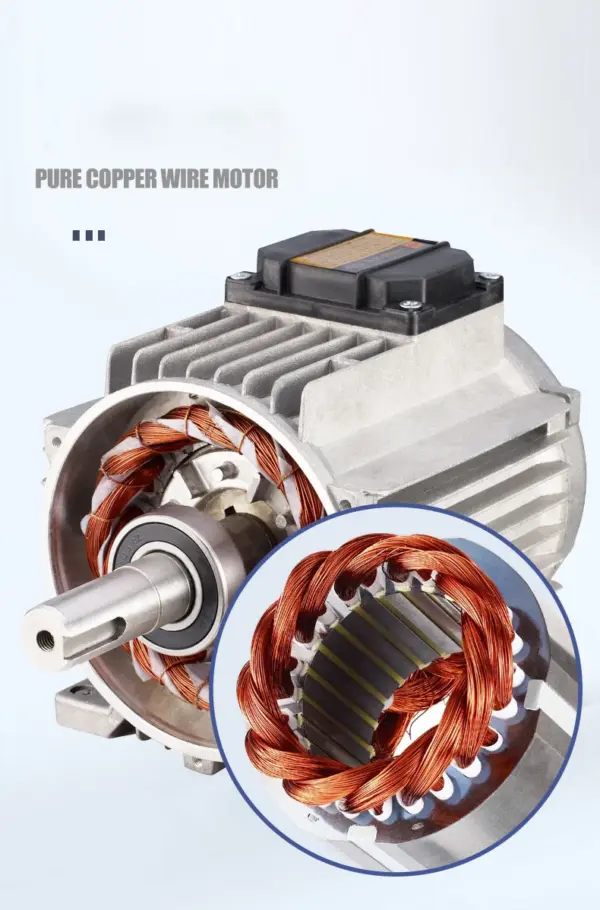

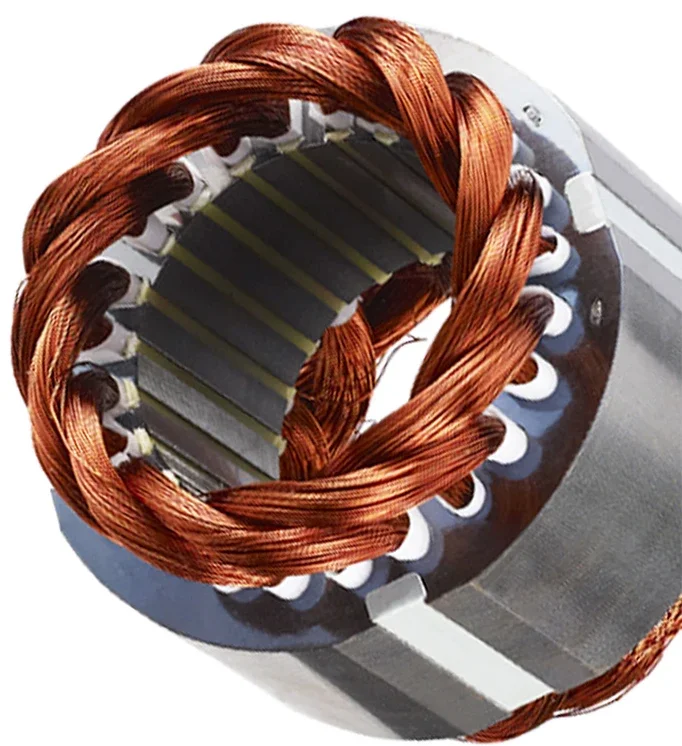

High Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor

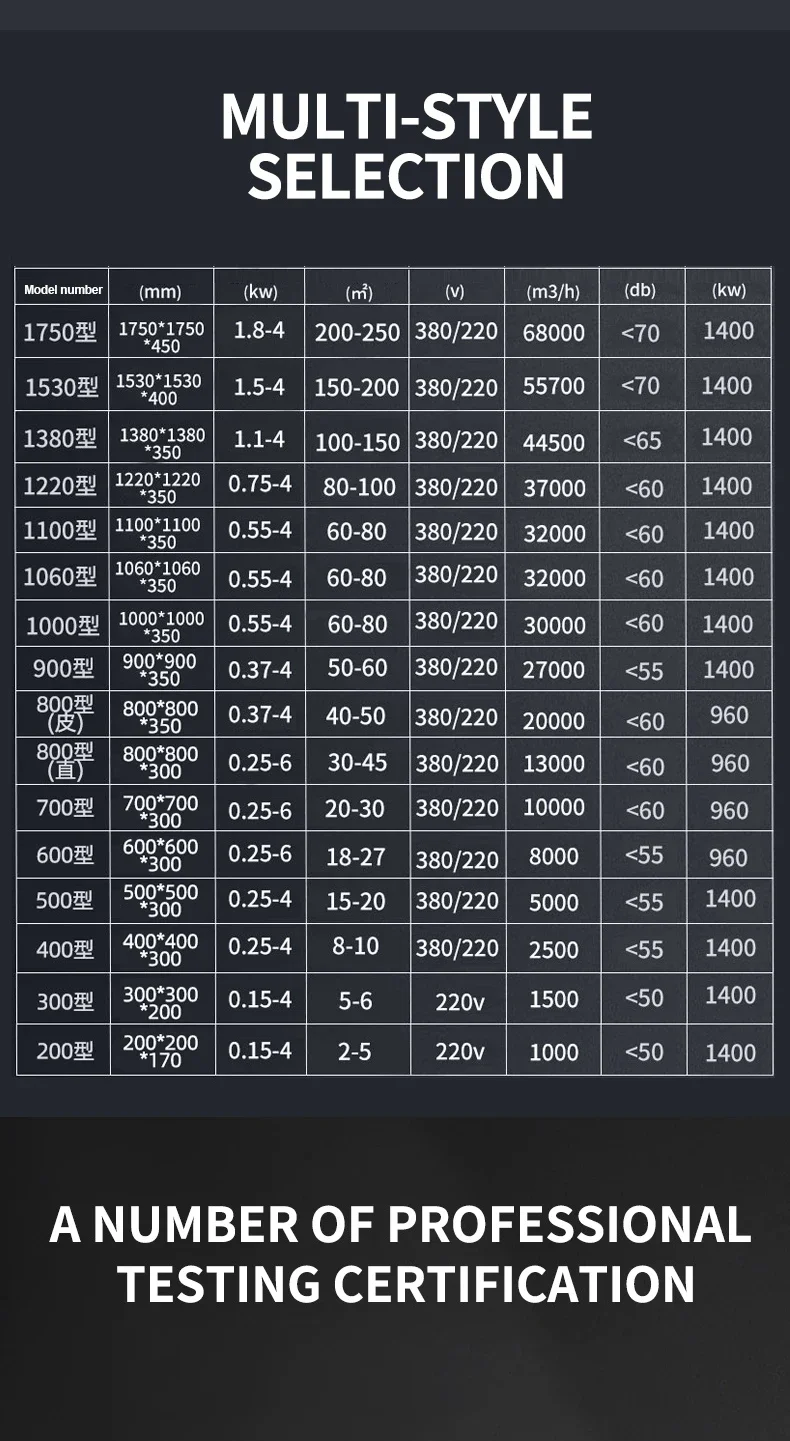

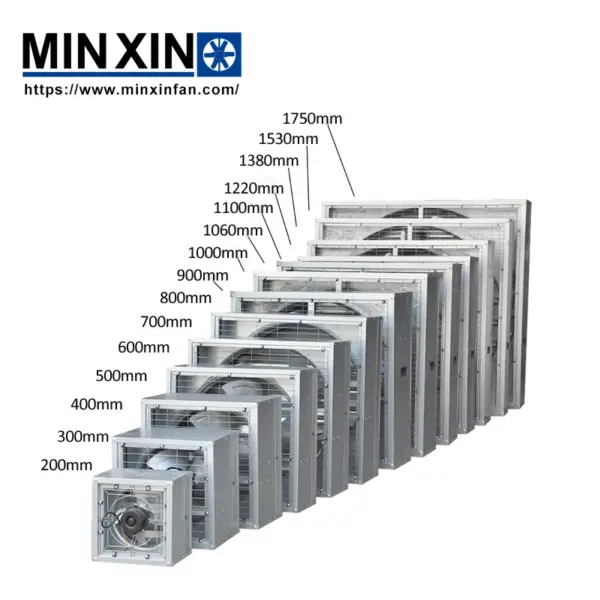

Size Information
|
Model
|
Dimensions
|
Air Flow
|
Power
|
Workable Areas
|
Fan Speed
|
Noise
|
|
200#
|
200mmx200mmx170mm
|
588CFM
|
150W
|
5~20㎡
|
2000rpm
|
<45db
|
|
300#
|
300mmx300mmx200mm
|
1200CFM
|
150W
|
5~20㎡
|
2200rpm
|
<50db
|
|
400#
|
400mmx400mmx300mm
|
1500CFM
|
250W
|
20~40㎡
|
1400rpm
|
<55db
|
|
500#
|
500mmx500mmx300mm
|
3000CFM
|
250W
|
25~50㎡
|
1400rpm
|
<55db
|
|
600#
|
600mmx600mmx300mm
|
4700CFM
|
250W
|
50~60㎡
|
960rpm
|
<55db
|
|
700#
|
700mmx700mmx300mm
|
6000CFM
|
250W
|
60~70㎡
|
960rpm
|
<60db
|
|
800#
|
800mmx800mmx300mm
|
7650CFM
|
250W
|
70~80㎡
|
960rpm
|
<60db
|
|
800#
|
800mmx800mmx350mm
|
13000CFM
|
370 W
|
70~80㎡
|
960rpm
|
<60db
|
|
900#
|
900mmx900mmx350mm
|
16000CFM
|
370 W
|
80~90㎡
|
450rpm
|
<55db
|
|
1000#
|
1000mmx1000mmx350mm
|
17650CFM
|
550 W
|
90~100㎡
|
450rpm
|
<60db
|
|
1060#
|
1060mmx1060mmx350mm
|
19000CFM
|
550 W
|
100~120㎡
|
450rpm
|
<60db
|
|
1100#
|
1100mmx1100mmx350mm
|
20000CFM
|
550 W
|
110~130㎡
|
450rpm
|
<60db
|
|

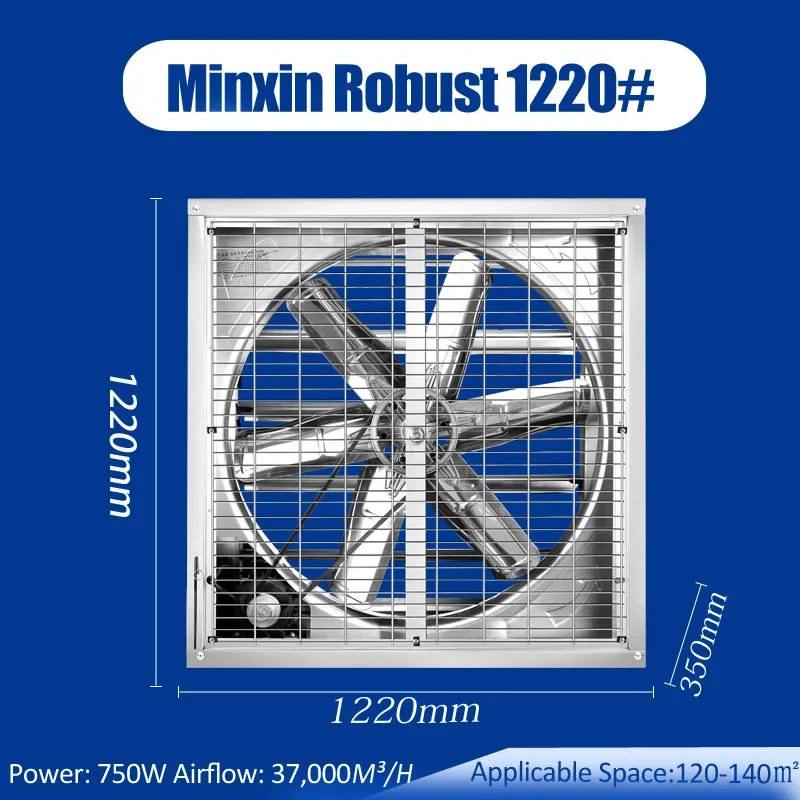

1220#
|
1220mmx1220mmx350mm
|
22000CFM
|
750 W
|
120~140㎡
|
450rpm
|
<60db
|
|
1380#
|
1380mmx1380mmx350mm
|
26000CFM
|
1100 W
|
140~160㎡
|
450rpm
|
<65db
|
|
1530#
|
1530mmx1530mmx400mm
|
32800CFM
|
1500W
|
160~200㎡
|
450rpm
|
<70db
|
|
1750#
|
1750mmx1750mmx450mm
|
40000CFM
|
1800W
|
180~220㎡
|
350rpm
|
<70db
|

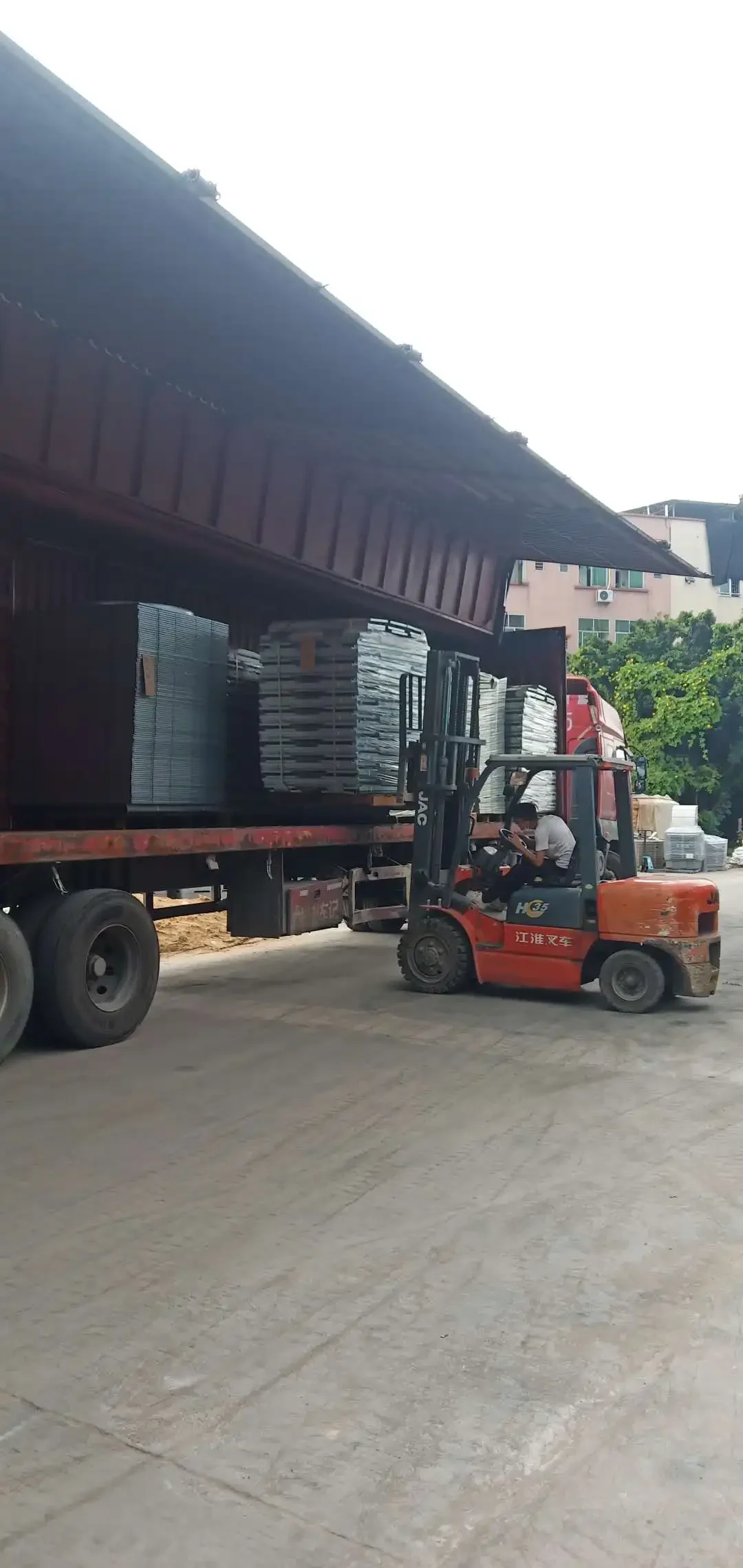

Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.

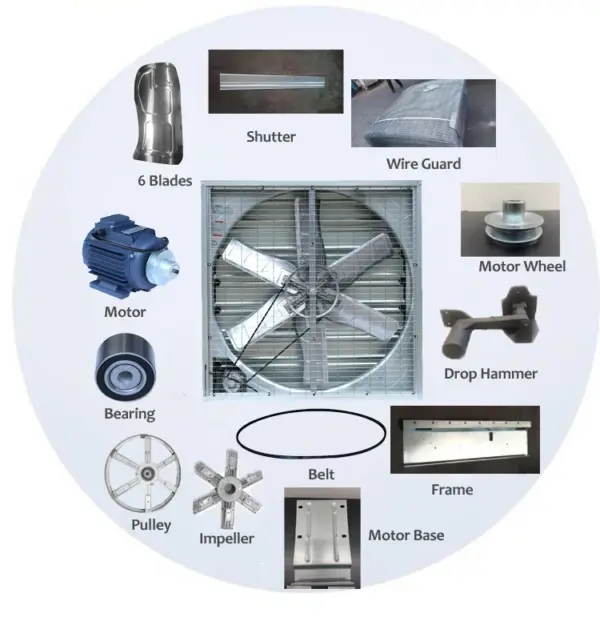

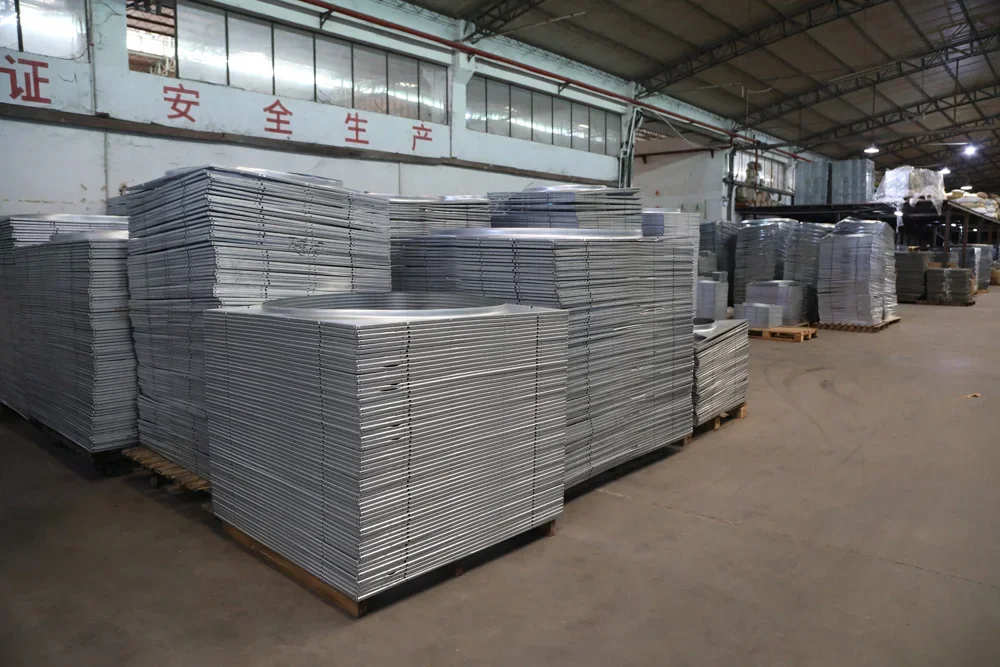

Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.

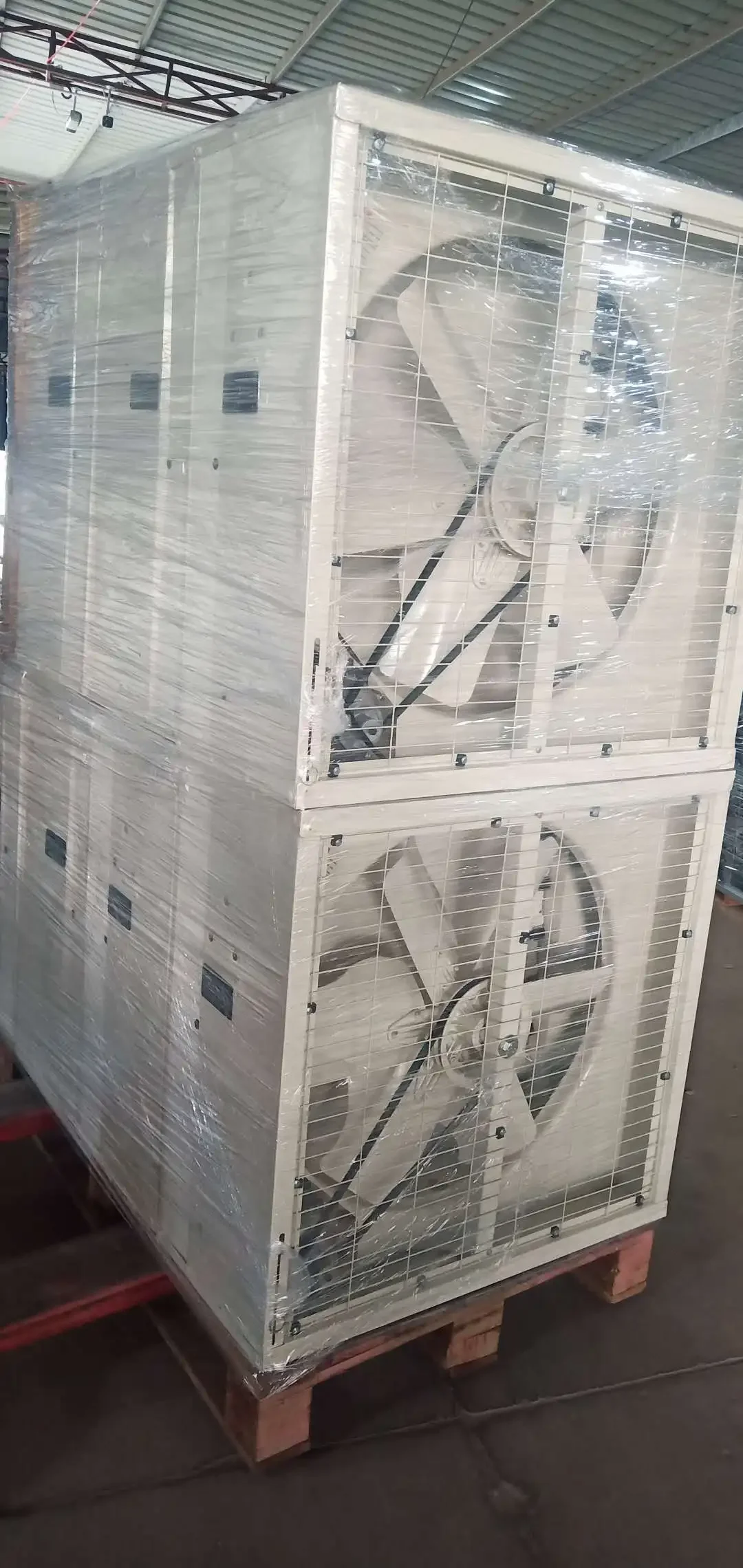

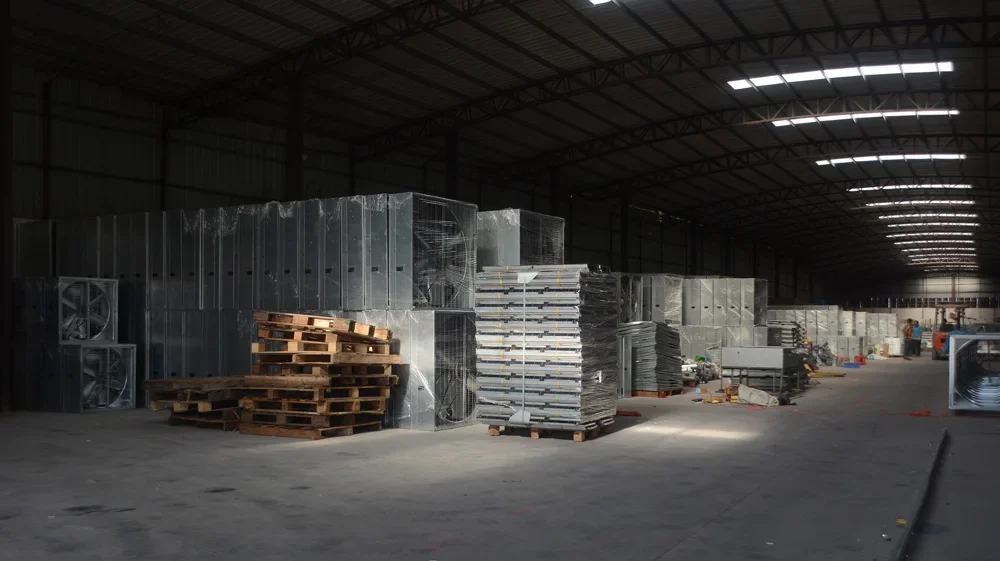

Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
Why Chose Us
Long Standing History
10 years’ OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.

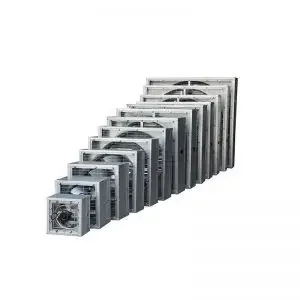

Most Complete Fan Sizes
10 years’ OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler

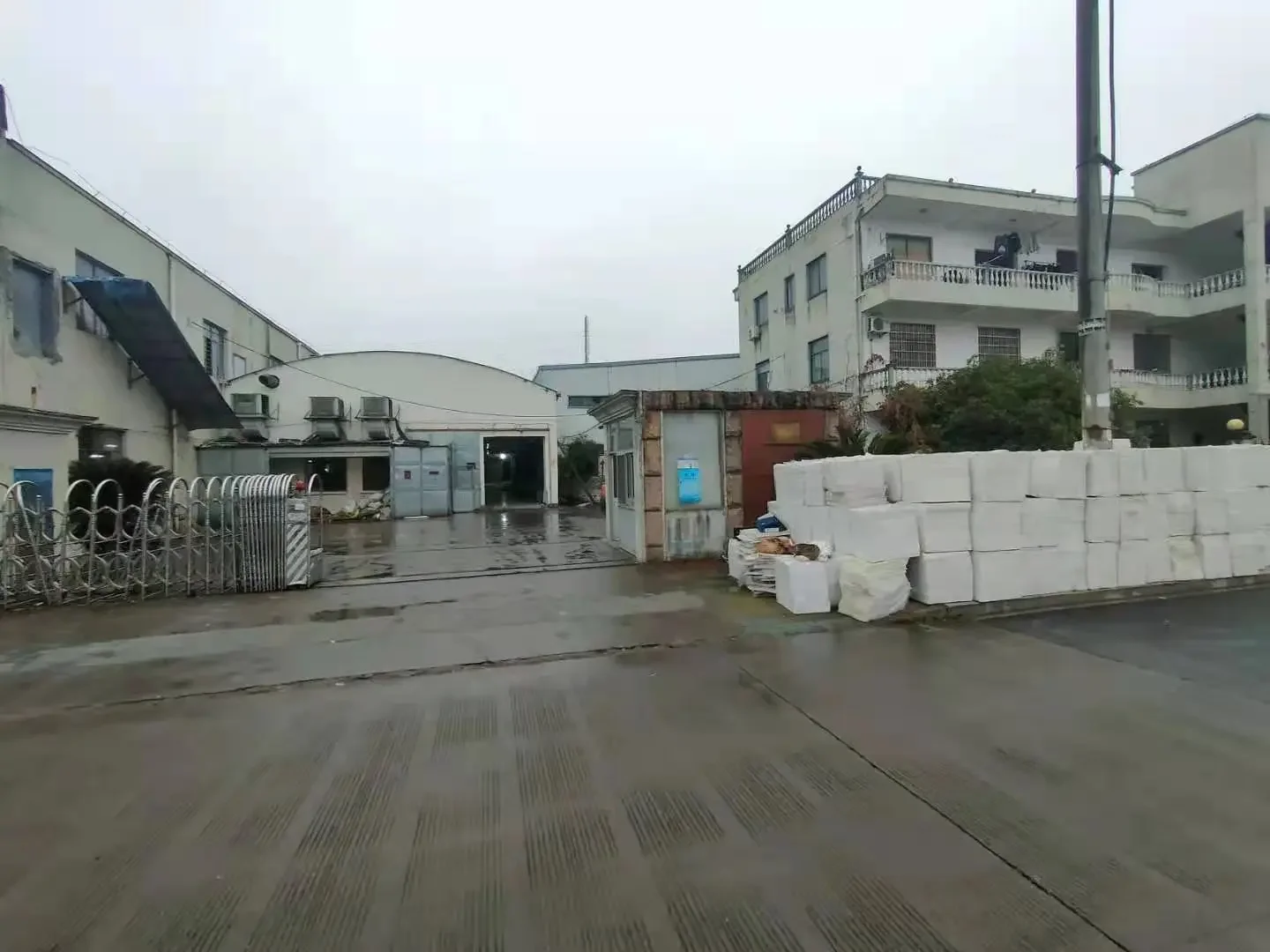

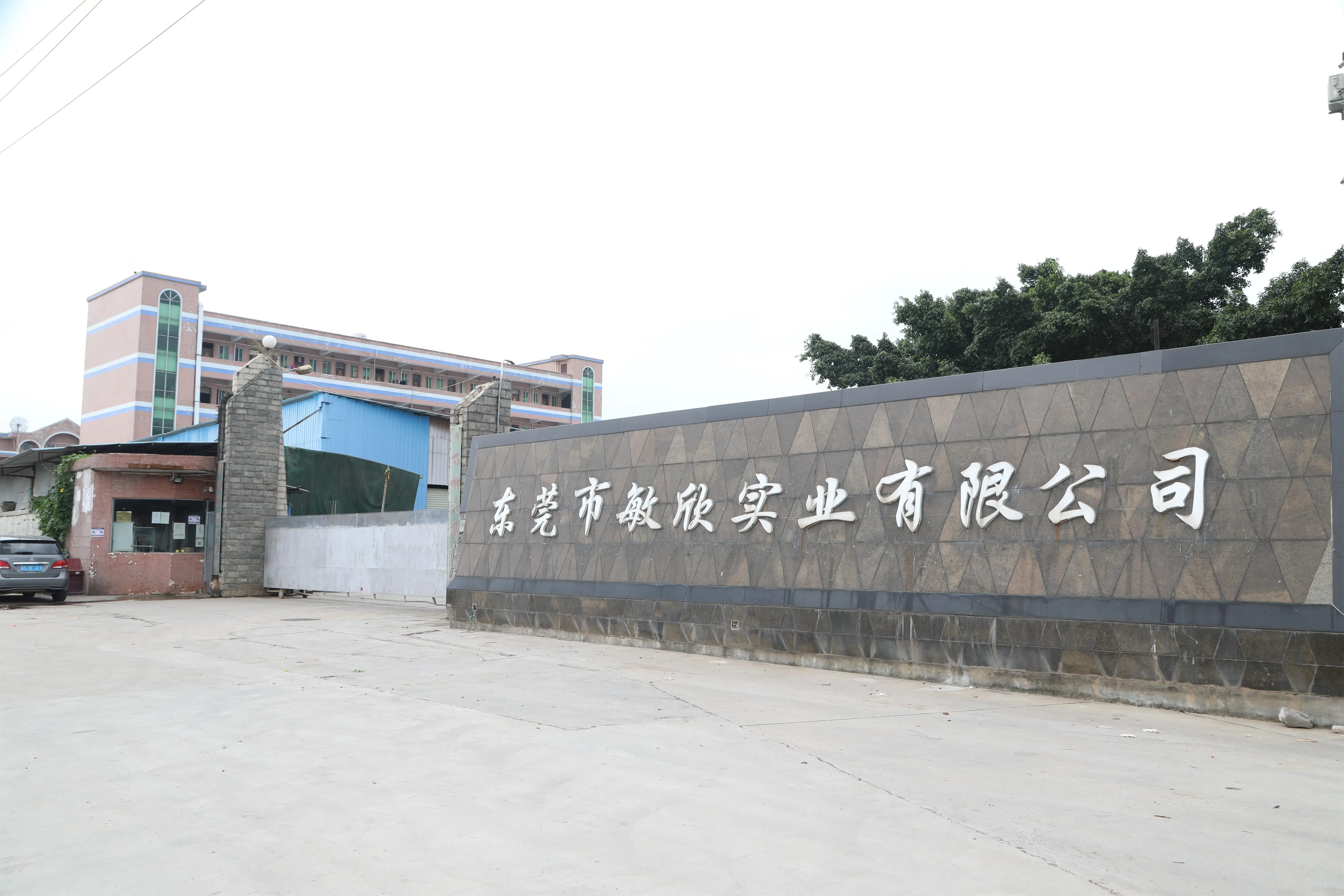

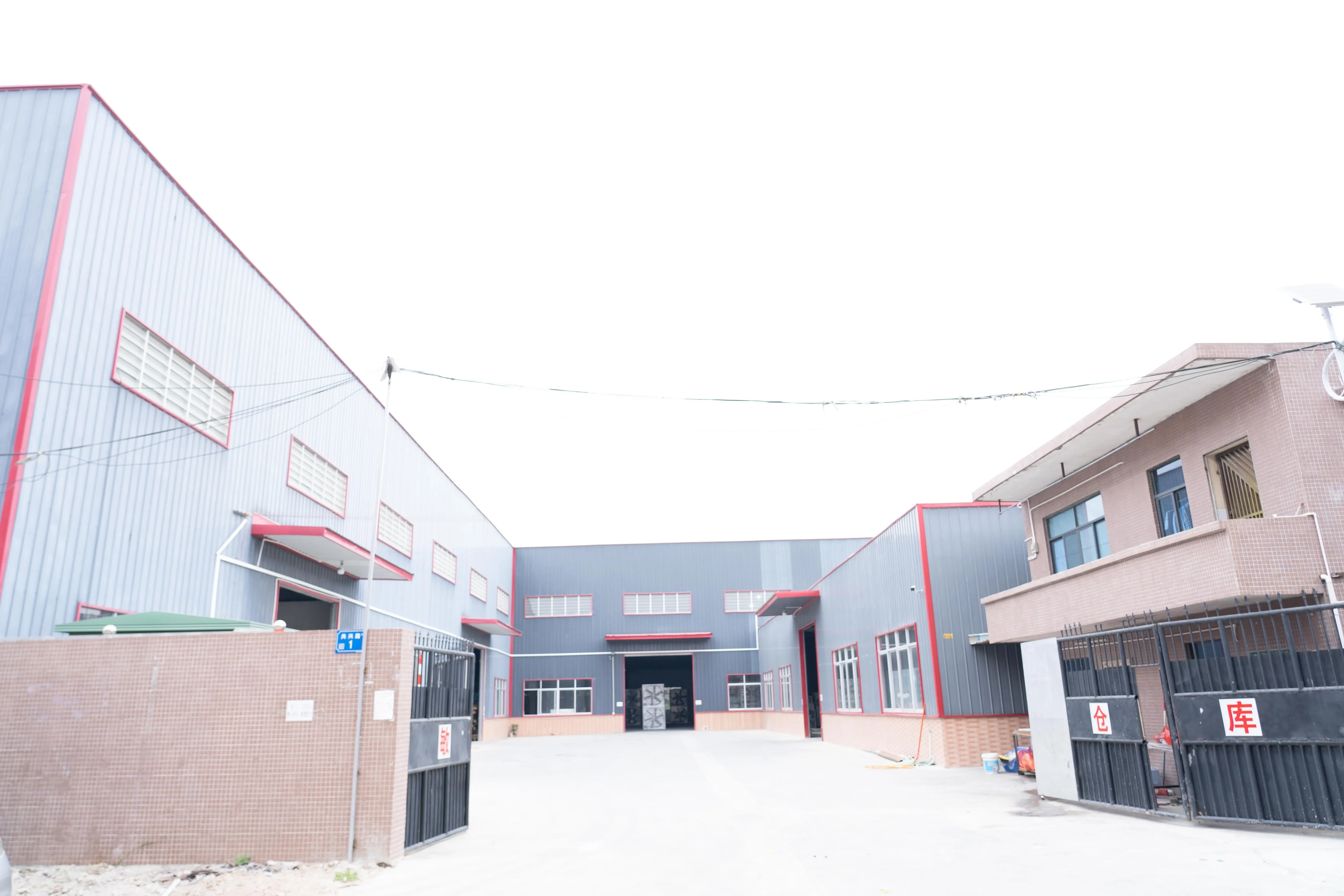

MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production

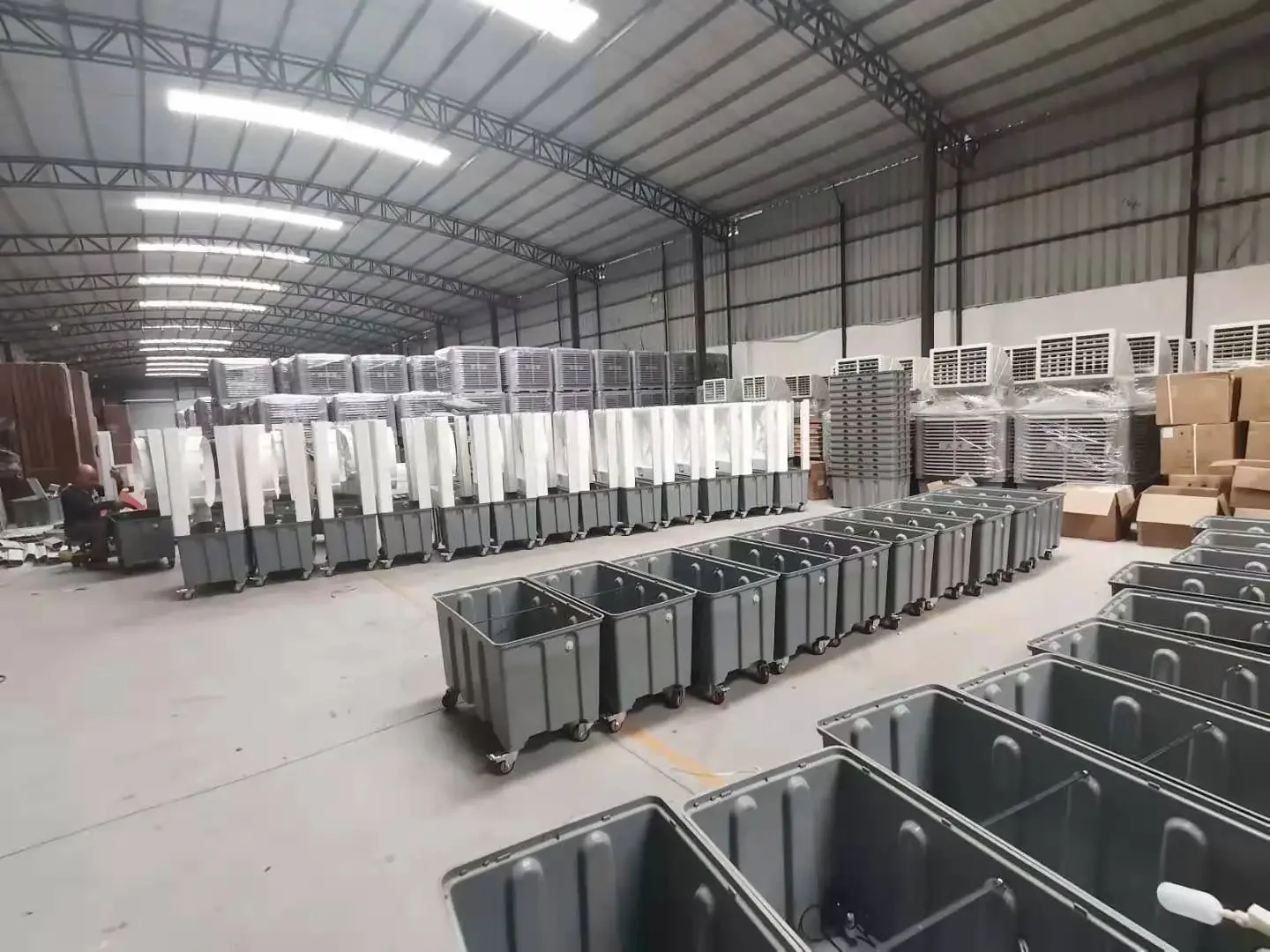

MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly

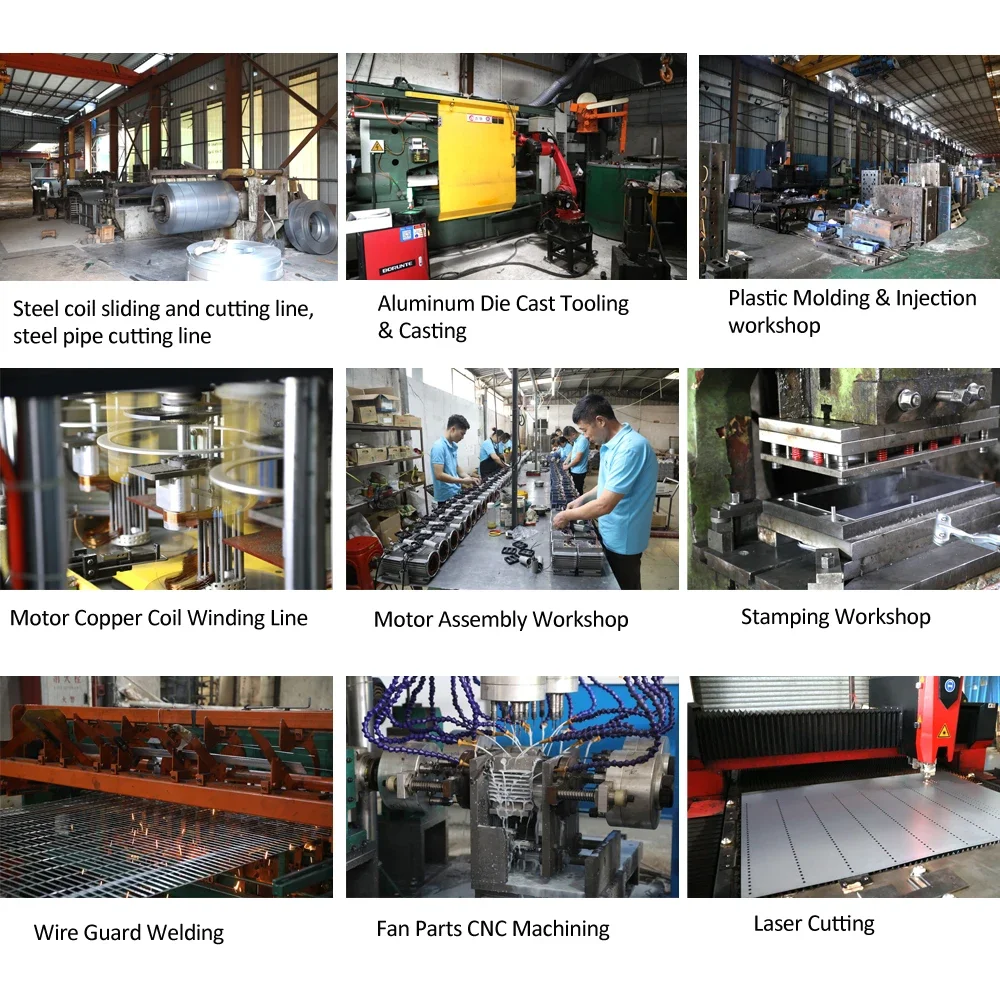

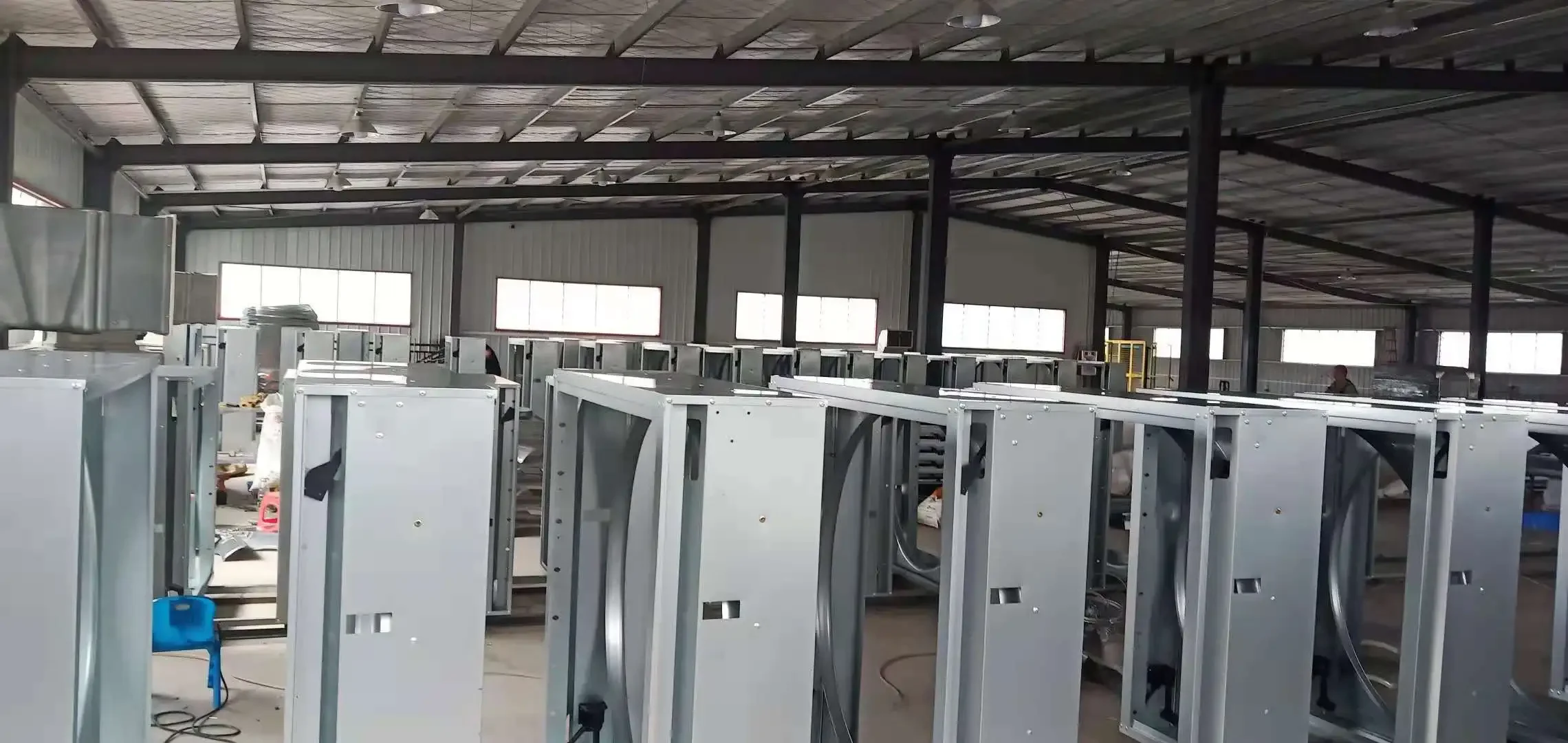

Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Frequently Asked Questions
What is the minimum order quantity for this exhaust air cooling fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this exhaust air cooling fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 120 V, 110V, 220V, 380V, 415V, 480V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
