Key specification for this industrial axial fan: 110 V, 220V/380V, power source Electric. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.

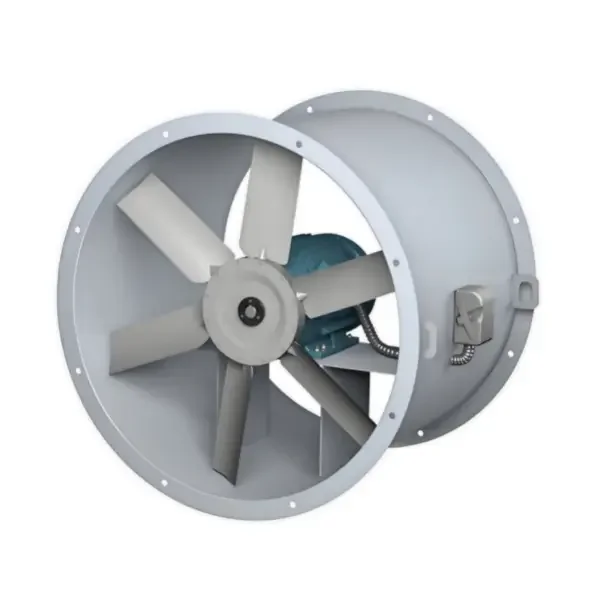

This industrial axial fan is listed with the manufacturer’s full published specification — voltage 110 V, 220V/380V, power source Electric, blade material Cast Iron. It is produced by Jiangsu Gmusem Ventilation System Manufacture Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Industrial Axial Fan
- Model Number: HTF(PYHL)-II-16D
- Power Source: Electric
- Voltage: 110 V, 220V/380V
- Blade Material: Cast Iron
- Warranty: 5 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 110 V, 220V/380V |
|---|---|
| Mounting Type | Duct Fan |
| Type | Duct Axial Fan |
| Warranty | 5 year |
| Power Source | Electric |
| Blade Material | Cast Iron |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Jiangsu, China |
| Brand Name | GMUSEM |
| Model Number | HTF(PYHL)-II-16D |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 15.000 kg |
The fan is classified by speed control methods into single-speed, dual-speed, and variable-frequency (with a variable-frequency motor and controller for adjustable speed, recommended frequency range: 25Hz-50Hz to adapt to different operational needs).
|
Model
|
Air volume (m³/h)
|
Voltage
(V)
|
Power
(W)
|
Speed (r/min)
|
Total pressure (Pa)
|
Noise
(dB)
|
|
SFB2-2
|
1300
|
220/380
|
120
|
2900
|
140
|
62
|
|
SFB2-4
|
600
|
220/380
|
60
|
1450
|
20
|
57
|
|
SFB2.5-2
|
2100
|
220/380
|
250
|
2900
|
215
|
65
|
|
SFB2.5-4
|
1000
|
220/380
|
90
|
1450
|
35
|
59
|
|
SFB3-2
|
4500
|
220/380
|
550
|
2900
|
230
|
68
|
|
SFB3-4
|
3200
|
220/380
|
250
|
1450
|
70
|
61
|
|
SFB3.5-2
|
8000
|
220/380
|
750
|
2900
|
260
|
72
|
|
SFB3.5-4
|
5500
|
220/380
|
550
|
1450
|
140
|
63
|
|
SFB4-2
|
11000
|
220/380
|
1500
|
2900
|
320
|
77
|
|
SFB4-4
|
6500
|
220/380
|
750
|
1450
|
160
|
73
|
|
SFB5-4
|
11000
|
220/380
|
1100
|
1450
|
210
|
74
|
|
SFB5-2
|
13800
|
220/380
|
2200
|
2900
|
380
|
76
|
|
SFB6-4
|
18700
|
220/380
|
2200
|
1450
|
320
|
80
|
|
SFB7-4
|
27000
|
380
|
3000
|
1450
|
370
|
85
|
|
SFB8-4
|
37200
|
380
|
4000
|
1450
|
380
|
88
|
|
SFB10-6
|
50000
|
380
|
4000
|
960
|
260
|
110
|
|
SFB10-4
|
60000
|
380
|
5500
|
1450
|
450
|
98
|

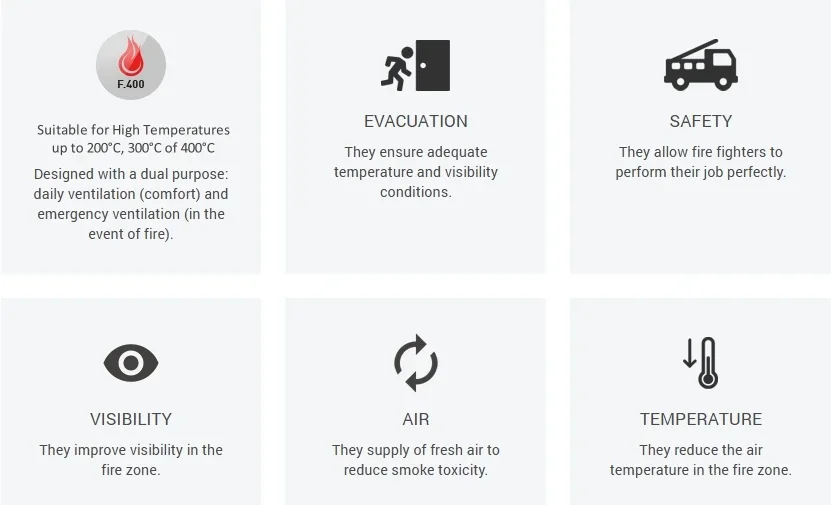

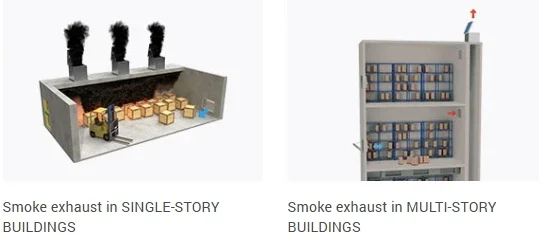

evacuate people and possible victims, protect the building structure and facilitate access for fire-fighting equipment.
and maintain the required conditions of safety and comfort under normal conditions, as well as in the event of a fire.

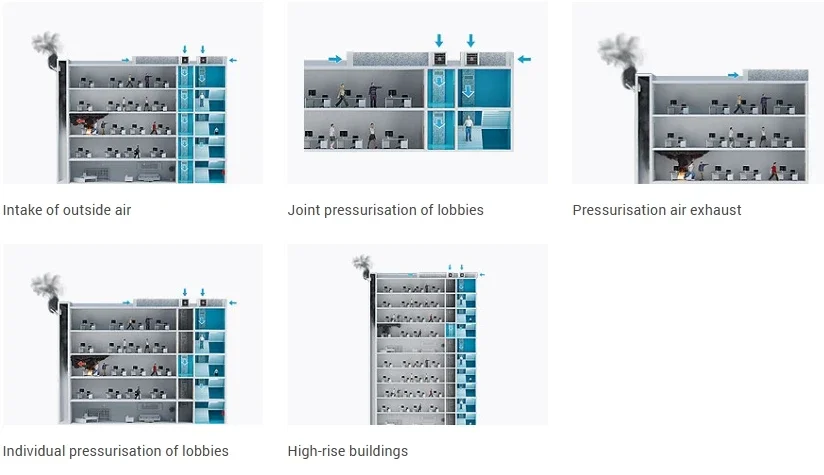

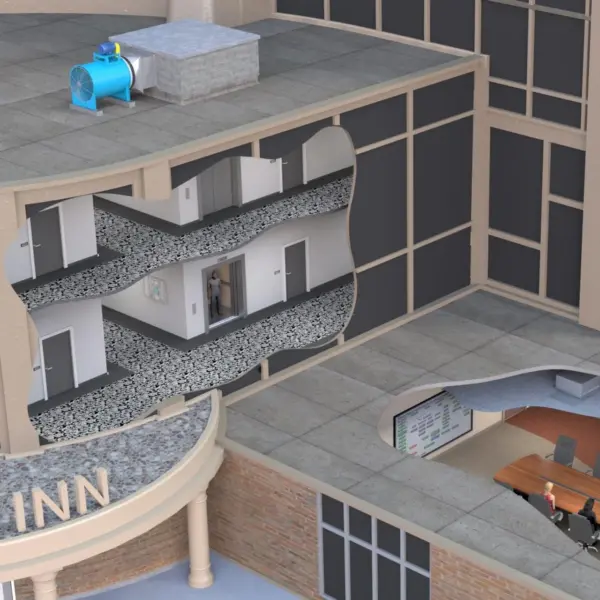

overpressure. If the doors are opened or in the event of air leaks, the system reacts by increasing the flow rate. This guarantees that the escape routes are always free of smoke in an emergency situation.

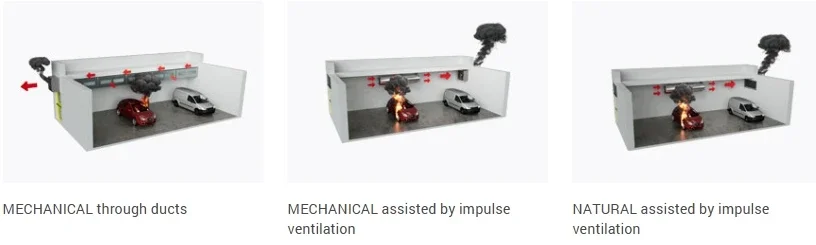

natural or forced. In the last case, fans should be installed to generate adequate air movement to maintain safe conditions both in comfort mode and in case of emergency.
Frequently Asked Questions
What is the minimum order quantity for this industrial axial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this industrial axial fan?
A 5 year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110 V, 220V/380V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
