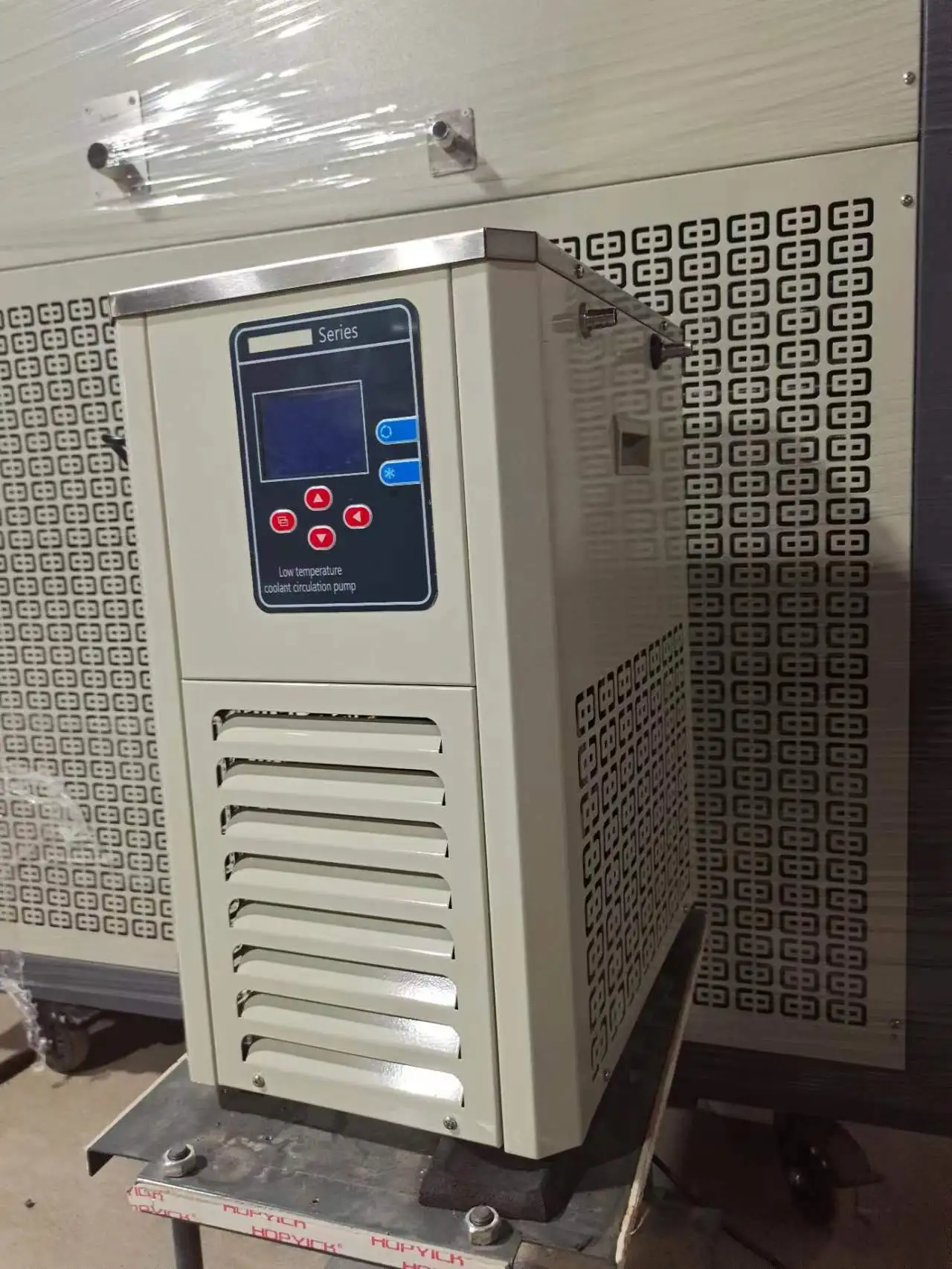

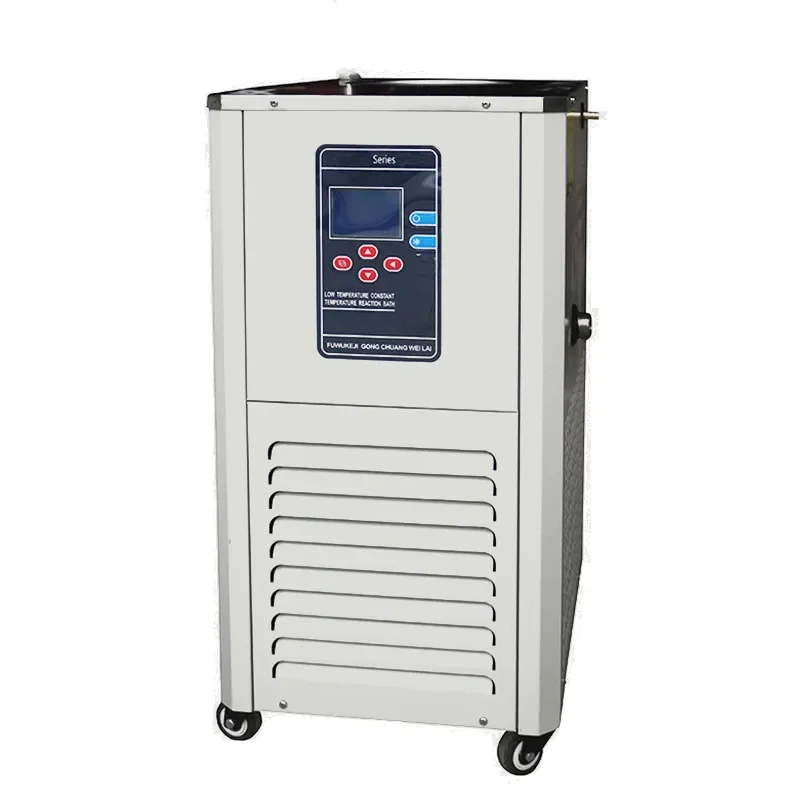

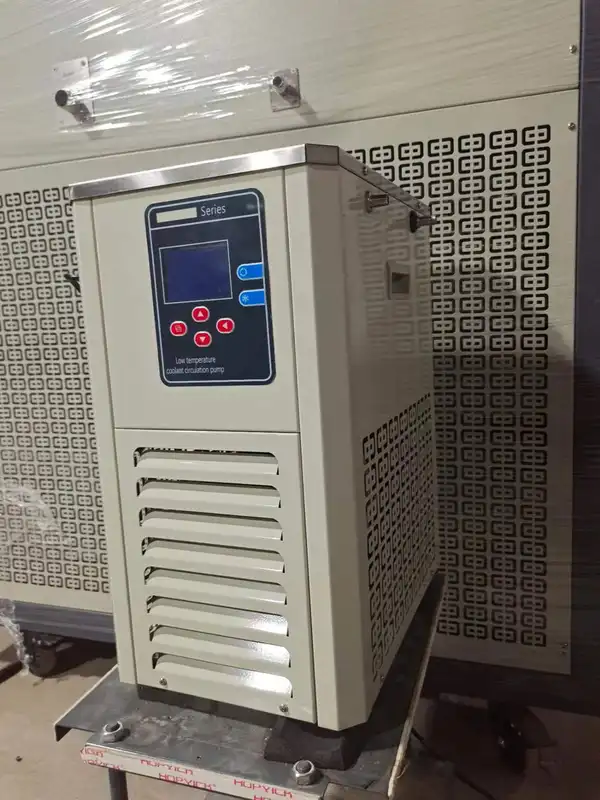

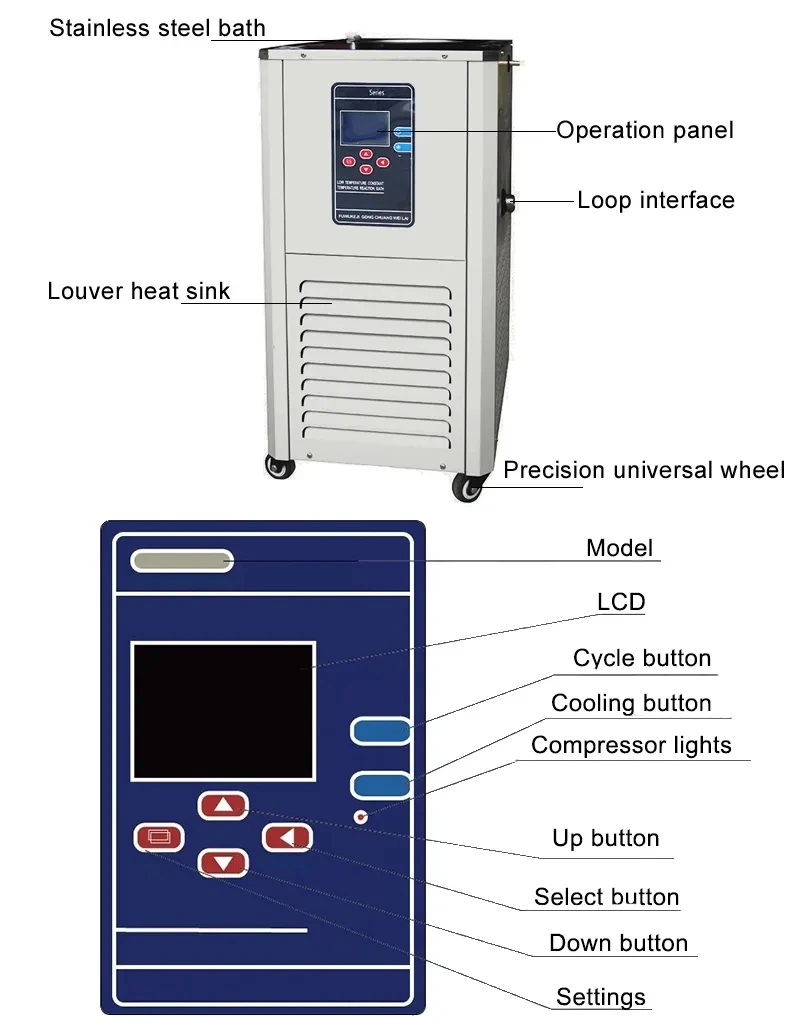

Degree lab glycol chiller — capacity 5L, model number DLSB-5/10. The complete factory specification follows. Made by Sichuan Mkr Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Degree Lab Glycol Chiller
- Model Number: DLSB-5/10
- Capacity: 5L
- Warranty: 1 year
- Place Of Origin: China
- Application: Hospital Medical
- Bath Size(L): 250*130
Technical Specifications
| Warranty | 1 year |
|---|---|
| Customized Support | OEM |
| Place Of Origin | China |
| Model Number | DLSB-5/10 |
| Brand Name | MKR |

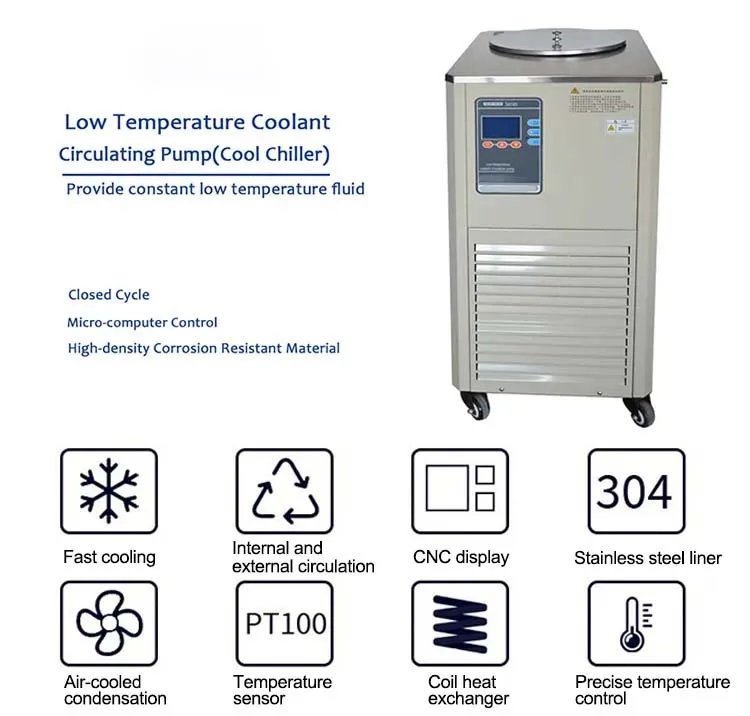

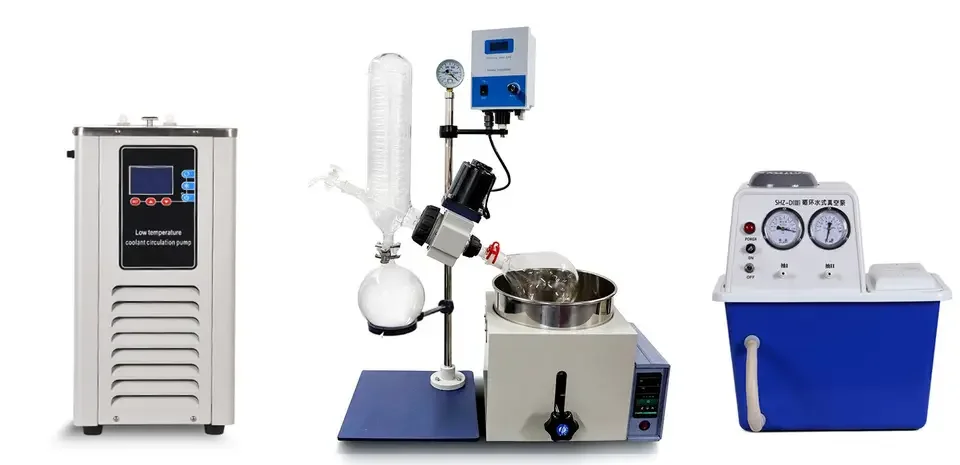

| Product Name | Low Temperature Coolant Circulation Pump |
| Application | Hospital Medical |
| Capacity | 5L |
| Temperature Range(℃) | -10-20 |
| Temperature Stability(℃) | ±2 |
| Flow(L/Min) | 20 |
| Lift(M) | 5 |
| Bath Volume(L) | 5 |
| Ambient Temperature(℃) | ≤25 |
| Bath Size(L) | 250*130 |
| Packaging Details | Gift box |
| Port Of Dispatch | Guangzhou |
| Selling Units | Single item |
| Single Package Size | 47X25X22 cm |
| Single Gross Weight | 25.000 kg |
| Supply Ability | 1000 units per Month |
Product Details
Model No. | DLSB- 3/15 | DLSB- 5/10 | DLSB- 5/20 | DLSB- 10/20 | DLSB- 10/30 | DLSB- 20/30 | DLSB- 30/30 | DLSB- 50/30 | |||||||||
Temperature range(℃) | -15-10 | -10-20 | -20-20 | -30-20 | |||||||||||||
Temperature stability(℃) | ±2 | ||||||||||||||||
Cooling capacity | -10℃ | 1000 | 1250 | 1150 | 1700 | 1860 | 2500 | 3240 | 8200 | ||||||||
0℃ | 970 | 970 | 880 | 1200 | 1240 | 2100 | 2820 | 7500 | |||||||||
-10℃ | 620 | 650 | 600 | 700 | 780 | 1458 | 1810 | 4600 | |||||||||
-20℃ | 320 | 370 | 310 | 1012 | 1030 | 2570 | |||||||||||
-30℃ | 50 | 702 | 520 | 1040 | |||||||||||||
Flow(L/min) | 12 | 20 | 30 | ||||||||||||||
Lift(m) | 5-7 | ||||||||||||||||
Bath volume(L) | 3 | 5 | 5 | 10 | 10 | 20 | 30 | 50 | |||||||||
Bath size(L) | 220*150 | 250*130 | 250*130 | 280*150 | 280*180 | 350*220 | 400*235 | 500*270 | |||||||||
Ambient temperature(℃) | ≤25 | ||||||||||||||||
Power supply(V/Hz) | 220V/50Hz | 380V/50Hz | |||||||||||||||
Dimensions(mm) | 415*223* 497 | 470*330* 635 | 480*330* 635 | 500*380* 780 | 500*380* 780 | 578*467* 788 | 670*510* 890 | 790*610* 1150 | |||||||||
Weight(kg) | 38 | 45 | 50 | 50 | 50 | 90 | 100 | 150 | |||||||||
Bath size(L) | 250*130 | ||||||||||||||||
We are based in Sichuan, China, start from 2019,sell to North America(15.00%),South America(15.00%),Southeast Asia(15.00%),Africa(15.00%),Eastern Europe(10.00%),Western Europe(10.00%),Mid East(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Oceania(2.00%),Eastern Asia(2.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Medical Devices
4. why should you buy from us not from other suppliers?
Sister company : Sino healthcare limited, Working as China Repesenative office for more than 10 foreign companies with more more than 10 years history . more than 300 Suppliers of Medical Devices in China.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese

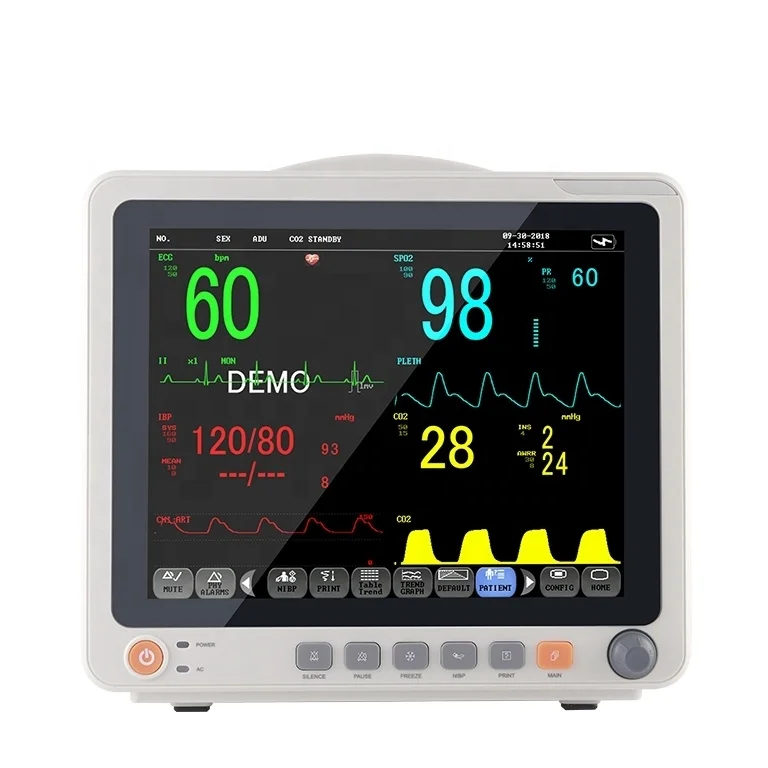

12inch 6 parameters patient monitor

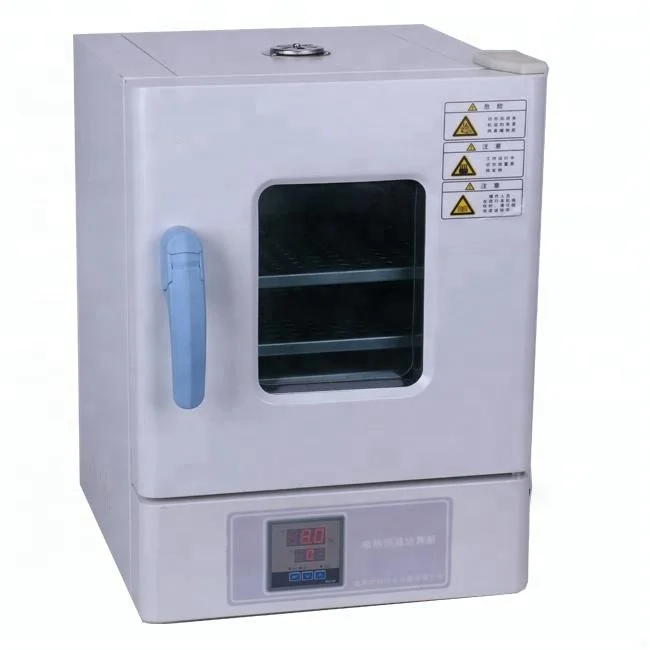

lab incubator

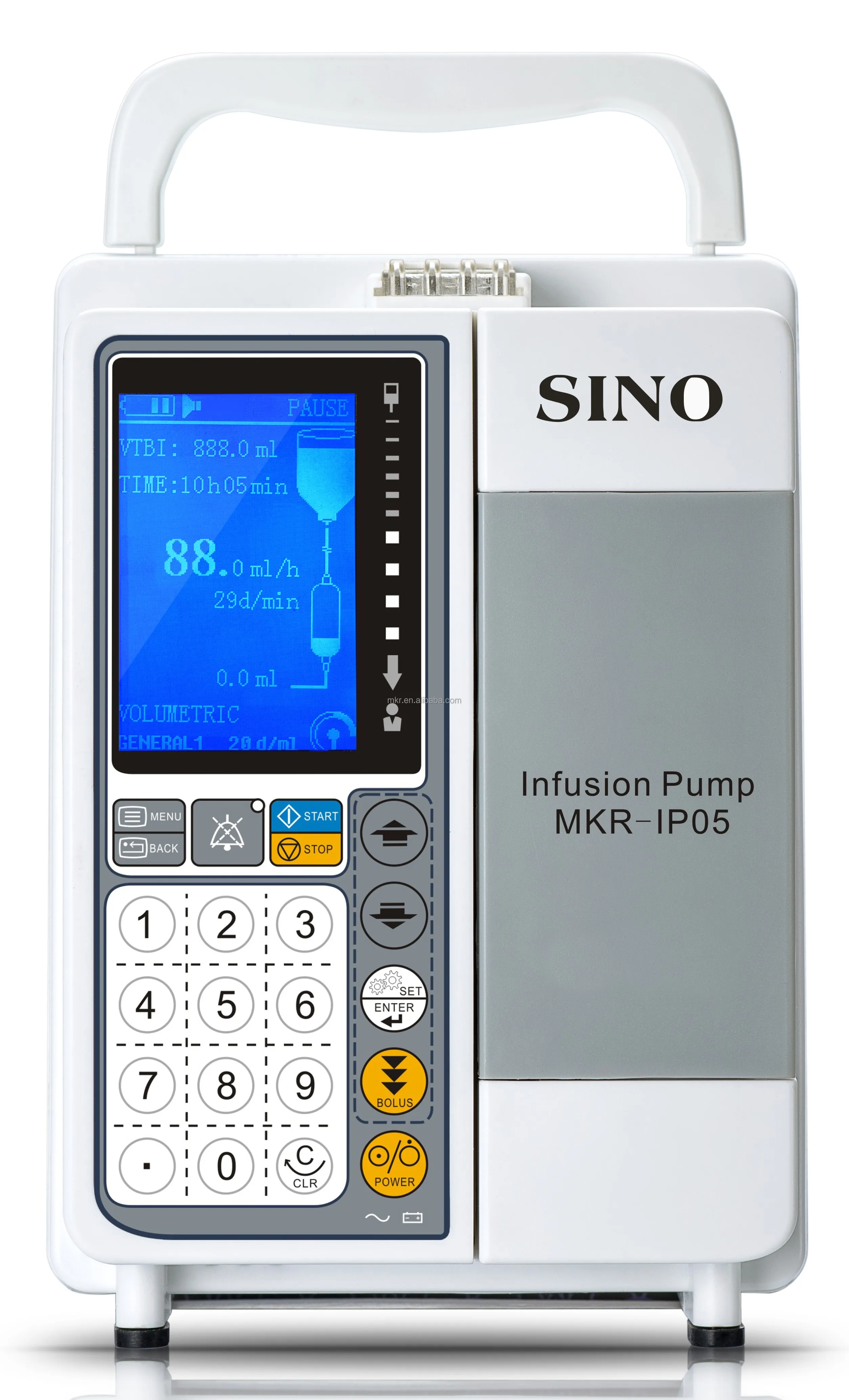

Infusion pump

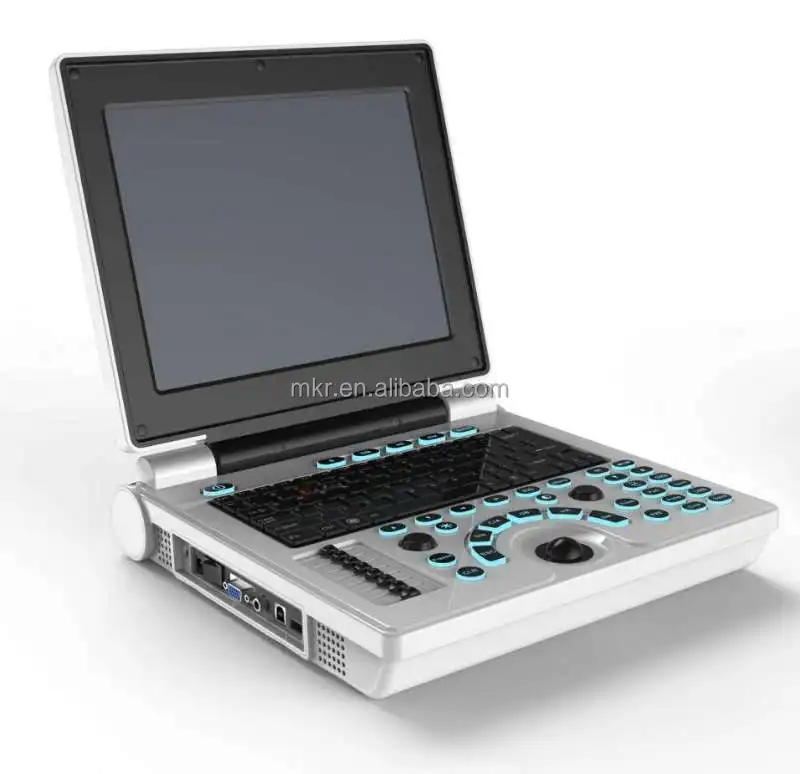

ultrasound machine

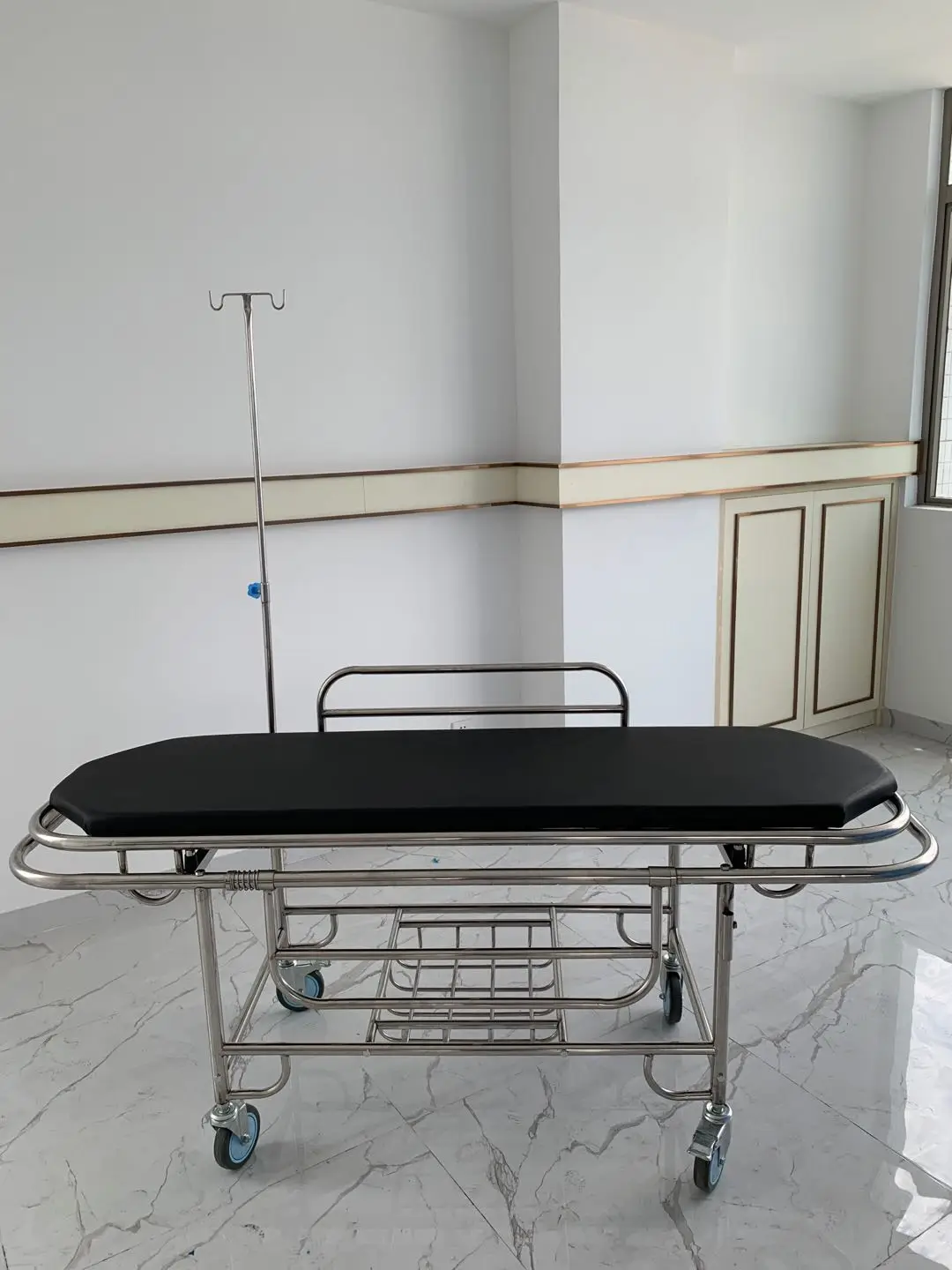

patient transport cart

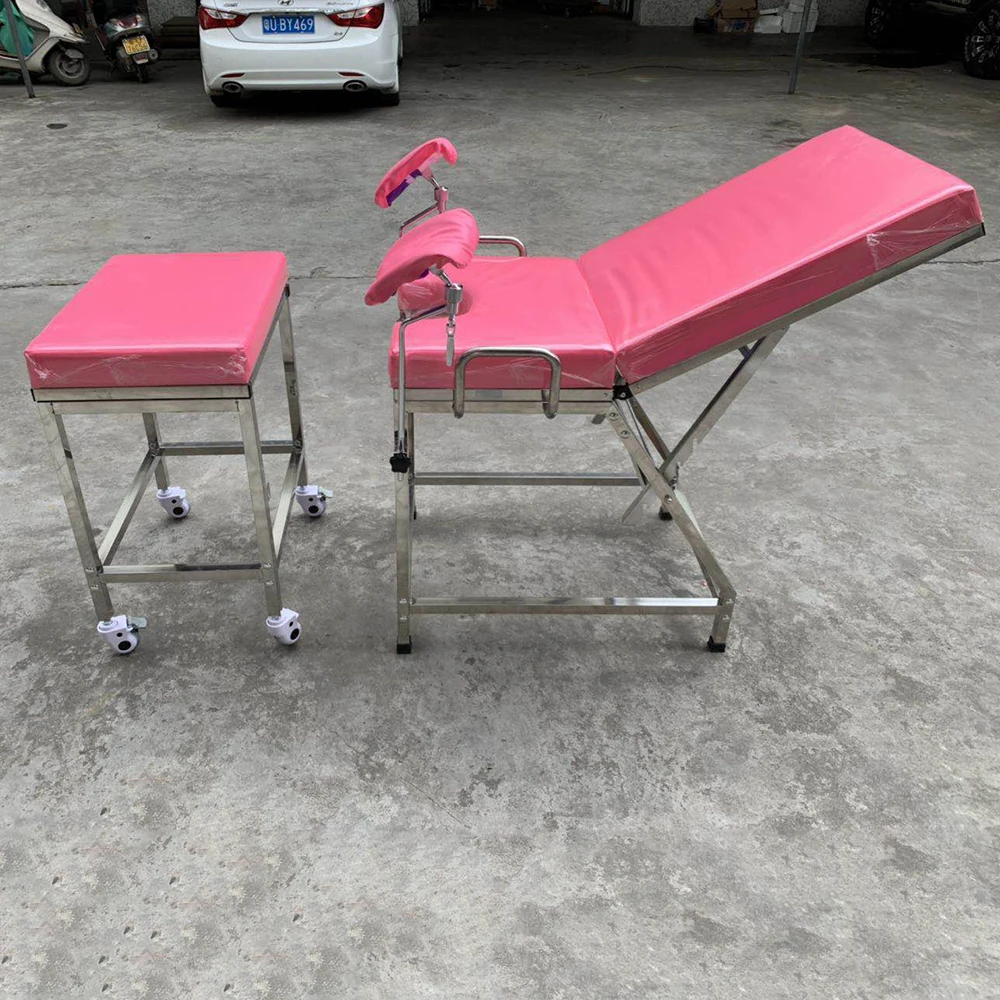

8 legs deliverybed

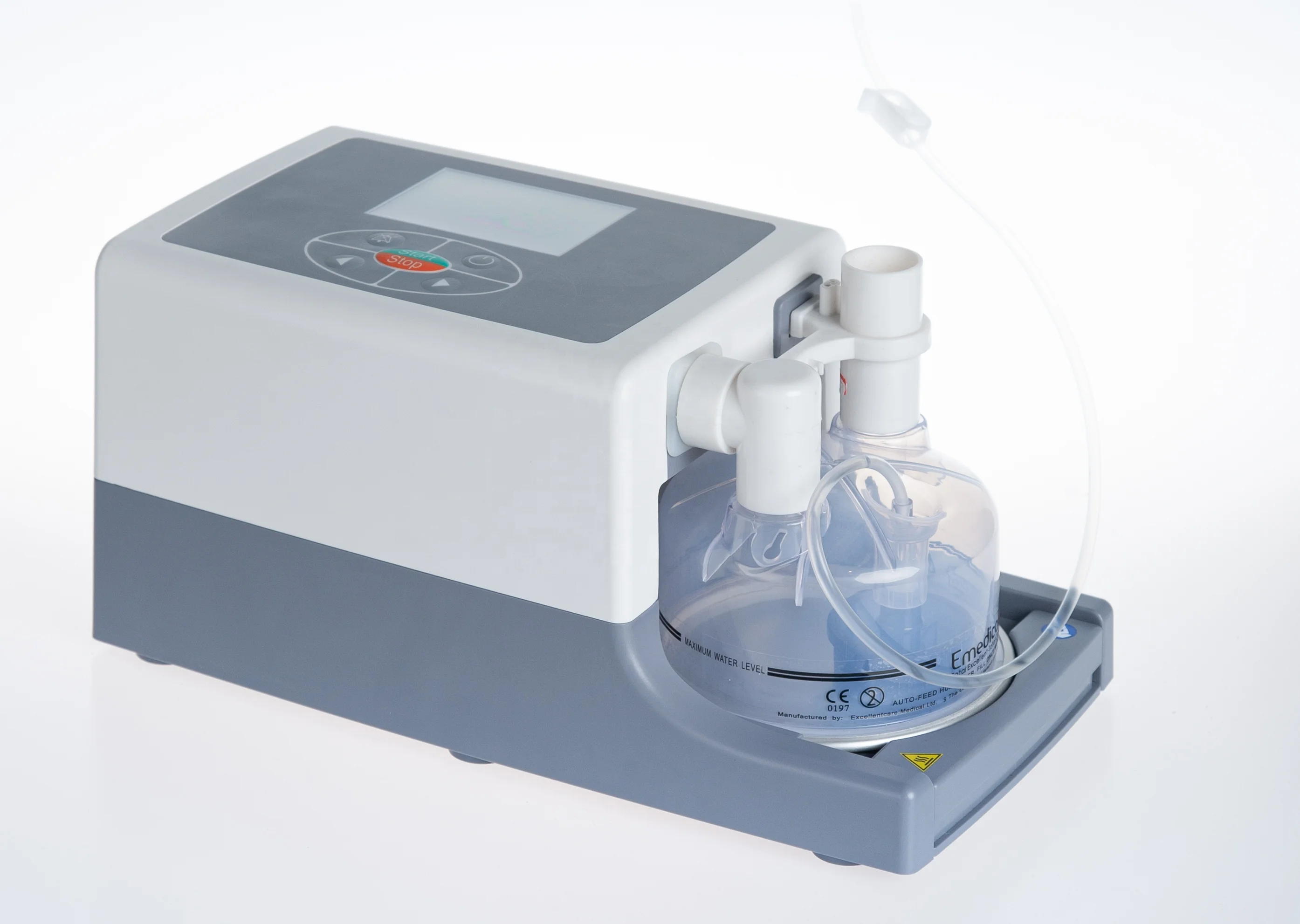

HFNC

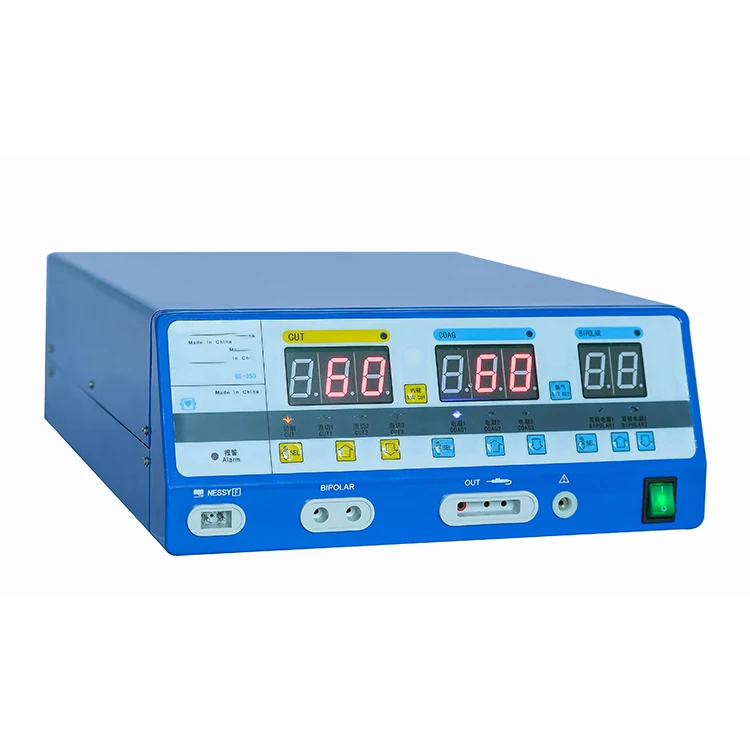

400W diathermy machine

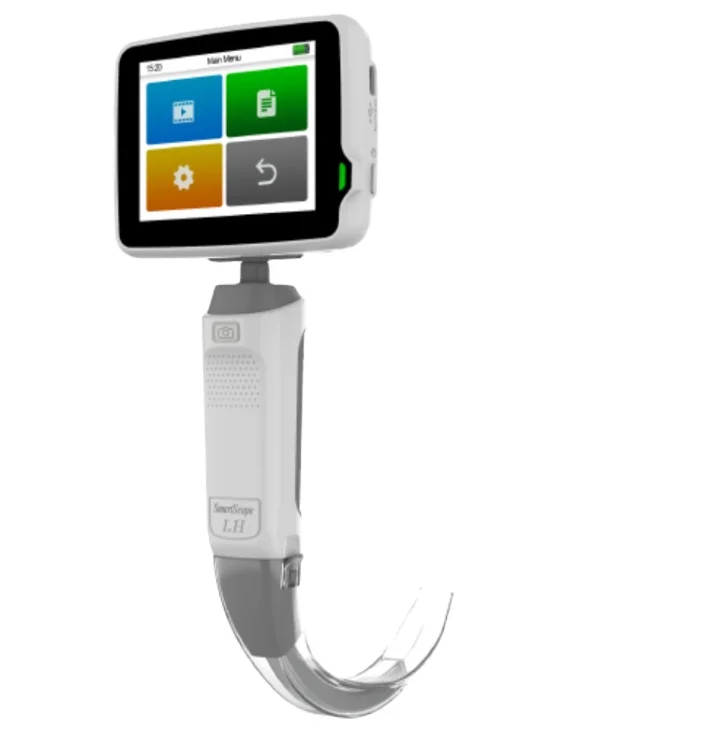

Laryngoscope
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–29 set: US $485 / set
- 30–49 set: US $450 / set
- 50–99 set: US $420 / set
- 100+ set: US $395 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this degree lab glycol chiller?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Sichuan Mkr Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Sichuan Mkr Co., Ltd. range on HVACR Nexus.
