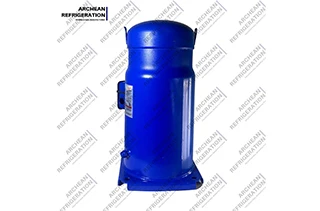

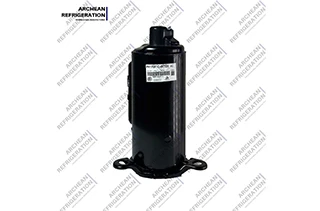

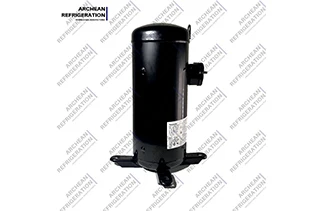

Digital Compressor, 6HP, Scroll, Hermetic, ZMD18KVE-TFD-277

Digital compressor — type Refrigeration Compressor. The complete factory specification follows. Made by Shandong Archean Refrigeration Technology Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Digital Compressor

• Warranty: Unavailable
• Place Of Origin: Thailand
• Application: Refrigeration Parts
• Type: Refrigeration Compressor
• Marketing Type: Ordinary Product
• Single Package Size: 60X30X30 cm

Technical Specifications

Product Details

Digital Compressor 6HP Scroll Hermetic Refrigeration Compressor ZMD18KVE-TFD-277

Digital Compressor 6HP Scroll Hermetic Refrigeration Compressor ZMD18KVE-TFD-277

Specifications:
scroll compressor
1. higher efficiency
2. lower sound levels
3. superior durability

ZR Compressor features:
* Power: 1.5-15 HP
* Med/High Temperature
* Superior efficiency
* Outstanding reliablity
* Fewer moving parts
* Very low noise/gas pulsation.

R22 50HZ	SPEC.
Model	Power(HP)	Displacement(m³/h)	ARI			Weight(KG)	Height(MM) (Including shock-absorbing strap)
								Capacity(W)	Input Power(W)
One-Phase(220V-240V)
ZR28K3-PFJ	2.33	6.83	6900	2520	26	383
ZR34K3-PFJ	2.83	8.02	8200	2540	29	406
ZR34KH-PFJ	2.83	8.02	8200	2540	29	406
ZR36K3-PFJ	3	8.61	8900	2730	29	406
ZR36KH-PFJ	3	8.61	8900	2730	29	406
ZR42K3-PFJ	3.5	9.94	10250	3140	30	419
ZR47K3-PFJ	3.92	11.02	11550	3460	32	436
Three-Phase(380V-420V)
ZR28K3-TFD	2.33	6.83	6900	2140	25	383
ZR34K3-TFD	2.83	8.02	8200	2500	28	406
ZR34KH-TFD	2.83	8.02	8200	2470	28	406
ZR36K3-TFD	3	8.61	8790	2680	29	406
ZR36KH-TFD	3	8.61	8300	2680	28	406
ZR42K3-TFD	3.5	9.94	10250	3100	28	419
ZR47KC-TFD	3.92	11.16	11550	2430	30	436
VR61KF-TFP-542	5.08	14.37	14900	4636	28.5	436
ZR61KC-TFD	5.08	14.37	14600	4430	37	457
ZR61KH-TFD	5.08	14.37	14972	4440	35.9	457
ZR68KC-TFD	5.57	16.18	16900	4950	39	457
ZR72KC-TFD	6	17.06	17700	5200	39	457
ZR81KC-TFD	6.75	19.24	19900	5800	40	462
VR94KS-TFP	8	22.14	23300	6750	57	497
VR108KS-TFP	9	25.68	26400	7500	63	552
VR125KS-TFP	10	28.81	31000	9000	63	552
VR144KS-TFP	12	33.22	35000	10100	63	552
VR160KS-TFP	13	36.37	38400	11400	65	572
VR190KS-TFP	15	43.34	46300	13700	66	572
ZR250KC-TWD	20	56.57	60000	17700	142	736
ZR310KC-TWD	25	71.43	74000	22000	160	725
ZR380KC-TWD	30	57.5	92000	26900	176	725
ZR81KC-TFD	6.75	19.24	19900	5800	40	462
VR94KS-TFP	8	22.14	23300	6750	57	497
VR108KS-TFP	9	25.68	26400	7500	63	552
VR125KS-TFP	10	28.81	31000	9000	63	552
VR144KS-TFP	12	33.22	35000	10100	63	552
VR160KS-TFP	13	36.37	38400	11400	65	572
VR190KS-TFP	15	43.34	46300	13700	66	572
ZR250KC-TWD	20	56.57	60000	17700	142	736
ZR310KC-TWD	25	71.43	74000	22000	160	725
ZR380KC-TWD	30	57.5	92000	26900	176	725

TECHNICAL DATA
Model	ZB15KQ	ZB19KQ	ZB21KQ	ZB26KQ	ZB29KQ	ZB38KQ	ZB45KQ
		ZB15KQE	ZB19KQE	ZB21KQE	ZB26KQE	ZB29KQE	ZB38KQE	ZB45KQE
Motor Type	TFD	TFD	TFD	TFD	TFD	TFD	TFD
		PFJ	PFJ	PFJ	PFJ	PFJ
Power(HP)	2	2.5	3	3.5	4	5	6
Displacement(m³/h)	5.92	6.8	8.6	9.9	11.4	14.5	17.2
Starting Current(LRA)
TFD	24.5-26	30-32	36-40	41-46	50	58.6-65.5	67-74
PFJ	53-58	56-61	75-82	89-97	113
Rated Load Current（RLA)
TFD	4.3	4.3	5.7	7.1	7.9	8.9	11.5
PFJ	11.4	12.9	16.4	18.9	19.3
Max. Operating Current(MCC)
TFD	6	6	8	10	11	12.5	16.1
PFJ	16	18	23	24	27
Motor Run	40μF/370V	40μF/370V	55μF/370V	60μF/370V	60μF/370V
Crankcase Heater Power(W)	70	70	70	70	70	70	70
Size of Connecting Pipe(INCH)
Outer Diameter of Wxhaust Pipe	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Outer Diameter of Suction Pipe	3/4	3/4	3/4	3/4	7/8	7/8	7/8
Dimensions(MM)
Length	242	242	243	243	242	242	242
Width	242	242	244	244	242	242	242
Height	383	383	412	425	430	457	457
Foot Bottom Installation Dimensions(Aperture)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)
Fuel Injection(L)	1.18	1.45	1.45	1.45	1.89	1.89	1.89
Weight(KG)
Net.W	23	25	27	28	37	38	40
Gross.W	26	29	30	31	40	41	44

TECHNICAL DATA
Model	ZB48KQ	ZB58KQ	ZB66KQ	ZB76KQ	ZB88KQ	ZB95KQ	ZB114KQ
		ZB48KQE	ZB58KQE	ZB66KQE				ZB76KQE
Motor Type	TFD	TFD	TFD	TFD	TFD	TFD	TFD
Power(HP)	7	8	9	10	12	13	15
Displacement(m³/h)	18.8	22.1	25.7	28.8	38.2	36.4	43.4
Starting Current(LRA)	101	86-95	100-111	110-118	110-118	140	174
Rated Load Current（RLA)	12.1	16.4	17.3	19.2	22.1	22.1	27.1
Max. Operating Current(MCC)	17	23	24.2	26.9	31	31	39
Crankcase Heater Power(W)	70	90	90	90	90
Size of Connecting Pipe(INCH)
Outer Diameter of Wxhaust Pipe	3/4	7/8	7/8	7/8	7/8	7/8	7/8
Outer Diameter of Suction Pipe	7/8	11/8	13/8	13/8	13/8	13/8	13/8
Dimensions(MM)
Length	242	263.6	263.6	263.6	263.6	242	264
Width	242	284.2	284.2	284.2	284.2	285	285
Height	457	477	546.1	546.1	546.1	522	553
Foot Bottom Installation Dimensions(Aperture)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)	190X190(8.5)
Fuel Injection(L)	1.8	2.51	2.25	3.25	3.25	3.3	3.3
Weight(KG)
Net.W	40	59.87	60.33	65.32	65.32	65	65

Archean Refrigeration has been focusing on the refrigeration industry for more than 10 years. The compressors are sold all over
the world and have been well received. The company has accumulated strong experience in the compressor market, rich technical
support, and a satisfactory one-stop procurement solution. You can rest assured You don't need to worry about this series, from placing an order to receiving the goods. We provide a complete solution to serve customers well, which is our purpose of
hospitality.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $200 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this digital compressor?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Archean Refrigeration Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shandong Archean Refrigeration Technology Co., Ltd. range on HVACR Nexus.
