This digital rotary evaporator is published with the manufacturer’s full specification — 220 V, power source Electric. Made by Shanghai Valuen Industrial Co.,Ltd (5 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Digital Rotary Evaporator
- Power Source: Electric
- Power(W): 5KW
- Voltage: 220 V
- Material: Stainless Steel
- Rotation Speed: 0~120 rpm
- Warranty: 1 Year
Technical Specifications
| Volume(L) | 20 L |
|---|---|
| Processing | Concentration |
| Material | Stainless Steel |
| Power Source | Electric |
| Core Components | PLC, Motor, Glassware, Stainless Steel Rack |
| Voltage | 220 V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Power(W) | 5KW |
| Place Of Origin | Shanghai |
| Weight (Kg) | 120 |
| Brand Name | Valuen |
| Rotary Flask Volume | 20L |
| Collection Flask Volume | 10L |
| Rotation Speed | 0~120 rpm |
| Control Panel | Integral control for bath heating and rotation speed with LCD display |
| Condensers | 2 Main condensers +1 Auxiliary condenser ( Vertical Double Helix) |
| Lift Mode | Auto lift |
| Marketing Type | New Product 2022 |
| Selling Units | Single item |
Product Details

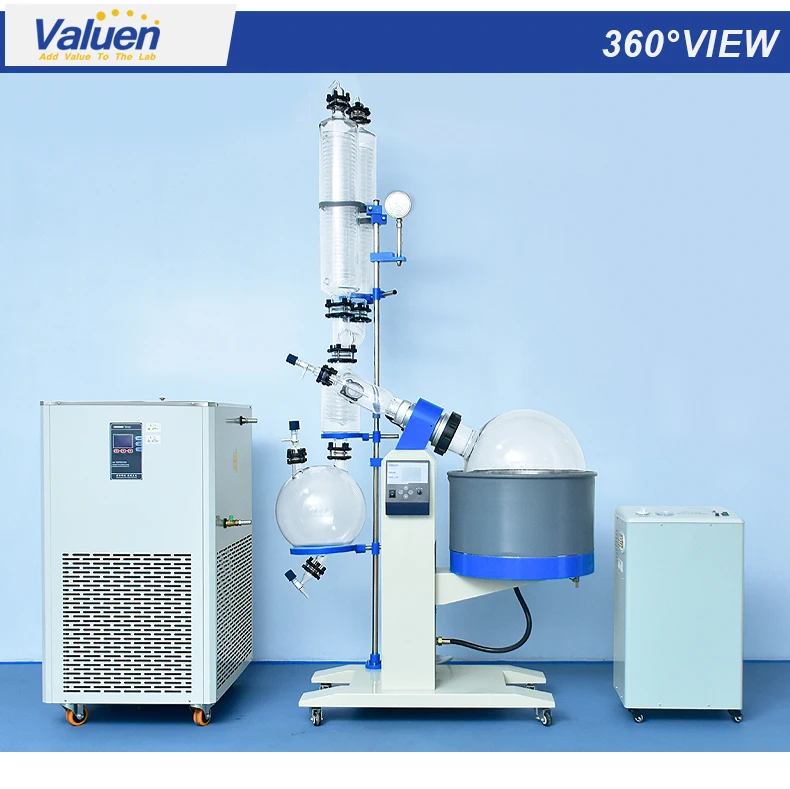

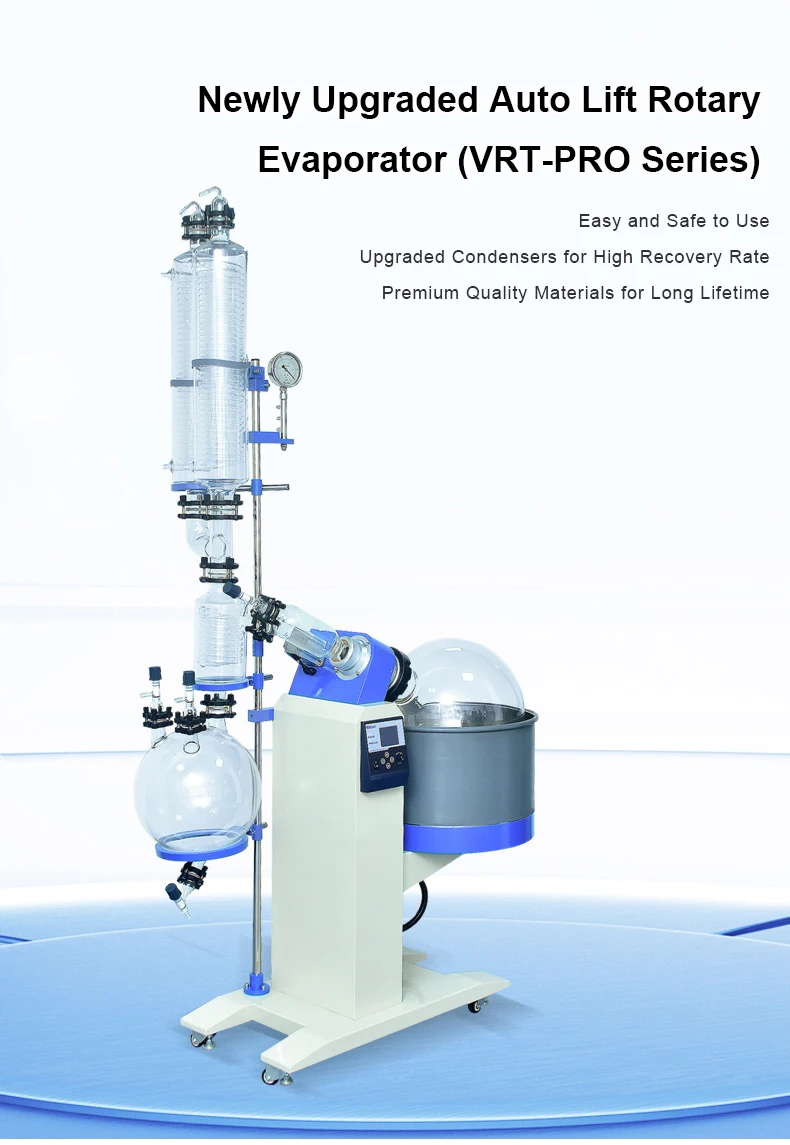

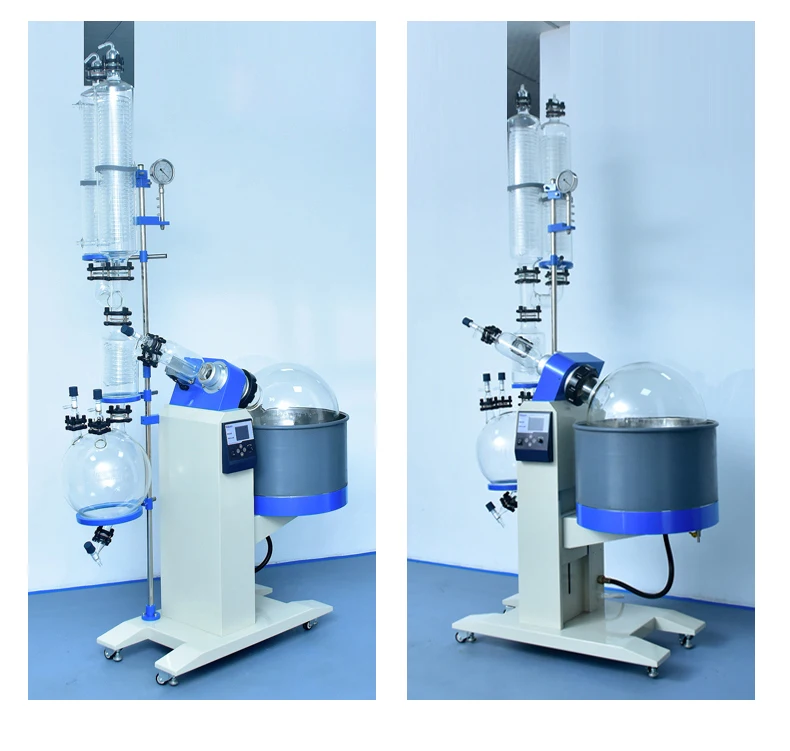

20L Digital Rotary Evaporator with Vacuum Pump and Chiller Easy and Safe to Use Upgraded Condensers for High Recovery Rate Premium Quality Materials for Long Lifetime | ||||||||
SKU/Model | VRT-10PRO | VRT-20PRO | VRT-50PRO | ||
Recovery Rate | Wate≥3L/Hr, Alcohol≥6L/Hr | Wate≥5.5L/Hr, Alcohol≥11L/Hr | Wate≥10L/Hr, Alcohol≥20L/Hr | ||
Glass Material | Sanitary Grade High Borosilicate 3.3 | ||||
Evaporating Flask Capacity | 10L/2.64 gallon | 20L/ 5.28 gallon | 50L / 13.20 gallon | ||
Receiving Flask Capacity | 5L/1.32gallon | 10L/2.64 gallon | 20L / 5.28 gallon | ||
Rotation Motor | DC brushless, 180w | DC brushless, 180w | DC brushless, 250w | ||
Rotation Speed | 0~120 rpm | ||||

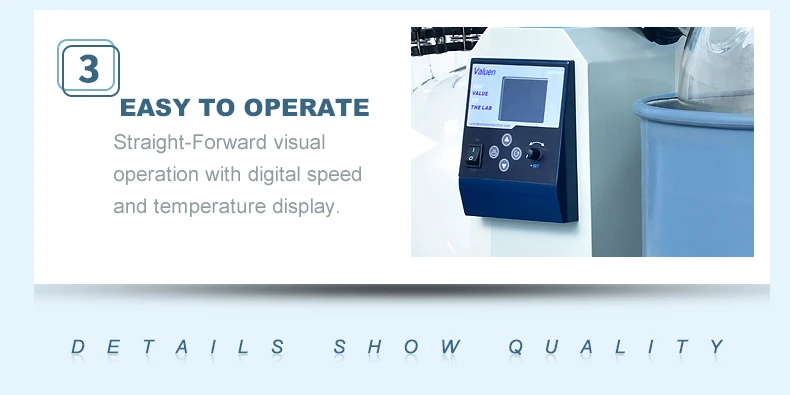

Control panel | Integral control for bath heating and rotation speed with LCD display | ||||

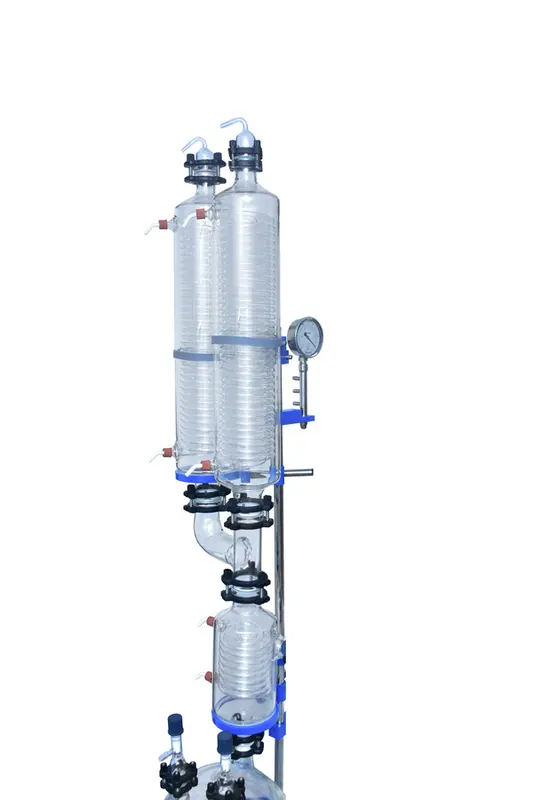

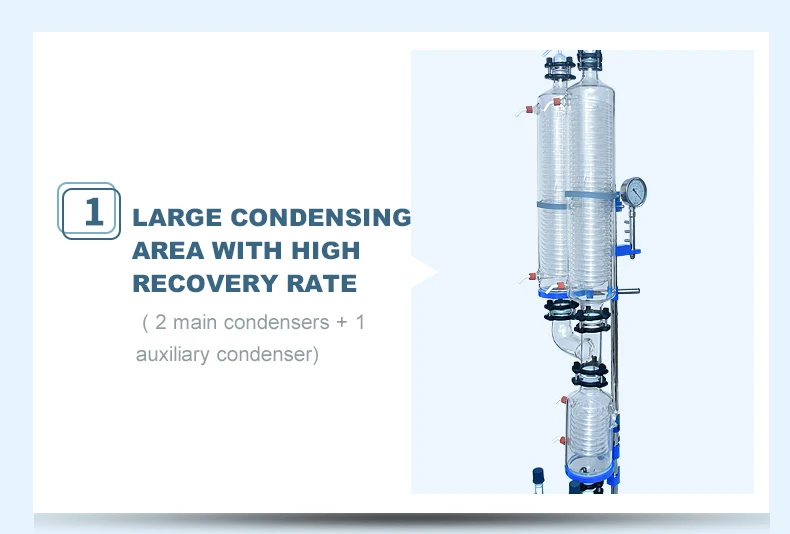

Condensers | 2 Main condensers +1 Auxiliary condenser ( Vertical Double Helix) | ||||

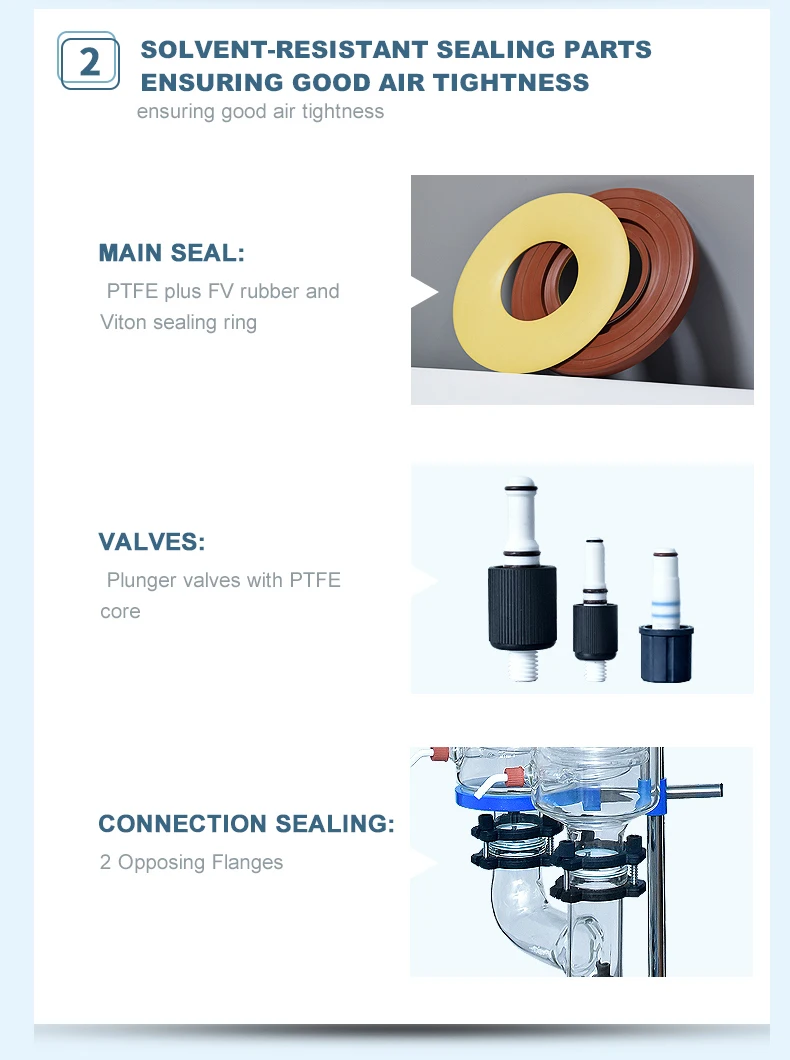

Vacuum Seal | PTFE plus FV rubber and Viton sealing ring | ||||
Maximum Vacuum Pressure | < 3 torrs | ||||
Bath Material | Stainless steel corrosion resistant coating with insulation cover | ||||
Bath Temp. Control Range | Room temperature to 200℃ | ||||
Heating Power | 3KW | 5KW | 6KW | ||
Power Supply | 220V, 50/60HZ (Optional: 110V), Single Phase | ||||
Lift Mode | Auto lift | ||||

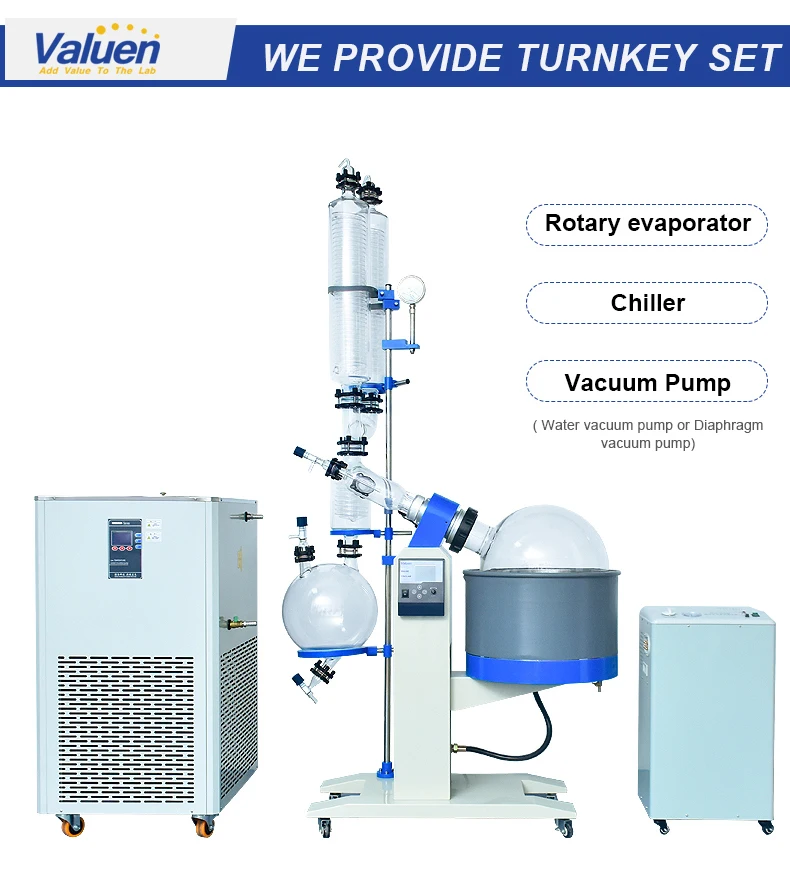

We Provide Turnkey Set: – Rotary evaporator – Chiller Vacuum Pump ( Water vacuum pump or Diaphragm vacuum pump) | ||||||||

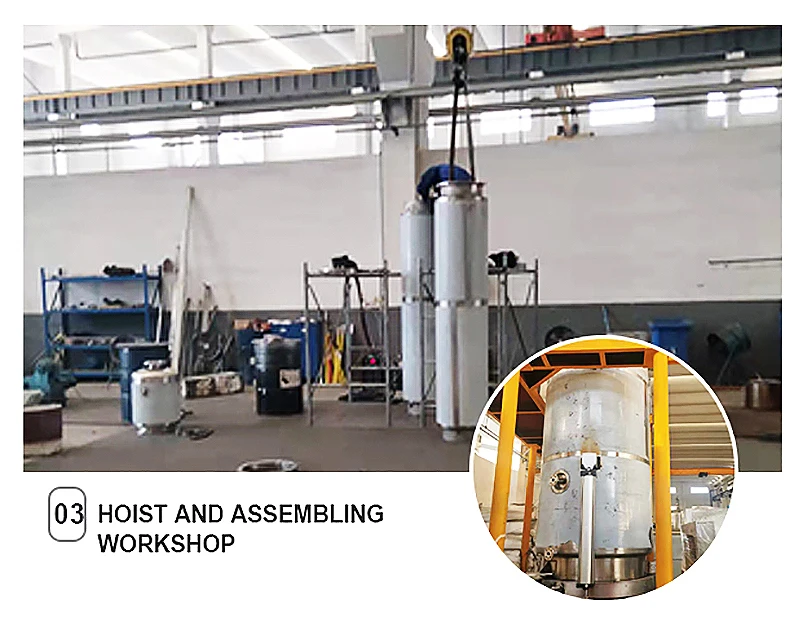

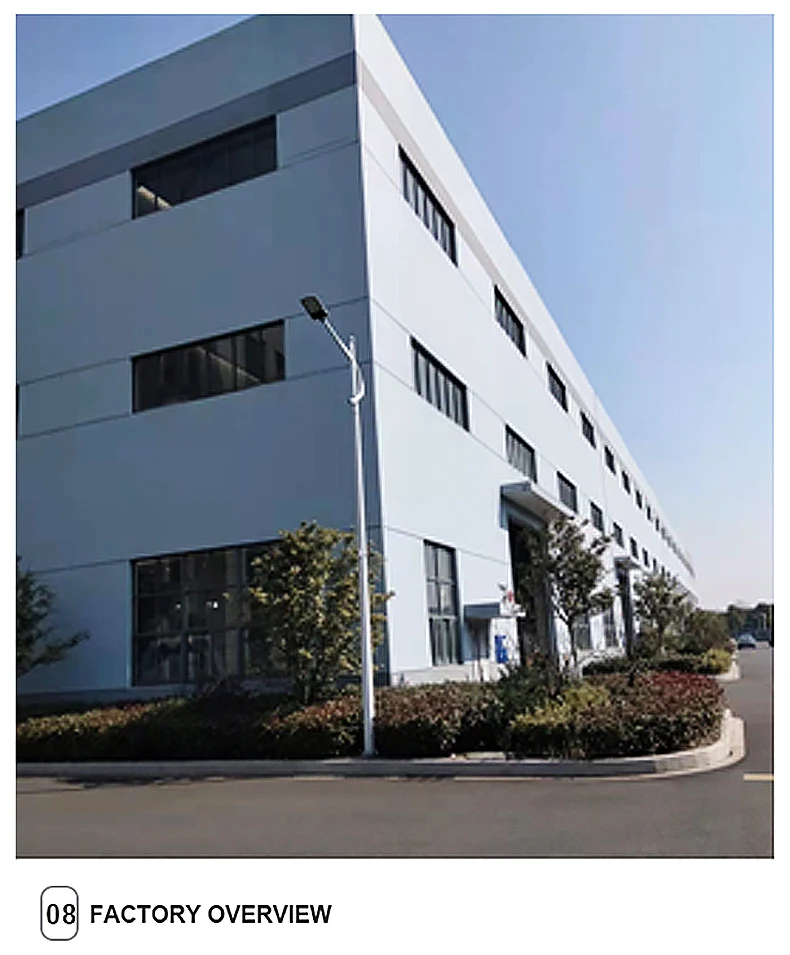

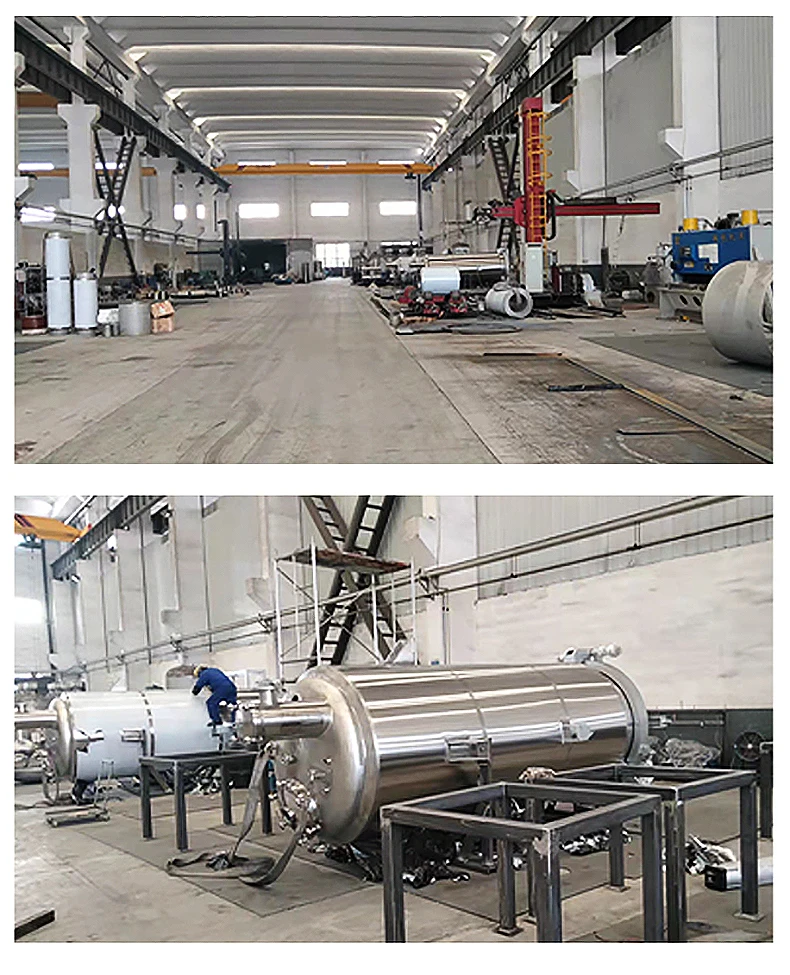

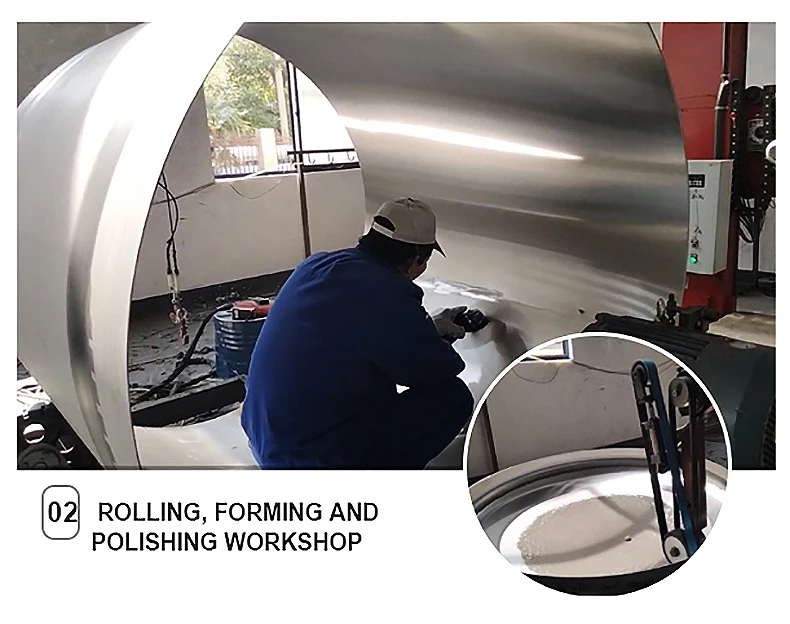

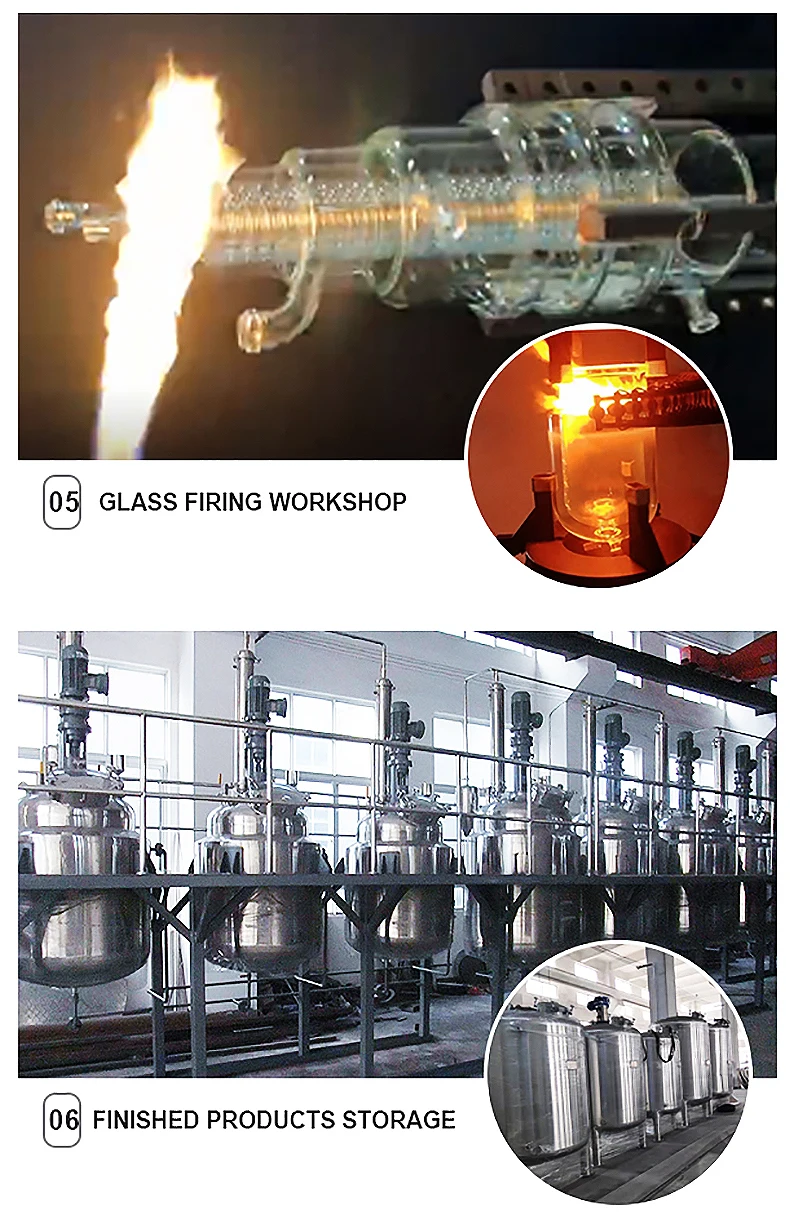

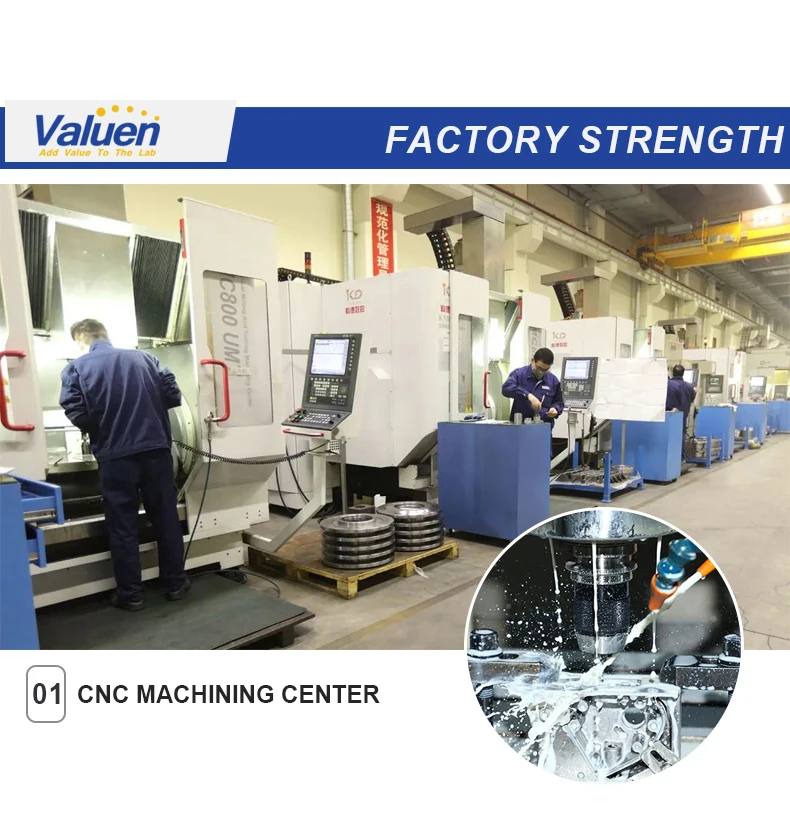

FACTORY STRENGTH | ||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $3500 / set
- 10+ set: US $2500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this digital rotary evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the digital rotary evaporator be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Valuen Industrial Co.,Ltd, based in China. The company 5 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Valuen Industrial Co.,Ltd range on HVACR Nexus.
