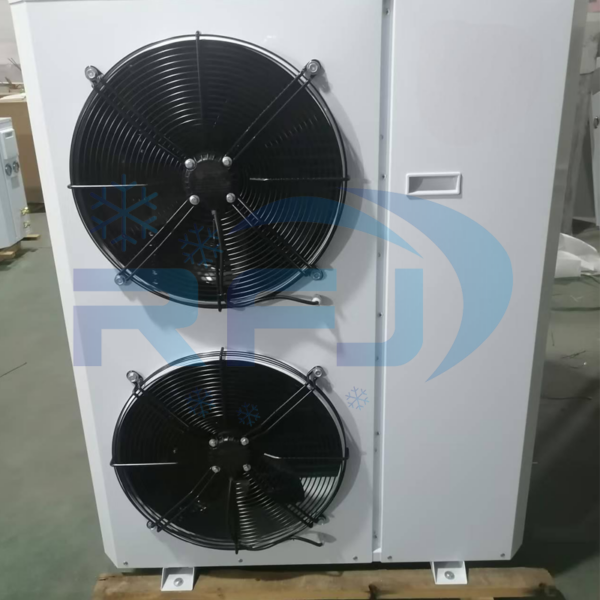

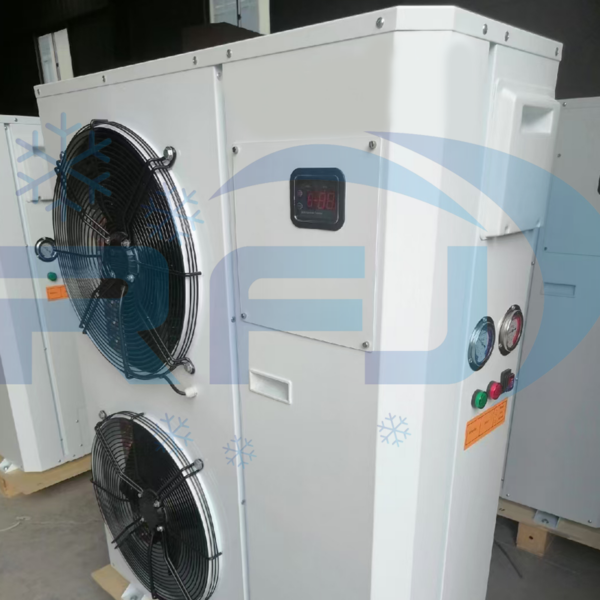

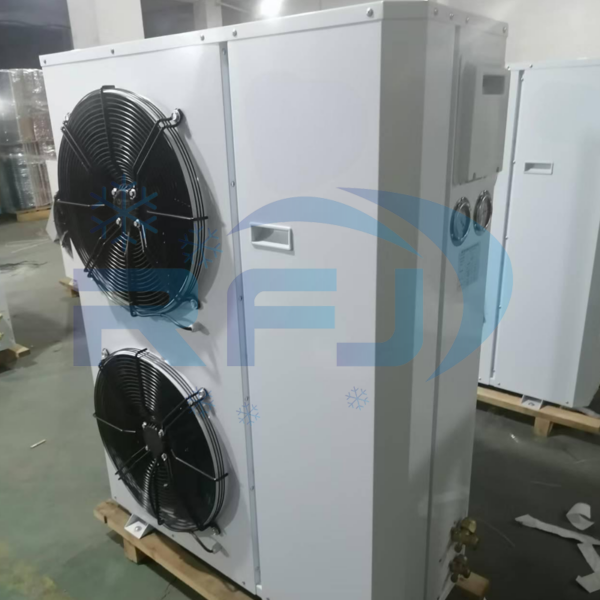

Rating this box type condensing unit at 43C ambient rather than the usual 32C is the detail that matters for Middle Eastern, African and South Asian installations — a unit rated at 32C loses a large share of its capacity when the outdoor air is actually 43C. Double outer-rotor fans give the condenser airflow needed to hold that. Medium to high temperature duty on R404A or R22, at 150kg.
Key Features of This Box Type Condensing Unit
- Voltage: 220-240V/1PH/50Hz; 208-230V/1PH/60Hz and 380V/3PH/50Hz;460V/3PH/60Hz
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Refrigeration Parts
- Type: Refrigeration Compressor
- Weight (Kg): 150
Technical Specifications
| Type | Refrigeration Compressor |
|---|---|
| Application | Refrigeration Parts |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 150 |
| Place Of Origin | Guangdong, China |
| Brand Name | Ankang |
| Name | Double Fan Outer Rotor Box Type Unit Refrogeration Condensing Unit |

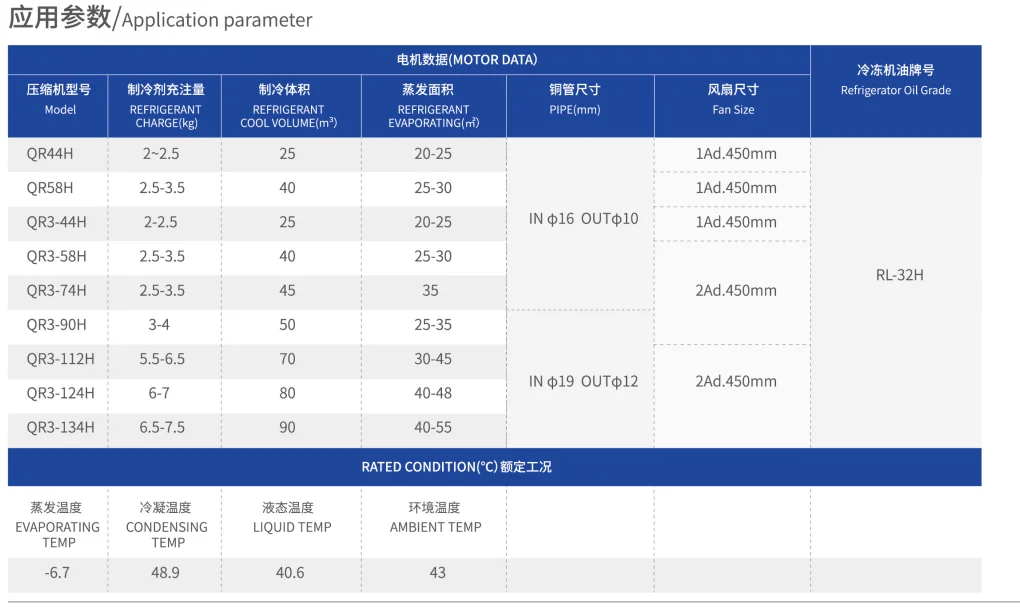

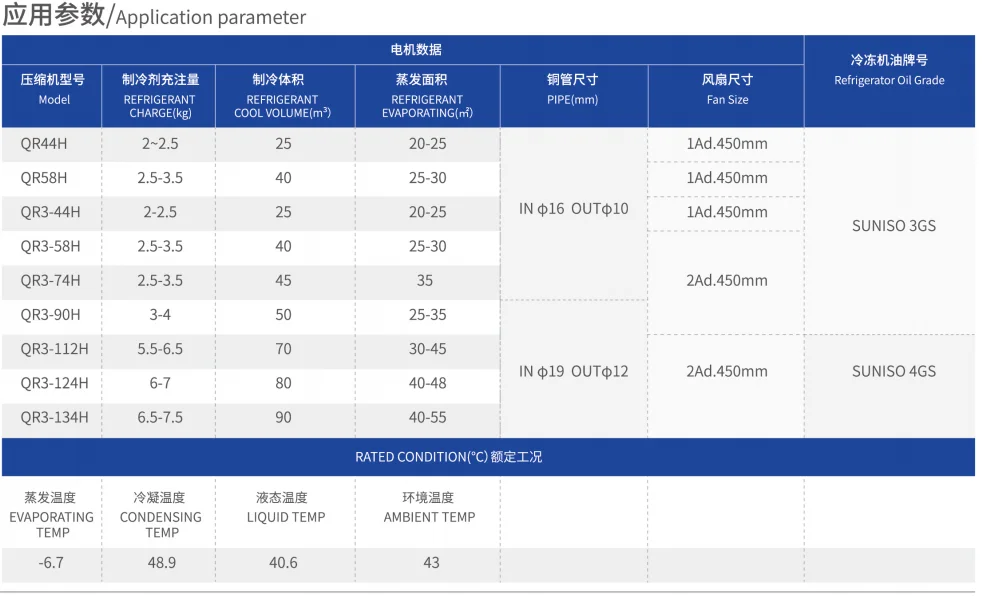

| Rated Condition | Ambient Temp 43℃ |
| Voltage | 220-240V/1PH/50Hz; 208-230V/1PH/60Hz and 380V/3PH/50Hz;460V/3PH/60Hz |
| Refrigerator Oil Grade | 2~7HP |
| Selling Units | Single item |
Double Fan Outer Rotor Box Type Unit Medium-High Temperature Refrogeration Condensing Unit R404A R22 Descrition:

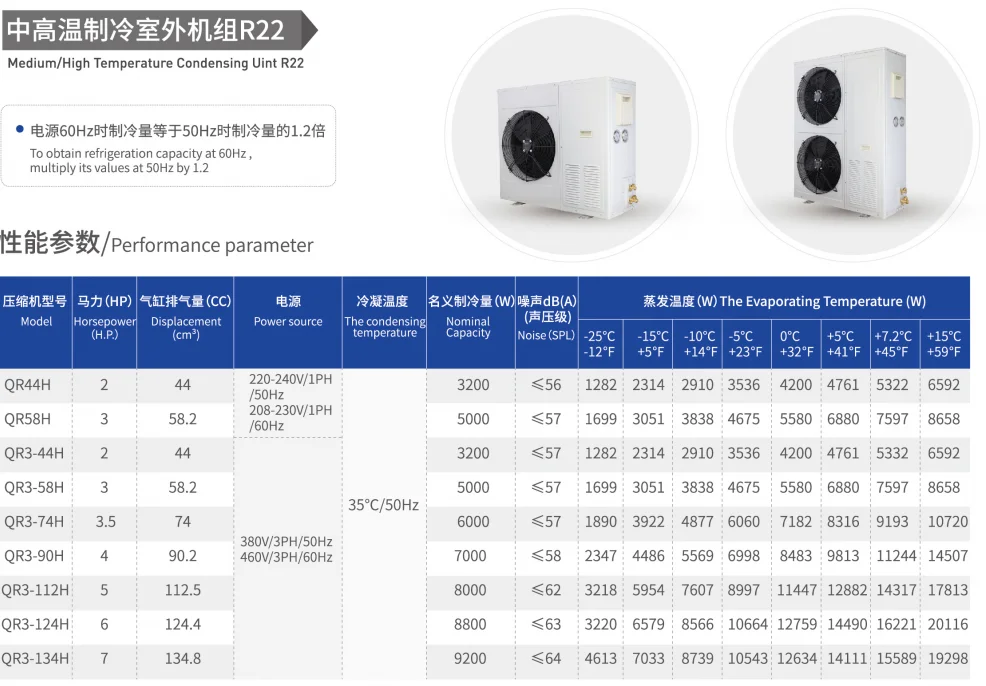

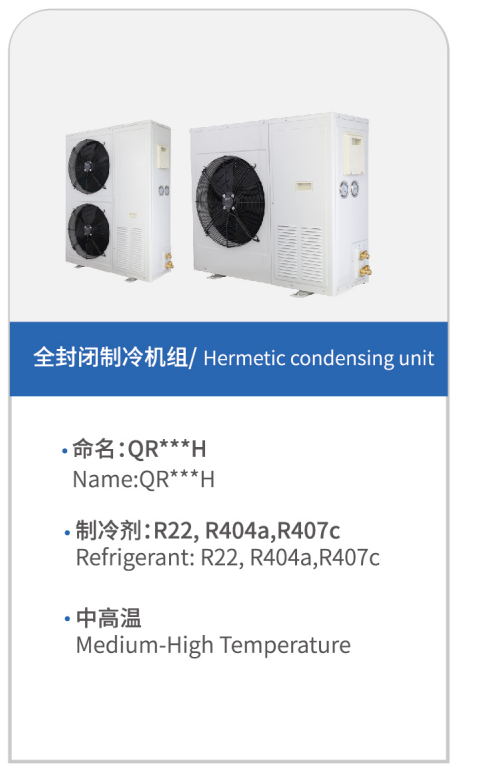

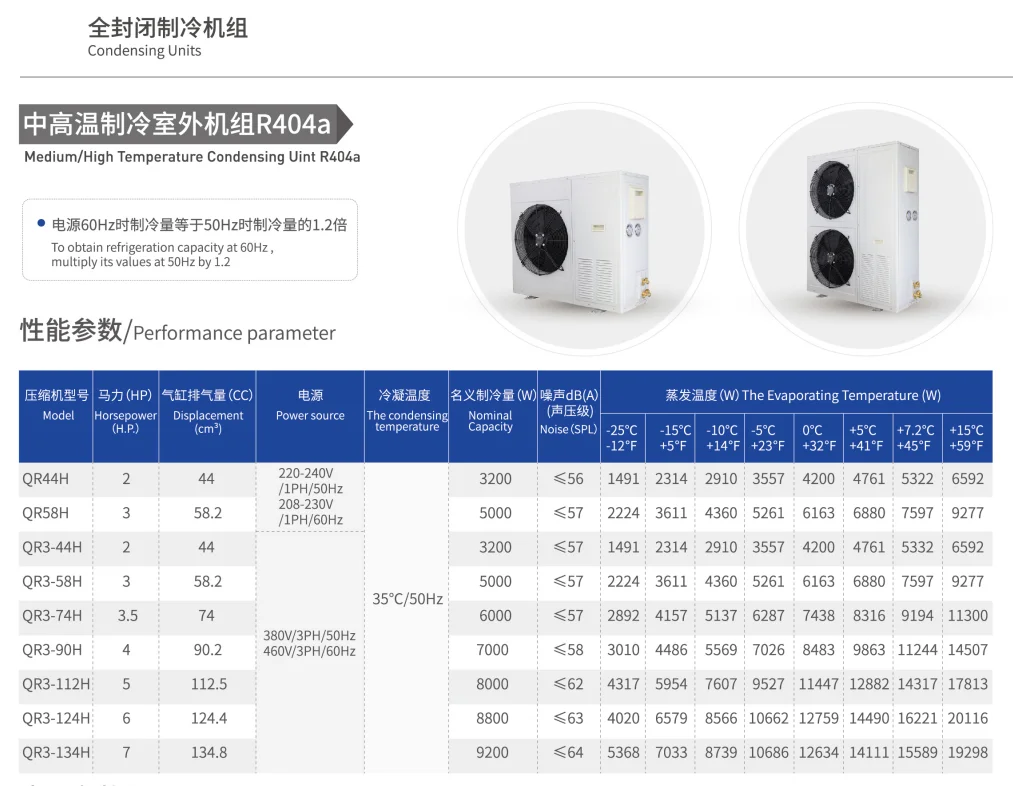

1. Product Specification
|
Brand |
Double Fan Outer Rotor Box Type Unit Medium-High Temperature Refrogeration Condensing Unit R404A R22 |
|
Noise(SPL) |
<=64 |
|
Horsepower |
2~7 HP |
|
Refrigerant |
R404a;R22;R407c |
|
Voltage |
220-240V/1PH/50Hz; 208-230V/1PH/60Hz 380V/3PH/50Hz;460V/3PH/60Hz |
2.Product feature
•Weiguang External Rotor Motor: The premier motor brand in China.
•Innovatively Designed Condenser Fins for Enhanced Cooling: This condenser incorporates
a robust 9.5mm copper tube along with expanded fin material, raising the height by 4 cm—comparable
to two rows of copper tubes—to improve flow and ensure effective heat dissipation.

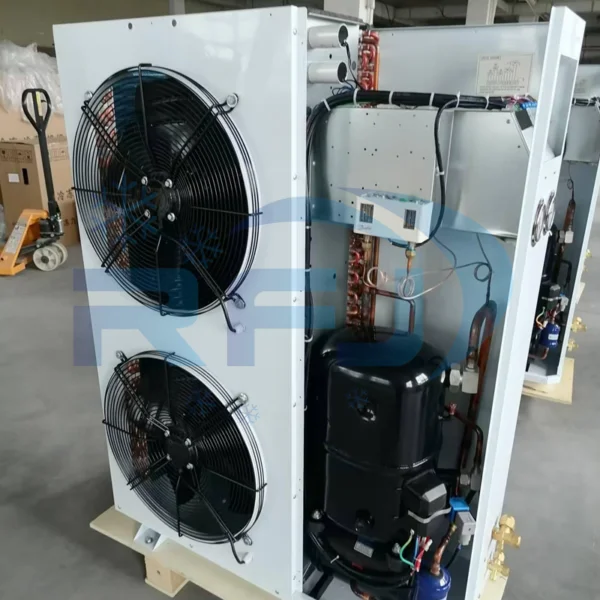

•Effortless Post-Sale Replacement: The configuration of the compressor and condenser
fins allows for simple disassembly and replacement of the compressor.
•Top-Quality Parts from a Renowned Global Brand: Danfoss pressure control.
•Compressor: Ankang compressor, produced in China.
3.Production details
Shenzhen Ruifujie Technology Co., Ltd. has a history of more than 20 years. It is a large-scale modern enterprise specializing in R&D, production and sales of refrigeration products. The company has great advantages in the trading of compressors and refrigeration accessories, and has close cooperation with major compressor manufacturers around the world.

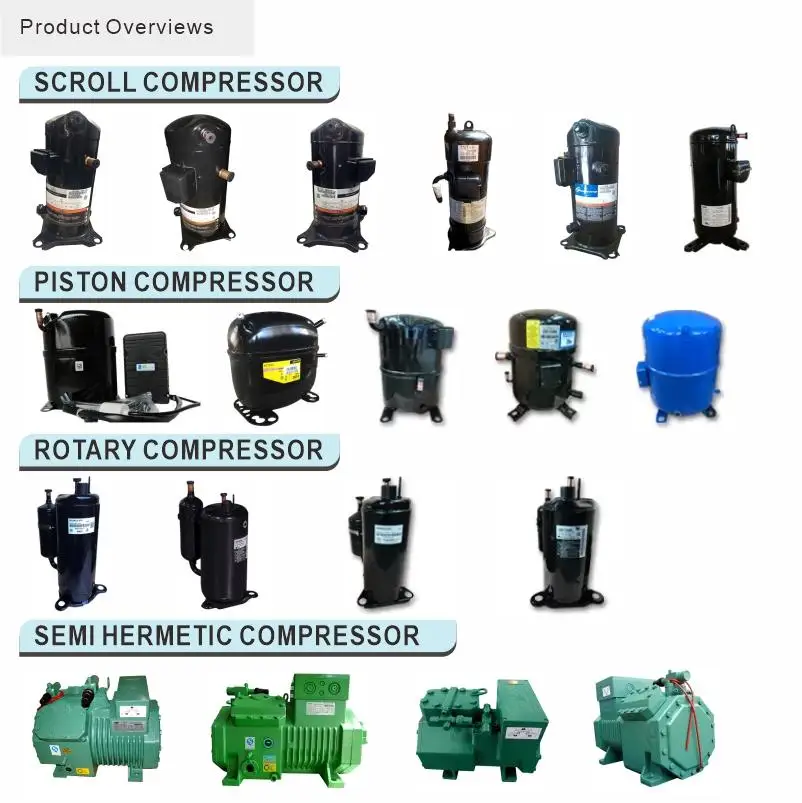

The company develops and produces scroll, piston and screw compressor are exported to all over the world. We have strong technical strength and experience in cold storage, freezing, quick freezing, and flake ice machine, block ice machine production and sales. In recent years, the company has been in the Belt and Road. Under the advocacy of the project, we constantly tackled difficulties in overseas markets, developed rapidly, and built a number of engineering projects with modern significance.
The company has achieved breakthrough development in after-sales service, design, installation, maintenance and technical consulting, and has established long-term close cooperation with many countries around the world.
Based on the tenet of “Devotion, Integrity, Innovation, Dedication”, We will continue to provide Highest quality products for new and old customers.
4.Product qualification
Certificate, certification, patent certificate:
1).“Quality Management System Certification”
2).“Shenzhen Science and Technology Enterprise Certification”
3).“Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate”
5.FAQ
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q:What is the packaging and shipping method?
A:By Sea: Export wooden package,with refrigerant oil.
By Air: Full-sealed wooden package, without refrigerant oil.
Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce,we can discuss the MOQ according to customer’s exact situation.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Q:What is the term of payment?
A:T/T, Western Union.
Frequently Asked Questions
What is the minimum order quantity for this box type condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this box type condensing unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220-240V/1PH/50Hz; 208-230V/1PH/60Hz and 380V/3PH/50Hz;460V/3PH/60Hz. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
