Double Flat Panel, Steel, HVAC

This double flat panel is listed with the manufacturer’s full published specification — material Mild Steel, model number ZD-6012D, certificates CE BSEN442 UKCA. It is produced by Tangshan Zeda Hvac Technology Co., Ltd., a verified supplier of 5 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Double Flat Panel

• Model Number: ZD-6012D
• Material: Mild Steel
• Warranty: 2 Years
• Place Of Origin: Hebei, China
• Application: Hotel, Apartment
• Feature: Energy Saving

Technical Specifications

Product Details

Specification

Product Features and Benifits

* Available in a wide range of sizes
* Stylish designer radiators that combine performance and panache

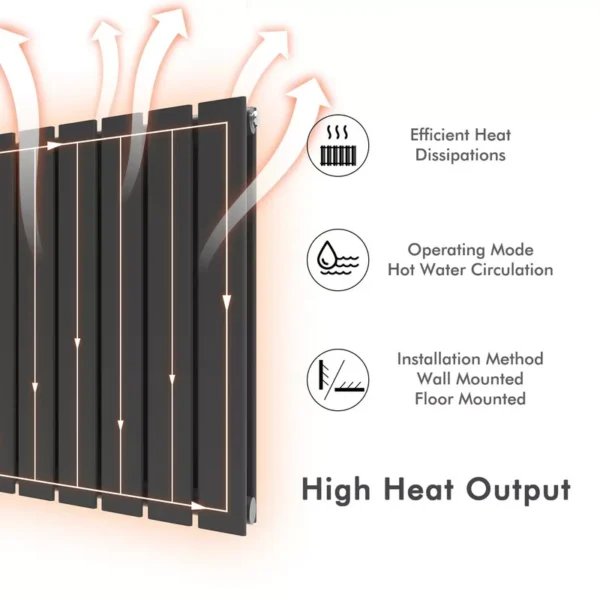

* Double flat panel design achieves optimal heat output and circulation

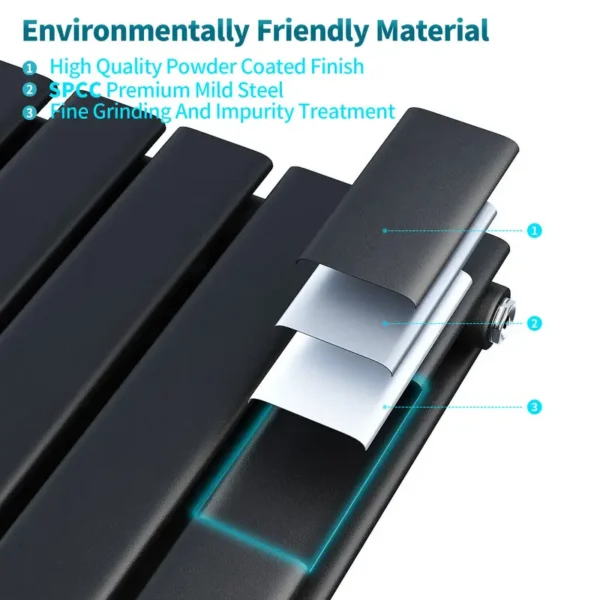

* Low-carbon steel for an environmentally friendly, long-lasting option
* White or anthracite or black finish
* Compatible with all home heating systems

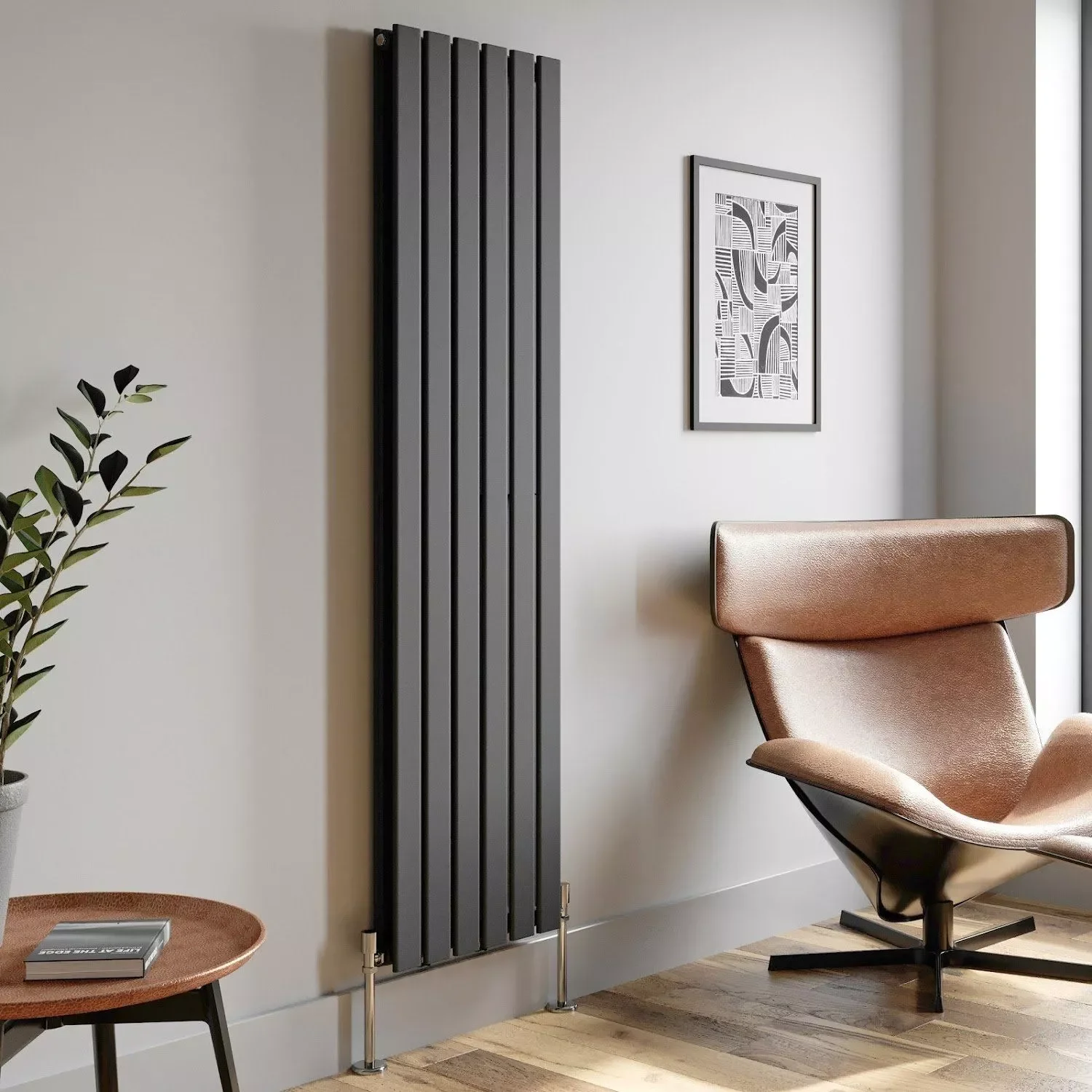

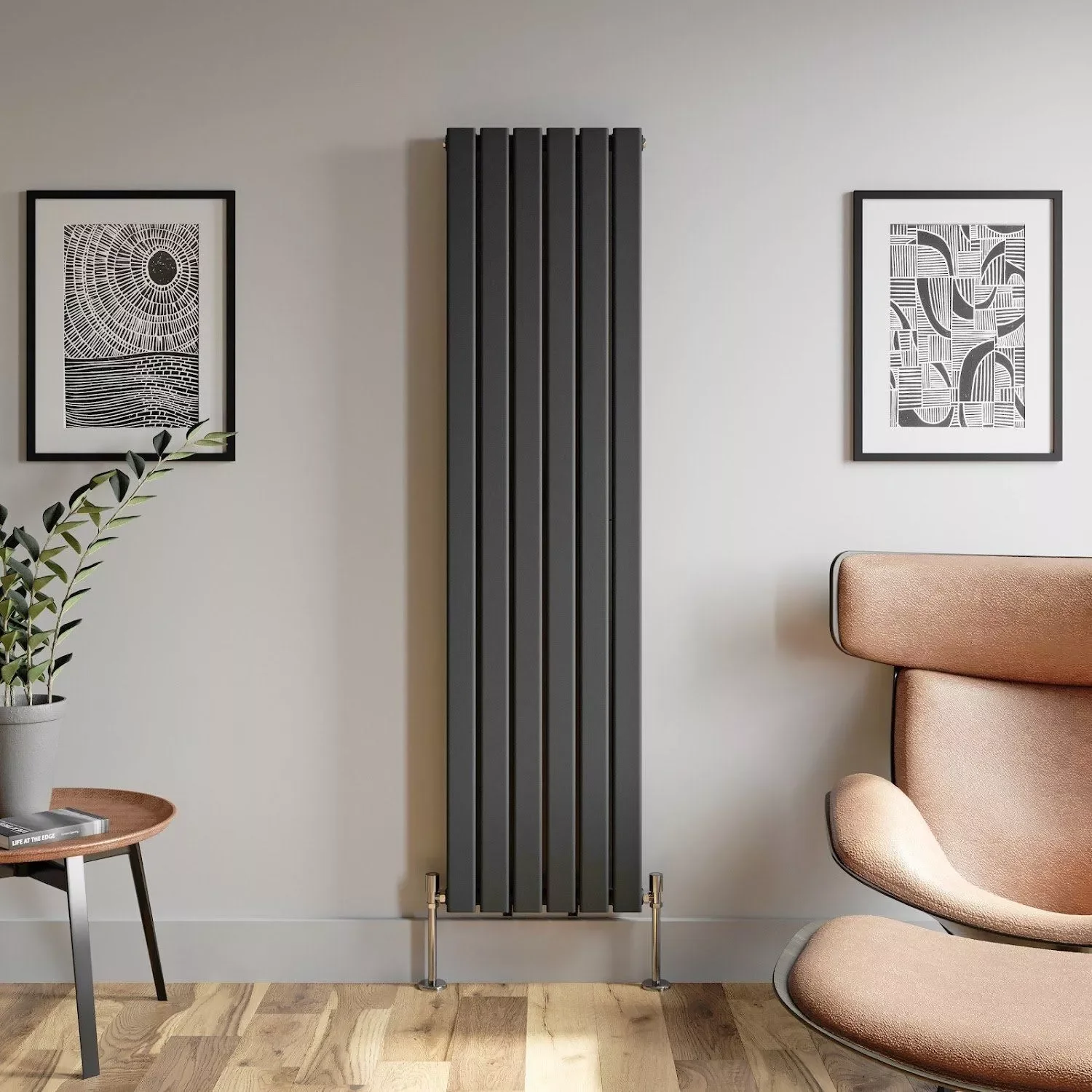

Product name	Double Flat panel vertical radiator
Model	6012D-18-6
Size	1800*408*59 MM
Material	1.3 MM Low-carbon steel
Work Pressure	0.4 Mpa
Features	Room heating
Certificates	BSEN442 CE UKCA
Install	Wall mounted installation

Model	Height	Length	Width	Panel	BTU Output	Watts Uotput
6012D-06-6	600	408	59	Double Flat	2076	611
6012D-06-9	600	612	59	Double Flat	3114	916
6012D-06-11	600	748	59	Double Flat	3806	1120
6012D-06-13	600	884	59	Double Flat	4498	1324
6012D-06-15	600	1020	59	Double Flat	5190	1527
6012D-06-17	600	1156	59	Double Flat	5882	1731
6012D-06-21	600	1428	59	Double Flat	7266	2138
6012D-16-4	1600	272	59	Double Flat	3840	1024
6012D-16-6	1600	408	59	Double Flat	5760	1535
6012D-16-8	1600	544	59	Double Flat	7680	2047
6012D-16-10	1600	680	59	Double Flat	9600	2559
6012D-18-4	1800	272	59	Double Flat	3899	1147
6012D-18-6	1800	408	59	Double Flat	5849	1720
6012D-18-8	1800	544	59	Double Flat	7798	2294
6012D-18-10	1800	680	59	Double Flat	9748	2867

Product Description

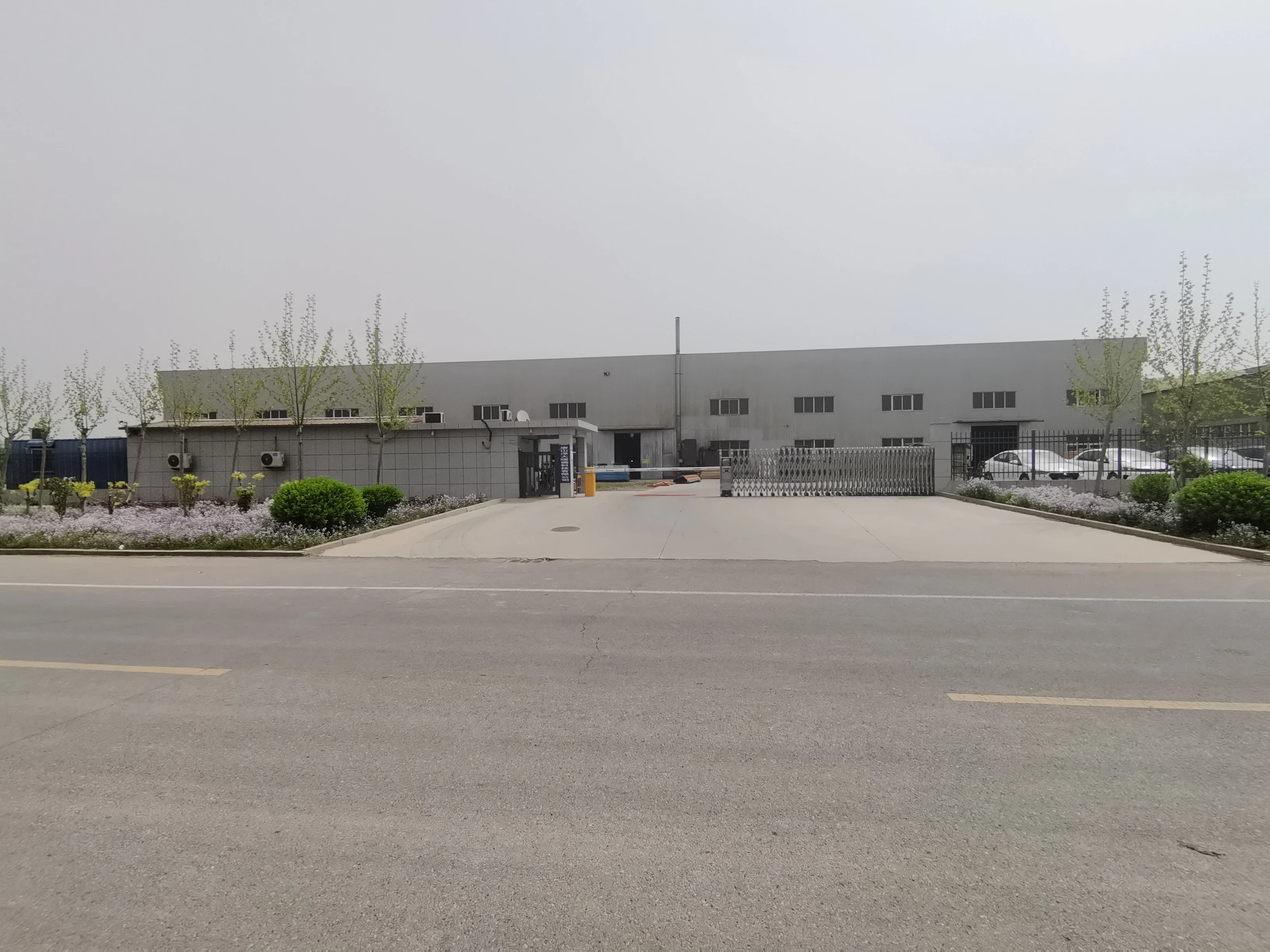

Company Profile

Tangshan Zeda HVAC Co., Ltd. is a professional heating radiator manufacturer integrating R & D, manufacturing and marketing in China. The company introduces international advanced technology, technology and production equipment to produce new heating radiators such as steel pipe series, copper aluminum composite column airfoil series, steel aluminum composite column airfoil series, steel bathroom series and green environmental protection series. The company's sales network is all over major cities in China, and some products are exported to Europe, America and other developed countries!

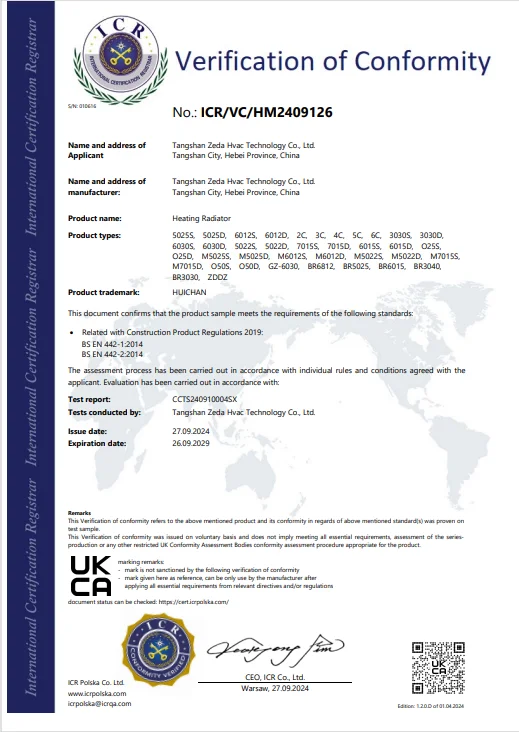

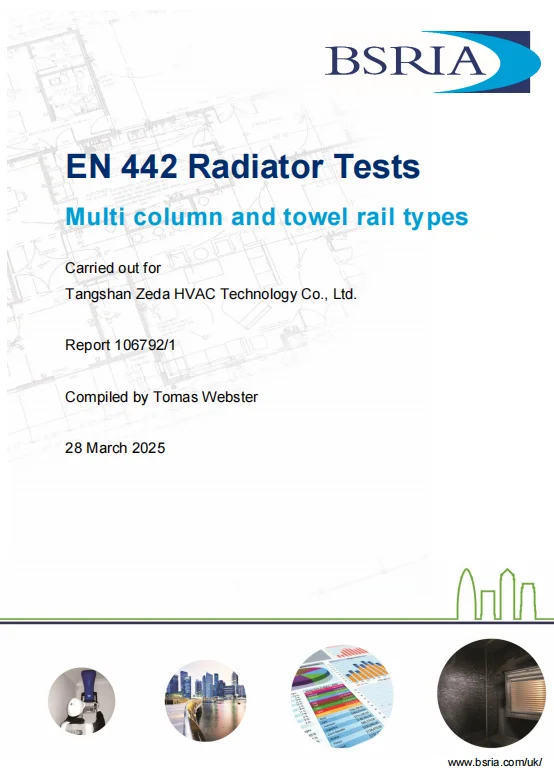

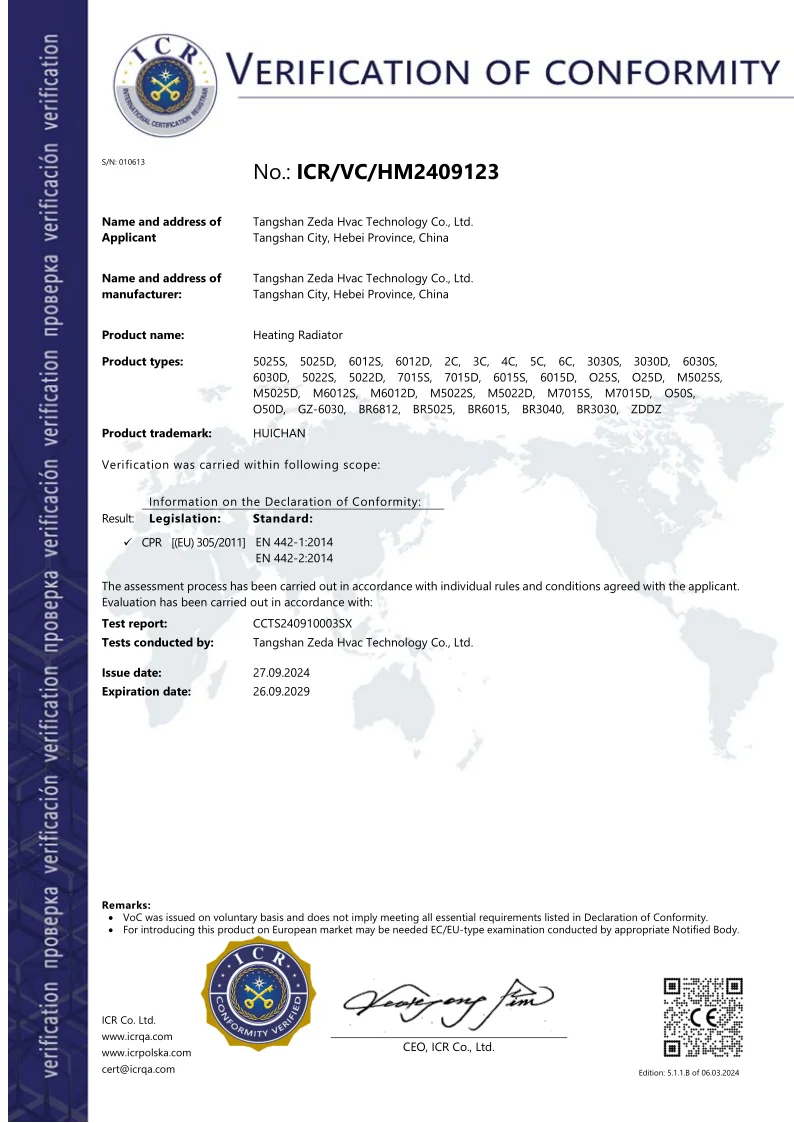

Certifications

Exhibition

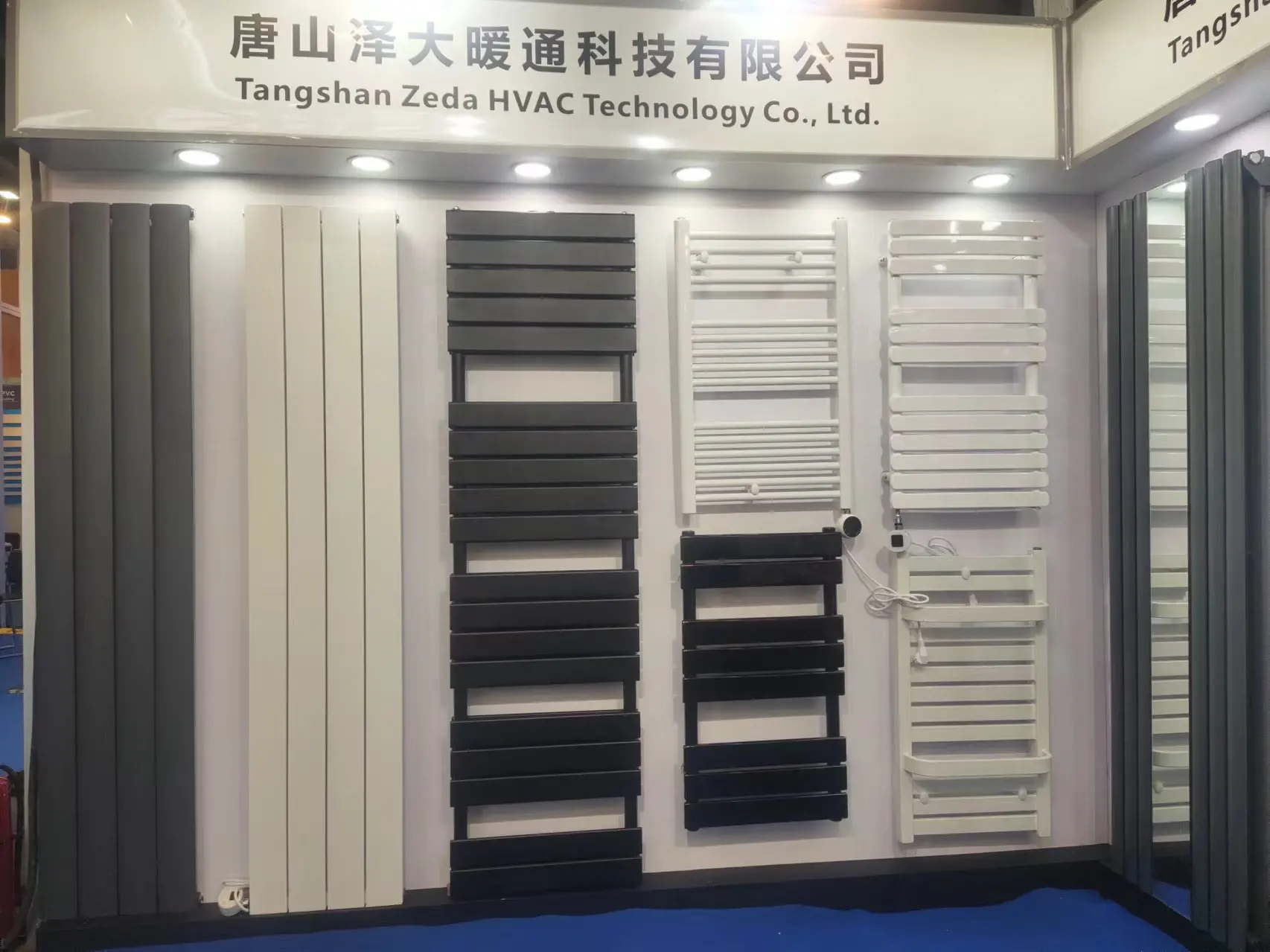

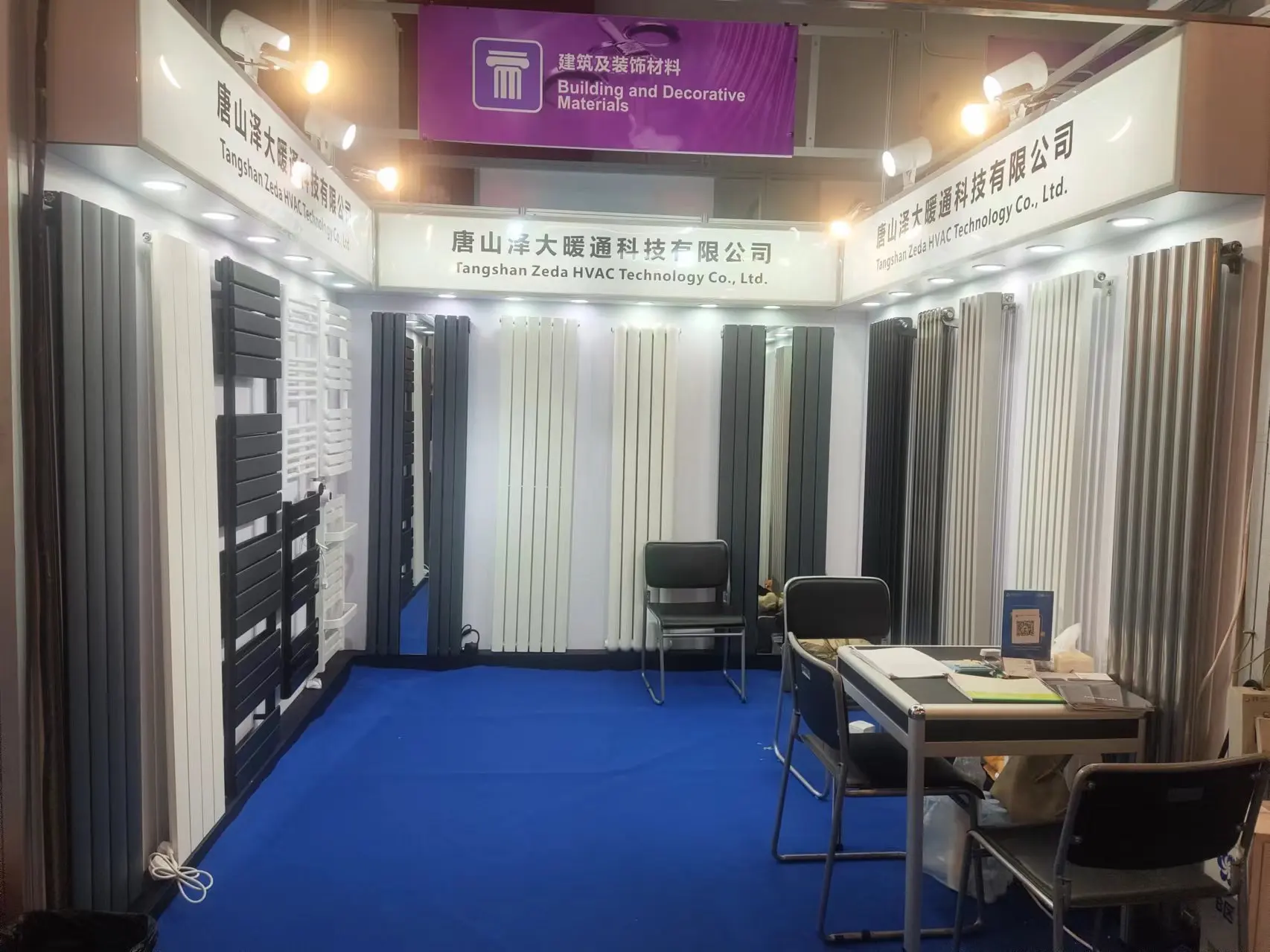

Tangshan Zeda HVAC Technology Co., Ltd. has participated in the Canton Fair for many years.

The company has many years of export experience, the main markets include the United Kingdom, Russia, Canada, Belgium, Latvia, the United States, etc.

Recommend Products

Tangshan Zeda HVAC Technology Co., Ltd. mainly produces steel water heating radiator, heating towel rack and electric heating radiator.

Please click the following pictures to know the products you are interested in.

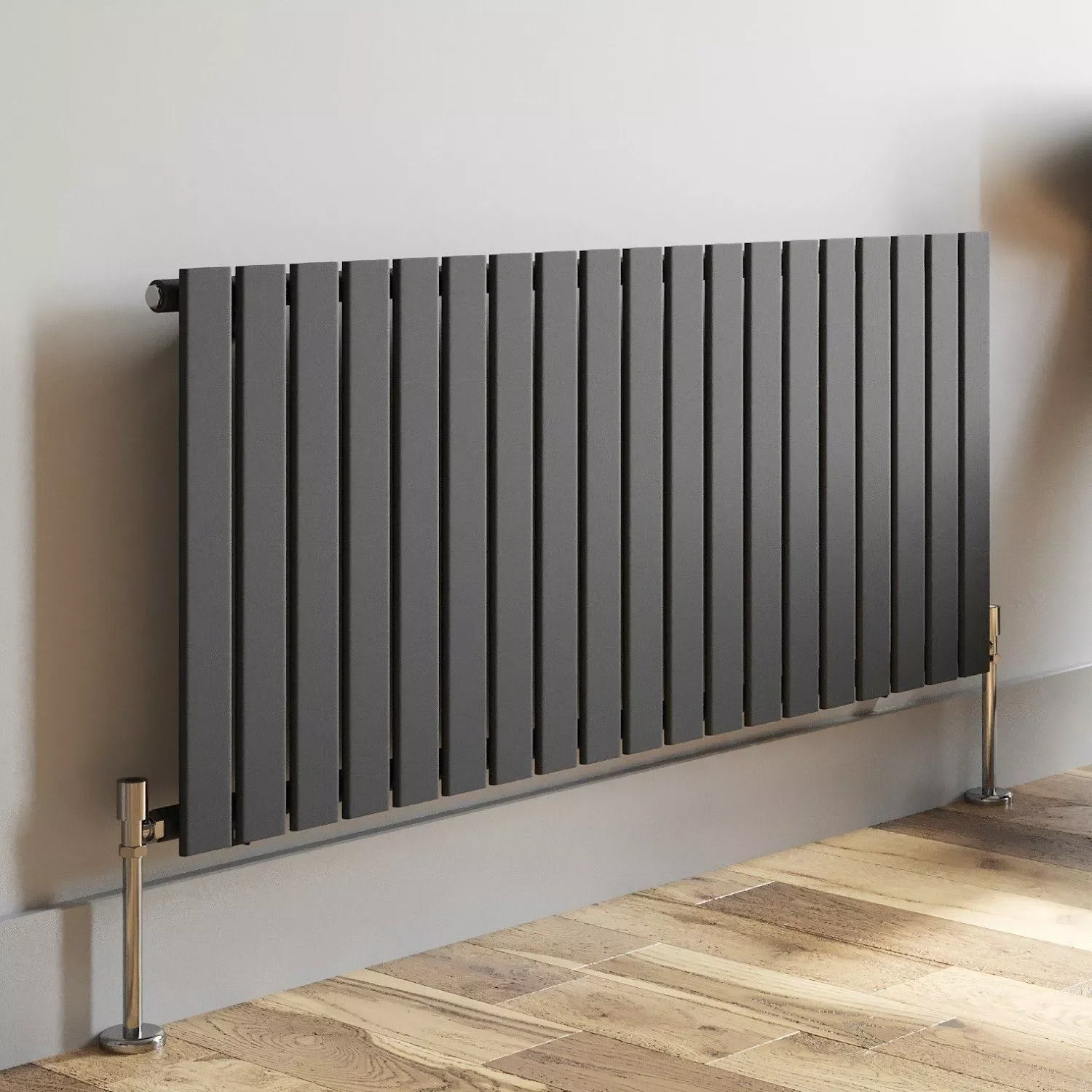

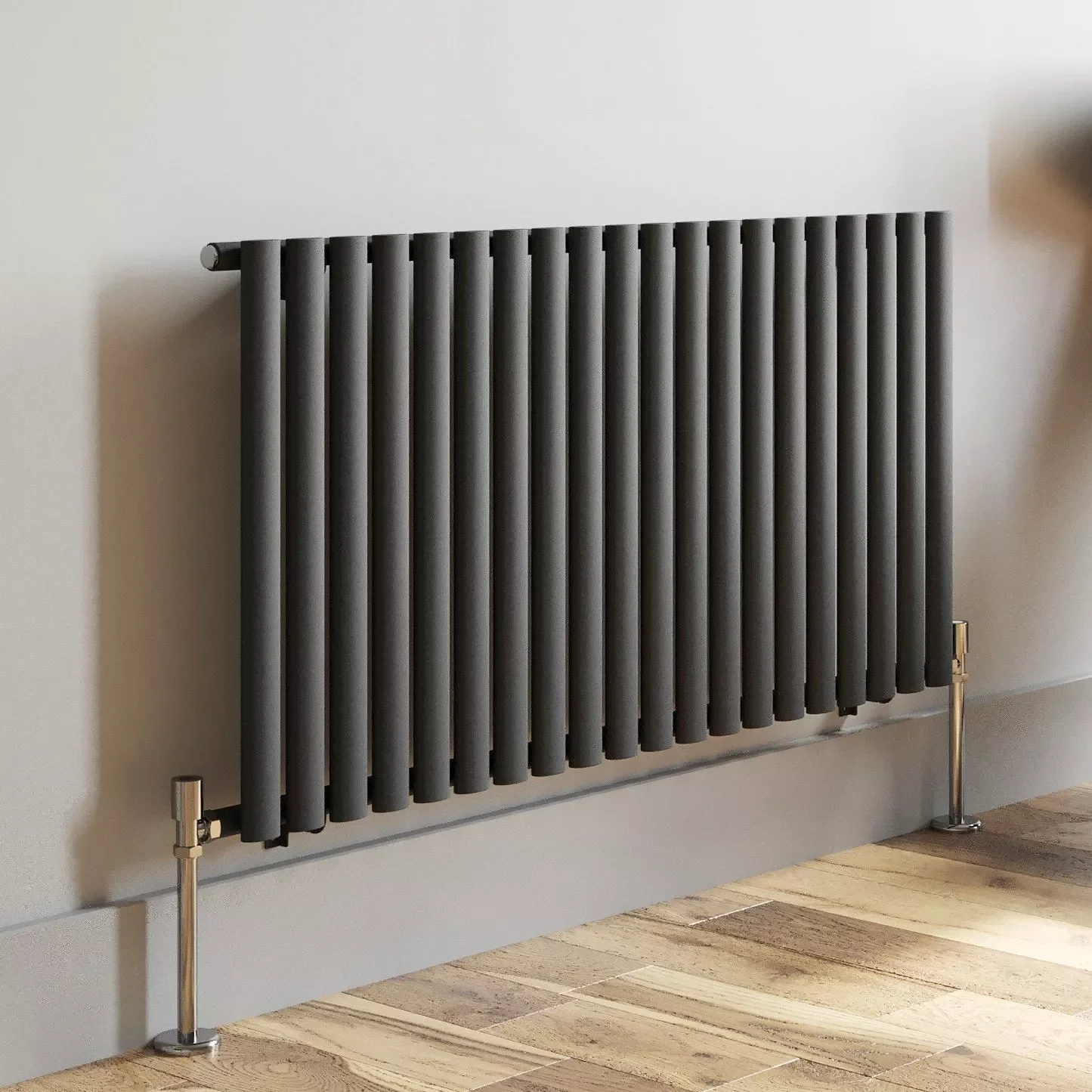

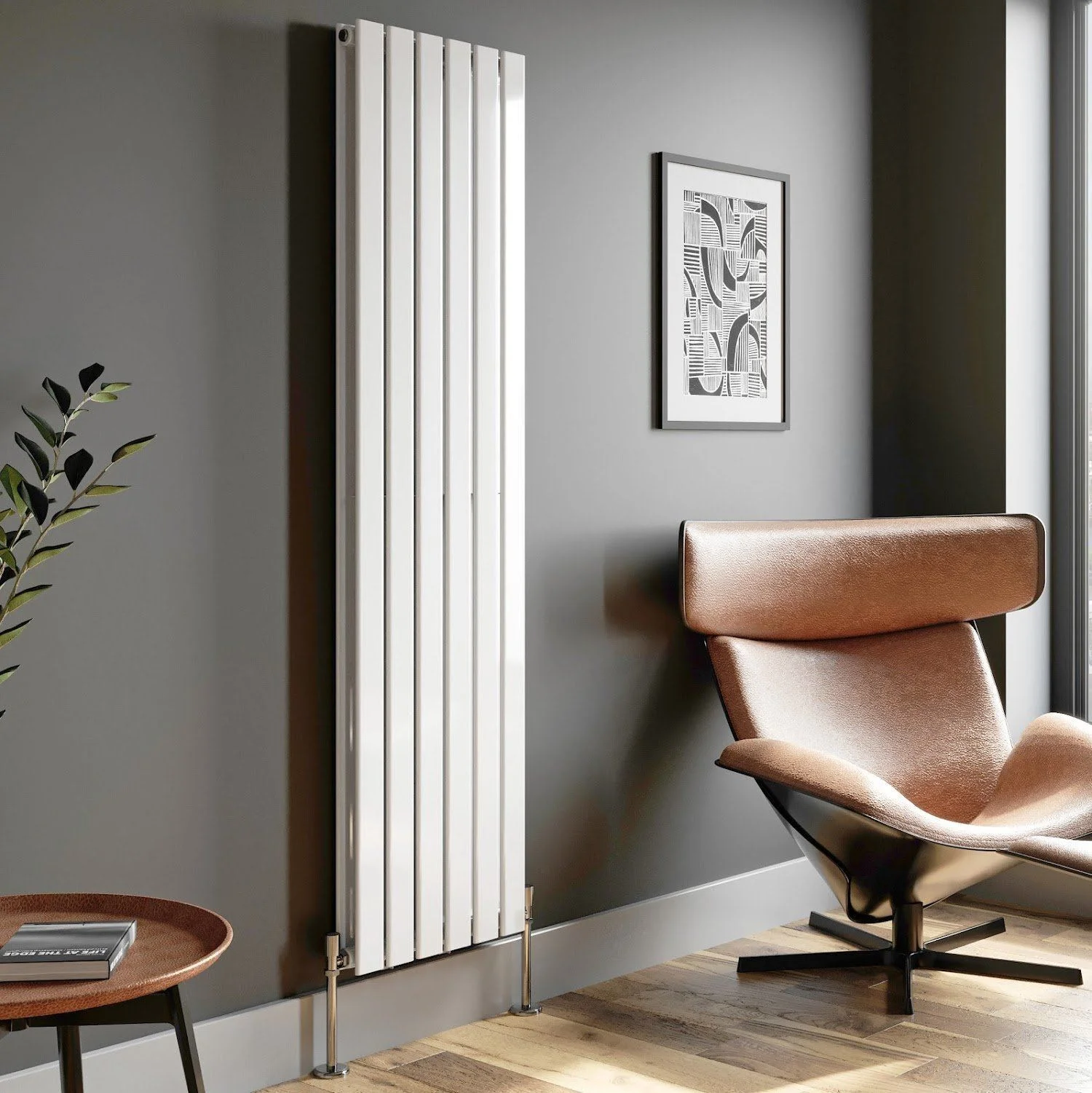

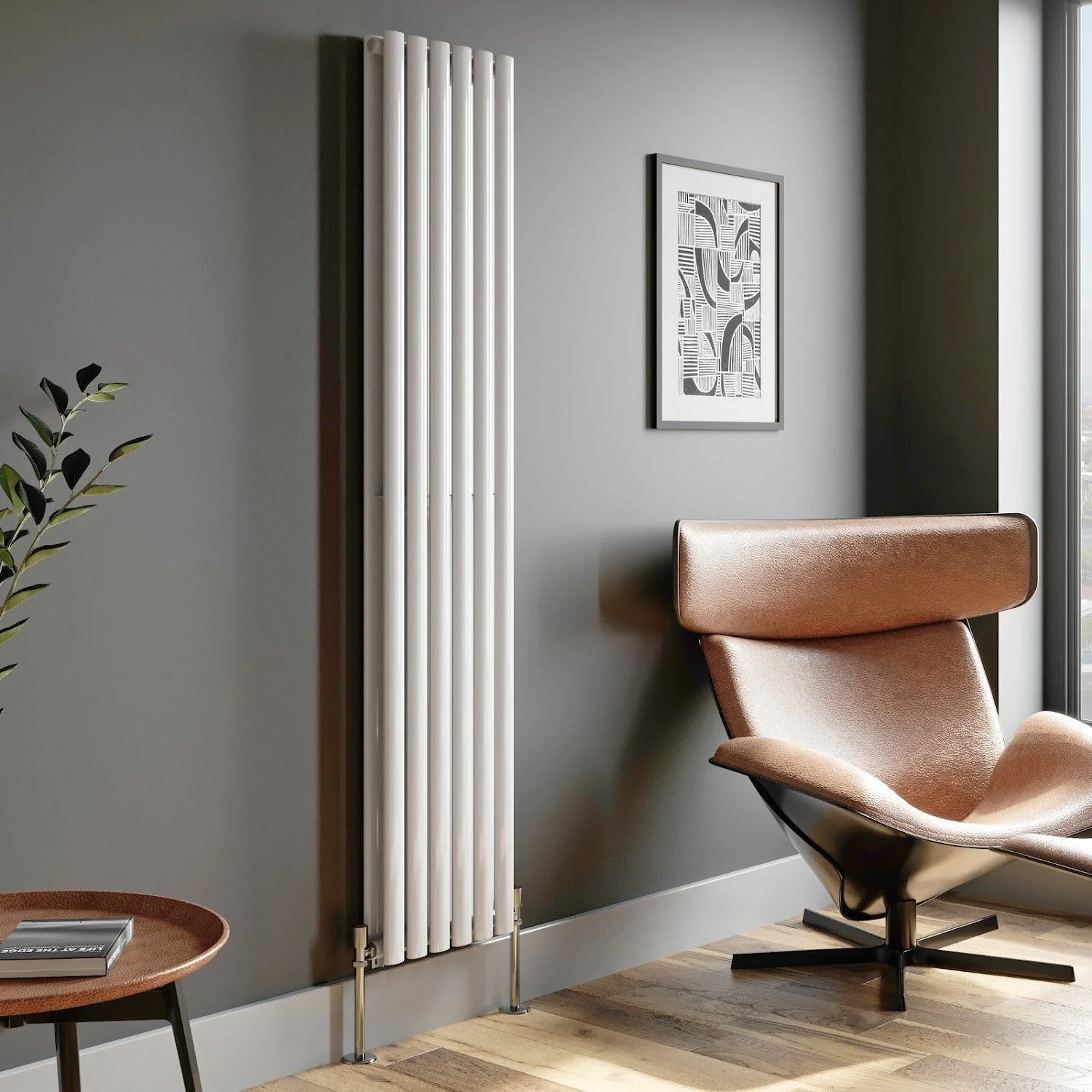

Designer radiator

* Designer horizontal & vertical white/anthracite/black gloss finish radiators
* Extensive range of sizes to choose from in single & double panel
* Available in either Oval tube or Flat panel
* Manufactured from high thermal conducting premium mild steel
* Scratch and rust resistant triple layered white gloss finish
* Compatible with all domestic heating systems

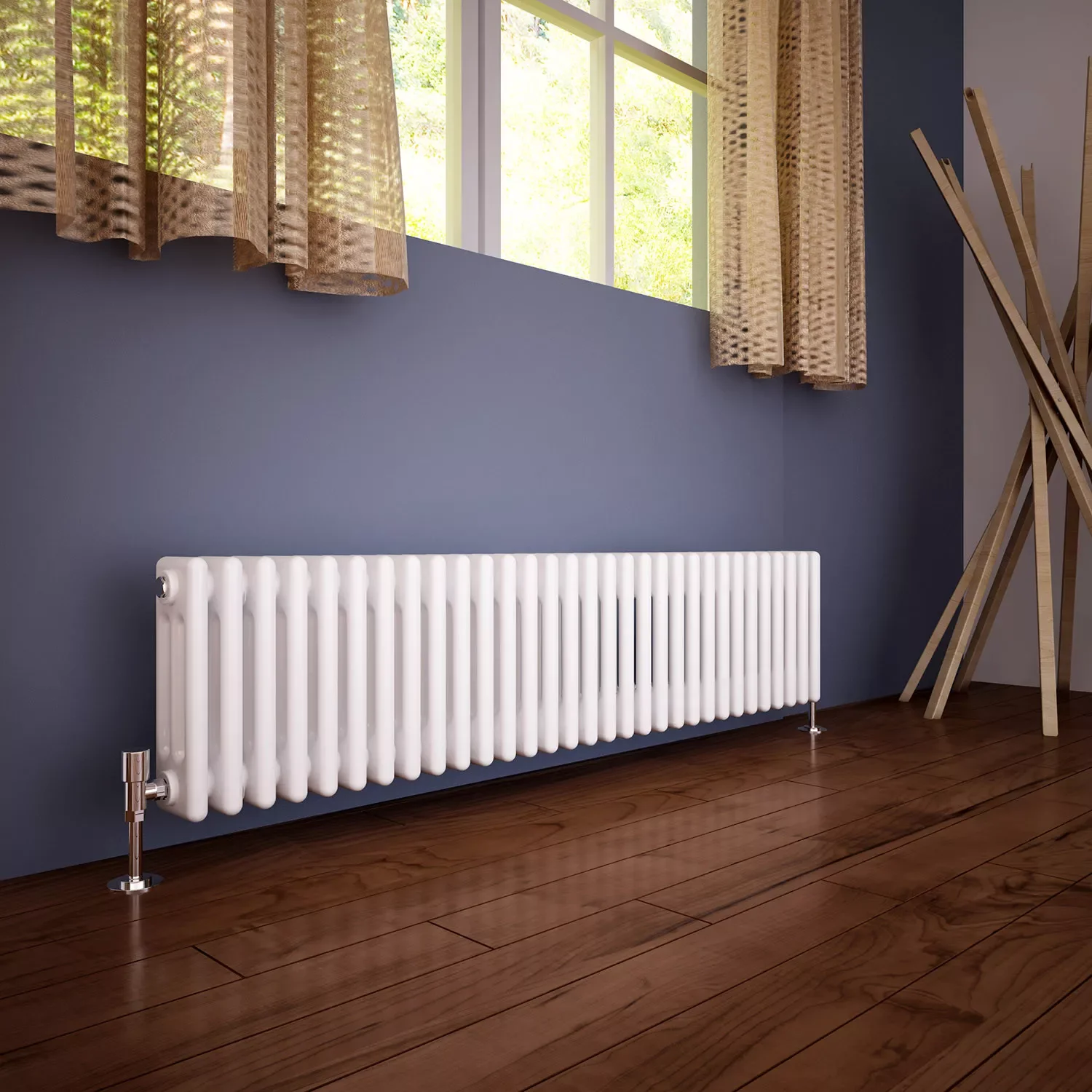

Steel column radiator

* Traditional colosseum column horizontal & vertical radiators

* Huge range of sizes to choose from in double and triple bar

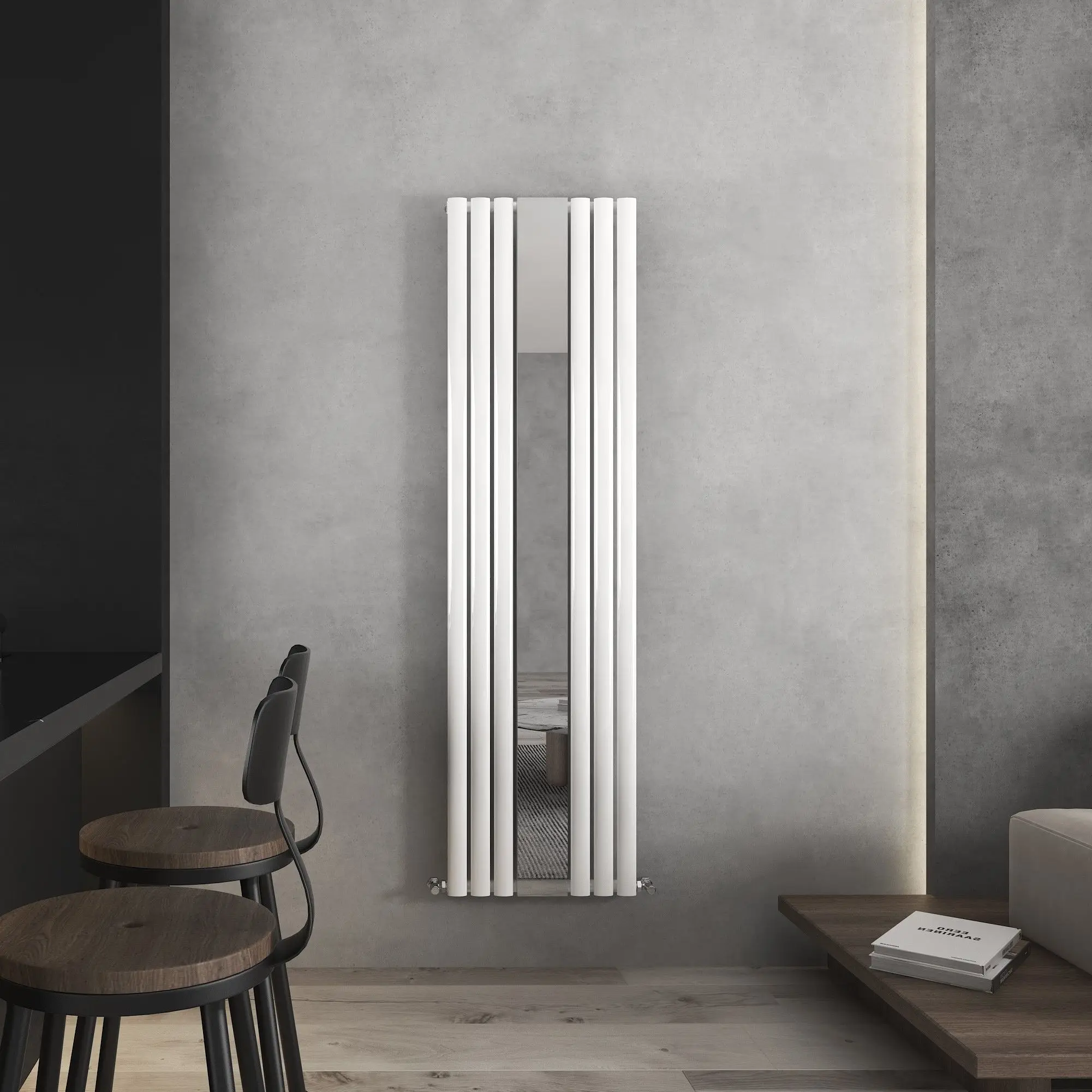

Mirror radiator

*Infuse warmth into your home with our cutting-edge flat/oval panel vertical radiator in anthracite grey/white/black with a sleek central mirror – a perfect blend of timeless elegance and modern efficiency.

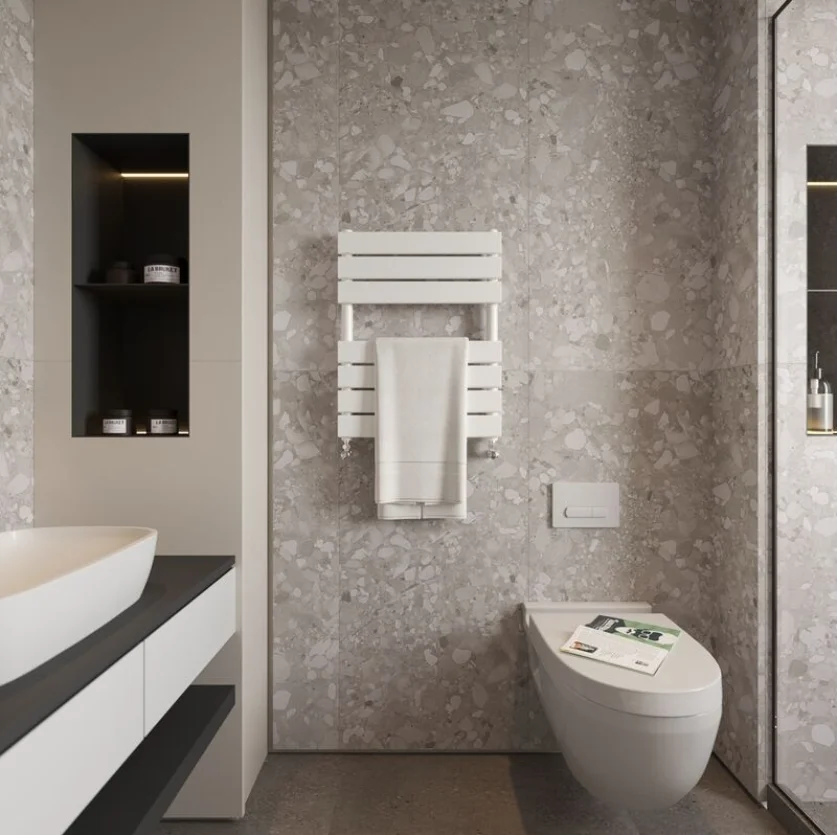

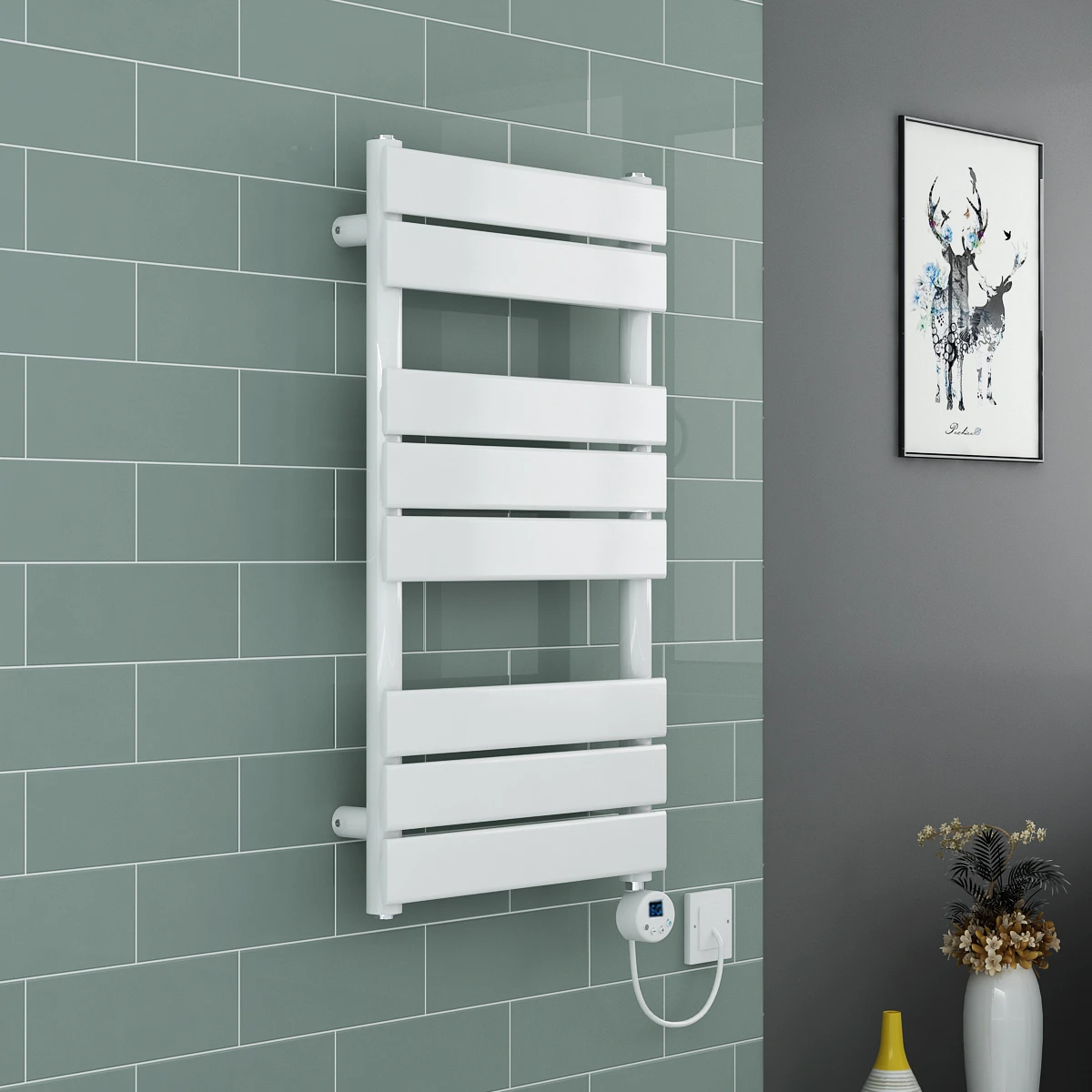

Heated towel rail

* Contemporary style flat panel heated towel rails
* Finished in a modern Anthracite/White/Black to suit any style bathroom
* Manufactured from high thermal conducting mild steel
* Lightweight for a simple installation process

* Compact and uses space economically

Electric towel rail

* Electric towel rails are the best and most effective way of drying your towels, all you have to do is to leave them hanging and they will return to their warm and fluffy selves, just how towels should be!

* Not only do towel rails dry your towels, but they also heat up your bathroom whilst doing so, perfect for those chilly winter mornings.

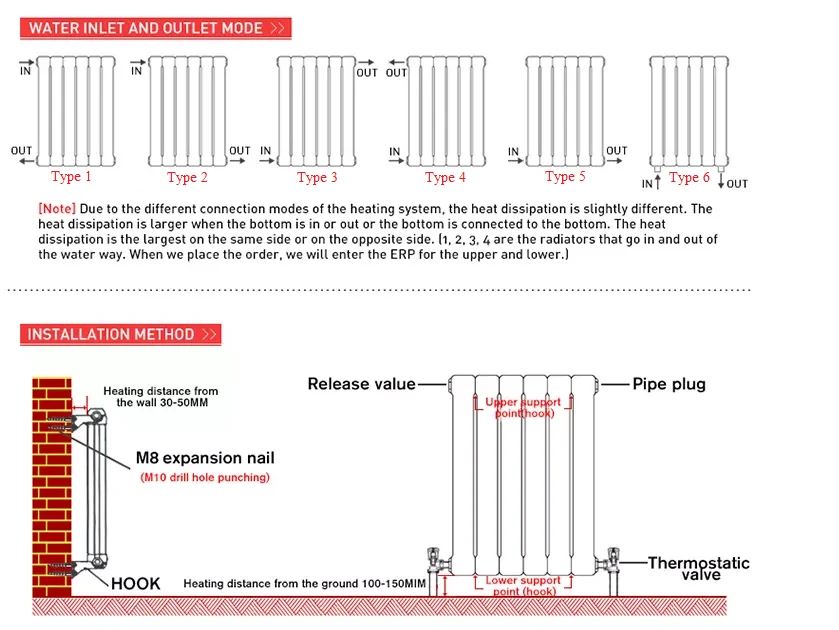

Installation Instructions

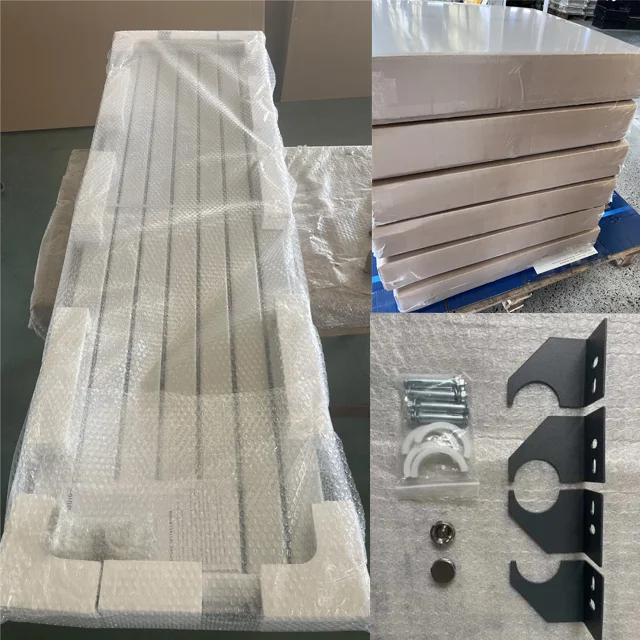

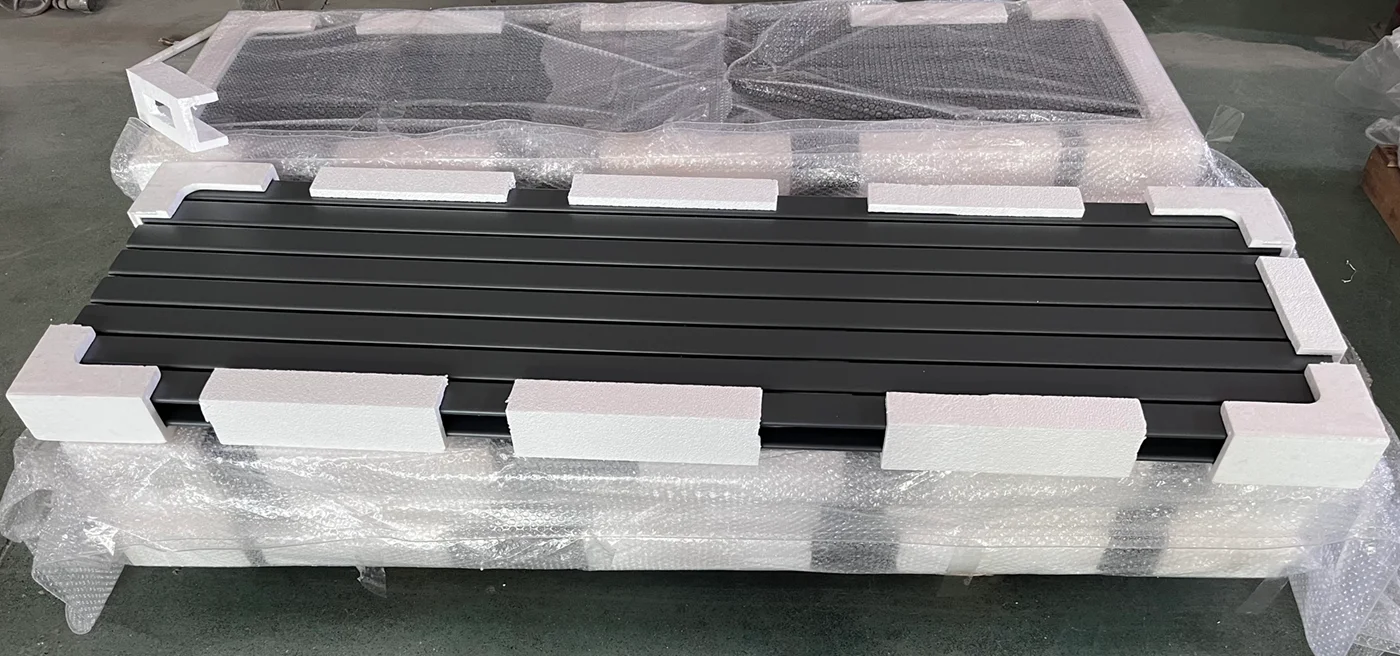

Packing & Delivery

Package Style

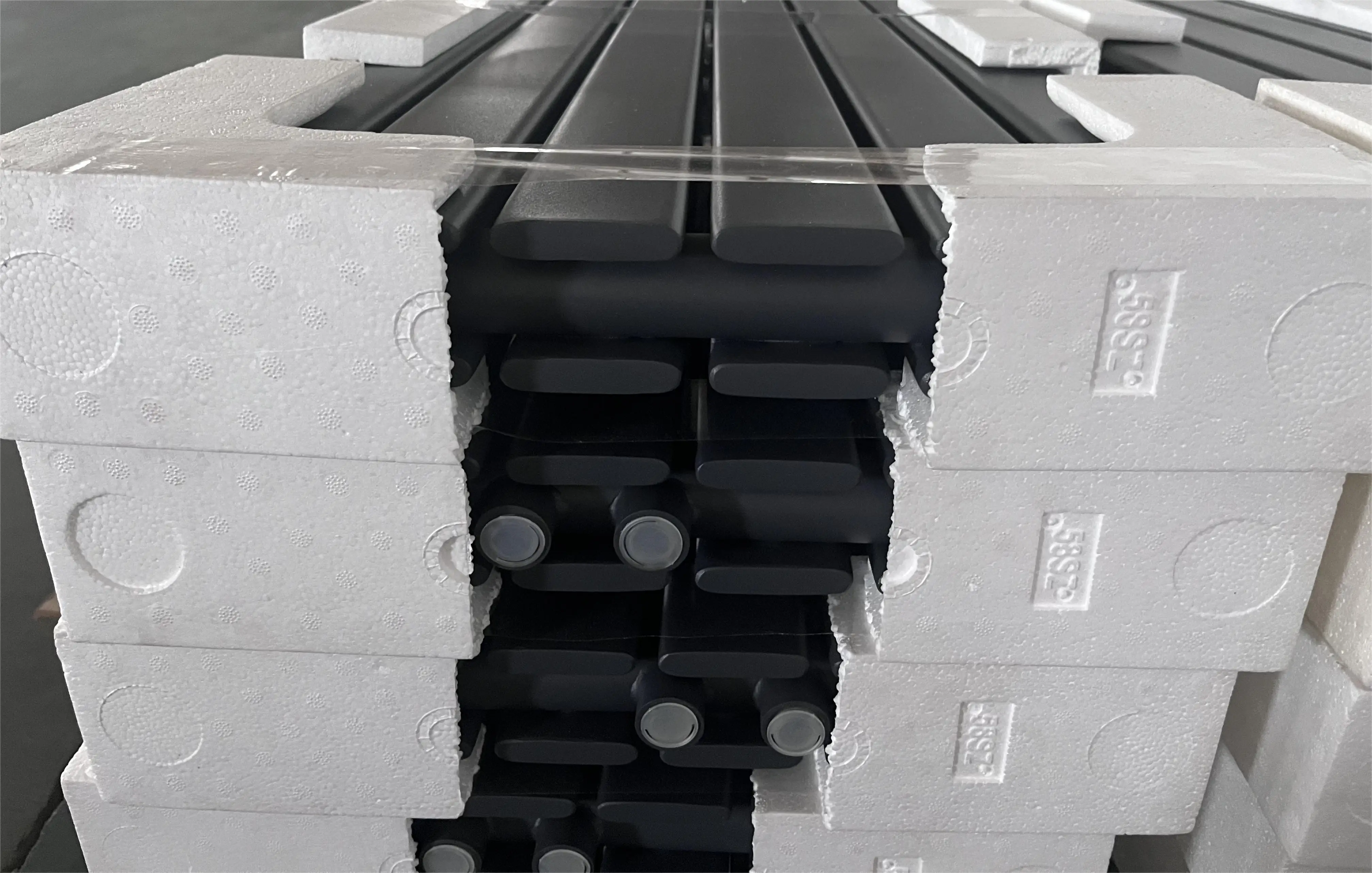

Inner layer: foam corner protector + air cushion film
Outer layer: carton + plastic seal

Standard Accessories

1. Expansion nails
2. Hooks
3. Release vale
4. Pipe Plug

If you have special packaging or accessory requirements, please contact me.

FAQ

Q1: Are you a trading company or a manufacturer? A: We are a factory, covering an area of 75000 square meters, with 20 years of HVAC technology and production experience.

Q2: Do you provide samples? A: Yes, we provide samples, but you need to pay in advance. When you order a batch order, we will return the sample fee to you.

Q3: Would you like to know whether you accept small batch orders? A: Yes, because every brand is gradually growing from a small batch. As a partner, we hope to grow with your company.

Q4: How long is your delivery time? A: (1)5-7 working days for customized samples; (2)Small order: arranged according to the quantity of small batch orders; (3)Batch order: 30-35 working days.

Q5: What are your terms of payment? A: 30% T/T in advance,settle the balance before delivery.

Ordering and Pricing

• Minimum order quantity: 5 piece
• Volume pricing:
  • 5–49 piece: US $56.3 / piece
  • 50–499 piece: US $54.2 / piece
  • 500+ piece: US $52.2 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this double flat panel?

The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this double flat panel carry?

It is supplied with CE BSEN442 UKCA documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Tangshan Zeda Hvac Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Tangshan Zeda Hvac Technology Co., Ltd. range on HVACR Nexus.
