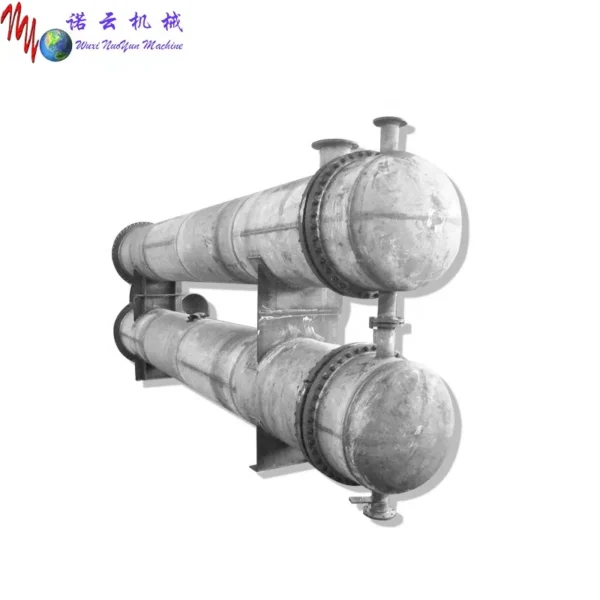

Key specification for this double pipe shell tube: 220v/380v/customized, material stainless steel. Everything below is reproduced from the factory data sheet. Made by Wuxi Nuo Yun Machine Co., Ltd. (17 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Double Pipe Shell Tube
- Voltage: 220v/380v/customized
- Material: stainless steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Heat Exchanger Type: Tube Heat Exchanger
- Product Type: tubular heat exchanger
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Voltage | 220v/380v/customized |
| Core Components | Pressure Vessel |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Place Of Origin | Jiangsu, China |
| Brand Name | NYM |
| Liquid Flow Rate | 2.5m/s |
| Maximum Pressure Rating | 3.0MPa(435.11psi) |
| Dimension(L*W*H) | Customiz |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Product Name | Types cross flow copper tube coil heat exchanger |
| Product Type | tubular heat exchanger |
| Standard | ASME |

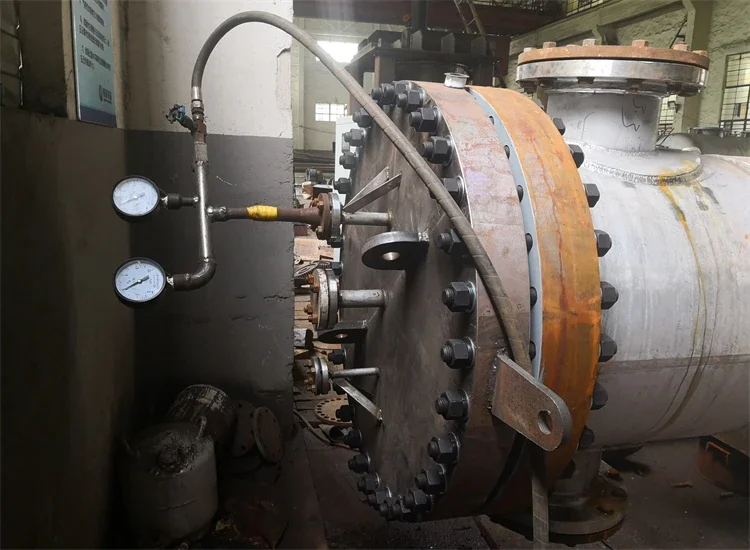

| Inspection | Hydrostatic and Pneumatic |
| Material | stainless steel |
| Selling Units | Single item |
| Single Package Size | 100X10X10 cm |
| Single Gross Weight | 10.0 kg |
Product Details

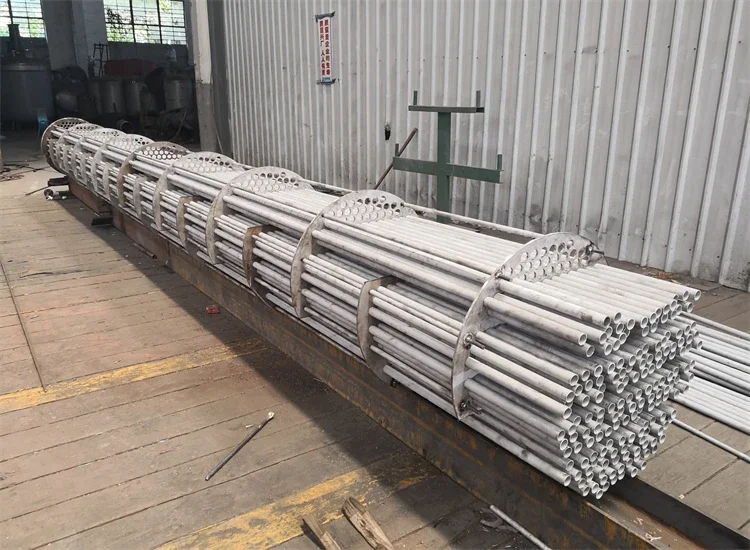

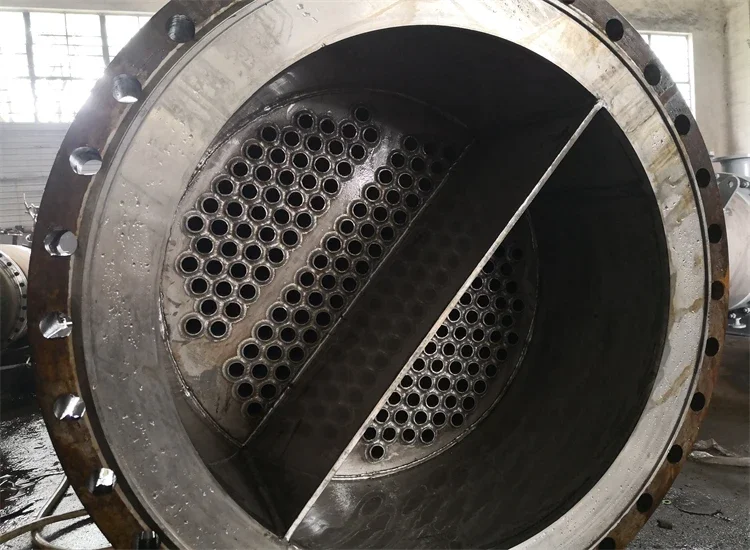

1.Wide heat transfer area
Blince cooler adopts multitube, cooper pipes number is more than common cooler of market.
2.High efficient thermal conductivity the inside pipe is made up of 100% red coppers pipes ensure over 0.95 thermal conductivity.
3.No oil leaking Pipe cover and cooler body used integrated design, avoid mixing water and oil and will be 100% pass the gas tight performance tested before out of factory.

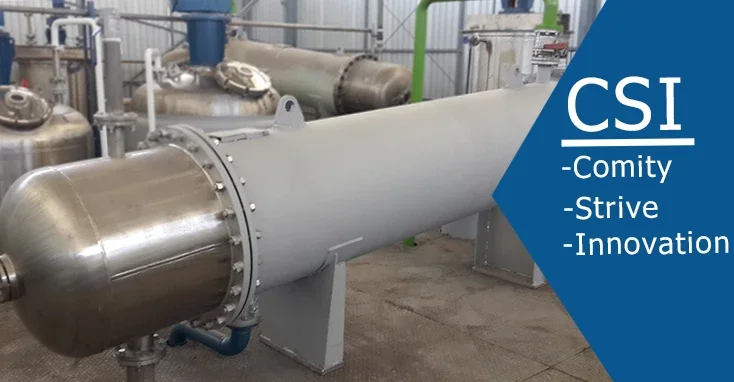

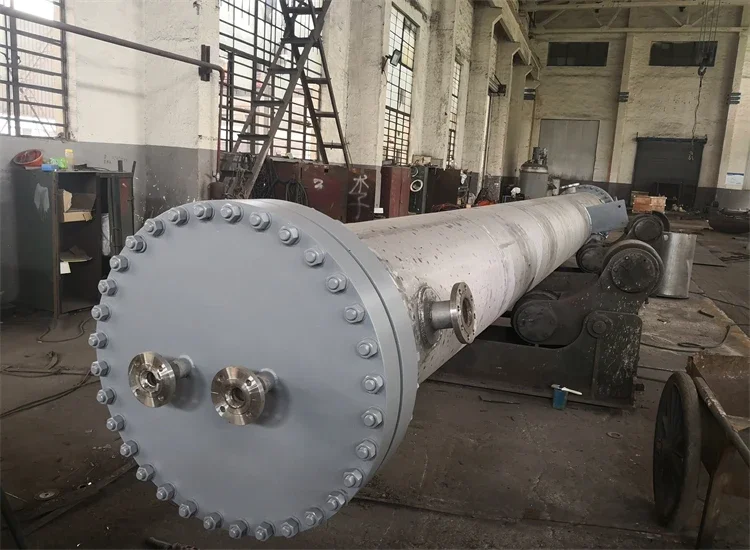

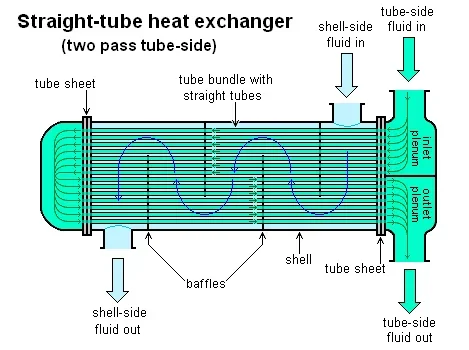

Shell and Tube Hydraulic Oil Cooler & Heat Exchanger | ||||
Parameter | Shell side | Tube side | ||
Fluid | Steam, liquid… | Steam, liquid… | ||
Design pressure | -0.1~3.0MPa | -0.1~3.0MPa | ||
Working pressure(shell side) | As required | As required | ||
OPER.TEMP.(IN/OUT) | -19~500℃ | -19~500℃ | ||
OPER.TEMP.(IN/OUT) | As required | As required | ||
Material | Q345R/SS304/SS316L… | Q345R/SS304/SS316L… | ||
Joint EFF | 0.85 | 0.85 | ||
Trans Surface(O.D)m² | 10-500 | |||
We're a manufacturer with more than years professional production experience.
2.Q: Can you accept OEM?
Yes, OEM is acceptable. Just pls provide us the drawing or sample, we will production totally according to your required.
3.Q: Can you provide us the design drawing?
Yeah, of course, we will provide you the drawing after you payment or prepaid.
4.Q: Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
5.Q: What kind of your packaging ?
Neutral plywood or wooden box packaging or according to customer’s requirements.
6.Q: How long is your delivery time?
Normally 30days after payment, and we promise we will delivery as soon as we can.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $8900 / set
- 3+ set: US $8500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this double pipe shell tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the double pipe shell tube be supplied for my local voltage?
The standard configuration is 220v/380v/customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Nuo Yun Machine Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Nuo Yun Machine Co., Ltd. range on HVACR Nexus.
