Key specification for this dry cooler: type Air Cooler, model number GKM-86B5-D. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Dry Cooler
- Model Number: GKM-86B5-D
- Warranty: 1 Year
- After Warranty Service: Online support
- Warranty Of Core Components: 1 Year
- Certification: ISO9001:2008
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Air Cooler |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | other |
| Fan Motors Type | other |
| Key Selling Points | Eco-Friendly |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Other |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 500 |
| Brand Name | sanjiu |
| Model Number | GKM-86B5-D |
| Dimension(L*W*H) | 4815*2297*1516 |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| After Warranty Service | Online support |
| Certification | ISO9001:2008 |
| Marketing Type | Ordinary Product |
| Applicable Industries | hotels |
| Warranty Of Core Components | 1 Year |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details
Dry Air Cooler
GKM Series Air Cooling Tower(Dry Air Cooler)

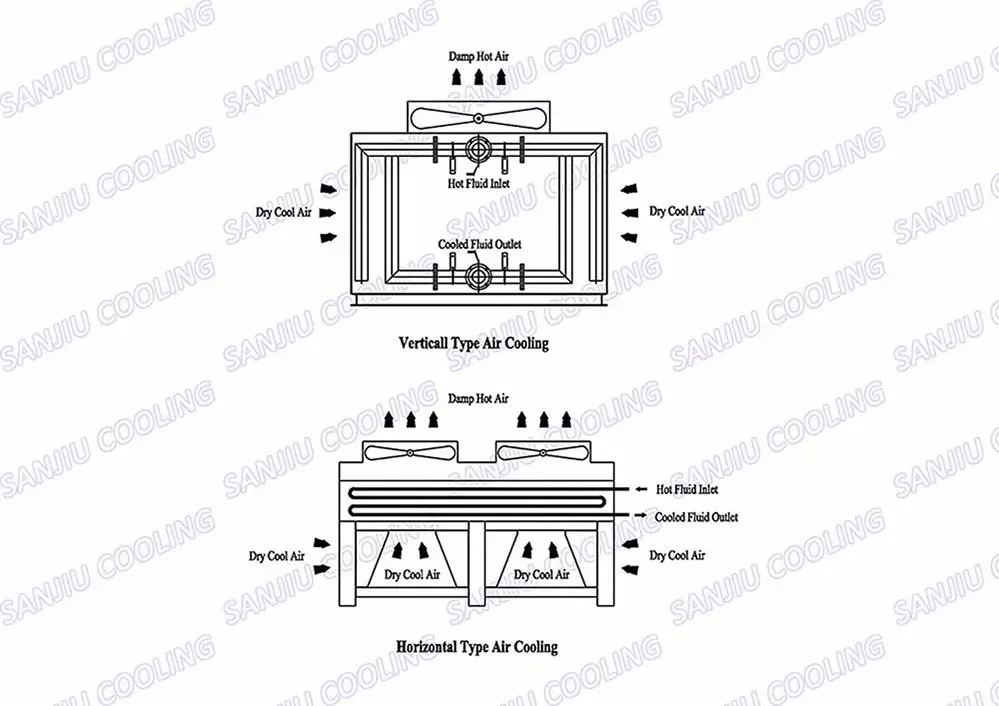

GKM Series have been developed since 2012, with a wide range of cooling capacities, and customized in most cases. The enclosure is made in Mg-Al-Zn alloy coated steel, or stainless steel optional. And the heat exchange coils is made in copper tube or stainless steel tubes fitted with aluminum or copper fins around the tubes. The fluid inlet and outlet are set on the same side, more convenient and economical for pipe lines installations. The overall dimensions can be tailor-made to suit standard 20’ or 40’ shipping containers in order to minimize freight costs. GKM Dry Cooling Towers are more suitable to cool inlet fluid of higher temperature, widely applied in circulating fluid (water, oil, gas) cooling for Air Compressors, Heaters, Furnace, and other machines in Gas Stations, Refinery Industries, etc. , especially in the area lack or short of water resources.
STRUCTURE & CASING
The tower enclosure is made in special alloy (Mg-Al-Zn) coated steel panels, originally imported from Nippon Steel or Posco. These panels exhibit superior corrosion resistance, and self-heal when scratched during the service period. The panels are bolted and sealed for water tightness. The casing is complete with maintenance access doors for internal inspection convenience.
DRY COOLING COILS
The dedicated dry cooling coils in GKM Series is used exclusively for the purpose of dry cooling, fitted with particularly shaped aluminum fins around the coils tubes, to maximize surface area of heat transfer. The standard coils tubes is made in stainless steel 304, of tube wall thickness 0.6mm, or red copper of wall thickness 0.8mm. Different thickness can be met on request. Each coil is tested under continuous nitrogen gas pressure of 30 bar for 24 hours, to ensure no leaking point.

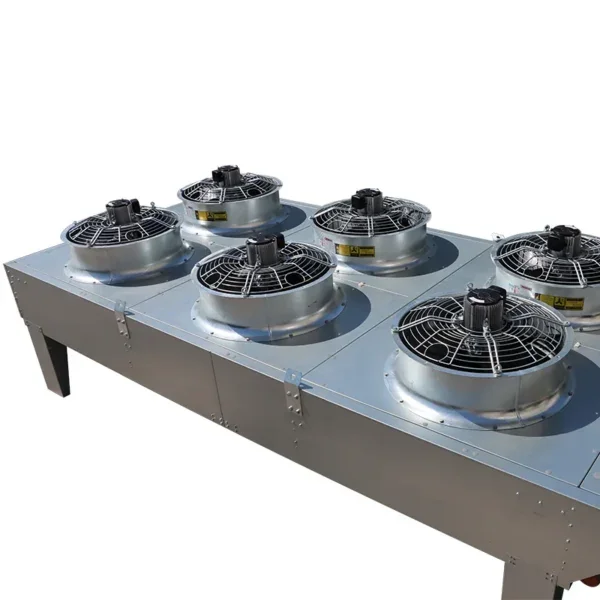

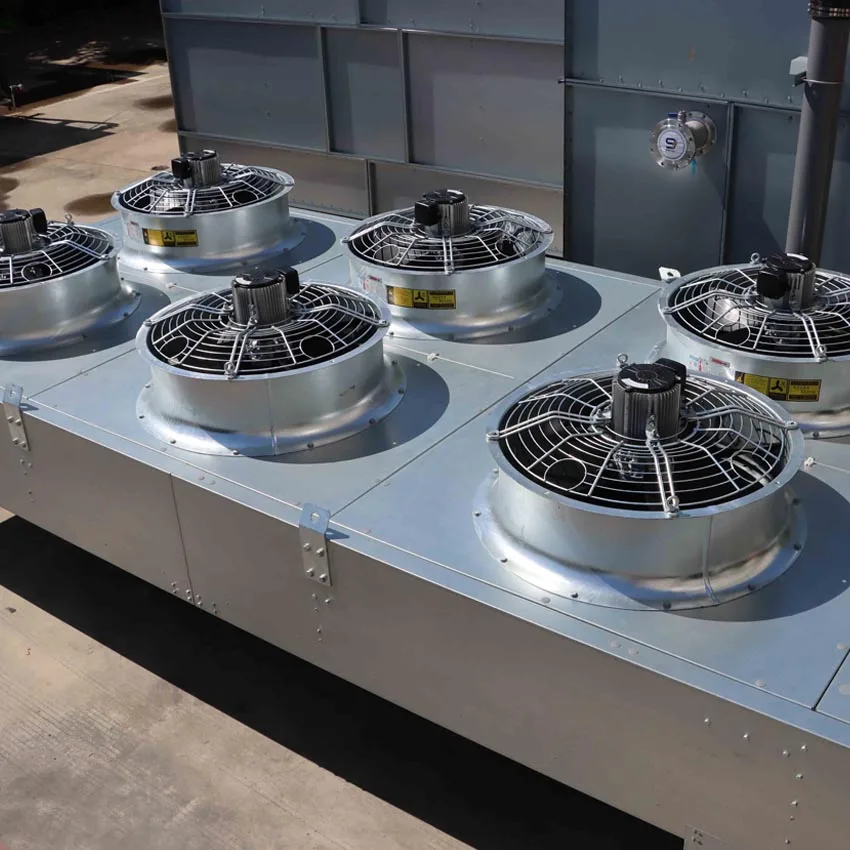

AXIAL FAN SECTION
The axial fan(s) are fitted with resin or al-alloy airfoil blades perfectly balanced and coupled to a weather proof three-phases electric motor. The fan casing is a galvanized steel cylinder to draw the air vertically and avoid the risk of recirculation. The tip speed of the impeller is limited to keep the noise
Model Selection Guide
Below information are normally required to know for selection of a most proper tower model and solution:
Application: | (Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.) | ||||
* Water Flow Rate: | m³/h | (Explanations: How many Tons of water required per hour?) | |||
* Inlet Water Temp.: | °C | (Explanations: Temperature of hot water to be cooled) | (also described as water temperature drop) | ||
* Outlet Water Temp.: | °C | (Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.) | |||
* Ambiant Temp.: | °C | (Explanations: Highest wet ambiant temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) | |||
* Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) | ||||
For easier discussions, 24 hours on line service available: Angela is online: skype: oasanjiu Mob./WhatsApp: 13559666650
Many thanks for your interests, and your inquires are always well attended!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $11220 / set
- 5–9 set: US $11120 / set
- 10–49 set: US $11000 / set
- 50+ set: US $10850 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this dry cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this dry cooler carry?
It is supplied with ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
