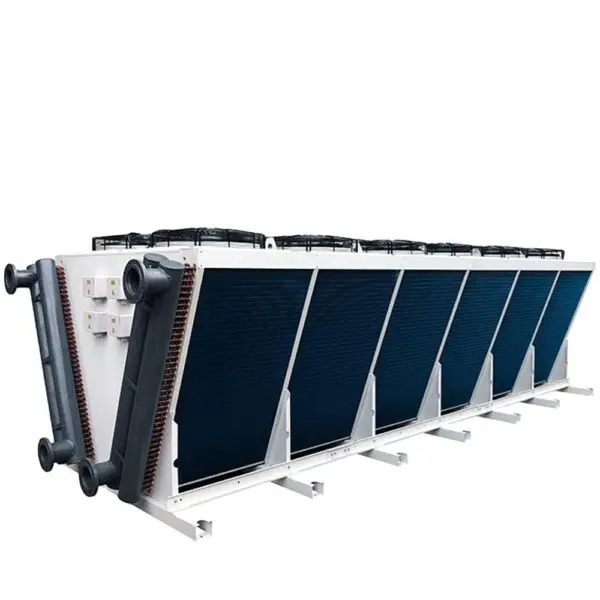

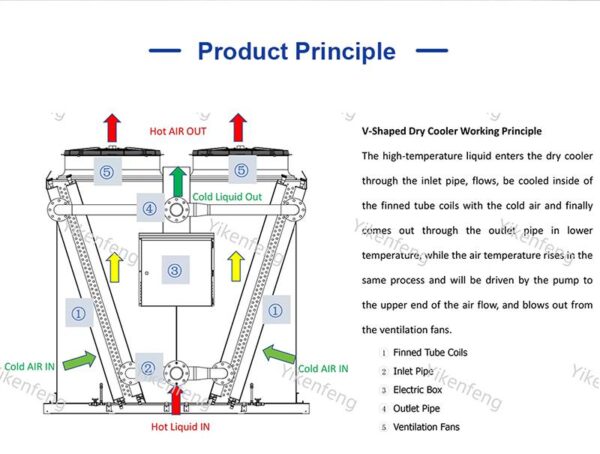

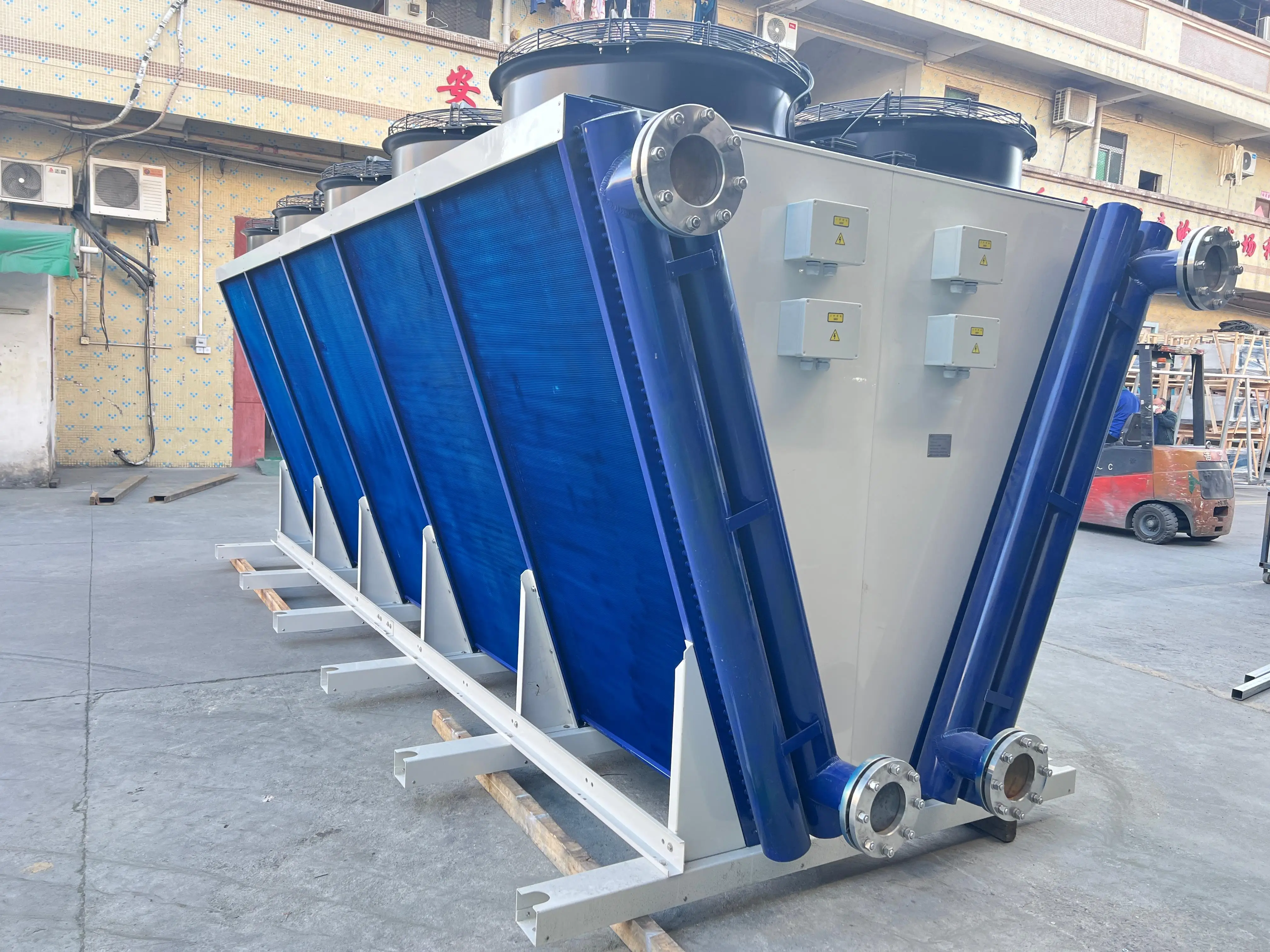

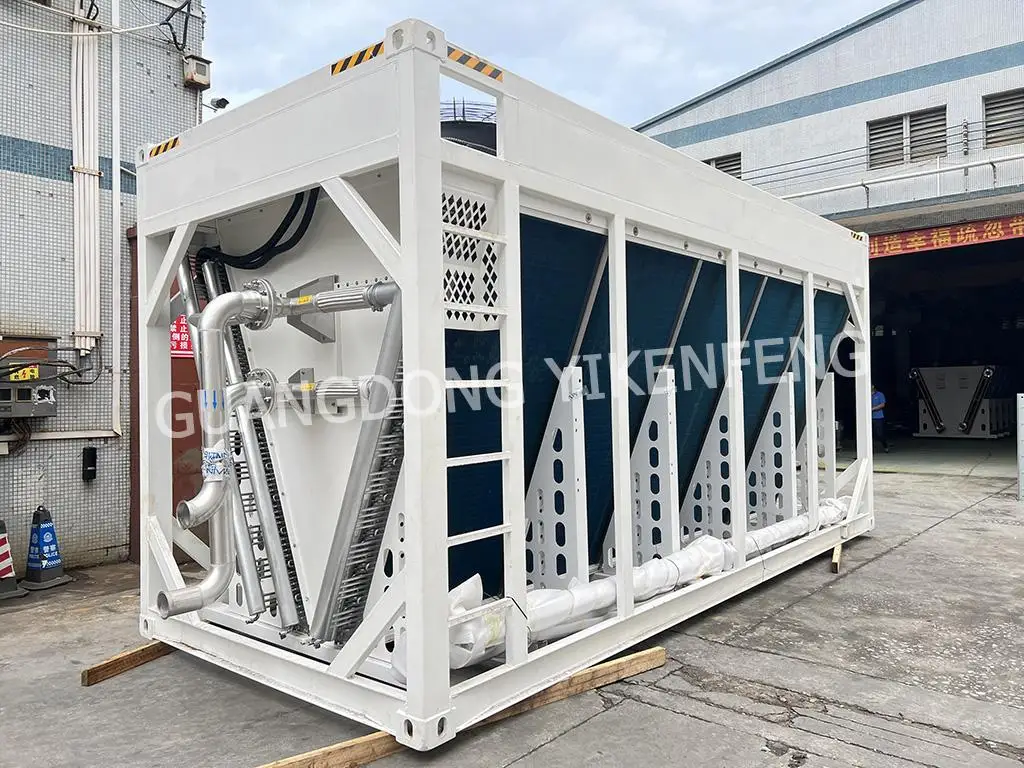

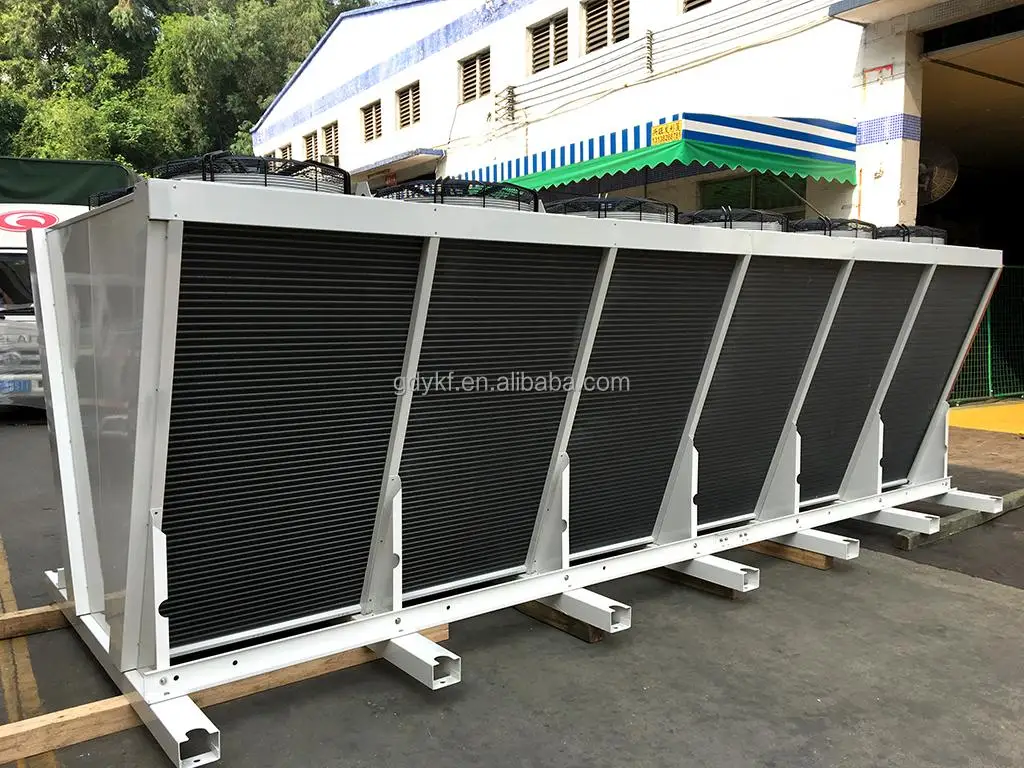

The V-type coil arrangement doubles the heat transfer surface presented to a given fan footprint, which is why it dominates dry cooler design once capacity gets serious. Supporting ammonia, CO2 and glycol alongside R410a means this unit fits both conventional and natural-refrigerant plant. Fully enclosed scroll compressor at 600kg, capacity built to order, on 220/440VAC or 380/400VAC.
Key Features of This V Type Dry Cooler
- Voltage: 220/440VAC, 380/400 VAC, Optional
- Refrigerant: Water, Air, Steam, Ammonia, Glycol, Co2, R410a
- Warranty: 1 Year
- Place Of Origin: Guangdong China
- Weight (KG): 600
- Dimension(L*W*H): 950X500X700 cm
Technical Specifications
| Temperature | Customized |
|---|---|
| Compressor Brand | Fully enclosed scroll compressor |
| Key Selling Points | Easy To Operate, Competitive Price, High Productivity |
| Voltage | 220/440VAC, 380/400 VAC, Optional |
| Warranty | 1 Year |
| Core Components | Motor, Fan, Heat exchanger |
| Video Outgoing-Inspection | Provided |
| Refrigerant | Water, Air, Steam, Ammonia, Glycol, Co2, R410a |
| Place Of Origin | Guangdong China |
| Weight (KG) | 600 |
| Dimension(L*W*H) | 950X500X700 cm |
| Medium | Water, Air, Steam, Ammonia, Glycol, Co2, R410a |
| Selling Units | Single item |
|

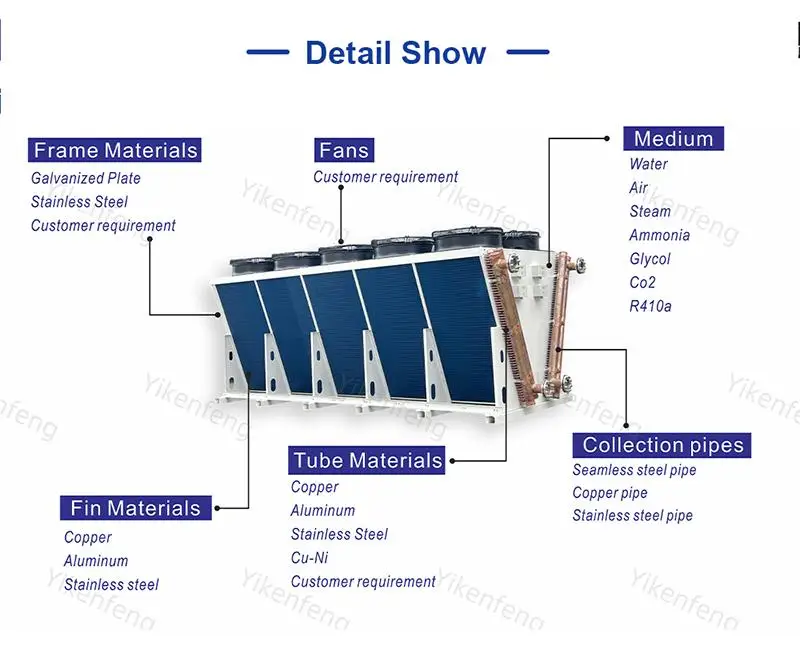

ITEMS
|
||||||
|
TUBES
|
Material
|
Copper, Stainless stell. Cu-ni
|
||||
|
Dimension
|
7.00mm/ 9.52mm/ 12.7mm/ 15.88mm |
|||||
|
Fins
|
Material
|
Aluminum, red copper, stainless steel
|
||||
|
Mold specification
|
21*18.19mm/ 25*21.65mm / 25.4*22mm/ 31.75*27.5m
38.1*33mm/ 48*41.57mm /50*50mm
|
|||||
|
Pitch of Fins
|
1.4-9.0mm
|
|||||
|
Frame
|
Material
|
Galvanized steel, stainless steel of 201/ 304/ 316
|
||||
|
Thickness
|
1 -3 mm
|
|||||
|
COLLECTION PIPE
|
Material
|
Copper pipe, seamless steel pipe, stainless steel pipe
|
||||
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Frequently Asked Questions
What is the minimum order quantity for this v type dry cooler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this v type dry cooler?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220/440VAC, 380/400 VAC, Optional. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

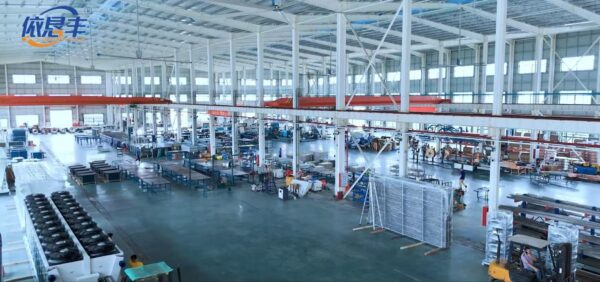

About the Manufacturer
This v type dry cooler is produced by Foshan Yikenfeng Electromechanical Equipment Co., Ltd.. Browse the full Foshan Yikenfeng Electromechanical Equipment Co., Ltd. range on HVACR Nexus.
