Key specification for this drying heat exchanger: heat exchanger type Plate Heat Exchanger. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
Energy recovery is the point of this drying heat exchanger: a drying process throws away enormous quantities of warm, moist exhaust air, and recovering even part of that heat into the incoming stream cuts fuel use directly. The -10C to 280C working range covers both the cold intake and the hot exhaust side. Plate construction under PLC control, with voltage and configuration built to your process.
Key Features of This Drying Heat Exchanger
- Voltage: customized
- Warranty: 1 Year
- Place Of Origin: Fujian, China
- Heat Exchanger Type: Plate Heat Exchanger
- Single Package Size: 50X50X50 cm
- Single Gross Weight: 20.000 kg
Technical Specifications
| Key Selling Points | save energy,Energy recovery |
|---|---|
| Voltage | customized |
| Heat Exchanger Type | Plate Heat Exchanger |
| Working Temperature Range | -10-280℃ |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Fujian, China |
| Brand Name | AIR-ERV |
| Liquid Flow Rate | 2.5-3m/s |
| Maximum Pressure Rating | 500-3000pa |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 20.000 kg |

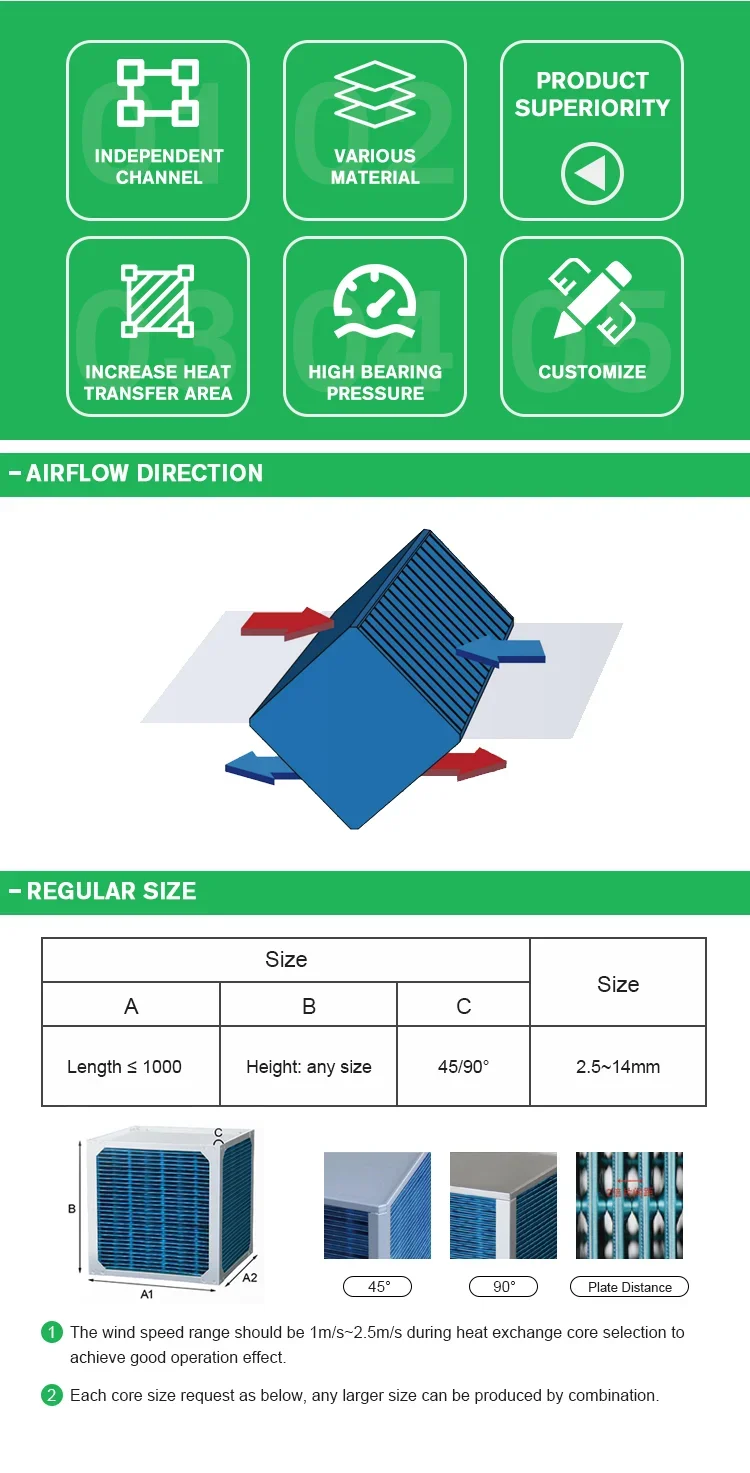

| The aluminum foil with high quality hydrophilic coating is used as the heat transfer conductor, which is processed by special process. It is characterized by high heat exchange efficiency, easy maintenance and long service life. Epoxy aluminum foil, corrosion resistance. suitable for special occasions; A great number of specifications and sizes and plate spacinq (2.5-12mm) to choose: Modular structure, can provide any size of the section and the combination of plate stack thick ness, no moving parts, equipment maintenance costs; Compact structure, small size, suitable for various occasions. |
Frequently Asked Questions
What is the minimum order quantity for this drying heat exchanger?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this drying heat exchanger?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is customized. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
