The duct inline fan listed here carries voltage 100-240V, power source Electric, documented exactly as the manufacturer publishes it. Made by Guangdong Hongguan Electric Appliance Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

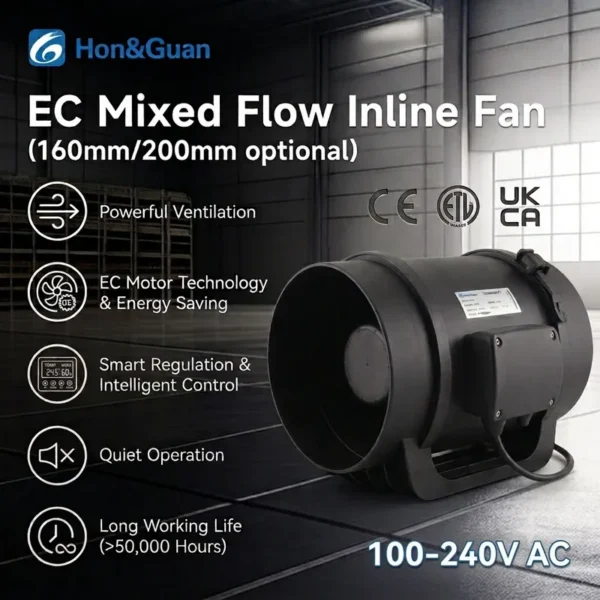

Key Features of This Duct Inline Fan
- Model Number: HI-160EC
- Power Source: Electric
- Voltage: 100-240V
- Material: Plastic
- Blade Material: Plastic
- Speed: 4300 RPM
Technical Specifications
| Voltage | 100-240V |
|---|---|
| Speed | 4300 RPM |
| Type | EC Inline fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Wall Fan, Free Standing, Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | Hon&Guan |
| Model Number | HI-160EC |
| Color | Black |
| Protection Grade | IP44 |
| Operation Temperature Range | -20℃-60℃ |
| Selling Units | Single item |
Product Details
Meet EU ERP2018 energy efficiency
3. Free speed control: 0-10V voltage speed
4. Stable performance: set with slow
5. Double NMB ball bearings, long working life-
6. Protection grade: IP44
7. Operation temperature range: -20℃-60℃.
Mdel | Voltage (V) | Current (Amps) | Power (W) | Speed (RPM) | Airflow (m³/h) | Air Pressure (Pa) | Net Weight (kgs) |
HI-160EC | 100-240 | 0.70 MAX.1.40 | 77 | 4300 | 798 | 542 | 2.0 |
HI-200EC | 100-240 | 1.0 MAX.2.0 | 110 | 3500 | 1292 | 485 | 2.7 |
We are based in Guangdong, China, start from 2010, sell to Domestic Market(66.20%), Oceania(7.00%), Northern Europe(6.00%), Western Europe(3.50%), North America(3.00%), South Asia(3.00%), South America(3.00%), Central America(3.00%), Africa(2.00%),Southern Europe(2.00%), Eastern Asia(0.40%), Eastern Europe(0.30%), Mid East(0.30%), Southeast Asia(0.30%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Ventilation fans, Fresh Air System, Duct fans, Exhaust fans and etc.
4. Why should you buy from us not from other suppliers?
Guangdong Hongguan Electrical Appliance Co.,Ltd. is specialized in design and manufacture of ventilation fans and fresh air system.we have won many invention patents,appearance patents and utility model patents of its own products.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $60 / piece
- 50–99 piece: US $43 / piece
- 100+ piece: US $40 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this duct inline fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the duct inline fan be supplied for my local voltage?
The standard configuration is 100-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Hongguan Electric Appliance Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Hongguan Electric Appliance Co., Ltd. range on HVACR Nexus.
