The ducted split unit listed here carries power supply 208/230V-1Ph-60Hz, 24000BTU, 33000BTU, 48000BTU, 55000BTU, documented exactly as the manufacturer publishes it. Made by Moyu Technology Co., Ltd. Zhuhai (5 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ducted Split Unit
- Model Number: –
- Power Supply: 208/230V-1Ph-60Hz
- Cooling Capacity: 24000BTU, 33000BTU, 48000BTU, 55000BTU
- Heating Capacity: 24000BTU, 34000BTU, 48000BTU, 56000BTU
- Refrigerant: R-32
- Warranty: 1 Year
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | R-32 |
| Mounting Type | Floor Standing |
| Compressor Brand | Mitsubishi |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Application | Hospital, Hotel, Home, School, Plant, Warehouse, Office, Apartment, Mall |
| Key Selling Points | R32 Refrigerant |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 80 |
| Brand Name | Bestcold |
| Model Number | – |
| Dimension(L*W*H) | 740x740x635mm |

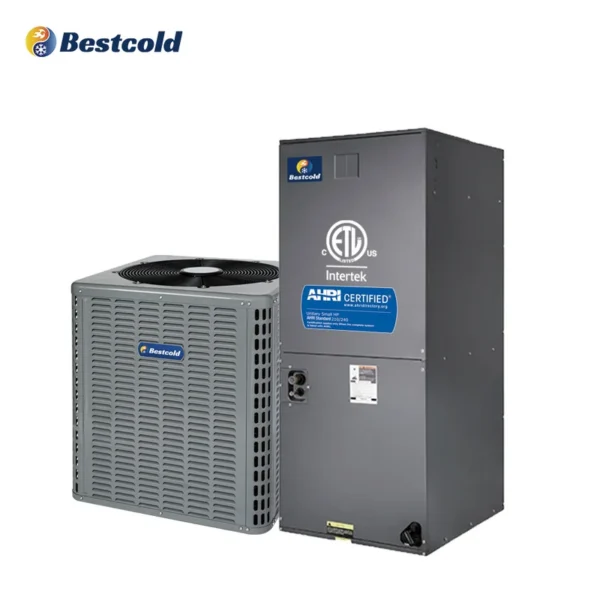

| Certification | ETL & AHRI |
| Power Supply | 208/230V-1Ph-60Hz |
| Product Name | R32 Air Handler |
| Cooling Capacity | 24000BTU, 33000BTU, 48000BTU, 55000BTU |
| Heating Capacity | 24000BTU, 34000BTU, 48000BTU, 56000BTU |
| Noise | 41-64 dB(A) |
| Function | Cooling Heating |
| Installation | Easy Install |
| Function 2 | EVI DC Inverter Compressor |
| Selling Units | Single item |
Product Details
| EVI DC Inverter Compressor |  |
| The DC inverter rotary compressor has high operating energy efficiency and adopts EVI technology to ensure that the unit has good output capacity even in low-temperature environments. | |
| DC Fan Motor |  |
| Ensuring that the output current of the DC inverter is a smooth sine wave curve, the motor runs smoothly and the operation efficiency is significantly improved. | |
| Tube & Coil |  |
| Constructed with inner-grooved copper tubes and hydrophilic aluminum foil, to increase surface contact and heat transfer. |

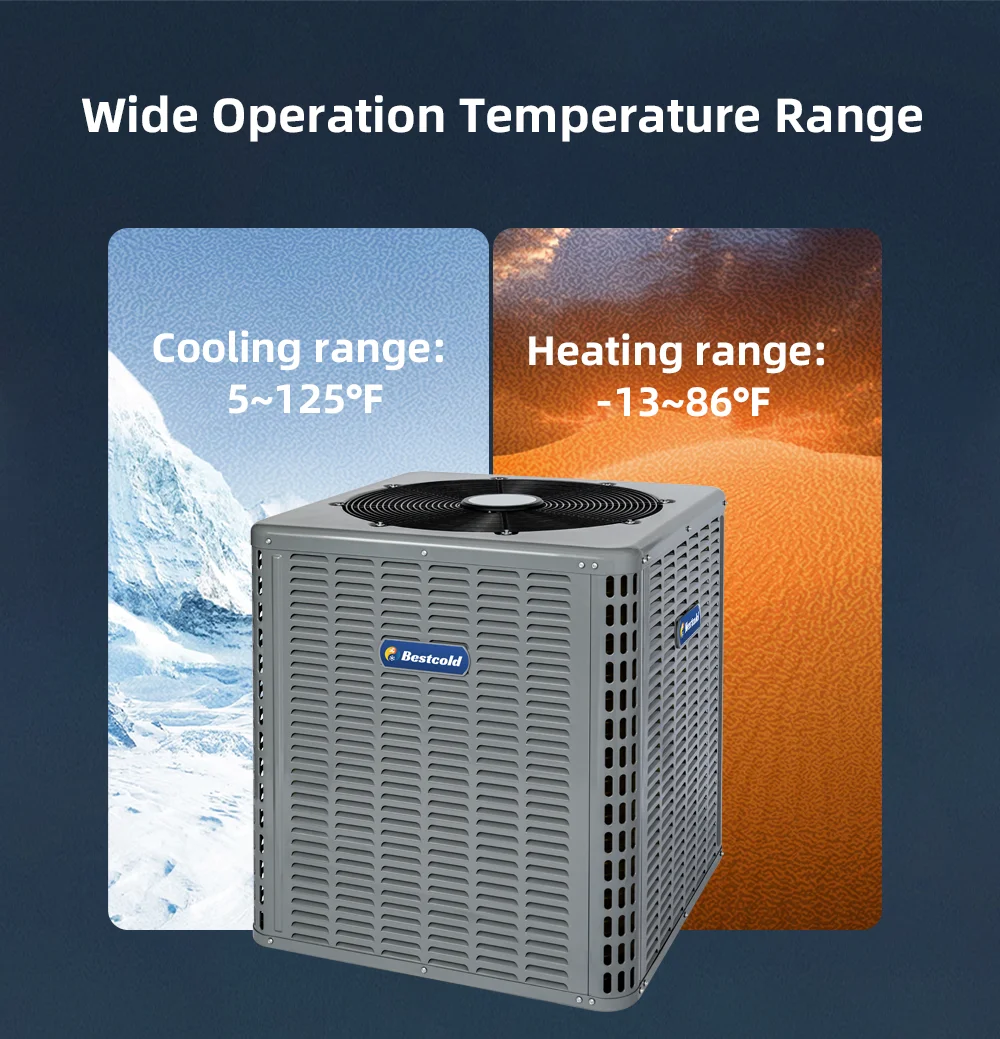

| Wide Operation Temperature Range | |

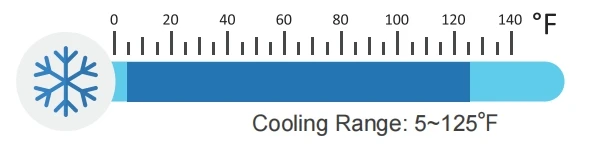

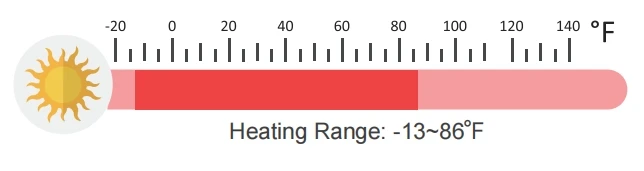

| With the support of EVI technology, the system can operate heating at -13℉. The COP at 5℉ is greater or equal to 2.0, and the percent of heating capacity at 5℉ is greater or equal to 70% of that at 47℉. The system can also operate cooling at 5℉. | |
 |  |
| Model | 24K | 36K | 48K | 60K | ||
| Power supply | 208/230V-1Ph-60Hz | |||||
| Cooling | Capacity | Btu/h | 24000 | 33000 | 48000 | 55000 |
| EER2 | Btu/(W·h) | 13 | 11 | 11.5 | 10 | |
| SEER2 | Btu/(W·h) | 19 | 18 | 17.5 | 17 | |
| Heating | Capacity | Btu/h | 24000 | 34000 | 48000 | 56000 |
| HSPF2 | Btu/(W·h) | 9 | 8.8 | 9 | 8.8 | |
| COP2(5°) | Btu/(W·h) | 2.4 | 2.1 | 2.3 | 2.0 | |
| Refrigerant type | R32 | R32 | R32 | R32 | ||
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–24 set: US $1225 / set
- 25–49 set: US $1198 / set
- 50+ set: US $1130 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ducted split unit?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ducted split unit carry?
It is supplied with ETL & AHRI documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ducted split unit be supplied for my local voltage?
The standard configuration is 208/230V-1Ph-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
