Ec Motors, G3G200-GN18-01, 200mm, 230V, 750W

Ec motors — 230V, power source type Electric. The complete factory specification follows. Made by ASIA PACIFIC SHENGRUI LIMITED (1 year on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of These Ec Motors

• Model Number: G3G200-GN18-01
• Power Source Type: Electric
• Power: 750W
• Voltage: 230V
• Blade Material: Aluminium sheet
• Speed: 5700RPM

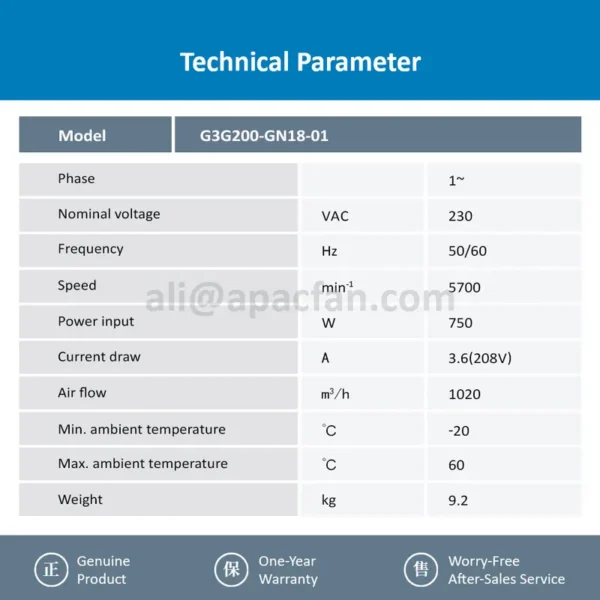

Technical Specifications

Product Details

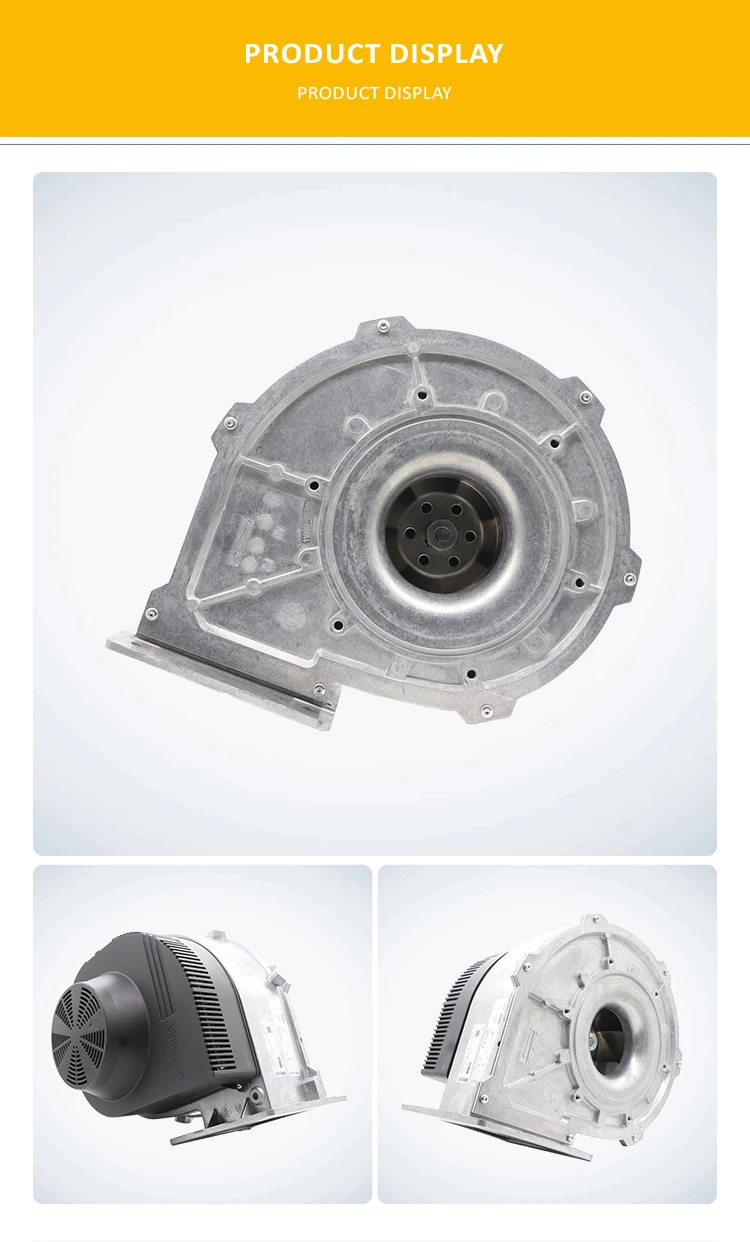

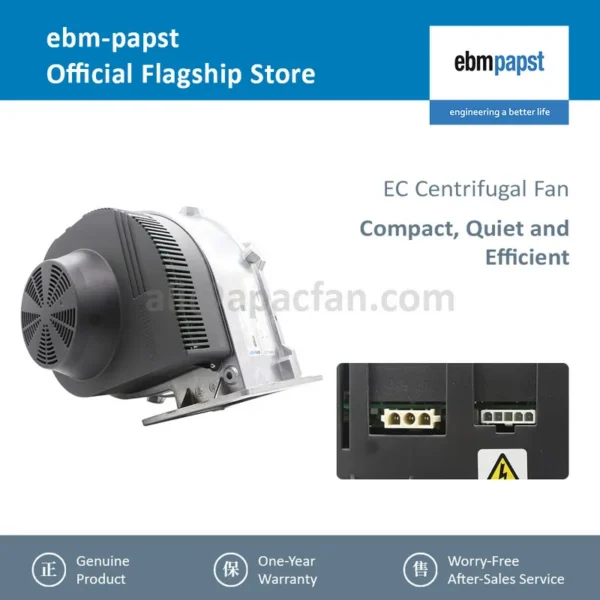

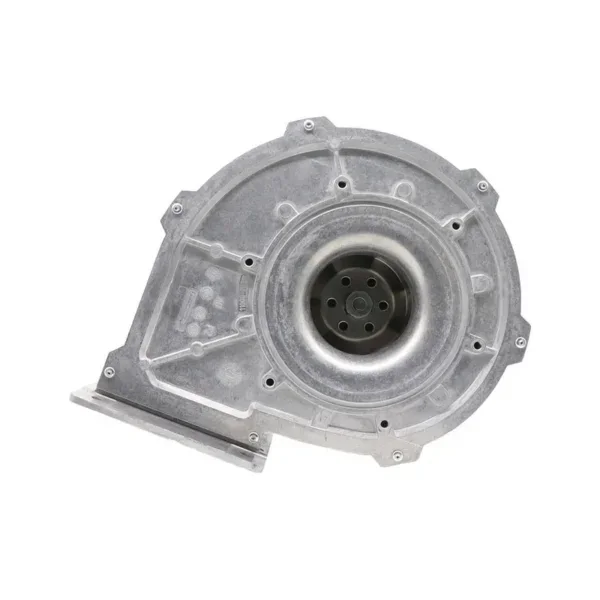

ebmpapst G3G200-GN18-01 200mm 230VAC 750W 3.6A 5700RPM Gas Boiler Heating Condensing Boilers Printing Centrifugal Cooling Fan

Specification

item	value
Voltage	230V
Blade Material	Aluminium sheet
place of origin	China
speed	5700RPM
customized support	OEM, ODM
mounting	Free Standing
brand name	ebmpapst
model number	G3G200-GN18-01
Motor Type	EC Motor
warranty	1 Year
After-sales Service Provided	Online support
Power source type	Electric
Model number	G3G200-GN18-01
Brand name	ebmpapst
Voltage	230V
Current	3.6A
Power	750W
Speed	5700RPM
Size	200mm
Type	EC Centrifugal Fan
Bearing type	Ball Bearing
Weight	9.2kg

Product Description

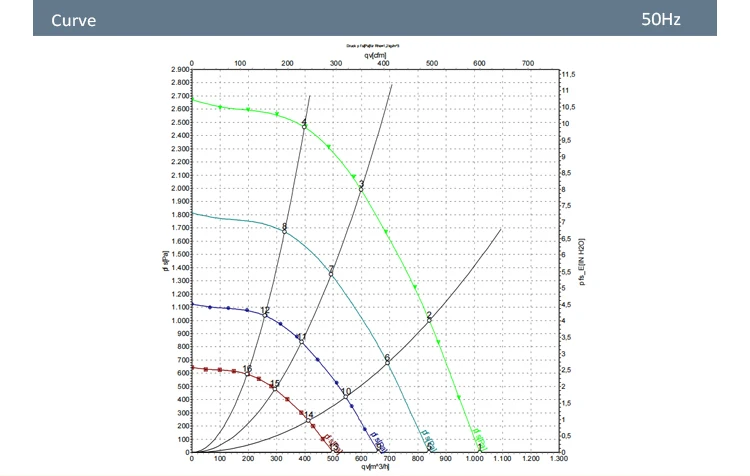

Charts

ebm-papst

Your Partner For SustainableIntelligent Ventilation and Drive Technology

ebm-papst

Ebm-papst fans and motors, using energy-saving technology, from compact, high-performance electronic cooling fans to energy-saving, light industrial applications. Ebm-papst axial fans, compact fans, centrifugal fans and blowers are widely used in IT / telecommunications, heating, ventilation, air conditioning, refrigeration, household appliances, industrial engineering and automotive fields. ebm-papst's green intelligence program GreenIntelligence fulfills its commitment to environmental sustainability. Each new product is superior to its predecessor in both economic and ecological terms. Ultra-energy-saving EC technology is its core.

Product Advantages

> Wide Specification & Complete Series

> Professional One-Stop Agent Service

> 100% Germany Original Authentic

> GreenTech EC Energy-Saving

Technology

> Ultra Low Noise & Dynamic Balance

Product Categories

Centrifugal Fans

Axial Fans

Compact Fans

Blowers

Tangential Fans

Q-motors

Applications

Industrial Control Cabinet

(Rittal, Schnieder Cabinet)

HVAC & Air Handling Unit AHU

Refrigeration Chiller,

Condenser, Dry Cooler

Frequency Converter &

Servo Drive Cooling

Solar Energy Storage & Charging Station

Data Center &

Server Rack Heat Dissipation

Medical Ventilation &

Air Purification Equipment

Welding Machine, Laser Equipment, Printing Machine

New Energy Vehicle Power System

About APAC FAN

ASIA PACIFIC SHENGRUI LIMITED is located in Hong Kong, the global trade center, specializing in providing ventilation and air-conditioning related products and solutions. Attached to advantages of import and export price in Hong Kong, we represent and sell various world famous brands of fans, blowers and ventilation related products. Quality is our life, customers are our market, the pursuit of excellence is our belief. We sincerely welcome cooperation with friends from all walks of life, and endeavor to develop and create a better future with our integrity and professional.

Sold To World Market

The company has set up a number of distribution points in Germany, Wuxi, Singapore and other key regional markets, distributing ebmpapst, ZIEHL-ABEGG, Wistro, Rosenberg, DELTA, SANYO, FULLTECH, SANMU and other brands of fans. Products are exported to Europe, North America, Central and South America, Southeast Asia, the Middle East, Africa, Oceania, Russia and other more than 150 countries and regions.

Order Instructions

>  About Express Delivery Receipt

· When receiving the express delivery, please be sure to unpack and inspect the goods in the presence of the courier! · If the goods are damaged, the courier is responsible for compensation and handling. · If you sign for it directly without inspection, and later find that the product is deformed or damaged due to

transportation, it cannot be returned or exchanged! We will not be responsible at all!

>  About After-sales Instructions

We guarantee the quality under normal working conditions, with a one-year warranty period.In cases such as electroplating factories, humid environments, strong acids and alkalis, oil fumes, high temperatures, heavy dust, 24-hour continuous use, unstable voltage, or three-phase power phase loss, which lead to motor burnout. Or if the motor is disassembled, modified, or damaged manually. We cannot provide warranty for these unsuitable motor environments and conditions.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $1313.5 / piece
  • 10+ piece: US $1310.5 / piece
• Ships from: HK
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ec motors?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ec motors be supplied for my local voltage?

The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
