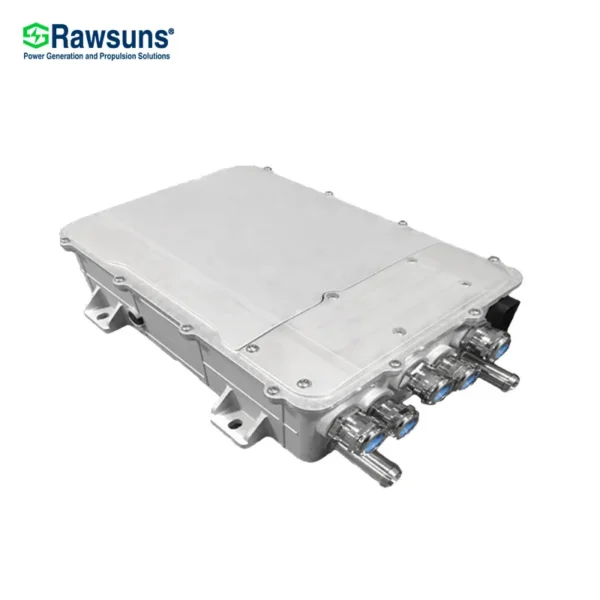

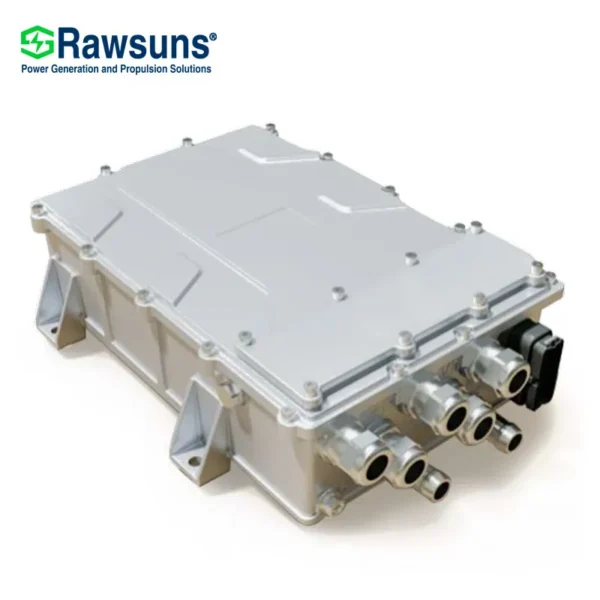

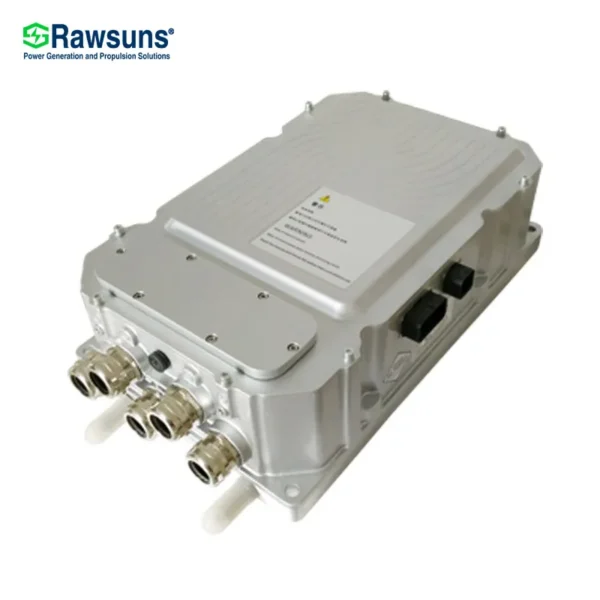

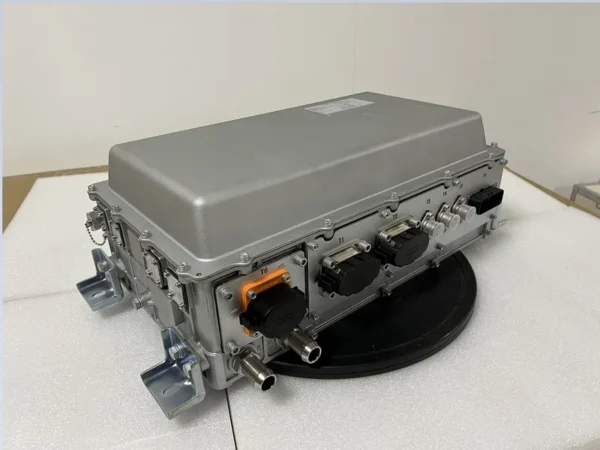

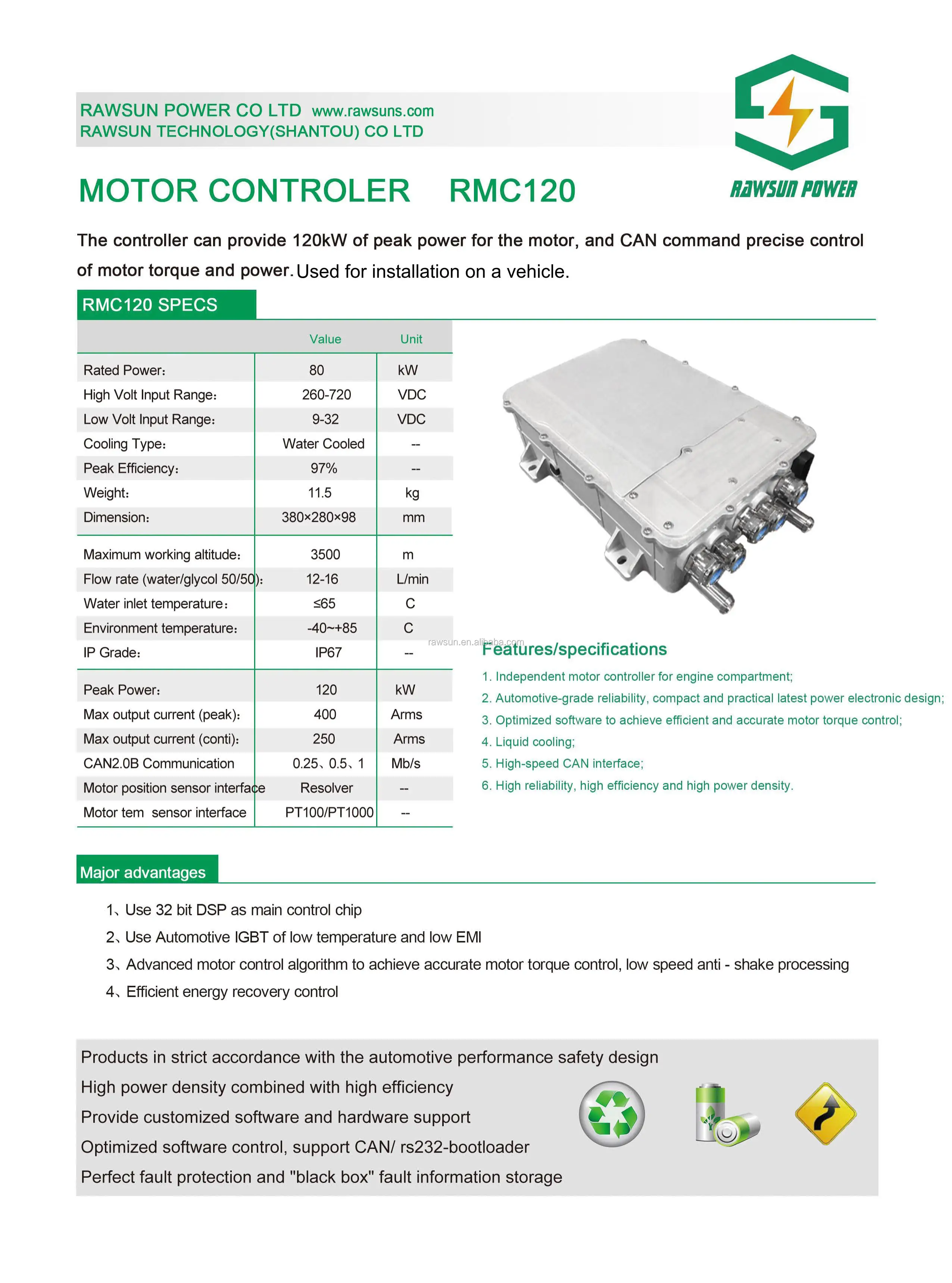

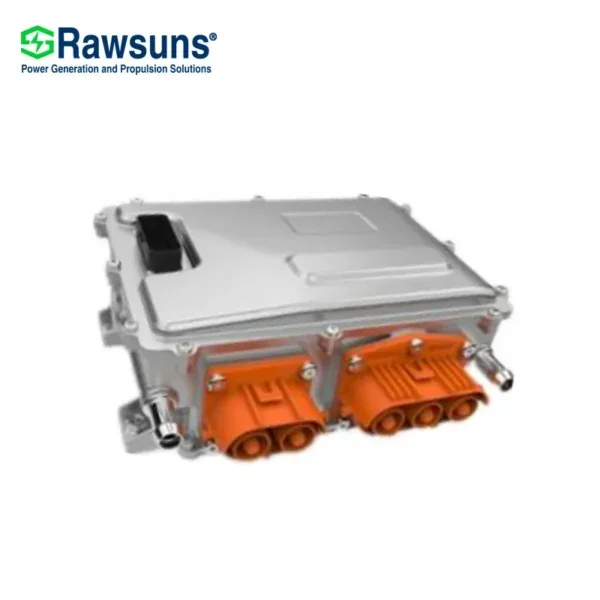

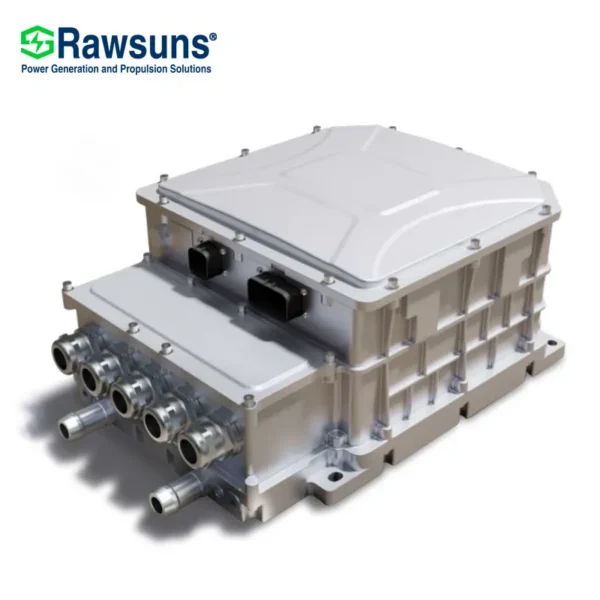

Ec Motors, RMC120, 380mm*280mm*98mm, 30 Kw, 60 Kw, 250-420 VDC

This ec motors is published with the manufacturer’s full specification — model number RMC120. Made by Rawsun Technology (shantou) Co., Ltd. (7 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Ec Motors

• Model Number: RMC120
• Rated Power: 30 Kw
• Peak Power: 60 kw
• Low Voltage Input Range: 9-30 VDC
• High Voltage Input Range: 250-420 VDC
• Warranty: 12 months

Technical Specifications

Product Details

Related Products

Certifications

Product Description

Motor Controller Integrated Controller Electric Vehicle Motor EV Conversion Kit Part Integrated System EV Motor

Rawsun Integrated Control System Demanded Scope of supply

1.Integrated controller

2. Steering hydrautic pump assembly

3. Braking air pump assembly

4. Air conditioner compressor

5. Electric heater

6. Charger

7. Braking vaccum pump assembly

8. Range extender

9. wire harness

10. Debug softwaretor Controller Electric Vehicle Motor EV Conversion Kit Part traction motor for electric vehicle ac electric vehicle motor

Rawsun EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include electric vehicle drive systems,vehicle control systems and lithium battery systems, Rawsun EV systems are mainly used in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric ships, and electric engineering machineries.

EV Drive System
(1. Drive motor 2. Motor controller 3.Gearbox 4. Axle)

EV Control System
( 5.VCU with software 6.BMS with software 7.Dashboard 8.PDU/Precharge/DCDC/DCAC/DCAC/OBC Integrated Controller 9.Steering hydraulic pump 10. Braking air pump 11. Air Conditioner 12. HV Defroster 13. HV Heater 14.Intelligent cooling system 15. System Wire harness 16. Low voltage distribution box 17. Gear Panel/Operator 18. Accelerator pedal/Operator 19. Ignition lock 20.CANbus Analyzer )

EV Lithium Battery System
(21.battery packs 22. Insulation detector 23. Contactors and fuses 24.Current sensor 25.Temperature sensors 26. MSD 27. Battery PDU 28. Human Machine Interface 29. Thermal management system 30. Battery Wire Harness 31. AC Charger 32. DC Charger 33. Range extender (DC generator ) 34. EVCC Module 35. SECC Module

Motor Controller Integrated Controller Electric Vehicle Motor EV Conversion Kit Part Integrated System EV Motor

Motor Controller Integrated Controller Electric Vehicle Motor EV Conversion Kit Part Integrated System EV Motor

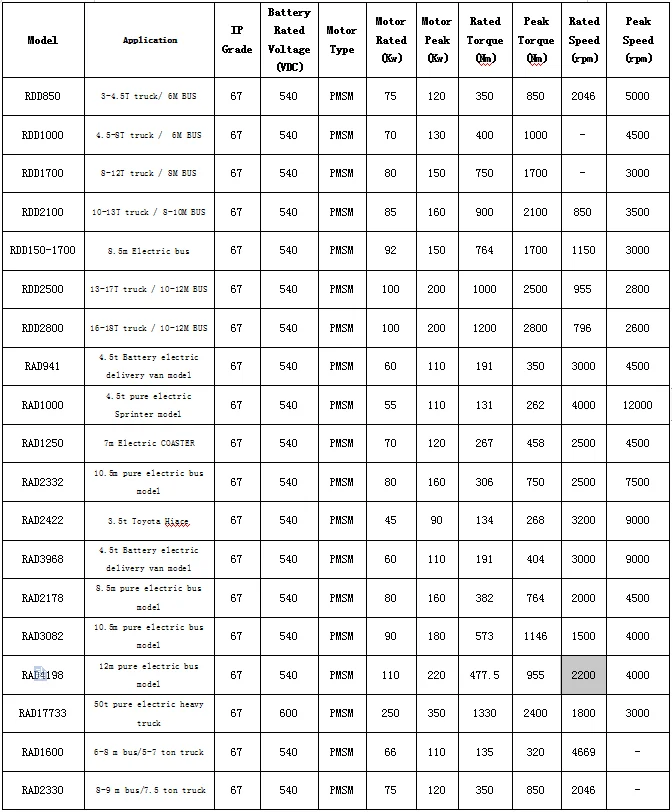

Rated Power	25 kw to 120 kw
Peak Power	50 kw to 200 kw
Rated Torque	80 Nm to 1200 Nm
Peak Torque	180 Nm to 2800 Nm
Rated Speed	955 rpm to 3000 rpm
Peak Speed	2700 rpm to 6000 rpm

Model	Applications	Battery Voltage	Motor Rated KW	Motor Peak KW	Tn/N.m	Tmax/N.m	Speed rpm	Speed rpm	Imax/A
RSTM260-J	2T Truck	380	25	50	80	180	3000	6000	190
RSTM261-J	2.5T Truck	380	34	68	110	270	3000	6000	320
RSTM262-J	4.5T Truck / 6M AMT Bus	380	50	90	160	350	3000	6000	300
RSTM262D1	5T Truck	380	50	80	170	380	3000	6000	385
RSTM262D1-H	5T Truck	540	50	80	170	380	3000	6000	288
RSTM423	8M AMT Bus	540	70	120	335	600	2000	4500	295
RSTM424	8M AMT Bus	380	70	120	335	600	2000	4500	370
RSTM424A	10 AMT Bus	540	90	130	285	500	3000	4500	300
RSTM420	6.6-7M Direct-drive Bus/ 7.5T Truck	540	115	150	550	1000	2000	4500	340
RSTM421	6M Direct-drive	380	70	120	335	800	2000	4500	374
RSTM422	10-12M AMT Bus	540	115	150	550	1000	2000	4500	340
RSTM430	8M Direct-drive Bus	540	92	140	764	1700	1150	3000	350
RSTM460A-2500	12M Direct -drive	576	100	200	1000	2500	955	2700	500
RSTM460A-2800	12M Direct -drive	576	120	200	1200	2800	955	2700	543

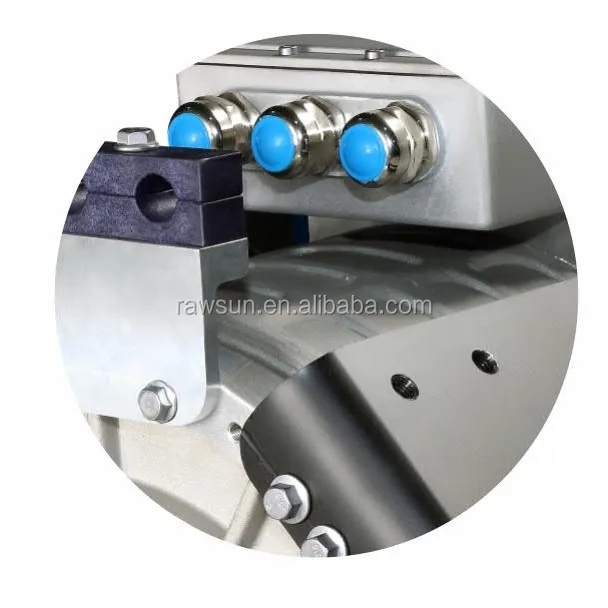

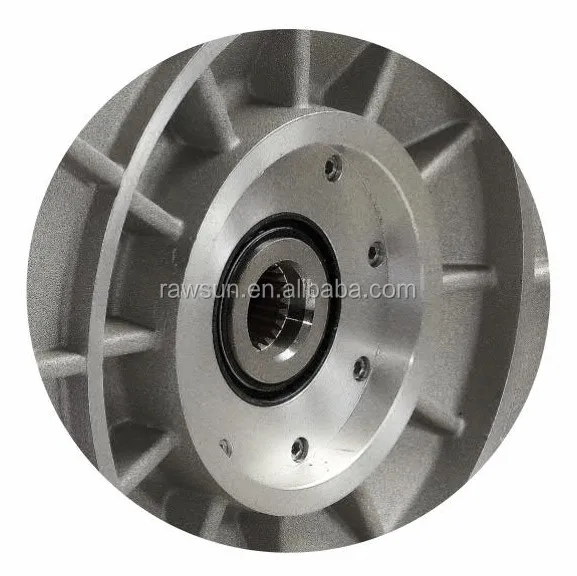

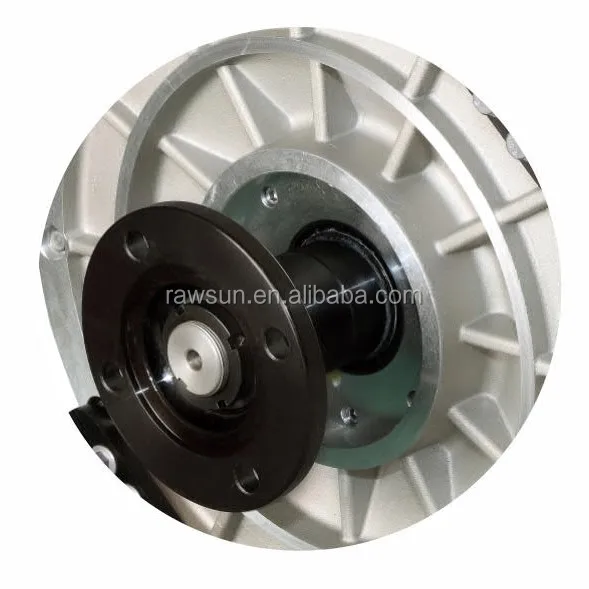

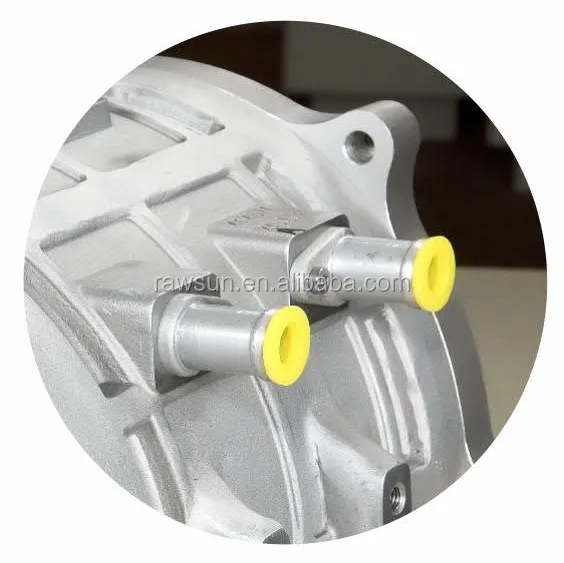

Detailed Images

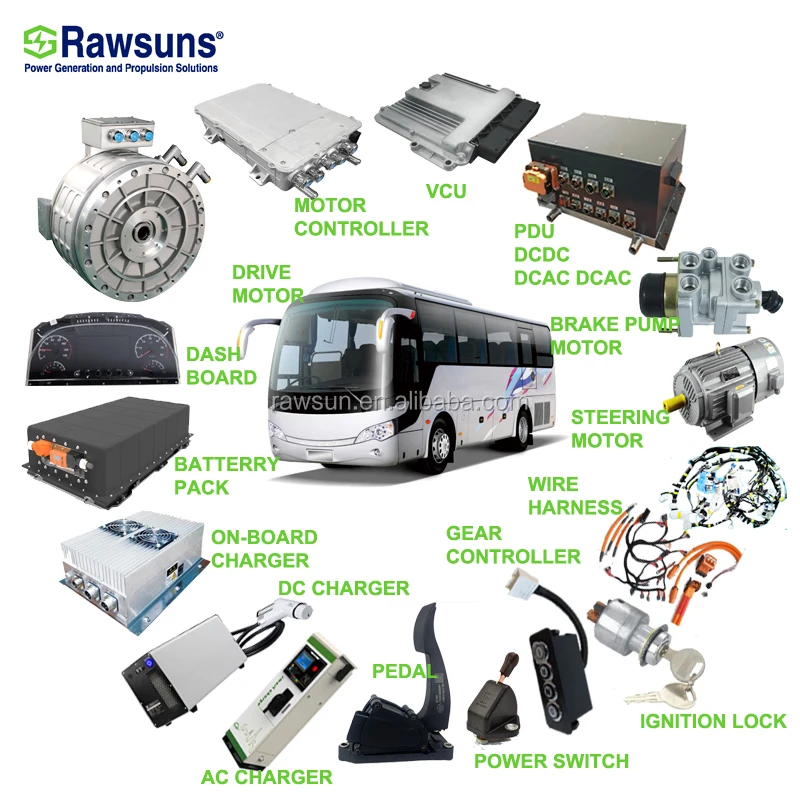

Rawsun EV conversion kit

Rawsun EV motors range from 50kw(180Nm)-200kw (2800Nm), we also provide motor controller , DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel , battery pack with bms , wireharness to complete the ev conversion kit.

Motor Controller Electric Vehicle Motor EV Conversion Kit Part traction motor for electric vehicle ac electric vehicle motor

Motor Controller Integrated Controller Electric Vehicle Motor EV Conversion Kit Part Integrated System EV Motor

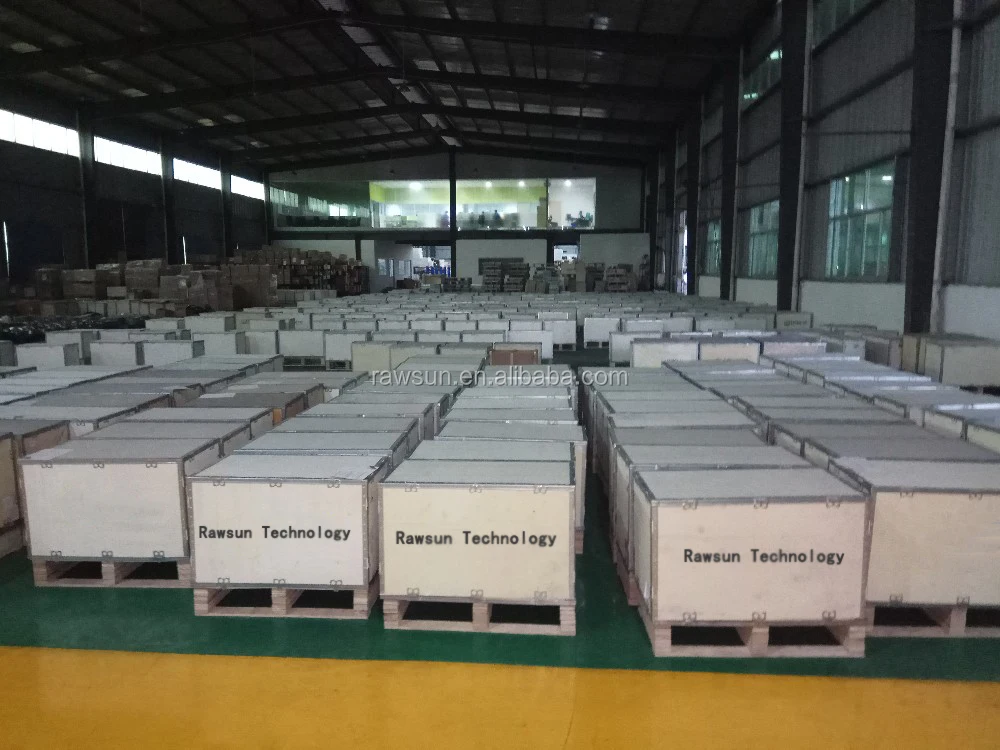

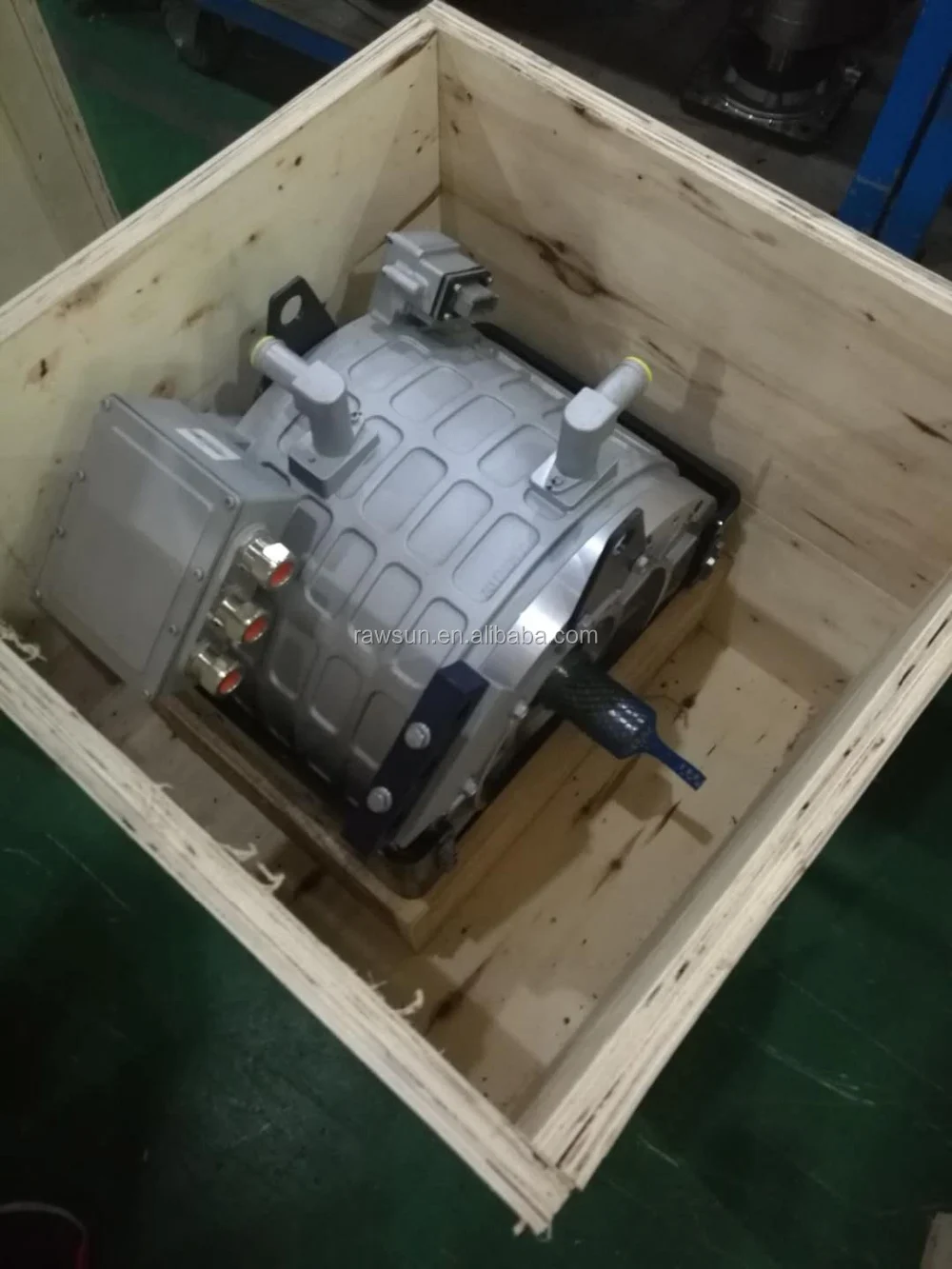

Packing&Shipping

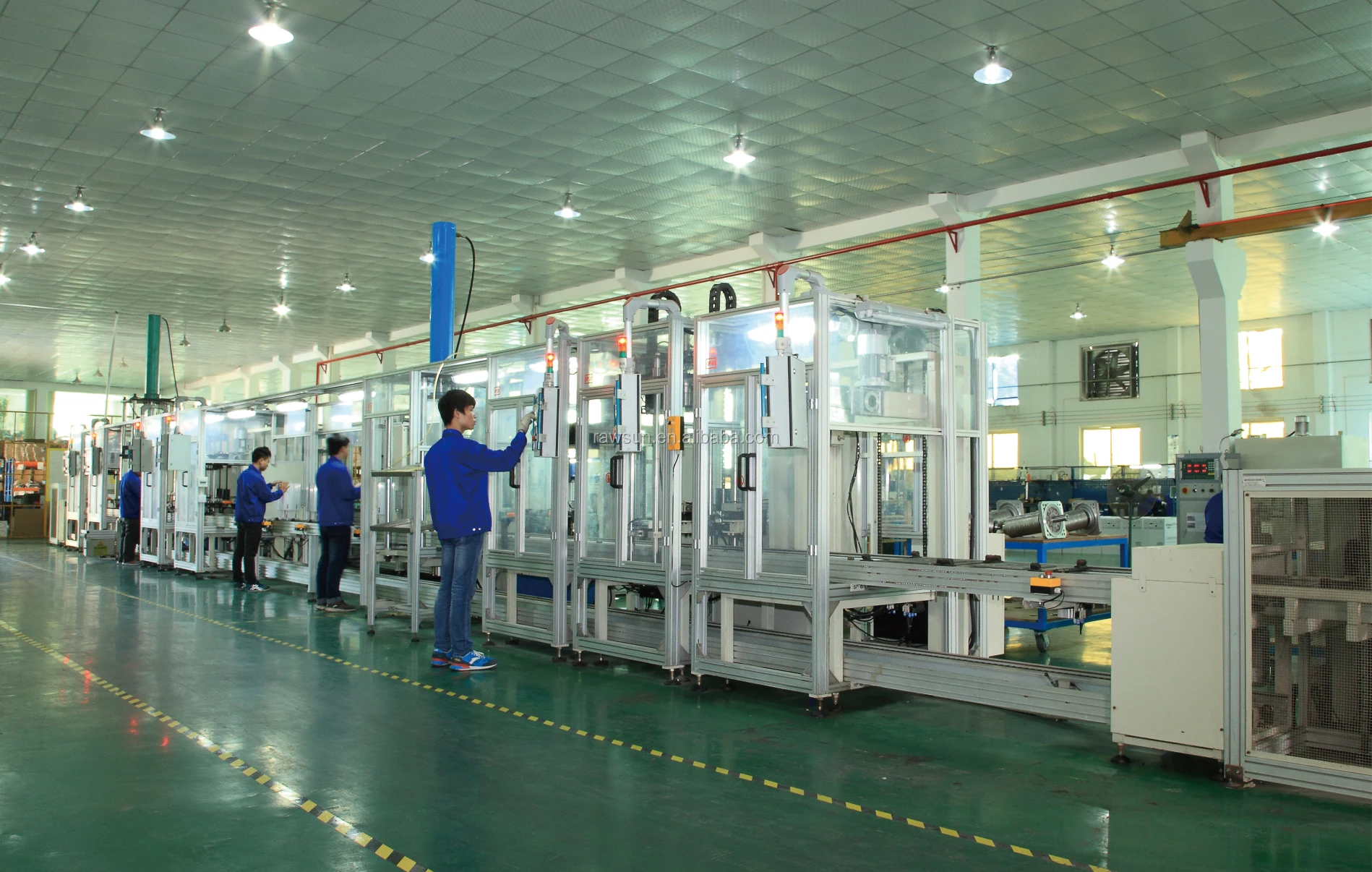

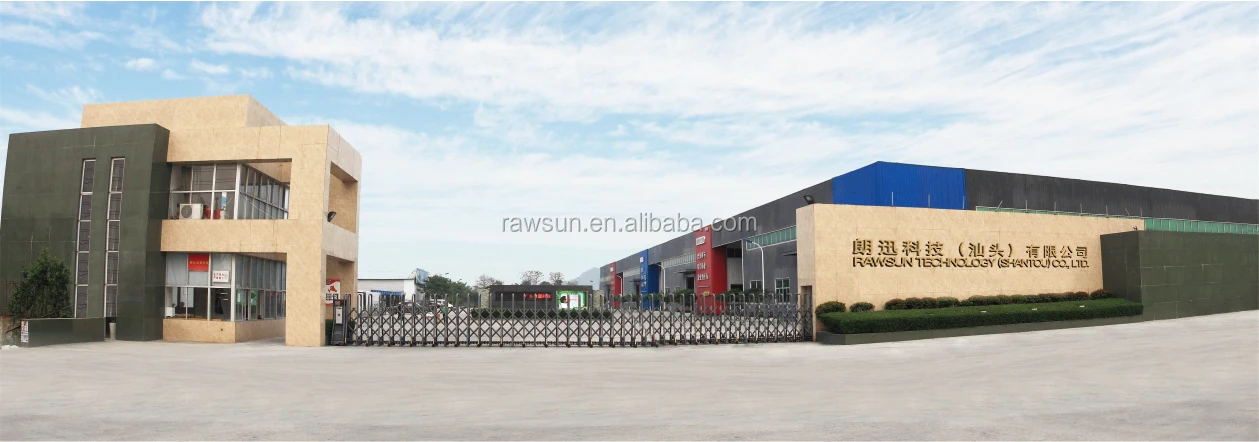

Company Introduction

Rawsun Technology (Shantou) Co., Ltd. is a growing company committed to power generation and electric drive system solutions. Rawsun EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include electric vehicle drive systems, vehicle control systems and lithium battery systems, Rawsun EV systems are mainly used in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric ships, and electric engineering machineries. Rawsun products conform to the trend of green environmental protection concept of all countries in the world, Electric vehicles and electric ships with Rawsun EV systems are conducive to reduce road exhaust pollution and oil pollution on the surface of tourist areas. Rawsun technology provides complete set of electric vehicle/electric boat power system solutions for overseas customers. Rawsun technology has provided full electric systems for electric trucks, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats to manufacture customers in Southeast Asia, Europe and America.

Customer Photos

Contact Us

Ordering and Pricing

• Minimum order quantity: 2 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ec motors?

The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 12 months warranty. Spare parts and technical support remain available after the warranty period.

Can the ec motors be supplied for my local voltage?

The standard configuration is 9-30 VDC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Rawsun Technology (shantou) Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company. Browse the full Rawsun Technology (shantou) Co., Ltd. range on HVACR Nexus.
