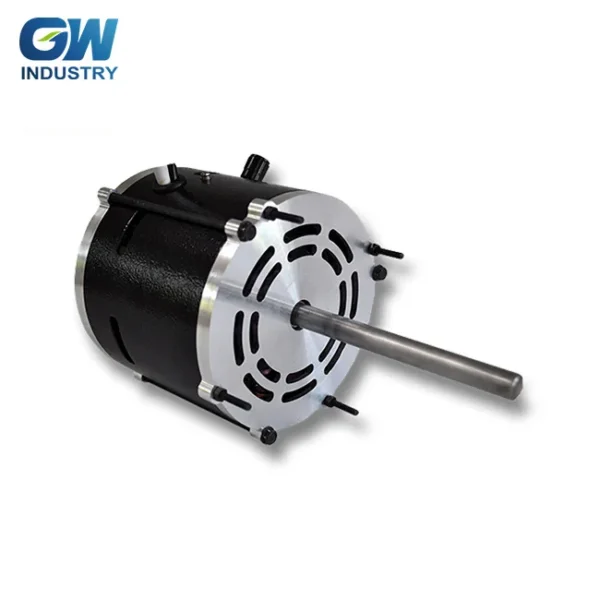

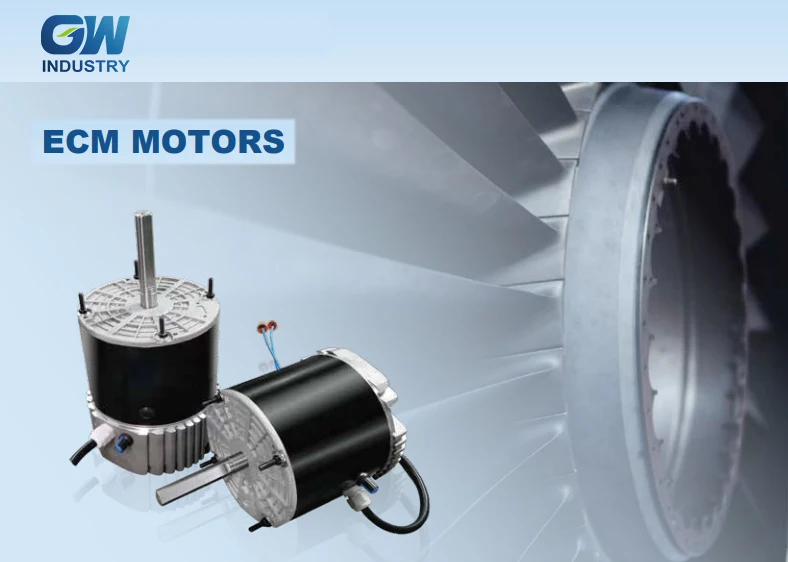

This efficient electronically commutated motor is published with the manufacturer’s full specification — rated voltage Dc 24V, type Micro Motor. Made by Gw Electric (shanghai) Co., Ltd. (11 years on the platform, typical reply >24h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Efficient Electronically Commutated Motor
- Model Number: 48ECM33-6
- Rated Power: 500 W
- Rated Voltage: Dc 24V
- Speed(RPM): 1800 RPM
- Warranty: 3 months ~ 1 year
- Place Of Origin: Shanghai, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | Dc 24V |
| Rated Power | 500 W |
| Speed(RPM) | 1800 RPM |
| Efficiency | IE 1 |
| Type | Micro Motor |
| Construction | Permanent Magnet |
| Frame | 48mm(1.89in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |
| Usage | Fan |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 12A |
| Model Number | 48ECM33-6 |
| Torque | Requests |
| Place Of Origin | Shanghai, China |
| Brand Name | GW Industry |
| EFF% | 82.8% |
| INS. | F |
| DUTY | CONT |
| Enclosure | OPEN |
| Product Name | ECM MOTOR |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
FEATURES
Motor body and controller are independent
Easy motor body maintenance and controller replacement
Adjustable increase ring according to power
Constant speed, constant torque control
Speed range 200rpm-1800rpm
Lower operating noise
208VAC-230VAC/115VAC voltage selection;
Insulation class F
Ambient temperature 45°C
Ball bearings, long life and maintenance free;
Higher efficiency, 82% or more;
Power range: 1/4, 1/3, 1/2,3/4, 1 HP
A variety of external interfaces are available
With cost advantages, you can cooperate in OEM

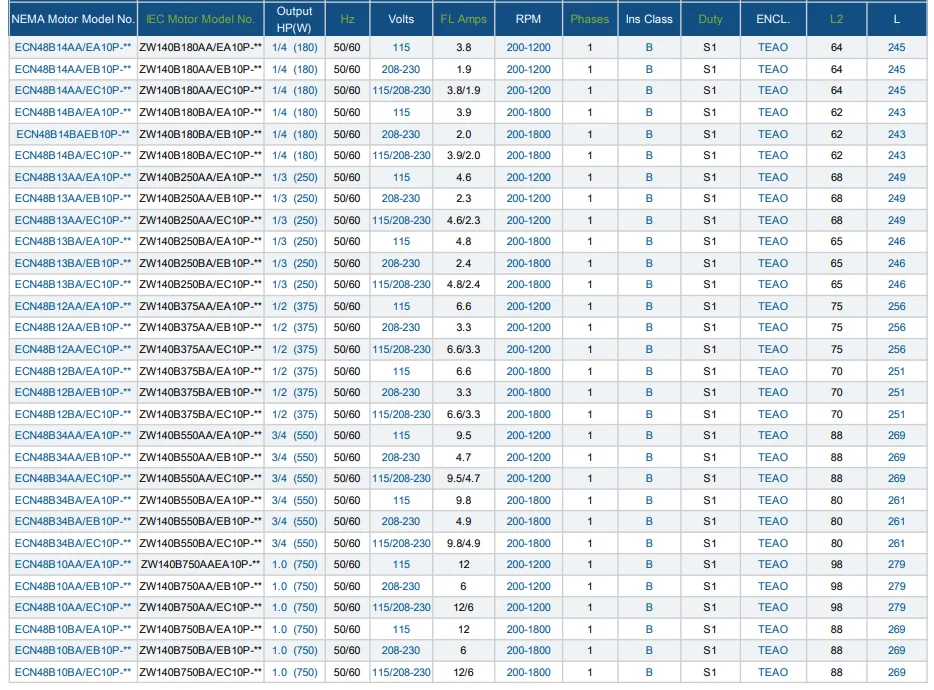

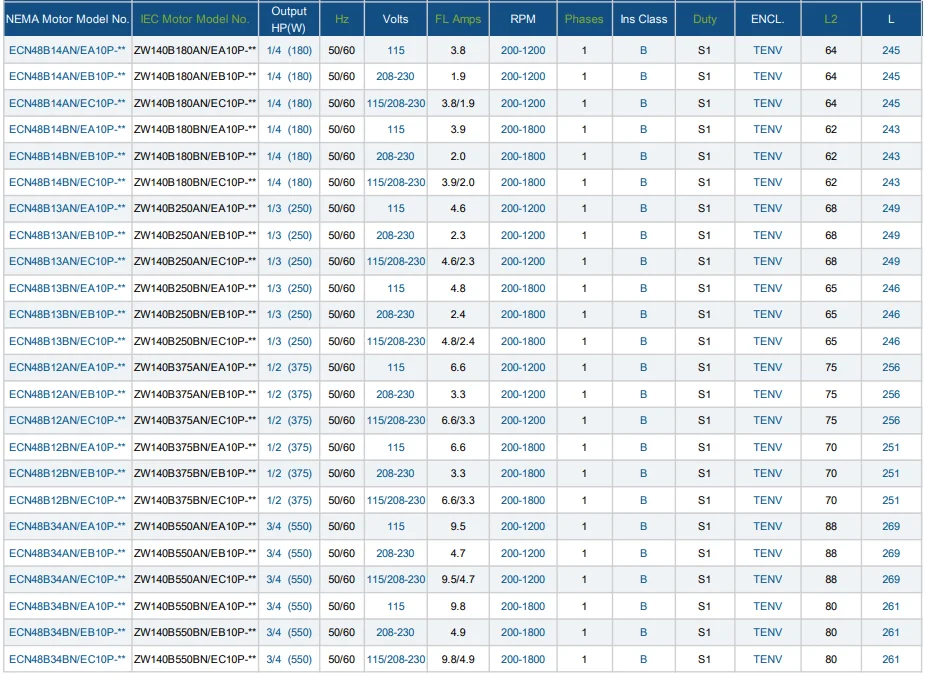

Motor Technical Data
If you have any requirements,Please contact us not any hesitate. You always welcome.
Ps: The items include voltage, power, frame size can be customized as per suctomer's request.

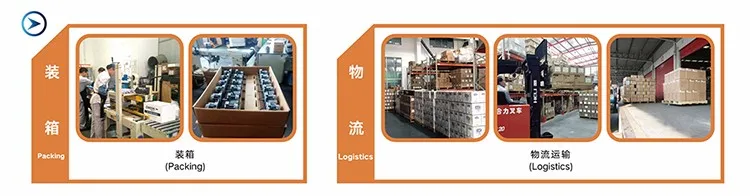

Packaging Details: Export standard: inner box+carton+wooden case
Delivery Detail: Within 20-30 days after received the deposit

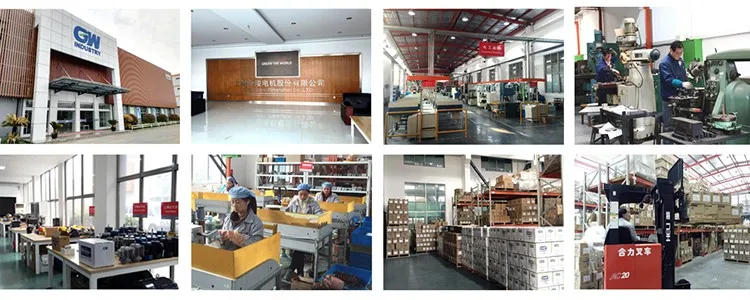

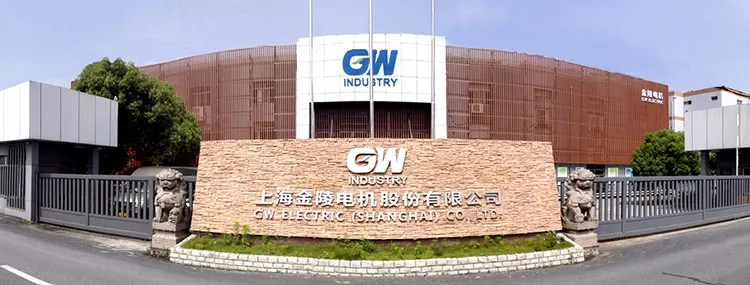

GW ELECTRIC (SHANGHAI) CO., LTD.
is a leading motor manufactory established in 1952, formerly known as SMM, JLM and Shanghai Regal-Beloit & Jinling Co., Ltd. (A joint-venture with Regal-Beloit since 2002). The JV has manufactured motors for LEESON, MARATHON and LINCOLN. In 2014, the company became part of the GW Industrial Group Co., Ltd. Our scope of business is designing, manufacturing and selling DC motors, fractional horsepower AC motors including single phase and three phase motors with NEMA and IEC standards. We provide after-sales and technical consulting services for our customers. Our company owns a UL and CSA approved laboratory with certification facilities for testing.
1.We are professional manufacture with more than 60 years experience in motors.
2.Every year 500,000 to 600,000pcs of electric motor were exported to others countries.

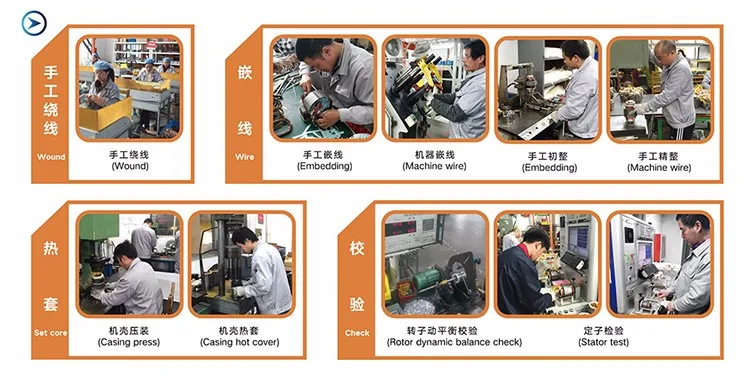

3.We test the material before production and three to four times when producing to ensure the goods in good quality,
also we produce according to your quirement
4.Best production capability,best quality control,best service
5.We can be your OEM manufacturer with your authorization of brand.
Q1. What's your company's main products?
A: Our company is specialized in AC three phase motor and single phase motor.
Q2. What's your payment term?
A: 30% T/T in deposit,the rest against on the copy of B/L
Q3. What's the MOQ for your production?
A: The MOQ is 100pcs or depends on your products requirements
Q4. Is it all right to make customer's own brand name?
A: OEM is ok
Q5. Where is your loading port?
A: Shanghai, China or else port as for your request
Q6. Are you a manufactuer or trading company?
A: We are a manufactuer
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $180 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this efficient electronically commutated motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the efficient electronically commutated motor be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Gw Electric (shanghai) Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Gw Electric (shanghai) Co., Ltd. range on HVACR Nexus.
