Key specification for this electric stainless steel motor: type Asynchronous Motor, rpm 1800/3600RPM. Everything below is reproduced from the factory data sheet. Made by Gw Electric (shanghai) Co., Ltd. (11 years on the platform, typical reply >24h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Electric Stainless Steel Motor
- Model Number: Electric Motor
- Rated Power: 1 kW(1.34hp)
- AC Voltage: 115/208-230V
- Rated Speed: 1500 RPM
- Warranty: 3 months ~ 1 year
- Place Of Origin: Shanghai, China
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 115/208-230V |
| Rated Power | 1 kW(1.34hp) |
| Rated Speed | 1500 RPM |
| Type | Asynchronous Motor |
| Frame | 56 mm(2.20in) |
| Motor Mounting Type | Foot Mount |
| Protect Feature | Totally Enclosed |
| Efficiency | IE3 |
| Warranty | 3 months ~ 1 year |
| Model Number | Electric Motor |
| Brand Name | GW |
| Place Of Origin | Shanghai, China |
| Frequency | 60HZ |
| IP CODE | 55 |
| INS.CLASS | F |
| DUTY | CONT. |
| RPM | 1800/3600RPM |
| S.F | 1.15 |
| OVER-LOAD | NONE |
| Product Name | stainless steel sigle phase electric motor for food machinery |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

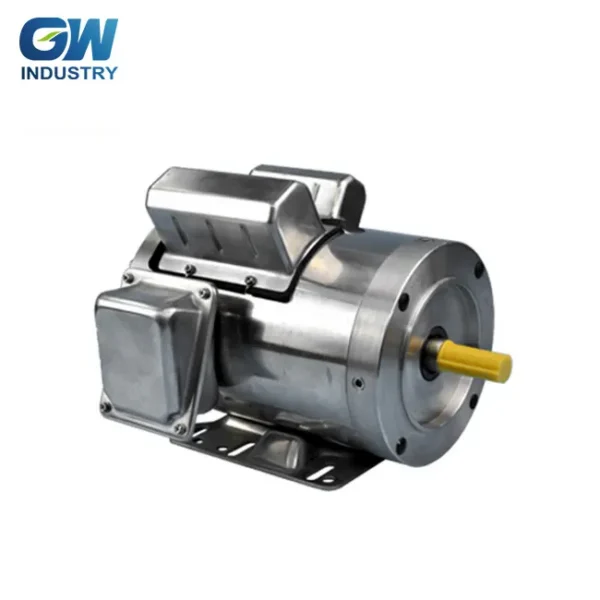

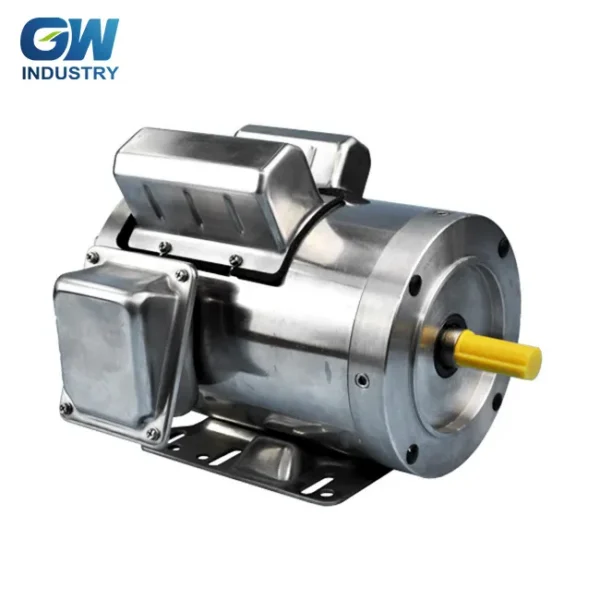

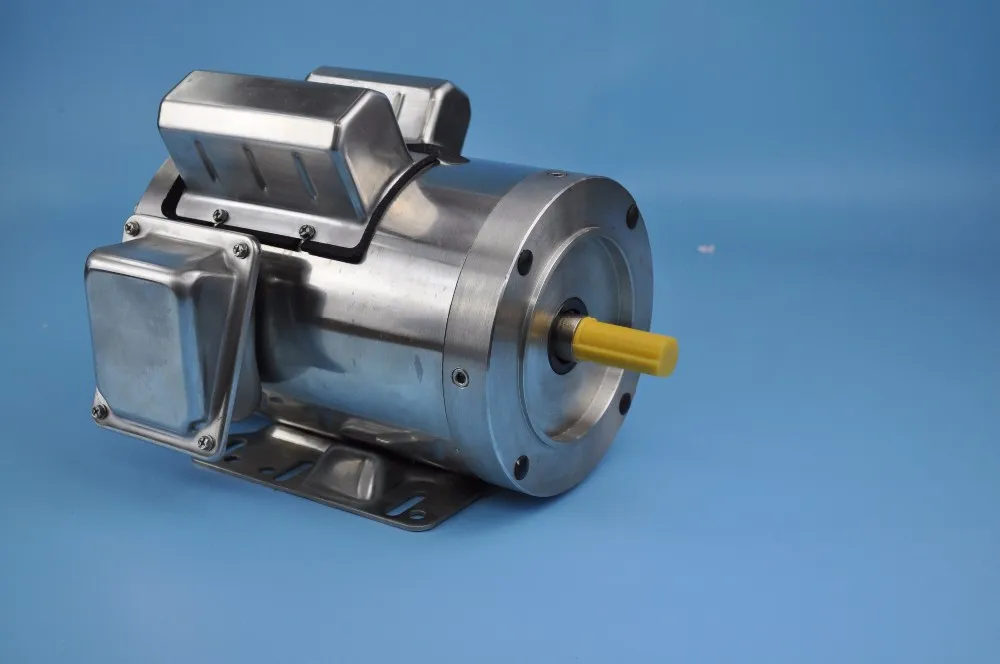

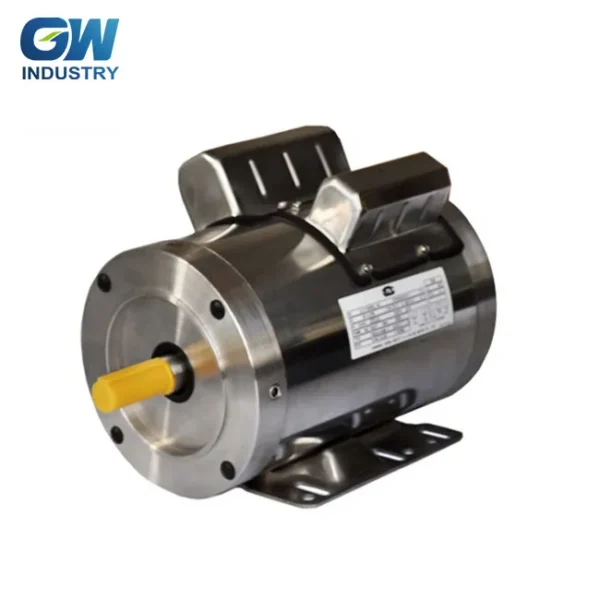

NEMA single phase electric stainless steel motor
FEATURES
· Waterproof seals on shaft extensions
·NEMA stainless steel sigle phase electric motor for food machinery
· Drain holes (4) in endbells to facilitate draining in any mounting position
· T-drain (1) comes installed in non-shaft endbell at base position – can be relocated.
· 2nd T-drain for shaft end provided for customer installation at proper drainage point
STAINLESS STEEL – 1 phase Washdown Duty – 56 & 145T MOTOR
Packaging Details: Export standard: inner box+carton+wooden case
Delivery Detail: Within 20-30 days after received the deposit

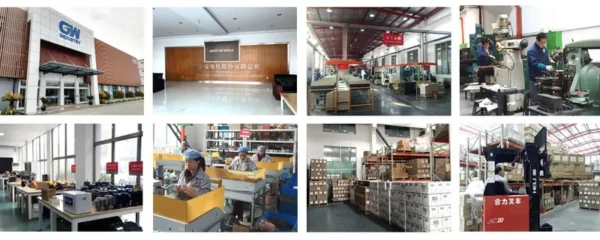

GW ELECTRIC (SHANGHAI) CO., LTD.
is a leading motor manufactory established in 1952, formerly known as SMM, JLM and Shanghai Regal-Beloit & Jinling Co., Ltd. (A joint-venture with Regal-Beloit since 2002). The JV has manufactured motors for LEESON, MARATHON and LINCOLN. In 2014, the company became part of the GW Industrial Group Co., Ltd. Our scope of business is designing, manufacturing and selling DC motors, fractional horsepower AC motors including single phase and three phase motors with NEMA and IEC standards. We provide after-sales and technical consulting services for our customers. Our company owns a UL and CSA approved laboratory with certification facilities for testing.
1.We are professional manufacture with more than 60 years experience in motors.
2.Every year 500,000 to 600,000pcs of electric motor were exported to others countries.
3.We test the material before production and three to four times when producing to ensure the goods in good quality,
also we produce according to your quirement
4.Best production capability,best quality control,best service
5.We can be your OEM manufacturer with your authorization of brand.
Our Certifications
Q1. What's your company's main products?
A: Our company is specialized in AC three phase motor and single phase motor.
Q2. What's your payment term?
A: 30% T/T in deposit,the rest against on the copy of B/L
Q3. What's the MOQ for your production?
A: The MOQ is 100pcs or depends on your products requirements
Q4. Is it all right to make customer's own brand name?
A: OEM is ok
Q5. Where is your loading port?
A: Shanghai, China or else port as for your request
Q6. Are you a manufactuer or trading company?
A: We are a manufactuer
Ordering and Pricing
- Minimum order quantity: 50 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric stainless steel motor?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric stainless steel motor be supplied for my local voltage?
The standard configuration is 115/208-230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Gw Electric (shanghai) Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Gw Electric (shanghai) Co., Ltd. range on HVACR Nexus.
