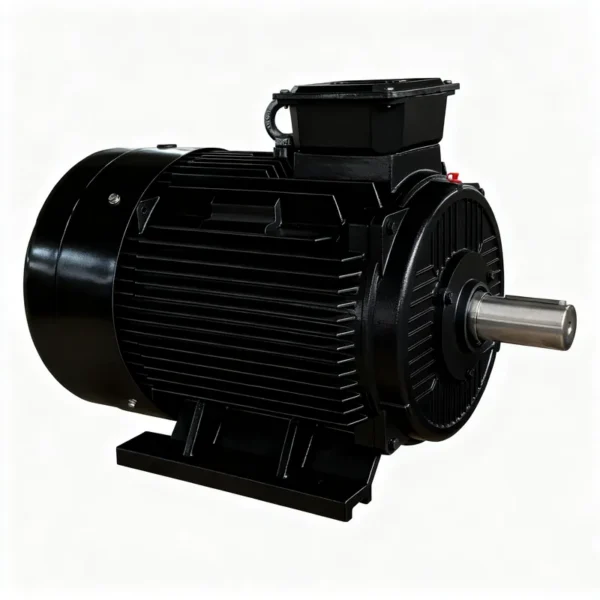

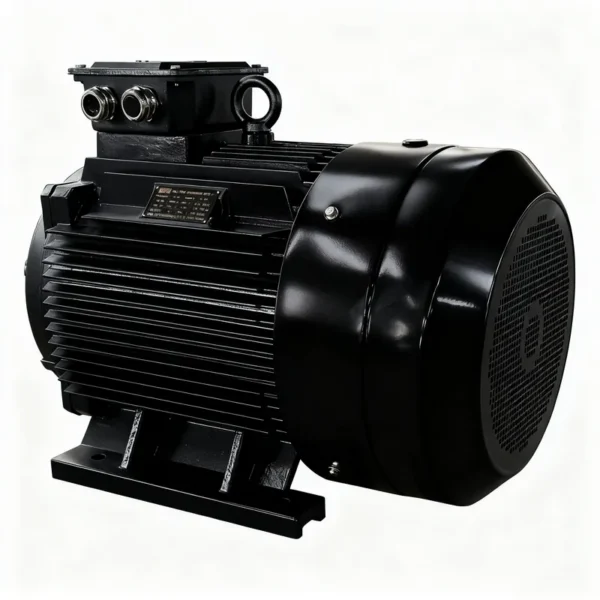

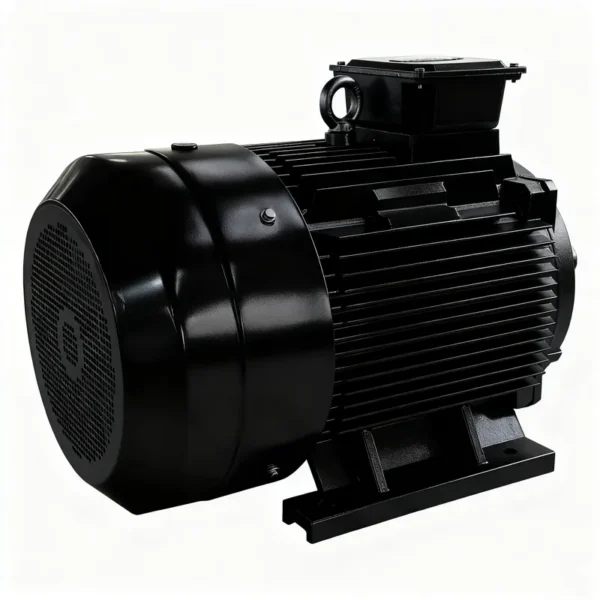

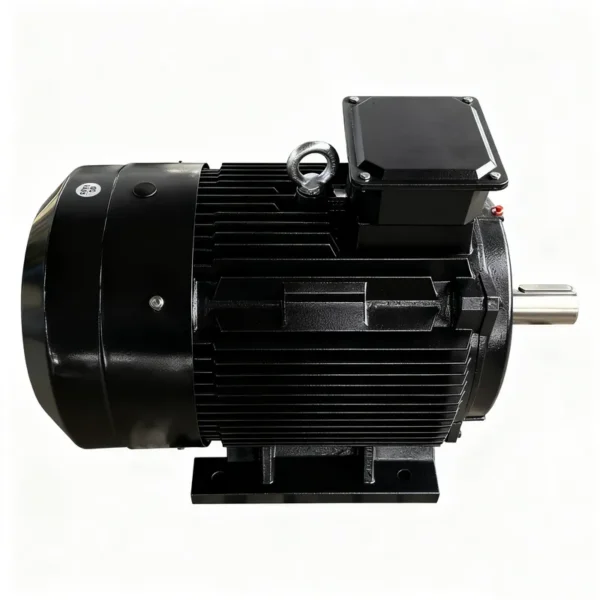

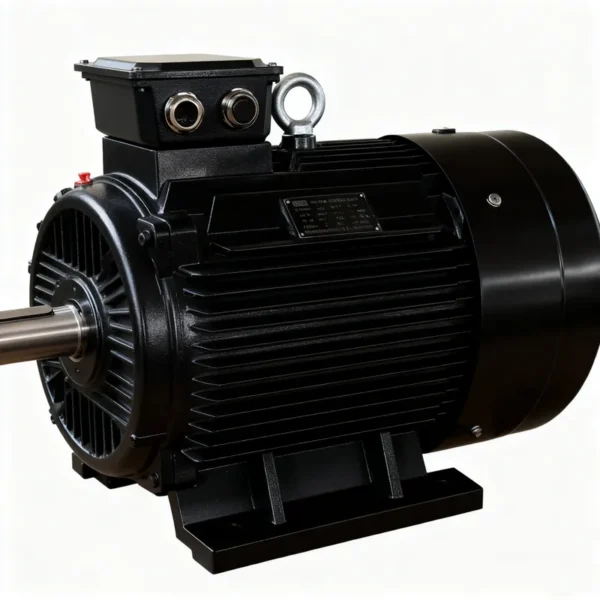

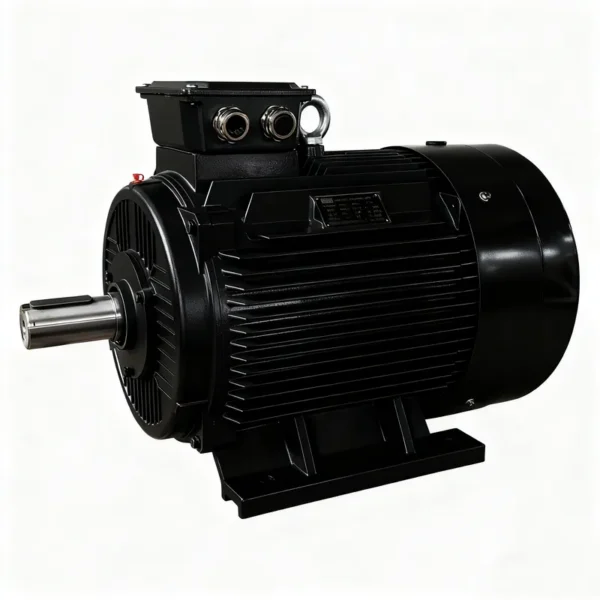

Electric Motor, 1.5KW, 2HP, YE3-90L-4, 380V

The electric motor listed here carries type EC Motor, model number YE3-90L-4, documented exactly as the manufacturer publishes it. Made by Ningbo Biote Mechanical Electrical Co., Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Electric Motor

• Model Number: YE3-90L-4
• Rated Power: 1.5kw(2.01hp)
• AC Voltage: 380V
• Rated Speed: /
• Warranty: Other
• Place Of Origin: Zhejiang, China

Technical Specifications

Product Details

Product Description

Model	Rated Output			EFF	Power Factor
		KW	HP	%	COSØ
YE3-80M2-4	0.75	1	82.5	0.75
YE3-90S-4	1.1	1.5	84.4	0.76
YE3-90L-4	1.5	2	85.3	0.77
YE3-100L-4	202	3	86.7	0.81
YE3-100L-4	3	4	87.7	0.82
YE3-112M-4	4	5.5	88.6	0.82
YE3-132S-4	5.5	7.5	89.6	0.83
YE3-132M-4	7.5	10	90.4	0.84
YE3-160M-4	11	15	91.4	0.85
YE3-160L-4	15	20	92.1	0.86
YE3-180M-4	18.5	25	92.6	0.86
YE3-180L-4	22	30	93	0.86
YE3-200L-4	30	40	93.6	0.86
YE3-225S-4	37	50	93.9	0.86
YE3-225M-4	45	60	94.2	0.86
YE3-250M-4	55	75	94.6	0.86
YE3-280S-4	75	100	95	0.88
YE3-280M-4	90	120	95.2	0.88
YE3-315S-4	110	150	95.4	0.89
YE3-315M-4	132	180	95.6	0.89
YE3-315L1-4	160	220	95.8	0.89
YE3-315L2-4	200	270	96	0.89
YE3-355M-4	250	340	96	0.9
YE3-355L-4	315	430	96	0.9

Model	Rated Current					Rated Speed	Rated Current					Rated Speed
		IFL 380VA	IFL 400VA	IFL 420VA	(r/min)	IFL 440VA	IFL 460VA	IFL 480VA	(r/min)
YE3-80M2-4	1.8	1.71	1.63	1430	1.55	1.49	1.43	1715
YE3-90S-4	2.6	2.47	2.35	1430	2.25	2.06	2.06	1715
YE3-90L-4	3.5	3.33	3.17	1440	3.02	2.77	2.77	1725
YE3-100L-4	4.8	4.56	4.34	1455	4.15	3.8	3.8	1725
YE3-100L-4	6.3	5.99	5.7	1465	5.44	4.99	4.99	1745
YE3-112M-4	8.4	798	7.6	1465	7.25	6.65	6.65	1755
YE3-132S-4	11.2	10.6	10.1	1470	9.67	8.87	8.87	1755
YE3-132M-4	15	14.3	13.6	1470	13	11.9	11.9	1760
YE3-160M-4	21.5	20.4	19.5	1470	18.6	17	17	1760
YE3-160L-4	28.8	27.4	26.1	1470	24.9	22.8	22.8	1760
YE3-180M-4	35.3	33.5	31.9	1475	30.5	28	28	1760
YE3-180L-4	41.8	39.7	37.8	1480	36.1	33.1	33.1	1770
YE3-200L-4	56.6	53.8	51.2	1480	48.9	44.8	44.8	1775
YE3-225S-4	69.6	66.1	63	1485	60.1	55.1	55.1	1775
YE3-225M-4	84.4	80.2	76.4	1490	72.9	66.8	66.8	1780
YE3-250M-4	103	97.9	93.2	1490	89	81.5	81.5	1785
YE3-280S-4	136	129.2	123.1	1490	117.5	107.7	107.7	1785
YE3-280M-4	163	154.9	147.5	1490	140.8	129	129	1785
YE3-315S-4	197	187.2	178.2	1490	170.1	156	156	1785
YE3-315M-4	236	224.2	213.5	1490	203.8	186.8	186.8	1785
YE3-315L1-4	285	270.8	257.9	1490	246.1	225.6	225.6	1785
YE3-315L2-4	352	334.4	318.5	1490	304	278.7	278.7	1785
YE3-355M-4	440	418	398.1	1495	380	348.3	348.3	1790
YE3-355L-4	554	526.3	501.2	1495	478.5	438.6	438.6	1790

Main Features:
1. Efficiency class: IE3 2. Stator winding: 100% Copper
3. Rotor: Squirrel cage 4. Bearings: R&U brand high precision bearing, optional SKF, NSK, etc.
5. Frame: Cast iron 6. Protection class: IP55
7. Insulation Level: F 8. Cooling method IC411

1. Rotor: Produces high precision rotor, which provides stability rotating.
2. Stator: Produces 100% cooper winding, and performance silicon steel sheet for stator.
3. Bearings: Uses high precision bearings, which support shaft stability provides steadily, ensure high efficiency working.
4. Shaft: Uses motor shaft of 45# steel, processed by automatic CNC lathes to ensure high precision driving.

5. Produces IE3 efficiency class motor with IEC60034-30 standard, it is much high efficiency than IE1 and IE2 motor.

Why Choose Us

Strict Quality Control

Biote has always attached great importance to quality control and strictly applied standard operating procedures during mass production. In daily production, three major inspection procedures have consistently been adopted:
(1) IQC(Incoming Quality Control), a thorough check on raw materials before storage in warehouse;
(2) IPQC(InPut Process Quality Control), a 15-minute frequency routine check with gauge in daily production;
(3) FQC（Final Quality Control), a final check with gauge based on 5% of the total production quantity.
(4) OQC(out-going Quality control)

Besides the above, Include Electrical Performance Testing,Mechanical Integrity & Vibration Analysis,Thermal & Load Performance Validation.etc

Our Company

Biote Company

Ningbo Biote Mechanical Electrical Co., Ltd. produces DC Motor, IEC standard and NEMA standard motor, RV reducer, Stainless steel motor with high efficiency performance. Our products are applied to automation machine, packing machine, food production, medical service, furniture and any kind of industries for innovation in motion.

We in line with the needs of the users, strives for the survival by the quality for the purpose, and constantly develop products in the development of the market demand. To provide users with perfect service and good products.

Our products are exported to clients in such countries and regions as Europe, America, the Middle East, Southeast Asia and allover the countries. We also welcome OEM and ODM orders. We are able to do the "tailor made" electric motors according to differentcustomer's requirements. Looking forward to cooperating with you in the near future

Packing & Delivery

THE SAMPLE BY EXPRESS OR AIR

LCL=LESS THAN CONTAINER LOAD, FCL=FULL CONTAINER LOAD, BY SHIPMENT

FAQ

Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor

Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.

Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.

Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.

Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Ordering and Pricing

• Minimum order quantity: 10 piece
• Volume pricing:
  • 10+ piece: US $47.4 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this electric motor?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a Other warranty. Spare parts and technical support remain available after the warranty period.

Can the electric motor be supplied for my local voltage?

The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Ningbo Biote Mechanical Electrical Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Biote Mechanical Electrical Co., Ltd. range on HVACR Nexus.
