Electric Refrigerator — 230 V, power source Electric. Verified manufacturer, factory pricing, full data sheet on request. Blade Material: Carbon Steel. Type: EC Axial Fan.
The electric refrigerator listed here carries 230 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Taizhou Jinyu Electromechanical Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Electric Refrigerator
Model Number: EC450-5
Power Source: Electric
Voltage: 230 V
Supply Voltage: 1~,200-277V,50/60Hz
Blade Material: Carbon Steel
Speed: 1600rpm

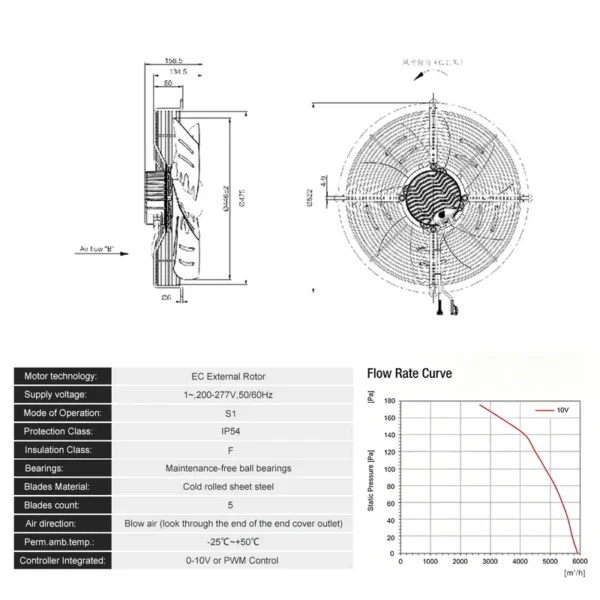

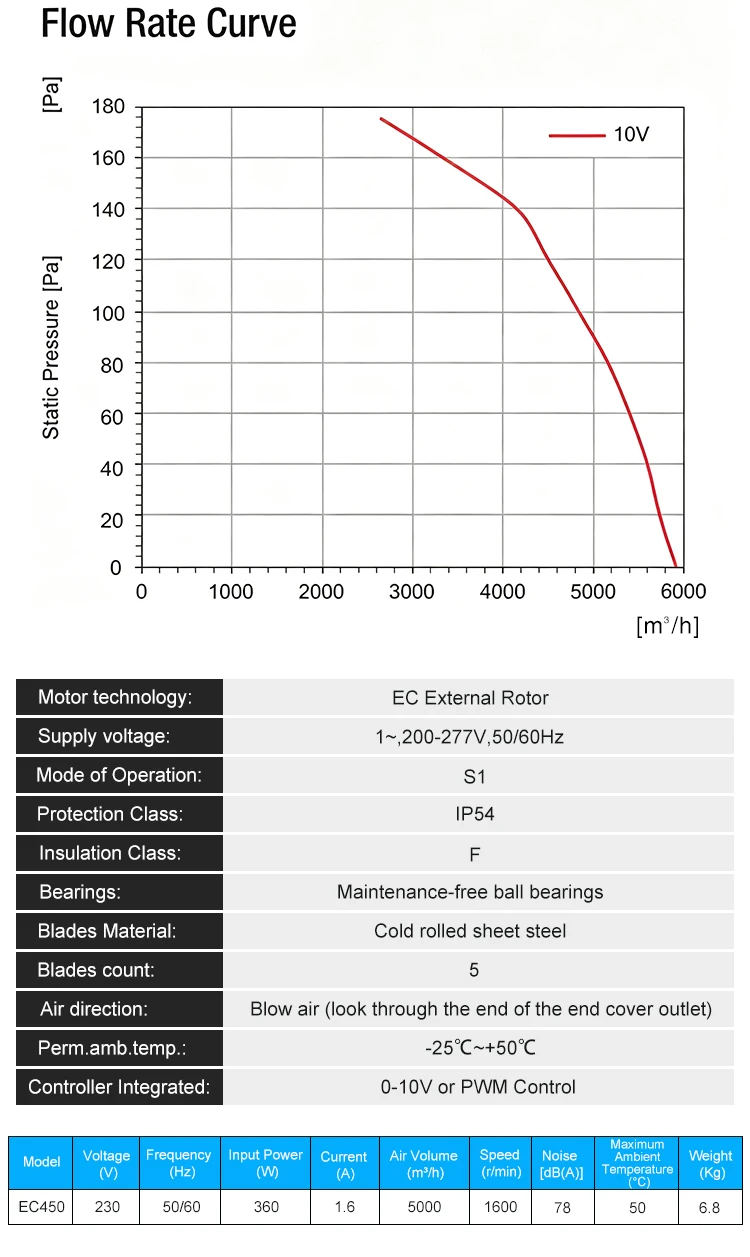

Technical Specifications
Voltage
230 V
Speed
1600rpm
Type
EC Axial Fan
Blade Material
Carbon Steel
Bearing Type
Maintenance-free Ball Bearings
Power Source
Electric
Warranty
1 Year
After-Sales Service Provided
Online support
Customized Support
OEM, ODM
Place Of Origin
Zhejiang, China
Brand Name
Jinyu
Model Number
EC450-5
Color
Black, Silver, White
Motor Technology
EC External Rotor
Supply Voltage
1~,200-277V,50/60Hz
Mode Of Operation
S1
Protection Class
IP54
Insulation Class
F
Blades Count
5
Airdirection
Blowair ( look through the end of the end cover outlet )
Perm.Amb.Temp.
-25°C~+50°℃
Controller Lntegrated
0-10V or PWM Control
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details
Since 2005, SAM.GOA has spent two decades mastering cooling technology, culminating in our state-of-the-art smart factory upgrade in 2025. Today, we deliverhigh-precision cooling solutions engineered to meet the most rigorous medical andindustrial standards of the EU and US. We own the independent brand "SANGOA" andhave obtained certifications for management systems such as ISO9001/ISO14001/QC80000/IATF16949. Meanwhile, SANGOA holds a series ofrelevant product certifications, including CE, UL, TUV, CCC, ROHS, etc. SANGOA isalso equipped with a full set of development and testing equipment for the fan industry:CFM testing system, noise testing chamber, temperature cycle testing system, droptesting system, simulated transportation testing system, salt spray testing system, etc.In addition to infrastructure, we have 8 fully automatic production lines and 8semi-automatic production lines, with a daily production capacity of 50,000 fans and amonthly sales volume exceeding 1,000,000 fans.
Q1. Are you a manufacturer or a trading company? A: We are a professional manufacturer with over 10 years of experience in R&D and productionof cooling fans. We operate our own factory with multiple production lines, capable of delivering more than 10,000 units per day. You can trust us for both quality and capacity.
Q2. Can you provide OEM/ODM services? Can we put our own logo on the fan?
A: Absolutely. We welcome OEM/ODM orders. We can print your logo on the label, housing, orpackaging, and we also support custom mold dimensions, terminal types, wire length, and evenfunctional features (FG, RD, PWM, temperature control, waterproof, etc.). Just send us your design or sample, and we'll make it happen.
Q3. What specific parameters can be customized? A: Almost everything – including voltage, current, fixed speed, airfliow, static pressure, noiselevel, bearing type (sleeve or dual ball), wire gauge, connector type, insulation class, andwaterproof rating (IP55 or IP68). We also offer advanced functions like PWM speed control,tachometer (FG) output, alarm (RD) signal, auto-restart, and thermal speed regulation.

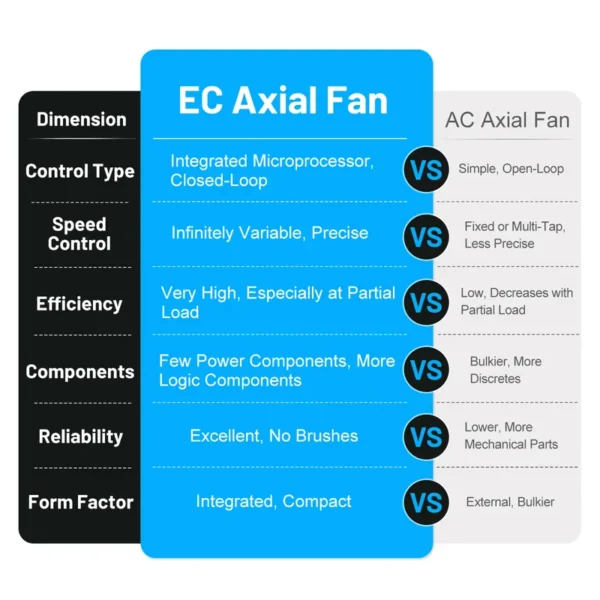

Q4. What's the difference between AC, DC, and EC fans? Which one should I choose? AC fans run on AC voltage (110V/220V/380V) and are simple but less efficient.DC fans run on low DC voltage (5V/12V/24V/48V etc.) and offer good speed control.EC fans combine the best of both – they operate on AC input (like 100-240V) but use abrushless DC motor internally, giving you high efficiency, variable speed control, and long lifeOur XE-4020 is an EC fan, ideal for applications that require stable performance over a wide voltage range. Q5. How do I choose the right fan for my application?
A: Please consider the following parameters.
Ordering and Pricing
Minimum order quantity: 1 piece
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric refrigerator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric refrigerator be supplied for my local voltage?
The standard configuration is 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
Specifications, certifications and images on this page are as published by the manufacturer and have not been
independently tested or verified by HVACR Nexus. Confirm the full specification and the approvals valid in your
market in writing before ordering.
