Duct axial fan — voltage Dc 24V, 12 V, 5 V, power source Electric. The complete factory specification follows. Made by Taizhou Jinyu Electromechanical Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Duct Axial Fan
- Model Number: DC9225DC9225
- Power Source: Electric
- Voltage: Dc 24V, 12 V, 5 V
- Rated Voltage: 12V/24V/48V
- Material: PBT
- Blade Material: Plastic
Technical Specifications
| Voltage | Dc 24V, 12 V, 5 V |
|---|---|
| Speed | 3400 |
| Type | Duct Axial Fan |
| Material | PBT |
| Blade Material | Plastic |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | SAM.GOA |
| Model Number | DC9225DC9225 |
| Product Name | DC Brussless Fan |
| Application | Air Cooler |
| Size | 92x92x25mm |
| Keyword | Low Noise Exhaust Fan |
| Usage | DC Motor |
| Core Components | IP68 BLDC Motor |
| Rated Voltage | 12V/24V/48V |
| Function | PWM FG |
| Installation | Customer |
| MOQ | 10pcs |
| Selling Units | Single item |
Product Details
The 9225 cooling fan (dimensions: 92mm × 92mm × 25mm) serves as a core component for heat dissipation in electronic devices, with applications spanning multiple industries. Below are its primary use cases and technical features:
Core Applications
Computer Hardware Cooling
Used for dissipating heat from components such as CPUs, graphics cards, and power supplies, ensuring stable operation of high-performance hardware.
Select models support PWM speed control, enabling precise RPM adjustment to balance noise levels and cooling efficiency.
Industrial Equipment
Suitable for cooling industrial machinery like inverters, PLCs, welding machines, and laser cutters. Certain models feature dust-proof and moisture-resistant designs for harsh environments.
Common in new energy sectors such as charging stations and inverters.
Home Appliances & Consumer Electronics
Used for cooling televisions, projectors, air conditioner outdoor units, and similar devices.
Some models are integrated into appliances like ice makers and dryers, supporting wide voltage ranges (e.g., 5V-24V).

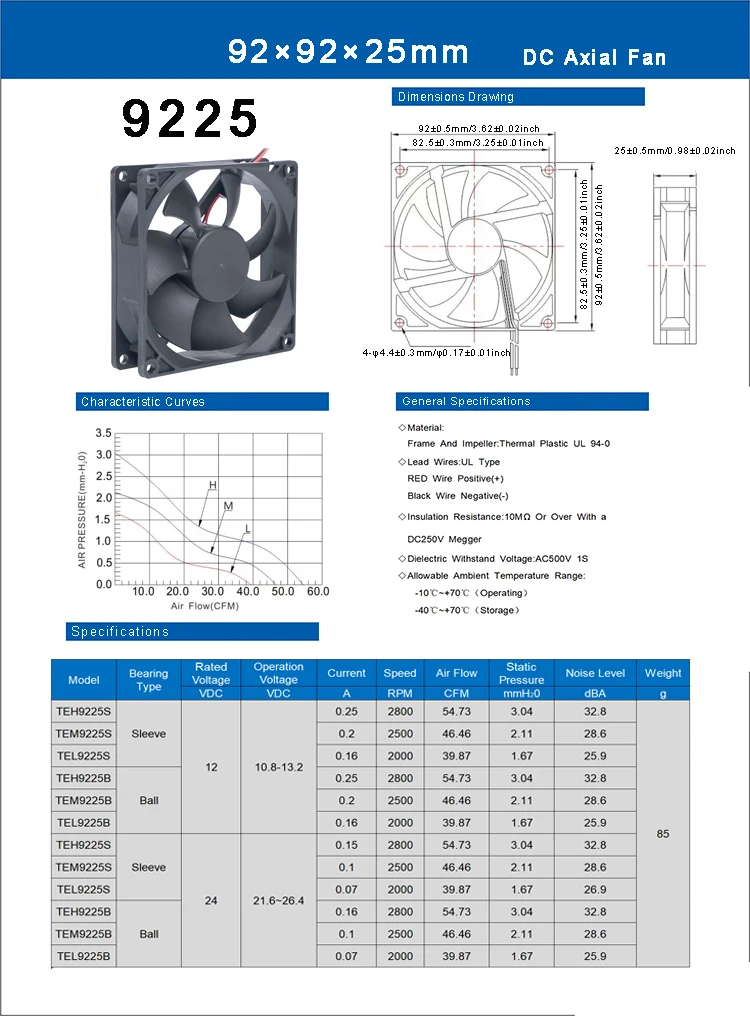

Technical Parameters and Selection Criteria
Voltage and RPM: Common voltages are 12V/24V, with RPM ranges from 1500 to 4000, and maximum airflow up to 100 CFM.
Bearing Type: Oil-impregnated bearings last approximately 3 years, while dual ball bearings can reach 6 years, suitable for high-load scenarios.
Noise Control: Premium models operate below 30 dBA; e.g., Japan's Sanyo San Ace series achieves only 37 dBA.
Special Application Cases
Automotive Electronics: Certain in-vehicle devices (e.g., amplifiers, beauty instruments) utilize 9225 fans, requiring vibration resistance.
Medical Equipment: Low-noise models are suitable for medical instruments, ensuring quiet operation.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $1.2 / piece
- 100–999 piece: US $0.98 / piece
- 1000+ piece: US $0.85 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this duct axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the duct axial fan be supplied for my local voltage?
The standard configuration is Dc 24V, 12 V, 5 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
