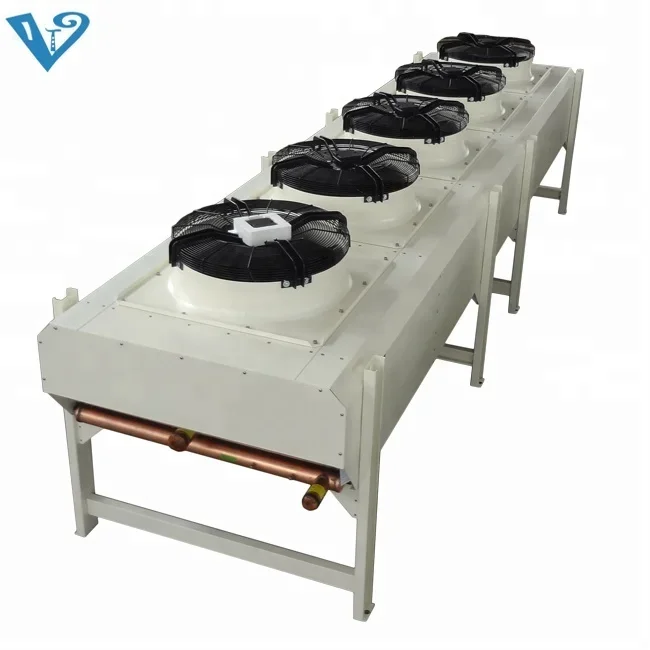

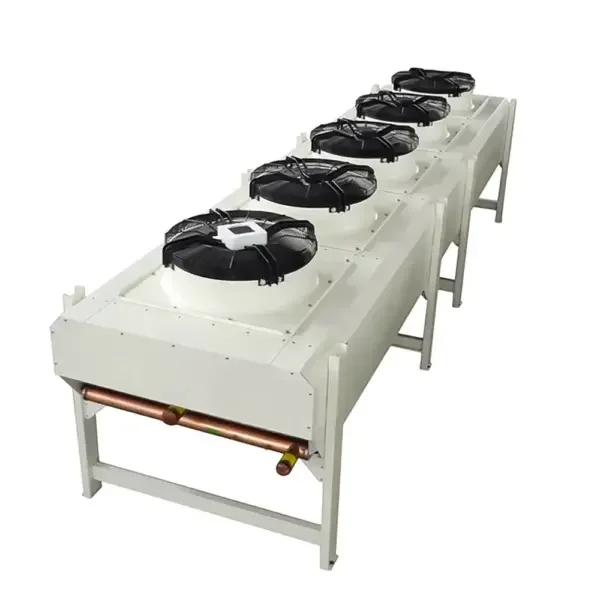

A data centre dry cooler rejects heat straight to ambient with no compressor at all, which is why free cooling now dominates thermal design in temperate climates — for much of the year outside air alone holds the 18C to 25C supply band IT equipment needs. Removing the compressor removes both the largest electrical load and the most failure-prone component. Axial fans on 380V or 400V, 1584kg.
Key Features of This Data Centre Dry Cooler
- Power Source: 380V/3PH/50HZ
- Voltage: 400 V, 380 V
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: data room
- Fan Type: Axial Fan
Technical Specifications
| Fan Type | Axial Fan |
|---|---|
| Compressor Brand | NONE |
| Temperature | 18-20c, 20-25c |
| Place Of Origin | Shanghai, China |
| Voltage | 400 V, 380 V |
| Warranty | 1 Year |
| Weight (KG) | 1584 |
| Compressor Type | NONE |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Power Source | 380V/3PH/50HZ |
| Application | data room |
| Selling Units | Single item |
| Single Package Size | 1340X1300X640 cm |
| Single Gross Weight | 1584.000 kg |
• Unique floating coil design avoids leakage caused by thermal expansion and contraction.
• Staggered fin pattern design and corrugated fin enhance air flow turbulence

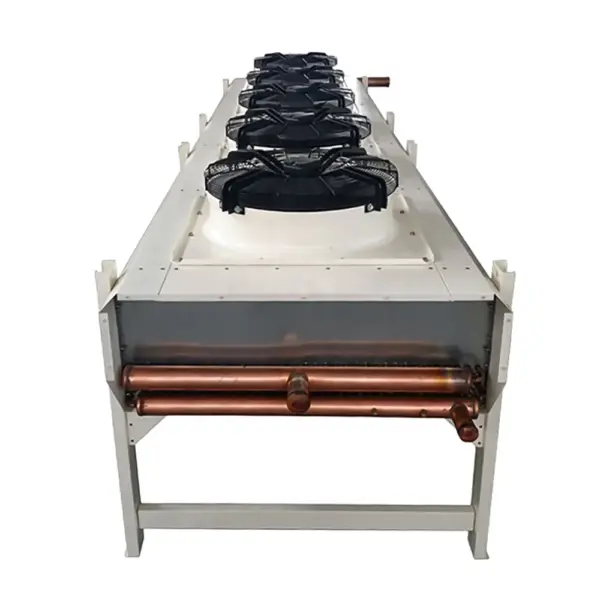

• Inner-grooved copper tube increase heat transfer area and enhance heat transfer
• Optimized flow pass design ensure fully heat exchange with refrigerant
• Equipped with 2nd generation owl-wing fan motor as standard. It features with low noise level, large volume flow and low energy consumption. Ready for dual speed connection.
• Outdoor type powder coated casing made of galvanized sheet metal and stainless steel bolts provide a high resistance to corrosion.
• Optional features:
• EC variable speed fan motor, to save great energy
• ZAplus/AxiTop for greater volume flow and extreme silence
• Adiabatic system significantly reduce energy consumption in summer
• Epoxy coated or hydrophilic aluminum fin suitable for coastal or high corrosion area
• Fluid dry cooler
• Clean stainless steel tube and aluminum fin coil for cooling deionized water.
|
D1 system
Model
|
D1-166
-4×630
|
D1-211-6×630
|
D1-247-6×630
|
D1-286-8×630
|
D1-334-8×630
|
|
|
Heat capacity
|
kW
|
165.92
|
211.36
|
247.30
|
286.15
|
334.49
|
|
Water flow rate
|
m3/h
|
29
|
37
|
43
|
50
|
58
|
|
Air flow
|
m3/h
|
67455
|
109723
|
101185
|
146293
|
134908
|
|
Fan motor
|
W
|
11000
|
16500
|
16500
|
22000
|
22000
|
|
Sound pressure
|
dB(A) at 10meter
|
64
|
66
|
66
|
67
|
68
|
|
Dimensions
|
L mm
|
2930
|
4230
|
4230
|
5530
|
5530
|
|
W mm
|
2100
|
2100
|
2100
|
2100
|
2100
|
|
|
H mm
|
1070
|
1070
|
1070
|
1070
|
1070
|
|
|
A mm
|
–
|
–
|
–
|
–
|
–
|
|
|
B mm
|
1340
|
1340
|
1340
|
1340
|
1340
|
|
|
C mm
|
1300
|
1300
|
1300
|
1300
|
1300
|
|
|
D mm
|
640
|
640
|
640
|
640
|
640
|
|
|

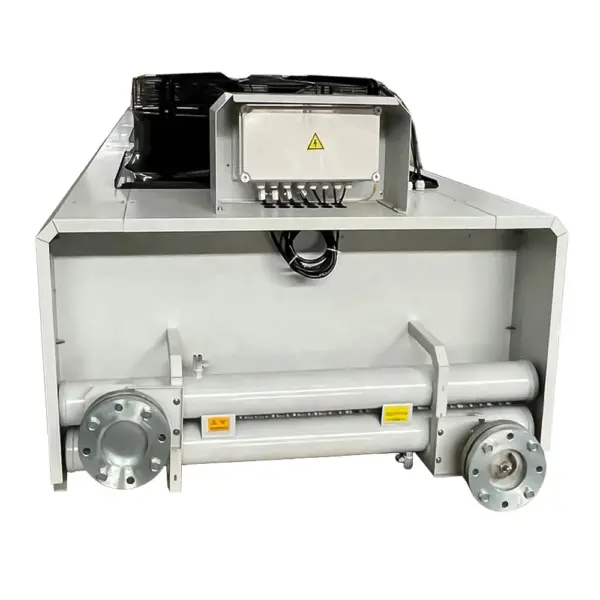

Inlet
|
mm
|
3″
|
3″
|
3″
|
DN100
|
DN100
|
|
Outlet
|
mm
|
3″
|
3″
|
3″
|
DN100
|
DN100
|
|
Product weight
|
Kg
|
658
|
689
|
760
|
1105
|
1270
|

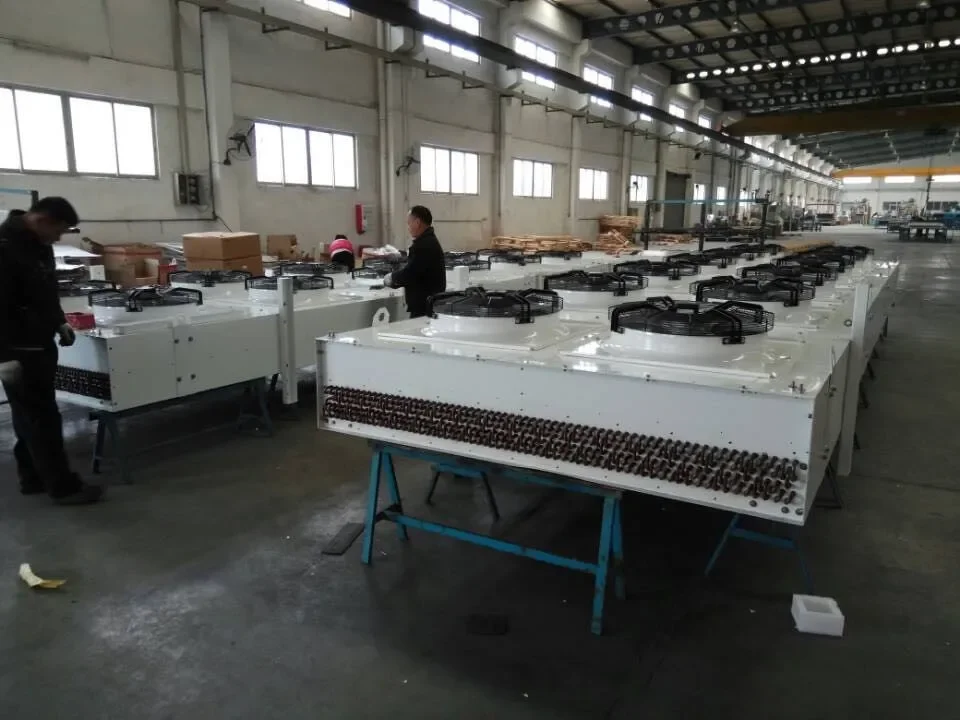

Venttk is a professional supplier in China specializes in Cooling system of Fin-tube heat exchanger. We are mainly manufacturing condensers,evaporators, dry air cooler, condenser with fan, our factorie ISO certificated. We could do Copper,Stainless steel tube, Copper,Aluminum,stainless steel fin with Epoxy. Our Dry cooler can be widely used in Air conditioners, Chiller system,Data room precision AC system,Diesel engines，Solar heat recovery system ect. Our Fin-tube heat exchanger can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area.
Frequently Asked Questions
What is the minimum order quantity for this data centre dry cooler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this data centre dry cooler?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 400 V, 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
