This evaporative air cooler is published with the manufacturer’s full specification — 380V-420V/50Hz, capacity 29.8. Made by Hangzhou Yemoo Refrigeration Equipment Co., Ltd. (13 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Evaporative Air Cooler
- Model Number: DJ-170B air cooler condenser evaporator
- Power Source: AC Power
- Voltage: 380V-420V/50Hz
- Capacity(KW): 29.8
- Place Of Origin: Zhejiang, China
- Application: Refrigeration Parts
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Evaporator |
| Place Of Origin | Zhejiang, China |
| Model Number | DJ-170B air cooler condenser evaporator |
| Brand Name | YEMOO |
| Capacity(KW) | 29.8 |
| Cooling Surface(Square Meter) | 170 |
| Fan | Axial fan |
| Fan Qty | 4 |
| Fin Space(Mm) | 9.0 |
| Voltage | 380V-420V/50Hz |
| Power Source | AC Power |
| Cold Room Temp.(Centigrade) | -25,t=6 |
| Other | Water-defrosting type and customized are optional |

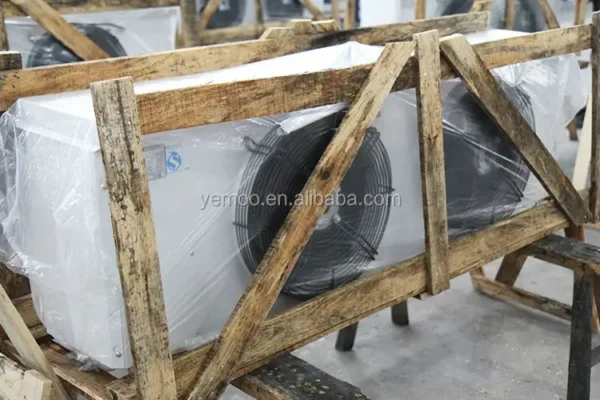

| Packaging Details | Plywood/Wooden box packing |
| Port Of Dispatch | Shanghai/Ningbo |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 2000 pieces per Month |
Product Details

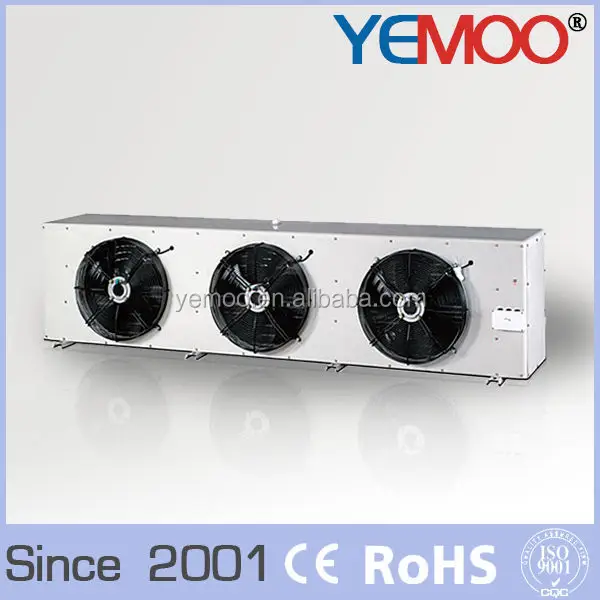

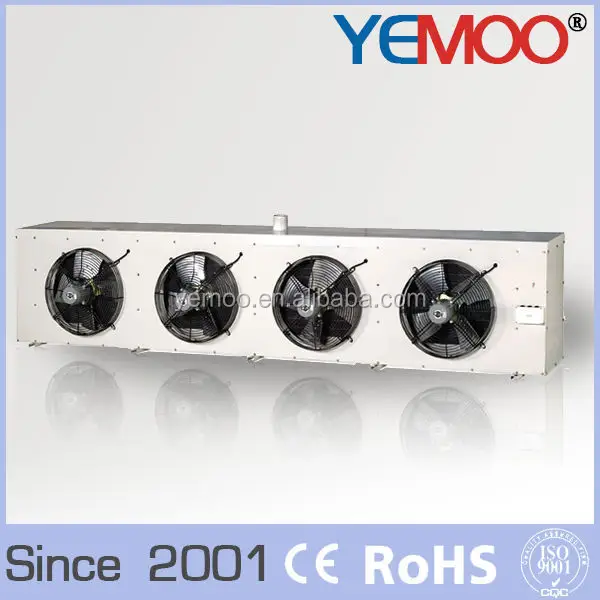

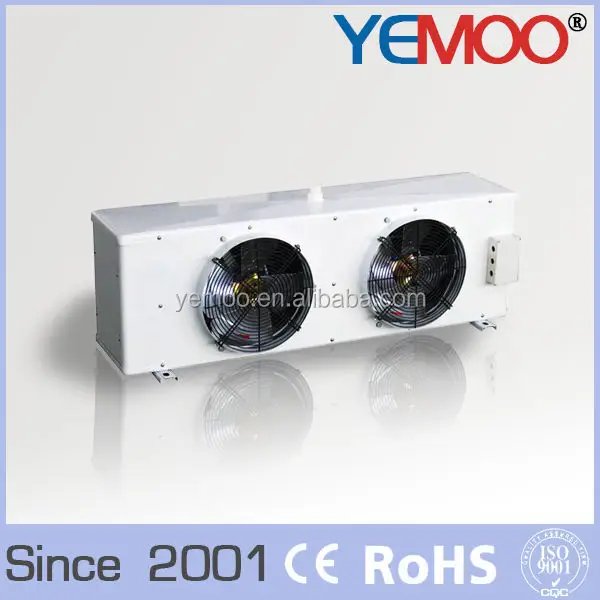

Air cooler condenser evaporator For Cold Room
DL DD DJ series for your choice
DL : High temperature
DD : Medium temperature
DJ : Low temperature

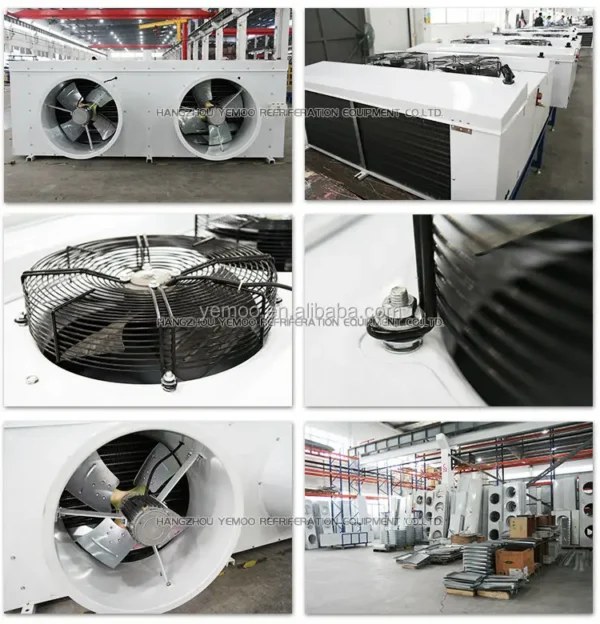

Characteristics
1.Scientific structure, high efficient, frost steadily, save power and low running cost;
2. Equip with axial fan quiet models that offer strong air flow in long shot rang; save power, long service life;
3. Copper pipe thickness can reach to 0.6mm, which lead to perfect tightness between pipe and fin after expansion processing;
4. Equip with stainless electric heater in high insulating property, defrost efficiently in shot time;
5.The heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.
6.Aluminum and painted stain board, to meet your different needs.
Sphere of application
High temperature type: (cold room temperature 12~-2oC)fin space:4.5mm;
Medium temperature type: (cold room temperature-2~-10 oC) fin space:6.0mm;
Low temperature type: (cold room temperature-10~-31 oC)fin space:9.0mm;
Attention of model selection
When the cold-room temperature is aroud 0 oC, select 8 oC to be the difference between compressor evaporating temperature and cold-room temperature.
when the cold-room temperature is aroud -18 oC select 7 oC to be the difference between compressor evaporating temperature and cold-room temperature.
when the cold-room temperature is aroud -25 oC, select 6 oC to be the difference between compressor evaporating temperature and cold-room temperature.
According to selected evaporating temperature, compressor’s capacity = the cold-room loading × 1.15.
air cooler condenser evaporator
| Model | Ref. capacity(KW) | Cooling surface (m2) | Fan | Defrost heater | Remark | |||||||
| Qty | Diameter Φ(mm) | Air flow (m2/h) | Air pressure (pa) | Shot range (m) | Power (W) | Coil (kW/PC) | Drip pan (kW) | Voltage (V) | ||||
| DJ-008B | 1.2 | 8 | 2 | 300 | 2×2118 | 90 | 10 | 2×145 | 0.36×4 | 0.36×2 | 380 | Water-defrosting type and customized are optional |
| DJ-010B | 1.5 | 10 | 2 | 300 | 2×2118 | 90 | 10 | 2×145 | 0.41×4 | 0.41×2 | 380 | |
| DJ-015B | 2.3 | 15 | 2 | 350 | 2×2290 | 90 | 10 | 2×140 | 0.58×4 | 0.58×2 | 380 | |
| DJ-020B | 3.3 | 20 | 2 | 350 | 2×2290 | 90 | 10 | 2×140 | 0.49×6 | 0.49×2 | 380 | |
| DJ-030B | 4.8 | 30 | 2 | 400 | 2×3400 | 90 | 13 | 2×180 | 0.51×8 | 0.51×2 | 380 | |
| DJ-040B | 7.1 | 40 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 0.61×8 | 0.61×2 | 380 | |
| DJ-055B | 8.9 | 55 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 0.81×8 | 0.81×2 | 380 | |
| DJ-070B | 11.5 | 70 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 0.83×9 | 0.83×3 | 380 | |
| DJ-085B | 14.3 | 85 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 1.0×9 | 1.0×3 | 380 | |
| DJ-100B | 17.1 | 100 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 1.1×9 | 1.1×3 | 380 | |
| DJ-115B | 19.6 | 115 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 1.1×11 | 1.1×3 | 380 | |
| DJ-140B | 23.8 | 140 | 3 | 550 | 3×8720 | 90 | 15 | 3×600 | 1.2×13 | 1.2×3 | 380 | Axial fan |
| DJ-170B | 29.8 | 170 | 4 | 550 | 4×8720 | 90 | 15 | 4×600 | 1.1×15 | 1.1×3 | 380 | |
| DJ-210B | 35.7 | 210 | 4 | 600 | 4×10820 | 120 | 15 | 4×780 | 1.3×15 | 1.3×3 | 380 | |
| Remark | Cold room temp. -25°C ; t=6°C | |||||||||||
air cooler condenser evaporator
air cooler condenser evaporator
| Model | L | W | H | Installation size | Water tube (inch) | Connecting tube Φ(mm) | Weight (kg) | ||||||
| B | T | H | L | E1 | E2 | E3 | E4 | F | Inlet | Outlet | |||
| DL-160 | 2750 | 570 | 670 | 530 | 2440 | 813 | 813 | / | 130 | 1.5 | 22 | 50 | 179 |
| DD-120 | 178 | ||||||||||||
| DJ-085 | 177 | ||||||||||||
| DL-185 | 3000 | 570 | 670 | 530 | 2688 | 672 | 672 | 672 | 130 | 1.5 | 25 | 50 | 214 |
| DD-140 | 213 | ||||||||||||
| DJ-100 | 212 | ||||||||||||
| DL-210 | 2900 | 570 | 670 | 530 | 2588 | 647 | 647 | 647 | 130 | 1.5 | 25 | 50 | 225 |
| DD-160 | 224 | ||||||||||||
| DJ-115 | 223 | ||||||||||||
| DL-260 | 3200 | 620 | 770 | 570 | 2889 | 963 | 963 | / | 130 | 1.5 | 25 | 50 | 261 |
| DD-200 | 260 | ||||||||||||
| DJ-140 | 258 | ||||||||||||
| DL-330 | 3000 | 720 | 770 | 690 | 2700 | 675 | 675 | 675 | 125 | 2 | 25 | 50 | 320 |
| DD-250 | 317 | ||||||||||||
| DJ-170 | 315 | ||||||||||||
| DL-400 | 3400 | 720 | 770 | 690 | 3100 | 775 | 775 | 775 | 125 | 2 | 25 | 54 | 360 |
| DD-300 | 359 | ||||||||||||
| DJ-210 | 357 | ||||||||||||
1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.
2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.
3.We firmly believe quality first,perfect production responsibility system.
4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.
So,what Yemoo can support you ? It’s best price ratio products,perfect after-sales service guarantee.
Yemoo’s value is what we supply you is not only products,but also creating you most value.
Ordering and Pricing
- Minimum order quantity: 2 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the evaporative air cooler be supplied for my local voltage?
The standard configuration is 380V-420V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
