Evaporative air cooler — material Galvanized Steel Sheet, type Fan Coil Unit. The complete factory specification follows. Made by Shanghai Shenglin M&E Technology Co., Ltd. (17 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Evaporative Air Cooler
- Operating Voltage: 380/400 VAC
- Airflow: Other
- Material: Galvanized Steel Sheet
- Fin Material: Auminum Foil
- Tube Material: Copper tube
- Warranty: 1 Year
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Airflow | Other |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Ceiling Mount |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 5 KG |
| Brand Name | Shenglin |
| Dimension(L*W*H) | customized |
| Application | Factory, building, school, hospital etc |
| Function | Cooling and heating |

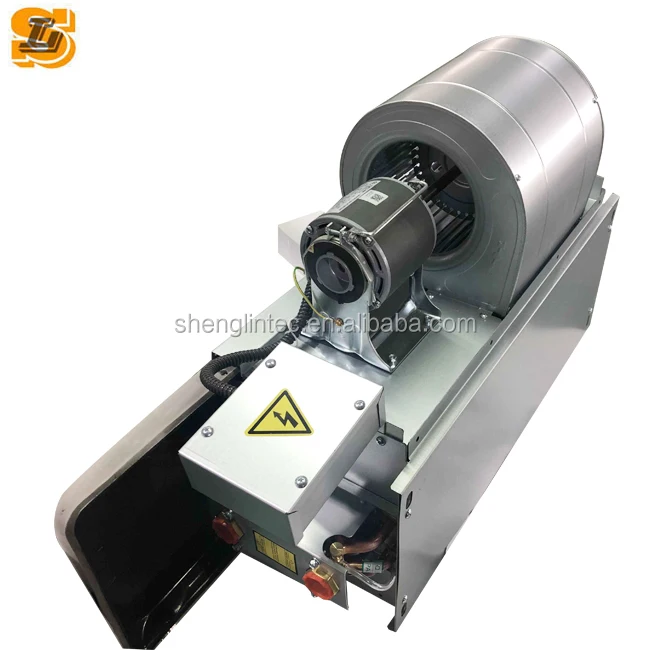

| Fan Type | Centrifugal Fan |
| Noise | 54dB(A) |
| Material | Galvanized Steel Sheet |
| Fin Material | Auminum Foil |
| Tube Material | Copper tube |
| Selling Units | Single item |
| Single Package Size | 55X55X55 cm |
| Single Gross Weight | 11.0 kg |
Product Details

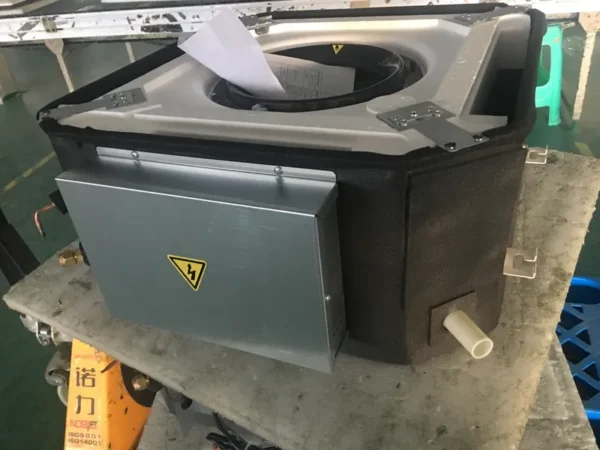

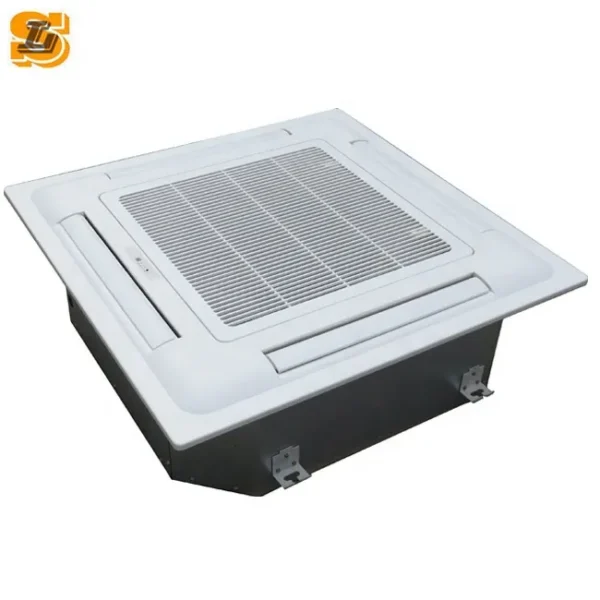

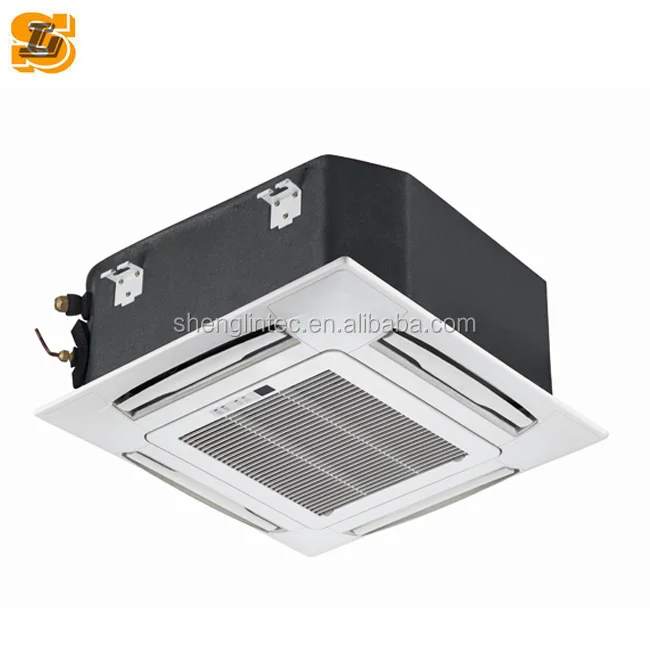

| PERFORMANCE OF "M" STYLE CASSETTE TYPE FAN COIL(4-WAY,2TUBE)—DRAINED BY WATER PUMP | ||||||||||||
| model(2 tube system) | MFP-34KM-(Q)MK1 | MFP-51KM-(Q)MK1 | MFP-68KM-(Q)MK1 | MFP-85KM-(Q)MK2 | MFP-102KM-(Q)MK2 | MFP-136KM-(Q)MK3 | MFP-170KM-(Q)MK3 | MFP-204KM-(Q)MK3 | MFP-238KM-(Q)MK3 | |||
| model | FP-34KM-(Q)M1 | FP-51KM-(Q)M1 | FP-68KM-(Q)M1 | FP-85KM-(Q)M2 | FP-102KM-(Q)M2 | FP-136KM-(Q)M3 | FP-170KM-(Q)M3 | FP-204KM-(Q)M3 | FP-238KM-(Q)M3 | |||
| model of panel | MB-SD11K1 | MB-SD11K2 | MB-SD11K3 | |||||||||
| power supply | 220V,50Hz,1Ph | |||||||||||
| air volume | H | m3/h | 380 | 550 | 680 | 880 | 1050 | 1380 | 1750 | 2050 | 2200 | |
| M | 300 | 440 | 540 | 700 | 840 | 1100 | 1400 | 1640 | 1760 | |||
| L | 230 | 330 | 410 | 530 | 630 | 830 | 1050 | 1230 | 1320 | |||
| static pressure | Pa | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||
| cooling capacity | TH | H | W | 2000 | 3000 | 3800 | 4900 | 5800 | 7500 | 9800 | 11000 | 12000 |
| BTU/h | 6824 | 10236 | 12966 | 16719 | 19790 | 25590 | 33438 | 37532 | 40944 | |||
| SH | W | 1400 | 2200 | 2850 | 3500 | 4250 | 5500 | 7150 | 8250 | 9100 | ||
| BTU/h | 4777 | 7506 | 9724 | 11942 | 14501 | 18766 | 24396 | 28149 | 31049 | |||
| TH | M | W | 1700 | 2550 | 3250 | 4150 | 4950 | 6400 | 8350 | 9350 | 10200 | |
| SH | W | 1150 | 1800 | 2350 | 2850 | 3500 | 4550 | 5950 | 6850 | 7650 | ||
| TH | L | W | 1400 | 2050 | 2600 | 3400 | 4000 | 5200 | 6750 | 7600 | 8300 | |
| SH | W | 950 | 1400 | 1850 | 2300 | 2800 | 3600 | 4700 | 5450 | 6000 | ||
| heating capacity | H | W | 3100 | 4700 | 5900 | 7600 | 9000 | 11600 | 15200 | 17100 | 18600 | |
| M | W | 2650 | 4000 | 5000 | 6450 | 7650 | 9850 | 12900 | 14550 | 15800 | ||
| L | W | 2100 | 3150 | 3950 | 5100 | 6050 | 7750 | 10200 | 11450 | 12450 | ||
| noise | H | 0Pa | dB(A) | 39 | 42 | 44 | 42 | 46 | 46 | 47 | 50 | 51 |
| power input | H | 0Pa | W | 40 | 50 | 58 | 70 | 95 | 130 | 160 | 190 | 210 |
| waterflow volume | m3/h | 0.34 | 0.51 | 0.65 | 0.83 | 0.99 | 1.28 | 1.67 | 1.87 | 2.04 | ||
| water pressure dropping | kPa | 11 | 13 | 22 | 18 | 25 | 23 | 28 | 33 | 42 | ||
| dimension of water(in & out) connection pipe | in | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||
| out | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||
| coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil | ||||||||||
| dimension of water drain pipe | mm | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | |||
| net dimension | unit | L×W×H mm | 592*592*242 | 750*750*242 | 840*840*242 | 840*840*292 | ||||||
| panel | 650*650*40 | 850*850*40 | 950*950*40 | 950*950*40 | ||||||||
| net weight | unit | kg | 17 | 18 | 18 | 22 | 23 | 25 | 26 | 27 | 27 | |
| panel | 2.2 | 4.2 | 5 | |||||||||
For further information please contact me
Ms. Alina Shi
Email: sales4 @ shenglintec.com
Mob/Whatsapp: +86 18321717548
Skype: sales4shenglintec.com
Tel: +86 21 35324169-207
Fax: +86 21 35324166
Website: www.shenglin-tech.com
Ordering and Pricing
- Minimum order quantity: 10 unit
- Volume pricing:
- 10+ unit: US $200 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 10 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the evaporative air cooler be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Shenglin M&E Technology Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Shenglin M&E Technology Co., Ltd. range on HVACR Nexus.
See more in Fan Coil Units on HVACR Nexus.
