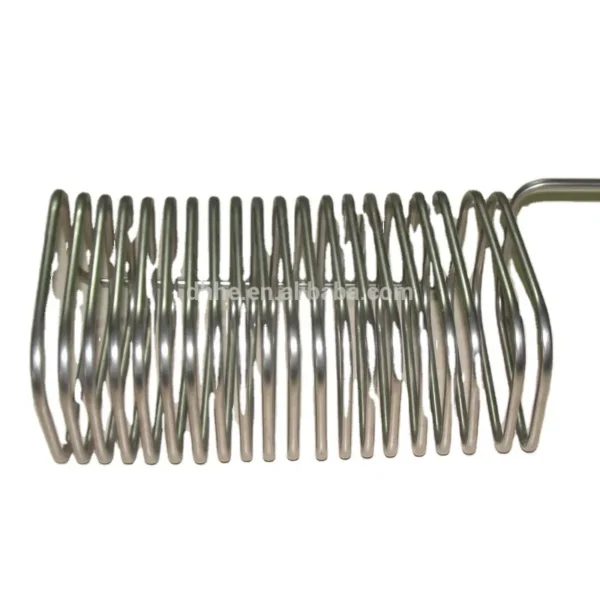

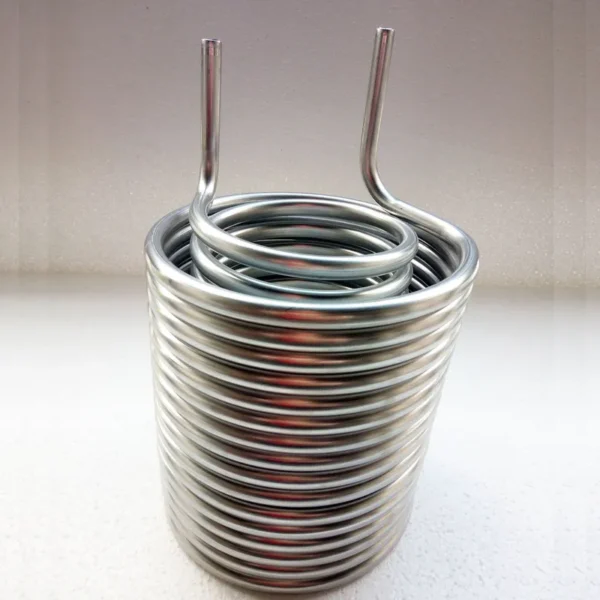

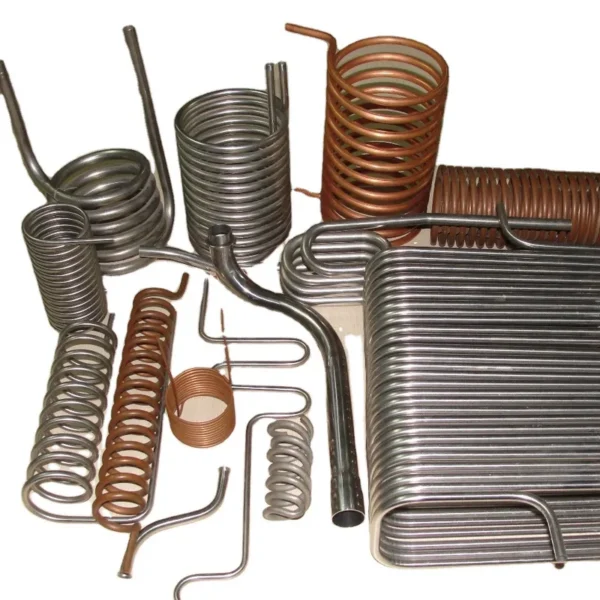

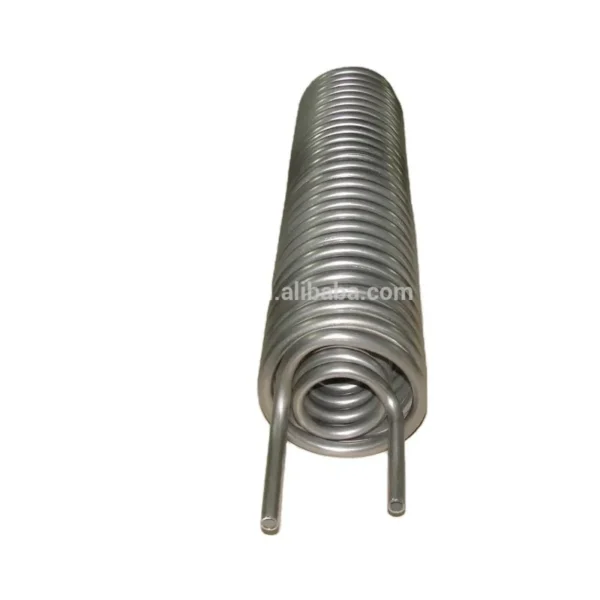

Evaporator, Copper

 We make professional evaporator coils and condensor coils for refrigerators and heat exchangers application. The tubing coils are widely used for food processing industry, solar energy system and different type of heat recovery application.

We can fabricate the parts according to your requirement or design.

Other than the tube bending service, we can also provide data analysis for the heat transferring situation to assist the optimization of the performance of the applied parts in your system.



OUTSTANDING FEATURES AND ADVANTAGE:

1. We execute ISO9001 fully in the company. Besides the Quality System, we use advance quality controlling tools for our quality management and development, like APQP and SPC. You can be reassured that all of the output are meeting the standards and stable in the quality.

All the double tube condensers are performed testing before delivery. There is a dimensions report , material report and leakage testing report to send you before shipment.



2. With our advanced bending technology the bending and winding dimensions are precise to the drawings. The bending diameter lose is small for the double tube condenser.The least tube ovality the tube coils provide the minimum pressure drop to the flow inside the condenser.



3. For the round double tube condenser service, both the coils' diameters and the pitches can be fixed or variable. This allows you to optimize the heat transferring allocation to your system and increase the heat transferring efficiency.



4. Different types of tube ends forming available, like beads, expansion, flaring, reduction/swage and thread cutting directly to the inlet/outlet of the tube bending parts, or welding with a fitting.



5. We also provide metalworking service like laser cutting and stamping, welding and assembly service for the double tube condenser and its enclosure. For stainless steel material, passivation treatment is available with Salt Spray Testing Report before delivery.



6. Independent tooling design and fabrication ability is providing you the advantage of fast prototype, flexibility of your design changes, and tooling cost saving.



7. We have different type of bending machines and fixtures to meet different type of production scales, from tens of pieces to 100k pieces per month. With our tooling and technology and ability we can customize the special lines with the CNC bending machines and a series of semi-automatic bending machines for the high volume commands of double tube condenser services.



FACTORY EQUIPMENT LIST:

NO.	EQUIPMENT	QUANTITY	APPLICATION
1	CNC Tube bending machines	3	tube bending
2	CNC Tube coiling machines	5	tube coiling
3	Sami-automatic bending machines	6	tube bending
4	Sami-automatic coiling machines	8	tube coiling
5	Tube end forming machines	3	flaring,swaging,expansing,beading,threading
6	Tube Cutters	3	tube cutting
7	Welding machines	5	welding for fittings and tanks
8	Ultrasonic cleaner	1	cleaning and passivation
9	Projector Measuring Machine	1	samples inspection
10	Pneumatic Testing Station	1	Leakage Testing
11	Hydraulic Testing Station	1	Leakage Testing
12	Salt Spray Testing Chamber	1	Surface Corrosion Testing





QUALITY CONTROLLING:

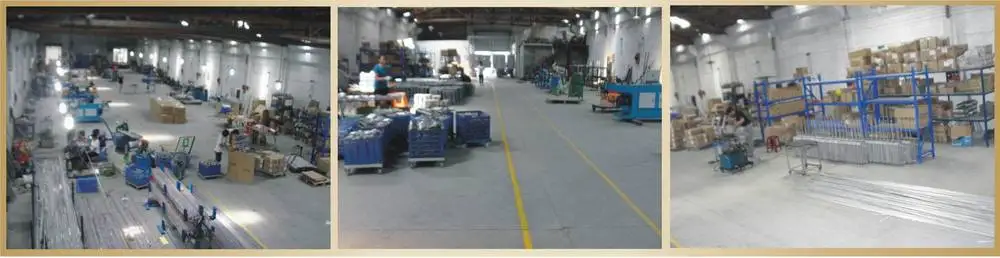

OUR FACILITIES:

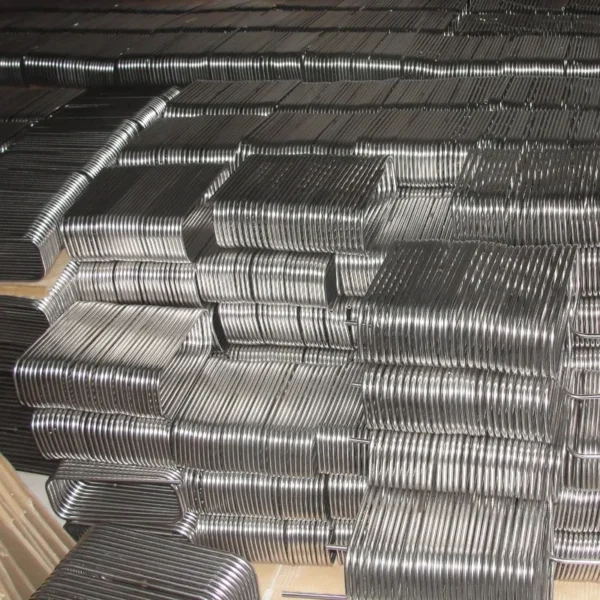

PACKAGING AND STORAGE OF OUR PARTS:
